◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-57 - EMISSION PIPING ▶
0-57 — EMISSION PIPING (#41288) — 321 parça

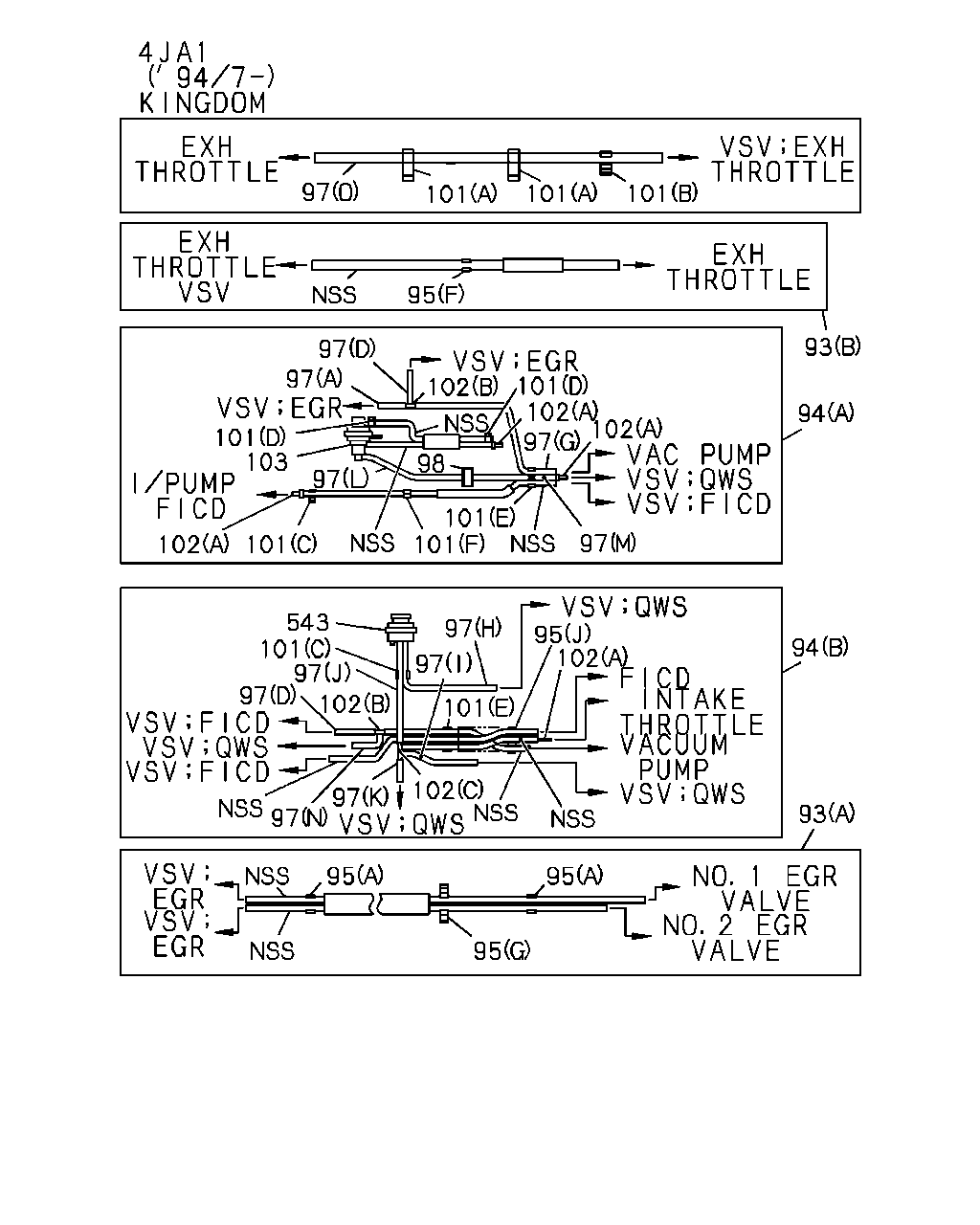

çizim 16442
97 101 101 101 95 97 97 101 102 101 98 97 102 101 101 101 97 97 102 93 94 94 93 102 97 95 97 101 543 101 97 97 102 97 102 97 95 95 95 103
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
93 03.675 HOSE ASM
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97106-961-0 01 1 9407- ●
93 03.675 HOSE ASM
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97109-017-0 01 1 9407- ●
94 03.675 HOSE ASM
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97107-054-1 01 1 9407-9505 ●
94 03.675 HOSE ASM
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97131-586-0 01 1 9506- ●
94 03.675 HOSE ASM
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97109-018-0 01 1 9407- ●
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.162 (A) ID=6.8X2 		8-94126-636-0 03 1 9210-9406 ●
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.162 (A) ID=6.8X2 		8-94126-636-0 02 1 9407- ●
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 02.251 (D) 4XID=6.8 		8-94132-799-0 01 1 9210-9406 ●
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) (F) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 02 1 9210-9406 ●
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.162 (F) ID=13.2 & 7.5 		8-94315-426-0 01 1 9407- ●
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 04.128 (E) ID=14.5 & 7.5 		8-94315-424-0 02 1 9210-9406 ●
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) (B) 4XID=7 		8-94368-497-0 01 1 9210-9406 ●
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) (G) ID=14.5 & 7X4 		8-94368-499-0 01 1 9210- ●
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) (C) ID=20 & 7X4 		8-94368-500-0 01 1 9210-9406 ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=70 SERVICED BY L=3000 		0-04730-300-0 01 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (D) L=50 SERVICED BY L=3000 		0-04731-300-0 02 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (G) L=190 SERVICED BY L=3000 		0-04732-300-0 01 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (H) L=210 SERVICED BY L=3000 		0-04732-300-0 01 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 03.680 (I) L=90 SERVICED BY L=3000 		0-04733-300-0 01 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 03.163 (J) L=130 SERVICED BY L=3000 		0-04734-300-0 02 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 03.163 (K) L=30 SERVICED BY L=3000 		0-04734-300-0 01 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 03.163 (L) L=110 SERVICED BY L=3000 		0-04734-300-0 01 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (N) L=40 SERVICED BY L=3000 		0-04735-300-0 01 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (O) L=590 SERVICED BY L=3000 		0-04740-300-0 01 1 9407-9407 ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (O) L=610 SERVICED BY L=3000 		0-04740-300-0 01 1 9407- ●
98 03.670 VALVE; DELAY
UNITED KINGDOM EQUIPMENT(EK3) 03.415 PINK 		8-94145-108-0 01 1 9407-9505 ●
98 03.670 VALVE; DELAY
UNITED KINGDOM EQUIPMENT(EK3) 02.408 		8-94242-412-0 01 1 9506- ●
101 03.675 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9407- ●
101 03.675 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.162 (C) ID=6.8X2 		8-94126-636-0 02 1 9407- ●
101 03.675 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.680 (D) ID=7 		8-94208-596-0 02 1 9407- ●
101 03.675 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.680 (E) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 03 1 9407- ●
101 03.675 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.162 (F) ID=13.2 & 7.5 		8-94315-426-0 01 1 9407- ●
101 03.675 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 04.686 (A) ID=6.3 & 4.5 		8-94425-589-0 02 1 9407- ●
102 03.680 JOINT; HOSE
UNITED KINGDOM EQUIPMENT(EK3) (B) 3WAY 		8-94208-695-0 02 1 9407- ●
102 03.680 JOINT; HOSE
UNITED KINGDOM EQUIPMENT(EK3) (A) 2WAY 		8-94313-805-0 04 1 9407- ●
102 03.680 JOINT; HOSE
UNITED KINGDOM EQUIPMENT(EK3) (C) 4WAY 		8-94429-994-0 01 1 9407- ●
103 03.670 VALVE; VAC CONT
UNITED KINGDOM EQUIPMENT(EK3) 		8-94436-201-0 01 1 9407- ●
543 03.670 VALVE; VAC REGULATING
UNITED KINGDOM EQUIPMENT(EK3) 		8-94111-775-0 01 1 9407- ●

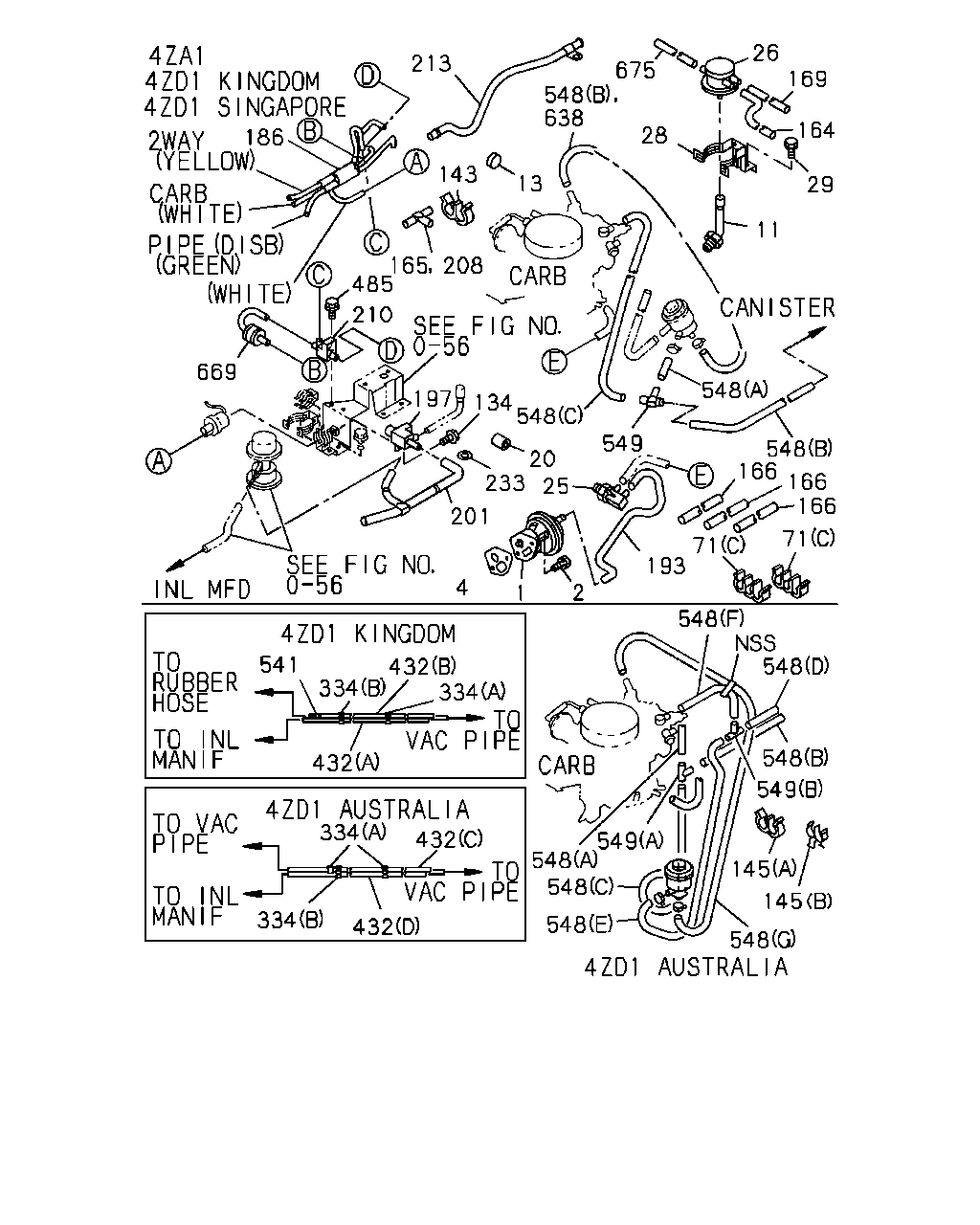

çizim 17544
186 213 143 165 485 208 210 669 197 134 233 201 25 20 548 13 638 548 675 28 26 169 164 29 548 548 166 166 166 193 71 71 2 4 549 11 1 541 334 334 432 432 334 432 432 334 548 548 548 548 549 145 549 145 548 548 548
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.670 VALVE; EGR
SINGAPORE EQUIPMENT(S9Y) 		8-94236-925-0 01 1 9210-9403 ●
1 03.670 VALVE; EGR
SINGAPORE EQUIPMENT(S9Y) 		8-94248-646-0 01 1 9403- ●
1 03.670 VALVE; EGR
UNITED KINGDOM EQUIPMENT(EK3) 		8-94122-478-0 01 1 9210-9406 ●
1 03.670 VALVE; EGR
UNITED KINGDOM EQUIPMENT(EK3) 		8-97043-021-5 02 1 9407- ●
2 03.670 BOLT; EGR VLV
SINGAPORE EQUIPMENT(S9Y) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9210-9402 ●
2 03.670 BOLT; EGR VLV
UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9210-9402 ●
2 03.670 BOLT; EGR VLV
SINGAPORE EQUIPMENT(S9Y) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9403-9403 ●
2 03.670 BOLT; EGR VLV
UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9403-9403 ●
2 03.670 BOLT; EGR VLV
UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9404-9406 ●
2 03.670 BOLT; EGR VLV
SINGAPORE EQUIPMENT(S9Y) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9407- ●
2 03.670 BOLT; EGR VLV
UNITED KINGDOM EQUIPMENT(EK3) 03.706 M8X40 W/LK WASHER 		0-50040-840-0 04 1 9407-9606 ●
2 03.670 BOLT; EGR VLV
UNITED KINGDOM EQUIPMENT(EK3) 01.271 M8X40 FLANGE 		0-28080-840-0 04 1 9607- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94324-191-0 01 1 9210- ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94334-338-0 02 1 9407- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94379-754-0 01 1 9407- ●
11 03.675 PIPE ASM; BPT SIGNAL
UNITED KINGDOM EQUIPMENT(EK3) 03.670 		8-94153-177-0 01 1 9210-9406 ●
13 03.675 ORIFICE; ADAPTER
UNITED KINGDOM EQUIPMENT(EK3) 		8-94213-712-0 01 1 9210-9406 ●
20 01.780 CAP; RUBBER
ID=4 		8-94217-809-0 01 1 9210-9401 ●
20 01.780 CAP; RUBBER
EXC. UNITED KINGDOM EQUIPMENT(EK3) ID=4 		8-94217-809-0 01 1 9210-9401 ●
20 01.780 CAP; RUBBER
EXC. AUSTRALIA EQUIPMENT(RR3) ID=4 		8-94217-809-0 01 1 9210-9401 ●
20 01.780 CAP; RUBBER
ID=4 		8-94217-809-0 01 1 9402- ● ●
20 01.780 CAP; RUBBER
EXC. AUSTRALIA EQUIPMENT(RR3) ID=4 		8-94217-809-0 01 1 9402- ●
25 03.670 VALVE; THERMAL VAC
SINGAPORE EQUIPMENT(S9Y) 03.681 		8-94213-554-0 01 1 9210-9403 ●
25 03.670 VALVE; THERMAL VAC
UNITED KINGDOM EQUIPMENT(EK3) 03.681 		8-94213-554-0 01 1 9210-9403 ●
25 03.670 VALVE; THERMAL VAC
UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 03.681 		8-94213-554-0 01 1 9404-9406 ●
25 03.670 VALVE; THERMAL VAC
SINGAPORE EQUIPMENT(S9Y) 03.681 		8-94213-554-0 01 1 9407- ●
26 03.670 TRANSDUCER; BACK PRESSURE
UNITED KINGDOM EQUIPMENT(EK3) 		8-94414-615-0 01 1 9210-9406 ●
28 03.680 BRACKET; TRANSDUCER
UNITED KINGDOM EQUIPMENT(EK3) 		8-94174-510-1 01 1 9210-9406 ●
29 03.444 BOLT; BPT BRKT
UNITED KINGDOM EQUIPMENT(EK3) M8X14 W/LK WASHERT 		8-94208-228-0 01 1 9210-9406 ●
71 03.680 CLIP; RUBBER HOSE
UNITED KINGDOM EQUIPMENT(EK3) (C) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 02 1 9210-9406 ●
71 03.680 CLIP; RUBBER HOSE
AUSTRALIA EQUIPMENT(RR3) 03.162 (F) ID=13.2 & 7.5 		8-94315-426-0 01 1 9210- ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) 08.852 (E) ID=8 & 23 		5-09707-002-0 02 1 9210- ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) (B) ID=7.2 & 10 		5-09707-056-0 01 1 9210- ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (C) ID=6.8X2 		8-94126-636-0 01 1 9210- ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) (D) ID=8 		8-94154-795-0 01 1 9210- ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) 02.559 (E) ID=8 & 16 		8-94165-407-0 01 1 9210-9401 ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) 08.852 (E) ID=8 & 16 		5-09707-032-0 01 1 9402- ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) 09.663 (A) ID=15 		1-09709-003-0 01 1 9210- ●
134 03.671 BOLT; VSV
UNITED KINGDOM EQUIPMENT(EK3) 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9210-9406 ●
134 03.671 BOLT; VSV
AIR CON(C60),COOLER WO/HEATER(YL1) 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9210-9308 ●
134 03.671 BOLT; VSV
AIR CON(C60),COOLER WO/HEATER(YL1) 04.686 M6X14 FLANGE 		0-28080-614-0 01 1 9210-9308 ● ●
134 03.671 BOLT; VSV
AIR CON(C60),COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 04.686 M6X14 FLANGE 		0-28080-614-0 01 1 9309- ● ●
143 03.675 CLIP; RUBBER HOSE
AUSTRALIA EQUIPMENT(RR3) 03.374 		8-94381-276-0 01 1 9210-9308 ●
145 03.670 CLIP; RUBBER HOSE
SINGAPORE EQUIPMENT(S9Y) 03.162 (A) ID=6.8X2 		8-94126-636-0 01 1 9210-9403 ●
145 03.670 CLIP; RUBBER HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.162 (A) ID=6.8X2 		8-94126-636-0 01 1 9210-9403 ●
145 03.670 CLIP; RUBBER HOSE
UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 03.162 (A) ID=6.8X2 		8-94126-636-0 01 1 9404-9406 ●
145 03.670 CLIP; RUBBER HOSE
SINGAPORE EQUIPMENT(S9Y) 03.162 (A) ID=6.8X2 		8-94126-636-0 01 1 9407- ●
145 03.670 CLIP; RUBBER HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.671 (B) ID=6.8 & 6.8 		8-94208-733-0 01 1 9210-9406 ●
164 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=80 SERVICED BY L=3000 		0-04740-300-0 02 1 9210-9406 ●
165 03.680 JOINT; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 3WAY 		8-94165-537-0 01 1 9210-9406 ●
166 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=470 SERVICED BY L=3000 		0-04740-300-0 01 1 9210-9406 ●
166 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=490 SERVICED BY L=3000 		0-04744-300-0 01 1 9210-9406 ●
166 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=390 SERVICED BY L=3000 		0-04745-300-0 01 1 9210-9406 ●
169 03.675 HOSE; RUBBER,CARB TO BPT
UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=240 SERVICED BY L=3000 		0-04744-300-0 01 1 9210-9406 ●
186 03.675 HOSE; RUBBER,VSV
UNITED KINGDOM EQUIPMENT(EK3) 		8-97077-735-1 01 1 9210-9406 ●
193 03.675 HOSE; TVV TO EGR VLV
SINGAPORE EQUIPMENT(S9Y) 08.962 L=190 SERVICED BY L=3000 		0-04744-300-0 01 1 9210-9403 ●
193 03.675 HOSE; TVV TO EGR VLV
SINGAPORE EQUIPMENT(S9Y) 08.962 L=190 SERVICED BY L=3000 		0-04744-300-0 01 1 9404- ●
197 03.670 VALVE; VAC SWITCHING
UNITED KINGDOM EQUIPMENT(EK3) 		8-94344-492-0 01 1 9210-9406 ●
201 03.675 HOSE; VSV
UNITED KINGDOM EQUIPMENT(EK3) 		8-97031-284-0 01 1 9210-9406 ●
208 03.680 JOINT; 3 WAY,VCV
UNITED KINGDOM EQUIPMENT(EK3) 3WAY 		8-94165-537-0 01 1 9210-9406 ●
210 03.670 VALVE; VAC SWITCHING,IGN
UNITED KINGDOM EQUIPMENT(EK3) 		8-94366-693-1 01 1 9210-9406 ●
213 03.675 PIPE; ABV SIGNAL
SINGAPORE EQUIPMENT(S9Y) 10.230 		8-94344-984-1 01 1 9210-9403 ●
213 03.675 PIPE; ABV SIGNAL
SINGAPORE EQUIPMENT(S9Y) 10.230 		8-94344-984-1 01 1 9404- ●
213 03.675 PIPE; ABV SIGNAL
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97077-734-1 01 1 9210-9406 ●
233 03.671 WASHER; PL,VAC SW VLV
UNITED KINGDOM EQUIPMENT(EK3) 16.716 ID=8.4 OD=18 		9-09160-608-0 01 1 9210-9406 ●
334 03.162 CLIP; HOSE,VAC SIGNAL
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A) ID=6.8X2 		8-94126-636-0 01 1 9210-9308 ●
334 03.162 CLIP; HOSE,VAC SIGNAL
UNITED KINGDOM EQUIPMENT(EK3) (A) ID=6.8X2 		8-94126-636-0 01 1 9309-9406 ●
334 03.162 CLIP; HOSE,VAC SIGNAL
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.163 (B) 		8-97039-188-0 01 1 9210-9406 ●
432 03.163 HOSE; RUBBER,VAC SIGNAL
AUSTRALIA EQUIPMENT(RR3) 08.962 (C) L=375 SERVICED BY L=3000 		0-04742-300-0 01 1 9210-9308 ●
432 03.163 HOSE; RUBBER,VAC SIGNAL
AUSTRALIA EQUIPMENT(RR3) 08.962 (D) L=365 SERVICED BY L=3000 		0-04743-300-0 01 1 9210-9308 ●
432 03.163 HOSE; RUBBER,VAC SIGNAL
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=395 SERVICED BY L=3000 		0-04740-300-0 01 1 9210-9406 ●
432 03.163 HOSE; RUBBER,VAC SIGNAL
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (B) L=335 SERVICED BY L=3000 		0-04742-300-0 01 1 9210-9406 ●
485 03.671 BOLT; VSV
UNITED KINGDOM EQUIPMENT(EK3) 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9210-9406 ●
485 03.671 BOLT; VSV
UNITED KINGDOM EQUIPMENT(EK3) 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9407- ●
541 03.675 JOINT; RUBBER HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.302 2WAY 		8-94404-119-0 01 1 9210-9406 ●
548 03.675 HOSE; RUBBER,VENT VLV
AUSTRALIA EQUIPMENT(RR3) 08.962 (A) L=40 SERVICED BY L=3000 		0-04740-300-0 01 1 9210-9308 ●
548 03.675 HOSE; RUBBER,VENT VLV
AUSTRALIA EQUIPMENT(RR3) 08.962 (C) L=150 SERVICED BY L=3000 		0-04740-300-0 01 1 9210-9308 ●
548 03.675 HOSE; RUBBER,VENT VLV
AUSTRALIA EQUIPMENT(RR3) 08.962 (B) L=90 SERVICED BY L=3000 		0-04740-300-0 01 1 9210-9308 ●
548 03.675 HOSE; RUBBER,VENT VLV
AUSTRALIA EQUIPMENT(RR3) 08.962 (D) L=110 SERVICED BY L=3000 		0-04750-300-0 01 1 9210-9308 ●
548 03.675 HOSE; RUBBER,VENT VLV
AUSTRALIA EQUIPMENT(RR3) 08.962 (E) L=50 SERVICED BY L=3000 		0-04770-300-0 01 1 9210-9308 ●
548 03.675 HOSE; RUBBER,VENT VLV
AUSTRALIA EQUIPMENT(RR3) (F) 		8-97038-817-0 01 1 9210-9308 ●
548 03.675 HOSE; RUBBER,VENT VLV
AUSTRALIA EQUIPMENT(RR3) (G) 		8-97038-818-0 01 1 9210-9308 ●
548 03.675 HOSE; RUBBER,VENT VLV
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=50 SERVICED BY L=3000 		0-04750-300-0 01 1 9210-9406 ●
548 03.675 HOSE; RUBBER,VENT VLV
UNITED KINGDOM EQUIPMENT(EK3) 08.963 (B) L=160 SERVICED BY L=3000 		0-04751-300-0 01 1 9210-9406 ●
548 03.675 HOSE; RUBBER,VENT VLV
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (C) L=140 SERVICED BY L=3000 		0-04770-300-0 01 1 9210-9406 ●
549 03.675 JOINT; RUBBER HOSE
AUSTRALIA EQUIPMENT(RR3) 03.680 (A) 3WAY 		8-94165-537-0 01 1 9210-9308 ●
549 03.675 JOINT; RUBBER HOSE
AUSTRALIA EQUIPMENT(RR3) 03.163 (B) 		8-94403-124-0 01 1 9210-9308 ●
549 03.675 JOINT; RUBBER HOSE
UNITED KINGDOM EQUIPMENT(EK3) 		8-97043-531-0 01 1 9210-9406 ●
638 03.675 HOSE; CARB TO JOINT
03.726 		8-94372-343-1 01 1 9510- ●
638 03.675 HOSE; CARB TO JOINT
EXC. AUSTRALIA EQUIPMENT(RR3) 03.726 		8-94372-343-1 01 1 9510- ●
638 03.675 HOSE; CARB TO JOINT
SINGAPORE EQUIPMENT(S9Y) 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9510- ●
669 03.675 HOSE ASM; VSV & DELAY VLV
UNITED KINGDOM EQUIPMENT(EK3) 		8-97019-047-0 01 1 9210-9406 ●
675 03.675 HOSE; EPT TO EGR VLV
UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=120 SERVICED BY L=3000 		0-04740-300-0 01 1 9210-9406 ●
çizim 17840
265 285 219 221
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
219 03.670 RELAY; FUEL EVAP HTR
UNITED KINGDOM EQUIPMENT(EK3) 03.910 12V 20A 		8-94218-497-0 01 1 9210-9509 ●
221 03.670 RELAY; MAIN
AUSTRALIA EQUIPMENT(RR3) 02.510 BROWN 		8-94232-223-0 01 1 9210- ● ● ●
265 03.671 BOLT; ENG SPD SENSOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9210-9406 ● ● ●
265 03.671 BOLT; ENG SPD SENSOR
EXC. AUSTRALIA EQUIPMENT(RR3), SINGAPORE EQUIPMENT(S9Y) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9407- ● ● ●
285 03.901 BOLT; RELAY
UNITED KINGDOM EQUIPMENT(EK3) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9210-9404 ● ●

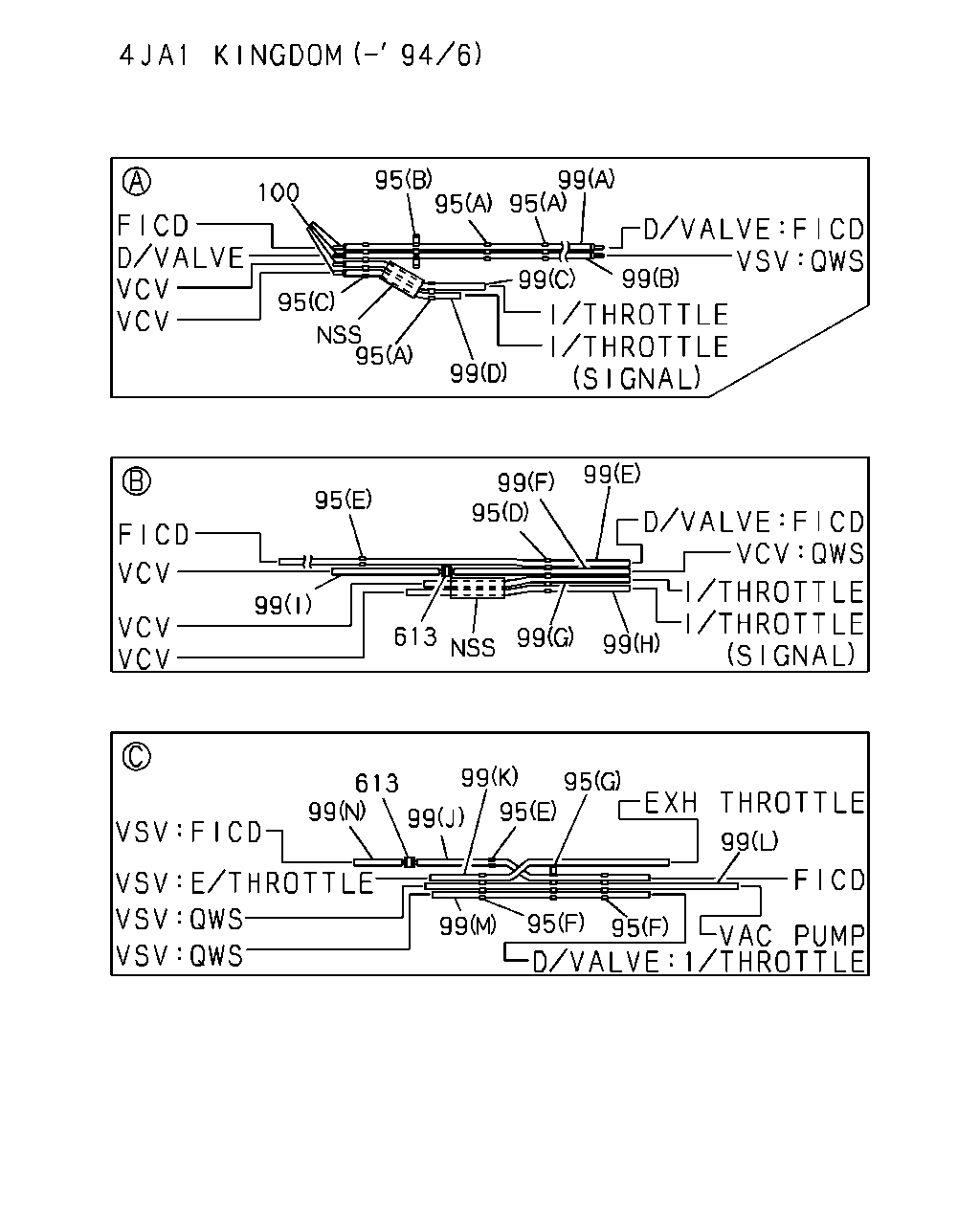

çizim 66285
100 95 95 95 99 99 95 95 99 99 99 99 95 95 99 613 99 99 99 99 613 99 95 95 99 95 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.162 (A) ID=6.8X2 		8-94126-636-0 03 1 9210-9406 ●
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.162 (A) ID=6.8X2 		8-94126-636-0 02 1 9407- ●
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 02.251 (D) 4XID=6.8 		8-94132-799-0 01 1 9210-9406 ●
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) (F) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 02 1 9210-9406 ●
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.162 (F) ID=13.2 & 7.5 		8-94315-426-0 01 1 9407- ●
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 04.128 (E) ID=14.5 & 7.5 		8-94315-424-0 02 1 9210-9406 ●
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) (B) 4XID=7 		8-94368-497-0 01 1 9210-9406 ●
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) (G) ID=14.5 & 7X4 		8-94368-499-0 01 1 9210- ●
95 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) (C) ID=20 & 7X4 		8-94368-500-0 01 1 9210-9406 ●
99 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (J) L=290 SERVICED BY L=3000 		0-04730-300-0 01 1 9210-9406 ●
99 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (E) L=500 SERVICED BY L=3000 		0-04730-300-0 01 1 9210-9406 ●
99 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=850 SERVICED BY L=3000 		0-04730-300-0 01 1 9210-9406 ●
99 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (N) L=110 SERVICED BY L=3000 		0-04731-300-0 01 1 9210-9308 ●
99 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (N) L=110 SERVICED BY L=3000 		0-04730-300-0 01 1 9309-9406 ●
99 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (G) L=230 SERVICED BY L=3000 		0-04731-300-0 01 1 9210-9406 ●
99 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (K) L=280 SERVICED BY L=3000 		0-04731-300-0 01 1 9210-9406 ●
99 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (C) L=350 SERVICED BY L=3000 		0-04731-300-0 01 1 9210-9406 ●
99 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 03.680 (D) L=240 SERVICED BY L=3000 		0-04733-300-0 01 1 9210-9406 ●
99 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 03.680 (H) L=260 SERVICED BY L=3000 		0-04733-300-0 01 1 9210-9406 ●
99 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 03.680 (L) L=450 SERVICED BY L=3000 		0-04733-300-0 01 1 9210-9406 ●
99 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 03.163 (I) L=110 SERVICED BY L=3000 		0-04734-300-0 01 1 9210-9406 ●
99 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 03.163 (F) L=210 SERVICED BY L=3000 		0-04734-300-0 01 1 9210-9406 ●
99 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 03.163 (M) L=230 SERVICED BY L=3000 		0-04734-300-0 01 1 9210-9406 ●
99 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 03.163 (B) L=850 SERVICED BY L=3000 		0-04734-300-0 01 1 9210-9406 ●
100 03.680 JOINT; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 2WAY 		8-94313-805-0 04 1 9210-9406 ●
613 03.670 VALVE; DELAY
UNITED KINGDOM EQUIPMENT(EK3) 03.415 PINK 		8-94145-108-0 01 1 9210-9406 ●
613 03.670 VALVE; DELAY
UNITED KINGDOM EQUIPMENT(EK3) DARK RED 		8-94414-509-0 01 1 9210-9406 ●
çizim 66646
205 157 177 133 226 262 228 115 117 116 118 140 140 45 7 5 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.670 ADAPTER ASM
SINGAPORE EQUIPMENT(S9Y) 03.671 		8-94150-147-0 01 1 9210-9403 ●
5 03.670 ADAPTER ASM
SINGAPORE EQUIPMENT(S9Y) 03.671 		8-94150-147-0 01 1 9404- ●
5 03.670 ADAPTER ASM
UNITED KINGDOM EQUIPMENT(EK3) 		8-94157-474-0 01 1 9210-9406 ●
5 03.670 ADAPTER ASM
UNITED KINGDOM EQUIPMENT(EK3) 		8-94379-755-2 01 1 9407-9407 ●
5 03.670 ADAPTER ASM
UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-260-0 01 1 9408- ●
7 03.670 GASKET; ADAPTER
SINGAPORE EQUIPMENT(S9Y) 		8-94324-192-0 01 1 9210-9402 ●
7 03.670 GASKET; ADAPTER
UNITED KINGDOM EQUIPMENT(EK3) 		8-94324-192-0 01 1 9210-9402 ●
7 03.670 GASKET; ADAPTER
SINGAPORE EQUIPMENT(S9Y) 		8-94324-192-0 01 1 9403-9403 ●
7 03.670 GASKET; ADAPTER
UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 		8-94324-192-0 01 1 9403-9403 ●
7 03.670 GASKET; ADAPTER
UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 		8-94324-192-0 01 1 9404-9406 ●
7 03.670 GASKET; ADAPTER
SINGAPORE EQUIPMENT(S9Y) 		8-94324-192-0 01 1 9407- ●
9 03.670 NUT; EGR ADAPTER
SINGAPORE EQUIPMENT(S9Y) 00.854 M8 FLANGE 		5-09440-005-0 02 1 9210-9403 ●
9 03.670 NUT; EGR ADAPTER
UNITED KINGDOM EQUIPMENT(EK3) 00.854 M8 FLANGE 		5-09440-005-0 02 1 9210-9403 ●
9 03.670 NUT; EGR ADAPTER
UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 00.854 M8 FLANGE 		5-09440-005-0 02 1 9404-9406 ●
9 03.670 NUT; EGR ADAPTER
SINGAPORE EQUIPMENT(S9Y) 00.854 M8 FLANGE 		5-09440-005-0 02 1 9407- ●
45 09.173 STUD; ADAPTER,EGR
SINGAPORE EQUIPMENT(S9Y) M8X22 L=34 		9-04110-822-0 02 1 9210-9403 ●
45 09.173 STUD; ADAPTER,EGR
UNITED KINGDOM EQUIPMENT(EK3) M8X22 L=34 		9-04110-822-0 02 1 9210-9403 ●
45 09.173 STUD; ADAPTER,EGR
UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) M8X22 L=34 		9-04110-822-0 02 1 9404-9406 ●
45 09.173 STUD; ADAPTER,EGR
SINGAPORE EQUIPMENT(S9Y) M8X22 L=34 		9-04110-822-0 02 1 9407- ●
115 01.073 BOLT; FAST IDLE SOLENOID
AIR CON(C60),COOLER WO/HEATER(YL1) 00.206 M6X14 W/LK WASHER 		0-50040-614-0 02 1 9210-9503 ● ● ●
116 03.444 BOLT; BRKT,FAST IDLE SOLENOID
AIR CON(C60),COOLER WO/HEATER(YL1) M8X14 W/LK WASHERT 		8-94208-228-0 02 1 9210- ● ● ●
117 03.444 BRACKET; FAST IDLE SOLENOID
AIR CON(C60),COOLER WO/HEATER(YL1) 		8-94146-261-0 01 1 9210-9503 ● ● ●
117 03.444 BRACKET; FAST IDLE SOLENOID
AIR CON(C60),COOLER WO/HEATER(YL1) 		8-94367-869-1 01 1 9504- ● ● ●
118 03.425 NUT; SOLENOID VLV
AIR CON(C60),COOLER WO/HEATER(YL1) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9504- ● ● ●
133 03.417 BOLT; VAC SWITCH
EXC. AUSTRALIA EQUIPMENT(RR3) 08.900 M6X14 W/LK&PL WASHER 		0-50140-614-0 01 1 9210- ● ●
140 03.680 CLIP; HOSE,CHECK VLV
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 01.097 (B) ID=11 		8-94238-925-0 01 1 9404-9406 ●
140 03.680 CLIP; HOSE,CHECK VLV
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.163 (A) ID=11 		8-94238-570-0 02 1 9210-9308 ● ●
140 03.680 CLIP; HOSE,CHECK VLV
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.163 (A) ID=11 		8-94238-570-0 01 1 9309-9406 ● ●
140 03.680 CLIP; HOSE,CHECK VLV
AUSTRALIA EQUIPMENT(RR3) 01.219 (B) ID=12 		8-94238-610-0 01 1 9309-9406 ●
157 03.130 FILTER; GAS
SINGAPORE EQUIPMENT(S9Y) 		8-94236-909-0 01 1 9210-9403 ●
157 03.130 FILTER; GAS
UNITED KINGDOM EQUIPMENT(EK3) 		8-94236-909-0 01 1 9210-9403 ●
157 03.130 FILTER; GAS
UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 		8-94236-909-0 01 1 9404-9406 ●
157 03.130 FILTER; GAS
SINGAPORE EQUIPMENT(S9Y) 		8-94236-909-0 01 1 9407- ●
177 03.675 HOSE; RUBBER,GAS FILTER
SINGAPORE EQUIPMENT(S9Y) 08.962 L=40 SERVICED BY L=3000 		0-04740-300-0 01 1 9210-9403 ●
177 03.675 HOSE; RUBBER,GAS FILTER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=40 SERVICED BY L=3000 		0-04740-300-0 01 1 9210-9403 ●
177 03.675 HOSE; RUBBER,GAS FILTER
UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 08.962 L=40 SERVICED BY L=3000 		0-04740-300-0 01 1 9404-9406 ●
177 03.675 HOSE; RUBBER,GAS FILTER
SINGAPORE EQUIPMENT(S9Y) 08.962 L=40 SERVICED BY L=3000 		0-04740-300-0 01 1 9407- ●
205 03.675 HOSE; VSV TO 3 WAY CONN
SINGAPORE EQUIPMENT(S9Y) 08.962 L=230 SERVICED BY L=3000 		0-04740-300-0 01 1 9210-9403 ●
205 03.675 HOSE; VSV TO 3 WAY CONN
SINGAPORE EQUIPMENT(S9Y) 08.962 L=230 SERVICED BY L=3000 		0-04740-300-0 01 1 9404- ●
205 03.675 HOSE; VSV TO 3 WAY CONN
EXC. SINGAPORE EQUIPMENT(S9Y) 08.962 L=170 SERVICED BY L=3000 		0-04742-300-0 01 1 9210-9403 ●
205 03.675 HOSE; VSV TO 3 WAY CONN
EXC. AUSTRALIA EQUIPMENT(RR3) 08.962 L=170 SERVICED BY L=3000 		0-04742-300-0 01 1 9210-9403 ●
205 03.675 HOSE; VSV TO 3 WAY CONN
08.962 L=170 SERVICED BY L=3000 		0-04742-300-0 01 1 9404- ●
205 03.675 HOSE; VSV TO 3 WAY CONN
EXC. AUSTRALIA EQUIPMENT(RR3) 08.962 L=170 SERVICED BY L=3000 		0-04742-300-0 01 1 9404- ●
226 03.670 SWITCH; VAC,EMISSION CONT
EXC. SINGAPORE EQUIPMENT(S9Y) 		8-97022-879-0 01 1 9210-9403 ●
226 03.670 SWITCH; VAC,EMISSION CONT
UNITED KINGDOM EQUIPMENT(EK3) 		8-97022-879-0 01 1 9210-9403 ●
226 03.670 SWITCH; VAC,EMISSION CONT
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97022-879-0 01 1 9210-9403 ●
226 03.670 SWITCH; VAC,EMISSION CONT 8-97022-879-0 01 1 9404-9406 ●
226 03.670 SWITCH; VAC,EMISSION CONT
UNITED KINGDOM EQUIPMENT(EK3) 		8-97022-879-0 01 1 9404-9406 ●
226 03.670 SWITCH; VAC,EMISSION CONT
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97022-879-0 01 1 9404-9406 ●
226 03.670 SWITCH; VAC,EMISSION CONT 8-97022-879-0 01 1 9407- ●
226 03.670 SWITCH; VAC,EMISSION CONT
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97022-879-0 01 1 9407- ●
228 03.440 VALVE; FAST IDLE SOLENOID
AIR CON(C60),COOLER WO/HEATER(YL1) 		5-81910-005-0 01 1 9210- ● ● ●
262 03.675 BRACKET; VAC SWITCH CONNECTOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94372-006-0 01 1 9210- ● ●

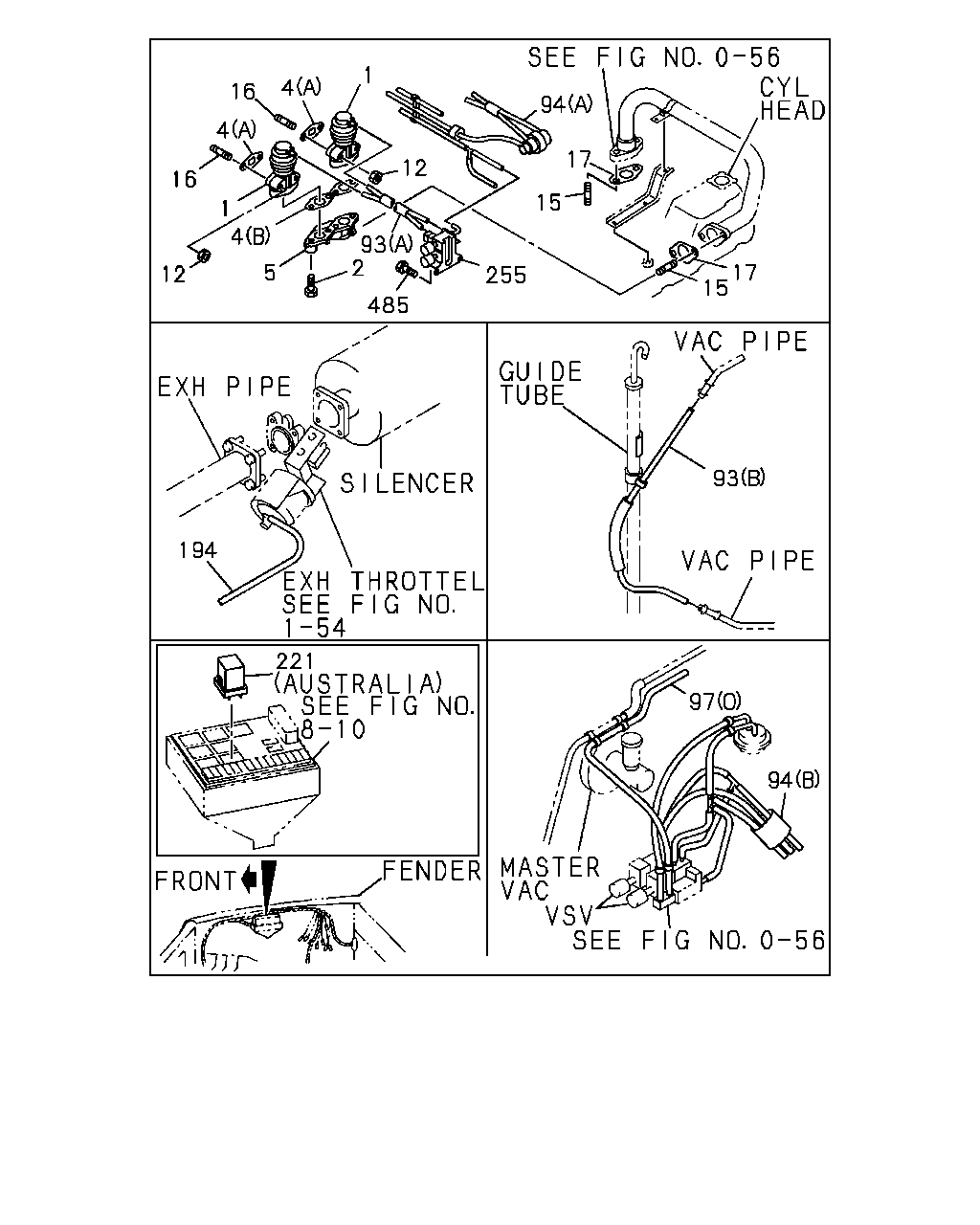

çizim 68287
16 4 16 12 1 5 4 2 4 1 12 93 485 255 15 17 94 15 17 93 194 221 97 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.670 VALVE; EGR
SINGAPORE EQUIPMENT(S9Y) 		8-94236-925-0 01 1 9210-9403 ●
1 03.670 VALVE; EGR
SINGAPORE EQUIPMENT(S9Y) 		8-94248-646-0 01 1 9403- ●
1 03.670 VALVE; EGR
UNITED KINGDOM EQUIPMENT(EK3) 		8-94122-478-0 01 1 9210-9406 ●
1 03.670 VALVE; EGR
UNITED KINGDOM EQUIPMENT(EK3) 		8-97043-021-5 02 1 9407- ●
2 03.670 BOLT; EGR VLV
SINGAPORE EQUIPMENT(S9Y) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9210-9402 ●
2 03.670 BOLT; EGR VLV
UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9210-9402 ●
2 03.670 BOLT; EGR VLV
SINGAPORE EQUIPMENT(S9Y) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9403-9403 ●
2 03.670 BOLT; EGR VLV
UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9403-9403 ●
2 03.670 BOLT; EGR VLV
UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9404-9406 ●
2 03.670 BOLT; EGR VLV
SINGAPORE EQUIPMENT(S9Y) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9407- ●
2 03.670 BOLT; EGR VLV
UNITED KINGDOM EQUIPMENT(EK3) 03.706 M8X40 W/LK WASHER 		0-50040-840-0 04 1 9407-9606 ●
2 03.670 BOLT; EGR VLV
UNITED KINGDOM EQUIPMENT(EK3) 01.271 M8X40 FLANGE 		0-28080-840-0 04 1 9607- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94324-191-0 01 1 9210- ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94334-338-0 02 1 9407- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94379-754-0 01 1 9407- ●
5 03.670 ADAPTER ASM
SINGAPORE EQUIPMENT(S9Y) 03.671 		8-94150-147-0 01 1 9210-9403 ●
5 03.670 ADAPTER ASM
SINGAPORE EQUIPMENT(S9Y) 03.671 		8-94150-147-0 01 1 9404- ●
5 03.670 ADAPTER ASM
UNITED KINGDOM EQUIPMENT(EK3) 		8-94157-474-0 01 1 9210-9406 ●
5 03.670 ADAPTER ASM
UNITED KINGDOM EQUIPMENT(EK3) 		8-94379-755-2 01 1 9407-9407 ●
5 03.670 ADAPTER ASM
UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-260-0 01 1 9408- ●
12 03.671 NUT; EGR VLV
UNITED KINGDOM EQUIPMENT(EK3) 00.854 M8 FLANGE 		5-09440-005-0 04 1 9407-9606 ●
12 03.671 NUT; EGR VLV
UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8 FLANGE 		0-91150-208-0 04 1 9607- ●
15 03.670 STUD; EGR PIPE
UNITED KINGDOM EQUIPMENT(EK3) 03.901 M8X25 L=37 		9-04110-825-0 02 1 9407- ●
16 03.275 STUD; EGR VLV
UNITED KINGDOM EQUIPMENT(EK3) M8X45 L=57 		9-04110-845-0 04 1 9407-9606 ●
16 03.275 STUD; EGR VLV
UNITED KINGDOM EQUIPMENT(EK3) 03.613 M8X45 L=57 		8-94105-162-1 04 1 9607- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) 		8-94340-670-0 02 1 9407- ●
93 03.675 HOSE ASM
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97106-961-0 01 1 9407- ●
93 03.675 HOSE ASM
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97109-017-0 01 1 9407- ●
94 03.675 HOSE ASM
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97107-054-1 01 1 9407-9505 ●
94 03.675 HOSE ASM
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97131-586-0 01 1 9506- ●
94 03.675 HOSE ASM
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97109-018-0 01 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=70 SERVICED BY L=3000 		0-04730-300-0 01 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (D) L=50 SERVICED BY L=3000 		0-04731-300-0 02 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (G) L=190 SERVICED BY L=3000 		0-04732-300-0 01 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (H) L=210 SERVICED BY L=3000 		0-04732-300-0 01 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 03.680 (I) L=90 SERVICED BY L=3000 		0-04733-300-0 01 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 03.163 (J) L=130 SERVICED BY L=3000 		0-04734-300-0 02 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 03.163 (K) L=30 SERVICED BY L=3000 		0-04734-300-0 01 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 03.163 (L) L=110 SERVICED BY L=3000 		0-04734-300-0 01 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (N) L=40 SERVICED BY L=3000 		0-04735-300-0 01 1 9407- ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (O) L=590 SERVICED BY L=3000 		0-04740-300-0 01 1 9407-9407 ●
97 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 (O) L=610 SERVICED BY L=3000 		0-04740-300-0 01 1 9407- ●
194 03.675 HOSE; VAC
UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=130 SERVICED BY L=3000 		0-04742-300-0 01 1 9407- ●
221 03.670 RELAY; MAIN
AUSTRALIA EQUIPMENT(RR3) 02.510 BROWN 		8-94232-223-0 01 1 9210- ● ● ●
255 03.675 VALVE; VAC SW,EGR CONT
UNITED KINGDOM EQUIPMENT(EK3) 03.670 		8-94340-699-0 01 1 9407- ●
485 03.671 BOLT; VSV
UNITED KINGDOM EQUIPMENT(EK3) 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9210-9406 ●
485 03.671 BOLT; VSV
UNITED KINGDOM EQUIPMENT(EK3) 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9407- ●

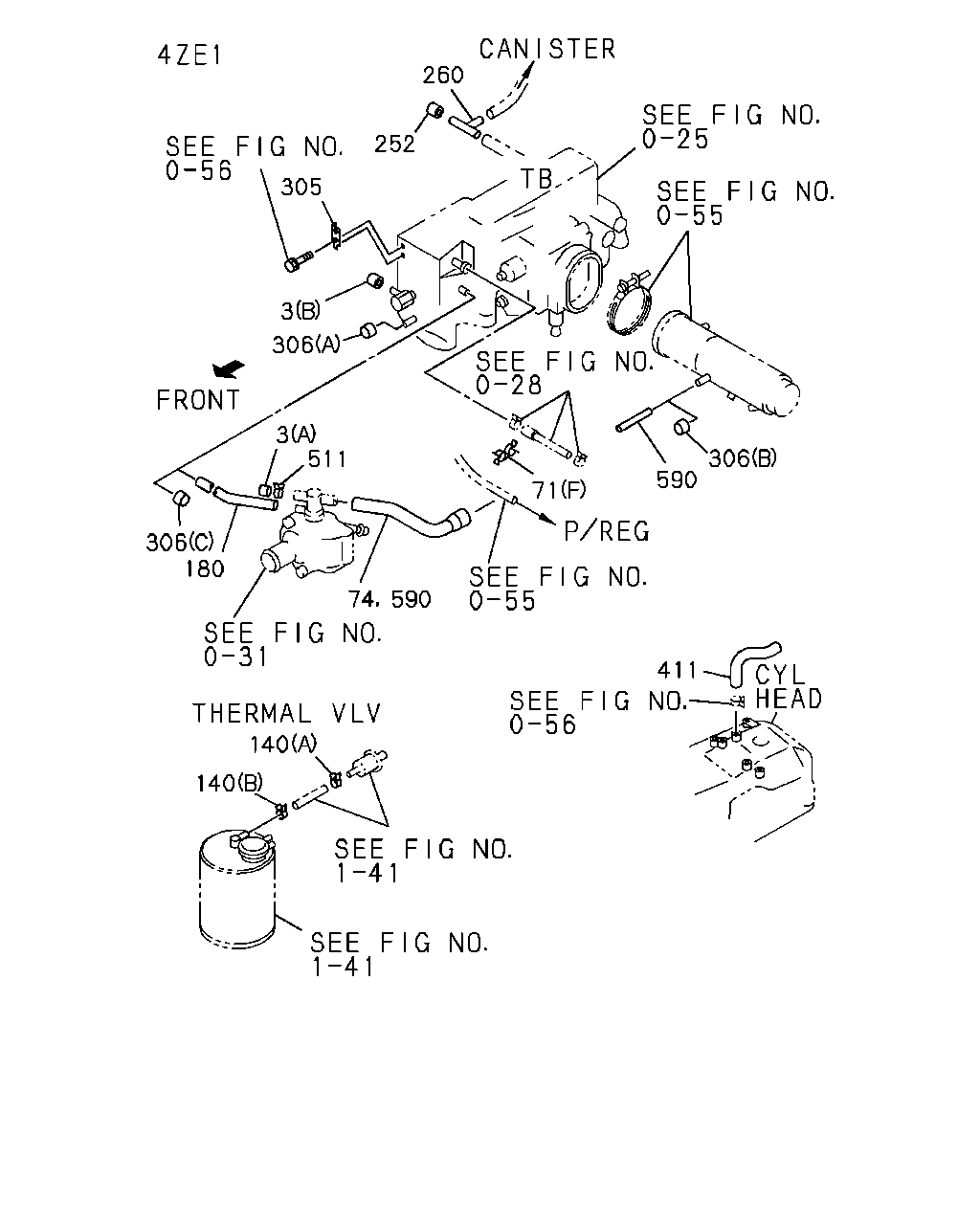

çizim 68545
260 252 305 3 306 3 306 511 180 74 590 140 140 411 71 590 306
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 03.680 CAP; RUBBER
AUSTRALIA EQUIPMENT(RR3) 03.407 (A) ID=12 		8-94173-731-0 01 1 9210-9506 ●
3 03.680 CAP; RUBBER
A/T AISIN(RMD) 03.407 (A) ID=12 		8-94173-731-0 01 1 9507- ●
3 03.680 CAP; RUBBER
AUSTRALIA EQUIPMENT(RR3) 01.762 (B) ID=6 		8-94203-788-1 01 1 9210- ●
71 03.680 CLIP; RUBBER HOSE
UNITED KINGDOM EQUIPMENT(EK3) (C) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 02 1 9210-9406 ●
71 03.680 CLIP; RUBBER HOSE
AUSTRALIA EQUIPMENT(RR3) 03.162 (F) ID=13.2 & 7.5 		8-94315-426-0 01 1 9210- ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) 08.852 (E) ID=8 & 23 		5-09707-002-0 02 1 9210- ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) (B) ID=7.2 & 10 		5-09707-056-0 01 1 9210- ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (C) ID=6.8X2 		8-94126-636-0 01 1 9210- ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) (D) ID=8 		8-94154-795-0 01 1 9210- ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) 02.559 (E) ID=8 & 16 		8-94165-407-0 01 1 9210-9401 ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) 08.852 (E) ID=8 & 16 		5-09707-032-0 01 1 9402- ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) 09.663 (A) ID=15 		1-09709-003-0 01 1 9210- ●
74 03.675 HOSE; RUBBER,FAST IDLE
AUSTRALIA EQUIPMENT(RR3) 		8-97062-089-0 01 1 9210-9407 ●
74 03.675 HOSE; RUBBER,FAST IDLE
AUSTRALIA EQUIPMENT(RR3) 03.417 L=150 SERVICED BY L=3000 		0-04710-300-0 01 1 9408-9506 ●
140 03.680 CLIP; HOSE,CHECK VLV
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 01.097 (B) ID=11 		8-94238-925-0 01 1 9404-9406 ●
140 03.680 CLIP; HOSE,CHECK VLV
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.163 (A) ID=11 		8-94238-570-0 02 1 9210-9308 ● ●
140 03.680 CLIP; HOSE,CHECK VLV
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.163 (A) ID=11 		8-94238-570-0 01 1 9309-9406 ● ●
140 03.680 CLIP; HOSE,CHECK VLV
AUSTRALIA EQUIPMENT(RR3) 01.219 (B) ID=12 		8-94238-610-0 01 1 9309-9406 ●
180 03.675 HOSE; RUBBER,TERMINAL VLV TO CON
AUSTRALIA EQUIPMENT(RR3) 01.762 L=110 SERVICED BY L=3000 		0-04870-300-0 01 1 9210- ●
252 03.670 CAP; RUBBER,EGR VLV
AUSTRALIA EQUIPMENT(RR3) 01.780 ID=4 		8-94217-809-0 01 1 9210- ●
260 03.680 JOINT; 3 WAY
AUSTRALIA EQUIPMENT(RR3) 3WAY 		8-94210-631-0 01 1 9210- ●
305 03.675 BRACKET; RUBBER HOSE
AUSTRALIA EQUIPMENT(RR3) 		8-97084-971-1 01 1 9210-9308 ●
305 03.675 BRACKET; RUBBER HOSE
AUSTRALIA EQUIPMENT(RR3) 		8-97095-912-0 01 1 9309-9401 ●
305 03.675 BRACKET; RUBBER HOSE
AUSTRALIA EQUIPMENT(RR3) 		8-97084-971-2 01 1 9402- ●
306 03.672 CAP; RUBBER
AUSTRALIA EQUIPMENT(RR3) 01.780 (A) ID=4 		8-94217-809-0 01 1 9210- ●
306 03.672 CAP; RUBBER
AUSTRALIA EQUIPMENT(RR3) M/T MUA 5 SPEED(RMN) 03.407 (B) ID=12 		8-94173-731-0 01 1 9507- ●
306 03.672 CAP; RUBBER
AUSTRALIA EQUIPMENT(RR3) M/T MUA 5 SPEED(RMN) 01.762 (C) ID=6 		8-94203-788-1 01 1 9507- ●
411 03.417 HOSE; RUBBER,CYL HD COVER
AUSTRALIA EQUIPMENT(RR3) 		8-94344-593-0 01 1 9210- ●
511 03.680 CLIP; RUBBER CAP
AUSTRALIA EQUIPMENT(RR3) 04.930 ID=16 		8-94238-568-0 01 1 9210-9506 ●
511 03.680 CLIP; RUBBER CAP
A/T AISIN(RMD) 04.930 ID=16 		8-94238-568-0 01 1 9507- ●
590 03.675 HOSE; RUBBER
A/T AISIN(RMD) 03.417 L=150 SERVICED BY L=3000 		0-04710-300-0 01 1 9507- ●

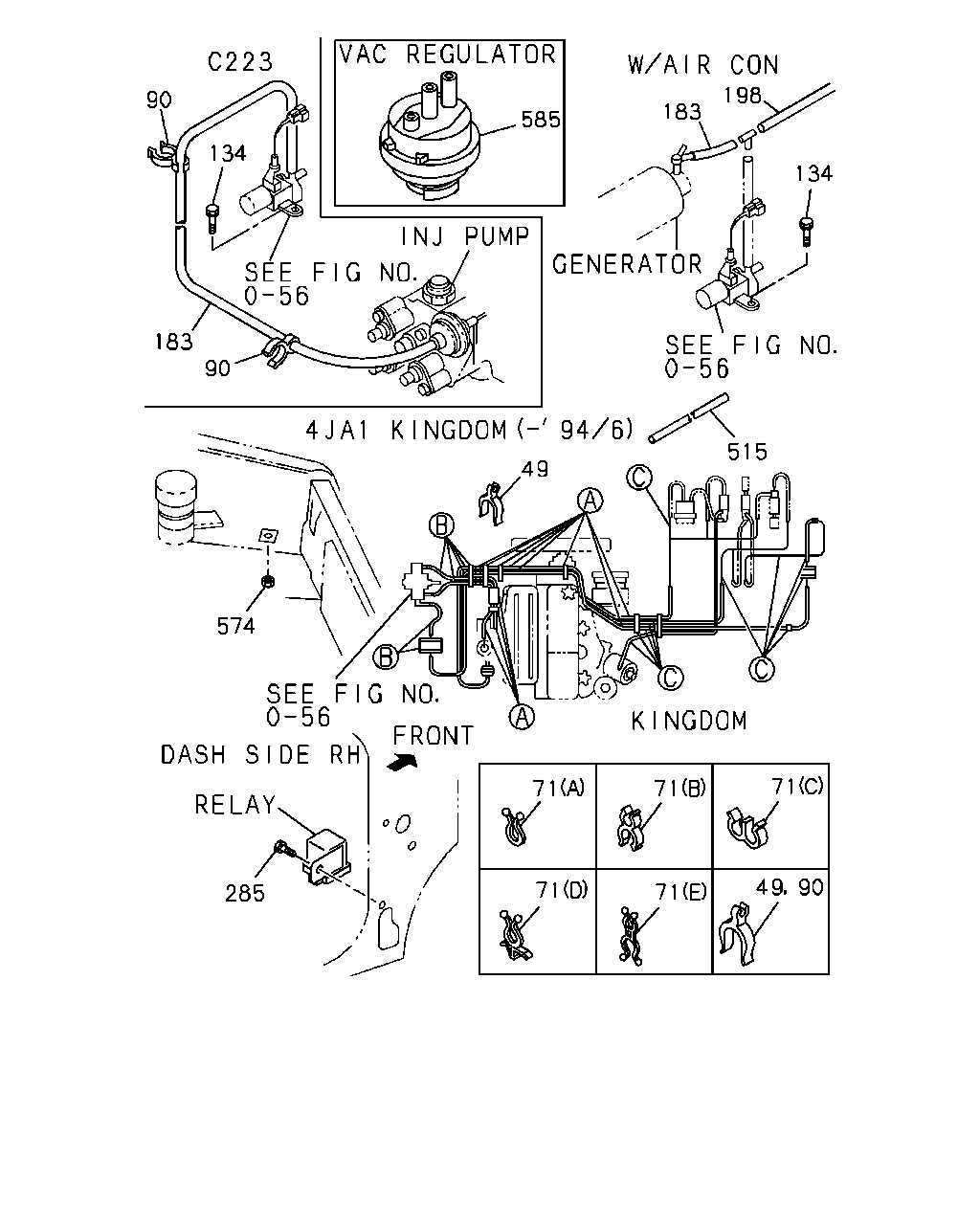

çizim 68737
90 183 134 90 585 183 198 134 515 49 574 285 71 71 71 71 71 49 90
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
49 03.680 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3) 01.166 		8-94456-949-0 01 1 9210-9406 ●
71 03.680 CLIP; RUBBER HOSE
UNITED KINGDOM EQUIPMENT(EK3) (C) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 02 1 9210-9406 ●
71 03.680 CLIP; RUBBER HOSE
AUSTRALIA EQUIPMENT(RR3) 03.162 (F) ID=13.2 & 7.5 		8-94315-426-0 01 1 9210- ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) 08.852 (E) ID=8 & 23 		5-09707-002-0 02 1 9210- ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) (B) ID=7.2 & 10 		5-09707-056-0 01 1 9210- ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) 03.162 (C) ID=6.8X2 		8-94126-636-0 01 1 9210- ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) (D) ID=8 		8-94154-795-0 01 1 9210- ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) 02.559 (E) ID=8 & 16 		8-94165-407-0 01 1 9210-9401 ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) 08.852 (E) ID=8 & 16 		5-09707-032-0 01 1 9402- ● ●
71 03.680 CLIP; RUBBER HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) 09.663 (A) ID=15 		1-09709-003-0 01 1 9210- ●
90 03.671 CLIP; HOSE
AIR CON(C60),COOLER WO/HEATER(YL1) 		8-94243-369-0 02 1 9210-9308 ●
134 03.671 BOLT; VSV
UNITED KINGDOM EQUIPMENT(EK3) 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9210-9406 ●
134 03.671 BOLT; VSV
AIR CON(C60),COOLER WO/HEATER(YL1) 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9210-9308 ●
134 03.671 BOLT; VSV
AIR CON(C60),COOLER WO/HEATER(YL1) 04.686 M6X14 FLANGE 		0-28080-614-0 01 1 9210-9308 ● ●
134 03.671 BOLT; VSV
AIR CON(C60),COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 04.686 M6X14 FLANGE 		0-28080-614-0 01 1 9309- ● ●
183 03.675 HOSE; RUBBER,VAC PUMP TO VSV
AIR CON(C60),COOLER WO/HEATER(YL1) 08.962 L=560 SERVICED BY L=3000 		0-04730-300-0 01 1 9210-9308 ●
183 03.675 HOSE; RUBBER,VAC PUMP TO VSV
AIR CON(C60),COOLER WO/HEATER(YL1) THAILAND EQUIPMENT(PM9) 03.680 SERVICED BY L=3000 		0-04733-300-0 01 1 9606- ●
183 03.675 HOSE; RUBBER,VAC PUMP TO VSV
AIR CON(C60),COOLER WO/HEATER(YL1) 03.680 L=300 SERVICED BY L=3000 		0-04733-300-0 01 1 9210-9605 ● ●
183 03.675 HOSE; RUBBER,VAC PUMP TO VSV
AIR CON(C60),COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 03.680 L=300 SERVICED BY L=3000 		0-04733-300-0 01 1 9606- ● ●
198 03.675 HOSE; VAC,VSV
AIR CON(C60),COOLER WO/HEATER(YL1) THAILAND EQUIPMENT(PM9) 08.962 SERVICED BY L=3000 		0-04730-300-0 01 1 9606- ●
198 03.675 HOSE; VAC,VSV
AIR CON(C60),COOLER WO/HEATER(YL1) 08.962 L=1650 SERVICED BY L=3000 		0-04730-300-0 01 1 9210-9605 ● ●
198 03.675 HOSE; VAC,VSV
AIR CON(C60),COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 08.962 L=1650 SERVICED BY L=3000 		0-04730-300-0 01 1 9606- ● ●
285 03.901 BOLT; RELAY
UNITED KINGDOM EQUIPMENT(EK3) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9210-9404 ● ●
515 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=110 SERVICED BY L=3000 		0-04731-300-0 07 1 9210-9308 ●
515 03.675 HOSE; RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=110 SERVICED BY L=3000 		0-04730-300-0 07 1 9309-9406 ●
574 03.671 NUT; VSV TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9210-9406 ●
585 03.682 REGULATOR; VAC,EGR CONT
UNITED KINGDOM EQUIPMENT(EK3) 03.670 		8-94111-775-0 01 1 9210-9406 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
