0-55 — ECGI SYSTEM OR COMMON RAIL (#41286) — 74 parça

57 56 61 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
56	03.320 SENSOR; MAP UNITED KINGDOM EQUIPMENT(EK3)	8-16137-039-0	01	1	9210-9406	●
57	03.330 SCREW; MAP SENSOR UNITED KINGDOM EQUIPMENT(EK3) M5X30 W/LK&PL WASHER	9-03920-530-0	02	1	9210-9406	●
61	03.330 BOLT; BRKT UNITED KINGDOM EQUIPMENT(EK3) 00.206 M6X14 W/LK WASHER	0-50040-614-0	02	1	9210-9406	●
290	03.330 HOSE; MAP SENSOR UNITED KINGDOM EQUIPMENT(EK3)	8-94344-448-2	01	1	9210-9406	●

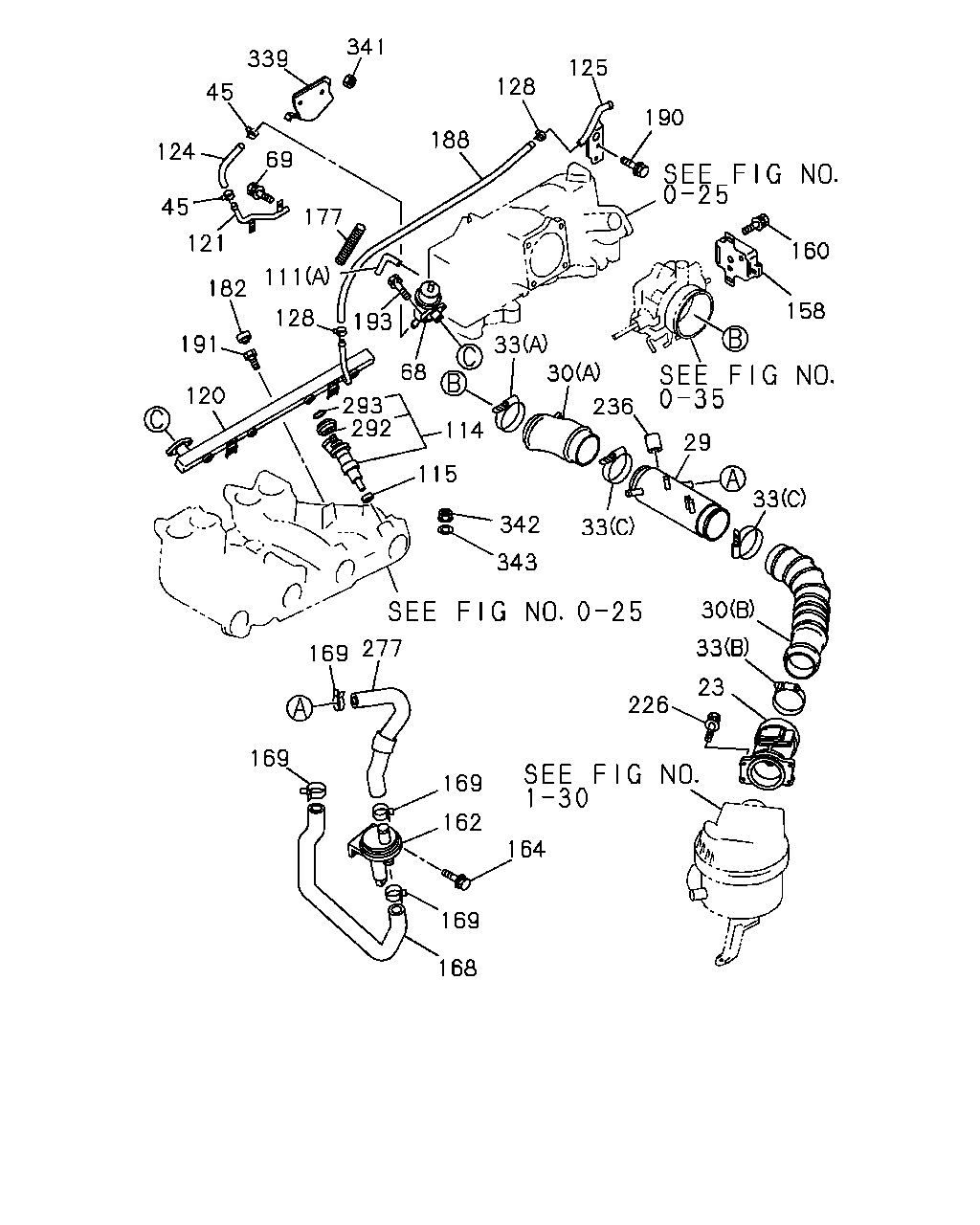

341 339 45 124 69 45 182 111 177 121 128 191 193 120 293 68 292 114 115 343 342 277 169 169 168 169 164 162 169 226 23 33 30 33 33 236 30 33 188 128 125 190 160 158 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
23	03.335 SENSOR; AIR FLOW AUSTRALIA EQUIPMENT(RR3)	8-97016-626-0	01	1	9210-	●
29	03.407 DUCT; AIR,TB TO AIR FLOW METER AUSTRALIA EQUIPMENT(RR3)	8-97042-366-1	01	1	9210-9406	●
29	03.407 DUCT; AIR,TB TO AIR FLOW METER AUSTRALIA EQUIPMENT(RR3)	8-97037-798-1	01	1	9407-9407	●
29	03.407 DUCT; AIR,TB TO AIR FLOW METER AUSTRALIA EQUIPMENT(RR3)	8-97117-360-0	01	1	9408-	●
30	03.407 HOSE; CONN,AIR DUCT TO T/V AUSTRALIA EQUIPMENT(RR3) (B)	8-97037-800-3	01	1	9210-	●
30	03.407 HOSE; CONN,AIR DUCT TO T/V AUSTRALIA EQUIPMENT(RR3) (A)	8-97078-921-2	01	1	9210-	●
33	03.407 CLIP; HOSE,AIR DUCT AUSTRALIA EQUIPMENT(RR3) (B) ID=77-95	1-09707-114-0	01	1	9210-9410	●
33	03.407 CLIP; HOSE,AIR DUCT AUSTRALIA EQUIPMENT(RR3) (C) ID=68-85	8-94320-428-0	02	1	9210-9410	●
33	03.407 CLIP; HOSE,AIR DUCT AUSTRALIA EQUIPMENT(RR3) (A) ID=68-85	8-94320-428-0	01	1	9210-9304	●
33	03.407 CLIP; HOSE,AIR DUCT AUSTRALIA EQUIPMENT(RR3) (A) ID=65-70	8-94126-769-0	01	1	9305-9410	●
45	03.145 CLIP; RUBBER HOSE AUSTRALIA EQUIPMENT(RR3) 00.034 ID=12 WO/PVC COATING	8-94123-526-0	04	1	9210-9309	●
45	03.145 CLIP; RUBBER HOSE AUSTRALIA EQUIPMENT(RR3) 00.034 ID=12 WO/PVC COATING	8-94123-526-0	02	1	9310-	●
68	03.330 REGULATOR; PRESSURE AUSTRALIA EQUIPMENT(RR3)	8-97070-620-0	01	1	9210-	●
69	03.330 BOLT; PIPE,FUEL RETURN AUSTRALIA EQUIPMENT(RR3) 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9210-	●
111	03.302 HOSE; RUBBER,VAC,3 WAY TO VSV AUSTRALIA EQUIPMENT(RR3) 08.962 (A) L=180 SERVICED BY L=3000	0-04745-300-0	01	1	9210-	●
111	03.302 HOSE; RUBBER,VAC,3 WAY TO VSV AUSTRALIA EQUIPMENT(RR3) (B)	8-97027-416-3	01	1	9210-	●
114	03.300 INJECTOR; FUEL AUSTRALIA EQUIPMENT(RR3)	8-97041-994-1	04	1	9210-9308	●
114	03.300 INJECTOR; FUEL AUSTRALIA EQUIPMENT(RR3)	8-97079-532-0	04	1	9309-	●
115	03.300 RING; FUEL INJ AUSTRALIA EQUIPMENT(RR3) 03.302 OD=13.8	5-15315-005-0	04	1	9210-	●
120	03.330 PIPE; FUEL,INJ AUSTRALIA EQUIPMENT(RR3)	8-97070-558-1	01	1	9210-	●
121	03.330 PIPE; FUEL,RETURN AUSTRALIA EQUIPMENT(RR3)	8-97049-983-3	01	1	9210-	●
124	03.901 HOSE; FUEL,PRESSURE REG TO PIPE AUSTRALIA EQUIPMENT(RR3) 03.163 L=80 SERVICED BY L=3000	0-01256-300-0	01	1	9210-	●
125	03.330 PIPE ASM; FUEL INL AUSTRALIA EQUIPMENT(RR3)	8-97048-791-2	01	1	9210-	●
128	03.901 CLIP; FUEL DAMPER HOSE AUSTRALIA EQUIPMENT(RR3) 00.034 ID=12 WO/PVC COATING	8-94123-526-0	02	1	9210-	●
158	03.320 SWITCH; THROTTLE BODY AUSTRALIA EQUIPMENT(RR3)	8-97038-799-0	01	1	9210-	●
160	03.320 SCREW; THROTTLE BODY SWITCH AUSTRALIA EQUIPMENT(RR3) M4X10 W/LK&PL WASHER	9-03920-410-0	02	1	9210-	●
162	03.314 REGULATOR ASM; AIR AUSTRALIA EQUIPMENT(RR3)	8-94314-411-1	01	1	9210-	●
164	03.314 BOLT; REG TO BRKT AUSTRALIA EQUIPMENT(RR3) 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9210-	●
168	03.145 HOSE; AIR REG TO COMMON CHAMBER AUSTRALIA EQUIPMENT(RR3)	8-97062-090-0	01	1	9210-	●
169	03.145 CLIP; HOSE,AIR REG AUSTRALIA EQUIPMENT(RR3) 01.762 ID=19	8-94238-569-0	03	1	9210-9407	●
169	03.145 CLIP; HOSE,AIR REG AUSTRALIA EQUIPMENT(RR3) 01.762 ID=19	8-94238-569-0	01	1	9408-9408	●
169	03.145 CLIP; HOSE,AIR REG AUSTRALIA EQUIPMENT(RR3) 01.762 ID=19	8-94238-569-0	02	1	9409-	●
169	03.145 CLIP; HOSE,AIR REG AUSTRALIA EQUIPMENT(RR3) 01.097 ID=18	8-94238-924-0	01	1	9210-	●
177	03.306 INSULATOR; FUEL INJECTOR AUSTRALIA EQUIPMENT(RR3)	8-94384-352-0	01	1	9210-	●
182	03.332 INSULATOR; FUEL RAIL AUSTRALIA EQUIPMENT(RR3)	8-94362-522-0	02	1	9210-	●
188	03.901 HOSE; FUEL AUSTRALIA EQUIPMENT(RR3) L=140 SERVICED BY L=3000	0-01458-300-0	01	1	9210-	●
190	03.330 BOLT; FUEL PIPE AUSTRALIA EQUIPMENT(RR3) 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9210-	●
191	03.330 BOLT; FUEL PIPE AUSTRALIA EQUIPMENT(RR3) 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9210-	●
193	03.330 BOLT; PRESSURE REG AUSTRALIA EQUIPMENT(RR3) 14.865 M5X12	8-94386-089-0	02	1	9210-	●
226	03.330 BOLT; AIR FLOW METER AUSTRALIA EQUIPMENT(RR3) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9210-9302	●
226	03.330 BOLT; AIR FLOW METER AUSTRALIA EQUIPMENT(RR3) 00.738 M6X16 FLANGE	0-28080-616-0	04	1	9303-	●
236	03.145 CAP; RUBBER AUSTRALIA EQUIPMENT(RR3) 03.672 ID=5.4	8-94156-209-0	01	1	9407-	●
277	03.145 HOSE; RUBBER AUSTRALIA EQUIPMENT(RR3)	8-97078-932-1	01	1	9210-	●
292	03.304 INSULATOR; FUEL INJECTOR AUSTRALIA EQUIPMENT(RR3)	8-97078-989-0	04	1	9210-	●
293	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HE AD) AUSTRALIA EQUIPMENT(RR3)	8-97079-011-0	04	1	9210-	●
339	03.330 PROTECTOR; PRESSURE REG AUSTRALIA EQUIPMENT(RR3)	8-97049-984-2	01	1	9210-	●
341	03.330 NUT; PROTECTOR AUSTRALIA EQUIPMENT(RR3) 07.633 M8 FLANGE	0-91150-108-0	02	1	9210-	●
342	03.403 NUT; AIR DUCT AUSTRALIA EQUIPMENT(RR3) 04.594 M6 FLANGE	0-91150-106-0	01	1	9210-	●
343	03.403 WASHER; PL,AIR DUCT AUSTRALIA EQUIPMENT(RR3) 02.587 ID=6.4 OD=18	9-09160-706-0	01	1	9210-	●

285 285 284 287 228 287 284 284 287 287 284 287 100 101 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
100	03.335 VALVE; VAC SW,PRESSURE REG AUSTRALIA EQUIPMENT(RR3)	8-94317-259-1	01	1	9210-	●
101	03.330 BOLT; VSV AUSTRALIA EQUIPMENT(RR3) 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9210-	●
111	03.302 HOSE; RUBBER,VAC,3 WAY TO VSV AUSTRALIA EQUIPMENT(RR3) 08.962 (A) L=180 SERVICED BY L=3000	0-04745-300-0	01	1	9210-	●
111	03.302 HOSE; RUBBER,VAC,3 WAY TO VSV AUSTRALIA EQUIPMENT(RR3) (B)	8-97027-416-3	01	1	9210-	●
228	03.330 CLIP; CABLE AUSTRALIA EQUIPMENT(RR3) ID=6.7	8-94429-989-0	01	1	9210-9403	●
228	03.330 CLIP; CABLE AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY AIR CLEANER<K46> ID=6.7	8-94429-989-0	01	1	9404-9407	●
284	03.302 CLIP; RUBBER HOSE AUSTRALIA EQUIPMENT(RR3) (B)	8-94329-396-0	01	1	9210-	●
284	03.302 CLIP; RUBBER HOSE AUSTRALIA EQUIPMENT(RR3) 03.162 (C)	8-94329-397-0	01	1	9210-	●
284	03.302 CLIP; RUBBER HOSE AUSTRALIA EQUIPMENT(RR3) 03.162 (D)	8-94411-648-0	01	1	9210-	●
284	03.302 CLIP; RUBBER HOSE AUSTRALIA EQUIPMENT(RR3) 03.330 (A)	8-97085-052-0	01	1	9210-9312	●
284	03.302 CLIP; RUBBER HOSE AUSTRALIA EQUIPMENT(RR3) 03.330 (A)	8-94380-884-0	01	1	9401-	●
285	03.302 TUBE; NYLON AUSTRALIA EQUIPMENT(RR3) 03.145 (A)	8-94329-399-0	01	1	9210-	●
285	03.302 TUBE; NYLON AUSTRALIA EQUIPMENT(RR3) 03.145 (B)	8-94329-400-0	01	1	9210-	●
287	03.302 HOSE; RUBBER,VSV AUSTRALIA EQUIPMENT(RR3) (A) L=380	0-04242-380-0	01	1	9210-9308	●
287	03.302 HOSE; RUBBER,VSV AUSTRALIA EQUIPMENT(RR3) 08.962 (B) L=340 SERVICED BY L=3000	0-04741-300-0	01	1	9210-9406	●
287	03.302 HOSE; RUBBER,VSV AUSTRALIA EQUIPMENT(RR3) 08.962 (B) L=340 SERVICED BY L=3000	0-04740-300-0	01	1	9407-	●
287	03.302 HOSE; RUBBER,VSV AUSTRALIA EQUIPMENT(RR3) 08.962 (C) L=120 SERVICED BY L=3000	0-04743-300-0	01	1	9210-9406	●
287	03.302 HOSE; RUBBER,VSV AUSTRALIA EQUIPMENT(RR3) 08.962 (C) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	9407-	●
287	03.302 HOSE; RUBBER,VSV AUSTRALIA EQUIPMENT(RR3) 03.145 (D)	8-94329-402-0	01	1	9210-	●
287	03.302 HOSE; RUBBER,VSV AUSTRALIA EQUIPMENT(RR3) 03.145 (E)	8-94329-403-0	01	1	9210-	●
287	03.302 HOSE; RUBBER,VSV AUSTRALIA EQUIPMENT(RR3) 08.962 (A) L=380 SERVICED BY L=3000	0-04742-300-0	01	1	9309-	●
