Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#41285) — 202 parça

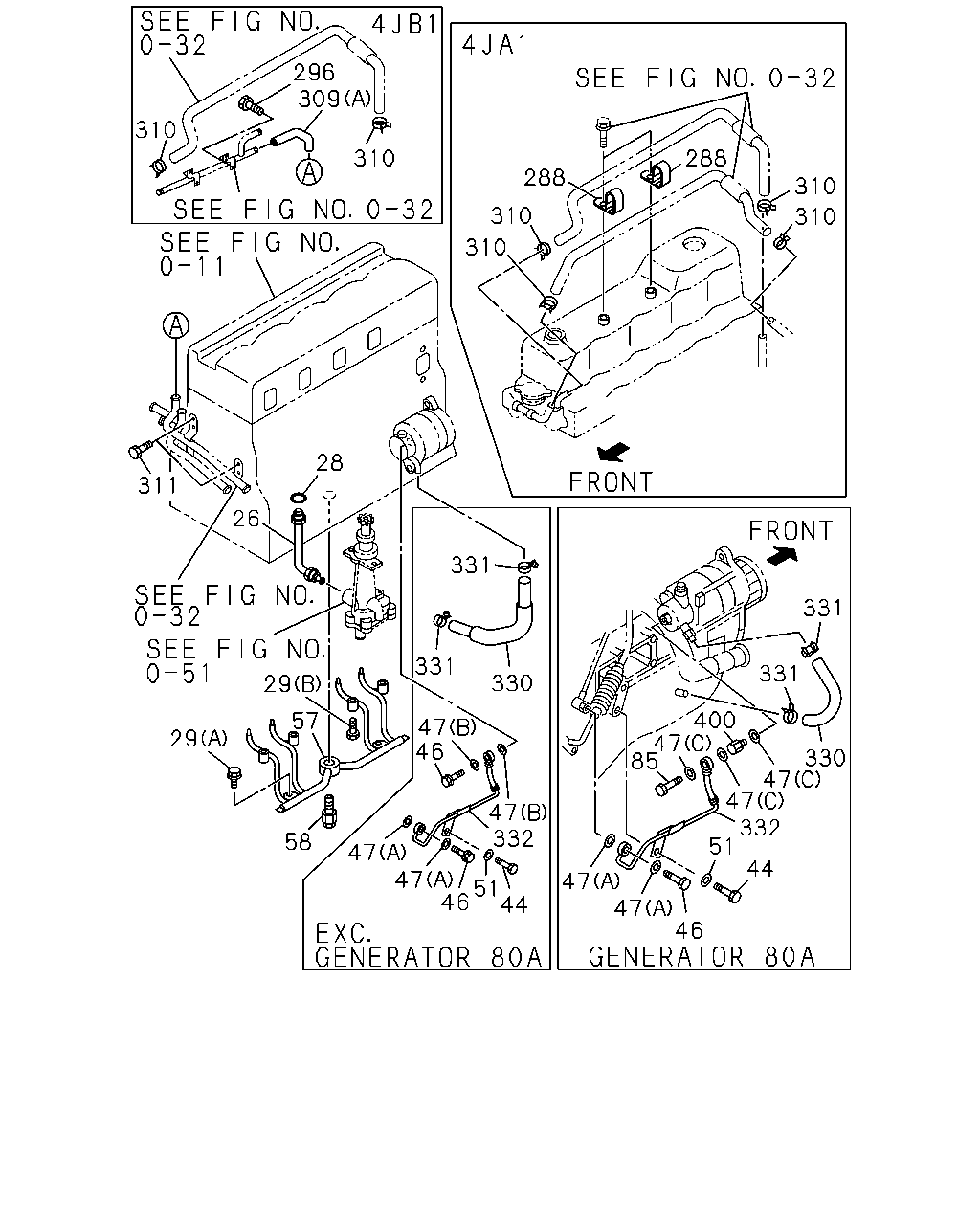

296 309 310 288 310 288 310 310 310 310 311 28 26 331 331 331 331 400 47 85 330 29 57 47 46 29 330 47 47 332 51 47 332 58 47 47 51 46 44 44 47 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	01.519 PIPE; OIL,PUMP TO C/BL 4X2(TFB***)	8-94454-852-0	01	1	9210-9308	●
26	01.519 PIPE; OIL,PUMP TO C/BL 4X4(TFS***)	8-94471-600-0	01	1	9210-9308	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9210-		●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	01	1	9210-		●	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9210-9509		●	●
29	01.531 BOLT; OIL PIPE,OIL JET UNITED KINGDOM EQUIPMENT(EK3) 00.206 (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9510-9512		●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9601-		●	●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9210-		●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9210-		●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X24	5-09675-024-0	01	1	9210-9308	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X24	5-09675-024-0	01	1	9309-9404		●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU THAILAND EQUIPMENT(PM9) M8X24	5-09675-024-0	01	1	9405-9606		●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9210-9404			●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU EXC. THAILAND EQUIPMENT(PM9) M8X20 EYE-BOLT	5-09675-018-1	01	1	9405-9606		●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9405-9606			●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9607-		●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 ID=8.2 OD=17	9-09572-008-0	02	1	9210-9308	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9504-9509		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9510-		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) AUSTRALIA EQUIPMENT(RR3) GENERATOR 80A(K97) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9510-			●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9210-		●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=19	9-09572-010-0	02	1	9210-9311		●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	9312-		●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) GENERATOR 80A(K97) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9210-9410			●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9210-		●	●
57	01.519 PIPE; OIL,OIL JET	5-13311-189-2	01	1	9210-9308	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-0	01	1	9210-		●
57	01.519 PIPE; OIL,OIL JET	8-94469-709-1	01	1	9210-			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	5-13160-006-2	01	1	9210-9308	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-94177-189-3	01	1	9210-9603		●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97145-612-0	01	1	9604-		●	●
85	01.531 BOLT; EYE,OIL PIPE FIX UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97) M10X21 FLANGE	1-09675-078-0	01	1	9504-9509		●
85	01.531 BOLT; EYE,OIL PIPE FIX UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97) M10X21 FLANGE	1-09675-078-0	01	1	9510-		●
85	01.531 BOLT; EYE,OIL PIPE FIX AUSTRALIA EQUIPMENT(RR3) GENERATOR 80A(K97) M10X21 FLANGE	1-09675-078-0	01	1	9510-			●
85	01.531 BOLT; EYE,OIL PIPE FIX GENERATOR 80A(K97) M10X21 FLANGE	1-09675-078-0	01	1	9210-9410			●
288	01.540 CLIP; HOSE,OIL COOLER 08.846	5-83574-006-0	02	1	9210-9404		●
288	01.540 CLIP; HOSE,OIL COOLER 08.846	5-83574-006-0	01	1	9405-9406		●
288	01.540 CLIP; HOSE,OIL COOLER EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.846	5-83574-006-0	01	1	9407-9407		●
288	01.540 CLIP; HOSE,OIL COOLER EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 08.846	5-83574-006-0	01	1	9408-		●
288	01.540 CLIP; HOSE,OIL COOLER THAILAND EQUIPMENT(PM9) 08.846	5-83574-006-0	02	1	9408-		●
296	01.540 BOLT; RETURN PIPE 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9210-			●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (C)	8-97039-199-2	01	1	9407-		●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (D)	8-97049-285-0	01	1	9407-		●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-94442-162-1	01	1	9210-9406		●	●
309	01.540 HOSE; OIL COOLER RETURN EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94442-162-1	01	1	9407-		●	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-94453-532-1	01	1	9210-			●
310	01.540 CLIP; WATER HOSE FIX THAILAND EQUIPMENT(PM9) 01.166 ID=15-27	8-94175-939-0	08	1	9210-		●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 ID=21.7	8-94413-822-0	10	1	9210-9407		●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=21.7	8-94413-822-0	10	1	9210-9407			●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	10	1	9407-			●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.166 ID=20.8	8-94125-862-0	08	1	9407-9407		●
310	01.540 CLIP; WATER HOSE FIX EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 01.166 ID=20.8	8-94125-862-0	08	1	9407-9505		●
310	01.540 CLIP; WATER HOSE FIX EXC. THAILAND EQUIPMENT(PM9) 01.166 ID=20.8	8-94125-862-0	08	1	9506-		●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 ID=24	8-97010-605-0	02	1	9407-		●
310	01.540 CLIP; WATER HOSE FIX EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 01.150 ID=21.7	8-94413-822-0	08	1	9210-9308		●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=21.7	8-94413-822-0	08	1	9210-9308			●
310	01.540 CLIP; WATER HOSE FIX EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 01.150 ID=21.7	8-94413-822-0	08	1	9309-9407		●
310	01.540 CLIP; WATER HOSE FIX EXC. HEATER & DEFROSTER(C41),AIR CON(C60),AUSTRALIA EQUIPMENT(RR3) 08.846 ID=22	8-94382-401-0	04	1	9409-9509			●
310	01.540 CLIP; WATER HOSE FIX EXC. HEATER & DEFROSTER(C41),AIR CON(C60),AUSTRALIA EQUIPMENT(RR3) 08.846 ID=22	8-94382-401-0	02	1	9510-			●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9210-		●	●
330	03.278 HOSE; VAC PUMP,RETURN 03.280	5-11369-087-0	01	1	9210-9308	●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9210-		●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN 01.540	5-09707-025-3	02	1	9210-9402		●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9403-		●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN 01.516 ID=17	1-09707-158-0	02	1	9210-9402			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP 01.540	8-94135-853-1	01	1	9210-9308	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP THAILAND EQUIPMENT(PM9)	8-94437-668-1	01	1	9210-		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97)	8-97042-697-0	01	1	9504-9509		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97)	8-97042-697-0	01	1	9510-		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP AUSTRALIA EQUIPMENT(RR3) GENERATOR 80A(K97)	8-97042-697-0	01	1	9510-			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR 80A(K97),THAILAND EQUIPMENT(PM9)	8-94468-522-1	01	1	9210-		●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP GENERATOR 80A(K97)	8-97042-697-0	01	1	9210-9410			●
400	01.531 NIPPLE; VAC PUMP,OIL UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97)	8-97061-857-0	01	1	9504-9509		●
400	01.531 NIPPLE; VAC PUMP,OIL UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97)	8-97061-857-0	01	1	9510-		●
400	01.531 NIPPLE; VAC PUMP,OIL AUSTRALIA EQUIPMENT(RR3) GENERATOR 80A(K97)	8-97061-857-0	01	1	9510-			●
400	01.531 NIPPLE; VAC PUMP,OIL GENERATOR 80A(K97)	8-97061-857-0	01	1	9210-9410			●

9 9 9 9 10 11 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
7	01.656 PIPE; OIL PASSAGE,FRT	8-94475-324-2	01	1	9210-	●
8	01.656 PIPE; OIL PASSAGE,CTR	8-94475-325-2	01	1	9210-	●
9	01.656 BOLT; OIL PASSAGE M6X14	8-94479-695-1	02	1	9210-	●
9	01.656 BOLT; OIL PASSAGE M8X12 FLANGE	8-94479-696-1	02	1	9210-	●
10	01.656 PLUG; OIL PASSAGE PIPE	8-94474-942-0	01	1	9210-	●
11	01.657 GASKET; PLUG,OIL PIPE 08.955 ID=20.5 OD=28.0	9-09571-420-0	01	1	9210-	●

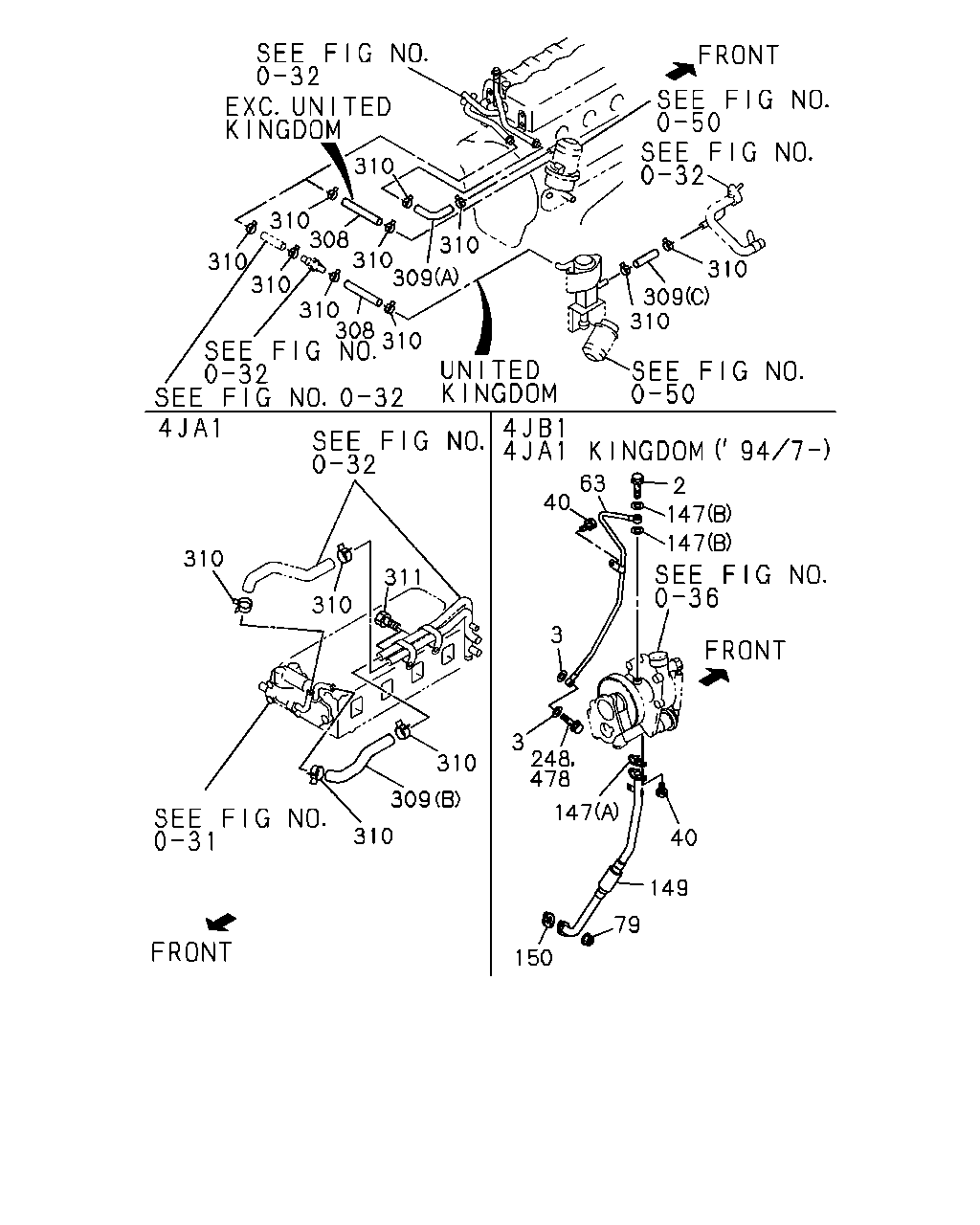

310 310 310 310 310 310 310 310 308 308 310 309 310 2 63 147 147 40 3 3 248 478 147 40 149 79 150 310 309 310 311 310 310 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	9210-9406		●
2	01.531 BOLT; EYE,OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) M10X27 FLANGE	8-94443-535-0	01	1	9407-	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	9407-		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9210-9406		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9407-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9407-		●
40	01.531 BOLT; OIL PIPE 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9210-9406		●
40	01.531 BOLT; OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9407-	●
40	01.531 BOLT; OIL PIPE 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9407-		●
40	01.531 BOLT; OIL PIPE 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9210-9406		●
40	01.531 BOLT; OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9407-	●
40	01.531 BOLT; OIL PIPE 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9407-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED UNITED KINGDOM EQUIPMENT(EK3)	8-97109-022-0	01	1	9407-9606	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED UNITED KINGDOM EQUIPMENT(EK3)	8-97162-317-0	01	1	9607-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97038-130-1	01	1	9210-9310		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97086-341-0	01	1	9311-		●
79	01.531 NUT; OIL DRAIN PIPE 00.854 M8 FLANGE	5-09440-005-0	02	1	9210-9406		●
79	01.531 NUT; OIL DRAIN PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.854 M8 FLANGE	5-09440-005-0	02	1	9407-	●
79	01.531 NUT; OIL DRAIN PIPE 00.854 M8 FLANGE	5-09440-005-0	02	1	9407-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	9210-9406		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). (A) ID=14	8-97041-638-0	01	1	9407-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	9407-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9210-9406		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9407-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9407-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97066-501-0	01	1	9210-9310		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97086-340-0	01	1	9311-9406		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER UNITED KINGDOM EQUIPMENT(EK3)	8-97086-340-1	01	1	9407-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97086-340-1	01	1	9407-		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-0	01	1	9210-9406		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3).	8-97045-326-0	01	1	9407-	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-0	01	1	9407-		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	9210-9406		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED UNITED KINGDOM EQUIPMENT(EK3) M14X25	8-94315-336-1	01	1	9407-9505	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	9407-9505		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED LONG(TF***F) M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> POWER STEERING<N40> TACHOMETER<U16> EXC. HEATER & DEFROSTER(C41),AIR CON(C60),AUSTRALIA EQUIPMENT(RR3) M14X25	8-94315-336-1	01	1	9506-9601		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED SHORT(TF***C) M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> POWER STEERING<N40> TACHOMETER<U16> EXC. HEATER & DEFROSTER(C41),AIR CON(C60) M14X25	8-94315-336-1	01	1	9506-9601		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED LONG(TF***F) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41) TURBOCHARGER<K51> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> M14X25	8-94315-336-1	01	1	9506-9601		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED SHORT(TF***C) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CON(C60) TURBOCHARGER<K51> M14X25	8-94315-336-1	01	1	9506-9601		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 4X2 SPACE CAB(TFB5CF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CON(C60) TURBOCHARGER<K51> EXC. AUSTRALIA EQUIPMENT(RR3) M14X25	8-94315-336-1	01	1	9506-9601		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CON(C60) TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6), AUSTRALIA EQUIPMENT(RR3) M14X25	8-94315-336-1	01	1	9506-9601		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED LONG(TF***F) M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> POWER STEERING<N40> TACHOMETER<U16> EXC. HEATER & DEFROSTER(C41),AIR CON(C60),AUSTRALIA EQUIPMENT(RR3) M14X25	8-94315-336-1	01	1	9602-		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED SHORT(TF***C) M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> POWER STEERING<N40> TACHOMETER<U16> EXC. HEATER & DEFROSTER(C41),AIR CON(C60) M14X25	8-94315-336-1	01	1	9602-		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED LONG(TF***F) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41) TURBOCHARGER<K51> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> M14X25	8-94315-336-1	01	1	9602-		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED SHORT(TF***C) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CON(C60) TURBOCHARGER<K51> M14X25	8-94315-336-1	01	1	9602-		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 4X2 SPACE CAB(TFB5CF) 4X2 CREW CAB(TFB5WF) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CON(C60) TURBOCHARGER<K51> EXC. AUSTRALIA EQUIPMENT(RR3) M14X25	8-94315-336-1	01	1	9602-		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CON(C60) TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6), AUSTRALIA EQUIPMENT(RR3) M14X25	8-94315-336-1	01	1	9602-		●
308	01.540 HOSE; OIL COOLER FEED THAILAND EQUIPMENT(PM9) 08.846 L=200 SERVICED BY L=3000	0-03266-300-0	01	1	9210-	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) 08.846 L=110 SERVICED BY L=3000	0-03266-300-0	01	1	9210-9406	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9407-	●
308	01.540 HOSE; OIL COOLER FEED EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 08.846 L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9210-9408	●
308	01.540 HOSE; OIL COOLER FEED 08.846 L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9210-9408		●
308	01.540 HOSE; OIL COOLER FEED EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) L=220	8-97119-575-0	01	1	9409-	●
308	01.540 HOSE; OIL COOLER FEED L=220	8-97119-575-0	01	1	9409-		●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (C)	8-97039-199-2	01	1	9407-	●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (D)	8-97049-285-0	01	1	9407-	●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-94442-162-1	01	1	9210-9406	●	●
309	01.540 HOSE; OIL COOLER RETURN EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94442-162-1	01	1	9407-	●	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-94453-532-1	01	1	9210-		●
310	01.540 CLIP; WATER HOSE FIX THAILAND EQUIPMENT(PM9) 01.166 ID=15-27	8-94175-939-0	08	1	9210-	●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 ID=21.7	8-94413-822-0	10	1	9210-9407	●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=21.7	8-94413-822-0	10	1	9210-9407		●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	10	1	9407-		●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.166 ID=20.8	8-94125-862-0	08	1	9407-9407	●
310	01.540 CLIP; WATER HOSE FIX EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 01.166 ID=20.8	8-94125-862-0	08	1	9407-9505	●
310	01.540 CLIP; WATER HOSE FIX EXC. THAILAND EQUIPMENT(PM9) 01.166 ID=20.8	8-94125-862-0	08	1	9506-	●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 ID=24	8-97010-605-0	02	1	9407-	●
310	01.540 CLIP; WATER HOSE FIX EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 01.150 ID=21.7	8-94413-822-0	08	1	9210-9308	●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=21.7	8-94413-822-0	08	1	9210-9308		●
310	01.540 CLIP; WATER HOSE FIX EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 01.150 ID=21.7	8-94413-822-0	08	1	9309-9407	●
310	01.540 CLIP; WATER HOSE FIX EXC. HEATER & DEFROSTER(C41),AIR CON(C60),AUSTRALIA EQUIPMENT(RR3) 08.846 ID=22	8-94382-401-0	04	1	9409-9509		●
310	01.540 CLIP; WATER HOSE FIX EXC. HEATER & DEFROSTER(C41),AIR CON(C60),AUSTRALIA EQUIPMENT(RR3) 08.846 ID=22	8-94382-401-0	02	1	9510-		●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9210-	●	●
478	01.531 FILTER UNITED KINGDOM EQUIPMENT(EK3) 01.519	8-97132-686-0	01	1	9506-	●

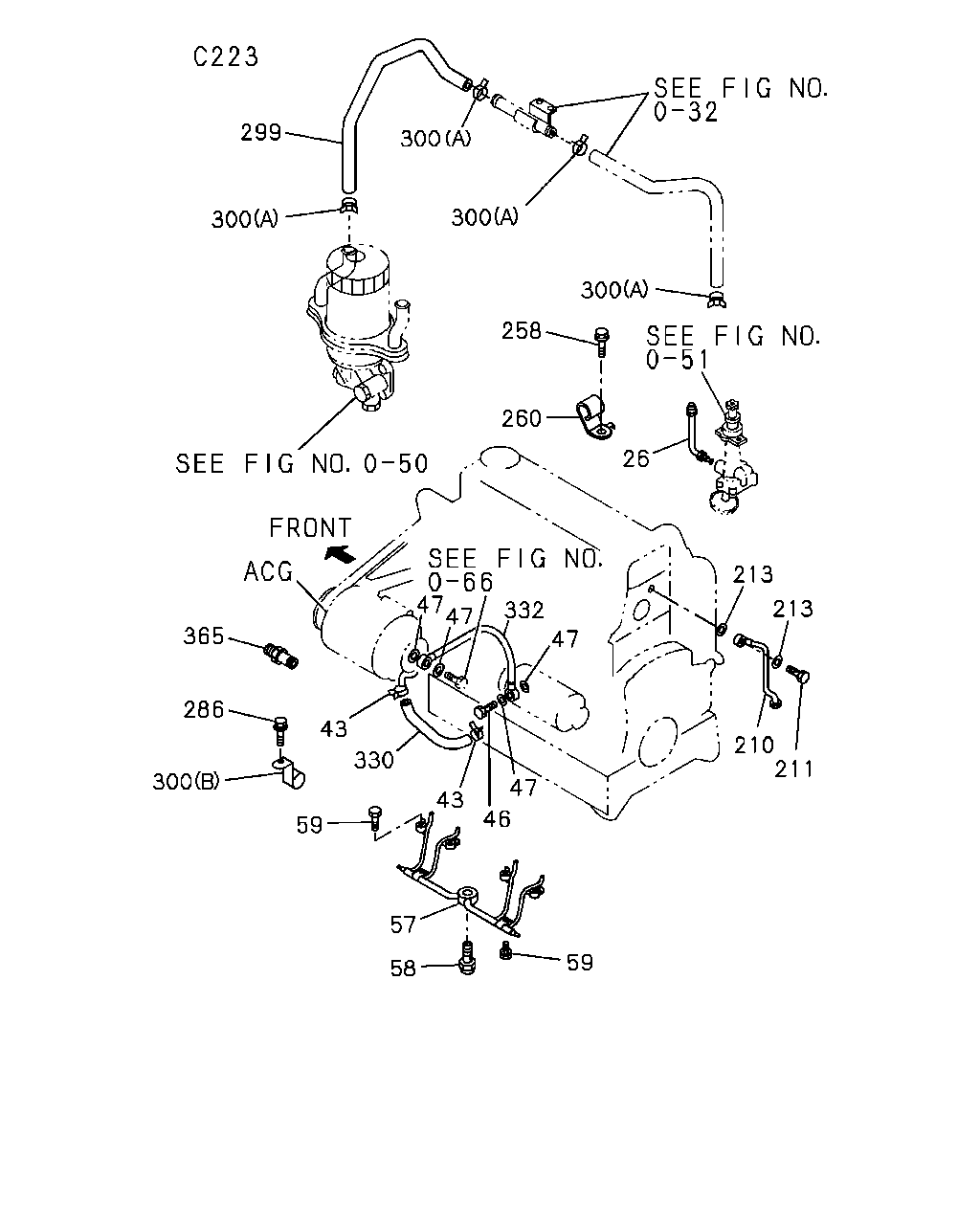

299 300 300 300 300 260 258 26 213 213 211 59 210 58 57 46 43 59 47 330 43 300 286 365 47 47 47 332

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	01.519 PIPE; OIL,PUMP TO C/BL 4X2(TFB***)	8-94454-852-0	01	1	9210-9308	●
26	01.519 PIPE; OIL,PUMP TO C/BL 4X4(TFS***)	8-94471-600-0	01	1	9210-9308	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9210-		●	●
43	01.540 CLIP; RUB HOSE	5-09707-025-3	02	1	9210-9308	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X24	5-09675-024-0	01	1	9210-9308	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X24	5-09675-024-0	01	1	9309-9404		●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU THAILAND EQUIPMENT(PM9) M8X24	5-09675-024-0	01	1	9405-9606		●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9210-9404			●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU EXC. THAILAND EQUIPMENT(PM9) M8X20 EYE-BOLT	5-09675-018-1	01	1	9405-9606		●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9405-9606			●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9607-		●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 ID=8.2 OD=17	9-09572-008-0	02	1	9210-9308	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9504-9509		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9510-		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) AUSTRALIA EQUIPMENT(RR3) GENERATOR 80A(K97) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9510-			●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9210-		●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=19	9-09572-010-0	02	1	9210-9311		●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	9312-		●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) GENERATOR 80A(K97) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9210-9410			●
57	01.519 PIPE; OIL,OIL JET	5-13311-189-2	01	1	9210-9308	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-0	01	1	9210-		●
57	01.519 PIPE; OIL,OIL JET	8-94469-709-1	01	1	9210-			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	5-13160-006-2	01	1	9210-9308	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-94177-189-3	01	1	9210-9603		●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97145-612-0	01	1	9604-		●	●
59	01.531 BOLT; OIL JET 00.206 M8X12 W/LK WASHER	0-50040-812-0	02	1	9210-9308	●
59	01.531 BOLT; OIL JET 01.540 M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9210-9308	●
210	01.519 PIPE; OIL,C/BL TO HD,ROCKER OIL 01.531	5-13311-176-0	01	1	9210-9308	●
211	01.531 BOLT; JOINT,FEED PIPE 03.162 M8X18 EYE-BOLT	1-09675-037-1	01	1	9210-9308	●
213	01.531 GASKET; ROCKER OIL FEED PIPE 03.162 ID=8.2 OD=13.2	1-09630-082-0	02	1	9210-9308	●
258	03.358 BOLT; OIL PIPE CLIP,TC OIL DRAIN 4X4(TFS***) 04.642 M10X16	0-20801-016-0	01	1	9210-9308	●
260	01.531 CLIP; HOSE,TURBOCHARGER RETURN 4X4(TFS***)	8-94473-561-1	01	1	9210-9308	●
286	01.540 BOLT; BRKT,OIL COOLER 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9210-9308	●
299	01.540 HOSE; OIL COOLER TO WATER PIPE	8-94456-532-0	01	1	9210-9308	●
300	01.540 CLIP; HOSE,OIL COOLER (B)	5-09700-290-0	01	1	9210-9308	●
300	01.540 CLIP; HOSE,OIL COOLER 01.150 (A) ID=21.7	8-94413-822-0	04	1	9210-9308	●
330	03.278 HOSE; VAC PUMP,RETURN 03.280	5-11369-087-0	01	1	9210-9308	●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9210-		●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP 01.540	8-94135-853-1	01	1	9210-9308	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP THAILAND EQUIPMENT(PM9)	8-94437-668-1	01	1	9210-		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97)	8-97042-697-0	01	1	9504-9509		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97)	8-97042-697-0	01	1	9510-		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP AUSTRALIA EQUIPMENT(RR3) GENERATOR 80A(K97)	8-97042-697-0	01	1	9510-			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR 80A(K97),THAILAND EQUIPMENT(PM9)	8-94468-522-1	01	1	9210-		●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP GENERATOR 80A(K97)	8-97042-697-0	01	1	9210-9410			●
365	01.540 JOINT; OIL COOLER	9-09903-497-1	01	1	9210-9308	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
