0-45 — EVAPORATOR SYSTEM; ENGINE (#41282) — 89 parça

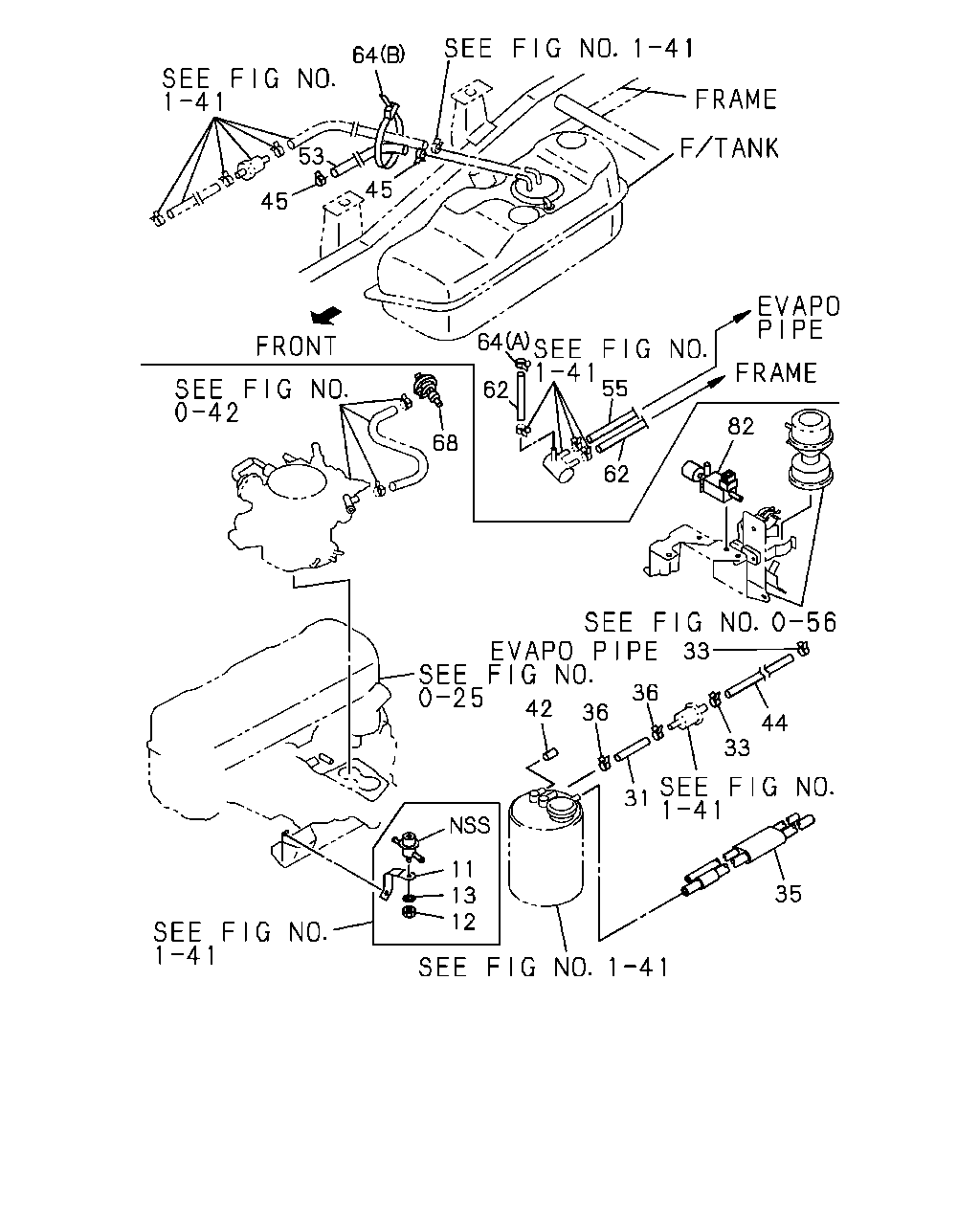

64 53 45 45 64 55 62 68 62 82 33 36 36 42 44 33 31 35 11 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	03.163 BRACKET; FUEL DAMPER	8-94453-353-0	01	1	9210-9509	●
11	03.163 BRACKET; FUEL DAMPER	8-94407-343-0	01	1	9210-9509		●
11	03.163 BRACKET; FUEL DAMPER EXC. AUSTRALIA EQUIPMENT(RR3)	8-94407-343-0	01	1	9210-9509			●
12	03.890 NUT; FUEL DAMPER 00.002 M8	9-09110-508-0	01	1	9210-9509	●	●
12	03.890 NUT; FUEL DAMPER EXC. AUSTRALIA EQUIPMENT(RR3) 00.002 M8	9-09110-508-0	01	1	9210-9509			●
13	03.890 WASHER; LK,FUEL DAMPER 00.002 ID=8.2	9-09150-608-0	01	1	9210-9509	●	●
13	03.890 WASHER; LK,FUEL DAMPER EXC. AUSTRALIA EQUIPMENT(RR3) 00.002 ID=8.2	9-09150-608-0	01	1	9210-9509			●
31	03.163 HOSE; EVAP,PIPE SINGAPORE EQUIPMENT(S9Y) 08.962 L=500 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9402	●
31	03.163 HOSE; EVAP,PIPE SINGAPORE EQUIPMENT(S9Y) 08.962 L=500 SERVICED BY L=3000	0-04750-300-0	01	1	9402-		●
31	03.163 HOSE; EVAP,PIPE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 08.962 L=520 SERVICED BY L=3000	0-04750-300-0	01	1	9210-	●	●	●
31	03.163 HOSE; EVAP,PIPE A/T AISIN(RMD) 08.962 L=580 SERVICED BY L=3000	0-04750-300-0	01	1	9210-			●
33	03.162 CLIP; EVAP HOSE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.163 ID=11	8-94238-570-0	02	1	9210-	●	●	●
35	03.120 HOSE ASM; CANISTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.163	8-97031-555-0	01	1	9210-9308		●
35	03.120 HOSE ASM; CANISTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97089-099-0	01	1	9309-9406		●
35	03.120 HOSE ASM; CANISTER AUSTRALIA EQUIPMENT(RR3)	8-97064-963-1	01	1	9210-			●
36	03.162 CLIP; HOSE,CANISTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.163 ID=11	8-94238-570-0	02	1	9210-	●	●	●
42	03.130 CAP; CANISTER AUSTRALIA EQUIPMENT(RR3) ID=9.0	8-94207-303-0	01	1	9210-9308			●
44	03.163 HOSE; CANISTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	9210-	●	●	●
45	03.417 CLIP; HOSE,PURGE SIGNAL SINGAPORE EQUIPMENT(S9Y) 03.163 ID=11	8-94238-570-0	02	1	9210-9402	●
45	03.417 CLIP; HOSE,PURGE SIGNAL UNITED KINGDOM EQUIPMENT(EK3) 03.163 ID=11	8-94238-570-0	02	1	9210-9402				●
45	03.417 CLIP; HOSE,PURGE SIGNAL SINGAPORE EQUIPMENT(S9Y) 03.163 ID=11	8-94238-570-0	02	1	9402-		●
45	03.417 CLIP; HOSE,PURGE SIGNAL UNITED KINGDOM EQUIPMENT(EK3) 03.163 ID=11	8-94238-570-0	02	1	9402-				●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9210-	●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIA EQUIPMENT(RR3) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9210-			●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 CREW CAB(TFBW) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9210-	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9210-		●	●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE 4X2 SINGLE CAB LONG(TFB*SF) SINGAPORE EQUIPMENT(S9Y) 08.962 L=320 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9401	●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=320 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9401				●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE 4X2 SINGLE CAB LONG(TFB*SF) SINGAPORE EQUIPMENT(S9Y) 08.962 L=320 SERVICED BY L=3000	0-04750-300-0	01	1	9402-		●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=320 SERVICED BY L=3000	0-04750-300-0	01	1	9402-				●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE 4X2 CREW CAB(TFBW) SINGAPORE EQUIPMENT(S9Y) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9402-9402	●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE 4X2 CREW CAB(TFBW) SINGAPORE EQUIPMENT(S9Y) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9402-9406		●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE 4X2 CREW CAB(TFBW) SINGAPORE EQUIPMENT(S9Y) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9407-		●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE 4X4 CREW CAB(TFSW) UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9407-				●
62	03.120 HOSE; EVAP,CONT VLV SINGAPORE EQUIPMENT(S9Y) 08.962 L=350 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9402	●
62	03.120 HOSE; EVAP,CONT VLV UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=350 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9402				●
62	03.120 HOSE; EVAP,CONT VLV SINGAPORE EQUIPMENT(S9Y) 08.962 L=350 SERVICED BY L=3000	0-04750-300-0	01	1	9402-		●
62	03.120 HOSE; EVAP,CONT VLV UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=350 SERVICED BY L=3000	0-04750-300-0	01	1	9402-				●
62	03.120 HOSE; EVAP,CONT VLV SINGAPORE EQUIPMENT(S9Y) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9401	●
62	03.120 HOSE; EVAP,CONT VLV UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9401				●
62	03.120 HOSE; EVAP,CONT VLV 4X2 SINGLE CAB LONG(TFB*SF) SINGAPORE EQUIPMENT(S9Y) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9402-		●
62	03.120 HOSE; EVAP,CONT VLV SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9402-				●
62	03.120 HOSE; EVAP,CONT VLV 4X2 CREW CAB(TFBW) SINGAPORE EQUIPMENT(S9Y) 08.962 L=240 SERVICED BY L=3000	0-04750-300-0	01	1	9402-9402	●
62	03.120 HOSE; EVAP,CONT VLV 4X2 CREW CAB(TFBW) SINGAPORE EQUIPMENT(S9Y) 08.962 L=240 SERVICED BY L=3000	0-04750-300-0	01	1	9402-9406		●
62	03.120 HOSE; EVAP,CONT VLV 4X2 CREW CAB(TFBW) SINGAPORE EQUIPMENT(S9Y) 08.962 L=240 SERVICED BY L=3000	0-04750-300-0	01	1	9407-		●
62	03.120 HOSE; EVAP,CONT VLV 4X4 CREW CAB(TFSW) UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=240 SERVICED BY L=3000	0-04750-300-0	01	1	9407-				●
64	03.120 CLIP; EVAP HOSE SINGAPORE EQUIPMENT(S9Y) 03.162 (B) L=140	5-09707-031-0	01	1	9210-9402	●
64	03.120 CLIP; EVAP HOSE SINGAPORE EQUIPMENT(S9Y) 03.162 (B) L=140	5-09707-031-0	01	1	9402-		●
64	03.120 CLIP; EVAP HOSE SINGAPORE EQUIPMENT(S9Y) 03.163 (A) ID=11	8-94238-570-0	01	1	9210-9312	●
64	03.120 CLIP; EVAP HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.163 (A) ID=11	8-94238-570-0	01	1	9210-9312				●
64	03.120 CLIP; EVAP HOSE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 01.166 (A) ID=14	8-94238-572-0	01	1	9210-9406		●
64	03.120 CLIP; EVAP HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) L=140	5-09707-031-0	03	1	9210-9406				●
68	03.130 VALVE; VENTILATION UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 01.750	8-94227-889-0	01	1	9210-9406		●
82	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3)	8-97031-541-1	01	1	9210-9406		●

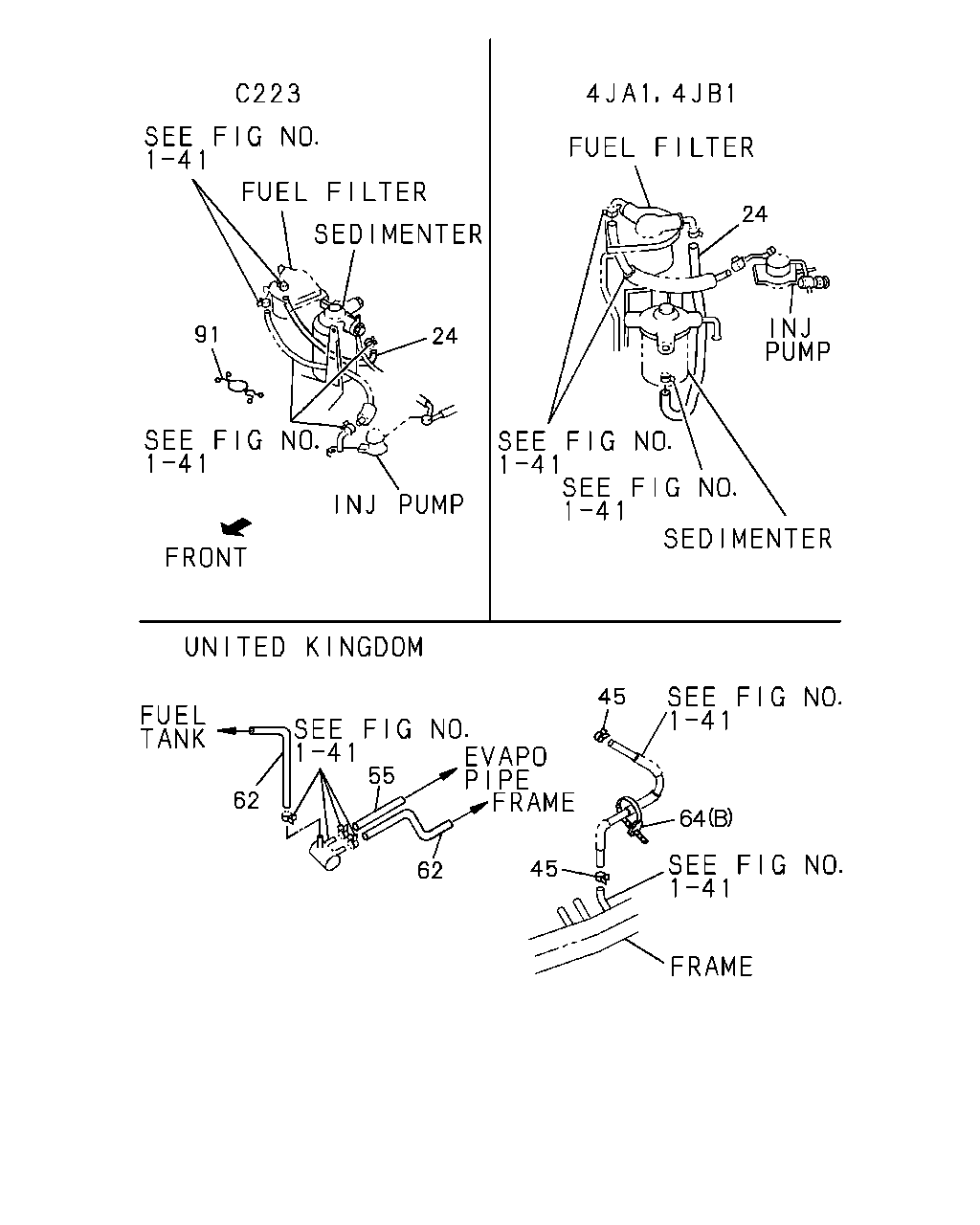

24 91 24 45 64 45 62 55 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E	F
24	03.163 HOSE; RUBBER,SEDIMENTER TO FUEL	8-94328-915-0	01	1	9210-9308				●
24	03.163 HOSE; RUBBER,SEDIMENTER TO FUEL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94327-065-0	01	1	9210-9604			●		●
24	03.163 HOSE; RUBBER,SEDIMENTER TO FUEL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94327-065-0	01	1	9605-			●
24	03.163 HOSE; RUBBER,SEDIMENTER TO FUEL	8-94327-065-0	01	1	9605-					●
45	03.417 CLIP; HOSE,PURGE SIGNAL SINGAPORE EQUIPMENT(S9Y) 03.163 ID=11	8-94238-570-0	02	1	9210-9402	●
45	03.417 CLIP; HOSE,PURGE SIGNAL UNITED KINGDOM EQUIPMENT(EK3) 03.163 ID=11	8-94238-570-0	02	1	9210-9402			●
45	03.417 CLIP; HOSE,PURGE SIGNAL SINGAPORE EQUIPMENT(S9Y) 03.163 ID=11	8-94238-570-0	02	1	9402-		●
45	03.417 CLIP; HOSE,PURGE SIGNAL UNITED KINGDOM EQUIPMENT(EK3) 03.163 ID=11	8-94238-570-0	02	1	9402-			●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE 4X2 SINGLE CAB LONG(TFB*SF) SINGAPORE EQUIPMENT(S9Y) 08.962 L=320 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9401	●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=320 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9401			●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE 4X2 SINGLE CAB LONG(TFB*SF) SINGAPORE EQUIPMENT(S9Y) 08.962 L=320 SERVICED BY L=3000	0-04750-300-0	01	1	9402-		●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=320 SERVICED BY L=3000	0-04750-300-0	01	1	9402-			●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE 4X2 CREW CAB(TFBW) SINGAPORE EQUIPMENT(S9Y) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9402-9402	●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE 4X2 CREW CAB(TFBW) SINGAPORE EQUIPMENT(S9Y) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9402-9406		●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE 4X2 CREW CAB(TFBW) SINGAPORE EQUIPMENT(S9Y) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9407-		●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE 4X4 CREW CAB(TFSW) UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9407-			●
62	03.120 HOSE; EVAP,CONT VLV SINGAPORE EQUIPMENT(S9Y) 08.962 L=350 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9402	●
62	03.120 HOSE; EVAP,CONT VLV UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=350 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9402			●
62	03.120 HOSE; EVAP,CONT VLV SINGAPORE EQUIPMENT(S9Y) 08.962 L=350 SERVICED BY L=3000	0-04750-300-0	01	1	9402-		●
62	03.120 HOSE; EVAP,CONT VLV UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=350 SERVICED BY L=3000	0-04750-300-0	01	1	9402-			●
62	03.120 HOSE; EVAP,CONT VLV SINGAPORE EQUIPMENT(S9Y) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9401	●
62	03.120 HOSE; EVAP,CONT VLV UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9401			●
62	03.120 HOSE; EVAP,CONT VLV 4X2 SINGLE CAB LONG(TFB*SF) SINGAPORE EQUIPMENT(S9Y) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9402-		●
62	03.120 HOSE; EVAP,CONT VLV SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9402-			●
62	03.120 HOSE; EVAP,CONT VLV 4X2 CREW CAB(TFBW) SINGAPORE EQUIPMENT(S9Y) 08.962 L=240 SERVICED BY L=3000	0-04750-300-0	01	1	9402-9402	●
62	03.120 HOSE; EVAP,CONT VLV 4X2 CREW CAB(TFBW) SINGAPORE EQUIPMENT(S9Y) 08.962 L=240 SERVICED BY L=3000	0-04750-300-0	01	1	9402-9406		●
62	03.120 HOSE; EVAP,CONT VLV 4X2 CREW CAB(TFBW) SINGAPORE EQUIPMENT(S9Y) 08.962 L=240 SERVICED BY L=3000	0-04750-300-0	01	1	9407-		●
62	03.120 HOSE; EVAP,CONT VLV 4X4 CREW CAB(TFSW) UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=240 SERVICED BY L=3000	0-04750-300-0	01	1	9407-			●
64	03.120 CLIP; EVAP HOSE SINGAPORE EQUIPMENT(S9Y) 03.162 (B) L=140	5-09707-031-0	01	1	9210-9402	●
64	03.120 CLIP; EVAP HOSE SINGAPORE EQUIPMENT(S9Y) 03.162 (B) L=140	5-09707-031-0	01	1	9402-		●
64	03.120 CLIP; EVAP HOSE SINGAPORE EQUIPMENT(S9Y) 03.163 (A) ID=11	8-94238-570-0	01	1	9210-9312	●
64	03.120 CLIP; EVAP HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.163 (A) ID=11	8-94238-570-0	01	1	9210-9312			●
64	03.120 CLIP; EVAP HOSE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 01.166 (A) ID=14	8-94238-572-0	01	1	9210-9406		●
64	03.120 CLIP; EVAP HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) L=140	5-09707-031-0	03	1	9210-9406			●
91	03.162 CLIP; HOSE AIR CON(C60),COOLER WO/HEATER(YL1) 03.430	1-09709-122-0	01	1	9210-9308				●
