0-41 — FUEL FILTER AND BRACKET (#41280) — 21 parça

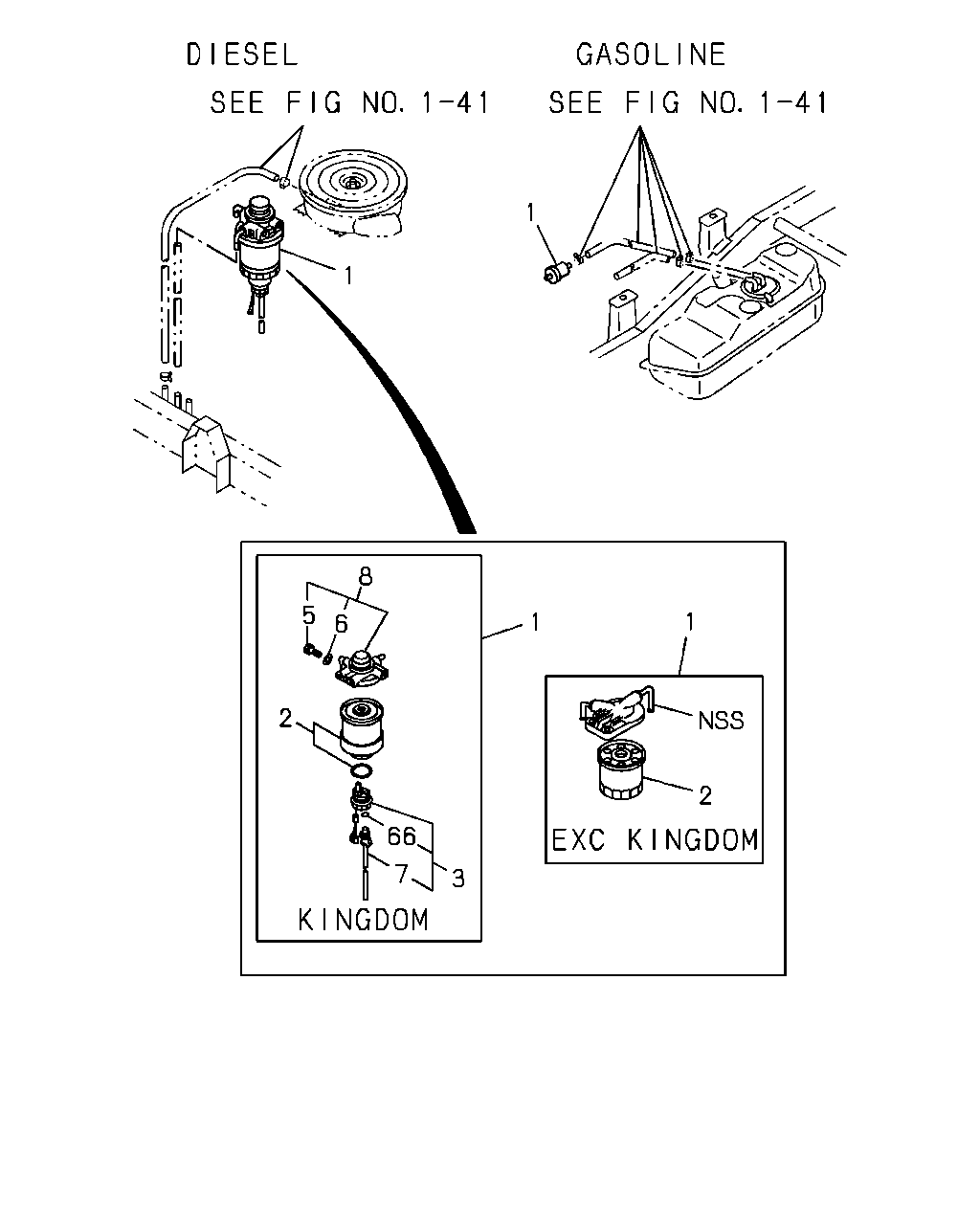

çizim 68502
1 1 1 1 8 5 6 2 66 7 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 FILTER ASM; FUEL 5-13200-066-1 01 1 9210- ● ●
1 03.890 FILTER ASM; FUEL
EXC. AUSTRALIA EQUIPMENT(RR3) 		5-13200-066-1 01 1 9210- ●
1 03.890 FILTER ASM; FUEL
AUSTRALIA EQUIPMENT(RR3) 		8-94125-784-0 01 1 9210-9505 ●
1 03.890 FILTER ASM; FUEL
AUSTRALIA EQUIPMENT(RR3) 		8-25055-364-0 01 1 9506- ●
1 03.890 FILTER ASM; FUEL 8-94420-201-0 01 1 9210-9604 ● ●
1 03.890 FILTER ASM; FUEL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94420-201-0 01 1 9210-9604 ●
1 03.890 FILTER ASM; FUEL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94420-201-0 01 1 9605- ●
1 03.890 FILTER ASM; FUEL 8-94420-201-0 01 1 9605- ●
1 03.890 FILTER ASM; FUEL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97038-184-1 01 1 9210- ●
2 03.890 ELEMENT KIT; FUEL FILTER
01.836 		8-94144-613-0 01 1 9210-9604 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.836 		8-94144-613-0 01 1 9210-9604 ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.836 		8-94144-613-0 01 1 9605- ●
2 03.890 ELEMENT KIT; FUEL FILTER
01.836 		8-94144-613-0 01 1 9605- ●
2 03.890 ELEMENT KIT; FUEL FILTER
UNITED KINGDOM EQUIPMENT(EK3) 		8-94369-299-3 01 1 9210- ●
3 03.890 SENSOR ASM; FUEL FILTER
UNITED KINGDOM EQUIPMENT(EK3) 		8-97064-712-1 01 1 9210- ●
5 03.890 BOLT; FUEL FILTER
UNITED KINGDOM EQUIPMENT(EK3) 		8-94132-674-0 01 1 9210- ●
6 03.890 GASKET; FUEL FILTER
UNITED KINGDOM EQUIPMENT(EK3) 		8-94132-675-0 01 1 9210- ●
7 03.890 PLUG; SENSOR,FUEL FILTER
UNITED KINGDOM EQUIPMENT(EK3) 		8-94247-973-0 01 1 9210-9509 ●
7 03.890 PLUG; SENSOR,FUEL FILTER
UNITED KINGDOM EQUIPMENT(EK3) 		8-97123-549-0 01 1 9510- ●
8 03.890 COVER; FUEL FILTER
UNITED KINGDOM EQUIPMENT(EK3) 		8-94450-135-2 01 1 9510- ●
66 03.890 GASKET; PLUG,FUEL FILTER
UNITED KINGDOM EQUIPMENT(EK3) 01.844 ID=6.8 		8-94167-886-0 01 1 9510- ●
