Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#41274) — 155 parça

31 35 117 116 95 6 84 3 84 171 84 84 73 74 132 17 72 23 16 14 10 8 6 5 68 3 790

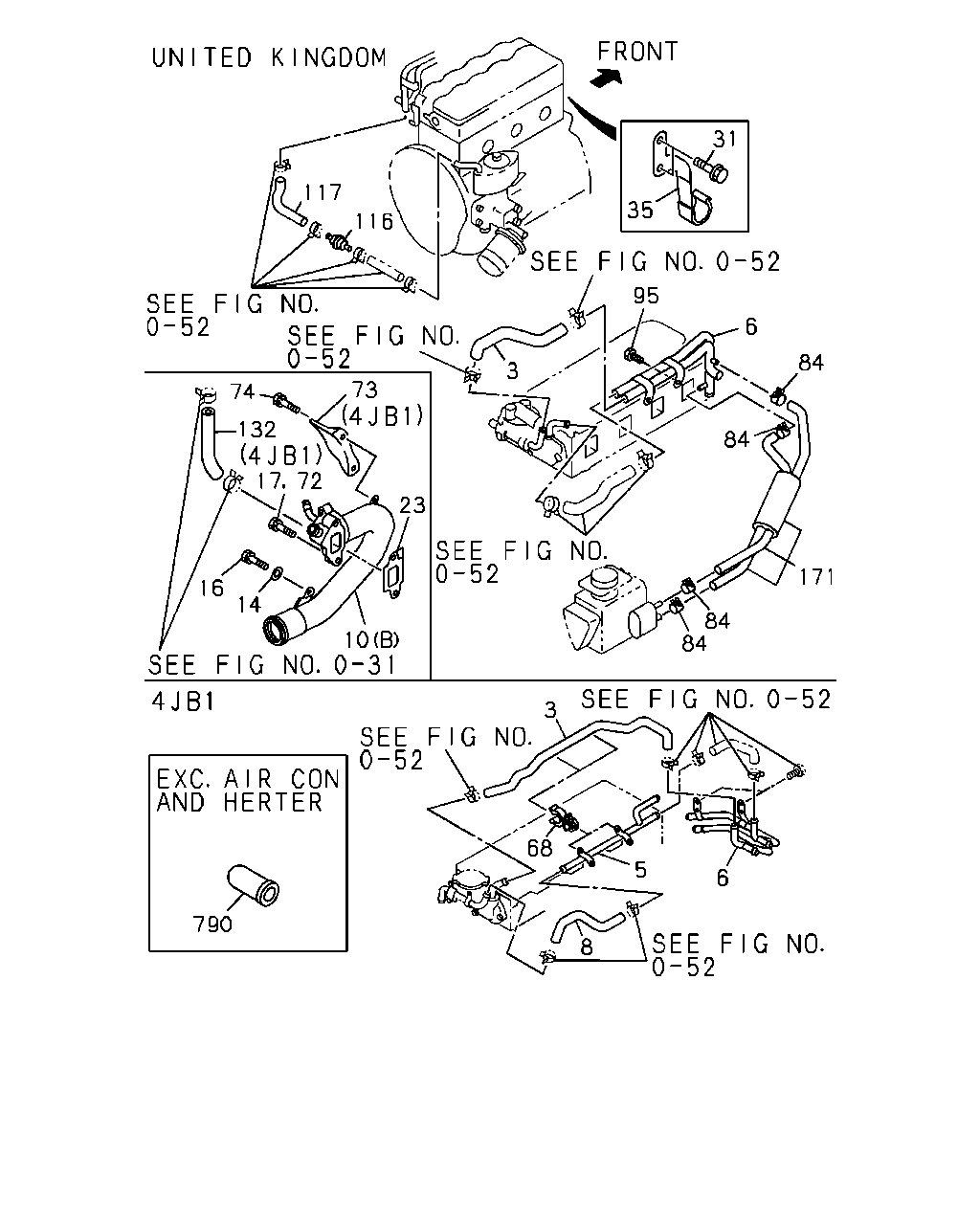

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	01.540 HOSE; WATER,OIL COOLER 01.855	8-94326-753-0	01	1	9210-9308	●
3	01.540 HOSE; WATER,OIL COOLER 01.855	8-94475-205-1	01	1	9210-9406		●
3	01.540 HOSE; WATER,OIL COOLER EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.855	8-94475-205-1	01	1	9407-		●
3	01.540 HOSE; WATER,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	8-97043-720-1	01	1	9407-		●
3	01.540 HOSE; WATER,OIL COOLER 01.855	8-94478-883-1	01	1	9210-9408			●
3	01.540 HOSE; WATER,OIL COOLER	8-97119-517-0	01	1	9409-			●
5	01.540 PIPE ASM; OIL COOLER RETURN HEATER & DEFROSTER(C41),AIR CON(C60)	8-94475-314-3	01	1	9210-9408			●
5	01.540 PIPE ASM; OIL COOLER RETURN	8-94475-314-4	01	1	9409-			●
5	01.540 PIPE ASM; OIL COOLER RETURN EXC. HEATER & DEFROSTER(C41),AIR CON(C60)	8-94319-701-1	01	1	9210-9406			●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CON(C60)	8-94475-203-1	01	1	9210-		●
6	09.190 CONNECTOR; HTR & COOLER HOSE UNITED KINGDOM EQUIPMENT(EK3)	8-97049-193-4	01	1	9407-		●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CON(C60)	8-94445-805-1	01	1	9210-9408			●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-94445-805-2	01	1	9409-			●
8	01.855 HOSE; RUBBER,HSG TO PIPE	8-94478-884-2	01	1	9210-			●
10	01.153 PIPE; SUCTION THAILAND EQUIPMENT(PM9) (A)	8-94442-163-2	01	1	9210-		●
10	01.153 PIPE; SUCTION EXC. THAILAND EQUIPMENT(PM9) (B)	8-94340-787-3	01	1	9210-9308		●
10	01.153 PIPE; SUCTION EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) (B)	8-94340-787-3	01	1	9309-		●
10	01.153 PIPE; SUCTION UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97041-039-3	01	1	9407-		●
10	01.153 PIPE; SUCTION (B)	8-94340-786-3	01	1	9210-			●
14	01.159 WASHER; PL,INL PIPE TO BRKT 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	9210-9211		●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	9212-9305		●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	9306-		●	●
14	01.159 WASHER; PL,INL PIPE TO BRKT 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9210-9305			●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9210-		●	●
17	01.153 BOLT; SUCTION PIPE THAILAND EQUIPMENT(PM9) 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9210-		●
17	01.153 BOLT; SUCTION PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9210-			●
17	01.153 BOLT; SUCTION PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9210-		●
17	01.153 BOLT; SUCTION PIPE 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9210-			●
17	01.153 BOLT; SUCTION PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9210-		●
17	01.153 BOLT; SUCTION PIPE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9210-			●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE). THAILAND EQUIPMENT(PM9) 01.252	8-94247-886-0	01	1	9210-9311		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE). EXC. THAILAND EQUIPMENT(PM9)	8-94365-676-2	01	1	9210-9311		●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9312-		●	●
31	01.159 BOLT; CLIP UNITED KINGDOM EQUIPMENT(EK3) 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9407-9409		●
31	01.159 BOLT; CLIP UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9410-		●
35	01.242 CLIP; RUBBER HOSE UNITED KINGDOM EQUIPMENT(EK3) 01.540	8-97039-302-0	01	1	9407-		●
68	01.166 CLIP; WATER HOSE,OIL COOLER 01.150 ID=21.7	8-94413-822-0	02	1	9210-9308	●
68	01.166 CLIP; WATER HOSE,OIL COOLER ID=21 BLACK	8-94422-733-0	02	1	9210-			●
72	00.206 BOLT; WATER PIPE M8X14 W/LK WASHER	0-50040-814-0	02	1	9210-				●	●	●
72	00.206 BOLT; WATER PIPE THAILAND EQUIPMENT(PM9) 01.531 M8X50 W/LK WASHER	0-50040-850-0	02	1	9210-		●
72	00.206 BOLT; WATER PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9210-		●
72	00.206 BOLT; WATER PIPE UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9210-		●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-94470-560-1	01	1	9210-			●
74	01.097 BOLT; HEAT PROTECTOR FIX 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9210-			●
84	01.240 CLIP; HOSE,W/CSD UNITED KINGDOM EQUIPMENT(EK3) 03.162 ID=15.5	8-94221-519-0	04	1	9407-		●
95	01.240 BOLT; CLIP THAILAND EQUIPMENT(PM9) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9408-9507		●
95	01.240 BOLT; CLIP UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9508-		●
95	01.240 BOLT; CLIP UNITED KINGDOM EQUIPMENT(EK3) 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9210-9406		●
95	01.240 BOLT; CLIP UNITED KINGDOM EQUIPMENT(EK3) 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9407-9507		●
95	01.240 BOLT; CLIP EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9407-9407		●
95	01.240 BOLT; CLIP EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9408-		●
116	01.540 VALVE ASM; THERMO,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	5-21770-001-2	01	1	9210-		●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM UNITED KINGDOM EQUIPMENT(EK3) 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9210-9406		●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM UNITED KINGDOM EQUIPMENT(EK3)	8-97039-420-0	01	1	9407-		●
132	01.153 HOSE; WATER PIPE THAILAND EQUIPMENT(PM9) 01.097	8-94419-293-0	01	1	9210-		●
132	01.153 HOSE; WATER PIPE EXC. THAILAND EQUIPMENT(PM9) 01.097	8-94382-246-0	01	1	9210-		●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-247-1	01	1	9210-			●
171	01.240 HOSE; RUBBER,WAX CSD UNITED KINGDOM EQUIPMENT(EK3)	8-97048-903-3	01	1	9407-		●
790	01.097 CAP EXC. HEATER & DEFROSTER(C41),AIR CON(C60)	8-94414-688-0	02	1	9409-			●

72 75 10 132 17 16 14 11 23 6 132 17 16 14 23 10 95 136 3 58

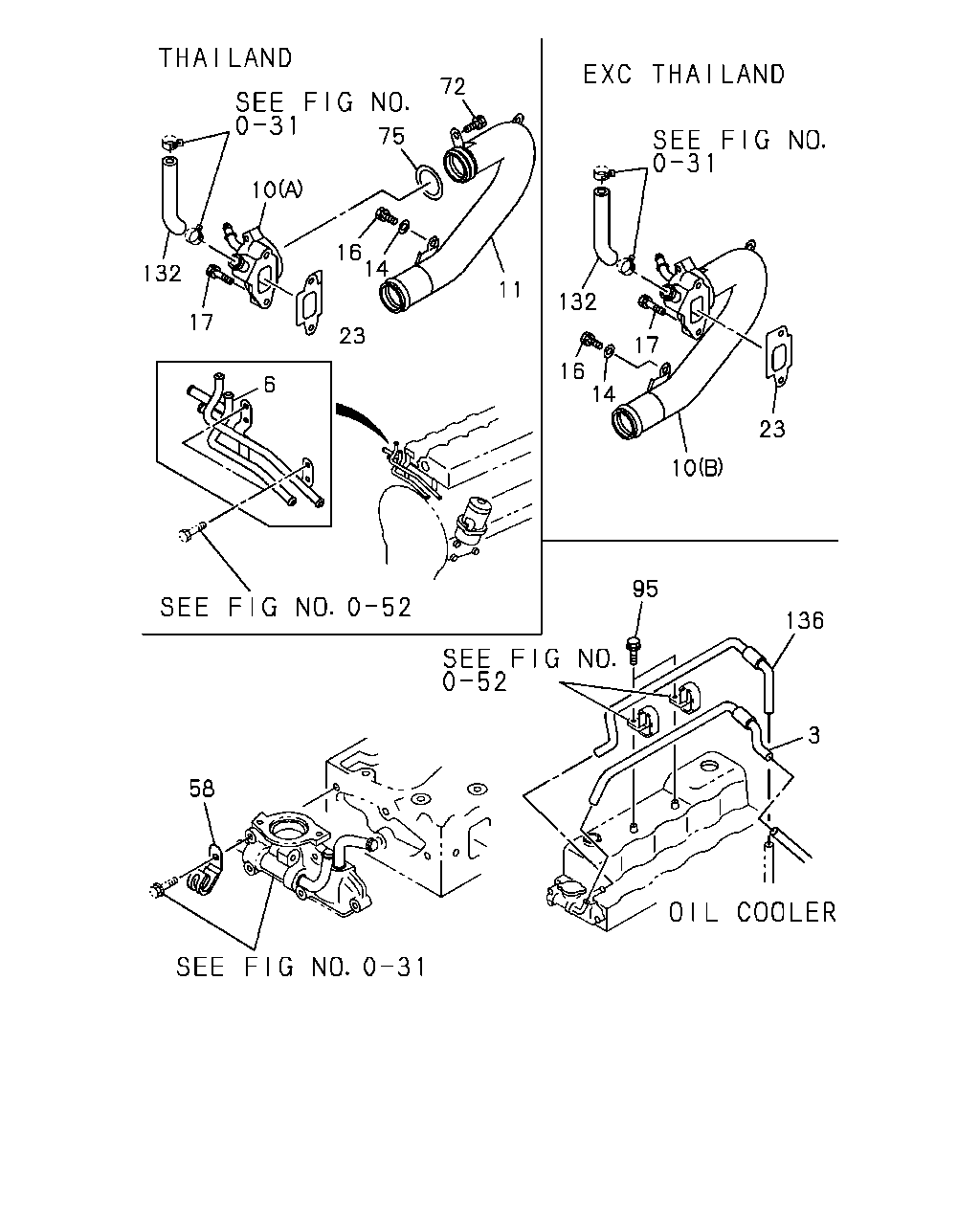

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	01.540 HOSE; WATER,OIL COOLER 01.855	8-94326-753-0	01	1	9210-9308	●
3	01.540 HOSE; WATER,OIL COOLER 01.855	8-94475-205-1	01	1	9210-9406		●
3	01.540 HOSE; WATER,OIL COOLER EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.855	8-94475-205-1	01	1	9407-		●
3	01.540 HOSE; WATER,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	8-97043-720-1	01	1	9407-		●
3	01.540 HOSE; WATER,OIL COOLER 01.855	8-94478-883-1	01	1	9210-9408			●
3	01.540 HOSE; WATER,OIL COOLER	8-97119-517-0	01	1	9409-			●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CON(C60)	8-94475-203-1	01	1	9210-		●
6	09.190 CONNECTOR; HTR & COOLER HOSE UNITED KINGDOM EQUIPMENT(EK3)	8-97049-193-4	01	1	9407-		●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CON(C60)	8-94445-805-1	01	1	9210-9408			●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-94445-805-2	01	1	9409-			●
10	01.153 PIPE; SUCTION THAILAND EQUIPMENT(PM9) (A)	8-94442-163-2	01	1	9210-		●
10	01.153 PIPE; SUCTION EXC. THAILAND EQUIPMENT(PM9) (B)	8-94340-787-3	01	1	9210-9308		●
10	01.153 PIPE; SUCTION EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) (B)	8-94340-787-3	01	1	9309-		●
10	01.153 PIPE; SUCTION UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97041-039-3	01	1	9407-		●
10	01.153 PIPE; SUCTION (B)	8-94340-786-3	01	1	9210-			●
11	01.097 PIPE; INL,WATER PUMP	8-94474-078-3	01	1	9210-				●	●	●
11	01.097 PIPE; INL,WATER PUMP THAILAND EQUIPMENT(PM9)	8-94434-146-1	01	1	9210-		●
14	01.159 WASHER; PL,INL PIPE TO BRKT 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	9210-9211		●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	9212-9305		●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	9306-		●	●
14	01.159 WASHER; PL,INL PIPE TO BRKT 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9210-9305			●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9210-		●	●
17	01.153 BOLT; SUCTION PIPE THAILAND EQUIPMENT(PM9) 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9210-		●
17	01.153 BOLT; SUCTION PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9210-			●
17	01.153 BOLT; SUCTION PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9210-		●
17	01.153 BOLT; SUCTION PIPE 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9210-			●
17	01.153 BOLT; SUCTION PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9210-		●
17	01.153 BOLT; SUCTION PIPE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9210-			●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE). THAILAND EQUIPMENT(PM9) 01.252	8-94247-886-0	01	1	9210-9311		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE). EXC. THAILAND EQUIPMENT(PM9)	8-94365-676-2	01	1	9210-9311		●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9312-		●	●
58	01.240 CLIP; RUBBER HOSE UNITED KINGDOM EQUIPMENT(EK3) 02.559 ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9210-9406		●
72	00.206 BOLT; WATER PIPE M8X14 W/LK WASHER	0-50040-814-0	02	1	9210-				●	●	●
72	00.206 BOLT; WATER PIPE THAILAND EQUIPMENT(PM9) 01.531 M8X50 W/LK WASHER	0-50040-850-0	02	1	9210-		●
72	00.206 BOLT; WATER PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9210-		●
72	00.206 BOLT; WATER PIPE UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9210-		●
75	01.097 GASKET; INL PIPE TO WATER PUMP 01.154	8-94235-013-0	01	1	9210-				●	●	●
75	01.097 GASKET; INL PIPE TO WATER PUMP THAILAND EQUIPMENT(PM9) ID=35.2	9-09565-335-0	01	1	9210-		●
95	01.240 BOLT; CLIP THAILAND EQUIPMENT(PM9) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9408-9507		●
95	01.240 BOLT; CLIP UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9508-		●
95	01.240 BOLT; CLIP UNITED KINGDOM EQUIPMENT(EK3) 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9210-9406		●
95	01.240 BOLT; CLIP UNITED KINGDOM EQUIPMENT(EK3) 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9407-9507		●
95	01.240 BOLT; CLIP EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9407-9407		●
95	01.240 BOLT; CLIP EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9408-		●
132	01.153 HOSE; WATER PIPE THAILAND EQUIPMENT(PM9) 01.097	8-94419-293-0	01	1	9210-		●
132	01.153 HOSE; WATER PIPE EXC. THAILAND EQUIPMENT(PM9) 01.097	8-94382-246-0	01	1	9210-		●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-247-1	01	1	9210-			●
136	01.540 HOSE; OIL COOLER,RETURN	8-94475-206-2	01	1	9210-9406		●
136	01.540 HOSE; OIL COOLER,RETURN EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94475-206-2	01	1	9407-		●

154 151 148 2 148 154 154 154 152 148 2 148 72 11 75 72 69 105

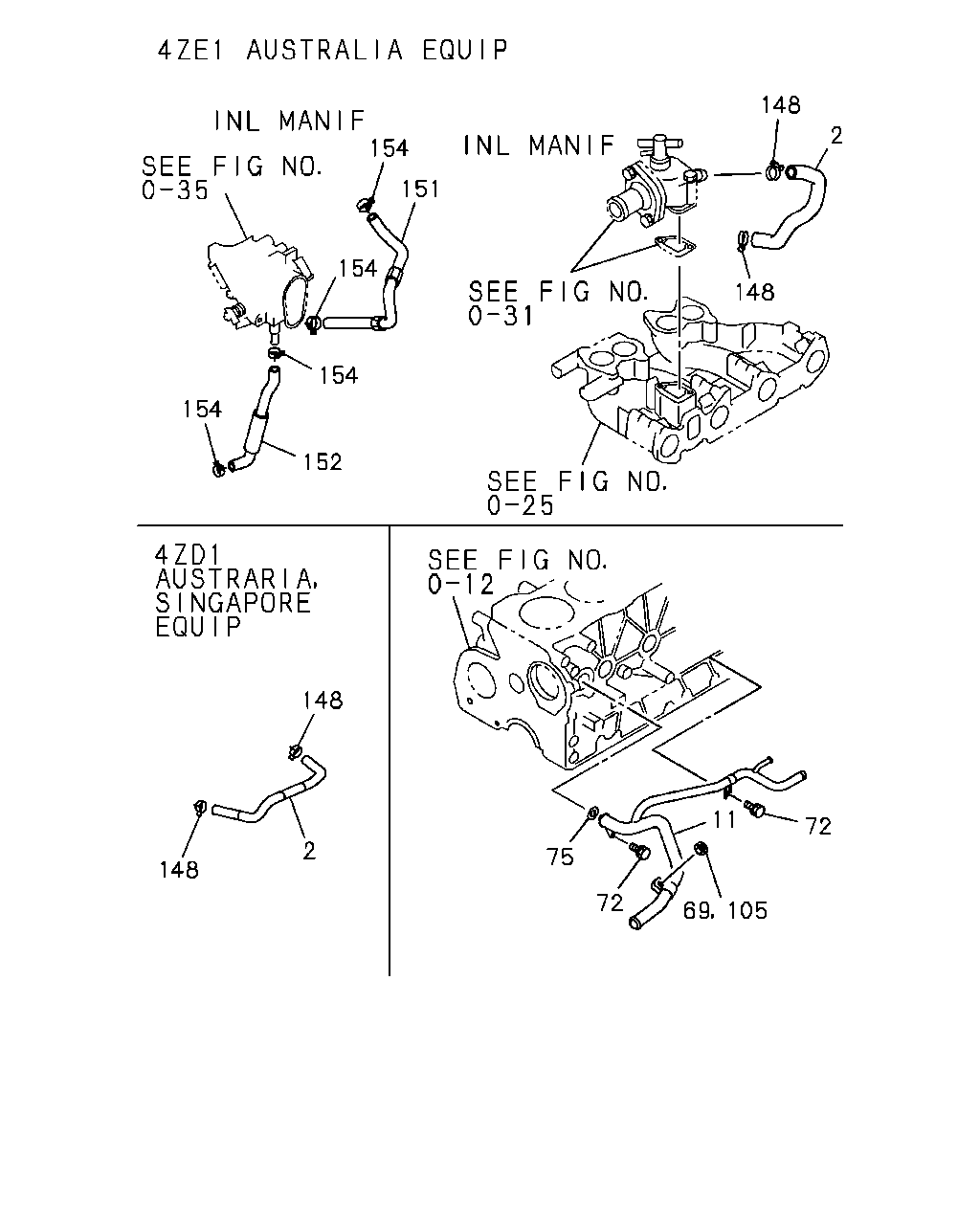

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E	F
2	01.097 HOSE; WATER,BY-PASS AUSTRALIA EQUIPMENT(RR3)	8-94167-324-5	01	1	9210-9308				●
2	01.097 HOSE; WATER,BY-PASS SINGAPORE EQUIPMENT(S9Y)	8-94167-324-5	01	1	9403-				●
2	01.097 HOSE; WATER,BY-PASS AUSTRALIA EQUIPMENT(RR3)	8-97037-774-0	01	1	9210-9510					●
2	01.097 HOSE; WATER,BY-PASS AUSTRALIA EQUIPMENT(RR3) '951030-	8-97108-079-0	01	1	9510-					●
2	01.097 HOSE; WATER,BY-PASS	5-09361-024-0	01	1	9210-9308	●
11	01.097 PIPE; INL,WATER PUMP	8-94474-078-3	01	1	9210-			●	●	●
11	01.097 PIPE; INL,WATER PUMP THAILAND EQUIPMENT(PM9)	8-94434-146-1	01	1	9210-		●
69	01.153 NUT; WATER PIPE 07.829 M6 FLANGE	5-09440-004-0	01	1	9411-			●	●	●
72	00.206 BOLT; WATER PIPE M8X14 W/LK WASHER	0-50040-814-0	02	1	9210-			●	●	●
72	00.206 BOLT; WATER PIPE THAILAND EQUIPMENT(PM9) 01.531 M8X50 W/LK WASHER	0-50040-850-0	02	1	9210-		●
72	00.206 BOLT; WATER PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9210-		●
72	00.206 BOLT; WATER PIPE UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9210-		●
75	01.097 GASKET; INL PIPE TO WATER PUMP 01.154	8-94235-013-0	01	1	9210-			●	●	●
75	01.097 GASKET; INL PIPE TO WATER PUMP THAILAND EQUIPMENT(PM9) ID=35.2	9-09565-335-0	01	1	9210-		●
105	01.153 NUT; PIPE 07.829 M6 FLANGE	5-09440-004-0	01	1	9210-9410			●	●	●
148	01.097 CLIP; BYPASS HOSE AUSTRALIA EQUIPMENT(RR3) ID=11	8-94238-925-0	02	1	9210-9308				●
148	01.097 CLIP; BYPASS HOSE SINGAPORE EQUIPMENT(S9Y) ID=11	8-94238-925-0	02	1	9403-				●
148	01.097 CLIP; BYPASS HOSE AUSTRALIA EQUIPMENT(RR3) 01.540 ID=18.9	8-94478-875-0	02	1	9210-9510					●
148	01.097 CLIP; BYPASS HOSE AUSTRALIA EQUIPMENT(RR3) 01.540 ID=18.9	8-94478-875-0	01	1	9510-					●
148	01.097 CLIP; BYPASS HOSE AUSTRALIA EQUIPMENT(RR3) 01.166 ID=20.8	8-94125-862-0	01	1	9510-					●
148	01.097 CLIP; BYPASS HOSE 01.150	8-94341-837-0	02	1	9210-9308	●
151	01.153 HOSE; WATER OUTLET AUSTRALIA EQUIPMENT(RR3)	8-97037-869-0	01	1	9210-					●
152	01.153 HOSE; WATER INL AUSTRALIA EQUIPMENT(RR3)	8-97037-868-0	01	1	9210-					●
154	01.153 CLIP; WATER HOSE AUSTRALIA EQUIPMENT(RR3) 03.162 ID=15.5	8-94221-519-0	04	1	9210-					●

122 122 9 68 3 68 19 148 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E	F
2	01.097 HOSE; WATER,BY-PASS AUSTRALIA EQUIPMENT(RR3)	8-94167-324-5	01	1	9210-9308				●
2	01.097 HOSE; WATER,BY-PASS SINGAPORE EQUIPMENT(S9Y)	8-94167-324-5	01	1	9403-				●
2	01.097 HOSE; WATER,BY-PASS AUSTRALIA EQUIPMENT(RR3)	8-97037-774-0	01	1	9210-9510					●
2	01.097 HOSE; WATER,BY-PASS AUSTRALIA EQUIPMENT(RR3) '951030-	8-97108-079-0	01	1	9510-					●
2	01.097 HOSE; WATER,BY-PASS	5-09361-024-0	01	1	9210-9308	●
3	01.540 HOSE; WATER,OIL COOLER 01.855	8-94326-753-0	01	1	9210-9308	●
3	01.540 HOSE; WATER,OIL COOLER 01.855	8-94475-205-1	01	1	9210-9406		●
3	01.540 HOSE; WATER,OIL COOLER EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.855	8-94475-205-1	01	1	9407-		●
3	01.540 HOSE; WATER,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	8-97043-720-1	01	1	9407-		●
3	01.540 HOSE; WATER,OIL COOLER 01.855	8-94478-883-1	01	1	9210-9408			●
3	01.540 HOSE; WATER,OIL COOLER	8-97119-517-0	01	1	9409-			●
9	01.855 HOSE; RUBBER,PIPE TO WATER PUMP 01.519	5-09360-934-1	01	1	9210-9308	●
19	01.540 CLIP; OIL COOLER HOSE	5-09709-072-0	01	1	9210-9308	●
68	01.166 CLIP; WATER HOSE,OIL COOLER 01.150 ID=21.7	8-94413-822-0	02	1	9210-9308	●
68	01.166 CLIP; WATER HOSE,OIL COOLER ID=21 BLACK	8-94422-733-0	02	1	9210-			●
122	01.540 CONNECTOR; OIL COOLER HEATER & DEFROSTER(C41),AIR CON(C60) 03.278 (B)3WAY	5-09660-030-2	01	1	9210-9308	●
122	01.540 CONNECTOR; OIL COOLER HEATER & DEFROSTER(C41),AIR CON(C60) (A)2WAY	5-09660-031-2	01	1	9210-9308	●
148	01.097 CLIP; BYPASS HOSE AUSTRALIA EQUIPMENT(RR3) ID=11	8-94238-925-0	02	1	9210-9308				●
148	01.097 CLIP; BYPASS HOSE SINGAPORE EQUIPMENT(S9Y) ID=11	8-94238-925-0	02	1	9403-				●
148	01.097 CLIP; BYPASS HOSE AUSTRALIA EQUIPMENT(RR3) 01.540 ID=18.9	8-94478-875-0	02	1	9210-9510					●
148	01.097 CLIP; BYPASS HOSE AUSTRALIA EQUIPMENT(RR3) 01.540 ID=18.9	8-94478-875-0	01	1	9510-					●
148	01.097 CLIP; BYPASS HOSE AUSTRALIA EQUIPMENT(RR3) 01.166 ID=20.8	8-94125-862-0	01	1	9510-					●
148	01.097 CLIP; BYPASS HOSE 01.150	8-94341-837-0	02	1	9210-9308	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
