0-31 — THERMOSTAT AND HOUSING (#41273) — 128 parça

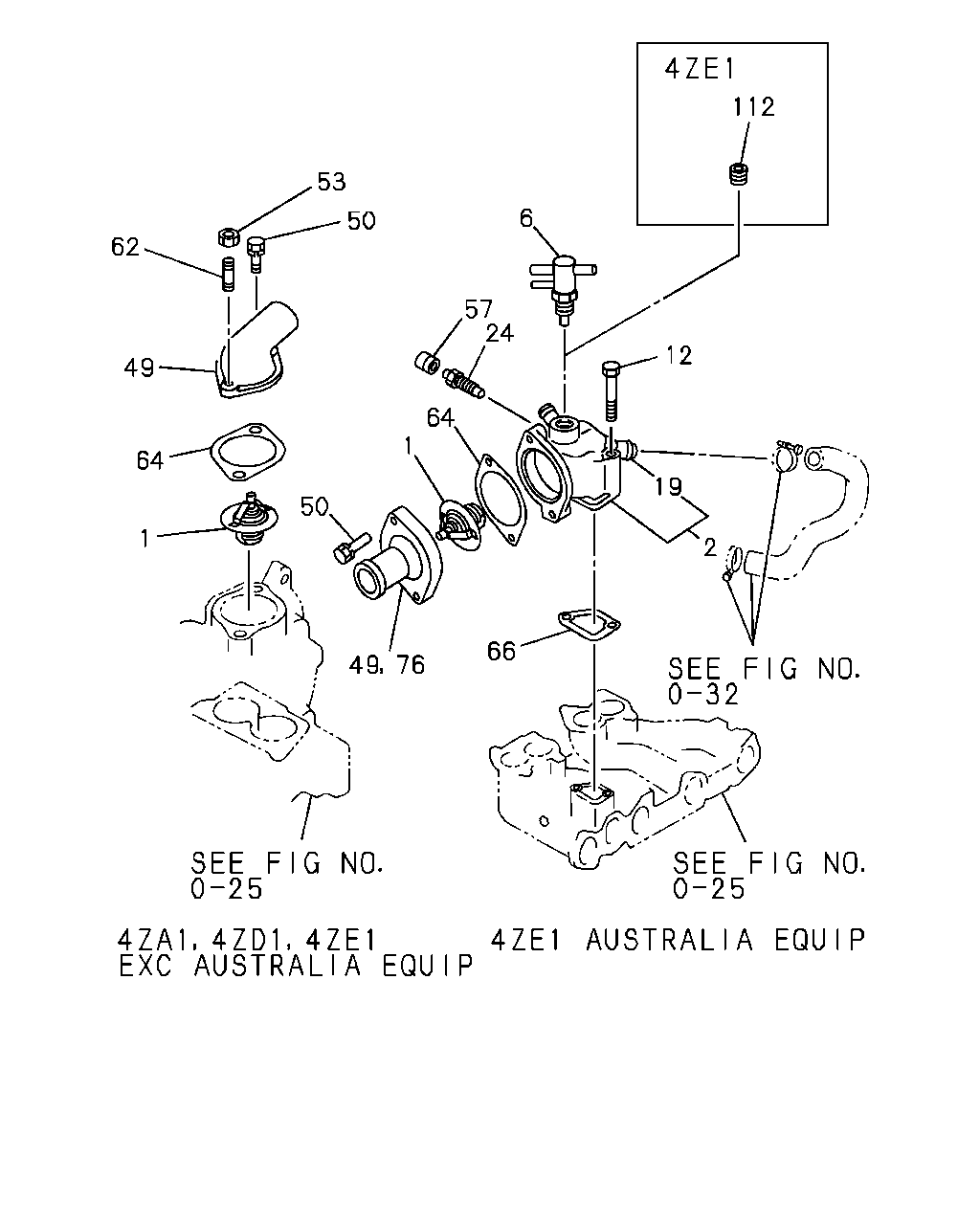

112 6 12 57 24 50 53 62 49 64 1 19 2 50 64 1 49 76 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.246 THERMOSTAT 82 CELSIUS	8-94336-069-0	01	1	9210-	●	●	●
1	01.246 THERMOSTAT 82 CELSIUS	8-94214-962-0	01	1	9210-9308				●	●
1	01.246 THERMOSTAT EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 82 CELSIUS	8-94214-962-0	01	1	9210-9308						●
1	01.246 THERMOSTAT EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 82 CELSIUS	8-94214-962-0	01	1	9309-9404						●
1	01.246 THERMOSTAT 82 CELSIUS	8-94214-962-0	01	1	9309-9404					●
1	01.246 THERMOSTAT EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 82 CELSIUS	8-97089-891-0	01	1	9405-						●
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	9405-					●
1	01.246 THERMOSTAT THAILAND EQUIPMENT(PM9) 82 CELSIUS	8-94482-277-0	01	1	9210-						●
1	01.246 THERMOSTAT UNITED KINGDOM EQUIPMENT(EK3) 85 CELSIUS	8-94360-227-0	01	1	9210-						●
2	01.251 HOUSING; THERMOSTAT AUSTRALIA EQUIPMENT(RR3)	8-97029-305-0	01	1	9210-9510			●
2	01.251 HOUSING; THERMOSTAT AUSTRALIA EQUIPMENT(RR3)	8-97108-158-0	01	1	9510-			●
2	01.251 HOUSING; THERMOSTAT 01.252	8-94254-603-1	01	1	9210-9308				●
2	01.251 HOUSING; THERMOSTAT THAILAND EQUIPMENT(PM9)	8-94459-590-3	01	1	9210-						●
2	01.251 HOUSING; THERMOSTAT EXC. THAILAND EQUIPMENT(PM9)	8-94382-202-0	01	1	9210-9307					●	●
2	01.251 HOUSING; THERMOSTAT EXC. THAILAND EQUIPMENT(PM9)	8-97104-440-1	01	1	9308-9508					●	●
2	01.251 HOUSING; THERMOSTAT EXC. THAILAND EQUIPMENT(PM9)	8-97117-243-0	01	1	9509-					●	●
6	01.240 VALVE; THERMAL,ENG WATER AUSTRALIA EQUIPMENT(RR3)	8-94454-580-0	01	1	9210-			●
12	01.252 BOLT; HSG AUSTRALIA EQUIPMENT(RR3) M8X45 W/LK WASHER	0-50040-845-0	01	1	9210-9510			●
12	01.252 BOLT; HSG AUSTRALIA EQUIPMENT(RR3) M8X60 W/LK WASHER	0-50040-860-0	01	1	9210-9510			●
12	01.252 BOLT; HSG AUSTRALIA EQUIPMENT(RR3) M8X60 W/LK WASHER	0-50040-860-0	02	1	9510-			●
19	01.252 PIPE; HSG TO HTR AUSTRALIA EQUIPMENT(RR3) 03.602 OD=15 L=41	8-94442-052-0	01	1	9210-9510			●
19	01.252 PIPE; HSG TO HTR THAILAND EQUIPMENT(PM9) 03.278 (A)	8-94478-869-1	01	1	9210-						●
19	01.252 PIPE; HSG TO HTR (B)	8-94478-870-1	01	1	9210-					●	●
24	01.252 PLUG; AIR BLEED AUSTRALIA EQUIPMENT(RR3) 04.666 L=27	8-94133-684-0	01	1	9210-			●
49	01.153 PIPE; WATER OUTLET	8-94172-420-1	01	1	9210-	●	●
49	01.153 PIPE; WATER OUTLET EXC. AUSTRALIA EQUIPMENT(RR3)	8-94172-420-1	01	1	9210-			●
49	01.153 PIPE; WATER OUTLET AUSTRALIA EQUIPMENT(RR3)	8-94449-490-0	01	1	9210-9405			●
49	01.153 PIPE; WATER OUTLET	8-94254-601-1	01	1	9210-9308				●
49	01.153 PIPE; WATER OUTLET THAILAND EQUIPMENT(PM9)	9-13713-064-1	01	1	9210-						●
49	01.153 PIPE; WATER OUTLET EXC. THAILAND EQUIPMENT(PM9)	8-94368-589-0	01	1	9210-9406						●
49	01.153 PIPE; WATER OUTLET EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-94368-589-0	01	1	9407-9606						●
49	01.153 PIPE; WATER OUTLET EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-97139-712-0	01	1	9607-						●
49	01.153 PIPE; WATER OUTLET	8-94368-587-0	01	1	9210-9406					●
49	01.153 PIPE; WATER OUTLET UNITED KINGDOM EQUIPMENT(EK3)	8-94368-587-0	01	1	9407-						●
49	01.153 PIPE; WATER OUTLET	8-94368-587-0	01	1	9407-					●
50	01.252 BOLT; OUTLET PIPE 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9210-	●	●
50	01.252 BOLT; OUTLET PIPE EXC. AUSTRALIA EQUIPMENT(RR3) 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9210-			●
50	01.252 BOLT; OUTLET PIPE AUSTRALIA EQUIPMENT(RR3) 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9210-			●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9210-9308				●	●	●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9309-					●	●
53	01.153 NUT; OUTLET PIPE 00.854 M8 FLANGE	5-09440-005-0	01	1	9210-	●	●
53	01.153 NUT; OUTLET PIPE EXC. AUSTRALIA EQUIPMENT(RR3) 00.854 M8 FLANGE	5-09440-005-0	01	1	9210-			●
57	01.252 CAP AUSTRALIA EQUIPMENT(RR3) 04.666	8-94202-898-0	01	1	9210-9404			●
62	01.153 STUD; OUTLET PIPE TO INL MANIF 09.173 M8X22 L=34	9-04110-822-0	01	1	9210-	●	●
62	01.153 STUD; OUTLET PIPE TO INL MANIF EXC. AUSTRALIA EQUIPMENT(RR3) 09.173 M8X22 L=34	9-04110-822-0	01	1	9210-			●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-197-0	01	1	9210-9509	●	●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-197-0	01	1	9510-						●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252	8-94365-674-0	01	1	9210-9308				●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. THAILAND EQUIPMENT(PM9) 01.252	8-94365-674-0	01	1	9210-9308						●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252	8-94365-674-1	01	1	9309-					●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) THAILAND EQUIPMENT(PM9) 01.252	8-94362-202-0	01	1	9210-9308						●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) AUSTRALIA EQUIPMENT(RR3)	8-94324-198-1	01	1	9210-			●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94365-681-0	01	1	9210-9308				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) THAILAND EQUIPMENT(PM9)	8-94258-236-0	01	1	9210-9402						●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. THAILAND EQUIPMENT(PM9)	8-94365-675-0	01	1	9210-9402					●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94365-675-1	01	1	9403-					●	●
76	01.251 JOINT; WATER DUCT AUSTRALIA EQUIPMENT(RR3)	8-97108-164-0	01	1	9406-			●
112	01.251 PLUG 01.073 PT3/8	5-09605-005-0	01	1	9507-			●

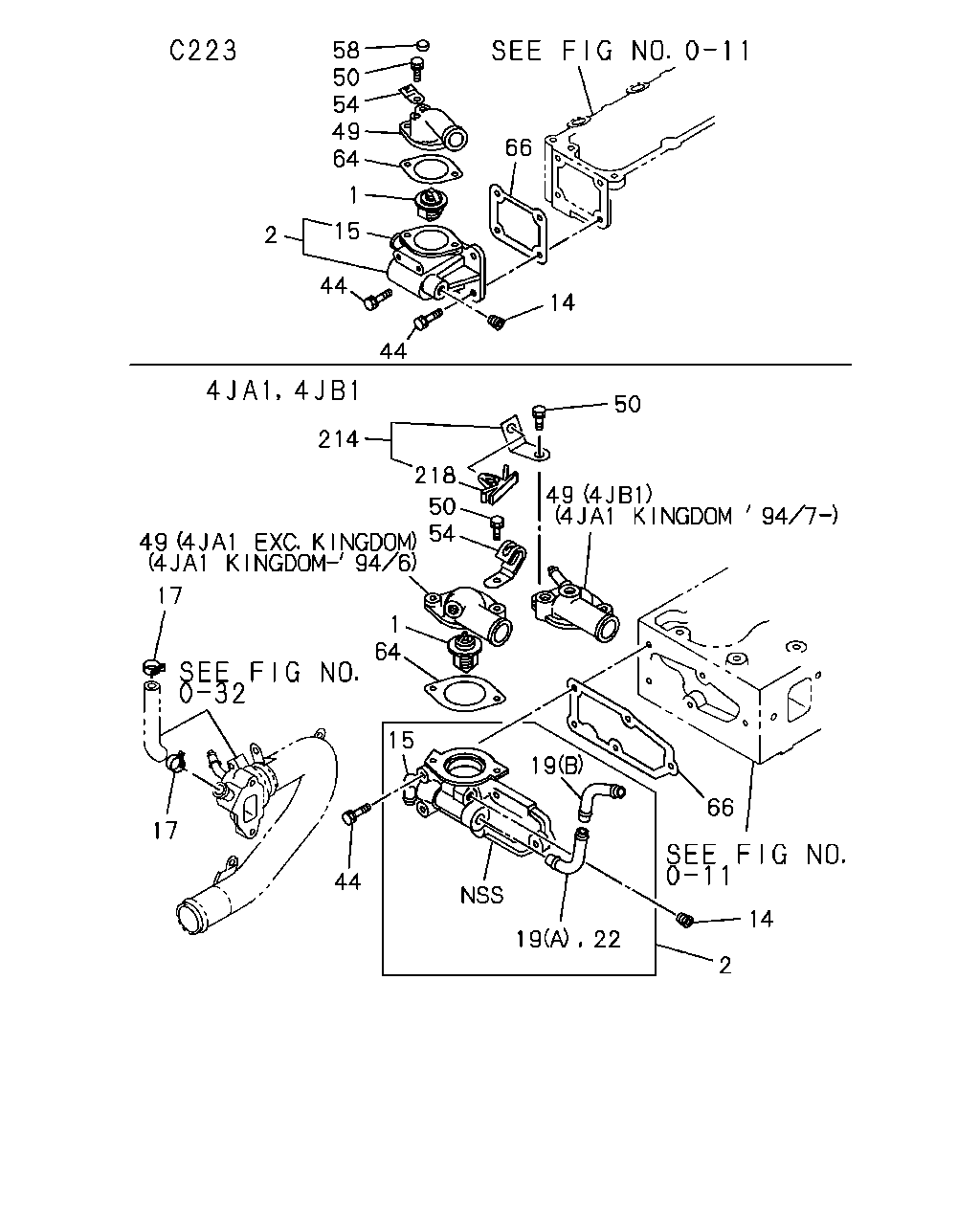

58 50 54 49 66 64 1 2 15 44 44 14 50 214 218 50 54 1 64 17 15 44 19 66 14 2 19 22 49 49 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.246 THERMOSTAT 82 CELSIUS	8-94336-069-0	01	1	9210-	●	●	●
1	01.246 THERMOSTAT 82 CELSIUS	8-94214-962-0	01	1	9210-9308				●	●
1	01.246 THERMOSTAT EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 82 CELSIUS	8-94214-962-0	01	1	9210-9308						●
1	01.246 THERMOSTAT EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 82 CELSIUS	8-94214-962-0	01	1	9309-9404						●
1	01.246 THERMOSTAT 82 CELSIUS	8-94214-962-0	01	1	9309-9404					●
1	01.246 THERMOSTAT EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 82 CELSIUS	8-97089-891-0	01	1	9405-						●
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	9405-					●
1	01.246 THERMOSTAT THAILAND EQUIPMENT(PM9) 82 CELSIUS	8-94482-277-0	01	1	9210-						●
1	01.246 THERMOSTAT UNITED KINGDOM EQUIPMENT(EK3) 85 CELSIUS	8-94360-227-0	01	1	9210-						●
2	01.251 HOUSING; THERMOSTAT AUSTRALIA EQUIPMENT(RR3)	8-97029-305-0	01	1	9210-9510			●
2	01.251 HOUSING; THERMOSTAT AUSTRALIA EQUIPMENT(RR3)	8-97108-158-0	01	1	9510-			●
2	01.251 HOUSING; THERMOSTAT 01.252	8-94254-603-1	01	1	9210-9308				●
2	01.251 HOUSING; THERMOSTAT THAILAND EQUIPMENT(PM9)	8-94459-590-3	01	1	9210-						●
2	01.251 HOUSING; THERMOSTAT EXC. THAILAND EQUIPMENT(PM9)	8-94382-202-0	01	1	9210-9307					●	●
2	01.251 HOUSING; THERMOSTAT EXC. THAILAND EQUIPMENT(PM9)	8-97104-440-1	01	1	9308-9508					●	●
2	01.251 HOUSING; THERMOSTAT EXC. THAILAND EQUIPMENT(PM9)	8-97117-243-0	01	1	9509-					●	●
14	01.252 PLUG; SW EXC. HEATER & DEFROSTER(C41),AIR CON(C60) 01.073 PT3/8	5-09605-005-0	01	1	9210-9308				●
14	01.252 PLUG; SW EXC. THAILAND EQUIPMENT(PM9) 01.073 PT3/8	5-09605-005-0	01	1	9210-9308						●
14	01.252 PLUG; SW EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 01.073 PT3/8	5-09605-005-0	01	1	9309-						●
14	01.252 PLUG; SW 01.073 PT3/8	5-09605-005-0	02	1	9210-					●
15	01.251 PIPE; BYPASS 03.602	5-13719-047-0	01	1	9210-9308				●
15	01.251 PIPE; BYPASS THAILAND EQUIPMENT(PM9)	8-94340-716-1	01	1	9210-						●
15	01.251 PIPE; BYPASS EXC. THAILAND EQUIPMENT(PM9)	8-94343-211-1	01	1	9210-					●	●
17	01.166 CLIP; WATER HOSE THAILAND EQUIPMENT(PM9) ID=15-27	8-94175-939-0	02	1	9210-						●
17	01.166 CLIP; WATER HOSE EXC. THAILAND EQUIPMENT(PM9) ID=20.8	8-94125-862-0	02	1	9210-					●	●
19	01.252 PIPE; HSG TO HTR AUSTRALIA EQUIPMENT(RR3) 03.602 OD=15 L=41	8-94442-052-0	01	1	9210-9510			●
19	01.252 PIPE; HSG TO HTR THAILAND EQUIPMENT(PM9) 03.278 (A)	8-94478-869-1	01	1	9210-						●
19	01.252 PIPE; HSG TO HTR (B)	8-94478-870-1	01	1	9210-					●	●
22	03.278 PIPE; HTR,RETURN EXC. THAILAND EQUIPMENT(PM9)	8-94478-869-1	01	1	9210-					●	●
44	01.252 BOLT; HSG TO HD 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9210-9308				●
44	01.252 BOLT; HSG TO HD 00.727 M8X22 W/LK WASHER	0-50040-822-0	02	1	9210-9308				●
44	01.252 BOLT; HSG TO HD POWER STEERING<N40> THAILAND EQUIPMENT(PM9) 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	9210-						●
44	01.252 BOLT; HSG TO HD THAILAND EQUIPMENT(PM9) 01.840 M8X70 W/LK WASHER	0-50040-870-0	02	1	9210-						●
44	01.252 BOLT; HSG TO HD THAILAND EQUIPMENT(PM9) EXC. POWER STEERING<N40> 00.780 M8X30 W/LK WASHER	0-50040-830-0	03	1	9210-9509						●
44	01.252 BOLT; HSG TO HD M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) THAILAND EQUIPMENT(PM9) EXC. POWER STEERING<N40> 00.780 M8X30 W/LK WASHER	0-50040-830-0	03	1	9510-						●
44	01.252 BOLT; HSG TO HD POWER STEERING<N40> M8X28,M8X34 L=69	8-94479-011-1	01	1	9210-					●	●
44	01.252 BOLT; HSG TO HD POWER STEERING<N40> EXC. THAILAND EQUIPMENT(PM9) 00.780 M8X30 W/LK WASHER	0-50040-830-0	04	1	9210-					●	●
44	01.252 BOLT; HSG TO HD EXC. POWER STEERING<N40>,THAILAND EQUIPMENT(PM9) 00.780 M8X30 W/LK WASHER	0-50040-830-0	05	1	9210-					●	●
49	01.153 PIPE; WATER OUTLET	8-94172-420-1	01	1	9210-	●	●
49	01.153 PIPE; WATER OUTLET EXC. AUSTRALIA EQUIPMENT(RR3)	8-94172-420-1	01	1	9210-			●
49	01.153 PIPE; WATER OUTLET AUSTRALIA EQUIPMENT(RR3)	8-94449-490-0	01	1	9210-9405			●
49	01.153 PIPE; WATER OUTLET	8-94254-601-1	01	1	9210-9308				●
49	01.153 PIPE; WATER OUTLET THAILAND EQUIPMENT(PM9)	9-13713-064-1	01	1	9210-						●
49	01.153 PIPE; WATER OUTLET EXC. THAILAND EQUIPMENT(PM9)	8-94368-589-0	01	1	9210-9406						●
49	01.153 PIPE; WATER OUTLET EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-94368-589-0	01	1	9407-9606						●
49	01.153 PIPE; WATER OUTLET EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-97139-712-0	01	1	9607-						●
49	01.153 PIPE; WATER OUTLET	8-94368-587-0	01	1	9210-9406					●
49	01.153 PIPE; WATER OUTLET UNITED KINGDOM EQUIPMENT(EK3)	8-94368-587-0	01	1	9407-						●
49	01.153 PIPE; WATER OUTLET	8-94368-587-0	01	1	9407-					●
50	01.252 BOLT; OUTLET PIPE 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9210-	●	●
50	01.252 BOLT; OUTLET PIPE EXC. AUSTRALIA EQUIPMENT(RR3) 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9210-			●
50	01.252 BOLT; OUTLET PIPE AUSTRALIA EQUIPMENT(RR3) 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9210-			●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9210-9308				●	●	●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9309-					●	●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE ID=8.5	5-09700-275-0	01	1	9210-9308				●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=12	5-09700-331-0	01	1	9210-					●	●
58	00.073 PLUG; WATER OUTLET PIPE 01.073 PT3/8	5-09605-005-0	01	1	9210-9308				●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-197-0	01	1	9210-9509	●	●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-197-0	01	1	9510-						●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252	8-94365-674-0	01	1	9210-9308				●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. THAILAND EQUIPMENT(PM9) 01.252	8-94365-674-0	01	1	9210-9308						●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252	8-94365-674-1	01	1	9309-					●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) THAILAND EQUIPMENT(PM9) 01.252	8-94362-202-0	01	1	9210-9308						●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) AUSTRALIA EQUIPMENT(RR3)	8-94324-198-1	01	1	9210-			●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94365-681-0	01	1	9210-9308				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) THAILAND EQUIPMENT(PM9)	8-94258-236-0	01	1	9210-9402						●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. THAILAND EQUIPMENT(PM9)	8-94365-675-0	01	1	9210-9402					●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94365-675-1	01	1	9403-					●	●
214	01.153 BRACKET; HARNESS UNITED KINGDOM EQUIPMENT(EK3)	8-97048-961-0	01	1	9407-						●
218	01.240 CLIP; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.166	8-94456-949-0	01	1	9407-						●
