Sayfa 0-30 - Isuzu EPC

0-30 — WATER PUMP AND CORROSION RESISTOR (#41272) — 223 parça

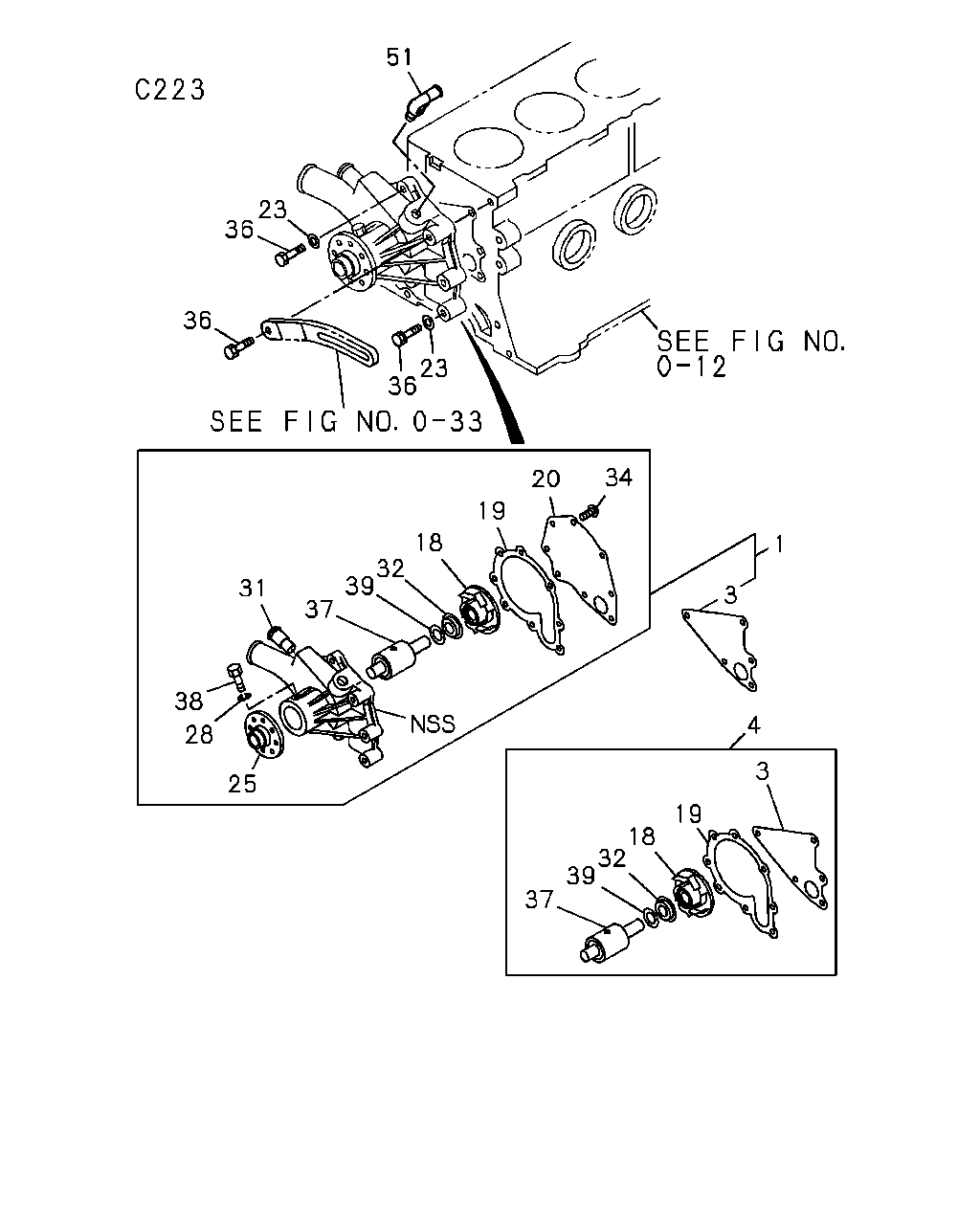

51 23 36 36 23 36 1 3 34 20 19 18 32 39 37 31 38 28 25 4 3 19 18 32 39 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.069 PUMP ASM; WATER,W/GASKET	8-97021-775-0	01	1	9210-9306	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97084-505-1	01	1	9307-	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97021-773-0	01	1	9210-9306		●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97081-624-1	01	1	9307-		●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97021-774-0	01	1	9210-9306			●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97081-623-1	01	1	9307-			●
1	01.069 PUMP ASM; WATER,W/GASKET	8-94376-858-0	01	1	9210-9308				●
1	01.069 PUMP ASM; WATER,W/GASKET THAILAND EQUIPMENT(PM9)	8-97018-560-0	01	1	9210-9608					●
1	01.069 PUMP ASM; WATER,W/GASKET THAILAND EQUIPMENT(PM9)	8-97940-154-0	01	1	9609-					●
1	01.069 PUMP ASM; WATER,W/GASKET EXC. THAILAND EQUIPMENT(PM9)	8-97062-796-0	01	1	9210-9410					●	●
1	01.069 PUMP ASM; WATER,W/GASKET EXC. THAILAND EQUIPMENT(PM9)	8-97123-330-0	01	1	9411-					●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94328-251-3	01	1	9210-	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-195-0	01	1	9210-		●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-329-0	01	1	9210-9308				●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	9210-					●	●
4	01.123 REPAIR KIT; WATER PUMP	8-94332-926-0	01	1	9210-9306	●
4	01.123 REPAIR KIT; WATER PUMP	8-97084-506-0	01	1	9307-9509	●
4	01.123 REPAIR KIT; WATER PUMP	8-94332-680-0	01	1	9210-9306		●	●
4	01.123 REPAIR KIT; WATER PUMP	8-97080-692-0	01	1	9307-9509		●	●
4	01.123 REPAIR KIT; WATER PUMP 01.073	5-87810-243-0	01	1	9210-9308				●
4	01.123 REPAIR KIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94464-914-0	01	1	9210-9509					●
4	01.123 REPAIR KIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94322-794-1	01	1	9510-9608					●
4	01.123 REPAIR KIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-97940-155-0	01	1	9609-					●
18	01.109 IMPELLER; WATER PUMP	8-94153-754-0	01	1	9210-9509	●
18	01.109 IMPELLER; WATER PUMP 01.069	8-94146-329-0	01	1	9210-9509		●	●
18	01.109 IMPELLER; WATER PUMP	5-13621-013-0	01	1	9210-9308				●
18	01.109 IMPELLER; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94250-163-0	01	1	9210-9608					●
18	01.109 IMPELLER; WATER PUMP THAILAND EQUIPMENT(PM9) D=78	8-94411-904-0	01	1	9609-					●
19	01.079 GASKET; COVER TO BODY 01.114	8-94104-958-1	01	1	9210-9308				●
20	01.079 COVER; WATER PUMP 01.073	8-94104-957-1	01	1	9210-9308				●
23	01.123 WASHER; PL,WATER PUMP POWER STEERING<N40> 07.874 ID=10.5 OD=18	9-09160-510-0	03	1	9210-9308				●
23	01.123 WASHER; PL,WATER PUMP EXC. POWER STEERING<N40> 07.874 ID=10.5 OD=18	9-09160-510-0	04	1	9210-9308				●
25	01.123 CENTER; WATER PUMP 01.069	8-94146-330-0	01	1	9210-9509	●	●	●
25	01.123 CENTER; WATER PUMP 01.060	8-94441-847-0	01	1	9210-9308				●
25	01.123 CENTER; WATER PUMP THAILAND EQUIPMENT(PM9) 01.060	8-94441-847-0	01	1	9210-9308					●
25	01.123 CENTER; WATER PUMP THAILAND EQUIPMENT(PM9) 01.060	8-94441-847-0	01	1	9309-9608					●
25	01.123 CENTER; WATER PUMP THAILAND EQUIPMENT(PM9)	8-97940-159-0	01	1	9609-					●
28	01.105 WASHER; WATER PUMP 00.002 ID=8.2	9-09150-508-0	01	1	9210-9308	●	●	●	●
28	01.105 WASHER; WATER PUMP THAILAND EQUIPMENT(PM9) 00.002 ID=8.2	9-09150-508-0	01	1	9210-9308					●
28	01.105 WASHER; WATER PUMP 00.002 ID=8.2	9-09150-508-0	01	1	9309-9411	●	●	●
28	01.105 WASHER; WATER PUMP THAILAND EQUIPMENT(PM9) 00.002 ID=8.2	9-09150-508-0	01	1	9309-9411					●
28	01.105 WASHER; WATER PUMP THAILAND EQUIPMENT(PM9) 00.002 ID=8.2	9-09150-508-0	01	1	9412-					●
31	01.097 PIPE; SUCTION,INL	8-94111-615-0	01	1	9210-9308				●
32	01.123 SEAL UNIT; WATER PUMP	8-94311-754-0	01	1	9210-9306	●	●	●
32	01.123 SEAL UNIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94311-754-0	01	1	9210-9306					●
32	01.123 SEAL UNIT; WATER PUMP	8-97080-691-0	01	1	9307-9509	●	●	●
32	01.123 SEAL UNIT; WATER PUMP	5-13620-006-1	01	1	9210-9308				●
32	01.123 SEAL UNIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94311-754-0	01	1	9307-9509					●
32	01.123 SEAL UNIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-97080-691-0	01	1	9510-					●
34	01.079 SCREW; COVER TO BODY,WATER PUMP 01.113 M8X20 CK-HEAD	9-03090-820-0	03	1	9210-9308				●
36	00.386 BOLT; WATER PUMP TO C/BL 00.727 M8X22 W/LK WASHER	0-50040-822-0	03	1	9210-	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 01.540 M8X35 W/LK WASHER	0-50040-835-0	01	1	9210-	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9210-			●
36	00.386 BOLT; WATER PUMP TO C/BL 01.540 M8X35 W/LK WASHER	0-50040-835-0	02	1	9210-			●
36	00.386 BOLT; WATER PUMP TO C/BL M10X50 W/LK WASHER	0-50041-050-0	03	1	9210-9308				●
36	00.386 BOLT; WATER PUMP TO C/BL POWER STEERING<N40> 02.277 M10X70 W/LK WASHER	0-50041-070-0	01	1	9210-9308				●
36	00.386 BOLT; WATER PUMP TO C/BL POWER STEERING<N40> 00.724 M10X55	5-09030-038-1	01	1	9210-9308				●
36	00.386 BOLT; WATER PUMP TO C/BL EXC. POWER STEERING<N40> 00.724 M10X55	5-09030-038-1	02	1	9210-9308				●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9210-					●	●
37	01.123 BEARING UNIT; WATER PUMP	8-94146-328-1	01	1	9210-9306	●	●	●
37	01.123 BEARING UNIT; WATER PUMP	8-97080-690-0	01	1	9307-9509	●	●	●
37	01.123 BEARING UNIT; WATER PUMP 01.105	8-94110-560-0	01	1	9210-9308				●
37	01.123 BEARING UNIT; WATER PUMP THAILAND EQUIPMENT(PM9) 01.105	8-94110-560-0	01	1	9210-9308					●
37	01.123 BEARING UNIT; WATER PUMP THAILAND EQUIPMENT(PM9) 01.105	8-94110-560-0	01	1	9309-9608					●
37	01.123 BEARING UNIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94421-942-0	01	1	9609-					●
38	01.073 SCREW; WATER PUMP 01.105	9-09814-014-1	01	1	9210-9308	●	●	●	●
38	01.073 SCREW; WATER PUMP THAILAND EQUIPMENT(PM9) 01.105	9-09814-014-1	01	1	9210-9308					●
38	01.073 SCREW; WATER PUMP 01.105	9-09814-014-1	01	1	9309-9411	●	●	●
38	01.073 SCREW; WATER PUMP THAILAND EQUIPMENT(PM9) 01.105	9-09814-014-1	01	1	9309-9411					●
38	01.073 SCREW; WATER PUMP THAILAND EQUIPMENT(PM9) 01.105	9-09814-014-1	01	1	9412-					●
39	01.105 THROWER; WATER PUMP 01.069	9-13639-002-0	01	1	9210-9509	●	●	●
39	01.105 THROWER; WATER PUMP 01.109	9-13639-001-0	01	1	9210-9308				●
39	01.105 THROWER; WATER PUMP THAILAND EQUIPMENT(PM9) 01.109	9-13639-001-0	01	1	9210-9308					●
39	01.105 THROWER; WATER PUMP THAILAND EQUIPMENT(PM9) 01.109	9-13639-001-0	01	1	9309-					●
51	01.097 UNION; HOSE,WATER PUMP	9-09703-009-0	01	1	9210-9308				●

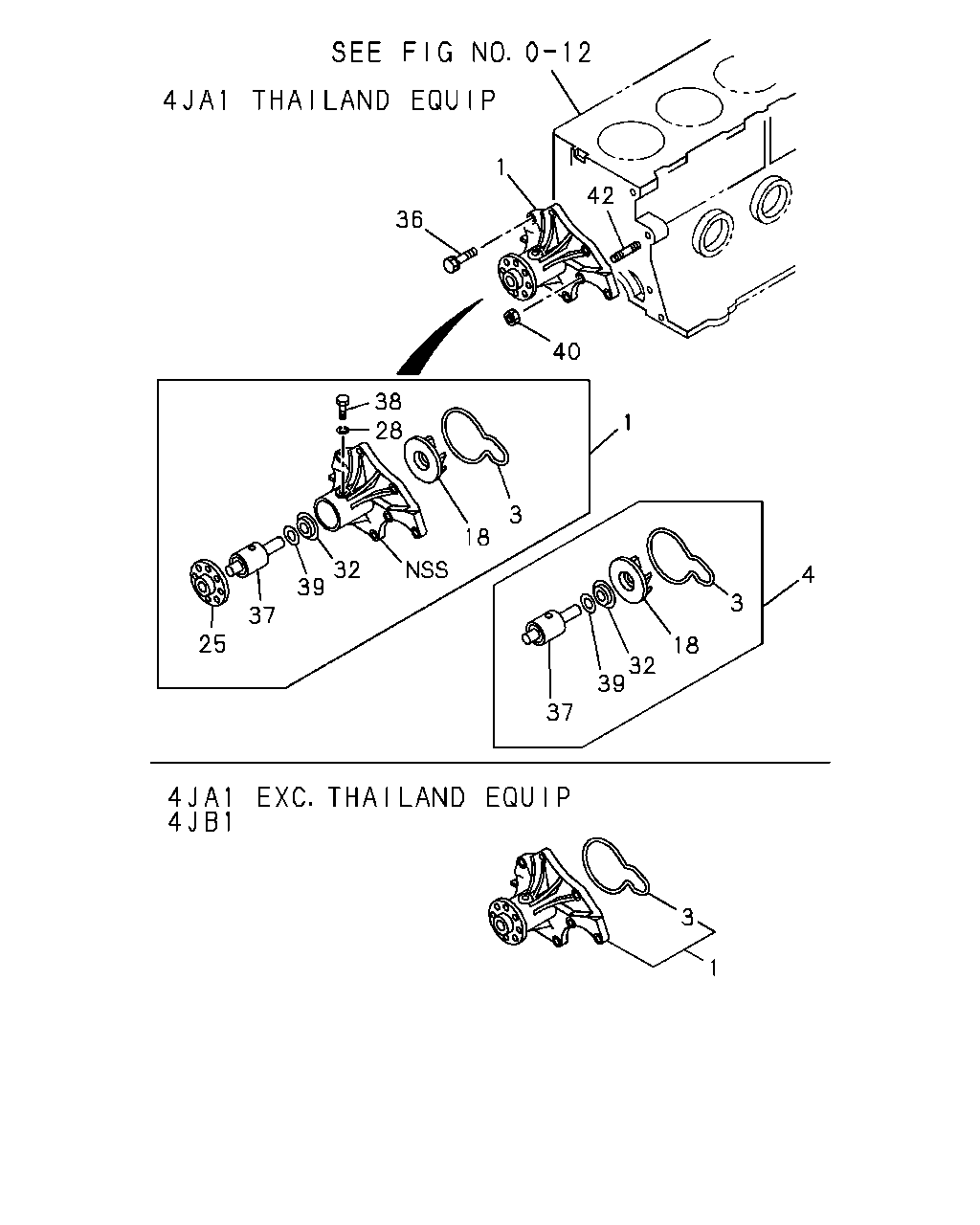

1 42 36 40 1 3 18 38 28 32 39 37 25 4 3 18 32 39 37 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.069 PUMP ASM; WATER,W/GASKET	8-97021-775-0	01	1	9210-9306	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97084-505-1	01	1	9307-	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97021-773-0	01	1	9210-9306		●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97081-624-1	01	1	9307-		●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97021-774-0	01	1	9210-9306			●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97081-623-1	01	1	9307-			●
1	01.069 PUMP ASM; WATER,W/GASKET	8-94376-858-0	01	1	9210-9308				●
1	01.069 PUMP ASM; WATER,W/GASKET THAILAND EQUIPMENT(PM9)	8-97018-560-0	01	1	9210-9608					●
1	01.069 PUMP ASM; WATER,W/GASKET THAILAND EQUIPMENT(PM9)	8-97940-154-0	01	1	9609-					●
1	01.069 PUMP ASM; WATER,W/GASKET EXC. THAILAND EQUIPMENT(PM9)	8-97062-796-0	01	1	9210-9410					●	●
1	01.069 PUMP ASM; WATER,W/GASKET EXC. THAILAND EQUIPMENT(PM9)	8-97123-330-0	01	1	9411-					●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94328-251-3	01	1	9210-	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-195-0	01	1	9210-		●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-329-0	01	1	9210-9308				●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	9210-					●	●
4	01.123 REPAIR KIT; WATER PUMP	8-94332-926-0	01	1	9210-9306	●
4	01.123 REPAIR KIT; WATER PUMP	8-97084-506-0	01	1	9307-9509	●
4	01.123 REPAIR KIT; WATER PUMP	8-94332-680-0	01	1	9210-9306		●	●
4	01.123 REPAIR KIT; WATER PUMP	8-97080-692-0	01	1	9307-9509		●	●
4	01.123 REPAIR KIT; WATER PUMP 01.073	5-87810-243-0	01	1	9210-9308				●
4	01.123 REPAIR KIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94464-914-0	01	1	9210-9509					●
4	01.123 REPAIR KIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94322-794-1	01	1	9510-9608					●
4	01.123 REPAIR KIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-97940-155-0	01	1	9609-					●
18	01.109 IMPELLER; WATER PUMP	8-94153-754-0	01	1	9210-9509	●
18	01.109 IMPELLER; WATER PUMP 01.069	8-94146-329-0	01	1	9210-9509		●	●
18	01.109 IMPELLER; WATER PUMP	5-13621-013-0	01	1	9210-9308				●
18	01.109 IMPELLER; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94250-163-0	01	1	9210-9608					●
18	01.109 IMPELLER; WATER PUMP THAILAND EQUIPMENT(PM9) D=78	8-94411-904-0	01	1	9609-					●
25	01.123 CENTER; WATER PUMP 01.069	8-94146-330-0	01	1	9210-9509	●	●	●
25	01.123 CENTER; WATER PUMP 01.060	8-94441-847-0	01	1	9210-9308				●
25	01.123 CENTER; WATER PUMP THAILAND EQUIPMENT(PM9) 01.060	8-94441-847-0	01	1	9210-9308					●
25	01.123 CENTER; WATER PUMP THAILAND EQUIPMENT(PM9) 01.060	8-94441-847-0	01	1	9309-9608					●
25	01.123 CENTER; WATER PUMP THAILAND EQUIPMENT(PM9)	8-97940-159-0	01	1	9609-					●
28	01.105 WASHER; WATER PUMP 00.002 ID=8.2	9-09150-508-0	01	1	9210-9308	●	●	●	●
28	01.105 WASHER; WATER PUMP THAILAND EQUIPMENT(PM9) 00.002 ID=8.2	9-09150-508-0	01	1	9210-9308					●
28	01.105 WASHER; WATER PUMP 00.002 ID=8.2	9-09150-508-0	01	1	9309-9411	●	●	●
28	01.105 WASHER; WATER PUMP THAILAND EQUIPMENT(PM9) 00.002 ID=8.2	9-09150-508-0	01	1	9309-9411					●
28	01.105 WASHER; WATER PUMP THAILAND EQUIPMENT(PM9) 00.002 ID=8.2	9-09150-508-0	01	1	9412-					●
32	01.123 SEAL UNIT; WATER PUMP	8-94311-754-0	01	1	9210-9306	●	●	●
32	01.123 SEAL UNIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94311-754-0	01	1	9210-9306					●
32	01.123 SEAL UNIT; WATER PUMP	8-97080-691-0	01	1	9307-9509	●	●	●
32	01.123 SEAL UNIT; WATER PUMP	5-13620-006-1	01	1	9210-9308				●
32	01.123 SEAL UNIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94311-754-0	01	1	9307-9509					●
32	01.123 SEAL UNIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-97080-691-0	01	1	9510-					●
36	00.386 BOLT; WATER PUMP TO C/BL 00.727 M8X22 W/LK WASHER	0-50040-822-0	03	1	9210-	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 01.540 M8X35 W/LK WASHER	0-50040-835-0	01	1	9210-	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9210-			●
36	00.386 BOLT; WATER PUMP TO C/BL 01.540 M8X35 W/LK WASHER	0-50040-835-0	02	1	9210-			●
36	00.386 BOLT; WATER PUMP TO C/BL M10X50 W/LK WASHER	0-50041-050-0	03	1	9210-9308				●
36	00.386 BOLT; WATER PUMP TO C/BL POWER STEERING<N40> 02.277 M10X70 W/LK WASHER	0-50041-070-0	01	1	9210-9308				●
36	00.386 BOLT; WATER PUMP TO C/BL POWER STEERING<N40> 00.724 M10X55	5-09030-038-1	01	1	9210-9308				●
36	00.386 BOLT; WATER PUMP TO C/BL EXC. POWER STEERING<N40> 00.724 M10X55	5-09030-038-1	02	1	9210-9308				●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9210-					●	●
37	01.123 BEARING UNIT; WATER PUMP	8-94146-328-1	01	1	9210-9306	●	●	●
37	01.123 BEARING UNIT; WATER PUMP	8-97080-690-0	01	1	9307-9509	●	●	●
37	01.123 BEARING UNIT; WATER PUMP 01.105	8-94110-560-0	01	1	9210-9308				●
37	01.123 BEARING UNIT; WATER PUMP THAILAND EQUIPMENT(PM9) 01.105	8-94110-560-0	01	1	9210-9308					●
37	01.123 BEARING UNIT; WATER PUMP THAILAND EQUIPMENT(PM9) 01.105	8-94110-560-0	01	1	9309-9608					●
37	01.123 BEARING UNIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94421-942-0	01	1	9609-					●
38	01.073 SCREW; WATER PUMP 01.105	9-09814-014-1	01	1	9210-9308	●	●	●	●
38	01.073 SCREW; WATER PUMP THAILAND EQUIPMENT(PM9) 01.105	9-09814-014-1	01	1	9210-9308					●
38	01.073 SCREW; WATER PUMP 01.105	9-09814-014-1	01	1	9309-9411	●	●	●
38	01.073 SCREW; WATER PUMP THAILAND EQUIPMENT(PM9) 01.105	9-09814-014-1	01	1	9309-9411					●
38	01.073 SCREW; WATER PUMP THAILAND EQUIPMENT(PM9) 01.105	9-09814-014-1	01	1	9412-					●
39	01.105 THROWER; WATER PUMP 01.069	9-13639-002-0	01	1	9210-9509	●	●	●
39	01.105 THROWER; WATER PUMP 01.109	9-13639-001-0	01	1	9210-9308				●
39	01.105 THROWER; WATER PUMP THAILAND EQUIPMENT(PM9) 01.109	9-13639-001-0	01	1	9210-9308					●
39	01.105 THROWER; WATER PUMP THAILAND EQUIPMENT(PM9) 01.109	9-13639-001-0	01	1	9309-					●
40	07.874 NUT; WATER PUMP 00.854 M8 FLANGE	5-09440-005-0	01	1	9210-	●	●	●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9210-					●	●
42	01.073 STUD; WATER PUMP 00.206 M8X25 L=36	1-09300-050-0	01	1	9210-	●	●	●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	9210-					●	●

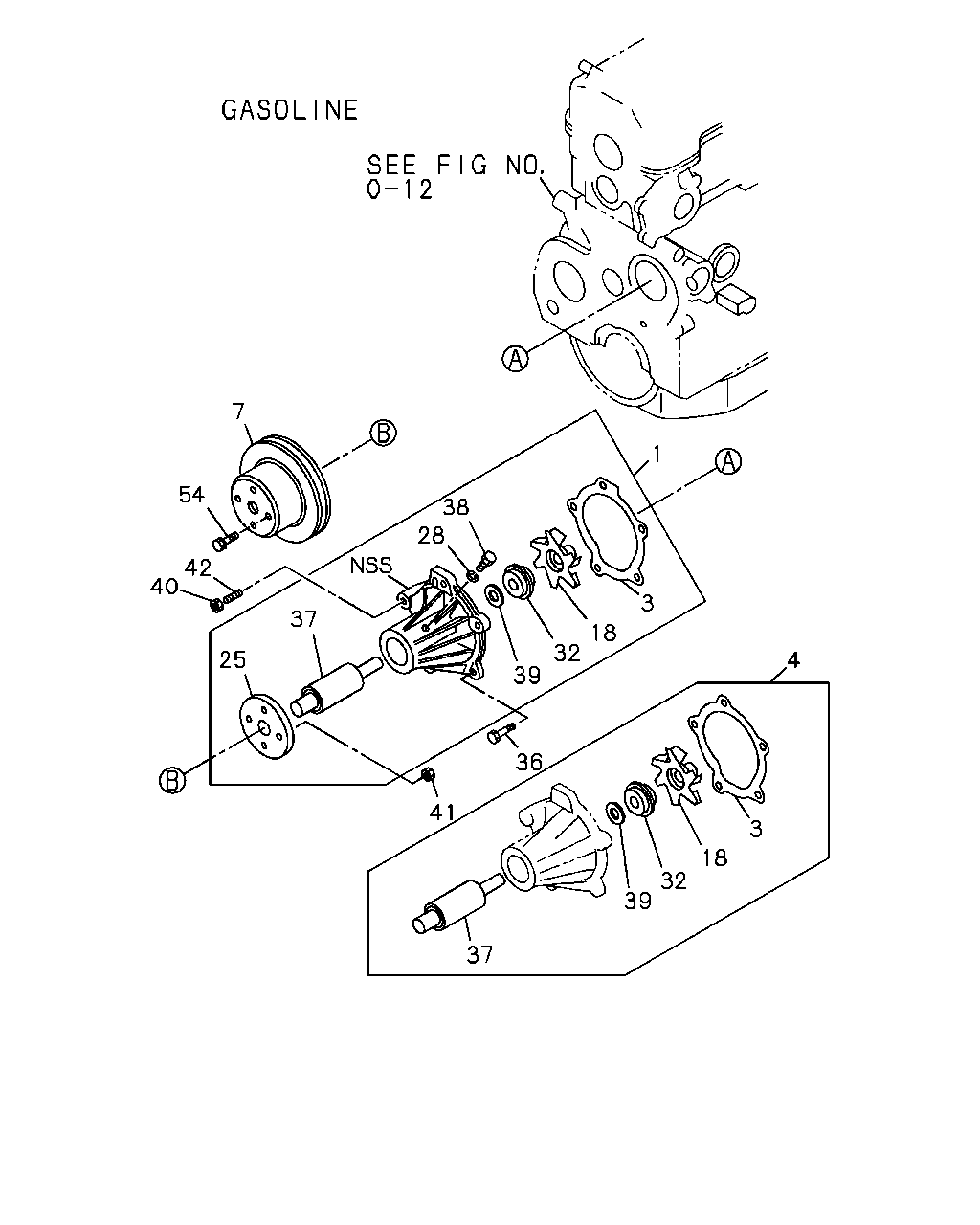

1 7 54 42 40 38 28 37 25 3 18 32 39 36 41 4 3 18 32 39 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.069 PUMP ASM; WATER,W/GASKET	8-97021-775-0	01	1	9210-9306	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97084-505-1	01	1	9307-	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97021-773-0	01	1	9210-9306		●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97081-624-1	01	1	9307-		●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97021-774-0	01	1	9210-9306			●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97081-623-1	01	1	9307-			●
1	01.069 PUMP ASM; WATER,W/GASKET	8-94376-858-0	01	1	9210-9308				●
1	01.069 PUMP ASM; WATER,W/GASKET THAILAND EQUIPMENT(PM9)	8-97018-560-0	01	1	9210-9608					●
1	01.069 PUMP ASM; WATER,W/GASKET THAILAND EQUIPMENT(PM9)	8-97940-154-0	01	1	9609-					●
1	01.069 PUMP ASM; WATER,W/GASKET EXC. THAILAND EQUIPMENT(PM9)	8-97062-796-0	01	1	9210-9410					●	●
1	01.069 PUMP ASM; WATER,W/GASKET EXC. THAILAND EQUIPMENT(PM9)	8-97123-330-0	01	1	9411-					●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94328-251-3	01	1	9210-	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-195-0	01	1	9210-		●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-329-0	01	1	9210-9308				●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	9210-					●	●
4	01.123 REPAIR KIT; WATER PUMP	8-94332-926-0	01	1	9210-9306	●
4	01.123 REPAIR KIT; WATER PUMP	8-97084-506-0	01	1	9307-9509	●
4	01.123 REPAIR KIT; WATER PUMP	8-94332-680-0	01	1	9210-9306		●	●
4	01.123 REPAIR KIT; WATER PUMP	8-97080-692-0	01	1	9307-9509		●	●
4	01.123 REPAIR KIT; WATER PUMP 01.073	5-87810-243-0	01	1	9210-9308				●
4	01.123 REPAIR KIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94464-914-0	01	1	9210-9509					●
4	01.123 REPAIR KIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94322-794-1	01	1	9510-9608					●
4	01.123 REPAIR KIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-97940-155-0	01	1	9609-					●
7	01.062 PULLEY; WATER PUMP	8-94472-589-0	01	1	9210-	●	●	●
18	01.109 IMPELLER; WATER PUMP	8-94153-754-0	01	1	9210-9509	●
18	01.109 IMPELLER; WATER PUMP 01.069	8-94146-329-0	01	1	9210-9509		●	●
18	01.109 IMPELLER; WATER PUMP	5-13621-013-0	01	1	9210-9308				●
18	01.109 IMPELLER; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94250-163-0	01	1	9210-9608					●
18	01.109 IMPELLER; WATER PUMP THAILAND EQUIPMENT(PM9) D=78	8-94411-904-0	01	1	9609-					●
25	01.123 CENTER; WATER PUMP 01.069	8-94146-330-0	01	1	9210-9509	●	●	●
25	01.123 CENTER; WATER PUMP 01.060	8-94441-847-0	01	1	9210-9308				●
25	01.123 CENTER; WATER PUMP THAILAND EQUIPMENT(PM9) 01.060	8-94441-847-0	01	1	9210-9308					●
25	01.123 CENTER; WATER PUMP THAILAND EQUIPMENT(PM9) 01.060	8-94441-847-0	01	1	9309-9608					●
25	01.123 CENTER; WATER PUMP THAILAND EQUIPMENT(PM9)	8-97940-159-0	01	1	9609-					●
28	01.105 WASHER; WATER PUMP 00.002 ID=8.2	9-09150-508-0	01	1	9210-9308	●	●	●	●
28	01.105 WASHER; WATER PUMP THAILAND EQUIPMENT(PM9) 00.002 ID=8.2	9-09150-508-0	01	1	9210-9308					●
28	01.105 WASHER; WATER PUMP 00.002 ID=8.2	9-09150-508-0	01	1	9309-9411	●	●	●
28	01.105 WASHER; WATER PUMP THAILAND EQUIPMENT(PM9) 00.002 ID=8.2	9-09150-508-0	01	1	9309-9411					●
28	01.105 WASHER; WATER PUMP THAILAND EQUIPMENT(PM9) 00.002 ID=8.2	9-09150-508-0	01	1	9412-					●
32	01.123 SEAL UNIT; WATER PUMP	8-94311-754-0	01	1	9210-9306	●	●	●
32	01.123 SEAL UNIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94311-754-0	01	1	9210-9306					●
32	01.123 SEAL UNIT; WATER PUMP	8-97080-691-0	01	1	9307-9509	●	●	●
32	01.123 SEAL UNIT; WATER PUMP	5-13620-006-1	01	1	9210-9308				●
32	01.123 SEAL UNIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94311-754-0	01	1	9307-9509					●
32	01.123 SEAL UNIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-97080-691-0	01	1	9510-					●
36	00.386 BOLT; WATER PUMP TO C/BL 00.727 M8X22 W/LK WASHER	0-50040-822-0	03	1	9210-	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 01.540 M8X35 W/LK WASHER	0-50040-835-0	01	1	9210-	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9210-			●
36	00.386 BOLT; WATER PUMP TO C/BL 01.540 M8X35 W/LK WASHER	0-50040-835-0	02	1	9210-			●
36	00.386 BOLT; WATER PUMP TO C/BL M10X50 W/LK WASHER	0-50041-050-0	03	1	9210-9308				●
36	00.386 BOLT; WATER PUMP TO C/BL POWER STEERING<N40> 02.277 M10X70 W/LK WASHER	0-50041-070-0	01	1	9210-9308				●
36	00.386 BOLT; WATER PUMP TO C/BL POWER STEERING<N40> 00.724 M10X55	5-09030-038-1	01	1	9210-9308				●
36	00.386 BOLT; WATER PUMP TO C/BL EXC. POWER STEERING<N40> 00.724 M10X55	5-09030-038-1	02	1	9210-9308				●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9210-					●	●
37	01.123 BEARING UNIT; WATER PUMP	8-94146-328-1	01	1	9210-9306	●	●	●
37	01.123 BEARING UNIT; WATER PUMP	8-97080-690-0	01	1	9307-9509	●	●	●
37	01.123 BEARING UNIT; WATER PUMP 01.105	8-94110-560-0	01	1	9210-9308				●
37	01.123 BEARING UNIT; WATER PUMP THAILAND EQUIPMENT(PM9) 01.105	8-94110-560-0	01	1	9210-9308					●
37	01.123 BEARING UNIT; WATER PUMP THAILAND EQUIPMENT(PM9) 01.105	8-94110-560-0	01	1	9309-9608					●
37	01.123 BEARING UNIT; WATER PUMP THAILAND EQUIPMENT(PM9)	8-94421-942-0	01	1	9609-					●
38	01.073 SCREW; WATER PUMP 01.105	9-09814-014-1	01	1	9210-9308	●	●	●	●
38	01.073 SCREW; WATER PUMP THAILAND EQUIPMENT(PM9) 01.105	9-09814-014-1	01	1	9210-9308					●
38	01.073 SCREW; WATER PUMP 01.105	9-09814-014-1	01	1	9309-9411	●	●	●
38	01.073 SCREW; WATER PUMP THAILAND EQUIPMENT(PM9) 01.105	9-09814-014-1	01	1	9309-9411					●
38	01.073 SCREW; WATER PUMP THAILAND EQUIPMENT(PM9) 01.105	9-09814-014-1	01	1	9412-					●
39	01.105 THROWER; WATER PUMP 01.069	9-13639-002-0	01	1	9210-9509	●	●	●
39	01.105 THROWER; WATER PUMP 01.109	9-13639-001-0	01	1	9210-9308				●
39	01.105 THROWER; WATER PUMP THAILAND EQUIPMENT(PM9) 01.109	9-13639-001-0	01	1	9210-9308					●
39	01.105 THROWER; WATER PUMP THAILAND EQUIPMENT(PM9) 01.109	9-13639-001-0	01	1	9309-					●
40	07.874 NUT; WATER PUMP 00.854 M8 FLANGE	5-09440-005-0	01	1	9210-	●	●	●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9210-					●	●
41	01.062 NUT; PULLEY 07.633 M8 FLANGE	0-91150-108-0	04	1	9210-	●	●	●
42	01.073 STUD; WATER PUMP 00.206 M8X25 L=36	1-09300-050-0	01	1	9210-	●	●	●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	9210-					●	●
54	01.062 BOLT; PULLEY EXC. AIR CON(C60),COOLER WO/HEATER(YL1) 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	9210-9509	●	●
54	01.062 BOLT; PULLEY EXC. AIR CON(C60),COOLER WO/HEATER(YL1) 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	9510-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
