0-28 — VENTILATION SYSTEM (#41271) — 72 parça

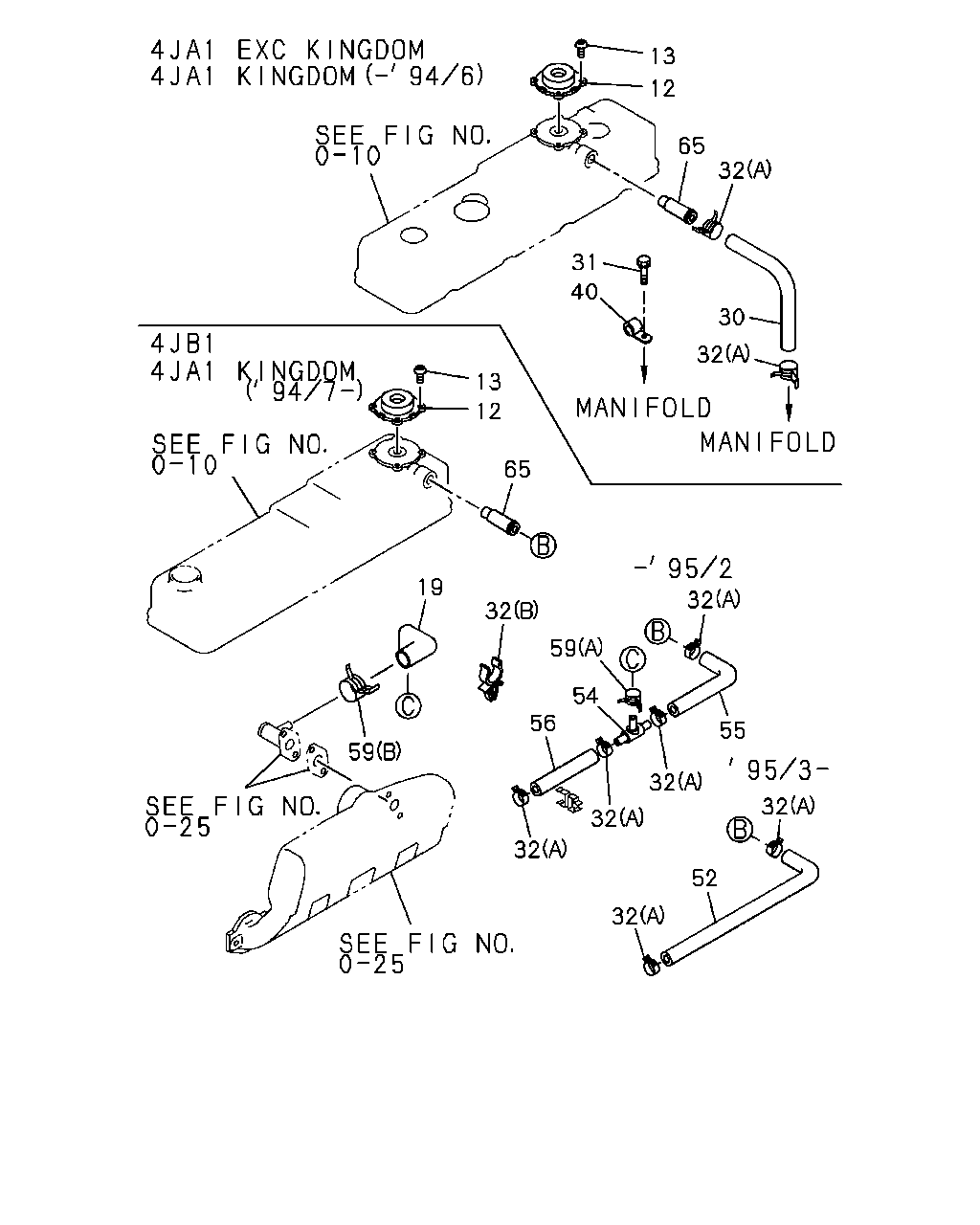

13 12 65 32 30 32 31 40 13 12 65 32 32 59 19 54 56 59 32 32 32 55 32 52 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	01.745 VENTILATOR; AIR	8-94250-172-0	01	1	9210-	●	●
13	00.386 SCREW; VENTILATOR TO HD COVER 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9210-	●	●
19	00.413 HOSE; RUBBER BREATHER 08.962 L=170 SERVICED BY L=3050	8-94209-298-1	01	1	9210-9308			●
19	00.413 HOSE; RUBBER BREATHER 01.762 L=490	8-94246-605-1	01	1	9210-9308			●
19	00.413 HOSE; RUBBER BREATHER 01.745	8-94369-188-0	01	1	9210-9406		●
19	00.413 HOSE; RUBBER BREATHER UNITED KINGDOM EQUIPMENT(EK3) 01.745	8-94369-188-0	01	1	9407-9503	●
19	00.413 HOSE; RUBBER BREATHER 01.745	8-94369-188-0	01	1	9407-9503		●
30	03.417 HOSE; VENTILATOR,CYL HD COVER UNITED KINGDOM EQUIPMENT(EK3)	8-94382-283-0	01	1	9210-9406	●
30	03.417 HOSE; VENTILATOR,CYL HD COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94475-222-1	01	1	9210-	●
31	03.417 BOLT; HOSE CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9210-9406	●
31	03.417 BOLT; HOSE CLIP EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9407-	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-1	02	1	9210-9406	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-1	02	1	9506-9506	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	9506-9509	●	●
32	03.417 CLIP; VENT HOSE EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.265 (A) ID=20.4	8-94121-113-0	02	1	9510-9604	●
32	03.417 CLIP; VENT HOSE UNITED KINGDOM EQUIPMENT(EK3) 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9407-	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-1	04	1	9210-9406		●
32	03.417 CLIP; VENT HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.265 (A) ID=20.4	8-94121-113-0	04	1	9407-9502	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	04	1	9407-9502		●
32	03.417 CLIP; VENT HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.265 (A) ID=20.4	8-94121-113-0	02	1	9503-9505	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-1	01	1	9506-9506		●
40	03.680 CLIP; PCV HOSE ID=20 L=25	9-09916-078-0	01	1	9210-9406	●
40	03.680 CLIP; PCV HOSE EXC. UNITED KINGDOM EQUIPMENT(EK3) ID=20 L=25	9-09916-078-0	01	1	9407-	●
52	03.278 HOSE; PCV	8-97069-260-0	01	1	9210-				●	●
52	03.278 HOSE; PCV EXC. AUSTRALIA EQUIPMENT(RR3)	8-97069-260-0	01	1	9210-						●
52	03.278 HOSE; PCV UNITED KINGDOM EQUIPMENT(EK3) 03.417	8-94437-494-3	01	1	9503-	●
52	03.278 HOSE; PCV 03.417	8-94437-494-3	01	1	9503-		●
54	01.745 HOSE; PCV,3 WAY	8-94366-847-0	01	1	9210-9406		●
54	01.745 HOSE; PCV,3 WAY UNITED KINGDOM EQUIPMENT(EK3)	8-94366-847-0	01	1	9407-9502	●
54	01.745 HOSE; PCV,3 WAY	8-94366-847-0	01	1	9407-9502		●
55	01.745 HOSE; PCV,CHECK VLV TO 3 WAY OD=22.5	8-94369-187-0	01	1	9210-9406		●
55	01.745 HOSE; PCV,CHECK VLV TO 3 WAY UNITED KINGDOM EQUIPMENT(EK3) OD=22.5	8-94369-187-0	01	1	9407-9502	●
55	01.745 HOSE; PCV,CHECK VLV TO 3 WAY OD=22.5	8-94369-187-0	01	1	9407-9502		●
56	01.745 HOSE; PCV,3 WAY TO INT DUCT L=240	0-02614-240-0	01	1	9210-9406		●
56	01.745 HOSE; PCV,3 WAY TO INT DUCT UNITED KINGDOM EQUIPMENT(EK3) L=240	0-02614-240-0	01	1	9407-9502	●
56	01.745 HOSE; PCV,3 WAY TO INT DUCT L=240	0-02614-240-0	01	1	9407-9502		●
59	08.846 CLIP; HOSE 03.265 (A) ID=20.4	8-94121-113-0	01	1	9210-9406		●
59	08.846 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.265 (A) ID=20.4	8-94121-113-0	01	1	9407-9502	●
59	08.846 CLIP; HOSE 03.265 (A) ID=20.4	8-94121-113-0	01	1	9407-9502		●
59	08.846 CLIP; HOSE 03.417 (B) ID=24.3	8-94366-846-0	01	1	9210-9406		●
59	08.846 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.417 (B) ID=24.3	8-94366-846-0	01	1	9407-9503	●
59	08.846 CLIP; HOSE 03.417 (B) ID=24.3	8-94366-846-0	01	1	9407-9503		●
65	01.762 PIPE; BREATHER	8-94250-615-1	01	1	9210-	●	●

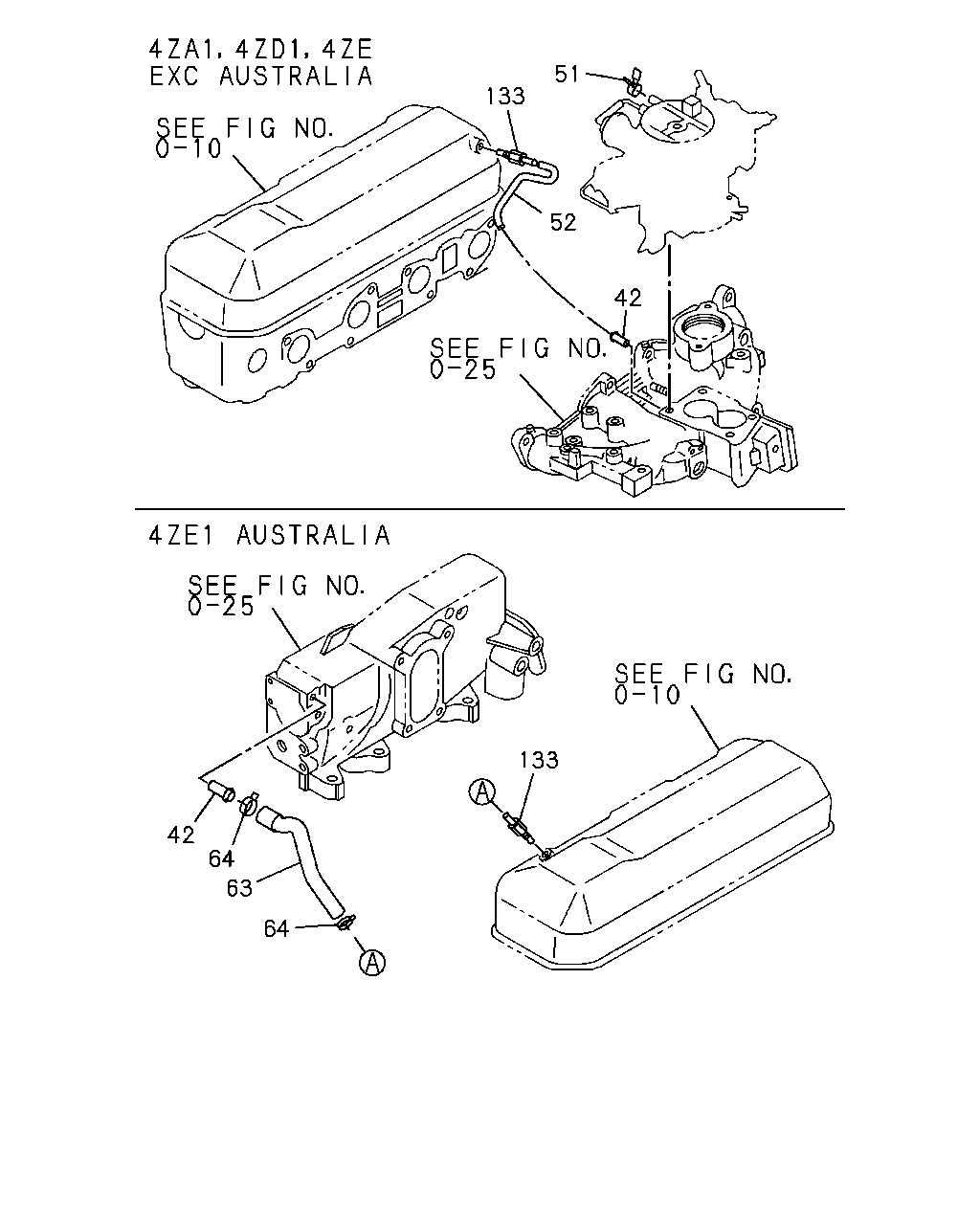

51 133 52 42 133 42 64 63 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E	F
42	03.278 PIPE; PCV,INL MANIF 01.745	8-94153-176-0	01	1	9210-			●	●
42	03.278 PIPE; PCV,INL MANIF EXC. AUSTRALIA EQUIPMENT(RR3) 01.745	8-94153-176-0	01	1	9210-					●
42	03.278 PIPE; PCV,INL MANIF AUSTRALIA EQUIPMENT(RR3) OD=10 L=28	8-94221-275-1	01	1	9210-					●
51	03.265 CLIP; PCV HOSE 06.672 ID=21	8-94242-034-0	01	1	9210-			●	●
51	03.265 CLIP; PCV HOSE EXC. AUSTRALIA EQUIPMENT(RR3) 06.672 ID=21	8-94242-034-0	01	1	9210-					●
52	03.278 HOSE; PCV	8-97069-260-0	01	1	9210-			●	●
52	03.278 HOSE; PCV EXC. AUSTRALIA EQUIPMENT(RR3)	8-97069-260-0	01	1	9210-					●
52	03.278 HOSE; PCV UNITED KINGDOM EQUIPMENT(EK3) 03.417	8-94437-494-3	01	1	9503-	●
52	03.278 HOSE; PCV 03.417	8-94437-494-3	01	1	9503-		●
63	03.358 HOSE; RUBBER,AIR BREATHER AUSTRALIA EQUIPMENT(RR3)	8-94173-513-0	01	1	9210-					●
64	03.358 CLIP; HOSE,AIR BREATHER AUSTRALIA EQUIPMENT(RR3) 01.219 ID=13	8-94238-571-0	01	1	9210-					●
64	03.358 CLIP; HOSE,AIR BREATHER AUSTRALIA EQUIPMENT(RR3) 01.166 ID=14	8-94238-572-0	01	1	9210-					●
133	01.750 VALVE; PCV L=58.5	8-94331-209-0	01	1	9210-			●	●	●

44 44 19 24 23 24 23 24 24 24 62 24 23 259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	00.413 HOSE; RUBBER BREATHER 08.962 L=170 SERVICED BY L=3050	8-94209-298-1	01	1	9210-9308			●
19	00.413 HOSE; RUBBER BREATHER 01.762 L=490	8-94246-605-1	01	1	9210-9308			●
19	00.413 HOSE; RUBBER BREATHER 01.745	8-94369-188-0	01	1	9210-9406		●
19	00.413 HOSE; RUBBER BREATHER UNITED KINGDOM EQUIPMENT(EK3) 01.745	8-94369-188-0	01	1	9407-9503	●
19	00.413 HOSE; RUBBER BREATHER 01.745	8-94369-188-0	01	1	9407-9503		●
23	00.413 HOSE; RUBBER,VENTILATOR PIPE 4X2(TFB***) 01.762	5-09361-084-1	01	1	9210-9308			●
23	00.413 HOSE; RUBBER,VENTILATOR PIPE 4X4(TFS***) (A)	8-94454-853-0	01	1	9210-9308			●
23	00.413 HOSE; RUBBER,VENTILATOR PIPE 4X4(TFS***) (B)	8-94454-854-0	01	1	9210-9308			●
24	00.413 CLIP; RUBBER HOSE,VENTILATOR 4X2(TFB***) 01.762 ID=19	8-94238-569-0	02	1	9210-9308			●
24	00.413 CLIP; RUBBER HOSE,VENTILATOR 4X4(TFS***) 01.762 (A) ID=19	8-94238-569-0	01	1	9210-9308			●
24	00.413 CLIP; RUBBER HOSE,VENTILATOR 4X4(TFS***) 01.219 (B) ID=13	8-94238-571-0	01	1	9210-9308			●
24	00.413 CLIP; RUBBER HOSE,VENTILATOR 4X4(TFS***) 01.166 (C) ID=14	8-94238-572-0	02	1	9210-9308			●
44	03.278 CLIP; HOSE,PCV 02.559 (A) L=250	5-09707-030-0	01	1	9210-9308			●
44	03.278 CLIP; HOSE,PCV 01.762 (B) ID=31	9-09715-106-0	01	1	9210-9308			●
62	01.745 VALVE; CHECK,PCV 4X4(TFS***)	8-94249-317-1	01	1	9210-9308			●
259	01.531 WASHER; LK,OIL PIPE 4X4(TFS***) 00.002 ID=10.2	9-09150-510-0	01	1	9210-9308			●
