Sayfa 0-27 - Isuzu EPC

0-27 — EXHAUST MANIFOLD (#41270) — 215 parça

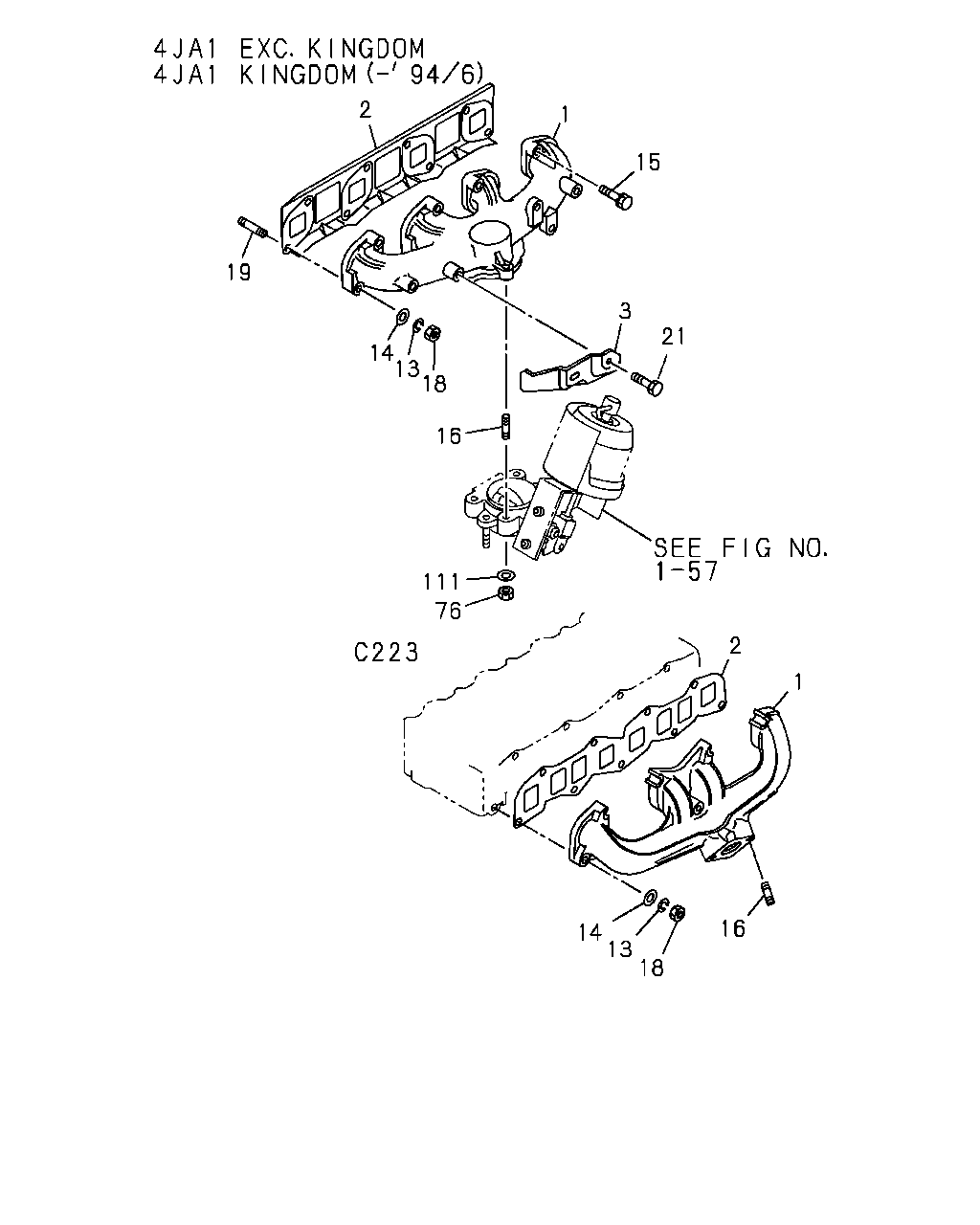

2 1 15 19 14 13 18 3 21 16 111 76 2 1 16 18 13 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST SINGAPORE EQUIPMENT(S9Y) W/EGR	8-94136-788-2	01	1	9210-9403	●
1	03.601 MANIFOLD; EXHAUST SINGAPORE EQUIPMENT(S9Y) W/EGR	8-94136-788-2	01	1	9404-		●
1	03.601 MANIFOLD; EXHAUST EXC. SINGAPORE EQUIPMENT(S9Y)	8-94453-406-0	01	1	9210-9212	●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3)	8-94136-790-2	01	1	9210-9406		●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) WO/EGR	8-94159-205-1	01	1	9210-9212		●
1	03.601 MANIFOLD; EXHAUST EXC. SINGAPORE EQUIPMENT(S9Y) WO/EGR	8-94159-205-1	01	1	9301-9308	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) WO/EGR	8-94159-205-1	01	1	9301-9308		●
1	03.601 MANIFOLD; EXHAUST EXC. SINGAPORE EQUIPMENT(S9Y) WO/EGR	8-94159-205-1	01	1	9309-9403	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3) WO/EGR	8-94159-205-1	01	1	9309-9403		●
1	03.601 MANIFOLD; EXHAUST WO/EGR	8-94159-205-1	01	1	9404-9406	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) WO/EGR	8-94159-205-1	01	1	9404-9406		●
1	03.601 MANIFOLD; EXHAUST WO/EGR	8-94159-205-1	01	1	9407-	●
1	03.601 MANIFOLD; EXHAUST EXC. SINGAPORE EQUIPMENT(S9Y) WO/EGR	8-94159-205-1	01	1	9407-		●
1	03.601 MANIFOLD; EXHAUST AUSTRALIA EQUIPMENT(RR3)	8-97038-795-1	01	1	9210-			●
1	03.601 MANIFOLD; EXHAUST EXC. AUSTRALIA EQUIPMENT(RR3)	8-97083-579-0	01	1	9210-			●
1	03.601 MANIFOLD; EXHAUST	5-14141-092-0	01	1	9210-9308				●
1	03.601 MANIFOLD; EXHAUST	8-94259-880-2	01	1	9210-9305					●
1	03.601 MANIFOLD; EXHAUST THAILAND EQUIPMENT(PM9)	8-94259-880-2	01	1	9306-					●
1	03.601 MANIFOLD; EXHAUST EXC. THAILAND EQUIPMENT(PM9)	8-97065-960-1	01	1	9306-9406					●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-97065-960-1	01	1	9407-					●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3)	8-97096-117-1	01	1	9407-					●
1	03.601 MANIFOLD; EXHAUST	8-97039-473-3	01	1	9210-						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-054-0	01	1	9210-	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	5-14146-018-0	01	1	9210-9308				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97020-591-0	01	1	9210-9409					●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) '940919-	8-97109-216-1	01	1	9409-					●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-94472-396-0	01	1	9210-9406					●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94472-396-0	01	1	9407-					●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-0	01	1	9210-9406						●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97038-107-1	01	1	9407-					●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-1	01	1	9407-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97066-757-1	01	1	9210-9406						●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97066-757-1	01	1	9407-9511					●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97066-757-1	01	1	9407-9511						●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97133-936-0	01	1	9512-					●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-0	01	1	9512-						●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	07	1	9210-9308	●	●	●	●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	07	1	9309-	●	●	●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	02	1	9210-9606					●	●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9210-			●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	05	1	9210-9308				●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9210-9406						●
14	03.604 WASHER; PL,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9407-9606					●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9407-9606						●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9607-					●	●
15	03.604 BOLT; EXH MANIF THAILAND EQUIPMENT(PM9) 01.540 M8X35 W/LK WASHER	0-50040-835-0	06	1	9210-					●
15	03.604 BOLT; EXH MANIF EXC. THAILAND EQUIPMENT(PM9) M8X35	8-97045-441-0	06	1	9210-9606					●	●
15	03.604 BOLT; EXH MANIF EXC. THAILAND EQUIPMENT(PM9) M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9607-					●	●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 M10X25 L=40	9-04411-025-0	02	1	9210-9306	●	●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 M10X25 L=40	9-04411-025-0	02	1	9307-	●	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. AUSTRALIA EQUIPMENT(RR3) 03.275 M10X25 L=40	9-04411-025-0	02	1	9307-			●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 M10X25 L=40	9-04411-025-0	03	1	9210-9306			●
16	03.604 STUD; EXH PIPE TO MANIF AUSTRALIA EQUIPMENT(RR3) 03.275 M10X25 L=40	9-04411-025-0	03	1	9307-			●
16	03.604 STUD; EXH PIPE TO MANIF 03.613 M10X33 L=48	5-09302-002-0	02	1	9210-9308				●
16	03.604 STUD; EXH PIPE TO MANIF UNITED KINGDOM EQUIPMENT(EK3) M10X45 L=60 STAINLESS	8-97032-977-0	04	1	9210-9210					●
16	03.604 STUD; EXH PIPE TO MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.613 M10X45 L=60 PLATING	5-09302-008-0	04	1	9211-9406					●
16	03.604 STUD; EXH PIPE TO MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) M10X45 L=60 STAINLESS	8-97032-977-0	02	1	9210-9210					●
16	03.604 STUD; EXH PIPE TO MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9211-9502					●
16	03.604 STUD; EXH PIPE TO MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9510-					●
18	03.604 NUT; EXH MANIF 00.002 M8	9-09110-508-0	07	1	9210-9406	●	●	●	●
18	03.604 NUT; EXH MANIF 02.559 M8	9-09110-408-0	07	1	9407-	●	●	●
18	03.604 NUT; EXH MANIF THAILAND EQUIPMENT(PM9) 00.002 M8	9-09110-508-0	02	1	9210-9406					●
18	03.604 NUT; EXH MANIF THAILAND EQUIPMENT(PM9) 02.559	9-09110-408-0	02	1	9407-					●
18	03.604 NUT; EXH MANIF EXC. THAILAND EQUIPMENT(PM9) 00.002 M8	9-09110-508-0	02	1	9210-9606					●	●
18	03.604 NUT; EXH MANIF EXC. THAILAND EQUIPMENT(PM9) 01.540 M8 FLANGE	0-91150-208-0	02	1	9607-					●	●
19	03.604 STUD; MANIF TO CYL HD THAILAND EQUIPMENT(PM9) 08.981 M8X35 L=47	9-04110-835-0	02	1	9210-					●
19	03.604 STUD; MANIF TO CYL HD EXC. THAILAND EQUIPMENT(PM9) M8X35 L=46	8-97048-055-1	02	1	9210-					●	●
21	03.604 BOLT; HEAT PROTECTOR 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9210-9301					●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9210-9301						●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9302-9409					●	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9409-					●	●
21	03.604 BOLT; HEAT PROTECTOR 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9210-9406						●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9407-					●
21	03.604 BOLT; HEAT PROTECTOR 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9407-						●
76	03.613 NUT; EXH THROTTLE UNITED KINGDOM EQUIPMENT(EK3) M10 H=18	9-09640-014-0	04	1	9210-9406					●
111	03.616 WASHER; LK UNITED KINGDOM EQUIPMENT(EK3) 03.613 ID=10.5	5-09500-013-0	04	1	9210-9406					●

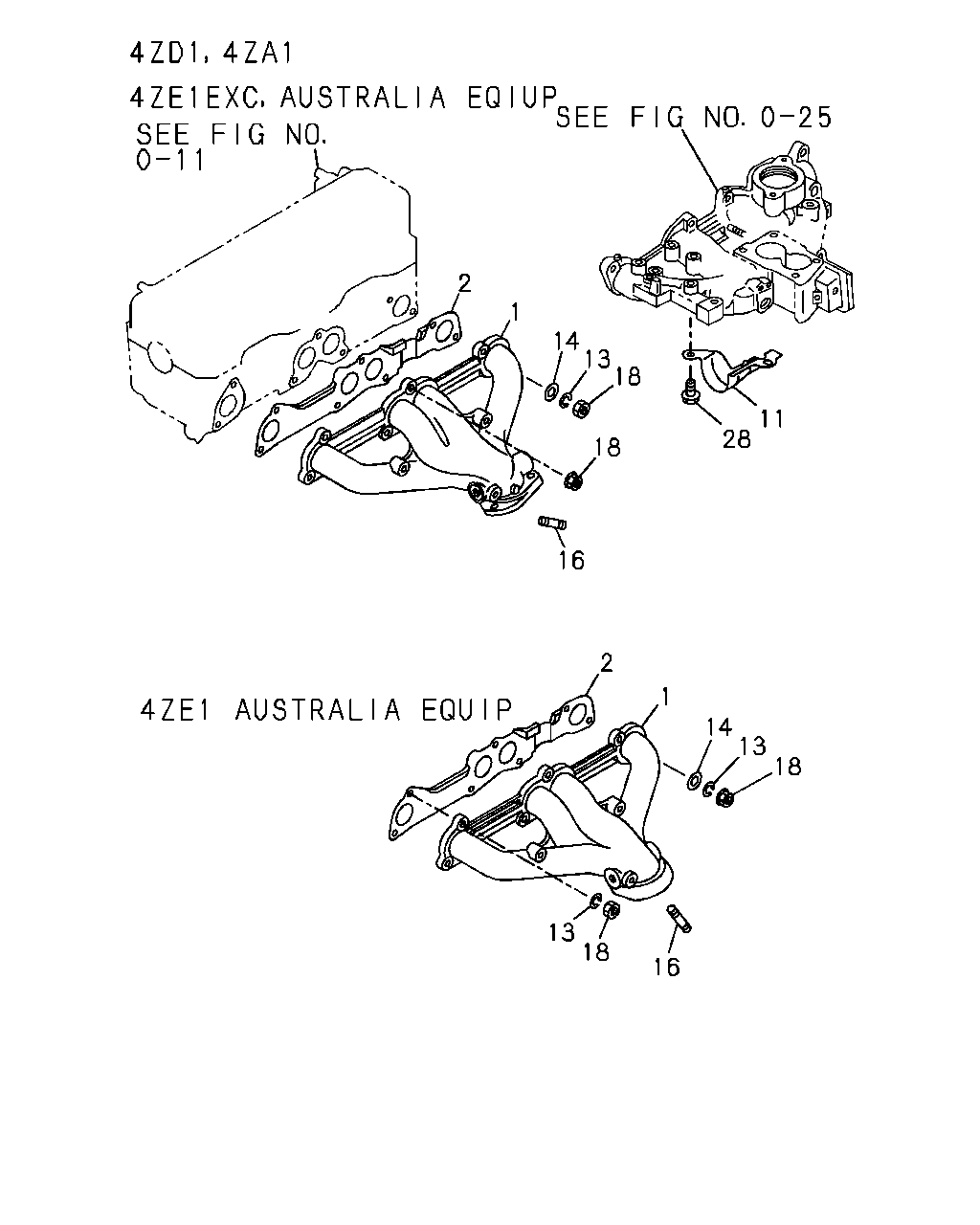

2 1 14 13 18 18 16 28 11 2 1 14 13 18 16 18 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST SINGAPORE EQUIPMENT(S9Y) W/EGR	8-94136-788-2	01	1	9210-9403	●
1	03.601 MANIFOLD; EXHAUST SINGAPORE EQUIPMENT(S9Y) W/EGR	8-94136-788-2	01	1	9404-		●
1	03.601 MANIFOLD; EXHAUST EXC. SINGAPORE EQUIPMENT(S9Y)	8-94453-406-0	01	1	9210-9212	●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3)	8-94136-790-2	01	1	9210-9406		●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) WO/EGR	8-94159-205-1	01	1	9210-9212		●
1	03.601 MANIFOLD; EXHAUST EXC. SINGAPORE EQUIPMENT(S9Y) WO/EGR	8-94159-205-1	01	1	9301-9308	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) WO/EGR	8-94159-205-1	01	1	9301-9308		●
1	03.601 MANIFOLD; EXHAUST EXC. SINGAPORE EQUIPMENT(S9Y) WO/EGR	8-94159-205-1	01	1	9309-9403	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3) WO/EGR	8-94159-205-1	01	1	9309-9403		●
1	03.601 MANIFOLD; EXHAUST WO/EGR	8-94159-205-1	01	1	9404-9406	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) WO/EGR	8-94159-205-1	01	1	9404-9406		●
1	03.601 MANIFOLD; EXHAUST WO/EGR	8-94159-205-1	01	1	9407-	●
1	03.601 MANIFOLD; EXHAUST EXC. SINGAPORE EQUIPMENT(S9Y) WO/EGR	8-94159-205-1	01	1	9407-		●
1	03.601 MANIFOLD; EXHAUST AUSTRALIA EQUIPMENT(RR3)	8-97038-795-1	01	1	9210-			●
1	03.601 MANIFOLD; EXHAUST EXC. AUSTRALIA EQUIPMENT(RR3)	8-97083-579-0	01	1	9210-			●
1	03.601 MANIFOLD; EXHAUST	5-14141-092-0	01	1	9210-9308				●
1	03.601 MANIFOLD; EXHAUST	8-94259-880-2	01	1	9210-9305					●
1	03.601 MANIFOLD; EXHAUST THAILAND EQUIPMENT(PM9)	8-94259-880-2	01	1	9306-					●
1	03.601 MANIFOLD; EXHAUST EXC. THAILAND EQUIPMENT(PM9)	8-97065-960-1	01	1	9306-9406					●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-97065-960-1	01	1	9407-					●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3)	8-97096-117-1	01	1	9407-					●
1	03.601 MANIFOLD; EXHAUST	8-97039-473-3	01	1	9210-						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-054-0	01	1	9210-	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	5-14146-018-0	01	1	9210-9308				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97020-591-0	01	1	9210-9409					●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) '940919-	8-97109-216-1	01	1	9409-					●	●
11	03.901 PROTECTOR; HEAT,FUEL PUMP SINGAPORE EQUIPMENT(S9Y)	8-97072-441-0	01	1	9210-9402	●
11	03.901 PROTECTOR; HEAT,FUEL PUMP UNITED KINGDOM EQUIPMENT(EK3)	8-97072-441-0	01	1	9210-9402		●
11	03.901 PROTECTOR; HEAT,FUEL PUMP SINGAPORE EQUIPMENT(S9Y)	8-97072-441-0	01	1	9403-9403	●
11	03.901 PROTECTOR; HEAT,FUEL PUMP UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y)	8-97072-441-0	01	1	9403-9403		●
11	03.901 PROTECTOR; HEAT,FUEL PUMP UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y)	8-97072-441-0	01	1	9404-9406		●
11	03.901 PROTECTOR; HEAT,FUEL PUMP SINGAPORE EQUIPMENT(S9Y)	8-97072-441-0	01	1	9407-		●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	07	1	9210-9308	●	●	●	●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	07	1	9309-	●	●	●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	02	1	9210-9606					●	●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9210-			●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	05	1	9210-9308				●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9210-9406						●
14	03.604 WASHER; PL,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9407-9606					●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9407-9606						●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9607-					●	●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 M10X25 L=40	9-04411-025-0	02	1	9210-9306	●	●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 M10X25 L=40	9-04411-025-0	02	1	9307-	●	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. AUSTRALIA EQUIPMENT(RR3) 03.275 M10X25 L=40	9-04411-025-0	02	1	9307-			●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 M10X25 L=40	9-04411-025-0	03	1	9210-9306			●
16	03.604 STUD; EXH PIPE TO MANIF AUSTRALIA EQUIPMENT(RR3) 03.275 M10X25 L=40	9-04411-025-0	03	1	9307-			●
16	03.604 STUD; EXH PIPE TO MANIF 03.613 M10X33 L=48	5-09302-002-0	02	1	9210-9308				●
16	03.604 STUD; EXH PIPE TO MANIF UNITED KINGDOM EQUIPMENT(EK3) M10X45 L=60 STAINLESS	8-97032-977-0	04	1	9210-9210					●
16	03.604 STUD; EXH PIPE TO MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.613 M10X45 L=60 PLATING	5-09302-008-0	04	1	9211-9406					●
16	03.604 STUD; EXH PIPE TO MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) M10X45 L=60 STAINLESS	8-97032-977-0	02	1	9210-9210					●
16	03.604 STUD; EXH PIPE TO MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9211-9502					●
16	03.604 STUD; EXH PIPE TO MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9510-					●
18	03.604 NUT; EXH MANIF 00.002 M8	9-09110-508-0	07	1	9210-9406	●	●	●	●
18	03.604 NUT; EXH MANIF 02.559 M8	9-09110-408-0	07	1	9407-	●	●	●
18	03.604 NUT; EXH MANIF THAILAND EQUIPMENT(PM9) 00.002 M8	9-09110-508-0	02	1	9210-9406					●
18	03.604 NUT; EXH MANIF THAILAND EQUIPMENT(PM9) 02.559	9-09110-408-0	02	1	9407-					●
18	03.604 NUT; EXH MANIF EXC. THAILAND EQUIPMENT(PM9) 00.002 M8	9-09110-508-0	02	1	9210-9606					●	●
18	03.604 NUT; EXH MANIF EXC. THAILAND EQUIPMENT(PM9) 01.540 M8 FLANGE	0-91150-208-0	02	1	9607-					●	●
28	03.907 BOLT; HEAT PROTECTOR,FUEL PUMP SINGAPORE EQUIPMENT(S9Y) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9210-9402	●
28	03.907 BOLT; HEAT PROTECTOR,FUEL PUMP UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9210-9402		●
28	03.907 BOLT; HEAT PROTECTOR,FUEL PUMP SINGAPORE EQUIPMENT(S9Y) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9403-9403	●
28	03.907 BOLT; HEAT PROTECTOR,FUEL PUMP UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9403-9403		●
28	03.907 BOLT; HEAT PROTECTOR,FUEL PUMP UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9404-9406		●
28	03.907 BOLT; HEAT PROTECTOR,FUEL PUMP SINGAPORE EQUIPMENT(S9Y) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9407-		●

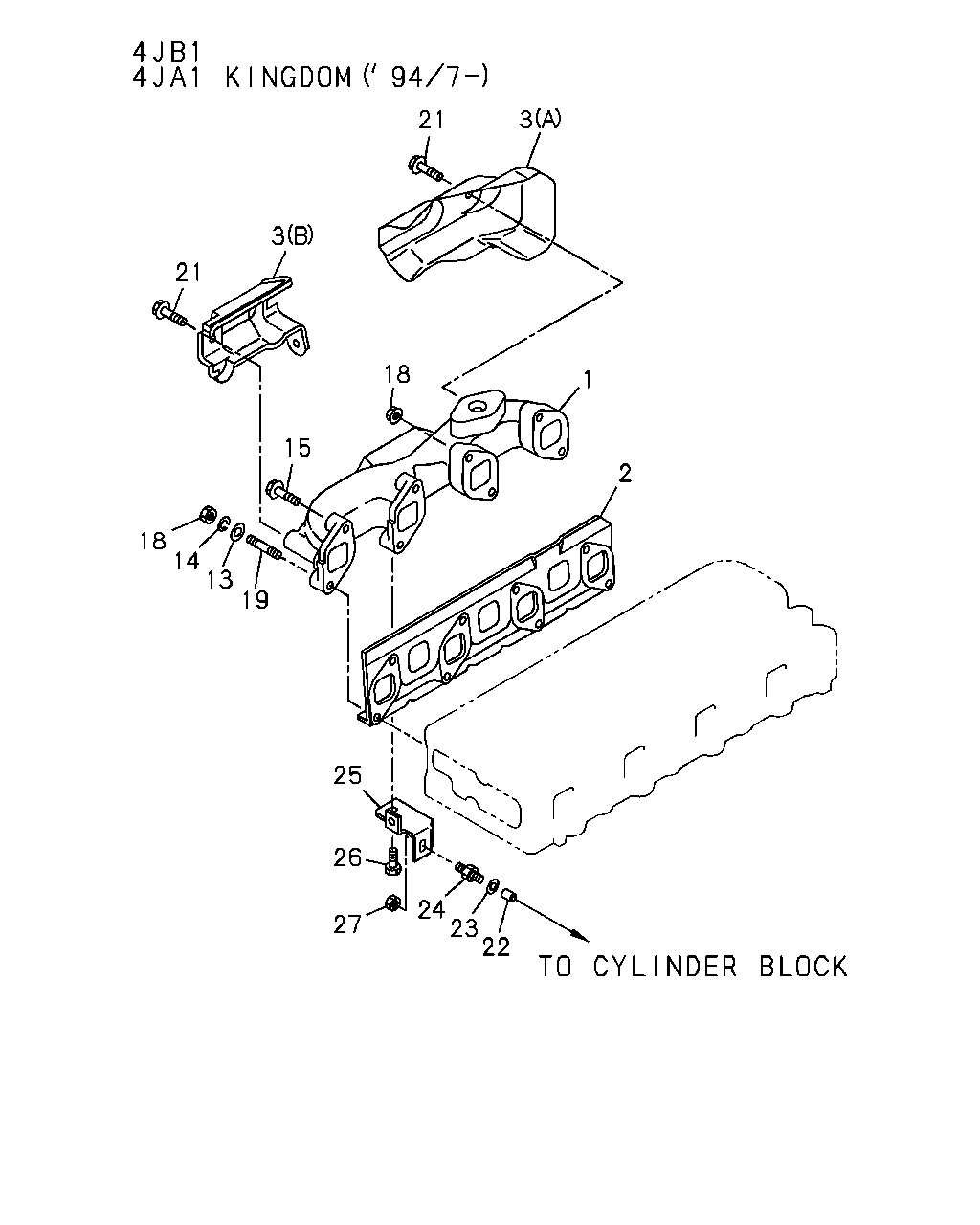

3 21 3 21 18 1 15 18 14 13 19 2 25 26 27 24 23 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST SINGAPORE EQUIPMENT(S9Y) W/EGR	8-94136-788-2	01	1	9210-9403	●
1	03.601 MANIFOLD; EXHAUST SINGAPORE EQUIPMENT(S9Y) W/EGR	8-94136-788-2	01	1	9404-		●
1	03.601 MANIFOLD; EXHAUST EXC. SINGAPORE EQUIPMENT(S9Y)	8-94453-406-0	01	1	9210-9212	●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3)	8-94136-790-2	01	1	9210-9406		●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) WO/EGR	8-94159-205-1	01	1	9210-9212		●
1	03.601 MANIFOLD; EXHAUST EXC. SINGAPORE EQUIPMENT(S9Y) WO/EGR	8-94159-205-1	01	1	9301-9308	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) WO/EGR	8-94159-205-1	01	1	9301-9308		●
1	03.601 MANIFOLD; EXHAUST EXC. SINGAPORE EQUIPMENT(S9Y) WO/EGR	8-94159-205-1	01	1	9309-9403	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3) WO/EGR	8-94159-205-1	01	1	9309-9403		●
1	03.601 MANIFOLD; EXHAUST WO/EGR	8-94159-205-1	01	1	9404-9406	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) WO/EGR	8-94159-205-1	01	1	9404-9406		●
1	03.601 MANIFOLD; EXHAUST WO/EGR	8-94159-205-1	01	1	9407-	●
1	03.601 MANIFOLD; EXHAUST EXC. SINGAPORE EQUIPMENT(S9Y) WO/EGR	8-94159-205-1	01	1	9407-		●
1	03.601 MANIFOLD; EXHAUST AUSTRALIA EQUIPMENT(RR3)	8-97038-795-1	01	1	9210-			●
1	03.601 MANIFOLD; EXHAUST EXC. AUSTRALIA EQUIPMENT(RR3)	8-97083-579-0	01	1	9210-			●
1	03.601 MANIFOLD; EXHAUST	5-14141-092-0	01	1	9210-9308				●
1	03.601 MANIFOLD; EXHAUST	8-94259-880-2	01	1	9210-9305					●
1	03.601 MANIFOLD; EXHAUST THAILAND EQUIPMENT(PM9)	8-94259-880-2	01	1	9306-					●
1	03.601 MANIFOLD; EXHAUST EXC. THAILAND EQUIPMENT(PM9)	8-97065-960-1	01	1	9306-9406					●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-97065-960-1	01	1	9407-					●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3)	8-97096-117-1	01	1	9407-					●
1	03.601 MANIFOLD; EXHAUST	8-97039-473-3	01	1	9210-						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-054-0	01	1	9210-	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	5-14146-018-0	01	1	9210-9308				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97020-591-0	01	1	9210-9409					●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) '940919-	8-97109-216-1	01	1	9409-					●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-94472-396-0	01	1	9210-9406					●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94472-396-0	01	1	9407-					●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-0	01	1	9210-9406						●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97038-107-1	01	1	9407-					●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-1	01	1	9407-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97066-757-1	01	1	9210-9406						●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97066-757-1	01	1	9407-9511					●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97066-757-1	01	1	9407-9511						●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97133-936-0	01	1	9512-					●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-0	01	1	9512-						●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	07	1	9210-9308	●	●	●	●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	07	1	9309-	●	●	●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	02	1	9210-9606					●	●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9210-			●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	05	1	9210-9308				●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9210-9406						●
14	03.604 WASHER; PL,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9407-9606					●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9407-9606						●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9607-					●	●
15	03.604 BOLT; EXH MANIF THAILAND EQUIPMENT(PM9) 01.540 M8X35 W/LK WASHER	0-50040-835-0	06	1	9210-					●
15	03.604 BOLT; EXH MANIF EXC. THAILAND EQUIPMENT(PM9) M8X35	8-97045-441-0	06	1	9210-9606					●	●
15	03.604 BOLT; EXH MANIF EXC. THAILAND EQUIPMENT(PM9) M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9607-					●	●
18	03.604 NUT; EXH MANIF 00.002 M8	9-09110-508-0	07	1	9210-9406	●	●	●	●
18	03.604 NUT; EXH MANIF 02.559 M8	9-09110-408-0	07	1	9407-	●	●	●
18	03.604 NUT; EXH MANIF THAILAND EQUIPMENT(PM9) 00.002 M8	9-09110-508-0	02	1	9210-9406					●
18	03.604 NUT; EXH MANIF THAILAND EQUIPMENT(PM9) 02.559	9-09110-408-0	02	1	9407-					●
18	03.604 NUT; EXH MANIF EXC. THAILAND EQUIPMENT(PM9) 00.002 M8	9-09110-508-0	02	1	9210-9606					●	●
18	03.604 NUT; EXH MANIF EXC. THAILAND EQUIPMENT(PM9) 01.540 M8 FLANGE	0-91150-208-0	02	1	9607-					●	●
19	03.604 STUD; MANIF TO CYL HD THAILAND EQUIPMENT(PM9) 08.981 M8X35 L=47	9-04110-835-0	02	1	9210-					●
19	03.604 STUD; MANIF TO CYL HD EXC. THAILAND EQUIPMENT(PM9) M8X35 L=46	8-97048-055-1	02	1	9210-					●	●
21	03.604 BOLT; HEAT PROTECTOR 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9210-9301					●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9210-9301						●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9302-9409					●	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9409-					●	●
21	03.604 BOLT; HEAT PROTECTOR 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9210-9406						●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9407-					●
21	03.604 BOLT; HEAT PROTECTOR 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9407-						●
22	03.613 SPACER; EXH MANIF BRKT 00.034 OD=13 T=9.5	8-94140-427-1	01	1	9210-						●
23	03.613 WASHER; PL EXH MANIF BRKT 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9210-						●
24	03.613 BOLT; BRKT,EXH MANIF 00.034 M8X14.5,M8X20 L=40	8-94450-173-0	01	1	9210-						●
25	03.602 BRACKET; EXH MANIF UNITED KINGDOM EQUIPMENT(EK3)	8-97096-634-1	01	1	9407-					●
25	03.602 BRACKET; EXH MANIF	8-94449-945-3	01	1	9210-						●
26	03.602 BOLT; BRKT TO EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.604 M8X14 FLANGE	8-94312-699-1	01	1	9407-					●
26	03.602 BOLT; BRKT TO EXH MANIF 03.604 M8X14 FLANGE	8-94312-699-1	01	1	9407-						●
26	03.602 BOLT; BRKT TO EXH MANIF 03.604 M8X14 FLANGE	8-94312-699-0	01	1	9210-9406						●
26	03.602 BOLT; BRKT TO EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.275 M8X30 FLANGE	0-28080-830-0	01	1	9407-					●
27	03.602 NUT; BRKT,EXH MANIF 07.633 M8 FLANGE	0-91150-108-0	01	1	9210-9406						●
27	03.602 NUT; BRKT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 07.633 M8 FLANGE	0-91150-108-0	01	1	9407-					●
27	03.602 NUT; BRKT,EXH MANIF 07.633 M8 FLANGE	0-91150-108-0	01	1	9407-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
