Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#41269) — 514 parça

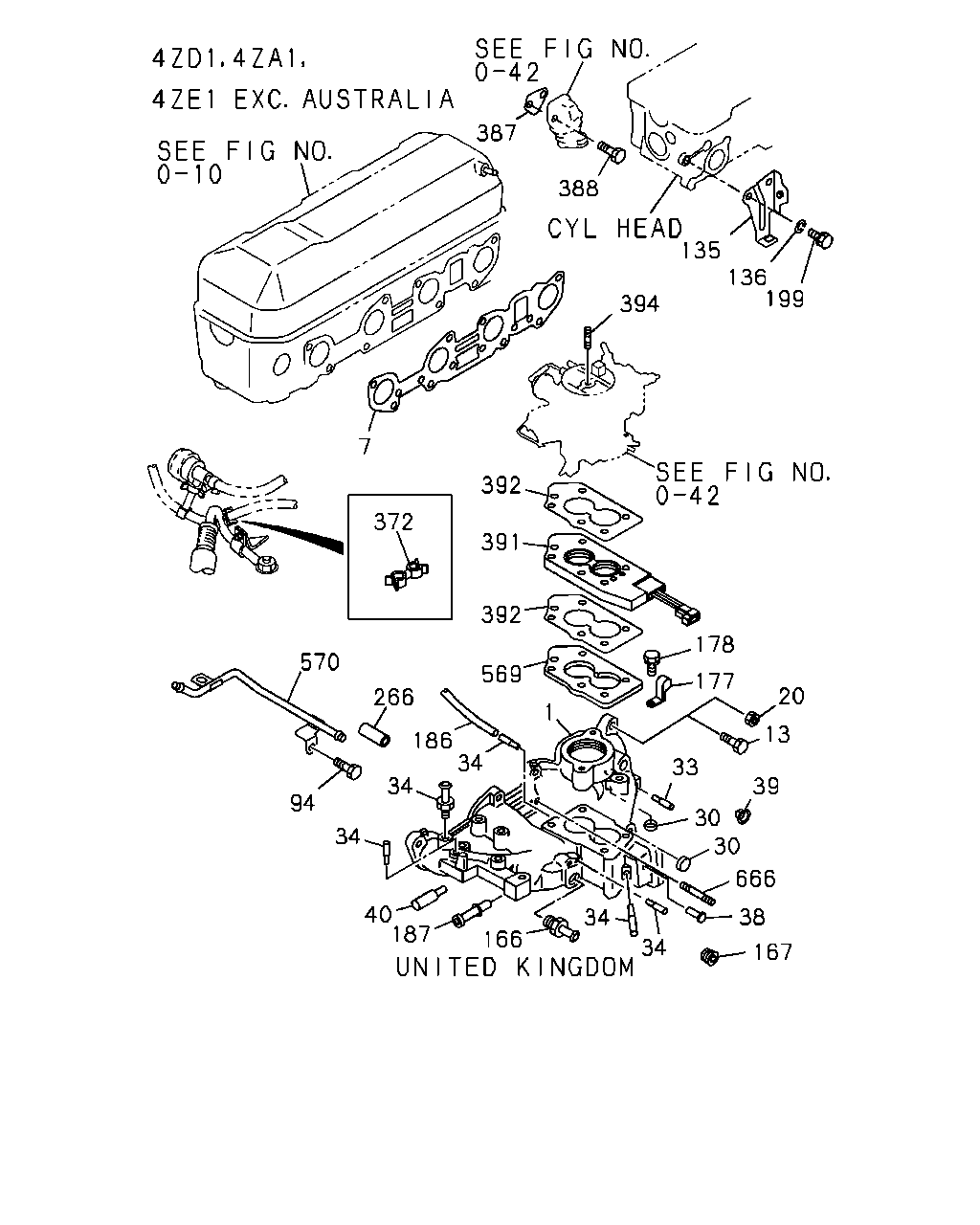

387 388 135 136 199 394 7 372 392 391 392 178 569 177 1 20 13 33 39 30 30 666 38 167 34 34 166 187 40 34 94 34 34 186 266 570

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.265 MANIFOLD; INL SINGAPORE EQUIPMENT(S9Y)	8-94360-494-3	01	1	9210-9403	●
1	03.265 MANIFOLD; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94360-747-3	01	1	9210-9308	●	●
1	03.265 MANIFOLD; INL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94360-747-3	01	1	9309-9401	●	●
1	03.265 MANIFOLD; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y)	8-94360-747-3	01	1	9402-9406	●	●
1	03.265 MANIFOLD; INL EXC. SINGAPORE EQUIPMENT(S9Y)	8-94360-747-3	01	1	9407-	●	●
1	03.265 MANIFOLD; INL AUSTRALIA EQUIPMENT(RR3)	8-94341-345-1	01	1	9210-9406		●
1	03.265 MANIFOLD; INL SINGAPORE EQUIPMENT(S9Y)	8-94344-774-3	01	1	9403-		●
1	03.265 MANIFOLD; INL AUSTRALIA EQUIPMENT(RR3)	8-97070-556-4	01	1	9210-			●
1	03.265 MANIFOLD; INL EXC. AUSTRALIA EQUIPMENT(RR3)	8-94370-819-1	01	1	9210-			●
1	03.265 MANIFOLD; INL	5-14111-213-0	01	1	9210-9308				●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97096-510-0	01	1	9407-9502					●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97116-137-0	01	1	9503-9511					●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97139-649-1	01	1	9512-					●
1	03.265 MANIFOLD; INL	8-94340-619-3	01	1	9210-9502						●
1	03.265 MANIFOLD; INL	8-97116-132-2	01	1	9503-						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-052-0	01	1	9210-	●	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97066-741-1	01	1	9210-					●	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	9210-	●	●	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9210-9406					●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9407-					●
13	03.275 BOLT; INL MANIF THAILAND EQUIPMENT(PM9) 00.206 M6X35 W/LK&PL WASHER	0-50140-635-0	06	1	9210-					●
13	03.275 BOLT; INL MANIF EXC. THAILAND EQUIPMENT(PM9) M6X28	0-50140-628-0	06	1	9210-9308					●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) M6X28	0-50140-628-0	06	1	9309-					●
13	03.275 BOLT; INL MANIF 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9210-9406						●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9407-					●
13	03.275 BOLT; INL MANIF 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9407-						●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	04	1	9210-	●	●	●
20	03.275 NUT; INL MANIF 07.829 M6 FLANGE	5-09440-004-0	02	1	9210-					●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9210-					●	●
30	03.265 CUP; SEALING,INL MANIF 00.253 OD=16	9-11129-081-0	01	1	9210-	●	●
30	03.265 CUP; SEALING,INL MANIF OD=20	9-11219-192-0	02	1	9210-9406	●		●
30	03.265 CUP; SEALING,INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) OD=20	9-11219-192-0	02	1	9210-9406		●
30	03.265 CUP; SEALING,INL MANIF OD=20	9-11219-192-0	02	1	9407-9411	●	●	●
30	03.265 CUP; SEALING,INL MANIF OD=20	9-11219-192-0	02	1	9412-	●	●
30	03.265 CUP; SEALING,INL MANIF EXC. AUSTRALIA EQUIPMENT(RR3) OD=20	9-11219-192-0	02	1	9412-			●
30	03.265 CUP; SEALING,INL MANIF UNITED KINGDOM EQUIPMENT(EK3) OD=20	9-11219-192-0	01	1	9210-9406		●
30	03.265 CUP; SEALING,INL MANIF AUSTRALIA EQUIPMENT(RR3) OD=20	9-11219-192-0	01	1	9210-9406			●
30	03.265 CUP; SEALING,INL MANIF AUSTRALIA EQUIPMENT(RR3) OD=20	9-11219-192-0	01	1	9407-			●
30	03.265 CUP; SEALING,INL MANIF AUSTRALIA EQUIPMENT(RR3) 00.253 OD=18	5-11219-008-0	01	1	9210-			●
30	03.265 CUP; SEALING,INL MANIF EXC. AUSTRALIA EQUIPMENT(RR3) 00.253 OD=16	9-11129-081-0	02	1	9210-			●
30	03.265 CUP; SEALING,INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 00.253 OD=16	5-11129-006-0	04	1	9407-9502					●
33	03.278 PIPE; IDLE COMPENSATOR,INL MANIF EXC. SINGAPORE EQUIPMENT(S9Y) OD=6 L=28	8-94214-981-0	01	1	9210-9403	●
33	03.278 PIPE; IDLE COMPENSATOR,INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) OD=6 L=28	8-94214-981-0	01	1	9210-9403		●
33	03.278 PIPE; IDLE COMPENSATOR,INL MANIF OD=6 L=28	8-94214-981-0	01	1	9404-9406	●
33	03.278 PIPE; IDLE COMPENSATOR,INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) OD=6 L=28	8-94214-981-0	01	1	9404-9406		●
33	03.278 PIPE; IDLE COMPENSATOR,INL MANIF EXC. SINGAPORE EQUIPMENT(S9Y) OD=6 L=28	8-94214-981-0	01	1	9407-9410	●
33	03.278 PIPE; IDLE COMPENSATOR,INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) OD=6 L=28	8-94214-981-0	01	1	9407-9410		●
33	03.278 PIPE; IDLE COMPENSATOR,INL MANIF OD=6 L=28	8-94214-981-0	01	1	9411-	●	●
34	03.675 PIPE; VAC SINGAPORE EQUIPMENT(S9Y) 03.278 OD=5 L=34	8-94200-851-2	04	1	9210-9403	●
34	03.675 PIPE; VAC UNITED KINGDOM EQUIPMENT(EK3) 03.278 OD=5 L=34	8-94200-851-2	04	1	9210-9403		●
34	03.675 PIPE; VAC UNITED KINGDOM EQUIPMENT(EK3) 03.278 OD=5 L=34	8-94200-851-2	04	1	9404-9406		●
34	03.675 PIPE; VAC 03.278 OD=5 L=34	8-94200-851-2	02	1	9407-9509	●	●
34	03.675 PIPE; VAC AUSTRALIA EQUIPMENT(RR3) 03.278 OD=5 L=34	8-94200-851-2	02	1	9407-9509			●
34	03.675 PIPE; VAC EXC. AUSTRALIA EQUIPMENT(RR3) 03.278 OD=5 L=34	8-94200-851-2	01	1	9510-			●
34	03.675 PIPE; VAC EXC. SINGAPORE EQUIPMENT(S9Y) 03.278 OD=5 L=34	8-94200-851-2	02	1	9210-9406	●
34	03.675 PIPE; VAC EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.278 OD=5 L=34	8-94200-851-2	02	1	9210-9406		●
34	03.675 PIPE; VAC AUSTRALIA EQUIPMENT(RR3) 03.278 OD=5 L=34	8-94200-851-2	02	1	9210-9406			●
34	03.675 PIPE; VAC OD=10 L=50	8-94330-262-0	01	1	9210-	●	●
34	03.675 PIPE; VAC EXC. AUSTRALIA EQUIPMENT(RR3) OD=10 L=50	8-94330-262-0	01	1	9210-			●
34	03.675 PIPE; VAC AUSTRALIA EQUIPMENT(RR3) 03.278 OD=5 L=34	8-94200-851-2	03	1	9210-9308		●
34	03.675 PIPE; VAC SINGAPORE EQUIPMENT(S9Y) 03.278 OD=5 L=34	8-94200-851-2	03	1	9403-		●
34	03.675 PIPE; VAC EXC. AUSTRALIA EQUIPMENT(RR3) OD=4 L=21	8-94145-897-2	01	1	9210-			●
34	03.675 PIPE; VAC EXC. AUSTRALIA EQUIPMENT(RR3) 03.278 OD=5 L=34	8-94200-851-2	01	1	9210-9509			●
34	03.675 PIPE; VAC 03.278 OD=5 L=34	8-94200-851-2	02	1	9510-	●	●
34	03.675 PIPE; VAC AUSTRALIA EQUIPMENT(RR3) 03.278 OD=5 L=34	8-94200-851-2	02	1	9510-			●
38	03.278 PIPE; VAC,MCV,INL MANIF SINGAPORE EQUIPMENT(S9Y)	8-94203-870-1	01	1	9210-9402	●
38	03.278 PIPE; VAC,MCV,INL MANIF UNITED KINGDOM EQUIPMENT(EK3)	8-94203-870-1	01	1	9210-9402		●
38	03.278 PIPE; VAC,MCV,INL MANIF SINGAPORE EQUIPMENT(S9Y)	8-94203-870-1	01	1	9403-9403	●
38	03.278 PIPE; VAC,MCV,INL MANIF UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y)	8-94203-870-1	01	1	9403-9403		●
38	03.278 PIPE; VAC,MCV,INL MANIF UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y)	8-94203-870-1	01	1	9404-9406		●
38	03.278 PIPE; VAC,MCV,INL MANIF SINGAPORE EQUIPMENT(S9Y)	8-94203-870-1	01	1	9407-		●
39	03.278 TUBE; DISTR,INL MANIF EXC. AUSTRALIA EQUIPMENT(RR3)	8-94463-029-0	01	1	9210-			●
40	03.278 PIPE; VAC LINE,INL MANIF EXC. AUSTRALIA EQUIPMENT(RR3) OD=6 L=28	8-94214-981-0	01	1	9210-			●
94	02.559 BOLT 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9510-	●	●
94	02.559 BOLT EXC. AUSTRALIA EQUIPMENT(RR3) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9510-			●
94	02.559 BOLT SINGAPORE EQUIPMENT(S9Y) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9510-		●
94	02.559 BOLT AUSTRALIA EQUIPMENT(RR3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9210-			●
94	02.559 BOLT 03.444 M8X14 W/LK WASHERT	8-94208-228-0	01	1	9210-9301						●
94	02.559 BOLT 00.206 M8X12 W/LK WASHER	0-50040-812-0	01	1	9302-9402						●
94	02.559 BOLT 03.330 M8X12 W/LK&PL WASHER	0-50140-812-0	01	1	9403-9406						●
135	00.293 BRACKET; VAC PIPE SINGAPORE EQUIPMENT(S9Y)	8-94403-443-0	01	1	9210-9402	●
135	00.293 BRACKET; VAC PIPE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94403-443-0	01	1	9210-9402		●
135	00.293 BRACKET; VAC PIPE SINGAPORE EQUIPMENT(S9Y)	8-94403-443-0	01	1	9403-9403	●
135	00.293 BRACKET; VAC PIPE UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y)	8-94403-443-0	01	1	9403-9403		●
135	00.293 BRACKET; VAC PIPE UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y)	8-94403-443-0	01	1	9404-9406		●
135	00.293 BRACKET; VAC PIPE SINGAPORE EQUIPMENT(S9Y)	8-94403-443-0	01	1	9407-		●
136	00.293 WASHER; LK,CLIP PLATE 00.206 ID=6.1	9-09150-506-0	02	1	9210-	●	●
136	00.293 WASHER; LK,CLIP PLATE EXC. AIR CON(C60),POWER STEERING<N40> ,COOLER WO/HEATER(YL1) 00.002 ID=10.2	9-09150-510-0	01	1	9210-9308				●
166	03.682 SENSOR; THERMO,WATER UNITED KINGDOM EQUIPMENT(EK3)	8-94205-866-0	01	1	9210-9406		●
167	03.265 PLUG; INL MANIF 01.531 PT1/8	5-09605-019-2	01	1	9210-9308	●
167	03.265 PLUG; INL MANIF EXC. AUSTRALIA EQUIPMENT(RR3) 01.531 PT1/8	5-09605-019-2	01	1	9210-9308		●
167	03.265 PLUG; INL MANIF 01.531 PT1/8	5-09605-019-2	01	1	9309-	●	●
167	03.265 PLUG; INL MANIF AUSTRALIA EQUIPMENT(RR3) 01.073 PT3/8	5-09605-005-0	01	1	9210-9410		●	●
167	03.265 PLUG; INL MANIF AUSTRALIA EQUIPMENT(RR3) 01.073 PT3/8	5-09605-005-0	01	1	9411-			●
177	02.343 CLIP; CABLE TO MANIF ID=13 H=24 L=20	9-09527-012-0	01	1	9210-	●	●
177	02.343 CLIP; CABLE TO MANIF EXC. AUSTRALIA EQUIPMENT(RR3) ID=13 H=24 L=20	9-09527-012-0	01	1	9210-			●
178	03.680 BOLT; CARB CABLE CLIP 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9210-	●	●
178	03.680 BOLT; CARB CABLE CLIP EXC. AUSTRALIA EQUIPMENT(RR3) 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9210-			●
186	03.278 HOSE; IDLE COMPENSATOR SINGAPORE EQUIPMENT(S9Y) 08.962 L=360 SERVICED BY L=3000	0-04741-300-0	01	1	9210-9403	●
186	03.278 HOSE; IDLE COMPENSATOR UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=360 SERVICED BY L=3000	0-04741-300-0	01	1	9210-9403		●
186	03.278 HOSE; IDLE COMPENSATOR UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=360 SERVICED BY L=3000	0-04741-300-0	01	1	9404-9406		●
186	03.278 HOSE; IDLE COMPENSATOR EXC. SINGAPORE EQUIPMENT(S9Y) 08.963 L=380 SERVICED BY L=3050	8-94237-378-0	01	1	9210-9308	●
186	03.278 HOSE; IDLE COMPENSATOR EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 08.963 L=380 SERVICED BY L=3050	8-94237-378-0	01	1	9210-9308		●
186	03.278 HOSE; IDLE COMPENSATOR EXC. AUSTRALIA EQUIPMENT(RR3) 08.963 L=380 SERVICED BY L=3050	8-94237-378-0	01	1	9210-9308			●
186	03.278 HOSE; IDLE COMPENSATOR EXC. SINGAPORE EQUIPMENT(S9Y) 08.963 L=380 SERVICED BY L=3050	8-94237-378-0	01	1	9309-9406	●
186	03.278 HOSE; IDLE COMPENSATOR EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.963 L=380 SERVICED BY L=3050	8-94237-378-0	01	1	9309-9406		●
186	03.278 HOSE; IDLE COMPENSATOR EXC. AUSTRALIA EQUIPMENT(RR3) 08.963 L=380 SERVICED BY L=3050	8-94237-378-0	01	1	9309-9406			●
186	03.278 HOSE; IDLE COMPENSATOR 08.962 L=380 SERVICED BY L=3000	0-04750-300-0	01	1	9407-	●
186	03.278 HOSE; IDLE COMPENSATOR EXC. AUSTRALIA EQUIPMENT(RR3), SINGAPORE EQUIPMENT(S9Y) 08.962 L=380 SERVICED BY L=3000	0-04750-300-0	01	1	9407-		●	●
186	03.278 HOSE; IDLE COMPENSATOR AUSTRALIA EQUIPMENT(RR3) 03.145	8-94175-423-1	01	1	9304-9308		●
186	03.278 HOSE; IDLE COMPENSATOR SINGAPORE EQUIPMENT(S9Y) 03.145	8-94175-423-1	01	1	9403-		●
187	03.726 CONNECTOR; HTR	8-94136-759-3	01	1	9210-9403	●
187	03.726 CONNECTOR; HTR EXC. AUSTRALIA EQUIPMENT(RR3)	8-94136-759-3	01	1	9210-9403		●	●
187	03.726 CONNECTOR; HTR	8-94136-759-3	01	1	9404-	●
187	03.726 CONNECTOR; HTR EXC. AUSTRALIA EQUIPMENT(RR3), SINGAPORE EQUIPMENT(S9Y)	8-94136-759-3	01	1	9404-		●	●
187	03.726 CONNECTOR; HTR AUSTRALIA EQUIPMENT(RR3) 03.265	8-94156-660-3	01	1	9210-9308		●
187	03.726 CONNECTOR; HTR SINGAPORE EQUIPMENT(S9Y) 03.265	8-94156-660-3	01	1	9403-		●
199	00.293 BOLT; VAC PIPE BRKT SINGAPORE EQUIPMENT(S9Y) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9210-9308	●
199	00.293 BOLT; VAC PIPE BRKT UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9210-9308		●
199	00.293 BOLT; VAC PIPE BRKT SINGAPORE EQUIPMENT(S9Y) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9309-9402	●
199	00.293 BOLT; VAC PIPE BRKT UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9309-9402		●
199	00.293 BOLT; VAC PIPE BRKT SINGAPORE EQUIPMENT(S9Y) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9403-9403	●
199	00.293 BOLT; VAC PIPE BRKT UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9403-9403		●
199	00.293 BOLT; VAC PIPE BRKT UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9404-9406		●
199	00.293 BOLT; VAC PIPE BRKT SINGAPORE EQUIPMENT(S9Y) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9407-		●
266	03.680 CAP; RUBBER,CONNECTOR EXC. AUSTRALIA EQUIPMENT(RR3) 01.780 OD=7	8-94206-392-0	01	1	9210-			●
372	01.152 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) POWER STEERING<N40> 02.559 ID=10 & 12	8-94155-296-0	01	1	9210-9406		●
387	03.265 PLATE; EGR,INL MANIF	8-94161-899-0	01	1	9210-9403	●
387	03.265 PLATE; EGR,INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94161-899-0	01	1	9210-9403		●
387	03.265 PLATE; EGR,INL MANIF	8-94161-899-0	01	1	9404-9406	●
387	03.265 PLATE; EGR,INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y)	8-94161-899-0	01	1	9404-9406		●
387	03.265 PLATE; EGR,INL MANIF	8-94161-899-0	01	1	9407-	●
387	03.265 PLATE; EGR,INL MANIF EXC. SINGAPORE EQUIPMENT(S9Y)	8-94161-899-0	01	1	9407-		●
388	01.153 BOLT; EGR PLATE,INL MANIF 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9210-9403	●
388	01.153 BOLT; EGR PLATE,INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9210-9403		●
388	01.153 BOLT; EGR PLATE,INL MANIF 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9404-9406	●
388	01.153 BOLT; EGR PLATE,INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9404-9406		●
388	01.153 BOLT; EGR PLATE,INL MANIF 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9407-	●
388	01.153 BOLT; EGR PLATE,INL MANIF EXC. SINGAPORE EQUIPMENT(S9Y) 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9407-		●
391	03.726 HEATER; EFE UNITED KINGDOM EQUIPMENT(EK3)	8-94146-255-1	01	1	9210-9406		●
392	03.726 GASKET; EFE HTR UNITED KINGDOM EQUIPMENT(EK3)	8-94146-256-0	02	1	9210-9406		●
392	03.726 GASKET; EFE HTR EXC. AUSTRALIA EQUIPMENT(RR3)	8-94146-256-0	02	1	9210-9406			●
392	03.726 GASKET; EFE HTR EXC. AUSTRALIA EQUIPMENT(RR3)	8-94146-256-0	02	1	9407-			●
394	03.403 STUD; ACL TO CARB,CARB CENTER M8X84	8-94159-217-2	01	1	9210-	●	●
394	03.403 STUD; ACL TO CARB,CARB CENTER EXC. AUSTRALIA EQUIPMENT(RR3) M8X84	8-94159-217-2	01	1	9210-			●
569	03.602 INSULATOR; HEAT EXC. AUSTRALIA EQUIPMENT(RR3)	8-94463-028-0	01	1	9210-			●
570	03.675 PIPE; VAC DISTRIBUTOR 03.665 L=160.5	8-94159-232-1	01	1	9210-9308	●
570	03.675 PIPE; VAC DISTRIBUTOR EXC. AUSTRALIA EQUIPMENT(RR3) 03.665 L=160.5	8-94159-232-1	01	1	9210-9308		●	●
570	03.675 PIPE; VAC DISTRIBUTOR 03.665 L=160.5	8-94159-232-1	01	1	9309-	●	●
570	03.675 PIPE; VAC DISTRIBUTOR EXC. AUSTRALIA EQUIPMENT(RR3) 03.665 L=160.5	8-94159-232-1	01	1	9309-			●
570	03.675 PIPE; VAC DISTRIBUTOR AUSTRALIA EQUIPMENT(RR3) 03.140	8-94159-231-1	01	1	9210-9308		●
666	03.275 STUD; FUEL PUMP 03.726 M8X18 L=38	8-94146-549-0	02	1	9510-	●	●
666	03.275 STUD; FUEL PUMP EXC. AUSTRALIA EQUIPMENT(RR3) 03.726 M8X18 L=38	8-94146-549-0	02	1	9510-			●

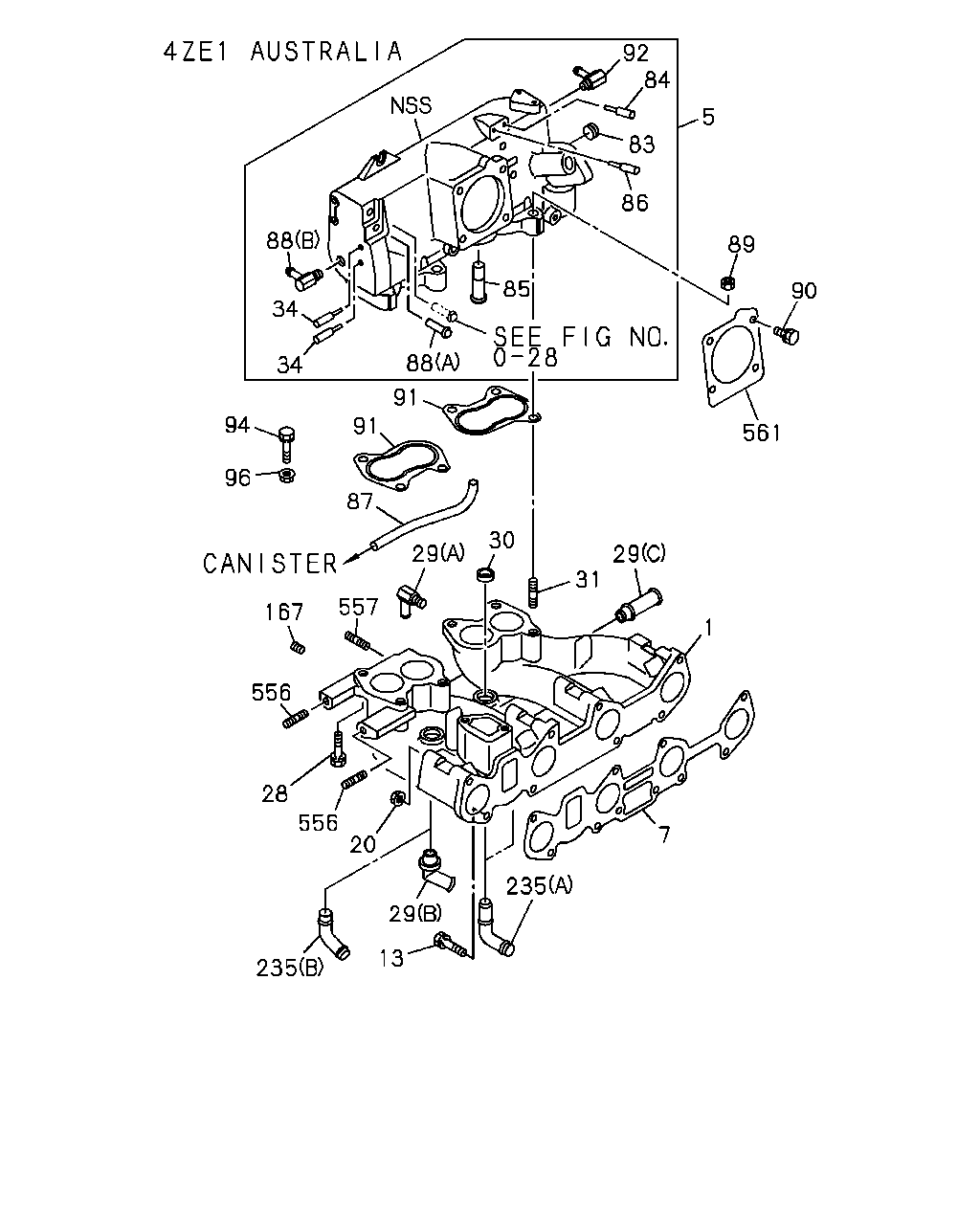

92 84 5 83 86 89 90 561 85 88 88 34 34 91 91 94 96 87 30 29 29 31 1 557 167 556 28 556 20 235 7 29 13 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.265 MANIFOLD; INL SINGAPORE EQUIPMENT(S9Y)	8-94360-494-3	01	1	9210-9403	●
1	03.265 MANIFOLD; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94360-747-3	01	1	9210-9308	●	●
1	03.265 MANIFOLD; INL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94360-747-3	01	1	9309-9401	●	●
1	03.265 MANIFOLD; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y)	8-94360-747-3	01	1	9402-9406	●	●
1	03.265 MANIFOLD; INL EXC. SINGAPORE EQUIPMENT(S9Y)	8-94360-747-3	01	1	9407-	●	●
1	03.265 MANIFOLD; INL AUSTRALIA EQUIPMENT(RR3)	8-94341-345-1	01	1	9210-9406		●

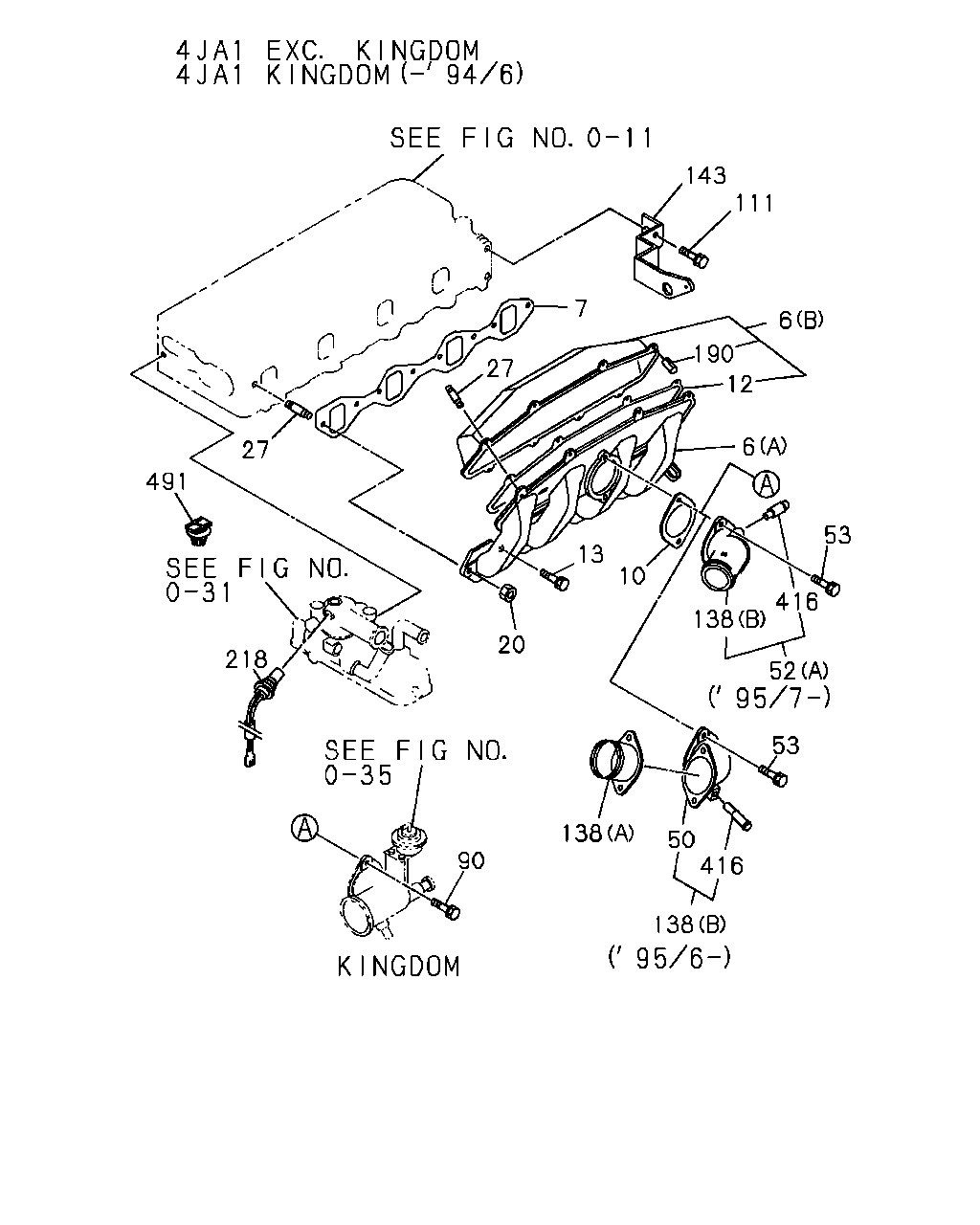

1	03.265 MANIFOLD; INL SINGAPORE EQUIPMENT(S9Y)	8-94344-774-3	01	1	9403-		●
1	03.265 MANIFOLD; INL AUSTRALIA EQUIPMENT(RR3)	8-97070-556-4	01	1	9210-			●
1	03.265 MANIFOLD; INL EXC. AUSTRALIA EQUIPMENT(RR3)	8-94370-819-1	01	1	9210-			●
1	03.265 MANIFOLD; INL	5-14111-213-0	01	1	9210-9308				●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97096-510-0	01	1	9407-9502					●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97116-137-0	01	1	9503-9511					●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97139-649-1	01	1	9512-					●
1	03.265 MANIFOLD; INL	8-94340-619-3	01	1	9210-9502						●
1	03.265 MANIFOLD; INL	8-97116-132-2	01	1	9503-						●
5	03.278 CHAMBER; COMMON AUSTRALIA EQUIPMENT(RR3)	8-97038-791-4	01	1	9210-9303			●
5	03.278 CHAMBER; COMMON A/T AISIN(RMD) AUSTRALIA EQUIPMENT(RR3)	8-97038-791-4	01	1	9304-9307			●
5	03.278 CHAMBER; COMMON AUSTRALIA EQUIPMENT(RR3)	8-97096-721-0	01	1	9308-			●
5	03.278 CHAMBER; COMMON M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3)	8-97089-843-1	01	1	9304-9307			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-052-0	01	1	9210-	●	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97066-741-1	01	1	9210-					●	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	9210-	●	●	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9210-9406					●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9407-					●
13	03.275 BOLT; INL MANIF THAILAND EQUIPMENT(PM9) 00.206 M6X35 W/LK&PL WASHER	0-50140-635-0	06	1	9210-					●
13	03.275 BOLT; INL MANIF EXC. THAILAND EQUIPMENT(PM9) M6X28	0-50140-628-0	06	1	9210-9308					●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) M6X28	0-50140-628-0	06	1	9309-					●
13	03.275 BOLT; INL MANIF 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9210-9406						●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9407-					●
13	03.275 BOLT; INL MANIF 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9407-						●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	04	1	9210-	●	●	●
20	03.275 NUT; INL MANIF 07.829 M6 FLANGE	5-09440-004-0	02	1	9210-					●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9210-					●	●
28	03.278 BOLT; CHAMBER AUSTRALIA EQUIPMENT(RR3) 09.171 M10X35 W/LK WASHER	0-50041-035-0	03	1	9210-			●
29	03.278 NIPPLE; HTR AUSTRALIA EQUIPMENT(RR3) 03.726 (C)	8-94136-759-3	01	1	9210-			●
29	03.278 NIPPLE; HTR AUSTRALIA EQUIPMENT(RR3) (A)	8-94456-972-1	02	1	9210-9408			●
29	03.278 NIPPLE; HTR AUSTRALIA EQUIPMENT(RR3) (B)	8-94472-397-1	01	1	9210-9408			●
30	03.265 CUP; SEALING,INL MANIF 00.253 OD=16	9-11129-081-0	01	1	9210-	●	●
30	03.265 CUP; SEALING,INL MANIF OD=20	9-11219-192-0	02	1	9210-9406	●		●
30	03.265 CUP; SEALING,INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) OD=20	9-11219-192-0	02	1	9210-9406		●
30	03.265 CUP; SEALING,INL MANIF OD=20	9-11219-192-0	02	1	9407-9411	●	●	●
30	03.265 CUP; SEALING,INL MANIF OD=20	9-11219-192-0	02	1	9412-	●	●
30	03.265 CUP; SEALING,INL MANIF EXC. AUSTRALIA EQUIPMENT(RR3) OD=20	9-11219-192-0	02	1	9412-			●
30	03.265 CUP; SEALING,INL MANIF UNITED KINGDOM EQUIPMENT(EK3) OD=20	9-11219-192-0	01	1	9210-9406		●
30	03.265 CUP; SEALING,INL MANIF AUSTRALIA EQUIPMENT(RR3) OD=20	9-11219-192-0	01	1	9210-9406			●
30	03.265 CUP; SEALING,INL MANIF AUSTRALIA EQUIPMENT(RR3) OD=20	9-11219-192-0	01	1	9407-			●
30	03.265 CUP; SEALING,INL MANIF AUSTRALIA EQUIPMENT(RR3) 00.253 OD=18	5-11219-008-0	01	1	9210-			●
30	03.265 CUP; SEALING,INL MANIF EXC. AUSTRALIA EQUIPMENT(RR3) 00.253 OD=16	9-11129-081-0	02	1	9210-			●
30	03.265 CUP; SEALING,INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 00.253 OD=16	5-11129-006-0	04	1	9407-9502					●
31	03.278 STUD; COMMON CHAMBER AUSTRALIA EQUIPMENT(RR3) 00.685 M10X35 L=50	9-04411-035-0	03	1	9210-			●
34	03.675 PIPE; VAC SINGAPORE EQUIPMENT(S9Y) 03.278 OD=5 L=34	8-94200-851-2	04	1	9210-9403	●
34	03.675 PIPE; VAC UNITED KINGDOM EQUIPMENT(EK3) 03.278 OD=5 L=34	8-94200-851-2	04	1	9210-9403		●
34	03.675 PIPE; VAC UNITED KINGDOM EQUIPMENT(EK3) 03.278 OD=5 L=34	8-94200-851-2	04	1	9404-9406		●
34	03.675 PIPE; VAC 03.278 OD=5 L=34	8-94200-851-2	02	1	9407-9509	●	●
34	03.675 PIPE; VAC AUSTRALIA EQUIPMENT(RR3) 03.278 OD=5 L=34	8-94200-851-2	02	1	9407-9509			●
34	03.675 PIPE; VAC EXC. AUSTRALIA EQUIPMENT(RR3) 03.278 OD=5 L=34	8-94200-851-2	01	1	9510-			●
34	03.675 PIPE; VAC EXC. SINGAPORE EQUIPMENT(S9Y) 03.278 OD=5 L=34	8-94200-851-2	02	1	9210-9406	●
34	03.675 PIPE; VAC EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.278 OD=5 L=34	8-94200-851-2	02	1	9210-9406		●
34	03.675 PIPE; VAC AUSTRALIA EQUIPMENT(RR3) 03.278 OD=5 L=34	8-94200-851-2	02	1	9210-9406			●
34	03.675 PIPE; VAC OD=10 L=50	8-94330-262-0	01	1	9210-	●	●
34	03.675 PIPE; VAC EXC. AUSTRALIA EQUIPMENT(RR3) OD=10 L=50	8-94330-262-0	01	1	9210-			●
34	03.675 PIPE; VAC AUSTRALIA EQUIPMENT(RR3) 03.278 OD=5 L=34	8-94200-851-2	03	1	9210-9308		●
34	03.675 PIPE; VAC SINGAPORE EQUIPMENT(S9Y) 03.278 OD=5 L=34	8-94200-851-2	03	1	9403-		●
34	03.675 PIPE; VAC EXC. AUSTRALIA EQUIPMENT(RR3) OD=4 L=21	8-94145-897-2	01	1	9210-			●
34	03.675 PIPE; VAC EXC. AUSTRALIA EQUIPMENT(RR3) 03.278 OD=5 L=34	8-94200-851-2	01	1	9210-9509			●
34	03.675 PIPE; VAC 03.278 OD=5 L=34	8-94200-851-2	02	1	9510-	●	●
34	03.675 PIPE; VAC AUSTRALIA EQUIPMENT(RR3) 03.278 OD=5 L=34	8-94200-851-2	02	1	9510-			●
83	03.278 PLUG; COMMON CHAMBER AUSTRALIA EQUIPMENT(RR3) 01.073 PT3/8	5-09605-005-0	01	1	9210-9303			●
83	03.278 PLUG; COMMON CHAMBER AUSTRALIA EQUIPMENT(RR3) A/T AISIN(RMD) 01.073 PT3/8	5-09605-005-0	01	1	9304-9307			●
83	03.278 PLUG; COMMON CHAMBER AUSTRALIA EQUIPMENT(RR3) 01.073 PT3/8	5-09605-005-0	01	1	9308-			●
83	03.278 PLUG; COMMON CHAMBER M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) 01.073 PT3/8	5-09605-005-0	02	1	9304-9307			●
84	03.265 PIPE; AUTO CRUISE AUSTRALIA EQUIPMENT(RR3) 03.278 OD=5 L=34	8-94200-851-2	02	1	9210-			●
85	03.265 PIPE; AIR REG AUSTRALIA EQUIPMENT(RR3)	8-94148-031-0	01	1	9210-			●
86	03.278 PIPE; CANISTER PURGE AUSTRALIA EQUIPMENT(RR3)	8-94249-288-0	01	1	9210-			●
87	03.163 HOSE; PURGE SIGNAL AUSTRALIA EQUIPMENT(RR3) 08.962 L=240 SERVICED BY L=3000	0-04750-300-0	01	1	9210-			●
88	03.265 CONNECTOR; FAST IDLE AUSTRALIA EQUIPMENT(RR3) 03.278 (A)	8-94107-531-0	01	1	9210-			●
88	03.265 CONNECTOR; FAST IDLE AUSTRALIA EQUIPMENT(RR3) (B) PT1/4 ELBOW	8-94221-562-0	01	1	9210-			●
89	03.278 NUT; COMMON CHAMBER TO INL MANIF AUSTRALIA EQUIPMENT(RR3) 08.917 M10 FLANGE	0-91150-210-0	03	1	9210-			●
90	03.275 BOLT; TB TO COMMON CHAMBER AUSTRALIA EQUIPMENT(RR3) M8X40 HEX SOCKET	9-05820-840-0	04	1	9210-			●
90	03.275 BOLT; TB TO COMMON CHAMBER UNITED KINGDOM EQUIPMENT(EK3) 00.029 M10X28 W/LK WASHER	0-50041-028-0	02	1	9210-9406					●
91	03.278 GASKET; COMMON CHAMBER TO INL MA AUSTRALIA EQUIPMENT(RR3)	8-94328-250-0	02	1	9210-			●
92	03.278 NIPPLE; M/VAC AUSTRALIA EQUIPMENT(RR3)	8-97062-077-1	01	1	9210-			●
94	02.559 BOLT 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9510-	●	●
94	02.559 BOLT EXC. AUSTRALIA EQUIPMENT(RR3) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9510-			●
94	02.559 BOLT SINGAPORE EQUIPMENT(S9Y) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9510-		●
94	02.559 BOLT AUSTRALIA EQUIPMENT(RR3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9210-			●
94	02.559 BOLT 03.444 M8X14 W/LK WASHERT	8-94208-228-0	01	1	9210-9301						●
94	02.559 BOLT 00.206 M8X12 W/LK WASHER	0-50040-812-0	01	1	9302-9402						●
94	02.559 BOLT 03.330 M8X12 W/LK&PL WASHER	0-50140-812-0	01	1	9403-9406						●
96	03.273 NUT; ENG HARNESS CLIP AUSTRALIA EQUIPMENT(RR3) 02.343 M6 W/LK WASHER	8-94424-179-0	02	1	9210-			●
167	03.265 PLUG; INL MANIF 01.531 PT1/8	5-09605-019-2	01	1	9210-9308	●
167	03.265 PLUG; INL MANIF EXC. AUSTRALIA EQUIPMENT(RR3) 01.531 PT1/8	5-09605-019-2	01	1	9210-9308		●
167	03.265 PLUG; INL MANIF 01.531 PT1/8	5-09605-019-2	01	1	9309-	●	●
167	03.265 PLUG; INL MANIF AUSTRALIA EQUIPMENT(RR3) 01.073 PT3/8	5-09605-005-0	01	1	9210-9410		●	●
167	03.265 PLUG; INL MANIF AUSTRALIA EQUIPMENT(RR3) 01.073 PT3/8	5-09605-005-0	01	1	9411-			●
235	03.278 JOINT; INL MANIF AUSTRALIA EQUIPMENT(RR3) (B)	8-97117-083-0	01	1	9409-			●
235	03.278 JOINT; INL MANIF AUSTRALIA EQUIPMENT(RR3) (A)	8-97117-185-0	02	1	9409-			●
556	03.275 STUD; PROTECTOR,INLET MANIF AUSTRALIA EQUIPMENT(RR3) 00.206 M8X16 L=32	9-04010-816-0	02	1	9210-			●
557	03.275 STUD; ECM EARTH,INLET MANIF AUSTRALIA EQUIPMENT(RR3) 01.428 M6X12 L=21	9-04110-612-0	02	1	9210-			●
561	03.724 GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE). AUSTRALIA EQUIPMENT(RR3)	8-97037-870-0	01	1	9210-			●

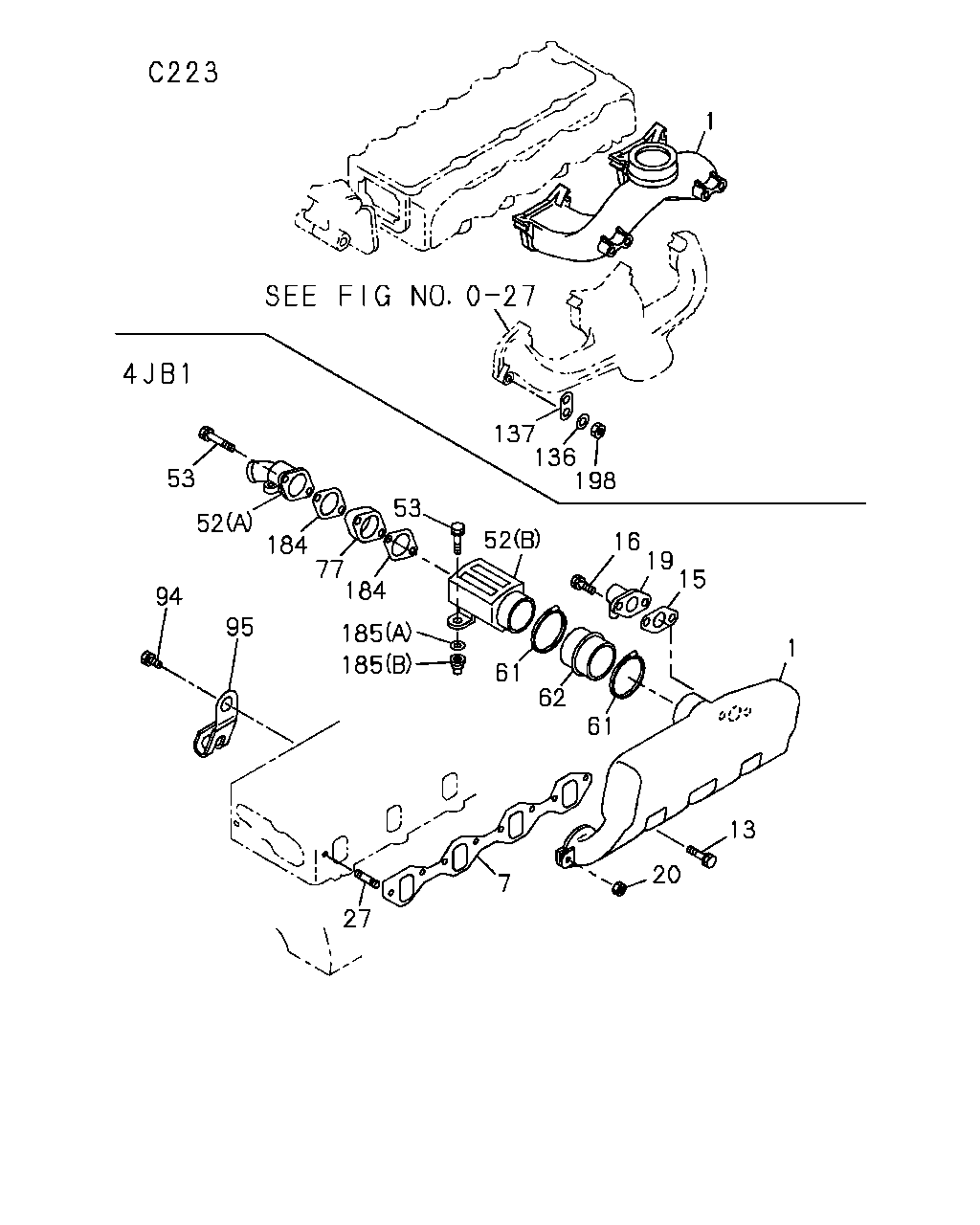

137 136 198 53 52 53 184 77 52 184 16 19 15 1 185 94 95 185 61 62 61 13 20 7 27 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.265 MANIFOLD; INL SINGAPORE EQUIPMENT(S9Y)	8-94360-494-3	01	1	9210-9403	●
1	03.265 MANIFOLD; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94360-747-3	01	1	9210-9308	●	●
1	03.265 MANIFOLD; INL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94360-747-3	01	1	9309-9401	●	●
1	03.265 MANIFOLD; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y)	8-94360-747-3	01	1	9402-9406	●	●
1	03.265 MANIFOLD; INL EXC. SINGAPORE EQUIPMENT(S9Y)	8-94360-747-3	01	1	9407-	●	●
1	03.265 MANIFOLD; INL AUSTRALIA EQUIPMENT(RR3)	8-94341-345-1	01	1	9210-9406		●
1	03.265 MANIFOLD; INL SINGAPORE EQUIPMENT(S9Y)	8-94344-774-3	01	1	9403-		●
1	03.265 MANIFOLD; INL AUSTRALIA EQUIPMENT(RR3)	8-97070-556-4	01	1	9210-			●
1	03.265 MANIFOLD; INL EXC. AUSTRALIA EQUIPMENT(RR3)	8-94370-819-1	01	1	9210-			●
1	03.265 MANIFOLD; INL	5-14111-213-0	01	1	9210-9308				●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97096-510-0	01	1	9407-9502					●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97116-137-0	01	1	9503-9511					●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97139-649-1	01	1	9512-					●
1	03.265 MANIFOLD; INL	8-94340-619-3	01	1	9210-9502						●
1	03.265 MANIFOLD; INL	8-97116-132-2	01	1	9503-						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-052-0	01	1	9210-	●	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97066-741-1	01	1	9210-					●	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	9210-	●	●	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9210-9406					●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9407-					●
13	03.275 BOLT; INL MANIF THAILAND EQUIPMENT(PM9) 00.206 M6X35 W/LK&PL WASHER	0-50140-635-0	06	1	9210-					●
13	03.275 BOLT; INL MANIF EXC. THAILAND EQUIPMENT(PM9) M6X28	0-50140-628-0	06	1	9210-9308					●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) M6X28	0-50140-628-0	06	1	9309-					●
13	03.275 BOLT; INL MANIF 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9210-9406						●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9407-					●
13	03.275 BOLT; INL MANIF 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9407-						●
15	03.342 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-361-0	01	1	9210-9210						●
15	03.342 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE). 921019-	8-97086-759-0	01	1	9210-9406						●
15	03.342 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3).	8-97086-759-0	01	1	9407-9502					●
15	03.342 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97086-759-0	01	1	9407-9502						●
16	01.745 BOLT; VLV,BOOST RELIEF M6X22 W/LK WASHER	0-50040-622-0	02	1	9210-9406						●
16	01.745 BOLT; VLV,BOOST RELIEF UNITED KINGDOM EQUIPMENT(EK3) M6X22 W/LK WASHER	0-50040-622-0	02	1	9407-9502					●
16	01.745 BOLT; VLV,BOOST RELIEF M6X22 W/LK WASHER	0-50040-622-0	02	1	9407-9502						●
19	03.342 VALVE; RELIEF,TURBOCHARGER BOOST	8-94155-545-1	01	1	9210-9406						●
19	03.342 VALVE; RELIEF,TURBOCHARGER BOOST UNITED KINGDOM EQUIPMENT(EK3)	8-94155-545-1	01	1	9407-9502					●
19	03.342 VALVE; RELIEF,TURBOCHARGER BOOST	8-94155-545-1	01	1	9407-9502						●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	04	1	9210-	●	●	●
20	03.275 NUT; INL MANIF 07.829 M6 FLANGE	5-09440-004-0	02	1	9210-					●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9210-					●	●
27	03.275 STUD; INL MANIF 09.173 M8X22 L=34	9-04110-822-0	02	1	9210-9212					●
27	03.275 STUD; INL MANIF THAILAND EQUIPMENT(PM9) M6X30 L=39	9-04110-630-0	02	1	9210-					●
27	03.275 STUD; INL MANIF EXC. THAILAND EQUIPMENT(PM9) 03.162 M6X20 L=29	9-04110-620-0	02	1	9210-					●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	02	1	9210-					●	●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97109-028-1	01	1	9407-					●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97109-217-0	01	1	9407-9412					●
52	01.097 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) (A)	8-97115-866-0	01	1	9507-					●
52	01.097 PIPE; INL (B)	8-94385-384-3	01	1	9210-9410						●
52	01.097 PIPE; INL (B)	8-97115-455-0	01	1	9411-9412						●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97115-455-0	01	1	9501-					●
52	01.097 PIPE; INL (B)	8-97115-455-0	01	1	9501-						●
52	01.097 PIPE; INL (A)	8-94473-955-1	01	1	9210-						●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9210-9506					●
53	03.602 BOLT; INL PIPE THAILAND EQUIPMENT(PM9) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9507-					●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.029 M10X28 W/LK WASHER	0-50041-028-0	02	1	9210-					●
53	03.602 BOLT; INL PIPE 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	9210-9406						●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	9407-					●
53	03.602 BOLT; INL PIPE 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	9407-						●
53	03.602 BOLT; INL PIPE 04.104 M10X60 W/LK WASHER	0-50041-060-0	02	1	9210-9406						●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 04.104 M10X60 W/LK WASHER	0-50041-060-0	02	1	9407-					●
53	03.602 BOLT; INL PIPE 04.104 M10X60 W/LK WASHER	0-50041-060-0	02	1	9407-						●
61	03.273 CLIP; CONNECTOR HOSE 03.407 ID=68-85	8-94320-428-0	02	1	9210-9406						●
61	03.273 CLIP; CONNECTOR HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.407 ID=68-85	8-94320-428-0	02	1	9407-9507					●
61	03.273 CLIP; CONNECTOR HOSE 03.407 ID=68-85	8-94320-428-0	02	1	9407-9507						●
61	03.273 CLIP; CONNECTOR HOSE UNITED KINGDOM EQUIPMENT(EK3) ID=65-82	8-97131-942-0	02	1	9508-					●
61	03.273 CLIP; CONNECTOR HOSE ID=65-82	8-97131-942-0	02	1	9508-						●
62	03.265 HOSE; CONNECTOR	8-94386-164-1	01	1	9210-9406						●
62	03.265 HOSE; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3)	8-94386-164-1	01	1	9407-9412					●
62	03.265 HOSE; CONNECTOR	8-94386-164-1	01	1	9407-9412						●
62	03.265 HOSE; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3)	8-97120-726-0	01	1	9501-9508					●
62	03.265 HOSE; CONNECTOR	8-97120-726-0	01	1	9501-9508						●
62	03.265 HOSE; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3)	8-97137-018-0	01	1	9509-					●
62	03.265 HOSE; CONNECTOR	8-97137-018-0	01	1	9509-						●
77	03.265 PIPE; INL,INT SHUTTER TO INL MAN	8-94474-096-0	01	1	9210-						●
94	02.559 BOLT 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9510-	●	●
94	02.559 BOLT EXC. AUSTRALIA EQUIPMENT(RR3) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9510-			●
94	02.559 BOLT SINGAPORE EQUIPMENT(S9Y) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9510-		●
94	02.559 BOLT AUSTRALIA EQUIPMENT(RR3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9210-			●
94	02.559 BOLT 03.444 M8X14 W/LK WASHERT	8-94208-228-0	01	1	9210-9301						●
94	02.559 BOLT 00.206 M8X12 W/LK WASHER	0-50040-812-0	01	1	9302-9402						●
94	02.559 BOLT 03.330 M8X12 W/LK&PL WASHER	0-50140-812-0	01	1	9403-9406						●
95	03.278 CLIP; RUBBER HOSE 02.559 ID=12	5-09700-331-0	01	1	9210-9409						●
136	00.293 WASHER; LK,CLIP PLATE 00.206 ID=6.1	9-09150-506-0	02	1	9210-	●	●
136	00.293 WASHER; LK,CLIP PLATE EXC. AIR CON(C60),POWER STEERING<N40> ,COOLER WO/HEATER(YL1) 00.002 ID=10.2	9-09150-510-0	01	1	9210-9308				●
137	08.854 PLATE; CLIP,HOSE & PIPE EXC. AIR CON(C60),POWER STEERING<N40> ,COOLER WO/HEATER(YL1) 03.278	5-11149-001-0	01	1	9210-9308				●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97045-364-0	02	1	9210-9210						●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 921019-	8-97086-961-0	02	1	9210-9406						●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97086-961-0	02	1	9407-					●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97086-961-0	02	1	9407-						●
185	03.273 RUBBER; MTG,INL MANIF,UPR (A) ID=12 OD=24 T=4.5	8-94403-670-0	02	1	9210-9406						●
185	03.273 RUBBER; MTG,INL MANIF,UPR UNITED KINGDOM EQUIPMENT(EK3) (A) ID=12 OD=24 T=4.5	8-94403-670-0	02	1	9407-					●
185	03.273 RUBBER; MTG,INL MANIF,UPR (A) ID=12 OD=24 T=4.5	8-94403-670-0	02	1	9407-						●
185	03.273 RUBBER; MTG,INL MANIF,UPR (B)	8-94434-927-0	02	1	9210-9406						●
185	03.273 RUBBER; MTG,INL MANIF,UPR UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94434-927-0	02	1	9407-					●
185	03.273 RUBBER; MTG,INL MANIF,UPR (B)	8-94434-927-0	02	1	9407-						●
198	00.002 NUT; CLIP PLATE EXC. AIR CON(C60),POWER STEERING<N40> ,COOLER WO/HEATER(YL1) M10	9-09110-510-0	01	1	9210-9308				●

143 111 7 6 190 12 27 27 491 13 10 6 53 416 138 20 52 53 50 416 138 138 90 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E	F
6	03.265 MANIFOLD; INL,UPR THAILAND EQUIPMENT(PM9) (B)	8-97070-095-0	01	1	9210-				●
6	03.265 MANIFOLD; INL,UPR EXC. THAILAND EQUIPMENT(PM9) (B)	8-94320-921-1	01	1	9210-9308				●
6	03.265 MANIFOLD; INL,UPR EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) (B)	8-94320-921-1	01	1	9309-				●
6	03.265 MANIFOLD; INL,UPR EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94463-544-4	01	1	9210-9603				●
6	03.265 MANIFOLD; INL,UPR THAILAND EQUIPMENT(PM9) (A)	8-94463-544-6	01	1	9604-				●
6	03.265 MANIFOLD; INL,UPR EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) (A)	8-97143-701-1	01	1	9604-				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-052-0	01	1	9210-	●	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97066-741-1	01	1	9210-				●	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97035-883-0	02	1	9210-9406				●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97035-883-0	02	1	9407-9506				●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HE AD) THAILAND EQUIPMENT(PM9)	8-97035-883-0	02	1	9507-				●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-97035-883-0	01	1	9507-				●
12	03.270 GASKET; INL MANIF,UPR TO LWR THAILAND EQUIPMENT(PM9)	8-97078-152-0	01	1	9210-				●
12	03.270 GASKET; INL MANIF,UPR TO LWR EXC. THAILAND EQUIPMENT(PM9)	8-94320-923-0	01	1	9210-9308				●
12	03.270 GASKET; INL MANIF,UPR TO LWR EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-94320-923-0	01	1	9309-				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	9210-	●	●	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9210-9406				●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9407-				●
13	03.275 BOLT; INL MANIF THAILAND EQUIPMENT(PM9) 00.206 M6X35 W/LK&PL WASHER	0-50140-635-0	06	1	9210-				●
13	03.275 BOLT; INL MANIF EXC. THAILAND EQUIPMENT(PM9) M6X28	0-50140-628-0	06	1	9210-9308				●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) M6X28	0-50140-628-0	06	1	9309-				●
13	03.275 BOLT; INL MANIF 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9210-9406					●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9407-				●
13	03.275 BOLT; INL MANIF 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9407-					●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	04	1	9210-	●	●	●
20	03.275 NUT; INL MANIF 07.829 M6 FLANGE	5-09440-004-0	02	1	9210-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9210-				●	●
27	03.275 STUD; INL MANIF 09.173 M8X22 L=34	9-04110-822-0	02	1	9210-9212				●
27	03.275 STUD; INL MANIF THAILAND EQUIPMENT(PM9) M6X30 L=39	9-04110-630-0	02	1	9210-				●
27	03.275 STUD; INL MANIF EXC. THAILAND EQUIPMENT(PM9) 03.162 M6X20 L=29	9-04110-620-0	02	1	9210-				●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	02	1	9210-				●	●
50	03.265 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94315-557-0	01	1	9210-9506				●
50	03.265 PIPE; INL THAILAND EQUIPMENT(PM9)	8-94315-557-0	01	1	9507-				●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97109-028-1	01	1	9407-				●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97109-217-0	01	1	9407-9412				●
52	01.097 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) (A)	8-97115-866-0	01	1	9507-				●
52	01.097 PIPE; INL (B)	8-94385-384-3	01	1	9210-9410					●
52	01.097 PIPE; INL (B)	8-97115-455-0	01	1	9411-9412					●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97115-455-0	01	1	9501-				●
52	01.097 PIPE; INL (B)	8-97115-455-0	01	1	9501-					●
52	01.097 PIPE; INL (A)	8-94473-955-1	01	1	9210-					●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9210-9506				●
53	03.602 BOLT; INL PIPE THAILAND EQUIPMENT(PM9) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9507-				●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.029 M10X28 W/LK WASHER	0-50041-028-0	02	1	9210-				●
53	03.602 BOLT; INL PIPE 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	9210-9406					●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	9407-				●
53	03.602 BOLT; INL PIPE 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	9407-					●
53	03.602 BOLT; INL PIPE 04.104 M10X60 W/LK WASHER	0-50041-060-0	02	1	9210-9406					●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 04.104 M10X60 W/LK WASHER	0-50041-060-0	02	1	9407-				●
53	03.602 BOLT; INL PIPE 04.104 M10X60 W/LK WASHER	0-50041-060-0	02	1	9407-					●
90	03.275 BOLT; TB TO COMMON CHAMBER AUSTRALIA EQUIPMENT(RR3) M8X40 HEX SOCKET	9-05820-840-0	04	1	9210-			●
90	03.275 BOLT; TB TO COMMON CHAMBER UNITED KINGDOM EQUIPMENT(EK3) 00.029 M10X28 W/LK WASHER	0-50041-028-0	02	1	9210-9406				●
111	03.275 BOLT; DOWN SHIFT CABLE BRKT 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9210-9406				●
111	03.275 BOLT; DOWN SHIFT CABLE BRKT EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9407-				●
138	03.265 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94475-224-0	01	1	9210-9506				●
138	03.265 PIPE; INL THAILAND EQUIPMENT(PM9) (A)	8-94475-224-0	01	1	9507-				●
138	03.265 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94478-179-0	01	1	9210-9506				●
138	03.265 PIPE; INL THAILAND EQUIPMENT(PM9) (B)	8-94478-179-0	01	1	9507-				●
138	03.265 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) (B)	8-97115-992-0	01	1	9507-				●
143	03.273 BRACKET; INL MANIF FRT 01.540	8-97066-330-0	01	1	9210-9406				●
143	03.273 BRACKET; INL MANIF FRT EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.540	8-97066-330-0	01	1	9407-9603				●
143	03.273 BRACKET; INL MANIF FRT THAILAND EQUIPMENT(PM9) 01.540	8-97066-330-0	01	1	9604-				●
143	03.273 BRACKET; INL MANIF FRT EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 01.540	8-94453-529-2	01	1	9604-				●
190	03.275 COLLAR; INLET MANIFOLD THAILAND EQUIPMENT(PM9)	8-97078-151-0	08	1	9210-				●
190	03.275 COLLAR; INLET MANIFOLD EXC. THAILAND EQUIPMENT(PM9)	8-94320-924-0	08	1	9210-9308				●
190	03.275 COLLAR; INLET MANIFOLD EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-94320-924-0	08	1	9309-				●
218	01.150 SWITCH; THERMO,AIR TEMP UNITED KINGDOM EQUIPMENT(EK3)	8-97019-773-0	01	1	9210-9509				●
416	00.293 NIPPLE; BREATHER HOSE EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.602 OD=15 L=41	8-94442-052-0	01	1	9210-				●
491	01.152 CLIP; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3) OD=7 H=1.2	8-94364-750-0	01	1	9210-				●

491 53 52 53 52 184 184 61 62 185 185 61 114 16 19 15 30 1 13 20 218 7 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.265 MANIFOLD; INL SINGAPORE EQUIPMENT(S9Y)	8-94360-494-3	01	1	9210-9403	●
1	03.265 MANIFOLD; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94360-747-3	01	1	9210-9308	●	●
1	03.265 MANIFOLD; INL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94360-747-3	01	1	9309-9401	●	●
1	03.265 MANIFOLD; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y)	8-94360-747-3	01	1	9402-9406	●	●
1	03.265 MANIFOLD; INL EXC. SINGAPORE EQUIPMENT(S9Y)	8-94360-747-3	01	1	9407-	●	●
1	03.265 MANIFOLD; INL AUSTRALIA EQUIPMENT(RR3)	8-94341-345-1	01	1	9210-9406		●
1	03.265 MANIFOLD; INL SINGAPORE EQUIPMENT(S9Y)	8-94344-774-3	01	1	9403-		●
1	03.265 MANIFOLD; INL AUSTRALIA EQUIPMENT(RR3)	8-97070-556-4	01	1	9210-			●
1	03.265 MANIFOLD; INL EXC. AUSTRALIA EQUIPMENT(RR3)	8-94370-819-1	01	1	9210-			●
1	03.265 MANIFOLD; INL	5-14111-213-0	01	1	9210-9308				●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97096-510-0	01	1	9407-9502					●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97116-137-0	01	1	9503-9511					●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97139-649-1	01	1	9512-					●
1	03.265 MANIFOLD; INL	8-94340-619-3	01	1	9210-9502						●
1	03.265 MANIFOLD; INL	8-97116-132-2	01	1	9503-						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-052-0	01	1	9210-	●	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97066-741-1	01	1	9210-					●	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	9210-	●	●	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9210-9406					●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9407-					●
13	03.275 BOLT; INL MANIF THAILAND EQUIPMENT(PM9) 00.206 M6X35 W/LK&PL WASHER	0-50140-635-0	06	1	9210-					●
13	03.275 BOLT; INL MANIF EXC. THAILAND EQUIPMENT(PM9) M6X28	0-50140-628-0	06	1	9210-9308					●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) M6X28	0-50140-628-0	06	1	9309-					●
13	03.275 BOLT; INL MANIF 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9210-9406						●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9407-					●
13	03.275 BOLT; INL MANIF 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9407-						●
15	03.342 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-361-0	01	1	9210-9210						●
15	03.342 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE). 921019-	8-97086-759-0	01	1	9210-9406						●
15	03.342 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3).	8-97086-759-0	01	1	9407-9502					●
15	03.342 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97086-759-0	01	1	9407-9502						●
16	01.745 BOLT; VLV,BOOST RELIEF M6X22 W/LK WASHER	0-50040-622-0	02	1	9210-9406						●
16	01.745 BOLT; VLV,BOOST RELIEF UNITED KINGDOM EQUIPMENT(EK3) M6X22 W/LK WASHER	0-50040-622-0	02	1	9407-9502					●
16	01.745 BOLT; VLV,BOOST RELIEF M6X22 W/LK WASHER	0-50040-622-0	02	1	9407-9502						●
19	03.342 VALVE; RELIEF,TURBOCHARGER BOOST	8-94155-545-1	01	1	9210-9406						●
19	03.342 VALVE; RELIEF,TURBOCHARGER BOOST UNITED KINGDOM EQUIPMENT(EK3)	8-94155-545-1	01	1	9407-9502					●
19	03.342 VALVE; RELIEF,TURBOCHARGER BOOST	8-94155-545-1	01	1	9407-9502						●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	04	1	9210-	●	●	●
20	03.275 NUT; INL MANIF 07.829 M6 FLANGE	5-09440-004-0	02	1	9210-					●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9210-					●	●
27	03.275 STUD; INL MANIF 09.173 M8X22 L=34	9-04110-822-0	02	1	9210-9212					●
27	03.275 STUD; INL MANIF THAILAND EQUIPMENT(PM9) M6X30 L=39	9-04110-630-0	02	1	9210-					●
27	03.275 STUD; INL MANIF EXC. THAILAND EQUIPMENT(PM9) 03.162 M6X20 L=29	9-04110-620-0	02	1	9210-					●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	02	1	9210-					●	●
30	03.265 CUP; SEALING,INL MANIF 00.253 OD=16	9-11129-081-0	01	1	9210-	●	●
30	03.265 CUP; SEALING,INL MANIF OD=20	9-11219-192-0	02	1	9210-9406	●		●
30	03.265 CUP; SEALING,INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) OD=20	9-11219-192-0	02	1	9210-9406		●
30	03.265 CUP; SEALING,INL MANIF OD=20	9-11219-192-0	02	1	9407-9411	●	●	●
30	03.265 CUP; SEALING,INL MANIF OD=20	9-11219-192-0	02	1	9412-	●	●
30	03.265 CUP; SEALING,INL MANIF EXC. AUSTRALIA EQUIPMENT(RR3) OD=20	9-11219-192-0	02	1	9412-			●
30	03.265 CUP; SEALING,INL MANIF UNITED KINGDOM EQUIPMENT(EK3) OD=20	9-11219-192-0	01	1	9210-9406		●
30	03.265 CUP; SEALING,INL MANIF AUSTRALIA EQUIPMENT(RR3) OD=20	9-11219-192-0	01	1	9210-9406			●
30	03.265 CUP; SEALING,INL MANIF AUSTRALIA EQUIPMENT(RR3) OD=20	9-11219-192-0	01	1	9407-			●
30	03.265 CUP; SEALING,INL MANIF AUSTRALIA EQUIPMENT(RR3) 00.253 OD=18	5-11219-008-0	01	1	9210-			●
30	03.265 CUP; SEALING,INL MANIF EXC. AUSTRALIA EQUIPMENT(RR3) 00.253 OD=16	9-11129-081-0	02	1	9210-			●
30	03.265 CUP; SEALING,INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 00.253 OD=16	5-11129-006-0	04	1	9407-9502					●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97109-028-1	01	1	9407-					●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97109-217-0	01	1	9407-9412					●
52	01.097 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) (A)	8-97115-866-0	01	1	9507-					●
52	01.097 PIPE; INL (B)	8-94385-384-3	01	1	9210-9410						●
52	01.097 PIPE; INL (B)	8-97115-455-0	01	1	9411-9412						●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97115-455-0	01	1	9501-					●
52	01.097 PIPE; INL (B)	8-97115-455-0	01	1	9501-						●
52	01.097 PIPE; INL (A)	8-94473-955-1	01	1	9210-						●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9210-9506					●
53	03.602 BOLT; INL PIPE THAILAND EQUIPMENT(PM9) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9507-					●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.029 M10X28 W/LK WASHER	0-50041-028-0	02	1	9210-					●
53	03.602 BOLT; INL PIPE 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	9210-9406						●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	9407-					●
53	03.602 BOLT; INL PIPE 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	9407-						●
53	03.602 BOLT; INL PIPE 04.104 M10X60 W/LK WASHER	0-50041-060-0	02	1	9210-9406						●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 04.104 M10X60 W/LK WASHER	0-50041-060-0	02	1	9407-					●
53	03.602 BOLT; INL PIPE 04.104 M10X60 W/LK WASHER	0-50041-060-0	02	1	9407-						●
61	03.273 CLIP; CONNECTOR HOSE 03.407 ID=68-85	8-94320-428-0	02	1	9210-9406						●
61	03.273 CLIP; CONNECTOR HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.407 ID=68-85	8-94320-428-0	02	1	9407-9507					●
61	03.273 CLIP; CONNECTOR HOSE 03.407 ID=68-85	8-94320-428-0	02	1	9407-9507						●
61	03.273 CLIP; CONNECTOR HOSE UNITED KINGDOM EQUIPMENT(EK3) ID=65-82	8-97131-942-0	02	1	9508-					●
61	03.273 CLIP; CONNECTOR HOSE ID=65-82	8-97131-942-0	02	1	9508-						●
62	03.265 HOSE; CONNECTOR	8-94386-164-1	01	1	9210-9406						●
62	03.265 HOSE; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3)	8-94386-164-1	01	1	9407-9412					●
62	03.265 HOSE; CONNECTOR	8-94386-164-1	01	1	9407-9412						●
62	03.265 HOSE; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3)	8-97120-726-0	01	1	9501-9508					●
62	03.265 HOSE; CONNECTOR	8-97120-726-0	01	1	9501-9508						●
62	03.265 HOSE; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3)	8-97137-018-0	01	1	9509-					●
62	03.265 HOSE; CONNECTOR	8-97137-018-0	01	1	9509-						●
114	03.265 HOSE; VAC,INT THROTTLE UNITED KINGDOM EQUIPMENT(EK3)	8-97106-438-0	01	1	9407-					●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97045-364-0	02	1	9210-9210						●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 921019-	8-97086-961-0	02	1	9210-9406						●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97086-961-0	02	1	9407-					●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97086-961-0	02	1	9407-						●
185	03.273 RUBBER; MTG,INL MANIF,UPR (A) ID=12 OD=24 T=4.5	8-94403-670-0	02	1	9210-9406						●
185	03.273 RUBBER; MTG,INL MANIF,UPR UNITED KINGDOM EQUIPMENT(EK3) (A) ID=12 OD=24 T=4.5	8-94403-670-0	02	1	9407-					●
185	03.273 RUBBER; MTG,INL MANIF,UPR (A) ID=12 OD=24 T=4.5	8-94403-670-0	02	1	9407-						●
185	03.273 RUBBER; MTG,INL MANIF,UPR (B)	8-94434-927-0	02	1	9210-9406						●
185	03.273 RUBBER; MTG,INL MANIF,UPR UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94434-927-0	02	1	9407-					●
185	03.273 RUBBER; MTG,INL MANIF,UPR (B)	8-94434-927-0	02	1	9407-						●
218	01.150 SWITCH; THERMO,AIR TEMP UNITED KINGDOM EQUIPMENT(EK3)	8-97019-773-0	01	1	9210-9509					●
491	01.152 CLIP; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3) OD=7 H=1.2	8-94364-750-0	01	1	9210-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
