Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#41267) — 240 parça

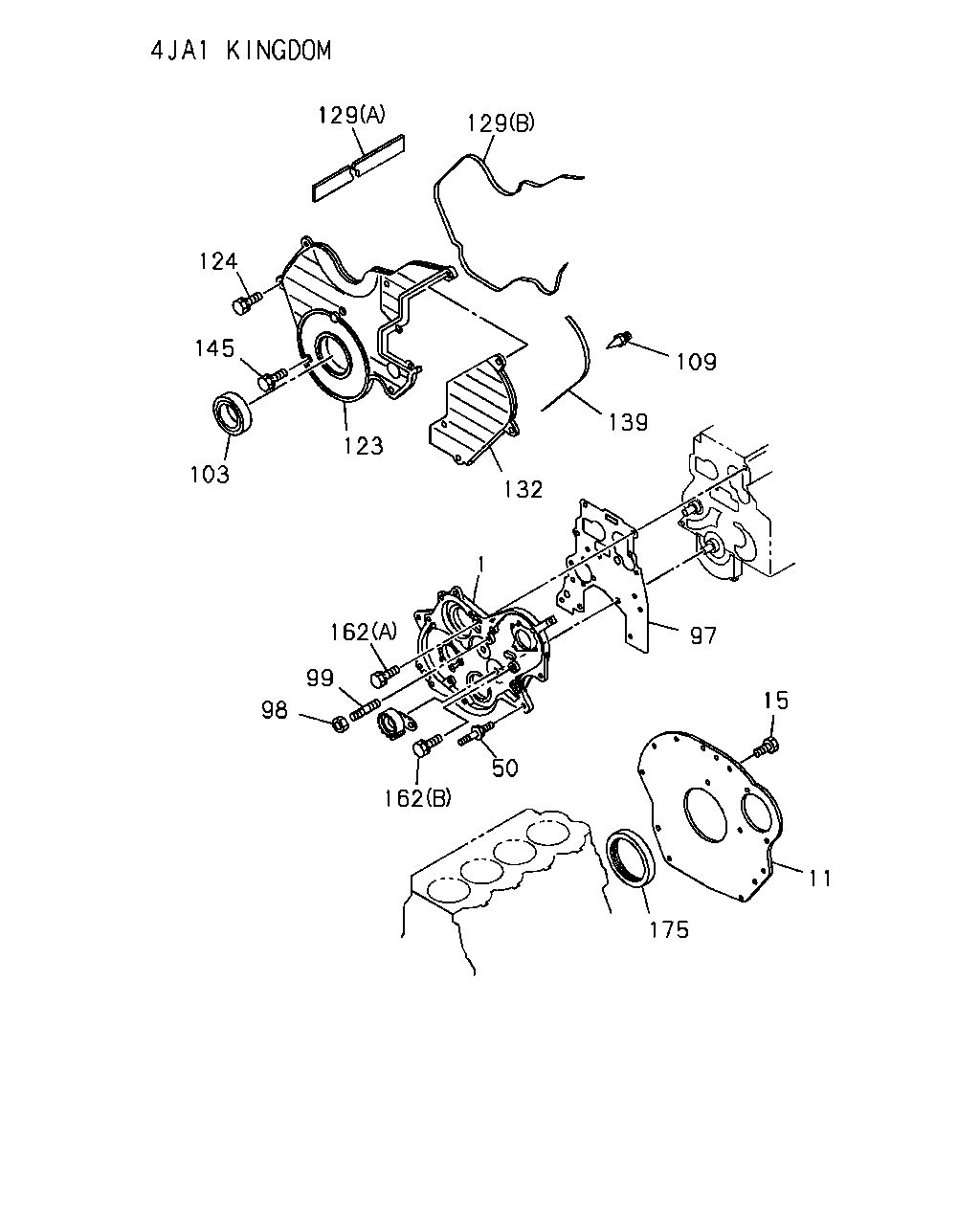

129 129 124 145 109 139 132 123 103 97 1 162 99 98 50 162 15 11 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.206 CASE; TIMING GEAR	8-94220-548-1	01	1	9210-	●	●
1	00.206 CASE; TIMING GEAR	8-94405-608-3	01	1	9210-			●
1	00.206 CASE; TIMING GEAR	5-11311-067-2	01	1	9210-9308				●
1	00.206 CASE; TIMING GEAR THAILAND EQUIPMENT(PM9)	8-94155-361-3	01	1	9508-					●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97083-629-2	01	1	9210-9410					●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97115-133-0	01	1	9411-9606					●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97160-960-0	01	1	9607-					●
1	00.206 CASE; TIMING GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94155-361-3	01	1	9210-9506					●	●
1	00.206 CASE; TIMING GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97129-982-0	01	1	9507-9507					●	●
1	00.206 CASE; TIMING GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-97129-982-1	01	1	9508-					●	●
11	00.683 PLATE; RR,C/BL	8-94218-559-3	01	1	9210-	●	●
11	00.683 PLATE; RR,C/BL	8-94443-574-2	01	1	9210-			●
11	00.683 PLATE; RR,C/BL	8-94329-551-0	01	1	9210-9308				●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9210-					●	●
15	00.683 BOLT; RR PLATE TO C/BL M10X18	8-94214-903-1	02	1	9210-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M10X50 REAMER	8-94215-044-1	01	1	9210-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9210-9308				●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9309-					●	●
50	00.206 STUD UNITED KINGDOM EQUIPMENT(EK3) M8X42.5 L=69	8-97148-539-0	01	1	9606-					●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3)	8-97066-740-1	01	1	9210-9505					●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3)	8-97129-428-0	01	1	9506-					●
98	00.206 NUT; STUD,INJ PUMP UNITED KINGDOM EQUIPMENT(EK3) 03.340 M8	8-94224-829-0	03	1	9210-					●
99	00.206 STUD; INJ PUMP UNITED KINGDOM EQUIPMENT(EK3) M8X25 L=41	9-04020-825-0	03	1	9210-9406					●
99	00.206 STUD; INJ PUMP UNITED KINGDOM EQUIPMENT(EK3) 00.004 M8X28 L=44	9-04020-828-0	03	1	9407-					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9210-9308				●	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9309-9310					●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3)	8-97071-560-1	01	1	9311-9404					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97049-145-0	01	1	9311-9404					●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9405-					●	●
109	00.219 POINTER; TIMING UNITED KINGDOM EQUIPMENT(EK3) M5X7.5	8-94133-500-0	01	1	9210-					●
123	00.206 COVER; TIMING,LWR	8-94452-869-0	01	1	9210-	●
123	00.206 COVER; TIMING,LWR	8-94449-471-4	01	1	9210-		●	●
123	00.206 COVER; TIMING,LWR UNITED KINGDOM EQUIPMENT(EK3)	8-97038-105-1	01	1	9210-					●
124	00.206 BOLT; TIMING COVER 04.686 M6X16 W/LK WASHER	0-50040-616-0	07	1	9210-	●	●
124	00.206 BOLT; TIMING COVER 01.062 M6X45 W/LK WASHER	0-50040-645-0	01	1	9210-	●	●
124	00.206 BOLT; TIMING COVER 01.153 M6X50 FLANGE	0-28080-650-0	01	1	9210-			●
124	00.206 BOLT; TIMING COVER 04.686 M6X16 W/LK WASHER	0-50040-616-0	06	1	9210-			●
124	00.206 BOLT; TIMING COVER 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9210-			●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9210-					●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) M6X50 W/LK WASHER	8-94152-616-1	03	1	9210-					●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (A) L=560	8-94464-695-1	01	1	9210-					●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (B) L=366	8-94464-696-0	01	1	9210-					●
132	00.206 COVER; TIMING,UPR	8-94452-421-1	01	1	9210-	●	●	●
132	00.206 COVER; TIMING,UPR UNITED KINGDOM EQUIPMENT(EK3)	8-97038-103-1	01	1	9210-					●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) L=215	8-94139-961-0	01	1	9210-					●
145	00.206 BOLT; TENSIONER GUIDE UNITED KINGDOM EQUIPMENT(EK3) M8X20	8-94152-617-1	01	1	9210-					●
162	00.206 BOLT; FRT PLATE UNITED KINGDOM EQUIPMENT(EK3) 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	04	1	9210-					●
162	00.206 BOLT; FRT PLATE UNITED KINGDOM EQUIPMENT(EK3) (B) M8X19.5,M8X42.5 L=69	8-94167-314-1	01	1	9210-9605					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9210-	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	5-09625-036-0	01	1	9210-9308				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-146-0	01	1	9210-9308					●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9309-					●	●

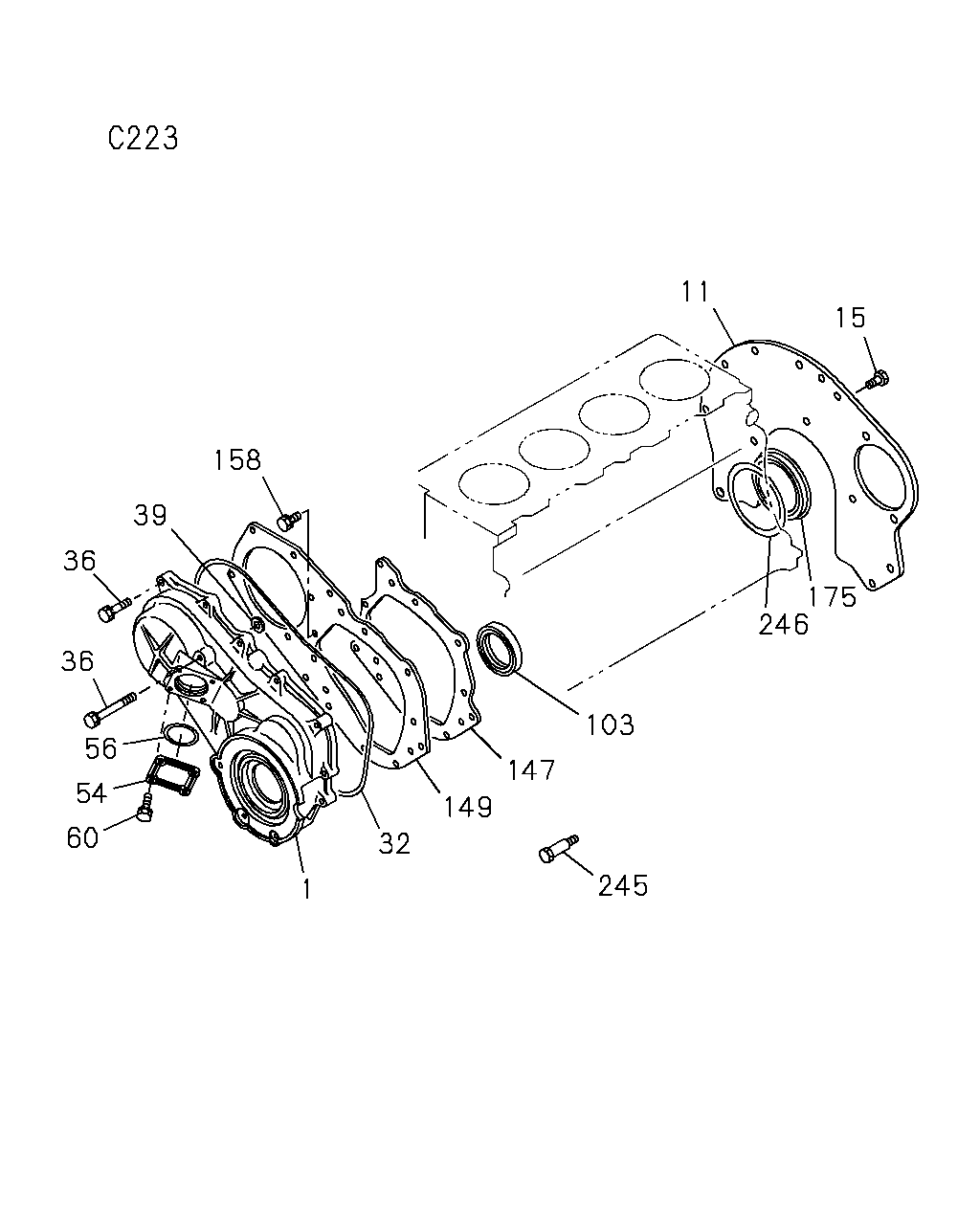

11 15 175 246 158 39 36 36 56 54 60 1 32 149 147 103 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.206 CASE; TIMING GEAR	8-94220-548-1	01	1	9210-	●	●
1	00.206 CASE; TIMING GEAR	8-94405-608-3	01	1	9210-			●
1	00.206 CASE; TIMING GEAR	5-11311-067-2	01	1	9210-9308				●
1	00.206 CASE; TIMING GEAR THAILAND EQUIPMENT(PM9)	8-94155-361-3	01	1	9508-					●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97083-629-2	01	1	9210-9410					●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97115-133-0	01	1	9411-9606					●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97160-960-0	01	1	9607-					●
1	00.206 CASE; TIMING GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94155-361-3	01	1	9210-9506					●	●
1	00.206 CASE; TIMING GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97129-982-0	01	1	9507-9507					●	●
1	00.206 CASE; TIMING GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-97129-982-1	01	1	9508-					●	●
11	00.683 PLATE; RR,C/BL	8-94218-559-3	01	1	9210-	●	●
11	00.683 PLATE; RR,C/BL	8-94443-574-2	01	1	9210-			●
11	00.683 PLATE; RR,C/BL	8-94329-551-0	01	1	9210-9308				●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9210-					●	●
15	00.683 BOLT; RR PLATE TO C/BL M10X18	8-94214-903-1	02	1	9210-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M10X50 REAMER	8-94215-044-1	01	1	9210-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9210-9308				●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9309-					●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	9-11312-034-0	01	1	9210-9308				●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97066-739-1	01	1	9210-9507					●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97129-426-0	01	1	9508-					●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97046-469-1	01	1	9210-9507						●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9508-						●
36	00.206 BOLT; GEAR CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	07	1	9210-9308				●
36	00.206 BOLT; GEAR CASE M8X65 W/LK WASHER	8-94205-986-1	02	1	9210-9308				●
36	00.206 BOLT; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9210-					●	●
36	00.206 BOLT; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9210-					●	●
39	00.207 GASKET; TIMING GEAR CASE	9-11312-046-0	02	1	9210-9308				●
54	00.206 COVER; GEAR CASE	9-11321-148-0	01	1	9210-9308				●
54	00.206 COVER; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94155-360-2	01	1	9210-					●	●
56	00.207 GASKET; GEAR CASE TO COVER	9-09920-601-0	01	1	9210-9308				●
56	00.207 GASKET; GEAR CASE TO COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94140-117-1	01	1	9210-					●	●
60	00.206 BOLT; COVER TO CASE M6X14 W/LK WASHER	0-50040-614-0	04	1	9210-9308				●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9210-					●	●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9210-					●	●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) M8X65 W/LK WASHER	8-94205-986-1	06	1	9210-					●	●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9210-					●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9210-9308				●	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9309-9310					●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3)	8-97071-560-1	01	1	9311-9404					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97049-145-0	01	1	9311-9404					●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9405-					●	●
147	00.207 GASKET; FRT PLATE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	5-11312-011-0	01	1	9210-9308				●
149	00.206 PLATE; FRT,C/BL	8-94416-148-1	01	1	9210-	●
149	00.206 PLATE; FRT,C/BL	8-94146-325-3	01	1	9210-		●
149	00.206 PLATE; FRT,C/BL	8-94405-609-3	01	1	9210-			●
149	00.206 PLATE; FRT,C/BL	9-11311-153-0	01	1	9210-9308				●
158	00.206 BOLT; FRT PLATE 00.669 M6X12	0-20800-612-0	02	1	9210-9410	●	●
158	00.206 BOLT; FRT PLATE 00.669 M6X12	0-20800-612-0	01	1	9411-	●
158	00.206 BOLT; FRT PLATE 04.686 M8X12	0-20800-812-0	01	1	9210-	●	●
158	00.206 BOLT; FRT PLATE 00.669 M6X12	0-20800-612-0	02	1	9411-		●
158	00.206 BOLT; FRT PLATE 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9210-			●
158	00.206 BOLT; FRT PLATE 01.540 M8X18 W/LK&PL WASHER	0-50140-818-0	01	1	9210-			●
158	00.206 BOLT; FRT PLATE 08.900 M8X20 W/LK WASHER	0-50040-820-0	03	1	9210-9308				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9210-	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	5-09625-036-0	01	1	9210-9308				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-146-0	01	1	9210-9308					●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9309-					●	●
245	00.683 BOLT; C/BL TO TRANS CASE M10X52	9-09806-020-0	01	1	9210-9308				●
246	00.137 SPACER; OIL SEAL,CR/SHF	9-12363-112-1	01	1	9210-9308				●

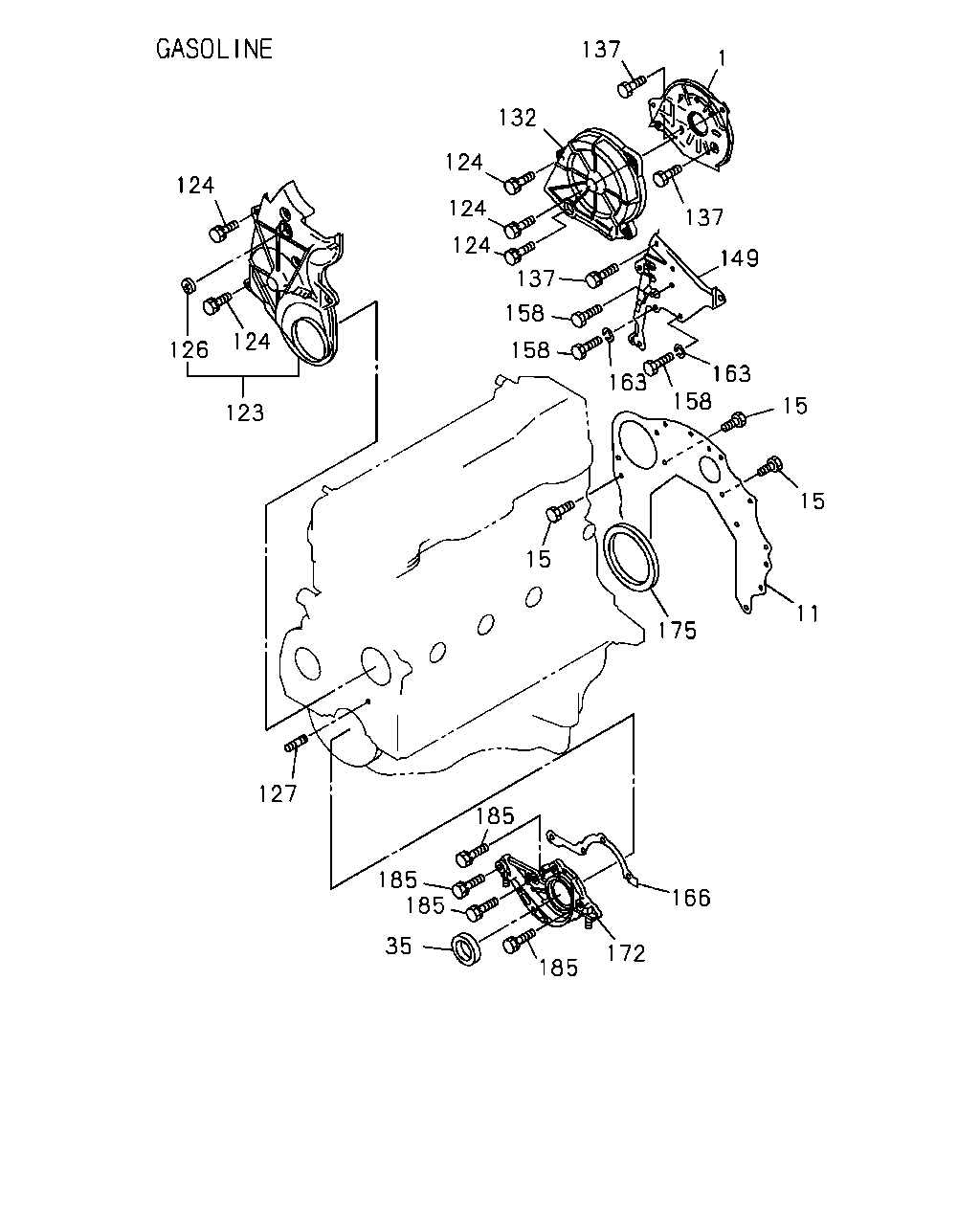

137 1 132 124 124 124 137 149 137 158 158 163 163 158 15 15 11 175 15 124 124 126 123 127 185 185 185 166 172 185 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.206 CASE; TIMING GEAR	8-94220-548-1	01	1	9210-	●	●
1	00.206 CASE; TIMING GEAR	8-94405-608-3	01	1	9210-			●
1	00.206 CASE; TIMING GEAR	5-11311-067-2	01	1	9210-9308				●
1	00.206 CASE; TIMING GEAR THAILAND EQUIPMENT(PM9)	8-94155-361-3	01	1	9508-					●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97083-629-2	01	1	9210-9410					●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97115-133-0	01	1	9411-9606					●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97160-960-0	01	1	9607-					●
1	00.206 CASE; TIMING GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94155-361-3	01	1	9210-9506					●	●
1	00.206 CASE; TIMING GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97129-982-0	01	1	9507-9507					●	●
1	00.206 CASE; TIMING GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-97129-982-1	01	1	9508-					●	●
11	00.683 PLATE; RR,C/BL	8-94218-559-3	01	1	9210-	●	●
11	00.683 PLATE; RR,C/BL	8-94443-574-2	01	1	9210-			●
11	00.683 PLATE; RR,C/BL	8-94329-551-0	01	1	9210-9308				●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9210-					●	●
15	00.683 BOLT; RR PLATE TO C/BL M10X18	8-94214-903-1	02	1	9210-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M10X50 REAMER	8-94215-044-1	01	1	9210-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9210-9308				●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9309-					●	●
35	00.213 SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=56 T=6.5	8-94339-997-0	01	1	9210-	●	●	●
123	00.206 COVER; TIMING,LWR	8-94452-869-0	01	1	9210-	●
123	00.206 COVER; TIMING,LWR	8-94449-471-4	01	1	9210-		●	●
123	00.206 COVER; TIMING,LWR UNITED KINGDOM EQUIPMENT(EK3)	8-97038-105-1	01	1	9210-					●
124	00.206 BOLT; TIMING COVER 04.686 M6X16 W/LK WASHER	0-50040-616-0	07	1	9210-	●	●
124	00.206 BOLT; TIMING COVER 01.062 M6X45 W/LK WASHER	0-50040-645-0	01	1	9210-	●	●
124	00.206 BOLT; TIMING COVER 01.153 M6X50 FLANGE	0-28080-650-0	01	1	9210-			●
124	00.206 BOLT; TIMING COVER 04.686 M6X16 W/LK WASHER	0-50040-616-0	06	1	9210-			●
124	00.206 BOLT; TIMING COVER 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9210-			●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9210-					●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) M6X50 W/LK WASHER	8-94152-616-1	03	1	9210-					●
126	00.206 GROMMET; TIMING COVER,LWR	8-94150-996-0	01	1	9210-	●	●	●
127	00.206 STUD; TENSIONER 03.613 M8X50 L=62	9-04110-850-0	01	1	9210-	●	●	●
132	00.206 COVER; TIMING,UPR	8-94452-421-1	01	1	9210-	●	●	●
132	00.206 COVER; TIMING,UPR UNITED KINGDOM EQUIPMENT(EK3)	8-97038-103-1	01	1	9210-					●
137	00.206 BOLT; FRT PLATE 00.669 M6X12	0-20800-612-0	02	1	9210-	●	●
137	00.206 BOLT; FRT PLATE 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9510-	●	●
137	00.206 BOLT; FRT PLATE 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	02	1	9510-			●
149	00.206 PLATE; FRT,C/BL	8-94416-148-1	01	1	9210-	●
149	00.206 PLATE; FRT,C/BL	8-94146-325-3	01	1	9210-		●
149	00.206 PLATE; FRT,C/BL	8-94405-609-3	01	1	9210-			●
149	00.206 PLATE; FRT,C/BL	9-11311-153-0	01	1	9210-9308				●
158	00.206 BOLT; FRT PLATE 00.669 M6X12	0-20800-612-0	02	1	9210-9410	●	●
158	00.206 BOLT; FRT PLATE 00.669 M6X12	0-20800-612-0	01	1	9411-	●
158	00.206 BOLT; FRT PLATE 04.686 M8X12	0-20800-812-0	01	1	9210-	●	●
158	00.206 BOLT; FRT PLATE 00.669 M6X12	0-20800-612-0	02	1	9411-		●
158	00.206 BOLT; FRT PLATE 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9210-			●
158	00.206 BOLT; FRT PLATE 01.540 M8X18 W/LK&PL WASHER	0-50140-818-0	01	1	9210-			●
158	00.206 BOLT; FRT PLATE 08.900 M8X20 W/LK WASHER	0-50040-820-0	03	1	9210-9308				●
163	00.002 WASHER; LK,PLATE TO CYL HD 00.206 ID=6.1	9-09150-506-0	02	1	9210-9410	●	●
163	00.002 WASHER; LK,PLATE TO CYL HD 00.206 ID=6.1	9-09150-506-0	01	1	9411-	●
163	00.002 WASHER; LK,PLATE TO CYL HD ID=8.2	9-09150-508-0	01	1	9210-	●	●
163	00.002 WASHER; LK,PLATE TO CYL HD 00.206 ID=6.1	9-09150-506-0	02	1	9411-		●
166	00.207 GASKET; RET TO C/BL 01.429	8-94214-914-0	01	1	9210-9602	●	●	●
166	00.207 GASKET; RET TO C/BL	8-97143-478-0	01	1	9603-	●	●	●
172	00.137 RETAINER; CR/SHF 01.430	8-94244-646-2	01	1	9210-9403	●
172	00.137 RETAINER; CR/SHF 4X2(TFB***) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 01.430	8-94244-646-2	01	1	9210-9403		●
172	00.137 RETAINER; CR/SHF 4X2(TFB***) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 01.430	8-94153-864-2	01	1	9210-9403		●
172	00.137 RETAINER; CR/SHF 4X4(TFS***) 01.430	8-94153-864-2	01	1	9210-9403		●
172	00.137 RETAINER; CR/SHF 01.430	8-94153-864-3	01	1	9404-	●	●
172	00.137 RETAINER; CR/SHF	8-94174-212-3	01	1	9210-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9210-	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	5-09625-036-0	01	1	9210-9308				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-146-0	01	1	9210-9308					●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9309-					●	●
185	00.727 BOLT; RET TO C/BL 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9210-	●	●	●
185	00.727 BOLT; RET TO C/BL M8X32 W/LK WASHER	0-50040-832-0	02	1	9210-	●	●	●

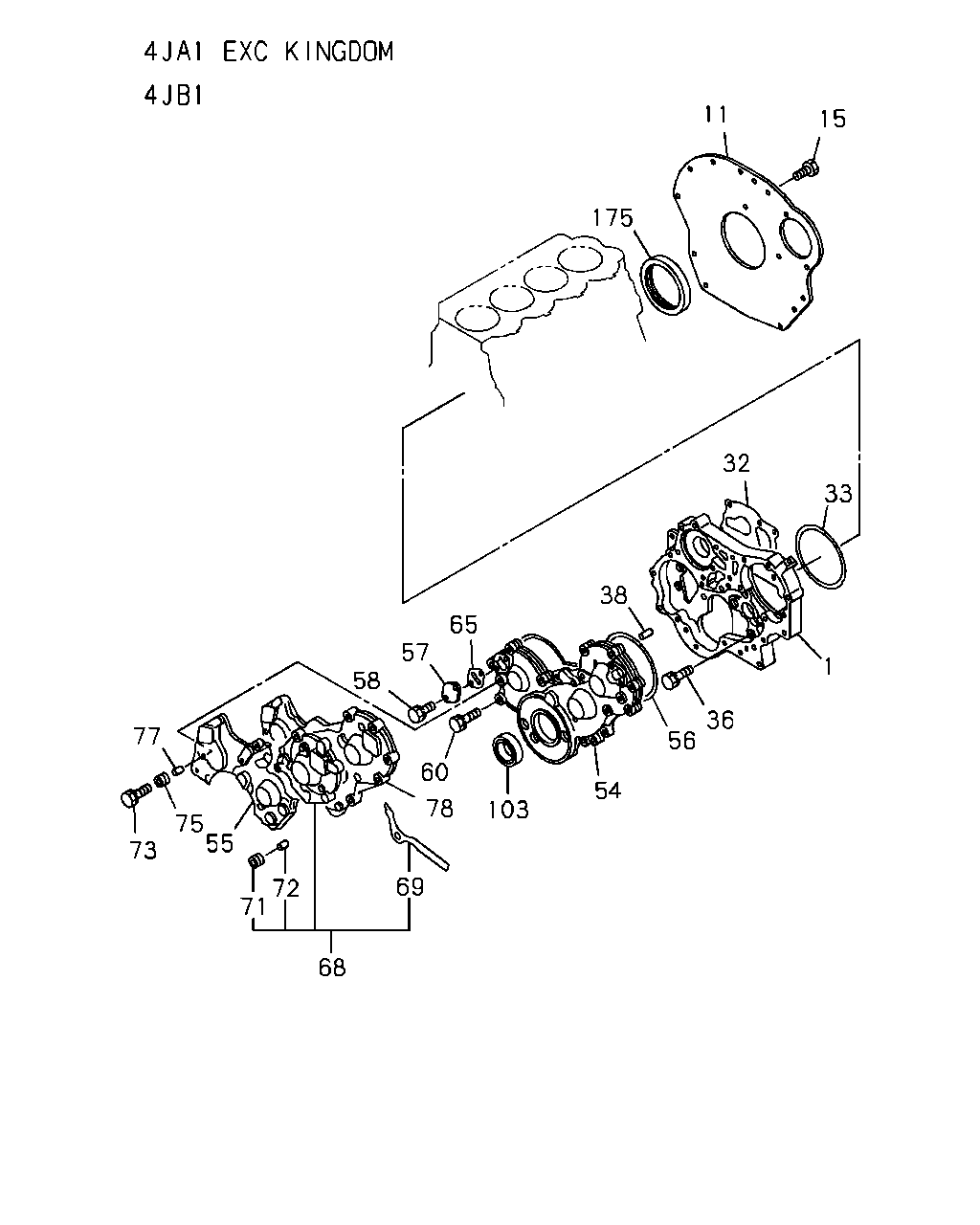

15 11 175 33 32 38 1 36 56 54 65 57 58 60 103 78 77 73 75 55 71 72 68 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.206 CASE; TIMING GEAR	8-94220-548-1	01	1	9210-	●	●
1	00.206 CASE; TIMING GEAR	8-94405-608-3	01	1	9210-			●
1	00.206 CASE; TIMING GEAR	5-11311-067-2	01	1	9210-9308				●
1	00.206 CASE; TIMING GEAR THAILAND EQUIPMENT(PM9)	8-94155-361-3	01	1	9508-					●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97083-629-2	01	1	9210-9410					●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97115-133-0	01	1	9411-9606					●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97160-960-0	01	1	9607-					●
1	00.206 CASE; TIMING GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94155-361-3	01	1	9210-9506					●	●
1	00.206 CASE; TIMING GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97129-982-0	01	1	9507-9507					●	●
1	00.206 CASE; TIMING GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-97129-982-1	01	1	9508-					●	●
11	00.683 PLATE; RR,C/BL	8-94218-559-3	01	1	9210-	●	●
11	00.683 PLATE; RR,C/BL	8-94443-574-2	01	1	9210-			●
11	00.683 PLATE; RR,C/BL	8-94329-551-0	01	1	9210-9308				●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9210-					●	●
15	00.683 BOLT; RR PLATE TO C/BL M10X18	8-94214-903-1	02	1	9210-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M10X50 REAMER	8-94215-044-1	01	1	9210-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9210-9308				●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9309-					●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	9-11312-034-0	01	1	9210-9308				●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97066-739-1	01	1	9210-9507					●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97129-426-0	01	1	9508-					●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97046-469-1	01	1	9210-9507						●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9508-						●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94109-707-0	01	1	9210-					●	●
36	00.206 BOLT; GEAR CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	07	1	9210-9308				●
36	00.206 BOLT; GEAR CASE M8X65 W/LK WASHER	8-94205-986-1	02	1	9210-9308				●
36	00.206 BOLT; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9210-					●	●
36	00.206 BOLT; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9210-					●	●
38	00.685 PIN; GEAR CASE COVER EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.669 OD=10 L=20	9-08151-020-0	02	1	9210-					●	●
54	00.206 COVER; GEAR CASE	9-11321-148-0	01	1	9210-9308				●
54	00.206 COVER; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94155-360-2	01	1	9210-					●	●
55	00.206 COVER; NOISE SHIELD EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94420-293-3	01	1	9210-9407					●	●
55	00.206 COVER; NOISE SHIELD EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94155-721-1	01	1	9408-9604					●	●
56	00.207 GASKET; GEAR CASE TO COVER	9-09920-601-0	01	1	9210-9308				●
56	00.207 GASKET; GEAR CASE TO COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94140-117-1	01	1	9210-					●	●
57	00.206 COVER; TIMING CHECK HOLE EXC. UNITED KINGDOM EQUIPMENT(EK3)	5-11321-009-0	02	1	9210-					●	●
58	00.206 BOLT; CHECK HOLE COVER EXC. UNITED KINGDOM EQUIPMENT(EK3) M6X14 W/LK WASHER	0-50040-614-0	04	1	9210-					●	●
60	00.206 BOLT; COVER TO CASE M6X14 W/LK WASHER	0-50040-614-0	04	1	9210-9308				●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9210-					●	●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9210-					●	●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) M8X65 W/LK WASHER	8-94205-986-1	06	1	9210-					●	●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9210-					●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97045-362-1	02	1	9210-9412					●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97118-698-0	02	1	9501-					●	●
68	00.206 COVER ASM; GEAR CASE COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94423-518-3	01	1	9210-9407					●	●
68	00.206 COVER ASM; GEAR CASE COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94155-721-1	01	1	9605-					●	●
69	00.206 SEAL; RUBBER,COVER TO COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94423-517-2	01	1	9210-9407					●	●
71	00.206 RUBBER; MTG,COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	5-19389-002-0	04	1	9210-					●	●
72	00.206 BUSHING; SPACER,COVER TO COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	5-19389-009-0	04	1	9210-					●	●
73	00.206 BOLT; COVER FIX EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9210-					●	●
75	00.206 RUBBER; NOISE COVER MTG,TIMING G EXC. UNITED KINGDOM EQUIPMENT(EK3)	5-19389-002-0	02	1	9210-9407					●	●
77	00.206 BUSHING; MTG RUBBER,NOISE COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	5-19389-009-0	02	1	9210-9407					●	●
78	00.206 SPACER; MTG RUBBER,NOISE COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94420-559-6	01	1	9210-9407					●	●
78	00.206 SPACER; MTG RUBBER,NOISE COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94155-722-3	01	1	9408-					●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9210-9308				●	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9309-9310					●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3)	8-97071-560-1	01	1	9311-9404					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97049-145-0	01	1	9311-9404					●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9405-					●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9210-	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	5-09625-036-0	01	1	9210-9308				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-146-0	01	1	9210-9308					●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9309-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
