Sayfa 0-15 - Isuzu EPC

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#41266) — 309 parça

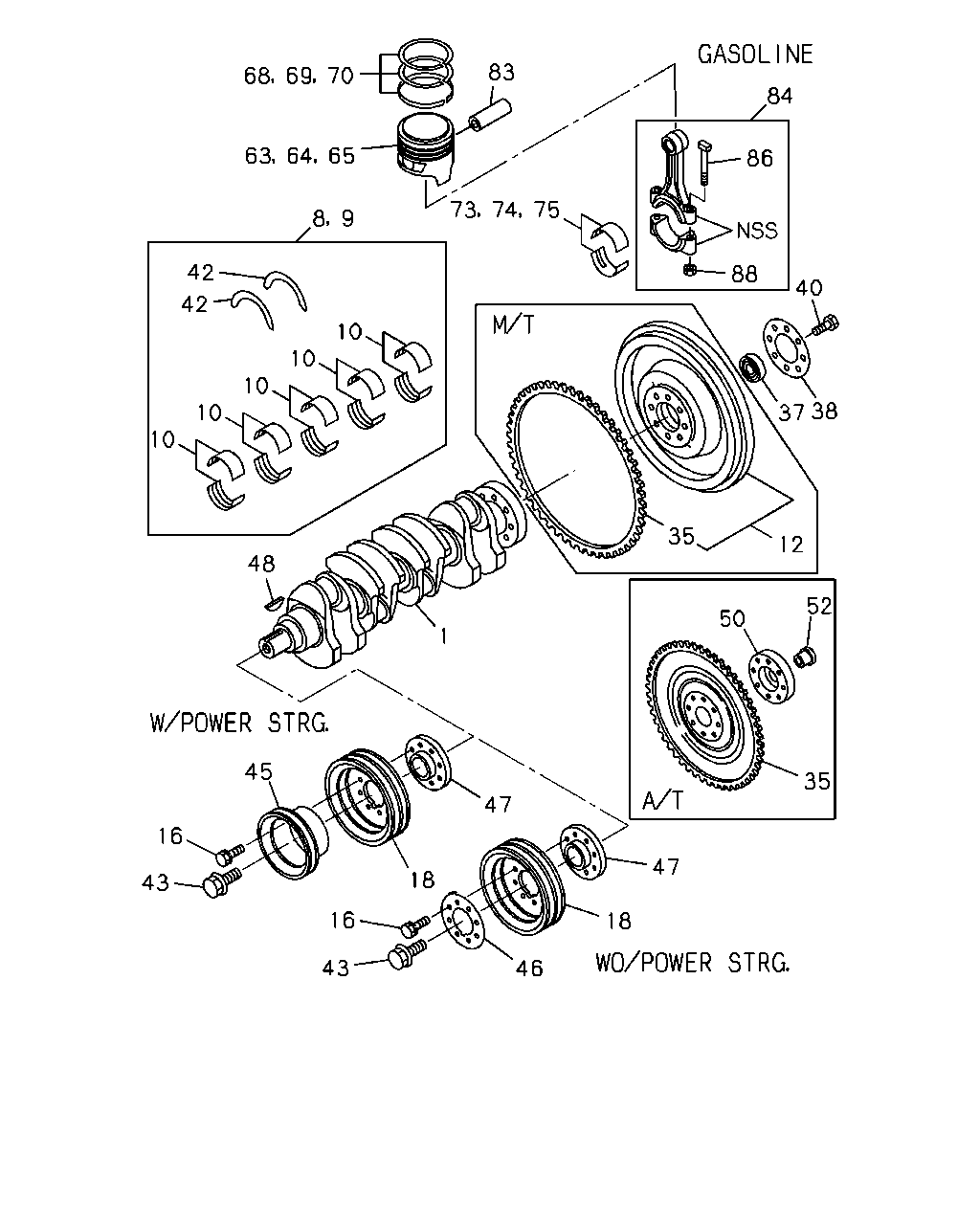

83 68 69 70 63 64 65 84 86 88 40 38 37 75 74 73 9 8 42 42 10 10 10 10 10 12 35 48 1 52 50 35 47 18 46 47 18 16 43 45 16 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.646 CRANKSHAFT	8-94101-030-1	01	1	9210-	●
1	00.646 CRANKSHAFT	8-94136-164-1	01	1	9210-		●
1	00.646 CRANKSHAFT	8-94163-188-1	01	1	9210-9510			●
1	00.646 CRANKSHAFT	8-97107-920-1	01	1	9511-			●
1	00.646 CRANKSHAFT	8-94118-828-0	01	1	9210-9308				●
1	00.646 CRANKSHAFT	8-94455-240-1	01	1	9210-					●
1	00.646 CRANKSHAFT	8-94453-525-2	01	1	9210-						●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-94133-028-1	01	1	9210-	●	●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-94320-176-0	01	1	9210-			●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-94133-029-1	01	1	9210-	●	●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-94320-177-0	01	1	9210-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-243-0	05	1	9210-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-244-0	05	1	9210-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-245-0	05	1	9210-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-255-0	05	1	9210-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-256-0	05	1	9210-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-257-0	05	1	9210-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EXC. THAILAND EQUIPMENT(PM9) BLUE	8-97063-261-0	05	1	9210-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EXC. THAILAND EQUIPMENT(PM9) BLACK	8-97063-262-0	05	1	9210-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EXC. THAILAND EQUIPMENT(PM9) GREEN	8-97063-263-0	05	1	9210-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9210-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9210-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9210-						●
12	00.666 FLYWHEEL	8-94101-031-3	01	1	9210-	●
12	00.666 FLYWHEEL	8-94425-192-0	01	1	9210-		●
12	00.666 FLYWHEEL M/T MUA 5 SPEED(RMN)	8-94462-101-2	01	1	9210-			●
12	00.666 FLYWHEEL	8-94454-842-0	01	1	9210-9308				●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	9210-9408					●
12	00.666 FLYWHEEL M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-94172-529-1	01	1	9409-					●
12	00.666 FLYWHEEL A/T AISIN(RMD)	8-97110-515-0	01	1	9409-					●
12	00.666 FLYWHEEL	8-94172-531-1	01	1	9210-						●
16	00.662 BOLT; PULLEY TO CENTER 04.686 M6X16 W/LK WASHER	0-50040-616-0	08	1	9210-	●	●
16	00.662 BOLT; PULLEY TO CENTER POWER STEERING<N40> 04.686 M6X16 W/LK WASHER	0-50040-616-0	04	1	9210-			●
18	00.659 PULLEY; CR/SHF 2-GROOVE	8-94483-683-1	01	1	9210-	●	●
18	00.659 PULLEY; CR/SHF 2-GROOVE	8-97073-157-0	01	1	9210-			●
35	00.673 GEAR; RING	9-12333-032-1	01	1	9210-	●	●
35	00.673 GEAR; RING M/T MUA 5 SPEED(RMN)	9-12333-032-1	01	1	9210-			●
35	00.673 GEAR; RING A/T AISIN(RMD)	8-94441-553-1	01	1	9210-			●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9210-9308				●	●	●
35	00.673 GEAR; RING	8-94419-602-0	01	1	9309-					●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.649 NSK	9-00090-679-0	01	1	9210-	●	●	●		●	●
38	00.862 WASHER; FLYWHEEL 00.669 T=1.2	8-94250-274-1	01	1	9210-	●	●	●
38	00.862 WASHER; FLYWHEEL 00.669	5-12336-010-1	01	1	9210-9308				●
38	00.862 WASHER; FLYWHEEL A/T AISIN(RMD)	8-97038-939-0	01	1	9409-					●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9210-9408					●	●
38	00.862 WASHER; FLYWHEEL M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.669	8-94133-970-0	01	1	9409-					●	●
40	00.669 BOLT; FLYWHEEL M10X36	8-94479-034-0	08	1	9210-	●	●	●
40	00.669 BOLT; FLYWHEEL M13X36.5	8-94433-991-0	06	1	9210-9308				●
40	00.669 BOLT; FLYWHEEL A/T AISIN(RMD) M13X78	8-97080-561-1	08	1	9409-					●
40	00.669 BOLT; FLYWHEEL M13X36.5	8-94433-991-0	08	1	9210-9312					●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9401-9408					●	●
40	00.669 BOLT; FLYWHEEL M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) M13X36	8-97065-984-1	08	1	9409-					●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9407-	●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9210-9406	●	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9407-9509	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9510-	●		●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9407-		●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9407-			●
42	00.095 WASHER; THRUST,CR/SHF AUSTRALIA EQUIPMENT(RR3)	8-94481-907-0	02	1	9407-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	9210-9308				●
42	00.095 WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	9210-					●
42	00.095 WASHER; THRUST,CR/SHF UNITED KINGDOM EQUIPMENT(EK3)	8-94454-605-0	08	1	9510-					●
42	00.095 WASHER; THRUST,CR/SHF EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-94454-605-0	06	1	9510-					●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9210-9509						●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	04	1	9510-						●
43	00.662 BOLT; CR/SHF PULLEY M16X30	8-94108-479-0	01	1	9210-	●	●	●
43	00.662 BOLT; CR/SHF PULLEY	8-94340-597-0	01	1	9210-9308				●
43	00.662 BOLT; CR/SHF PULLEY M16X29 FLANGE	8-94433-406-0	01	1	9210-9312					●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9401-					●	●
45	00.659 PULLEY ASM; CR/SHF,P/S & A/C POWER STEERING<N40>	8-94438-534-0	01	1	9210-		●
45	00.659 PULLEY ASM; CR/SHF,P/S & A/C POWER STEERING<N40>	8-94136-782-2	01	1	9210-			●
46	00.662 PLATE; PULLEY,CR/SHF	8-94159-197-1	01	1	9210-	●
46	00.662 PLATE; PULLEY,CR/SHF EXC. POWER STEERING<N40>	8-94159-197-1	01	1	9210-		●
47	00.662 BOSS; CR/SHF PULLEY	8-97073-079-0	01	1	9210-	●	●
48	00.662 KEY; WOODRUFF,CR/SHF	5-09737-003-0	01	1	9210-	●	●	●
50	00.669 SPACER; FLYWHEEL A/T AISIN(RMD) T=20.45	8-94134-770-1	01	1	9210-			●
52	00.669 SLEEVE; CONV PILOT A/T AISIN(RMD) 00.649	8-94221-949-0	01	1	9210-			●
52	00.669 SLEEVE; CONV PILOT 00.649	8-94218-039-0	01	1	9210-9308				●
63	00.629 PISTON	8-94452-742-1	04	1	9210-9509	●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-792-0	04	1	9510-	●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-793-0	04	1	9510-	●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-743-0	04	1	9510-		●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-744-0	04	1	9510-		●
63	00.629 PISTON UNITED KINGDOM EQUIPMENT(EK3)	8-94438-625-2	04	1	9210-9406		●
63	00.629 PISTON EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94156-657-3	04	1	9210-9406		●
63	00.629 PISTON	8-94156-657-3	04	1	9407-9509		●
63	00.629 PISTON	8-97037-801-1	04	1	9210-9509			●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-798-0	04	1	9510-			●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-799-0	04	1	9510-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET.	8-94250-729-0	04	1	9210-9308				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET.	8-94369-281-0	04	1	9210-9303					●
63	00.629 PISTON EXC. THAILAND EQUIPMENT(PM9) ALSO INCLUDED IN LINER SET.	8-94369-281-0	04	1	9304-9308					●
63	00.629 PISTON EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) ALSO INCLUDED IN LINER SET.	8-94369-281-0	04	1	9309-9509					●
63	00.629 PISTON THAILAND EQUIPMENT(PM9) ALSO INCLUDED IN LINER SET.	8-97089-892-0	04	1	9304-					●
63	00.629 PISTON UNITED KINGDOM EQUIPMENT(EK3) ALSO INCLUDED IN LINER SET.	8-97109-181-0	04	1	9407-9509					●
63	00.629 PISTON UNITED KINGDOM EQUIPMENT(EK3) GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-600-0	04	1	9510-					●
63	00.629 PISTON UNITED KINGDOM EQUIPMENT(EK3) GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-601-0	04	1	9510-					●
63	00.629 PISTON EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-598-0	04	1	9510-					●
63	00.629 PISTON EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-599-0	04	1	9510-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET.	8-94340-620-2	04	1	9210-9509						●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-602-0	04	1	9510-						●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-603-0	04	1	9510-						●
64	00.629 PISTON; O/S=0.50	8-94313-634-1	04	1	9210-	●
64	00.629 PISTON; O/S=0.50 UNITED KINGDOM EQUIPMENT(EK3)	8-94440-257-2	04	1	9210-9406		●
64	00.629 PISTON; O/S=0.50 EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94413-459-2	04	1	9210-9406		●
64	00.629 PISTON; O/S=0.50	8-94413-459-2	04	1	9407-		●
64	00.629 PISTON; O/S=0.50	8-97069-548-1	04	1	9210-			●
65	00.629 PISTON; O/S=1.00	8-94313-635-1	04	1	9210-	●
65	00.629 PISTON; O/S=1.00 UNITED KINGDOM EQUIPMENT(EK3)	8-94440-379-2	04	1	9210-9406		●
65	00.629 PISTON; O/S=1.00 EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94413-460-2	04	1	9210-9406		●
65	00.629 PISTON; O/S=1.00	8-94413-460-2	04	1	9407-		●
68	00.643 RING SET; PISTON,STANDARD	8-94452-743-1	04	1	9210-	●
68	00.643 RING SET; PISTON,STANDARD	8-94153-966-2	04	1	9210-		●
68	00.643 RING SET; PISTON,STANDARD	8-94405-614-2	04	1	9210-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94253-736-0	04	1	9210-9308				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9210-					●	●
69	00.643 RING SET; PISTON,O/S=0.50	8-94313-198-0	04	1	9210-	●
69	00.643 RING SET; PISTON,O/S=0.50	8-94416-220-0	04	1	9210-9404		●
69	00.643 RING SET; PISTON,O/S=0.50	8-94337-245-1	04	1	9405-		●
69	00.643 RING SET; PISTON,O/S=0.50	8-94337-249-0	04	1	9210-			●
70	00.643 RING SET; PISTON,O/S=1.00	8-94313-199-0	04	1	9210-	●
70	00.643 RING SET; PISTON,O/S=1.00	8-94416-221-0	04	1	9210-9404		●
70	00.643 RING SET; PISTON,O/S=1.00	8-94337-246-1	04	1	9405-		●
70	00.643 RING SET; PISTON,O/S=1.00	8-94337-250-0	04	1	9210-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94251-266-1	04	1	9210-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94414-305-0	04	1	9210-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94414-306-0	04	1	9210-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94440-093-2	04	1	9210-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94440-094-2	04	1	9210-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94440-095-2	04	1	9210-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94462-943-0	04	1	9210-9308				●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9210-					●	●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-94133-026-0	04	1	9210-	●	●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-94320-178-0	04	1	9210-			●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-94133-027-0	04	1	9210-	●	●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-94320-179-0	04	1	9210-			●
83	00.636 PIN; PISTON	9-12211-034-1	04	1	9210-9310	●
83	00.636 PIN; PISTON	5-12211-011-0	04	1	9311-	●
83	00.636 PIN; PISTON	8-94220-367-0	04	1	9210-		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-017-0	04	1	9210-9308				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9210-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-0	04	1	9210-						●
84	00.603 ROD ASM; CONN	8-94101-035-1	04	1	9210-	●
84	00.603 ROD ASM; CONN	8-94220-365-2	04	1	9210-		●	●
84	00.603 ROD ASM; CONN	8-94454-844-2	04	1	9210-9308				●
84	00.603 ROD ASM; CONN	8-94333-119-0	04	1	9210-					●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9210-						●
86	00.623 BOLT; CONNROD M9X64	9-12235-064-2	08	1	9210-	●
86	00.623 BOLT; CONNROD M10X60	9-12235-068-2	08	1	9210-		●	●
86	00.623 BOLT; CONNROD M11X59	8-94419-729-1	08	1	9210-9308				●	●
86	00.623 BOLT; CONNROD M11X59	8-94419-729-1	08	1	9309-9404					●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9405-					●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9210-						●
88	00.623 NUT; CONNROD 00.626	9-09840-217-0	08	1	9210-	●
88	00.623 NUT; CONNROD 00.626	9-09840-238-0	08	1	9210-		●	●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	9210-9308				●	●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	9309-					●

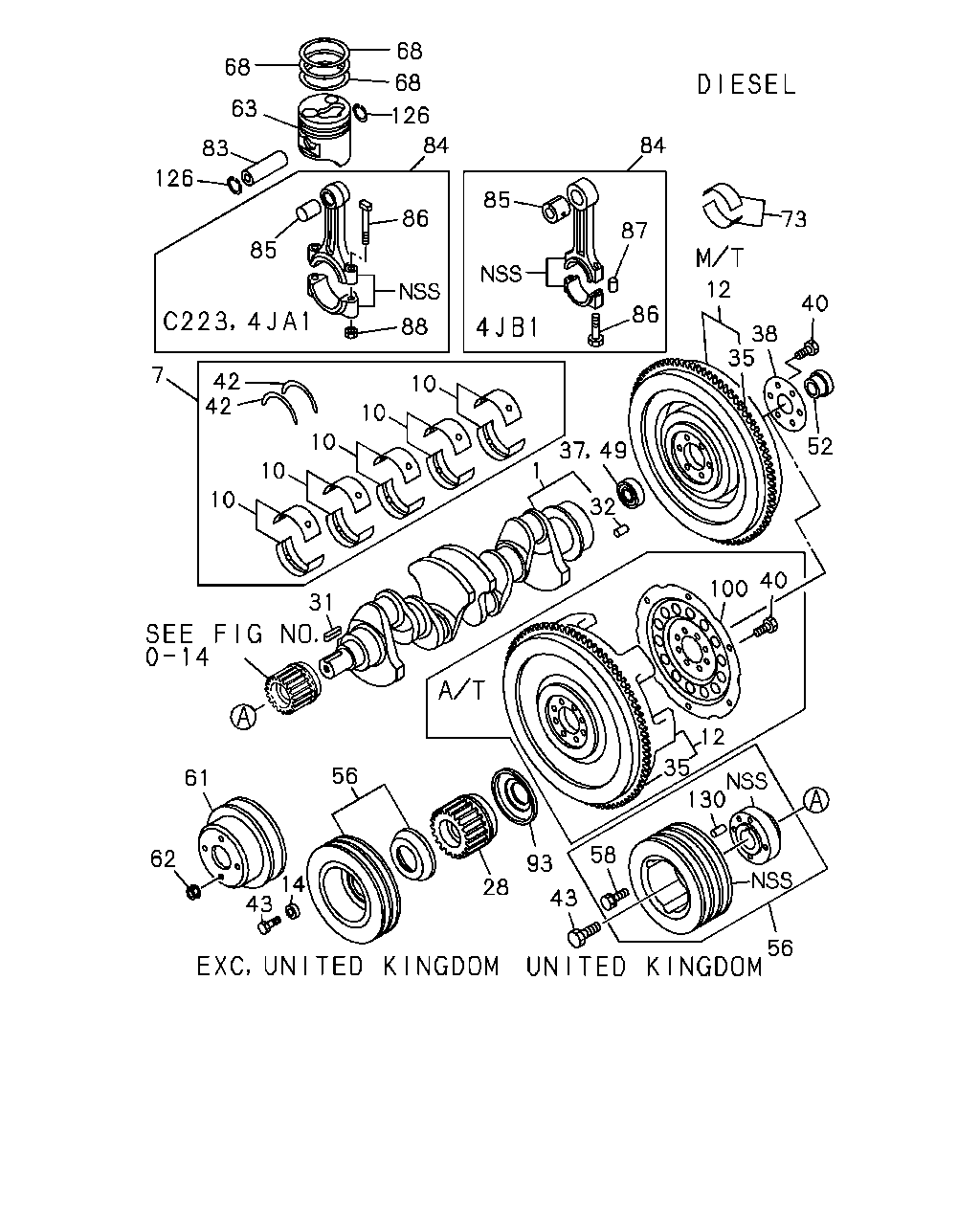

68 68 68 63 126 84 83 126 84 73 12 40 38 35 52 87 85 86 86 85 88 10 10 42 7 42 10 10 10 49 37 1 32 31 40 100 12 35 56 61 62 43 14 28 93 58 43 56 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.646 CRANKSHAFT	8-94101-030-1	01	1	9210-	●
1	00.646 CRANKSHAFT	8-94136-164-1	01	1	9210-		●
1	00.646 CRANKSHAFT	8-94163-188-1	01	1	9210-9510			●
1	00.646 CRANKSHAFT	8-97107-920-1	01	1	9511-			●
1	00.646 CRANKSHAFT	8-94118-828-0	01	1	9210-9308				●
1	00.646 CRANKSHAFT	8-94455-240-1	01	1	9210-					●
1	00.646 CRANKSHAFT	8-94453-525-2	01	1	9210-						●
7	00.094 METAL KIT; CRANKSHAFT,STANDARD	8-94118-830-0	01	1	9210-9308				●
7	00.094 METAL KIT; CRANKSHAFT,STANDARD THAILAND EQUIPMENT(PM9)	8-94338-581-0	01	1	9210-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-243-0	05	1	9210-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-244-0	05	1	9210-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-245-0	05	1	9210-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-255-0	05	1	9210-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-256-0	05	1	9210-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-257-0	05	1	9210-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EXC. THAILAND EQUIPMENT(PM9) BLUE	8-97063-261-0	05	1	9210-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EXC. THAILAND EQUIPMENT(PM9) BLACK	8-97063-262-0	05	1	9210-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EXC. THAILAND EQUIPMENT(PM9) GREEN	8-97063-263-0	05	1	9210-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9210-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9210-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9210-						●
12	00.666 FLYWHEEL	8-94101-031-3	01	1	9210-	●
12	00.666 FLYWHEEL	8-94425-192-0	01	1	9210-		●
12	00.666 FLYWHEEL M/T MUA 5 SPEED(RMN)	8-94462-101-2	01	1	9210-			●
12	00.666 FLYWHEEL	8-94454-842-0	01	1	9210-9308				●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	9210-9408					●
12	00.666 FLYWHEEL M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-94172-529-1	01	1	9409-					●
12	00.666 FLYWHEEL A/T AISIN(RMD)	8-97110-515-0	01	1	9409-					●
12	00.666 FLYWHEEL	8-94172-531-1	01	1	9210-						●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9407-					●	●
28	00.728 GEAR; CR/SHF Z=21	9-12521-042-0	01	1	9210-9308				●
28	00.728 GEAR; CR/SHF EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=21	8-94139-754-0	01	1	9210-					●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9210-9308				●	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9309-					●	●
32	00.669 PIN; FLYWHEEL 08.939 OD=12 L=20	9-08161-220-0	01	1	9210-9308				●
35	00.673 GEAR; RING	9-12333-032-1	01	1	9210-	●	●
35	00.673 GEAR; RING M/T MUA 5 SPEED(RMN)	9-12333-032-1	01	1	9210-			●
35	00.673 GEAR; RING A/T AISIN(RMD)	8-94441-553-1	01	1	9210-			●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9210-9308				●	●	●
35	00.673 GEAR; RING	8-94419-602-0	01	1	9309-					●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.649 NSK	9-00090-679-0	01	1	9210-	●	●	●		●	●
38	00.862 WASHER; FLYWHEEL 00.669 T=1.2	8-94250-274-1	01	1	9210-	●	●	●
38	00.862 WASHER; FLYWHEEL 00.669	5-12336-010-1	01	1	9210-9308				●
38	00.862 WASHER; FLYWHEEL A/T AISIN(RMD)	8-97038-939-0	01	1	9409-					●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9210-9408					●	●
38	00.862 WASHER; FLYWHEEL M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.669	8-94133-970-0	01	1	9409-					●	●
40	00.669 BOLT; FLYWHEEL M10X36	8-94479-034-0	08	1	9210-	●	●	●
40	00.669 BOLT; FLYWHEEL M13X36.5	8-94433-991-0	06	1	9210-9308				●
40	00.669 BOLT; FLYWHEEL A/T AISIN(RMD) M13X78	8-97080-561-1	08	1	9409-					●
40	00.669 BOLT; FLYWHEEL M13X36.5	8-94433-991-0	08	1	9210-9312					●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9401-9408					●	●
40	00.669 BOLT; FLYWHEEL M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) M13X36	8-97065-984-1	08	1	9409-					●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9407-	●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9210-9406	●	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9407-9509	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9510-	●		●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9407-		●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9407-			●
42	00.095 WASHER; THRUST,CR/SHF AUSTRALIA EQUIPMENT(RR3)	8-94481-907-0	02	1	9407-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	9210-9308				●
42	00.095 WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	9210-					●
42	00.095 WASHER; THRUST,CR/SHF UNITED KINGDOM EQUIPMENT(EK3)	8-94454-605-0	08	1	9510-					●
42	00.095 WASHER; THRUST,CR/SHF EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-94454-605-0	06	1	9510-					●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9210-9509						●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	04	1	9510-						●
43	00.662 BOLT; CR/SHF PULLEY M16X30	8-94108-479-0	01	1	9210-	●	●	●
43	00.662 BOLT; CR/SHF PULLEY	8-94340-597-0	01	1	9210-9308				●
43	00.662 BOLT; CR/SHF PULLEY M16X29 FLANGE	8-94433-406-0	01	1	9210-9312					●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9401-					●	●
49	00.669 BEARING; PILOT 00.649 NSK	9-00090-679-0	01	1	9210-9308				●
52	00.669 SLEEVE; CONV PILOT A/T AISIN(RMD) 00.649	8-94221-949-0	01	1	9210-			●
52	00.669 SLEEVE; CONV PILOT 00.649	8-94218-039-0	01	1	9210-9308				●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE	8-94454-868-1	01	1	9210-9308				●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE	8-94475-181-1	01	1	9210-9308				●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(EK3) 3-GROOVE FUKOKU	8-94442-166-3	01	1	9210-					●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE FUKOKU	8-94442-166-3	01	1	9210-						●
56	00.659 PULLEY; CR/SHF DAMPER UNITED KINGDOM EQUIPMENT(EK3) 3-GROOVE	8-94387-685-0	01	1	9210-					●
56	00.659 PULLEY; CR/SHF DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), POWER STEERING<N40> 2-GROOVE	8-94453-552-2	01	1	9210-					●
56	00.659 PULLEY; CR/SHF DAMPER OR 8-94442-166-1 3-GROOVE YAMATO PRESS	8-94419-457-2	01	1	9210-						●
58	00.659 BOLT; CR/SHF PULLEY UNITED KINGDOM EQUIPMENT(EK3) 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9210-					●
61	00.659 PULLEY; FAN DRIVE 01.062 1-GROOVE	8-94111-751-0	01	1	9210-9308				●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-1	01	1	9210-					●	●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	9210-					●	●
63	00.629 PISTON	8-94452-742-1	04	1	9210-9509	●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-792-0	04	1	9510-	●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-793-0	04	1	9510-	●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-743-0	04	1	9510-		●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-744-0	04	1	9510-		●
63	00.629 PISTON UNITED KINGDOM EQUIPMENT(EK3)	8-94438-625-2	04	1	9210-9406		●
63	00.629 PISTON EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94156-657-3	04	1	9210-9406		●
63	00.629 PISTON	8-94156-657-3	04	1	9407-9509		●
63	00.629 PISTON	8-97037-801-1	04	1	9210-9509			●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-798-0	04	1	9510-			●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-799-0	04	1	9510-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET.	8-94250-729-0	04	1	9210-9308				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET.	8-94369-281-0	04	1	9210-9303					●
63	00.629 PISTON EXC. THAILAND EQUIPMENT(PM9) ALSO INCLUDED IN LINER SET.	8-94369-281-0	04	1	9304-9308					●
63	00.629 PISTON EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) ALSO INCLUDED IN LINER SET.	8-94369-281-0	04	1	9309-9509					●
63	00.629 PISTON THAILAND EQUIPMENT(PM9) ALSO INCLUDED IN LINER SET.	8-97089-892-0	04	1	9304-					●
63	00.629 PISTON UNITED KINGDOM EQUIPMENT(EK3) ALSO INCLUDED IN LINER SET.	8-97109-181-0	04	1	9407-9509					●
63	00.629 PISTON UNITED KINGDOM EQUIPMENT(EK3) GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-600-0	04	1	9510-					●
63	00.629 PISTON UNITED KINGDOM EQUIPMENT(EK3) GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-601-0	04	1	9510-					●
63	00.629 PISTON EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-598-0	04	1	9510-					●
63	00.629 PISTON EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-599-0	04	1	9510-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET.	8-94340-620-2	04	1	9210-9509						●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-602-0	04	1	9510-						●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-603-0	04	1	9510-						●
68	00.643 RING SET; PISTON,STANDARD	8-94452-743-1	04	1	9210-	●
68	00.643 RING SET; PISTON,STANDARD	8-94153-966-2	04	1	9210-		●
68	00.643 RING SET; PISTON,STANDARD	8-94405-614-2	04	1	9210-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94253-736-0	04	1	9210-9308				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9210-					●	●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94251-266-1	04	1	9210-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94414-305-0	04	1	9210-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94414-306-0	04	1	9210-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94440-093-2	04	1	9210-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94440-094-2	04	1	9210-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94440-095-2	04	1	9210-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94462-943-0	04	1	9210-9308				●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9210-					●	●
83	00.636 PIN; PISTON	9-12211-034-1	04	1	9210-9310	●
83	00.636 PIN; PISTON	5-12211-011-0	04	1	9311-	●
83	00.636 PIN; PISTON	8-94220-367-0	04	1	9210-		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-017-0	04	1	9210-9308				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9210-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-0	04	1	9210-						●
84	00.603 ROD ASM; CONN	8-94101-035-1	04	1	9210-	●
84	00.603 ROD ASM; CONN	8-94220-365-2	04	1	9210-		●	●
84	00.603 ROD ASM; CONN	8-94454-844-2	04	1	9210-9308				●
84	00.603 ROD ASM; CONN	8-94333-119-0	04	1	9210-					●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9210-						●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	5-12251-005-0	04	1	9210-9308				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9210-					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9210-						●
86	00.623 BOLT; CONNROD M9X64	9-12235-064-2	08	1	9210-	●
86	00.623 BOLT; CONNROD M10X60	9-12235-068-2	08	1	9210-		●	●
86	00.623 BOLT; CONNROD M11X59	8-94419-729-1	08	1	9210-9308				●	●
86	00.623 BOLT; CONNROD M11X59	8-94419-729-1	08	1	9309-9404					●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9405-					●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9210-						●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9210-						●
88	00.623 NUT; CONNROD 00.626	9-09840-217-0	08	1	9210-	●
88	00.623 NUT; CONNROD 00.626	9-09840-238-0	08	1	9210-		●	●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	9210-9308				●	●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	9309-					●
93	00.648 THROWER; OIL,CR/SHF	9-12362-039-0	01	1	9210-9308				●
100	00.666 PLATE; FLEX A/T AISIN(RMD)	8-97013-963-4	01	1	9409-9409					●
100	00.666 PLATE; FLEX A/T AISIN(RMD)	8-97118-308-0	01	1	9410-					●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	5-09587-001-0	08	1	9210-9308				●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. ID=33.9	8-94133-969-0	08	1	9210-					●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	9210-						●
130	00.662 PIN; STRAIGHT UNITED KINGDOM EQUIPMENT(EK3) 08.939 OD=4 L=12	9-08160-412-0	01	1	9210-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
