Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#41265) — 381 parça

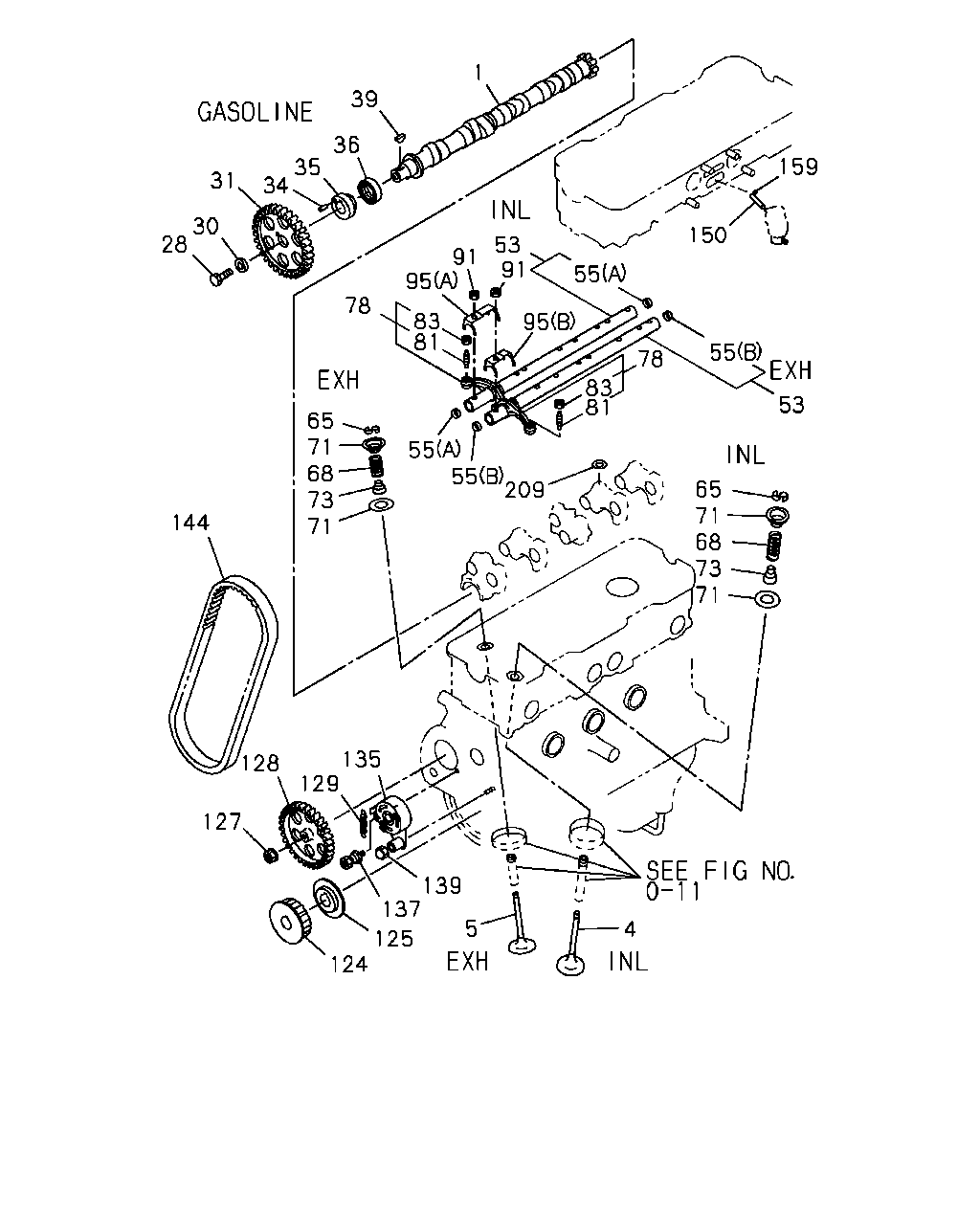

1 39 36 35 34 31 30 28 159 150 55 53 91 91 95 83 81 78 144 65 71 68 73 71 55 55 209 95 83 81 78 55 53 65 71 68 73 71 135 129 128 127 124 125 137 139 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9210-9304	●	●
1	00.519 CAMSHAFT EXC. AUSTRALIA EQUIPMENT(RR3)	8-94136-784-1	01	1	9210-9304			●
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9305-	●	●	●
1	00.519 CAMSHAFT AUSTRALIA EQUIPMENT(RR3)	8-94215-189-0	01	1	9210-9304			●
1	00.519 CAMSHAFT	5-12511-078-4	01	1	9210-9308				●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9210-					●	●
4	00.296 VALVE; INL	8-94251-273-0	04	1	9210-	●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94251-275-0	04	1	9210-9308		●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3)	8-94251-275-0	04	1	9309-9402		●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y)	8-94251-275-0	04	1	9403-9406		●
4	00.296 VALVE; INL SINGAPORE EQUIPMENT(S9Y)	8-94251-275-0	04	1	9407-		●
4	00.296 VALVE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94153-969-0	04	1	9210-9308		●
4	00.296 VALVE; INL EXC. SINGAPORE EQUIPMENT(S9Y)	8-94153-969-0	04	1	9309-		●
4	00.296 VALVE; INL	8-94174-222-1	04	1	9210-			●
4	00.296 VALVE; INL	5-12551-030-0	04	1	9210-9308				●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9210-9308					●
4	00.296 VALVE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94133-275-1	04	1	9309-					●
4	00.296 VALVE; INL	8-94464-921-0	04	1	9210-9406						●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3)	8-94464-921-0	04	1	9407-					●
4	00.296 VALVE; INL	8-94464-921-0	04	1	9407-						●
5	00.297 VALVE; EXH	8-94460-637-0	04	1	9210-	●
5	00.297 VALVE; EXH	8-94441-074-0	04	1	9210-9411		●
5	00.297 VALVE; EXH 941121-	8-97119-751-0	04	1	9411-		●
5	00.297 VALVE; EXH	8-94174-223-1	04	1	9210-9403			●
5	00.297 VALVE; EXH	8-97110-256-0	04	1	9404-			●
5	00.297 VALVE; EXH	5-12552-038-1	04	1	9210-9308				●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9210-9308					●
5	00.297 VALVE; EXH EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94247-875-1	04	1	9309-					●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	9210-9406						●
5	00.297 VALVE; EXH UNITED KINGDOM EQUIPMENT(EK3)	8-94433-245-0	04	1	9407-					●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	9407-						●
28	00.738 BOLT; CAM PULLEY 08.900 M10X35	9-02061-035-0	01	1	9210-	●	●	●
30	00.662 WASHER; PULLEY ID=10.5	8-94174-283-1	01	1	9210-	●	●	●
31	00.736 SPROCKET; CM/SHF Z=44	8-94231-167-4	01	1	9210-9601	●	●
31	00.736 SPROCKET; CM/SHF Z=44	8-97136-107-0	01	1	9602-	●	●
31	00.736 SPROCKET; CM/SHF Z=52	8-94174-282-2	01	1	9210-			●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=44	8-94133-510-2	01	1	9210-9210					●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=44	8-97043-288-0	01	1	9211-9503					●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=44	8-97116-059-0	01	1	9504-9607					●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=44	8-97147-983-0	01	1	9608-					●
34	00.533 PIN; CM/SHF 00.662	9-08160-512-0	01	1	9210-	●	●	●
35	00.533 BOSS; CM/SHF	8-94251-272-1	01	1	9210-	●	●	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=45	8-94334-845-0	01	1	9210-	●	●	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) 00.213 OD=56 T=7.0	8-94214-912-0	01	1	9210-9305					●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) OD=56 T=7.0	8-97080-562-0	01	1	9306-					●
39	00.529 KEY; WOODRUFF,BOSS 08.960	9-08055-516-0	01	1	9210-	●	●	●
53	00.353 SHAFT; ROCKER ARM INLET	8-94110-646-1	01	1	9210-	●	●	●
53	00.353 SHAFT; ROCKER ARM EXHAUST	8-94129-227-0	01	1	9210-	●	●	●
53	00.353 SHAFT; ROCKER ARM	8-94100-291-0	01	1	9210-9308				●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9210-					●	●
55	00.356 PLUG; ROCKER SHAFT END (A) INLET	8-94116-940-0	02	1	9210-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END (B) EXHAUST	8-94116-941-0	02	1	9210-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9210-9308				●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9309-					●	●
65	00.310 COLLAR; SPLIT	8-94200-714-0	16	1	9210-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9210-9308				●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9309-					●	●
68	00.303 SPRING; VLV	8-94259-483-0	08	1	9210-	●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9210-					●	●
71	00.309 SEAT; SPR LOWER OD=34	8-94200-749-0	08	1	9210-	●	●	●
71	00.309 SEAT; SPR UPPER OD=32	8-94233-232-1	08	1	9210-	●	●	●
71	00.309 SEAT; SPR UPPER	5-12563-016-0	08	1	9210-9308				●
71	00.309 SEAT; SPR 00.303 LOWER	9-09851-842-0	08	1	9210-9308				●
71	00.309 SEAT; SPR LOWER OD=34	5-12563-001-0	08	1	9210-					●	●
71	00.309 SEAT; SPR UPPER OD=32.8	8-94133-731-2	08	1	9210-					●	●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97033-673-0	08	1	9210-	●	●	●
78	00.333 ARM; ROCKER NPR	8-94102-413-0	08	1	9210-	●	●	●
78	00.333 ARM; ROCKER JBK	8-94102-416-0	08	1	9210-	●	●	●
78	00.333 ARM; ROCKER (A)	5-12611-020-1	01	1	9210-9308				●
78	00.333 ARM; ROCKER (B)	5-12611-022-1	01	1	9210-9308				●
78	00.333 ARM; ROCKER (C)	9-12611-347-0	03	1	9210-9308				●
78	00.333 ARM; ROCKER (D)	9-12611-349-0	03	1	9210-9308				●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9210-					●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9210-	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-0	08	1	9210-9308				●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9309-					●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	9210-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9210-9308				●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9309-					●	●
91	00.349 NUT; ROCKER SHAFT 00.002 M8	9-09110-508-0	10	1	9210-	●	●	●
95	00.376 SPRING; ROCKER SHAFT (A) L=57.0	8-94200-814-1	04	1	9210-	●	●	●
95	00.376 SPRING; ROCKER SHAFT (B) L=38.0	8-94200-815-1	04	1	9210-	●	●	●
95	00.376 SPRING; ROCKER SHAFT	9-09940-607-0	03	1	9210-9308				●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9210-					●	●
124	00.659 PULLEY; TIMING,CR/SHF 00.724 Z=22	8-94231-165-1	01	1	9210-	●	●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-94457-889-0	01	1	9210-			●
124	00.659 PULLEY; TIMING,CR/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=22	8-94133-501-3	01	1	9210-					●
125	00.662 PLATE; GUIDE,TIMING BELT 00.724	8-94215-184-0	01	1	9210-	●	●	●
127	00.724 NUT; PULLEY M12	8-94221-051-0	01	1	9210-	●	●	●
128	00.724 PULLEY; TIMING,OIL PUMP 00.659 Z=38	8-94231-166-2	01	1	9210-9601	●	●
128	00.724 PULLEY; TIMING,OIL PUMP Z=38	8-97136-108-0	01	1	9602-	●	●
128	00.724 PULLEY; TIMING,OIL PUMP Z=45	8-94174-224-1	01	1	9210-			●
129	00.724 SPRING; TENSIONER L=47.4	8-94225-389-0	01	1	9210-	●	●
129	00.724 SPRING; TENSIONER L=65	8-94472-329-0	01	1	9210-			●
135	00.724 PULLEY; TENSIONER	8-94215-197-1	01	1	9210-	●	●
135	00.724 PULLEY; TENSIONER	8-94472-349-0	01	1	9210-			●
137	00.724 BOLT; TENSIONER M8 L=46	8-94214-934-2	01	1	9210-	●	●	●
137	00.724 BOLT; TENSIONER UNITED KINGDOM EQUIPMENT(EK3) M12X57 FLANGE	8-94433-408-0	01	1	9210-					●
139	00.724 NUT; TENSIONER 00.002 M8	9-09110-508-0	01	1	9210-	●	●	●
144	00.724 BELT; TIMING	8-97042-269-0	01	1	9210-	●
144	00.724 BELT; TIMING	8-97041-784-0	01	1	9210-		●
144	00.724 BELT; TIMING	8-97042-268-0	01	1	9210-			●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) BLUE	8-94380-679-0	01	1	9210-9304					●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) BLUE	8-97065-986-0	01	1	9305-9503					●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) BLUE	8-94380-679-0	01	1	9504-					●
150	00.426 ROD ASM; PUSH,FUEL PUMP W/RING	8-94159-290-1	01	1	9210-	●	●
150	00.426 ROD ASM; PUSH,FUEL PUMP EXC. AUSTRALIA EQUIPMENT(RR3) W/RING	8-94159-290-1	01	1	9210-			●
159	00.426 RING; SNAP,PUSH ROD,FUEL PUMP	8-94159-292-0	01	1	9210-	●	●
159	00.426 RING; SNAP,PUSH ROD,FUEL PUMP EXC. AUSTRALIA EQUIPMENT(RR3)	8-94159-292-0	01	1	9210-			●
209	00.349 WASHER; LK,ROCKER ARM BRKT 16.674 ID=8.4	9-09160-508-0	02	1	9210-	●	●	●

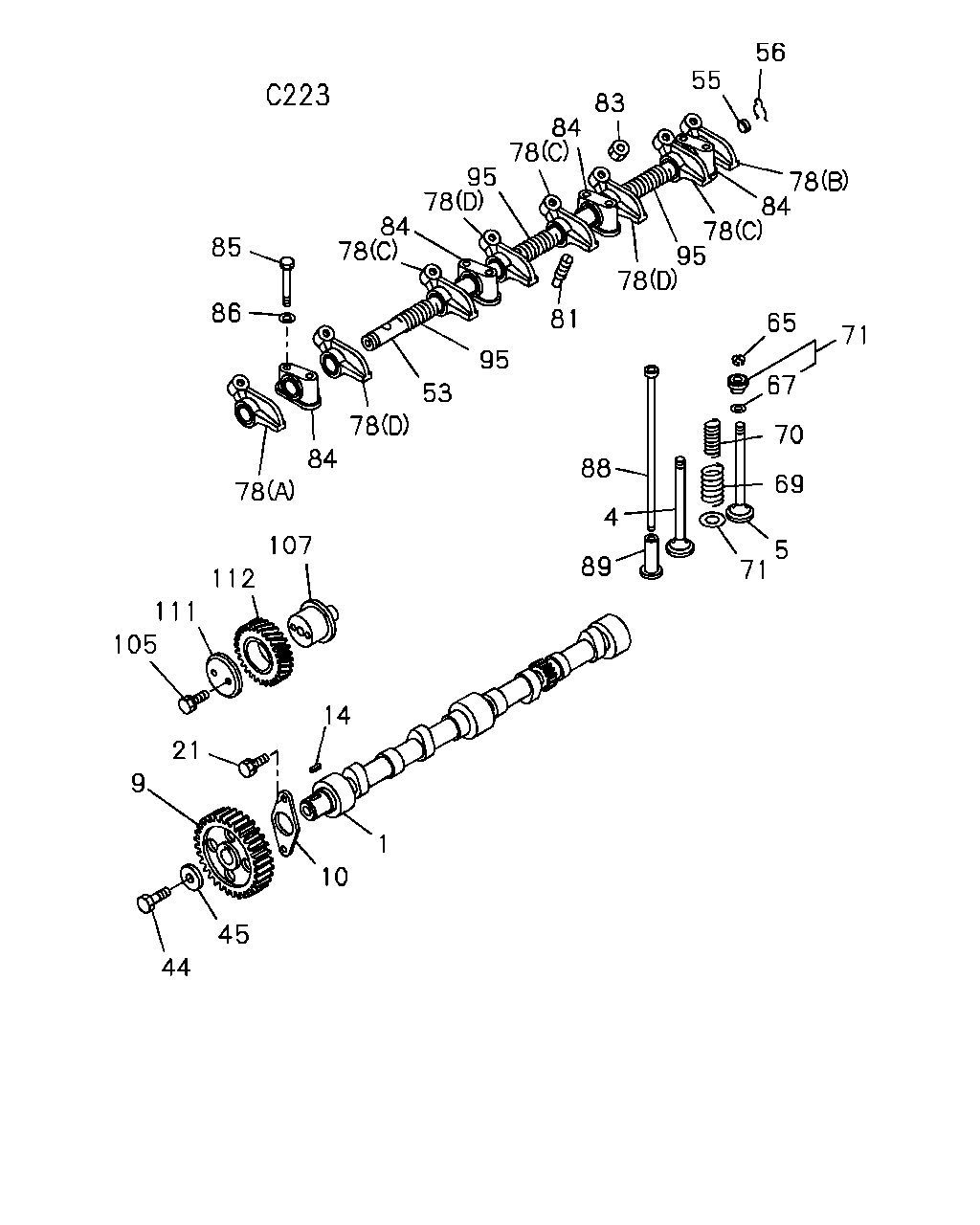

56 55 83 84 78 95 78 84 78 85 86 78 84 78 95 78 81 95 53 78 84 78 65 71 67 70 69 5 71 88 4 89 107 112 111 105 21 9 14 1 10 45 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9210-9304	●	●
1	00.519 CAMSHAFT EXC. AUSTRALIA EQUIPMENT(RR3)	8-94136-784-1	01	1	9210-9304			●
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9305-	●	●	●
1	00.519 CAMSHAFT AUSTRALIA EQUIPMENT(RR3)	8-94215-189-0	01	1	9210-9304			●
1	00.519 CAMSHAFT	5-12511-078-4	01	1	9210-9308				●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9210-					●	●
4	00.296 VALVE; INL	8-94251-273-0	04	1	9210-	●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94251-275-0	04	1	9210-9308		●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3)	8-94251-275-0	04	1	9309-9402		●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y)	8-94251-275-0	04	1	9403-9406		●
4	00.296 VALVE; INL SINGAPORE EQUIPMENT(S9Y)	8-94251-275-0	04	1	9407-		●
4	00.296 VALVE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94153-969-0	04	1	9210-9308		●
4	00.296 VALVE; INL EXC. SINGAPORE EQUIPMENT(S9Y)	8-94153-969-0	04	1	9309-		●
4	00.296 VALVE; INL	8-94174-222-1	04	1	9210-			●
4	00.296 VALVE; INL	5-12551-030-0	04	1	9210-9308				●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9210-9308					●
4	00.296 VALVE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94133-275-1	04	1	9309-					●
4	00.296 VALVE; INL	8-94464-921-0	04	1	9210-9406						●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3)	8-94464-921-0	04	1	9407-					●
4	00.296 VALVE; INL	8-94464-921-0	04	1	9407-						●
5	00.297 VALVE; EXH	8-94460-637-0	04	1	9210-	●
5	00.297 VALVE; EXH	8-94441-074-0	04	1	9210-9411		●
5	00.297 VALVE; EXH 941121-	8-97119-751-0	04	1	9411-		●
5	00.297 VALVE; EXH	8-94174-223-1	04	1	9210-9403			●
5	00.297 VALVE; EXH	8-97110-256-0	04	1	9404-			●
5	00.297 VALVE; EXH	5-12552-038-1	04	1	9210-9308				●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9210-9308					●
5	00.297 VALVE; EXH EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94247-875-1	04	1	9309-					●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	9210-9406						●
5	00.297 VALVE; EXH UNITED KINGDOM EQUIPMENT(EK3)	8-94433-245-0	04	1	9407-					●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	9407-						●

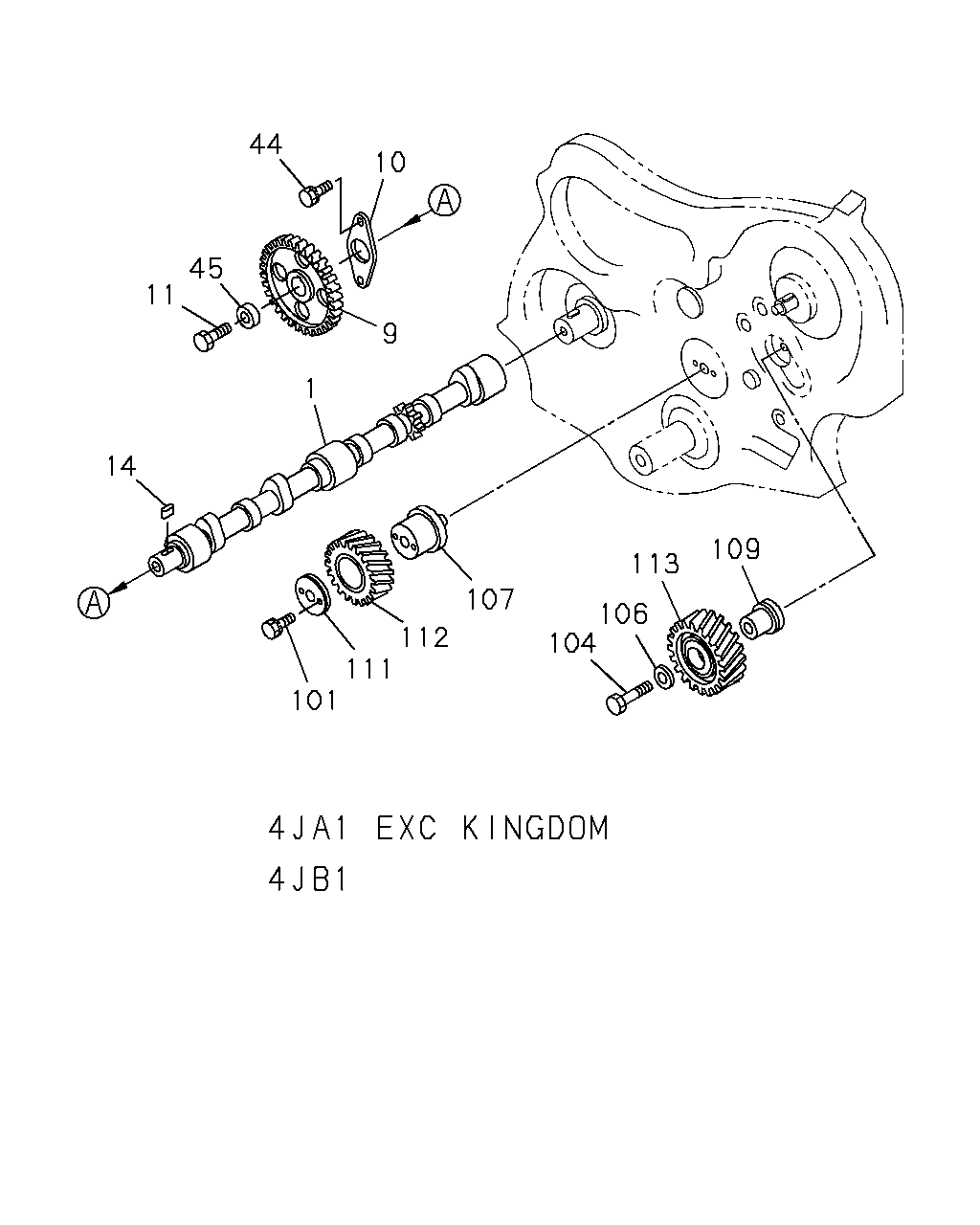

9	00.736 GEAR; CM/SHF Z=42	9-12522-144-0	01	1	9210-9308				●
9	00.736 GEAR; CM/SHF EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=42	8-97079-212-0	01	1	9210-					●	●
10	00.533 PLATE; THRUST	9-11681-010-1	01	1	9210-9308				●
10	00.533 PLATE; THRUST EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94110-480-1	01	1	9210-					●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9210-9308				●	●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9309-					●	●
21	00.533 BOLT; CM/SHF METAL,NO 7 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9210-9308				●
44	00.738 BOLT 00.533 M12X47	8-94433-407-0	01	1	9210-9308				●
44	00.738 BOLT EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9210-					●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9210-9308				●	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9309-					●	●
53	00.353 SHAFT; ROCKER ARM INLET	8-94110-646-1	01	1	9210-	●	●	●
53	00.353 SHAFT; ROCKER ARM EXHAUST	8-94129-227-0	01	1	9210-	●	●	●
53	00.353 SHAFT; ROCKER ARM	8-94100-291-0	01	1	9210-9308				●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9210-					●	●
55	00.356 PLUG; ROCKER SHAFT END (A) INLET	8-94116-940-0	02	1	9210-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END (B) EXHAUST	8-94116-941-0	02	1	9210-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9210-9308				●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9309-					●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9210-9308				●	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9309-					●	●
65	00.310 COLLAR; SPLIT	8-94200-714-0	16	1	9210-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9210-9308				●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9309-					●	●
67	00.308 RING; SEALING VLV	9-12559-008-0	08	1	9210-9308				●
69	00.303 SPRING; VLV,OUTER	5-12561-011-0	08	1	9210-9308				●
70	00.303 SPRING; VLV,INNER	5-12562-007-0	08	1	9210-9308				●
71	00.309 SEAT; SPR LOWER OD=34	8-94200-749-0	08	1	9210-	●	●	●
71	00.309 SEAT; SPR UPPER OD=32	8-94233-232-1	08	1	9210-	●	●	●
71	00.309 SEAT; SPR UPPER	5-12563-016-0	08	1	9210-9308				●
71	00.309 SEAT; SPR 00.303 LOWER	9-09851-842-0	08	1	9210-9308				●
71	00.309 SEAT; SPR LOWER OD=34	5-12563-001-0	08	1	9210-					●	●
71	00.309 SEAT; SPR UPPER OD=32.8	8-94133-731-2	08	1	9210-					●	●
78	00.333 ARM; ROCKER NPR	8-94102-413-0	08	1	9210-	●	●	●
78	00.333 ARM; ROCKER JBK	8-94102-416-0	08	1	9210-	●	●	●
78	00.333 ARM; ROCKER (A)	5-12611-020-1	01	1	9210-9308				●
78	00.333 ARM; ROCKER (B)	5-12611-022-1	01	1	9210-9308				●
78	00.333 ARM; ROCKER (C)	9-12611-347-0	03	1	9210-9308				●
78	00.333 ARM; ROCKER (D)	9-12611-349-0	03	1	9210-9308				●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9210-					●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9210-	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-0	08	1	9210-9308				●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9309-					●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	9210-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9210-9308				●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9309-					●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	9-12628-093-0	04	1	9210-9308				●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9210-					●	●
85	00.349 BOLT; BRKT M8X50	0-10810-850-0	08	1	9210-9308				●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	02	1	9210-					●	●
85	00.349 BOLT; BRKT M8X37 & M10X60 L=104	8-94437-493-1	01	1	9210-					●	●
86	00.349 WASHER; ROCKER ARM FIX ID=8	9-09164-008-0	08	1	9210-9308				●
86	00.349 WASHER; ROCKER ARM FIX ID=19	9-09851-931-0	02	1	9210-9308				●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9210-					●	●
88	00.426 ROD; PUSH	5-12575-015-0	08	1	9210-9308				●
88	00.426 ROD; PUSH	8-94143-203-0	08	1	9210-					●
88	00.426 ROD; PUSH	8-94143-202-0	08	1	9210-9308						●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9309-						●
89	00.459 TAPPET; VLV	9-12571-801-0	08	1	9210-9308				●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9210-					●	●
95	00.376 SPRING; ROCKER SHAFT (A) L=57.0	8-94200-814-1	04	1	9210-	●	●	●
95	00.376 SPRING; ROCKER SHAFT (B) L=38.0	8-94200-815-1	04	1	9210-	●	●	●
95	00.376 SPRING; ROCKER SHAFT	9-09940-607-0	03	1	9210-9308				●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9210-					●	●
105	00.724 BOLT; IDLE GEAR SHAFT 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9210-9308				●
107	00.724 SHAFT; IDLE GEAR	9-12531-024-1	01	1	9210-9308				●
107	00.724 SHAFT; IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94139-758-1	01	1	9210-					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	5-12535-005-1	01	1	9210-9308				●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94141-937-1	01	1	9210-					●	●
112	00.724 GEAR; IDLE	9-12523-080-0	01	1	9210-9308				●
112	00.724 GEAR; IDLE EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=31	8-94139-759-0	01	1	9210-					●	●

44 10 9 45 11 1 14 101 111 112 107 109 113 106 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9210-9304	●	●
1	00.519 CAMSHAFT EXC. AUSTRALIA EQUIPMENT(RR3)	8-94136-784-1	01	1	9210-9304			●
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9305-	●	●	●
1	00.519 CAMSHAFT AUSTRALIA EQUIPMENT(RR3)	8-94215-189-0	01	1	9210-9304			●
1	00.519 CAMSHAFT	5-12511-078-4	01	1	9210-9308				●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9210-					●	●
9	00.736 GEAR; CM/SHF Z=42	9-12522-144-0	01	1	9210-9308				●
9	00.736 GEAR; CM/SHF EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=42	8-97079-212-0	01	1	9210-					●	●
10	00.533 PLATE; THRUST	9-11681-010-1	01	1	9210-9308				●
10	00.533 PLATE; THRUST EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94110-480-1	01	1	9210-					●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9210-					●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9210-9308				●	●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9309-					●	●
44	00.738 BOLT 00.533 M12X47	8-94433-407-0	01	1	9210-9308				●
44	00.738 BOLT EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9210-					●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9210-9308				●	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9309-					●	●
101	00.724 BOLT; THRUST COLLAR EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9210-					●	●
104	00.724 BOLT; SHAFT IDLE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94109-706-1	01	1	9210-					●	●
106	00.724 WASHER; IDLE GEAR SHAFT EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.738 ID=13 OD=36	5-12519-002-1	01	1	9210-					●	●
107	00.724 SHAFT; IDLE GEAR	9-12531-024-1	01	1	9210-9308				●
107	00.724 SHAFT; IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94139-758-1	01	1	9210-					●	●
109	00.724 SHAFT; IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94109-913-1	01	1	9210-					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	5-12535-005-1	01	1	9210-9308				●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94141-937-1	01	1	9210-					●	●
112	00.724 GEAR; IDLE	9-12523-080-0	01	1	9210-9308				●
112	00.724 GEAR; IDLE EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=31	8-94139-759-0	01	1	9210-					●	●
113	00.724 GEAR; IDLE EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=37	8-94139-761-0	01	1	9210-					●	●

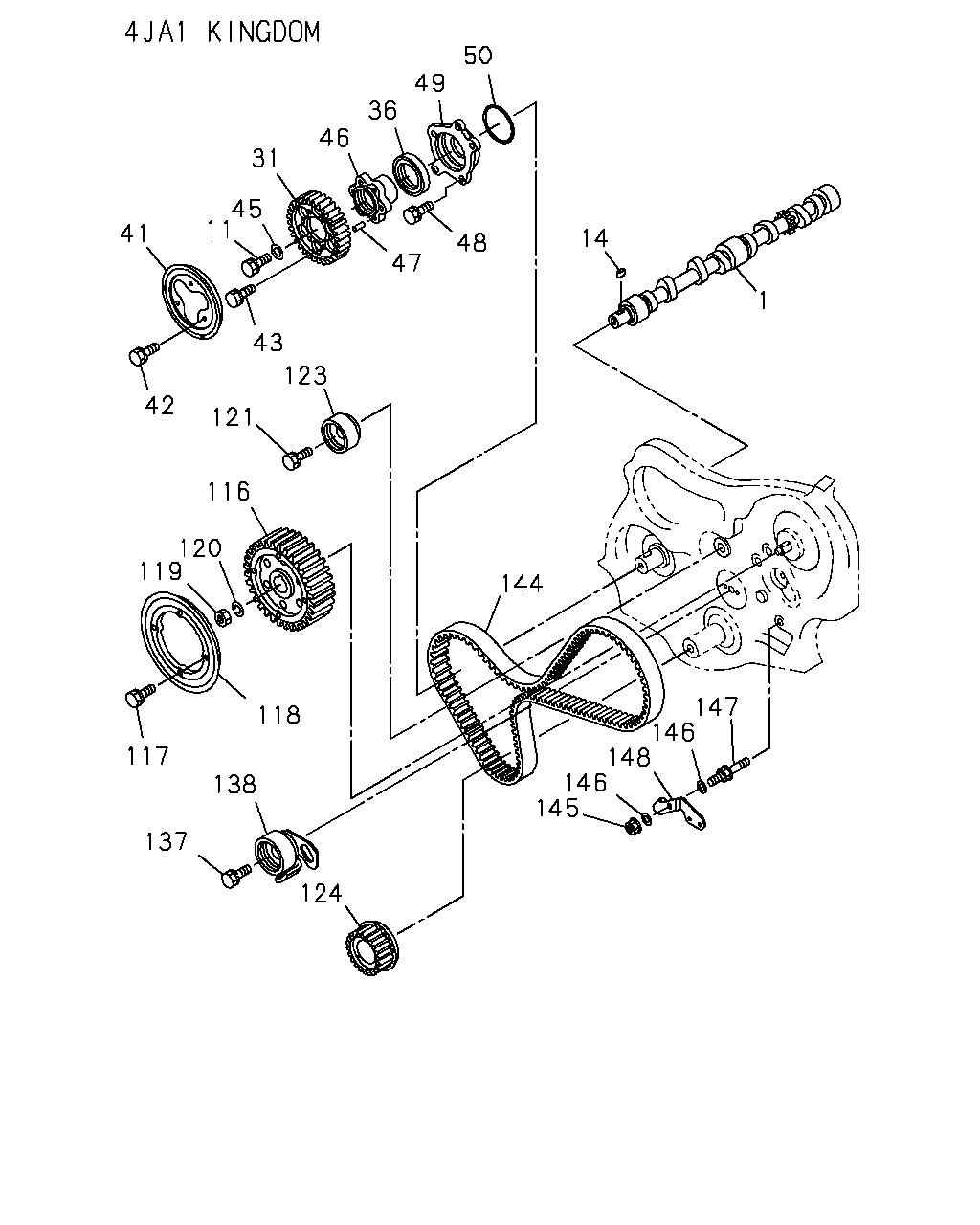

50 49 36 46 31 45 11 41 42 14 1 48 47 43 123 121 116 120 119 118 117 144 147 146 148 146 145 138 137 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9210-9304	●	●
1	00.519 CAMSHAFT EXC. AUSTRALIA EQUIPMENT(RR3)	8-94136-784-1	01	1	9210-9304			●
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9305-	●	●	●
1	00.519 CAMSHAFT AUSTRALIA EQUIPMENT(RR3)	8-94215-189-0	01	1	9210-9304			●
1	00.519 CAMSHAFT	5-12511-078-4	01	1	9210-9308				●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9210-					●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9210-					●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9210-9308				●	●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9309-					●	●
31	00.736 SPROCKET; CM/SHF Z=44	8-94231-167-4	01	1	9210-9601	●	●
31	00.736 SPROCKET; CM/SHF Z=44	8-97136-107-0	01	1	9602-	●	●
31	00.736 SPROCKET; CM/SHF Z=52	8-94174-282-2	01	1	9210-			●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=44	8-94133-510-2	01	1	9210-9210					●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=44	8-97043-288-0	01	1	9211-9503					●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=44	8-97116-059-0	01	1	9504-9607					●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=44	8-97147-983-0	01	1	9608-					●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=45	8-94334-845-0	01	1	9210-	●	●	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) 00.213 OD=56 T=7.0	8-94214-912-0	01	1	9210-9305					●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) OD=56 T=7.0	8-97080-562-0	01	1	9306-					●
41	00.662 FLANGE; CAM PULLEY UNITED KINGDOM EQUIPMENT(EK3)	8-94157-492-0	01	1	9210-					●
42	00.662 BOLT; FLANGE CAM UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER	0-50040-816-0	03	1	9210-9307					●
42	00.662 BOLT; FLANGE CAM UNITED KINGDOM EQUIPMENT(EK3) 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9308-					●
43	00.662 BOLT; PULLEY UNITED KINGDOM EQUIPMENT(EK3) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9210-					●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9210-9308				●	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9309-					●	●
46	00.736 CENTER ASM; TIMING PULLEY UNITED KINGDOM EQUIPMENT(EK3)	8-94133-513-1	01	1	9210-9501					●
46	00.736 CENTER ASM; TIMING PULLEY UNITED KINGDOM EQUIPMENT(EK3)	8-97118-491-0	01	1	9502-					●
47	00.662 PIN; STRAIGHT,CENTER UNITED KINGDOM EQUIPMENT(EK3) 08.939 OD=4 L=12	9-08160-412-0	01	1	9210-					●
48	00.724 BOLT; RET UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X35 W/LK WASHER	0-50040-835-0	04	1	9210-9404					●
48	00.724 BOLT; RET UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9405-					●
49	00.724 RETAINER; OIL SEAL,CM/SHF UNITED KINGDOM EQUIPMENT(EK3)	8-94133-516-2	01	1	9210-					●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) 00.738	9-09561-250-0	01	1	9210-9305					●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3)	8-97080-893-0	01	1	9306-					●
116	00.659 PULLEY; TIMING,INJ PUMP UNITED KINGDOM EQUIPMENT(EK3)	8-94367-577-0	01	1	9210-9211					●
116	00.659 PULLEY; TIMING,INJ PUMP UNITED KINGDOM EQUIPMENT(EK3)	8-97088-392-0	01	1	9212-					●
117	00.662 BOLT; FLANGE UNITED KINGDOM EQUIPMENT(EK3) 00.685 M6X12 W/LK WASHER	0-50040-612-0	04	1	9210-9607					●
118	00.662 FLANGE; INJ PUMP PULLEY UNITED KINGDOM EQUIPMENT(EK3) 03.340	5-12539-020-0	01	1	9210-9607					●
119	00.662 NUT; PULLEY UNITED KINGDOM EQUIPMENT(EK3) 03.340 M14	8-94226-565-0	01	1	9210-					●
120	00.662 WASHER; LK,PULLEY,INJ PUMP UNITED KINGDOM EQUIPMENT(EK3) 03.340	8-94226-554-0	01	1	9210-					●
121	00.724 BOLT; IDLE PULLEY UNITED KINGDOM EQUIPMENT(EK3) M12X57 FLANGE	8-94433-408-0	01	1	9210-					●
123	00.724 PULLEY; IDLE,TIMING UNITED KINGDOM EQUIPMENT(EK3)	8-94382-215-0	01	1	9210-					●
124	00.659 PULLEY; TIMING,CR/SHF 00.724 Z=22	8-94231-165-1	01	1	9210-	●	●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-94457-889-0	01	1	9210-			●
124	00.659 PULLEY; TIMING,CR/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=22	8-94133-501-3	01	1	9210-					●
137	00.724 BOLT; TENSIONER M8 L=46	8-94214-934-2	01	1	9210-	●	●	●
137	00.724 BOLT; TENSIONER UNITED KINGDOM EQUIPMENT(EK3) M12X57 FLANGE	8-94433-408-0	01	1	9210-					●
138	00.724 TENSIONER; TIMING BELT UNITED KINGDOM EQUIPMENT(EK3)	8-94382-214-0	01	1	9210-					●
144	00.724 BELT; TIMING	8-97042-269-0	01	1	9210-	●
144	00.724 BELT; TIMING	8-97041-784-0	01	1	9210-		●
144	00.724 BELT; TIMING	8-97042-268-0	01	1	9210-			●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) BLUE	8-94380-679-0	01	1	9210-9304					●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) BLUE	8-97065-986-0	01	1	9305-9503					●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) BLUE	8-94380-679-0	01	1	9504-					●
145	00.724 NUT; FLANGE UNITED KINGDOM EQUIPMENT(EK3) 03.340 M8	8-94224-829-0	01	1	9210-9606					●
145	00.724 NUT; FLANGE UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8 FLANGE	0-91150-208-0	01	1	9607-					●
146	00.724 WASHER; PL,TENSION LEVER UNITED KINGDOM EQUIPMENT(EK3) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9210-					●
147	00.724 BOLT; TENSION LEVER UNITED KINGDOM EQUIPMENT(EK3) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9210-9605					●
147	00.724 BOLT; TENSION LEVER UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9606-					●
148	00.724 LEVER; TENSION,TIMING BELT UNITED KINGDOM EQUIPMENT(EK3)	8-94167-317-0	01	1	9210-9605					●
148	00.724 LEVER; TENSION,TIMING BELT UNITED KINGDOM EQUIPMENT(EK3)	8-97146-370-0	01	1	9606-					●

87 55 86 84 78 78 78 78 78 78 53 54 95 85 86 83 81 54 78 84 78 56 55 65 71 68 72 71 4 5 88 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	00.296 VALVE; INL	8-94251-273-0	04	1	9210-	●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94251-275-0	04	1	9210-9308		●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3)	8-94251-275-0	04	1	9309-9402		●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y)	8-94251-275-0	04	1	9403-9406		●
4	00.296 VALVE; INL SINGAPORE EQUIPMENT(S9Y)	8-94251-275-0	04	1	9407-		●
4	00.296 VALVE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94153-969-0	04	1	9210-9308		●
4	00.296 VALVE; INL EXC. SINGAPORE EQUIPMENT(S9Y)	8-94153-969-0	04	1	9309-		●
4	00.296 VALVE; INL	8-94174-222-1	04	1	9210-			●
4	00.296 VALVE; INL	5-12551-030-0	04	1	9210-9308				●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9210-9308					●
4	00.296 VALVE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94133-275-1	04	1	9309-					●
4	00.296 VALVE; INL	8-94464-921-0	04	1	9210-9406						●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3)	8-94464-921-0	04	1	9407-					●
4	00.296 VALVE; INL	8-94464-921-0	04	1	9407-						●
5	00.297 VALVE; EXH	8-94460-637-0	04	1	9210-	●
5	00.297 VALVE; EXH	8-94441-074-0	04	1	9210-9411		●
5	00.297 VALVE; EXH 941121-	8-97119-751-0	04	1	9411-		●
5	00.297 VALVE; EXH	8-94174-223-1	04	1	9210-9403			●
5	00.297 VALVE; EXH	8-97110-256-0	04	1	9404-			●
5	00.297 VALVE; EXH	5-12552-038-1	04	1	9210-9308				●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9210-9308					●
5	00.297 VALVE; EXH EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94247-875-1	04	1	9309-					●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	9210-9406						●
5	00.297 VALVE; EXH UNITED KINGDOM EQUIPMENT(EK3)	8-94433-245-0	04	1	9407-					●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	9407-						●
53	00.353 SHAFT; ROCKER ARM INLET	8-94110-646-1	01	1	9210-	●	●	●
53	00.353 SHAFT; ROCKER ARM EXHAUST	8-94129-227-0	01	1	9210-	●	●	●
53	00.353 SHAFT; ROCKER ARM	8-94100-291-0	01	1	9210-9308				●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9210-					●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9210-					●	●
55	00.356 PLUG; ROCKER SHAFT END (A) INLET	8-94116-940-0	02	1	9210-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END (B) EXHAUST	8-94116-941-0	02	1	9210-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9210-9308				●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9309-					●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9210-9308				●	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9309-					●	●
65	00.310 COLLAR; SPLIT	8-94200-714-0	16	1	9210-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9210-9308				●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9309-					●	●
68	00.303 SPRING; VLV	8-94259-483-0	08	1	9210-	●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9210-					●	●
71	00.309 SEAT; SPR LOWER OD=34	8-94200-749-0	08	1	9210-	●	●	●
71	00.309 SEAT; SPR UPPER OD=32	8-94233-232-1	08	1	9210-	●	●	●
71	00.309 SEAT; SPR UPPER	5-12563-016-0	08	1	9210-9308				●
71	00.309 SEAT; SPR 00.303 LOWER	9-09851-842-0	08	1	9210-9308				●
71	00.309 SEAT; SPR LOWER OD=34	5-12563-001-0	08	1	9210-					●	●
71	00.309 SEAT; SPR UPPER OD=32.8	8-94133-731-2	08	1	9210-					●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 00.283	5-12569-006-0	08	1	9210-9604					●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97120-307-0	08	1	9605-					●	●
78	00.333 ARM; ROCKER NPR	8-94102-413-0	08	1	9210-	●	●	●
78	00.333 ARM; ROCKER JBK	8-94102-416-0	08	1	9210-	●	●	●
78	00.333 ARM; ROCKER (A)	5-12611-020-1	01	1	9210-9308				●
78	00.333 ARM; ROCKER (B)	5-12611-022-1	01	1	9210-9308				●
78	00.333 ARM; ROCKER (C)	9-12611-347-0	03	1	9210-9308				●
78	00.333 ARM; ROCKER (D)	9-12611-349-0	03	1	9210-9308				●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9210-					●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9210-	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-0	08	1	9210-9308				●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9309-					●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	9210-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9210-9308				●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9309-					●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	9-12628-093-0	04	1	9210-9308				●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9210-					●	●
85	00.349 BOLT; BRKT M8X50	0-10810-850-0	08	1	9210-9308				●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	02	1	9210-					●	●
85	00.349 BOLT; BRKT M8X37 & M10X60 L=104	8-94437-493-1	01	1	9210-					●	●
86	00.349 WASHER; ROCKER ARM FIX ID=8	9-09164-008-0	08	1	9210-9308				●
86	00.349 WASHER; ROCKER ARM FIX ID=19	9-09851-931-0	02	1	9210-9308				●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9210-					●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9210-					●	●
88	00.426 ROD; PUSH	5-12575-015-0	08	1	9210-9308				●
88	00.426 ROD; PUSH	8-94143-203-0	08	1	9210-					●
88	00.426 ROD; PUSH	8-94143-202-0	08	1	9210-9308						●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9309-						●
89	00.459 TAPPET; VLV	9-12571-801-0	08	1	9210-9308				●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9210-					●	●
95	00.376 SPRING; ROCKER SHAFT (A) L=57.0	8-94200-814-1	04	1	9210-	●	●	●
95	00.376 SPRING; ROCKER SHAFT (B) L=38.0	8-94200-815-1	04	1	9210-	●	●	●
95	00.376 SPRING; ROCKER SHAFT	9-09940-607-0	03	1	9210-9308				●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9210-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
