◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#41262) — 285 parça

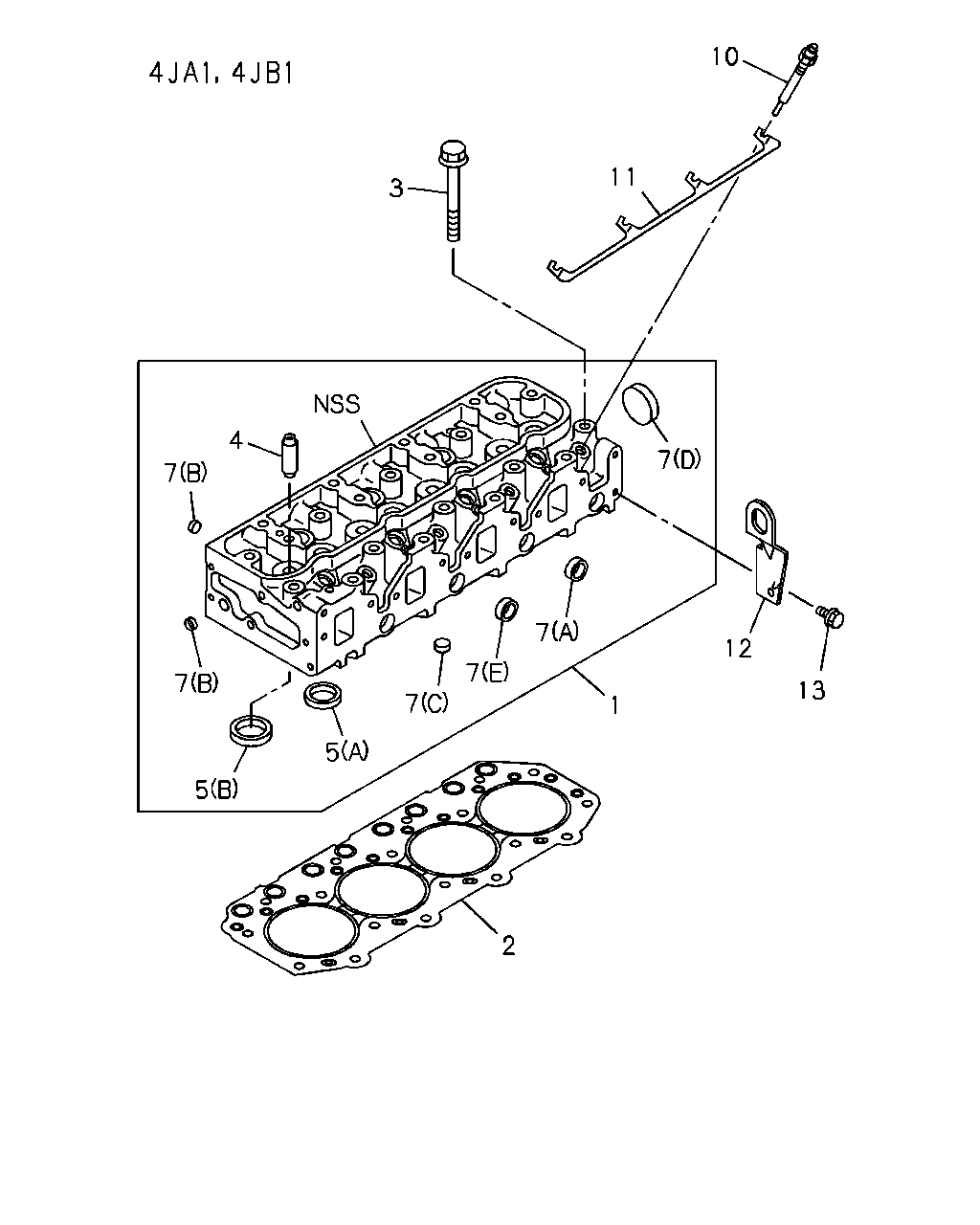

çizim 66422
10 11 3 7 12 13 1 2 7 7 7 5 5 7 7 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL
SINGAPORE EQUIPMENT(S9Y) 		8-94450-254-0 01 1 9210-9403 ●
1 00.269 HEAD ASM; CYL
EXC. SINGAPORE EQUIPMENT(S9Y) 		8-94451-006-0 01 1 9210-9403 ●
1 00.269 HEAD ASM; CYL 8-94451-006-1 01 1 9404- ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 		8-97023-680-1 01 1 9402-9406 ●
1 00.269 HEAD ASM; CYL
EXC. SINGAPORE EQUIPMENT(S9Y) 		8-97023-680-3 01 1 9407-9411 ●
1 00.269 HEAD ASM; CYL
EXC. SINGAPORE EQUIPMENT(S9Y) 		8-97119-761-1 01 1 9411- ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97023-678-1 01 1 9210-9308 ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97023-678-1 01 1 9309-9401 ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97023-680-1 01 1 9210-9308 ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97023-680-1 01 1 9309-9401 ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 		8-97023-678-1 01 1 9402-9406 ●
1 00.269 HEAD ASM; CYL
SINGAPORE EQUIPMENT(S9Y) 		8-97023-678-3 01 1 9407-9410 ●
1 00.269 HEAD ASM; CYL
SINGAPORE EQUIPMENT(S9Y) 		8-97119-760-1 01 1 9411- ●
1 00.269 HEAD ASM; CYL 8-97070-597-0 01 1 9210-9409 ●
1 00.269 HEAD ASM; CYL 8-97111-155-0 01 1 9410- ●
1 00.269 HEAD ASM; CYL 8-94104-997-1 01 1 9210-9308 ●
1 00.269 HEAD ASM; CYL 8-94431-523-0 01 1 9210-9401 ●
1 00.269 HEAD ASM; CYL
EXC. THAILAND EQUIPMENT(PM9) 		8-94431-523-0 01 1 9402-9406 ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 		8-94431-523-0 01 1 9407- ●
1 00.269 HEAD ASM; CYL
THAILAND EQUIPMENT(PM9) 		8-97108-725-0 01 1 9402- ●
1 00.269 HEAD ASM; CYL 8-94431-520-0 01 1 9210-9406 ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-520-0 01 1 9407- ●
1 00.269 HEAD ASM; CYL 8-94431-520-0 01 1 9407- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97041-767-0 01 1 9210- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-053-0 01 1 9210- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94174-279-0 01 1 9210- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		5-11141-082-1 01 1 9210-9308 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9210- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. THAILAND EQUIPMENT(PM9) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9210- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. THAILAND EQUIPMENT(PM9) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9210- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M12X102 HEX SOCKET 		8-94200-751-0 10 1 9210- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X117 		5-09009-036-0 16 1 9210-9308 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M11X117 		5-09009-037-0 03 1 9210-9308 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94247-355-1 18 1 9210-9406 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. UNITED KINGDOM EQUIPMENT(EK3) M11X122 		8-94247-355-1 18 1 9407- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9210-9406 ●
3 00.293 BOLT; CYL HD TO BLOCK
UNITED KINGDOM EQUIPMENT(EK3) M11X122 		8-94455-667-0 18 1 9407- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9407- ●
4 00.283 GUIDE; VLV
(B) INLET 		8-94206-762-0 04 1 9210- ● ● ●
4 00.283 GUIDE; VLV
(A) EXHAUST 		8-94206-763-0 04 1 9210-9409 ● ● ●
4 00.283 GUIDE; VLV
(A) EXHAUST 		8-97112-882-0 04 1 9410- ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9210-9308 ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9309- ● ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-94213-384-0 04 1 9210- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94216-969-0 04 1 9210- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97022-816-0 04 1 9210-9401 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97022-817-0 04 1 9210-9411 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97119-752-0 04 1 9411- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97022-816-0 04 1 9402-9410 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97112-566-0 04 1 9411- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-94174-205-0 04 1 9210-9409 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97110-273-0 04 1 9410- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97037-802-0 04 1 9210- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		5-11711-026-0 04 1 9210-9308 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		5-11715-023-0 04 1 9210-9308 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94130-558-0 04 1 9210-9406 ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94130-558-0 04 1 9407- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-94130-559-0 04 1 9210-9406 ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST OD=36.7 		8-94130-559-0 04 1 9407- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94431-521-0 04 1 9210-9406 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94431-521-0 04 1 9407- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94431-521-0 04 1 9407- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST EXHAUST 		8-94431-522-0 04 1 9210-9406 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST EXHAUST 		8-94431-522-0 04 1 9407- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST EXHAUST 		8-94431-522-0 04 1 9407- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) REAR OD=25 		9-11129-079-0 02 1 9210- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) FRONT OD=40 		9-11219-309-0 01 1 9210- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) DRILLED PASS OD=12.3 		5-09600-013-0 04 1 9210-9308 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) UNDER FACE OD=16 		5-11129-006-0 04 1 9210-9308 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) UPPER FACE OD=18 		5-11219-008-0 05 1 9210-9308 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 9210-9308 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 9309- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		1-09600-011-2 07 1 9210- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) DRILLED PASS OD=12.3 		5-09600-013-0 05 1 9210- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9210- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9210-9310 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9311-9406 ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) 00.034 (E) OD=32 		5-11219-015-0 02 1 9407- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9407- ●
10 02.270 PLUG; GLOW 8-94319-700-1 04 1 9210-9308 ●
10 02.270 PLUG; GLOW
THAILAND EQUIPMENT(PM9) 00.293 		5-11119-007-1 04 1 9210-9401 ●
10 02.270 PLUG; GLOW
UNITED KINGDOM EQUIPMENT(EK3) NGK 		8-94175-158-1 04 1 9210- ●
10 02.270 PLUG; GLOW
UNITED KINGDOM EQUIPMENT(EK3) BOSCH 		8-94133-759-7 04 1 9410- ●
10 02.270 PLUG; GLOW
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 		8-94140-115-5 04 1 9210- ●
10 02.270 PLUG; GLOW 8-94140-115-5 04 1 9210- ●
11 02.251 CONNECTOR; GLOW PLUG
T=0.8 		5-19732-014-1 01 1 9210-9308 ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) T=1.0 		8-94133-760-0 01 1 9210-9602 ● ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) 		8-97146-517-0 01 1 9603- ● ●
12 00.004 HANGER; ENG,RR 8-97019-563-0 01 1 9210- ●
13 00.004 BOLT; HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9210- ●

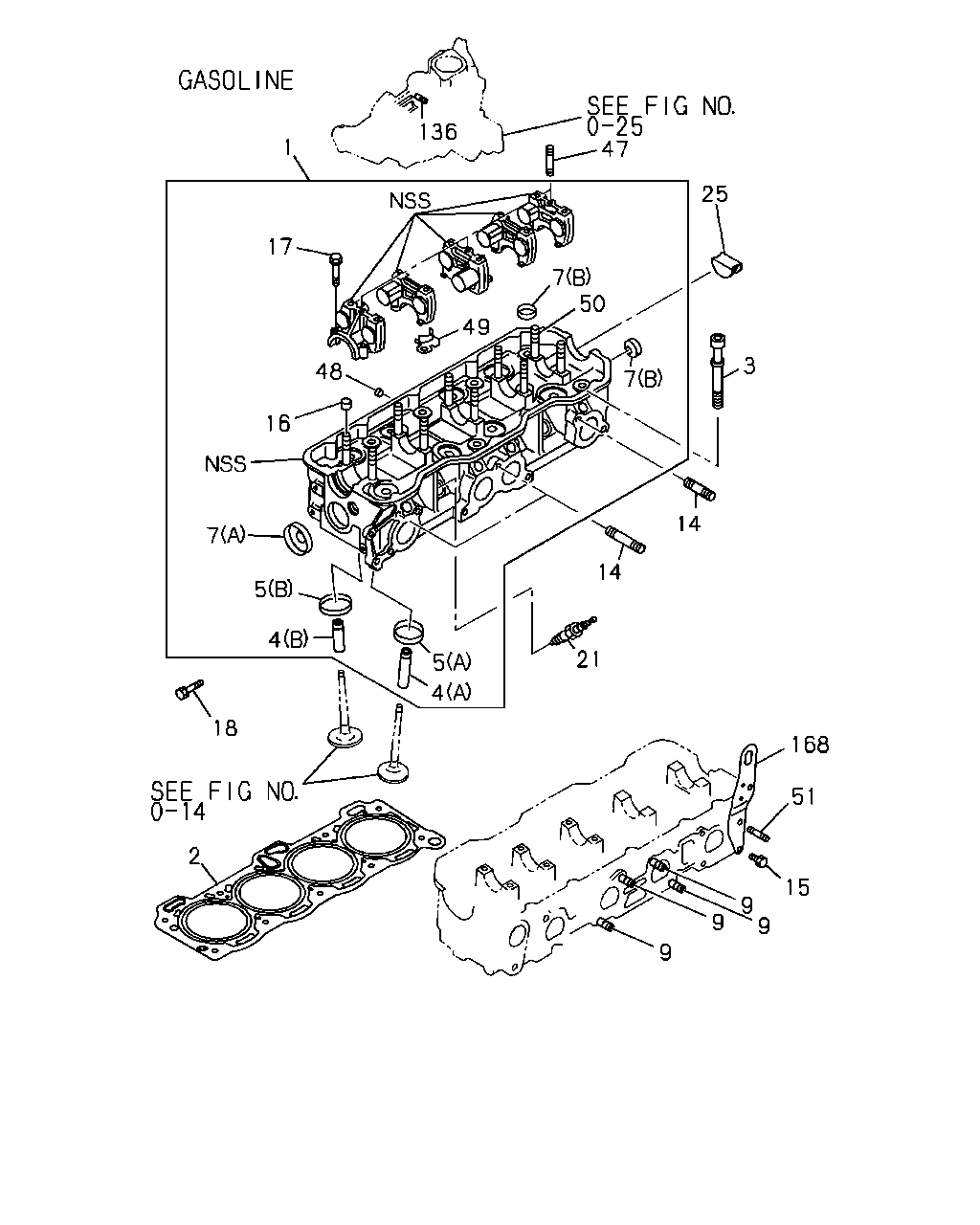

çizim 67447
136 47 25 3 7 50 7 17 49 48 16 7 5 4 5 4 21 14 14 18 2 9 9 9 9 15 51 168
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97041-767-0 01 1 9210- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-053-0 01 1 9210- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94174-279-0 01 1 9210- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		5-11141-082-1 01 1 9210-9308 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9210- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. THAILAND EQUIPMENT(PM9) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9210- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. THAILAND EQUIPMENT(PM9) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9210- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M12X102 HEX SOCKET 		8-94200-751-0 10 1 9210- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X117 		5-09009-036-0 16 1 9210-9308 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M11X117 		5-09009-037-0 03 1 9210-9308 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94247-355-1 18 1 9210-9406 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. UNITED KINGDOM EQUIPMENT(EK3) M11X122 		8-94247-355-1 18 1 9407- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9210-9406 ●
3 00.293 BOLT; CYL HD TO BLOCK
UNITED KINGDOM EQUIPMENT(EK3) M11X122 		8-94455-667-0 18 1 9407- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9407- ●
4 00.283 GUIDE; VLV
(B) INLET 		8-94206-762-0 04 1 9210- ● ● ●
4 00.283 GUIDE; VLV
(A) EXHAUST 		8-94206-763-0 04 1 9210-9409 ● ● ●
4 00.283 GUIDE; VLV
(A) EXHAUST 		8-97112-882-0 04 1 9410- ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9210-9308 ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9309- ● ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-94213-384-0 04 1 9210- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94216-969-0 04 1 9210- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97022-816-0 04 1 9210-9401 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97022-817-0 04 1 9210-9411 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97119-752-0 04 1 9411- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97022-816-0 04 1 9402-9410 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97112-566-0 04 1 9411- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-94174-205-0 04 1 9210-9409 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97110-273-0 04 1 9410- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97037-802-0 04 1 9210- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		5-11711-026-0 04 1 9210-9308 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		5-11715-023-0 04 1 9210-9308 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94130-558-0 04 1 9210-9406 ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94130-558-0 04 1 9407- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-94130-559-0 04 1 9210-9406 ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST OD=36.7 		8-94130-559-0 04 1 9407- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94431-521-0 04 1 9210-9406 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94431-521-0 04 1 9407- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94431-521-0 04 1 9407- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST EXHAUST 		8-94431-522-0 04 1 9210-9406 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST EXHAUST 		8-94431-522-0 04 1 9407- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST EXHAUST 		8-94431-522-0 04 1 9407- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) REAR OD=25 		9-11129-079-0 02 1 9210- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) FRONT OD=40 		9-11219-309-0 01 1 9210- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) DRILLED PASS OD=12.3 		5-09600-013-0 04 1 9210-9308 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) UNDER FACE OD=16 		5-11129-006-0 04 1 9210-9308 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) UPPER FACE OD=18 		5-11219-008-0 05 1 9210-9308 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 9210-9308 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 9309- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		1-09600-011-2 07 1 9210- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) DRILLED PASS OD=12.3 		5-09600-013-0 05 1 9210- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9210- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9210-9310 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9311-9406 ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) 00.034 (E) OD=32 		5-11219-015-0 02 1 9407- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9407- ●
9 03.275 STUD; INL MANIF
M8X27 L=39 		8-94202-304-0 04 1 9210- ● ●
9 03.275 STUD; INL MANIF
EXC. AUSTRALIA EQUIPMENT(RR3) M8X27 L=39 		8-94202-304-0 04 1 9210- ●
9 03.275 STUD; INL MANIF
AUSTRALIA EQUIPMENT(RR3) M8X75 L=87 		9-04110-875-0 02 1 9210- ●
9 03.275 STUD; INL MANIF
AUSTRALIA EQUIPMENT(RR3) M8X107 L=120 		9-09630-014-0 01 1 9210- ●
9 03.275 STUD; INL MANIF
AUSTRALIA EQUIPMENT(RR3) 00.349 M8X83 L=96 		9-09830-163-0 01 1 9210- ●
14 03.275 STUD; EXH MANIF
00.413 M8X42 L=58 		8-97061-462-0 03 1 9210-9409 ● ● ●
14 03.275 STUD; EXH MANIF
M8X42 L=58 		8-97118-447-0 03 1 9410- ● ● ●
14 03.275 STUD; EXH MANIF
M8X30 L=46 		9-04010-830-0 04 1 9210- ● ● ●
14 03.275 STUD; EXH MANIF
08.981 M8X35 L=47 		9-04110-835-0 03 1 9210-9308 ●
14 03.275 STUD; EXH MANIF
M8X40 L=52 		9-04110-840-0 04 1 9210-9308 ●
15 00.004 BOLT; HANGER,FRT
03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9210- ●
15 00.004 BOLT; HANGER,FRT
EXC. POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9210- ● ●
15 00.004 BOLT; HANGER,FRT
POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210- ● ●
16 00.413 DOWEL; ROCKER SHAFT BRKT 8-94108-075-1 10 1 9210- ● ● ●
17 00.349 BOLT; ROCKER SHAFT BRKT
04.054 M6X25 W/LK WASHER 		0-50040-625-0 02 1 9210- ● ● ●
18 00.293 BOLT; SEAL PLATE
00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9210-9509 ● ●
18 00.293 BOLT; SEAL PLATE
08.900 M6X18 W/LK&PL WASHER 		0-50140-618-0 02 1 9210-9509 ●
21 02.270 PLUG; SPARK
SINGAPORE EQUIPMENT(S9Y) DENSO 		8-94160-627-0 04 1 9210-9403 ●
21 02.270 PLUG; SPARK
SINGAPORE EQUIPMENT(S9Y) NGK 		8-94219-943-0 04 1 9210-9403 ●
21 02.270 PLUG; SPARK
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) DENSO 		5-81380-008-0 04 1 9210-9411 ● ● ●
21 02.270 PLUG; SPARK
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) NGK 		9-82513-103-0 04 1 9210-9406 ● ● ●
21 02.270 PLUG; SPARK
EXC. AUSTRALIA EQUIPMENT(RR3), SINGAPORE EQUIPMENT(S9Y) NGK 		9-82513-103-0 04 1 9407- ● ● ●
21 02.270 PLUG; SPARK
SINGAPORE EQUIPMENT(S9Y) DENSO 		8-94160-627-0 04 1 9404-9410 ●
21 02.270 PLUG; SPARK
SINGAPORE EQUIPMENT(S9Y) NGK 		8-94219-943-0 04 1 9404- ●
21 02.270 PLUG; SPARK
UNITED KINGDOM EQUIPMENT(EK3) NGK 		8-94217-232-0 04 1 9210-9406 ●
21 02.270 PLUG; SPARK
AUSTRALIA EQUIPMENT(RR3) NGK 		8-94120-560-0 04 1 9210-9308 ● ●
21 02.270 PLUG; SPARK
AUSTRALIA EQUIPMENT(RR3) NGK 		8-94120-560-0 04 1 9309- ●
25 00.293 PLUG; CYL HD 8-94220-423-1 01 1 9210- ● ● ●
47 00.413 STUD; CYL HD
00.349 M8X33 L=44 		8-94232-311-0 01 1 9210- ● ● ●
47 00.413 STUD; CYL HD
00.349 M8X18 L=29 		8-94232-312-0 02 1 9210- ● ● ●
48 00.293 PLUG; CYL HD,INL SIDE
00.253 OD=6.3 		8-94200-790-2 01 1 9210-9409 ● ●
48 00.293 PLUG; CYL HD,INL SIDE
00.253 OD=6.3 		8-94200-790-2 01 1 9410- ● ● ●
48 00.293 PLUG; CYL HD,INL SIDE
AUSTRALIA EQUIPMENT(RR3) OD=7 		8-94407-625-0 01 1 9210- ●
49 00.293 COVER; OIL DRAIN,CYL HD 8-94178-447-0 01 1 9210- ● ●
50 00.349 STUD; ROCKER SHAFT BRKT
M8X65 L=81 		9-04020-865-0 10 1 9210- ● ● ●
51 00.413 STUD; HANGER
POWER STEERING<N40> M8X60 L=72 		9-04110-860-0 01 1 9210- ● ●
136 03.901 STUD; FUEL PUMP
03.726 M8X18 L=38 		8-94146-549-0 02 1 9210-9509 ● ●
136 03.901 STUD; FUEL PUMP
EXC. AUSTRALIA EQUIPMENT(RR3) 03.726 M8X18 L=38 		8-94146-549-0 02 1 9210-9509 ●
168 00.004 HANGER; ENG,FRT 8-94472-343-0 01 1 9210- ● ● ●
168 00.004 HANGER; ENG,FRT
01.531 		5-11777-054-0 01 1 9210-9308 ●
çizim 68503
11 36 10 3 3 168 107 2 14 1 4 4 7 7 7 5 5 7 27 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL
SINGAPORE EQUIPMENT(S9Y) 		8-94450-254-0 01 1 9210-9403 ●
1 00.269 HEAD ASM; CYL
EXC. SINGAPORE EQUIPMENT(S9Y) 		8-94451-006-0 01 1 9210-9403 ●
1 00.269 HEAD ASM; CYL 8-94451-006-1 01 1 9404- ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 		8-97023-680-1 01 1 9402-9406 ●
1 00.269 HEAD ASM; CYL
EXC. SINGAPORE EQUIPMENT(S9Y) 		8-97023-680-3 01 1 9407-9411 ●
1 00.269 HEAD ASM; CYL
EXC. SINGAPORE EQUIPMENT(S9Y) 		8-97119-761-1 01 1 9411- ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97023-678-1 01 1 9210-9308 ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97023-678-1 01 1 9309-9401 ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97023-680-1 01 1 9210-9308 ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97023-680-1 01 1 9309-9401 ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 		8-97023-678-1 01 1 9402-9406 ●
1 00.269 HEAD ASM; CYL
SINGAPORE EQUIPMENT(S9Y) 		8-97023-678-3 01 1 9407-9410 ●
1 00.269 HEAD ASM; CYL
SINGAPORE EQUIPMENT(S9Y) 		8-97119-760-1 01 1 9411- ●
1 00.269 HEAD ASM; CYL 8-97070-597-0 01 1 9210-9409 ●
1 00.269 HEAD ASM; CYL 8-97111-155-0 01 1 9410- ●
1 00.269 HEAD ASM; CYL 8-94104-997-1 01 1 9210-9308 ●
1 00.269 HEAD ASM; CYL 8-94431-523-0 01 1 9210-9401 ●
1 00.269 HEAD ASM; CYL
EXC. THAILAND EQUIPMENT(PM9) 		8-94431-523-0 01 1 9402-9406 ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 		8-94431-523-0 01 1 9407- ●
1 00.269 HEAD ASM; CYL
THAILAND EQUIPMENT(PM9) 		8-97108-725-0 01 1 9402- ●
1 00.269 HEAD ASM; CYL 8-94431-520-0 01 1 9210-9406 ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-520-0 01 1 9407- ●
1 00.269 HEAD ASM; CYL 8-94431-520-0 01 1 9407- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97041-767-0 01 1 9210- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-053-0 01 1 9210- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94174-279-0 01 1 9210- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		5-11141-082-1 01 1 9210-9308 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9210- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. THAILAND EQUIPMENT(PM9) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9210- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. THAILAND EQUIPMENT(PM9) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9210- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M12X102 HEX SOCKET 		8-94200-751-0 10 1 9210- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X117 		5-09009-036-0 16 1 9210-9308 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M11X117 		5-09009-037-0 03 1 9210-9308 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94247-355-1 18 1 9210-9406 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. UNITED KINGDOM EQUIPMENT(EK3) M11X122 		8-94247-355-1 18 1 9407- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9210-9406 ●
3 00.293 BOLT; CYL HD TO BLOCK
UNITED KINGDOM EQUIPMENT(EK3) M11X122 		8-94455-667-0 18 1 9407- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9407- ●
4 00.283 GUIDE; VLV
(B) INLET 		8-94206-762-0 04 1 9210- ● ● ●
4 00.283 GUIDE; VLV
(A) EXHAUST 		8-94206-763-0 04 1 9210-9409 ● ● ●
4 00.283 GUIDE; VLV
(A) EXHAUST 		8-97112-882-0 04 1 9410- ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9210-9308 ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9309- ● ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-94213-384-0 04 1 9210- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94216-969-0 04 1 9210- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97022-816-0 04 1 9210-9401 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97022-817-0 04 1 9210-9411 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97119-752-0 04 1 9411- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97022-816-0 04 1 9402-9410 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97112-566-0 04 1 9411- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-94174-205-0 04 1 9210-9409 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97110-273-0 04 1 9410- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97037-802-0 04 1 9210- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		5-11711-026-0 04 1 9210-9308 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		5-11715-023-0 04 1 9210-9308 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94130-558-0 04 1 9210-9406 ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94130-558-0 04 1 9407- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-94130-559-0 04 1 9210-9406 ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST OD=36.7 		8-94130-559-0 04 1 9407- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94431-521-0 04 1 9210-9406 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94431-521-0 04 1 9407- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94431-521-0 04 1 9407- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST EXHAUST 		8-94431-522-0 04 1 9210-9406 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST EXHAUST 		8-94431-522-0 04 1 9407- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST EXHAUST 		8-94431-522-0 04 1 9407- ●
6 00.253 PLUG; PLATE
OD=11.9 		9-09860-522-0 04 1 9210-9308 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) REAR OD=25 		9-11129-079-0 02 1 9210- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) FRONT OD=40 		9-11219-309-0 01 1 9210- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) DRILLED PASS OD=12.3 		5-09600-013-0 04 1 9210-9308 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) UNDER FACE OD=16 		5-11129-006-0 04 1 9210-9308 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) UPPER FACE OD=18 		5-11219-008-0 05 1 9210-9308 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 9210-9308 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 9309- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		1-09600-011-2 07 1 9210- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) DRILLED PASS OD=12.3 		5-09600-013-0 05 1 9210- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9210- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9210-9310 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9311-9406 ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) 00.034 (E) OD=32 		5-11219-015-0 02 1 9407- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9407- ●
10 02.270 PLUG; GLOW 8-94319-700-1 04 1 9210-9308 ●
10 02.270 PLUG; GLOW
THAILAND EQUIPMENT(PM9) 00.293 		5-11119-007-1 04 1 9210-9401 ●
10 02.270 PLUG; GLOW
UNITED KINGDOM EQUIPMENT(EK3) NGK 		8-94175-158-1 04 1 9210- ●
10 02.270 PLUG; GLOW
UNITED KINGDOM EQUIPMENT(EK3) BOSCH 		8-94133-759-7 04 1 9410- ●
10 02.270 PLUG; GLOW
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 		8-94140-115-5 04 1 9210- ●
10 02.270 PLUG; GLOW 8-94140-115-5 04 1 9210- ●
11 02.251 CONNECTOR; GLOW PLUG
T=0.8 		5-19732-014-1 01 1 9210-9308 ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) T=1.0 		8-94133-760-0 01 1 9210-9602 ● ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) 		8-97146-517-0 01 1 9603- ● ●
14 03.275 STUD; EXH MANIF
00.413 M8X42 L=58 		8-97061-462-0 03 1 9210-9409 ● ● ●
14 03.275 STUD; EXH MANIF
M8X42 L=58 		8-97118-447-0 03 1 9410- ● ● ●
14 03.275 STUD; EXH MANIF
M8X30 L=46 		9-04010-830-0 04 1 9210- ● ● ●
14 03.275 STUD; EXH MANIF
08.981 M8X35 L=47 		9-04110-835-0 03 1 9210-9308 ●
14 03.275 STUD; EXH MANIF
M8X40 L=52 		9-04110-840-0 04 1 9210-9308 ●
27 00.253 PLUG; HOT
00.293 		8-94250-722-0 04 1 9210-9308 ●
36 00.283 SEAL; OIL,VLV GUIDE 5-12569-006-0 08 1 9210-9308 ●
107 00.004 PIECE; DIST HANGER
03.275 ID=9 OD=18 T=5 		9-14149-173-0 02 1 9210-9308 ●
168 00.004 HANGER; ENG,FRT 8-94472-343-0 01 1 9210- ● ● ●
168 00.004 HANGER; ENG,FRT
01.531 		5-11777-054-0 01 1 9210-9308 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
