0-10 — CYLINDER HEAD COVER (#41261) — 94 parça

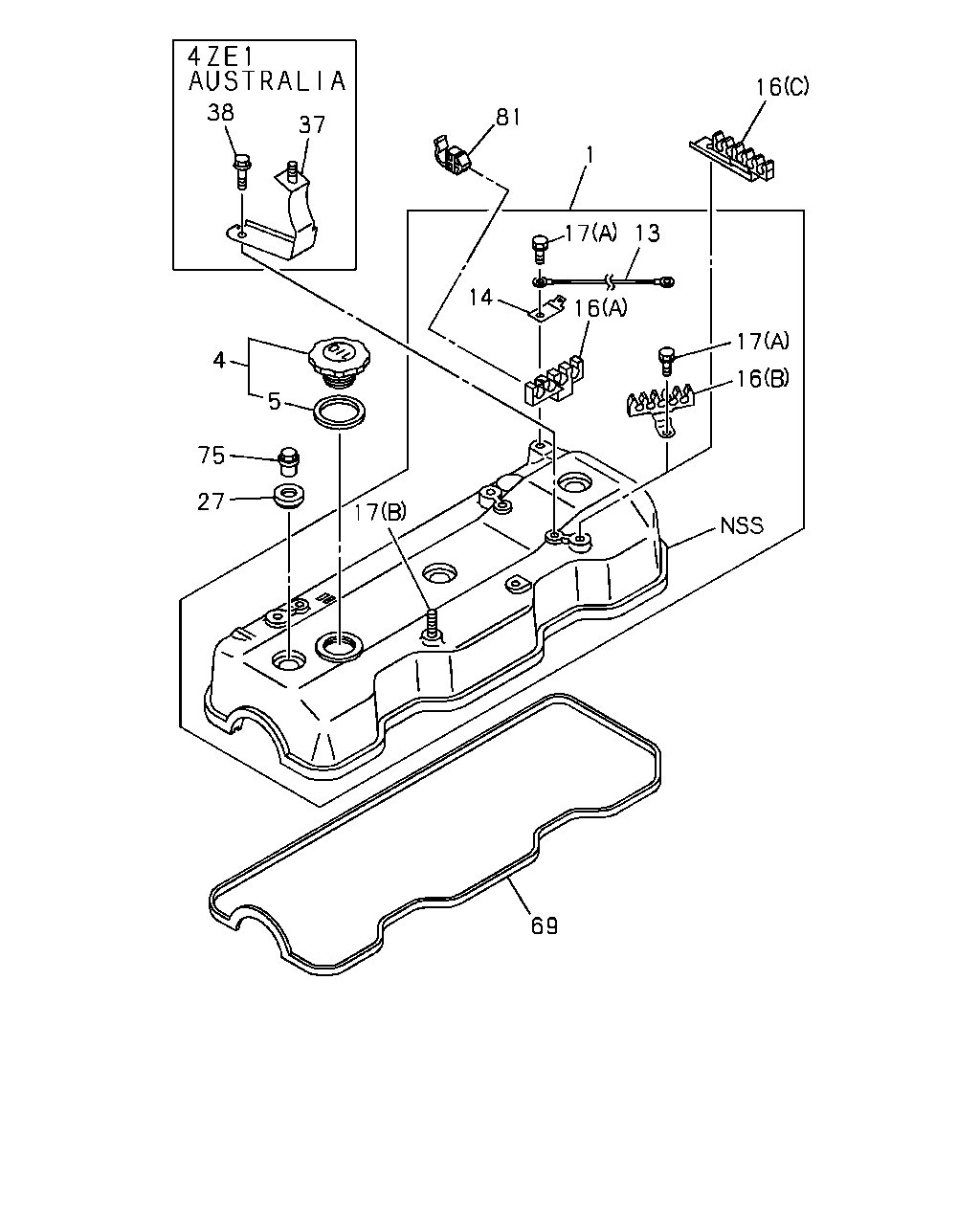

çizim 68499
81 16 17 13 14 16 4 5 75 27 17 17 16 69 38 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 9210- ● ● ● ● ●
4 01.758 CAP; OIL FILLER
OD=45 		9-11751-038-1 01 1 9210-9308 ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 9210- ● ● ● ● ●
13 00.413 CABLE; BONDING,HD COVER
02.240 		8-94112-860-0 01 1 9210- ● ● ●
14 00.413 TERMINAL; EARTH,HD COVER
02.530 		8-94102-644-0 01 1 9210- ● ● ●
16 02.251 CLIP; CABLE
(B) 		8-94160-680-0 01 1 9210- ● ●
16 02.251 CLIP; CABLE
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-94160-680-0 01 1 9210- ●
16 02.251 CLIP; CABLE
(A) 		8-94152-503-0 01 1 9210- ● ●
16 02.251 CLIP; CABLE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-94152-503-0 01 1 9210- ●
16 02.251 CLIP; CABLE
AUSTRALIA EQUIPMENT(RR3) 03.680 (C) 		8-94457-981-2 01 1 9210- ●
16 02.251 CLIP; CABLE
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94457-980-2 01 1 9210- ●
17 00.413 BOLT; CLIP TO HD COVER
00.206 (A) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9210- ● ●
17 00.413 BOLT; CLIP TO HD COVER
EXC. AUSTRALIA EQUIPMENT(RR3) 00.206 (A) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9210- ●
17 00.413 BOLT; CLIP TO HD COVER
01.428 (B) STUD M6X12 L=21 		9-04110-612-0 01 1 9210- ● ● ●
17 00.413 BOLT; CLIP TO HD COVER
AUSTRALIA EQUIPMENT(RR3) 00.206 (A) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9210- ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-94202-456-3 03 1 9210-9406 ● ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 00.413 		9-11179-808-0 02 1 9210-9308 ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 00.413 ID=20.0 		8-94153-051-0 03 1 9210-9406 ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 00.413 ID=20.0 		8-94153-051-0 03 1 9407-9501 ● ● ● ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-94202-456-3 03 1 9502- ● ● ● ● ●
37 00.413 BRACKET; DUCT
AUSTRALIA EQUIPMENT(RR3) 		8-97062-073-1 01 1 9210- ●
38 00.413 BOLT; DUCT BRKT
AUSTRALIA EQUIPMENT(RR3) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9210- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94214-985-0 01 1 9210- ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94447-570-0 01 1 9210-9308 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94247-903-1 01 1 9210-9406 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94247-903-1 01 1 9407-9502 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97118-768-0 01 1 9503-9605 ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 9606- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94433-744-0 01 1 9210-9406 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94433-744-0 01 1 9407-9502 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94433-744-0 01 1 9407-9502 ●
75 00.413 NUT; CAP,HD COVER
M8 OD=24 		8-94173-430-0 03 1 9210-9407 ● ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 9210-9407 ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 9408- ● ● ● ● ●
81 00.413 CLIP; HARNESS
AUSTRALIA EQUIPMENT(RR3) 01.240 		8-94183-979-0 01 1 9210- ●

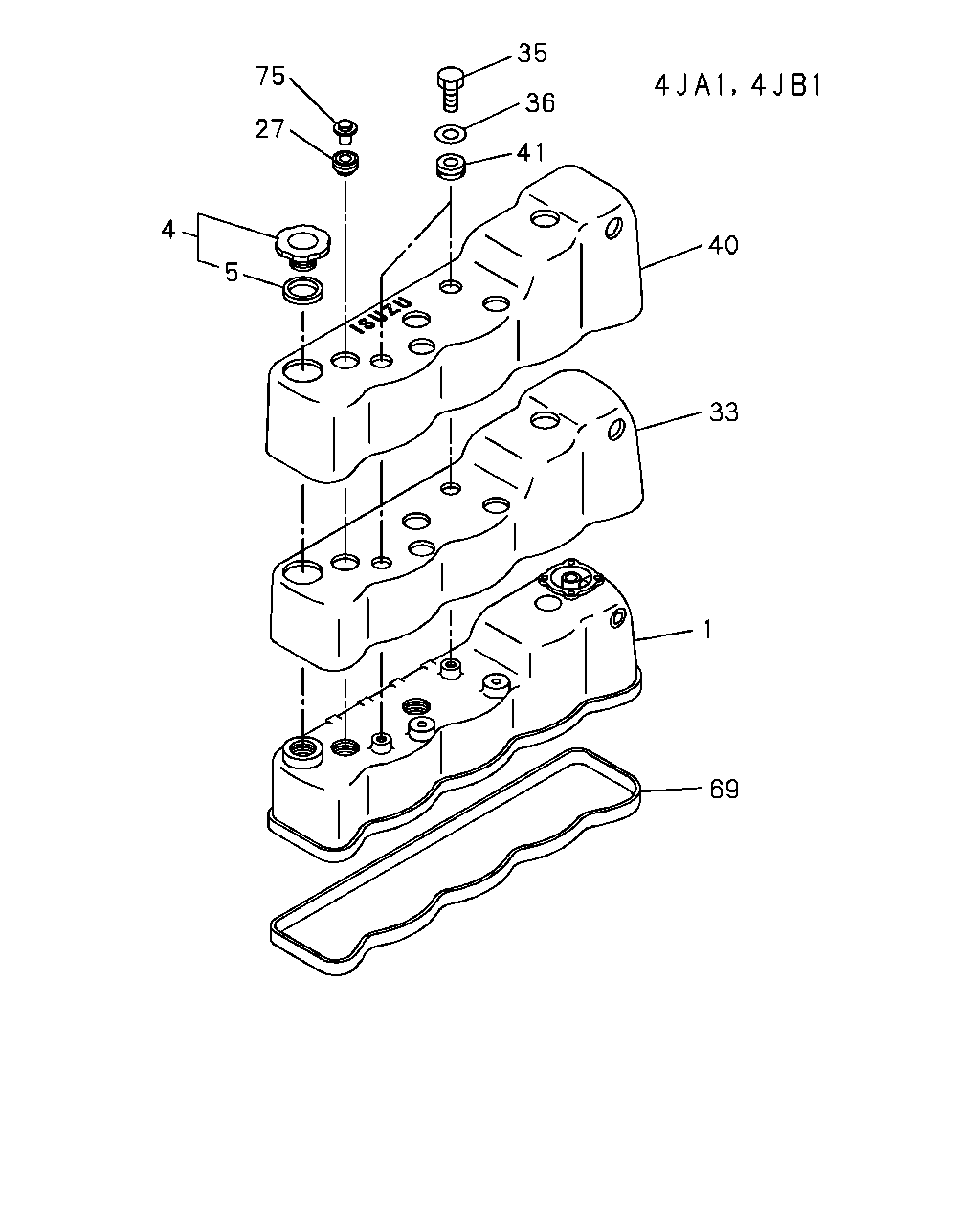

çizim 68500
35 36 75 27 41 4 5 40 33 1 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.386 COVER; CYL HD 8-94360-532-0 01 1 9210- ● ●
1 00.386 COVER; CYL HD
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94360-532-0 01 1 9210- ●
1 00.386 COVER; CYL HD
AUSTRALIA EQUIPMENT(RR3) 		8-94360-531-1 01 1 9210- ●
1 00.386 COVER; CYL HD 5-11170-211-1 01 1 9210-9308 ●
1 00.386 COVER; CYL HD 8-94433-742-2 01 1 9210- ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 9210- ● ● ● ● ●
4 01.758 CAP; OIL FILLER
OD=45 		9-11751-038-1 01 1 9210-9308 ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 9210- ● ● ● ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-94202-456-3 03 1 9210-9406 ● ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 00.413 		9-11179-808-0 02 1 9210-9308 ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 00.413 ID=20.0 		8-94153-051-0 03 1 9210-9406 ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 00.413 ID=20.0 		8-94153-051-0 03 1 9407-9501 ● ● ● ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-94202-456-3 03 1 9502- ● ● ● ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER
THAILAND EQUIPMENT(PM9) 		8-94433-730-4 01 1 9210- ●
33 00.386 RUBBER; SPACE,CYL HD COVER
EXC. THAILAND EQUIPMENT(PM9) 		8-97043-020-0 01 1 9210- ● ●
35 00.293 BOLT; NOISE SHIELD COVER
08.900 M8X14 		0-20800-814-0 02 1 9210- ● ●
36 00.413 WASHER; PL,NOISE SHIELD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 9210- ● ●
40 00.386 COVER
THAILAND EQUIPMENT(PM9) 		8-94474-862-1 01 1 9210- ●
40 00.386 COVER
EXC. THAILAND EQUIPMENT(PM9) 		8-97043-018-0 01 1 9210- ● ●
41 00.413 GROMMET; HD COVER,OUTER
THAILAND EQUIPMENT(PM9) 		8-94256-959-0 02 1 9210-9407 ●
41 00.413 GROMMET; HD COVER,OUTER 8-94256-959-0 02 1 9408- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94214-985-0 01 1 9210- ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94447-570-0 01 1 9210-9308 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94247-903-1 01 1 9210-9406 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94247-903-1 01 1 9407-9502 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97118-768-0 01 1 9503-9605 ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 9606- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94433-744-0 01 1 9210-9406 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94433-744-0 01 1 9407-9502 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94433-744-0 01 1 9407-9502 ●
75 00.413 NUT; CAP,HD COVER
M8 OD=24 		8-94173-430-0 03 1 9210-9407 ● ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 9210-9407 ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 9408- ● ● ● ● ●
çizim 68508
28 68 27 4 15 1 7 10 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.386 COVER; CYL HD 8-94360-532-0 01 1 9210- ● ●
1 00.386 COVER; CYL HD
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94360-532-0 01 1 9210- ●
1 00.386 COVER; CYL HD
AUSTRALIA EQUIPMENT(RR3) 		8-94360-531-1 01 1 9210- ●
1 00.386 COVER; CYL HD 5-11170-211-1 01 1 9210-9308 ●
1 00.386 COVER; CYL HD 8-94433-742-2 01 1 9210- ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 9210- ● ● ● ● ●
4 01.758 CAP; OIL FILLER
OD=45 		9-11751-038-1 01 1 9210-9308 ●
7 00.413 PLATE; BREATHER,HD COVER 5-11179-046-0 01 1 9210-9308 ●
10 00.413 RIVET; PLATE,BREATHER 9-06520-412-0 01 1 9210-9308 ●
15 00.413 NIPPLE; BREATHER
01.762 		5-11179-048-0 01 1 9210-9308 ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-94202-456-3 03 1 9210-9406 ● ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 00.413 		9-11179-808-0 02 1 9210-9308 ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 00.413 ID=20.0 		8-94153-051-0 03 1 9210-9406 ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 00.413 ID=20.0 		8-94153-051-0 03 1 9407-9501 ● ● ● ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-94202-456-3 03 1 9502- ● ● ● ● ●
28 00.413 BOLT; HD COVER 8-94253-760-1 02 1 9210-9308 ●
68 00.413 WASHER; CAP NUT,HD COVER 9-11179-132-0 02 1 9210-9308 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94214-985-0 01 1 9210- ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94447-570-0 01 1 9210-9308 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94247-903-1 01 1 9210-9406 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94247-903-1 01 1 9407-9502 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97118-768-0 01 1 9503-9605 ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 9606- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94433-744-0 01 1 9210-9406 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94433-744-0 01 1 9407-9502 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94433-744-0 01 1 9407-9502 ●
