◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11463 - FVR(MALAYSIA) 240PS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#41246) — 37 parça
çizim 110591
584 744 449
BalonParca AdiParca NoAdetTipApplied Date
449 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> 		1-82410-143-1 01 1 1112-
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1112-
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1112-
çizim 110593
51 45 50 51 44 51
BalonParca AdiParca NoAdetTipApplied Date
44 HORN; HIGH NOTE 8-98022-022-0 01 1 1112-
45 HORN; LOW NOTE 8-98022-023-0 01 1 1112-
50 BRACKET; HORN 8-97613-300-2 01 1 1112-
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1112-
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1112-

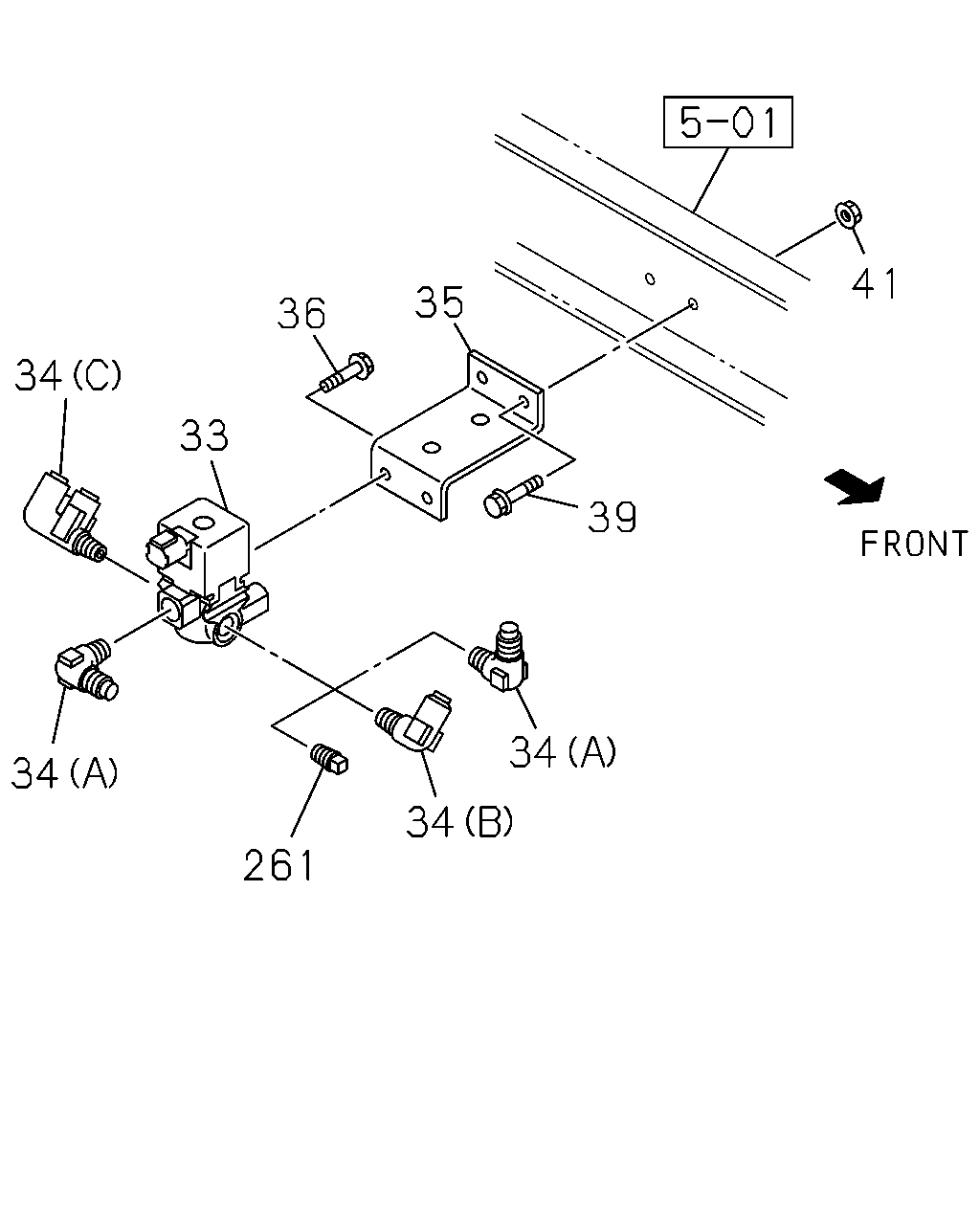

çizim 110601
41 35 36 34 33 39 34 34 34 261
BalonParca AdiParca NoAdetTipApplied Date
33 VALVE; MAG,PTO CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> 		1-82563-871-2 01 1 1112-
33 VALVE; MAG,PTO CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 1112-
33 VALVE; MAG,PTO CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> 		1-82563-871-2 01 1 1112-
34 CONNECTOR; MAG VLV,INL PORT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112-
34 CONNECTOR; MAG VLV,INL PORT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112-
34 CONNECTOR; MAG VLV,INL PORT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
34 CONNECTOR; MAG VLV,INL PORT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
34 CONNECTOR; MAG VLV,INL PORT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
34 CONNECTOR; MAG VLV,INL PORT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (C) 		8-98179-708-0 01 1 1112-
34 CONNECTOR; MAG VLV,INL PORT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98179-708-0 01 1 1112-
34 CONNECTOR; MAG VLV,INL PORT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) 		8-98179-708-0 01 1 1112-
35 BRACKET; MAG VLV,PTO CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> 		8-98154-633-0 01 1 1112-
35 BRACKET; MAG VLV,PTO CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98154-633-0 01 1 1112-
35 BRACKET; MAG VLV,PTO CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> 		8-98154-633-0 01 1 1112-
36 BOLT; MAG VLV,PTO CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 1112-
36 BOLT; MAG VLV,PTO CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 02 1 1112-
36 BOLT; MAG VLV,PTO CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 02 1 1112-
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 1112-
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 1112-
261 PLUG; MAG VLV
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1112-
çizim 110604
531
BalonParca AdiParca NoAdetTipApplied Date
531 RELAY; MAIN
24V 30A JIDECO 		8-97238-540-0 01 1 1112-1402
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403-

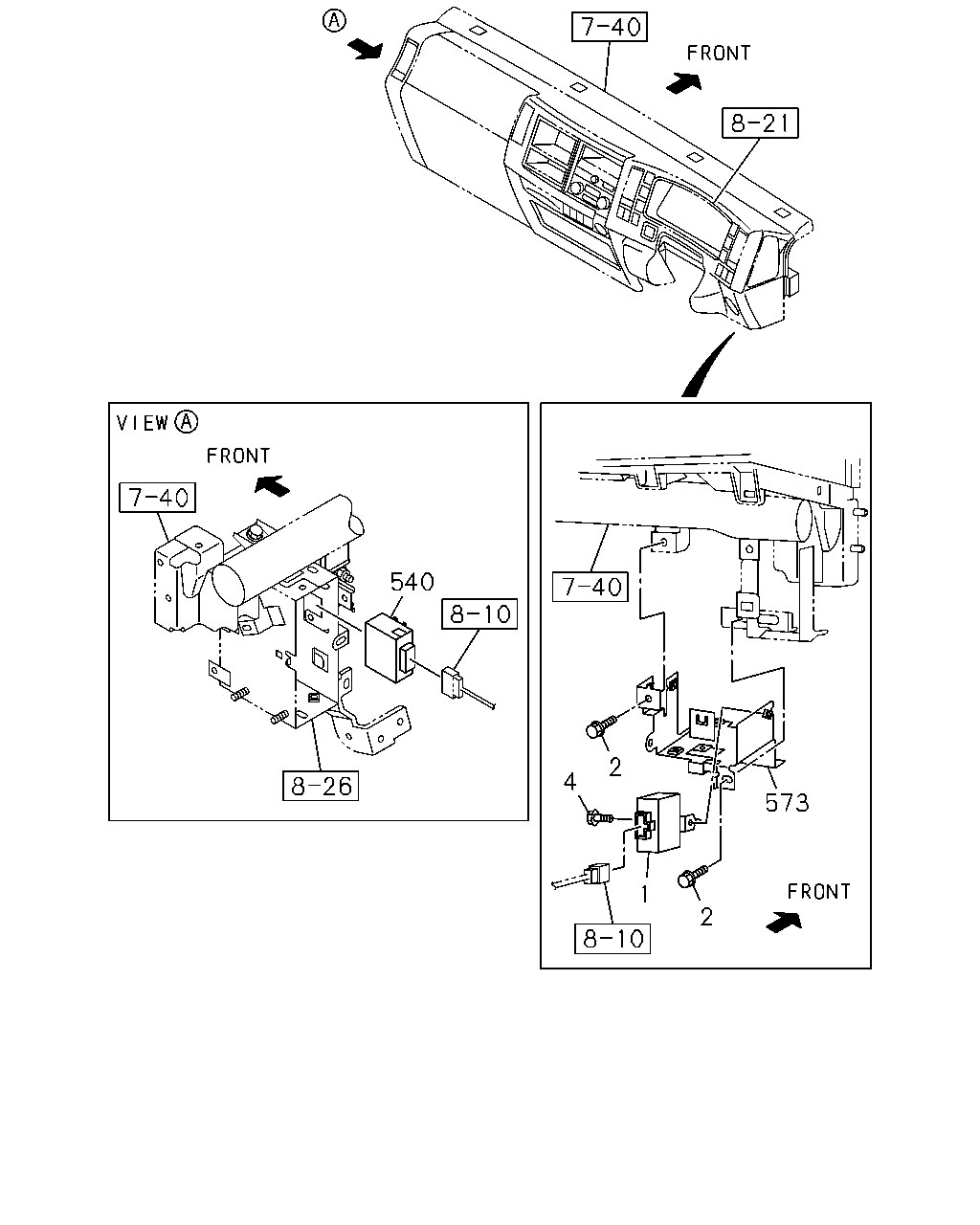

çizim 110608
540 2 4 573 1 2
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 8-98025-533-1 01 1 1112-
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1112-
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 1112-
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 1112-1308
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98233-976-0 01 1 1309-
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 1112-

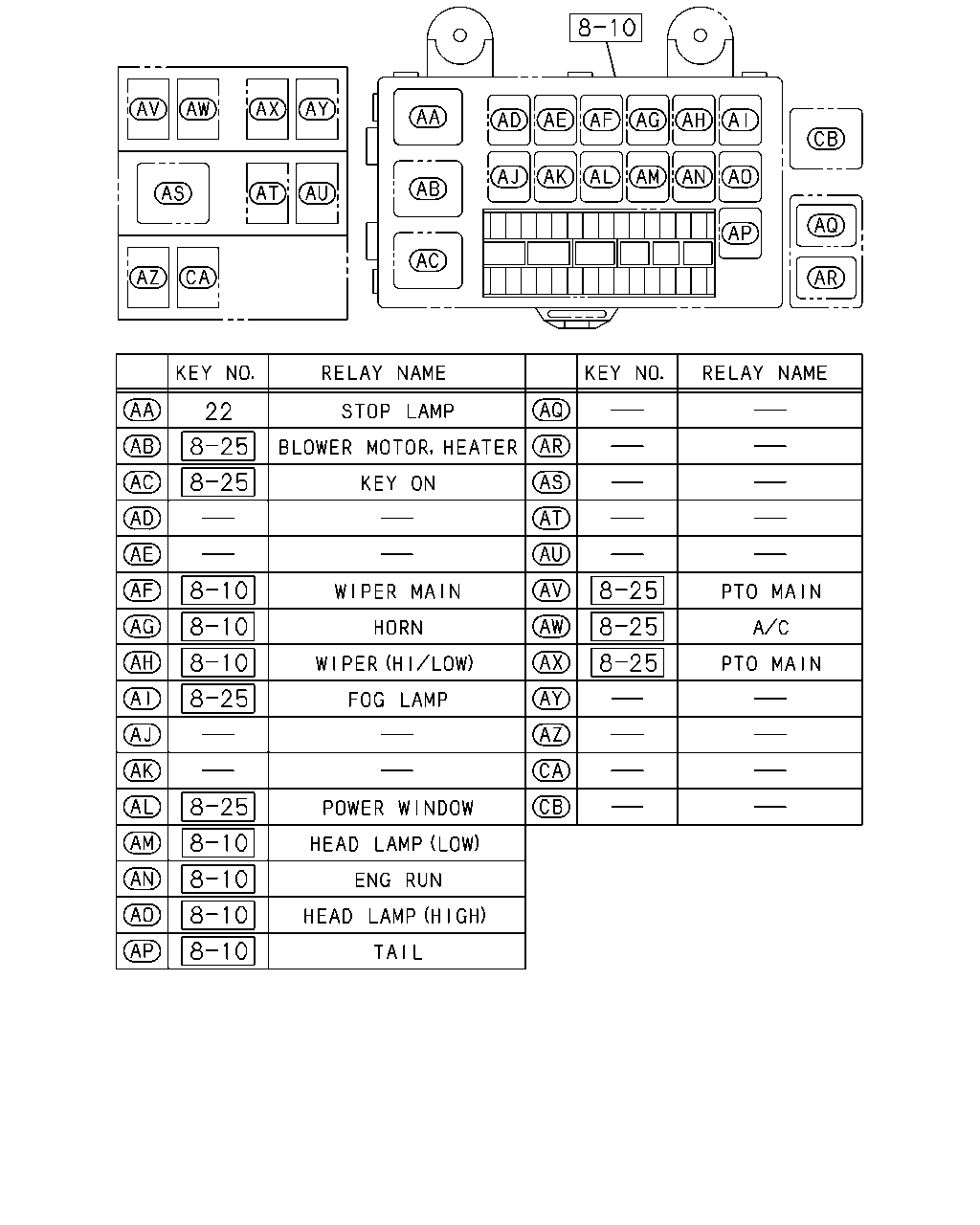

çizim 110610
22
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 1112-
