◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11463 - FVR(MALAYSIA) 240PS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#41243) — 16 parça

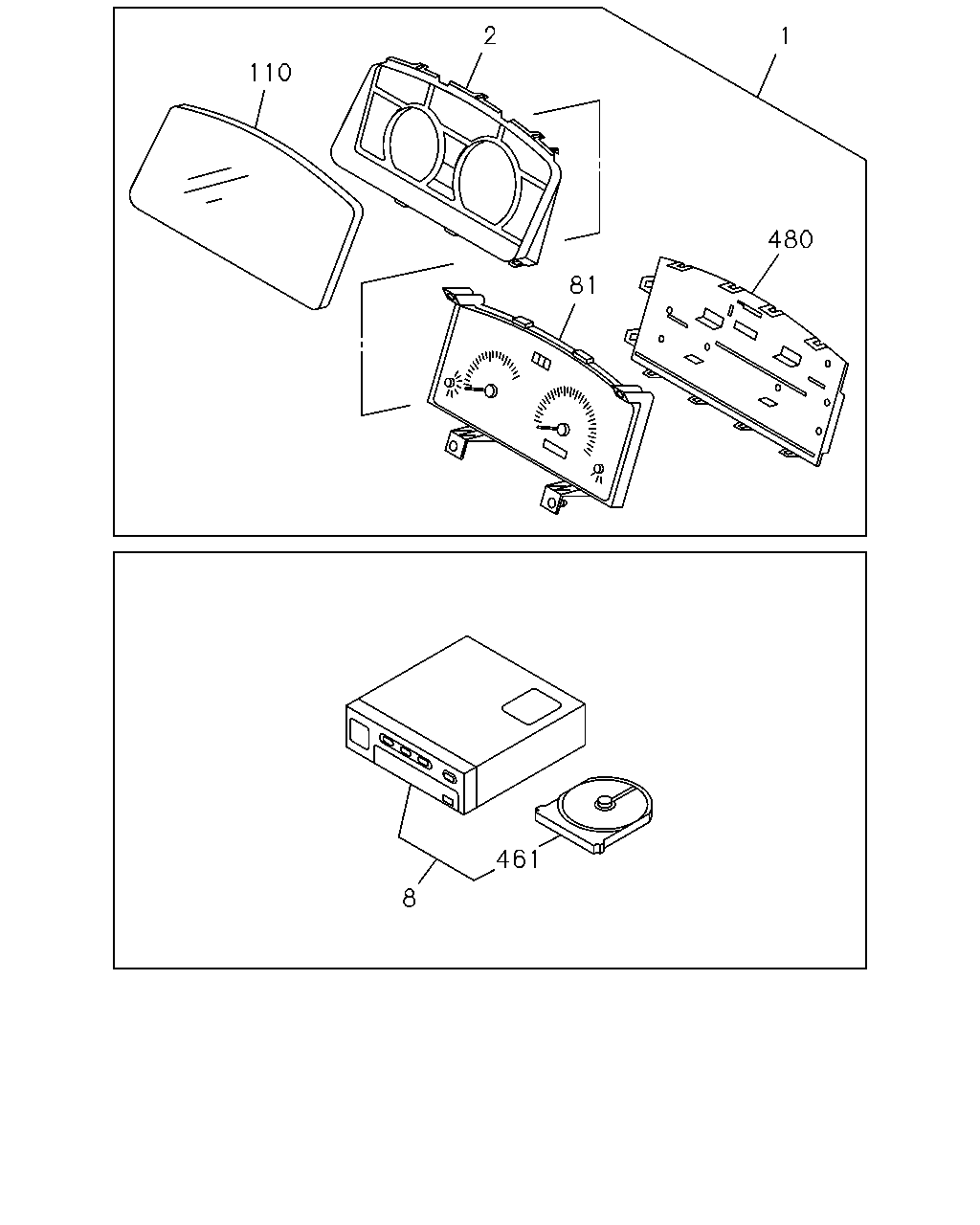

çizim 110594
2 1 110 480 81 461 8
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98161-851-1 01 1 1112-
1 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98064-911-6 01 1 1112-
2 PANEL; CLUSTER 8-98054-432-0 01 1 1112-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 1112-
81 METER SUB ASM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98162-024-0 01 1 1112-
81 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98079-680-0 01 1 1112-
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 1112-
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 1112-
480 COVER; METER
BLACK 		8-98054-433-0 01 1 1112-

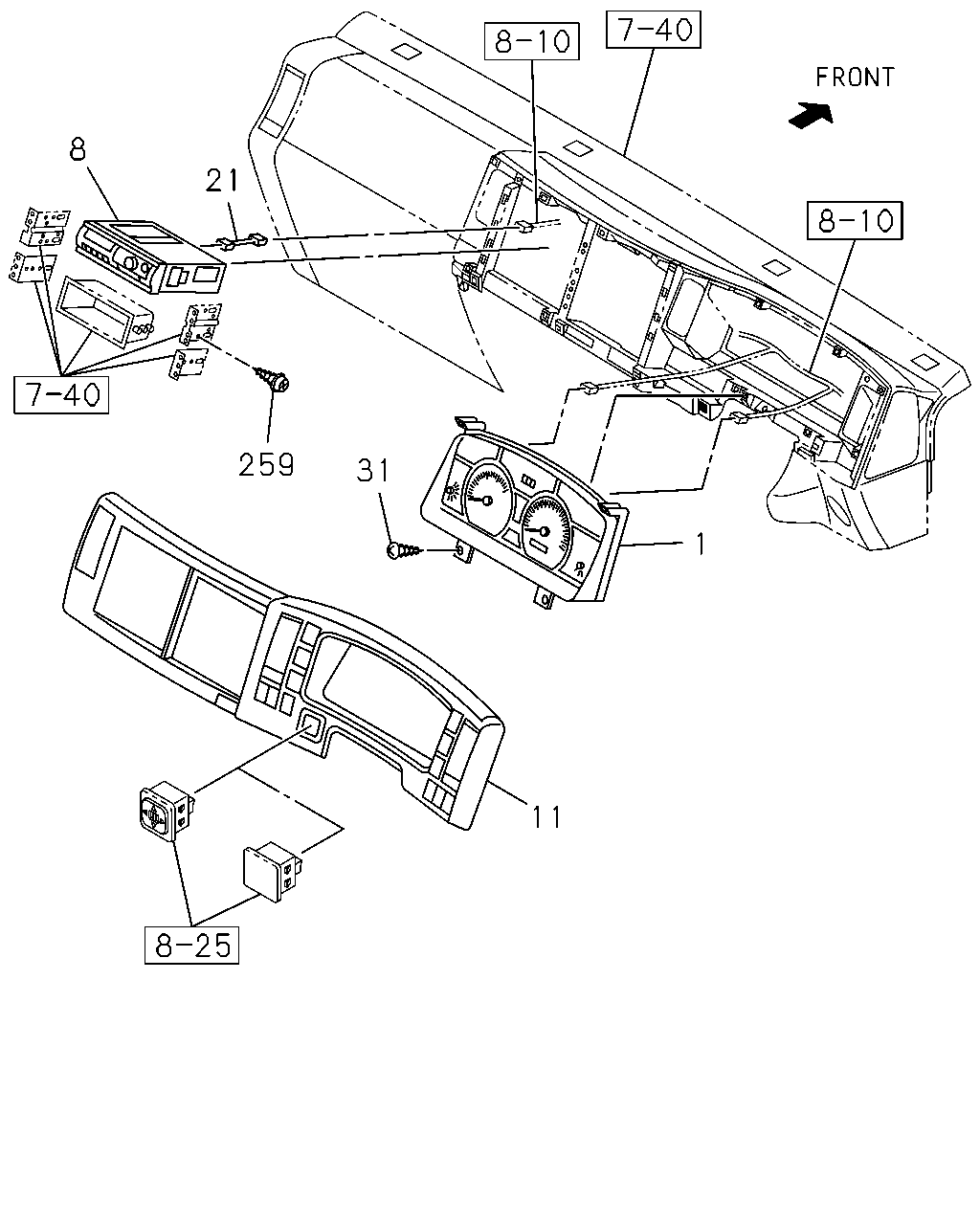

çizim 110616
8 21 259 31 1 11
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98161-851-1 01 1 1112-
1 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98064-911-6 01 1 1112-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 1112-
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1112-
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98074-077-0 01 1 1112-
31 SCREW; METER,INST PANEL
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1112-
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1112-
