Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#41242) — 263 parça

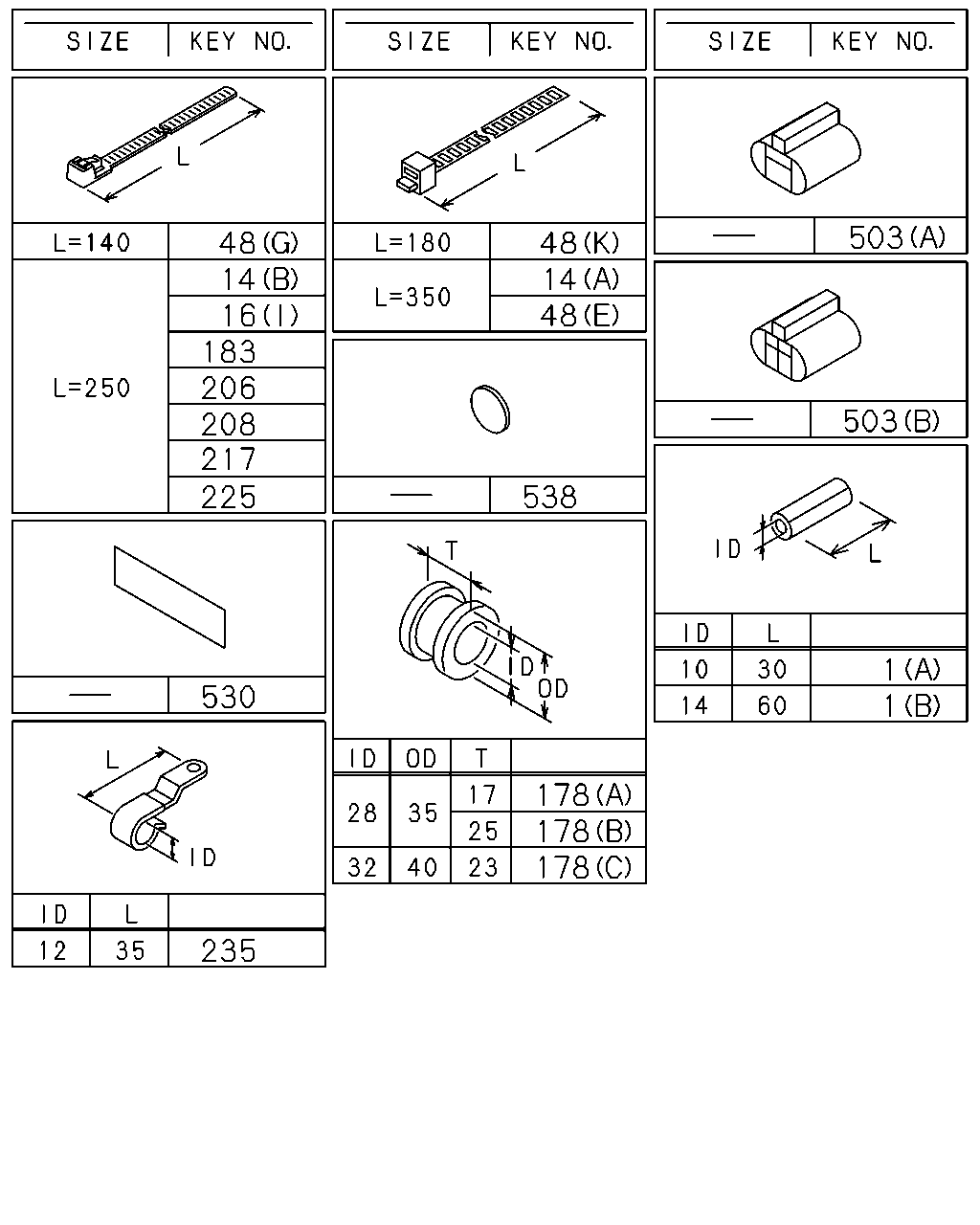

503 48 14 16 183 206 208 217 225 48 14 48 503 538 1 1 530 178 178 178 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1112-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1112-
14	CLIP; BAND,HARNESS (A) L=350	1-09707-183-0	01	1	1112-
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	08	1	1112-1205
14	CLIP; BAND,HARNESS (B) L=250	8-98216-430-0	08	1	1206-
14	CLIP; BAND,HARNESS FULLER FSO5206B OD M/T(Y4V) (B) L=250	5-09707-030-1	01	1	1112-
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	1112-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1112-
16	CLIP; HARNESS (G) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1112-
16	CLIP; HARNESS (G) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1112-
16	CLIP; HARNESS (I) L=250	5-09707-030-1	03	1	1112-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1112-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1112-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1112-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	1112-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	1112-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1112-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1112-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (H) OD=9 H=6	1-09709-178-0	01	1	1112-1405
48	CLIP; FRAME HARNESS (F) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	01	1	1112-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1112-
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	1112-
48	CLIP; FRAME HARNESS (A) ID=35 L=50	1-09701-214-0	01	1	1112-
48	CLIP; FRAME HARNESS (F) ID=33 L=83	1-09701-291-0	03	1	1112-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1112-
48	CLIP; FRAME HARNESS (G) L=140	5-09707-031-1	02	1	1112-
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	07	1	1112-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1112-1201
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	12	1	1112-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1112-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1112-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=20 L=70	1-09700-485-0	04	1	1112-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1112-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1112-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	03	1	1112-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (J) ID=16 L=40	0-95235-576-0	03	1	1112-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (K) L=180	1-09707-162-1	01	1	1112-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (L) OD=9 H=6	1-09709-178-0	01	1	1112-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1112-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1112-
178	GROMMET; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1112-
178	GROMMET; HARNESS MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1112-
178	GROMMET; HARNESS MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=32 OD=40 T=23	1-09332-112-0	01	1	1112-
178	GROMMET; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=32 OD=40 T=23	1-09332-112-0	01	1	1112-
183	CLIP; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	1112-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1112-
208	CLIP; HARNESS,MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250	5-09707-030-1	01	1	1112-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1112-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250	5-09707-030-1	03	1	1112-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	5-09707-030-1	04	1	1112-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> L=250	5-09707-030-1	04	1	1112-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6W M/T(Y2C) ID=12 L=35	5-09700-206-0	01	1	1112-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-82690-668-0	01	1	1112-
503	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B)	1-82690-666-0	01	1	1112-1405
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1112-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1112-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1112-

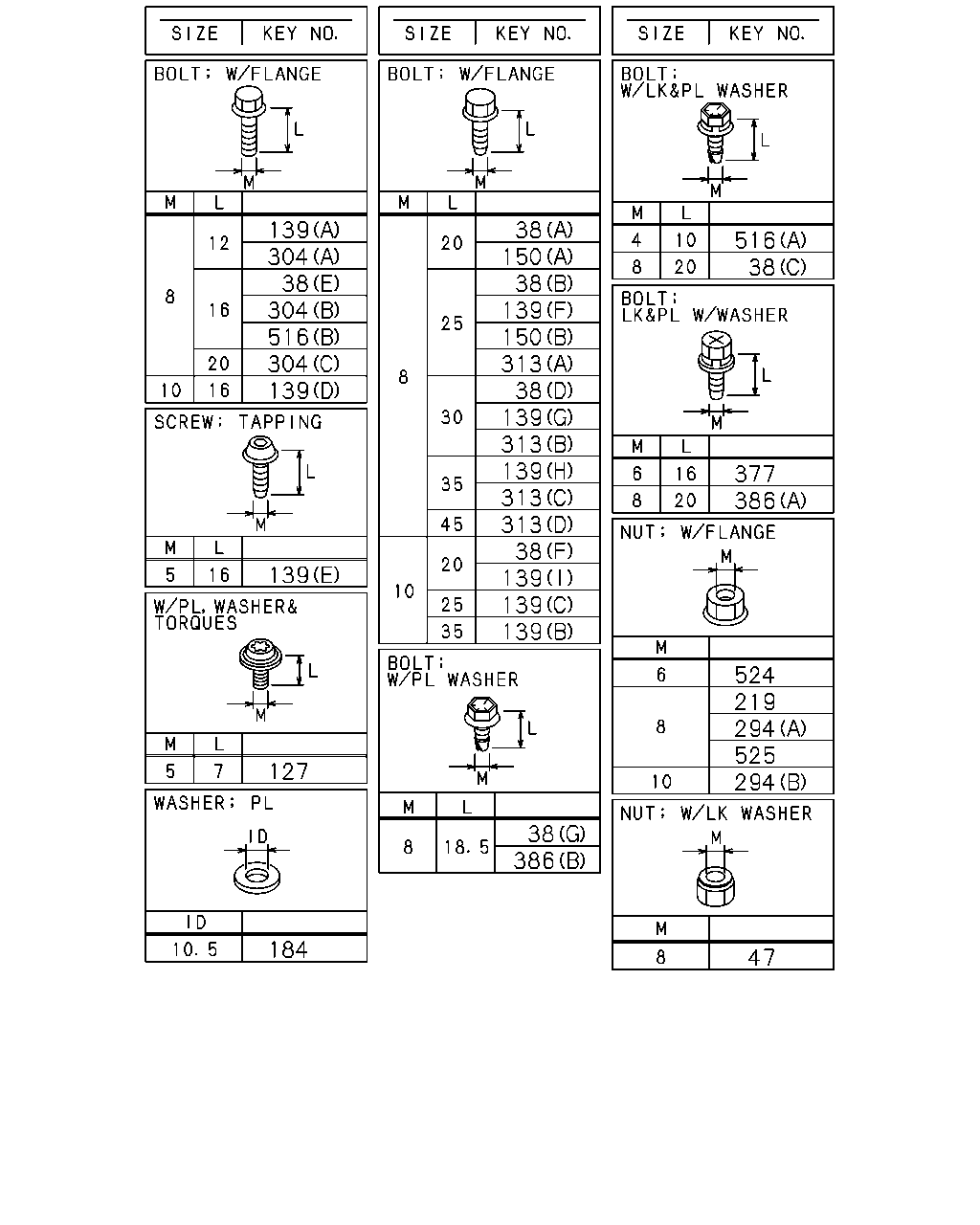

139 38 304 304 304 516 139 139 127 38 386 294 294 524 219 525 377 386 38 516 38 150 139 139 139 139 139 139 313 313 313 313 38 47 184 38 150 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1112-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	1112-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1112-
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1112-1201
38	BOLT; CLIP,HARNESS (G) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
38	BOLT; CLIP,HARNESS FULLER FSO5206B OD M/T(Y4V) (E) M8X16 FLANGE	0-28050-816-0	03	1	1112-
38	BOLT; CLIP,HARNESS MLD6W M/T(Y2C) (F) M10X20 FLANGE	0-28751-020-0	01	1	1112-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1112-
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	1112-
139	BOLT; BRKT (F) M8X25 FLANGE	0-28650-825-0	01	1	1112-
139	BOLT; BRKT (F) M8X25 FLANGE	0-28650-825-0	01	1	1112-
139	BOLT; BRKT (G) M8X30 FLANGE	0-28650-830-0	01	1	1112-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1112-
139	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	01	1	1112-
139	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	01	1	1112-
139	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) M8X35 FLANGE	0-28650-835-0	01	1	1112-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (D) M10X16 FLANGE	0-28051-016-0	03	1	1112-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (I) M10X20 FLANGE	0-28751-020-0	01	1	1112-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1112-
150	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1112-
150	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1112-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1112-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1112-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1112-
294	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	01	1	1112-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1112-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1112-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1112-
294	NUT FULLER FSO5206B OD M/T(Y4V) (B) M10 FLANGE	0-91180-210-0	01	1	1112-
304	BOLT; ENG HARNESS CLIP (A) M8X12 FLANGE	0-28050-812-0	06	1	1112-
304	BOLT; ENG HARNESS CLIP (B) M8X16 FLANGE	0-28050-816-0	05	1	1112-
304	BOLT; ENG HARNESS CLIP (C) M8X20 FLANGE	0-28050-820-0	04	1	1112-
313	BOLT; BRKT (D) M8X45 FLANGE	0-28050-845-0	01	1	1112-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1112-
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1112-
313	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1112-
313	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1112-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1112-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1112-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS (A) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1112-
516	BOLT; HARNESS MLD6W M/T(Y2C) (B) M8X16 FLANGE	0-28050-816-0	02	1	1112-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1112-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1112-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1112-

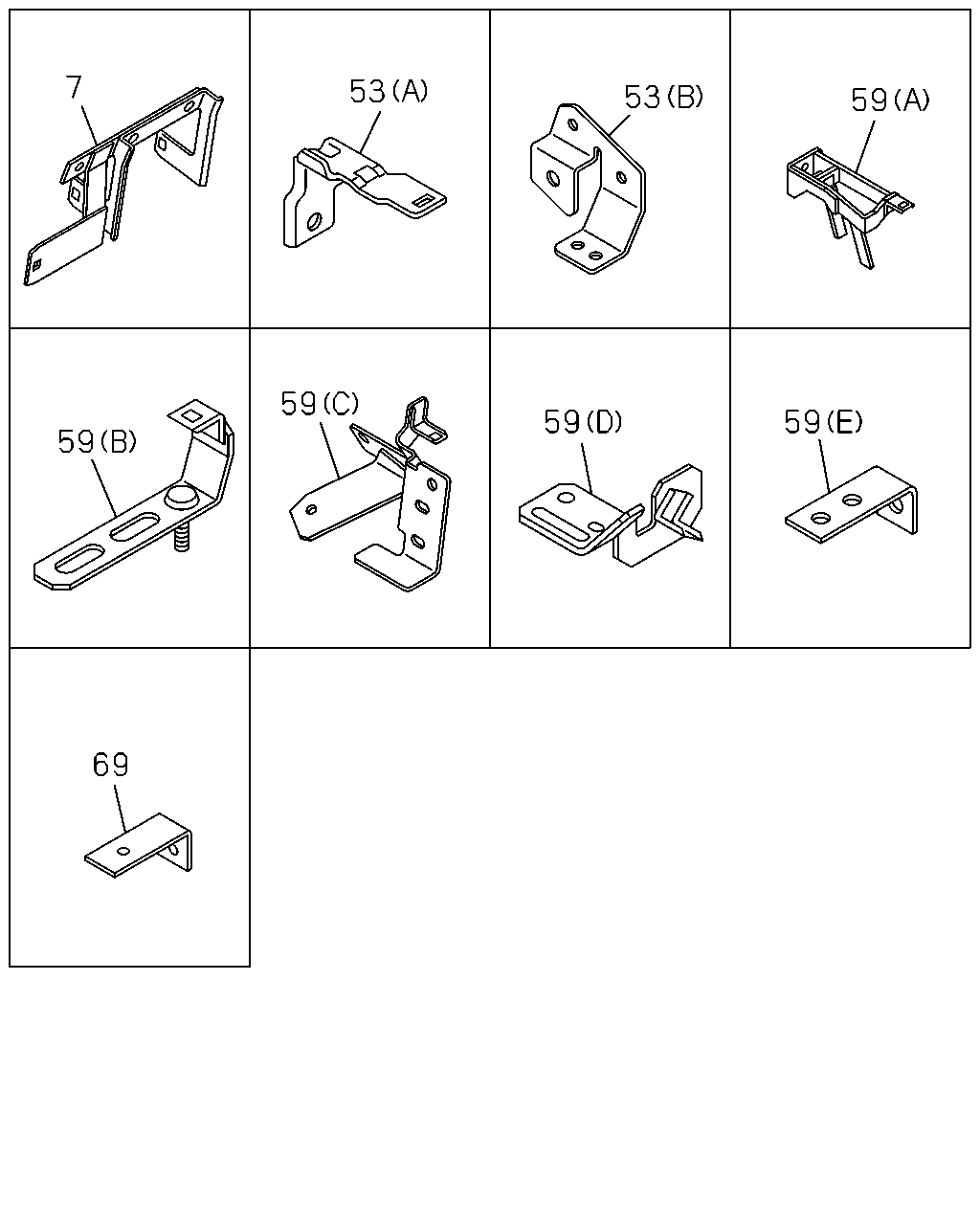

7 53 53 59 59 59 59 59 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1112-
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1112-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98084-590-0	01	1	1112-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1112-
59	BRACKET; FRAME HARNESS (B)	8-98047-730-0	02	1	1112-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1112-
59	BRACKET; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	1-21464-170-2	01	1	1112-
59	BRACKET; FRAME HARNESS MLD6W M/T(Y2C) (A)	8-97627-325-0	01	1	1112-
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (A)	8-97609-264-2	01	1	1112-
69	BRACKET; CLIP L=55	1-47475-304-0	01	1	1112-

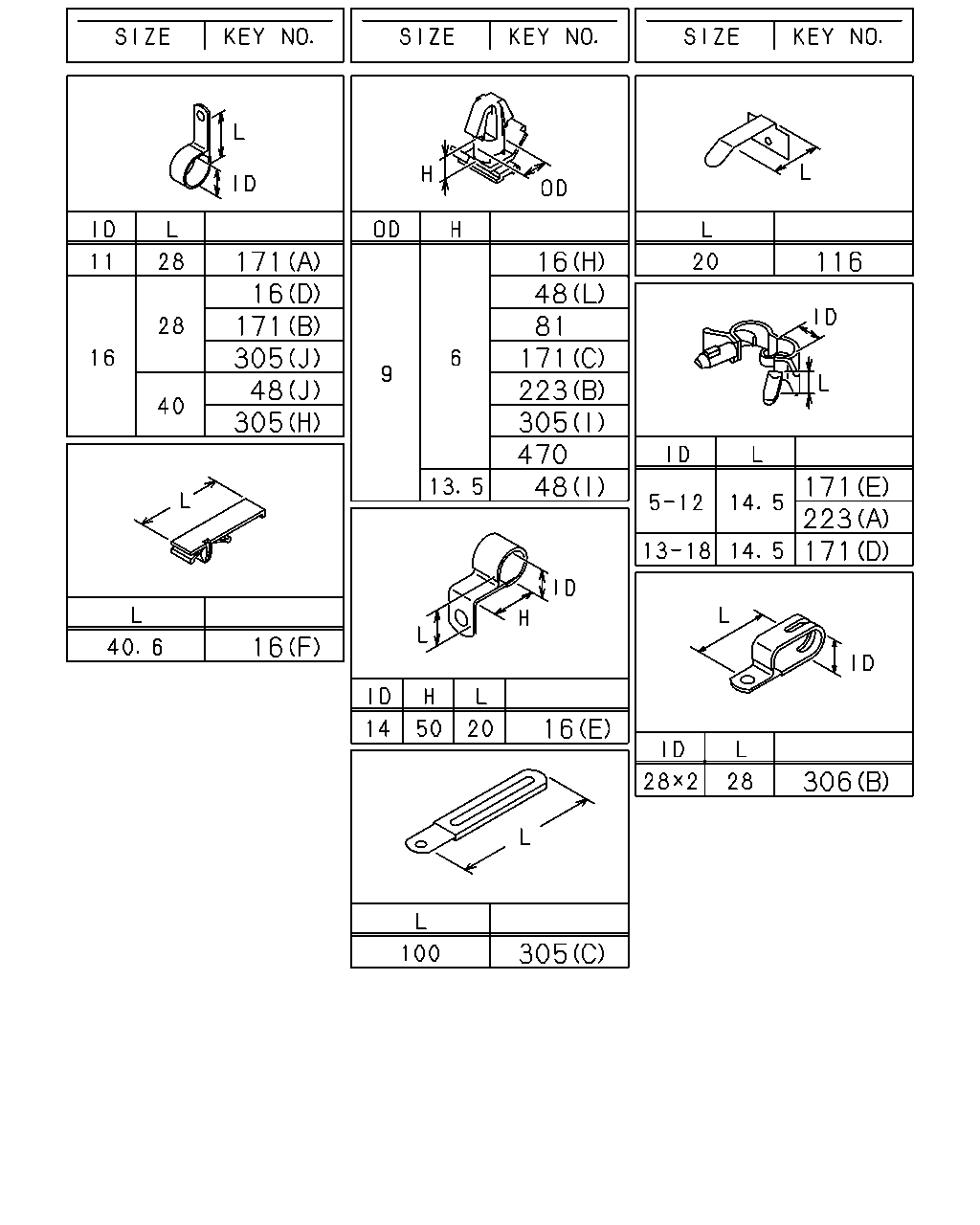

171 16 171 305 48 305 16 48 81 171 223 305 470 48 116 171 223 171 16 16 306 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	1112-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1112-
16	CLIP; HARNESS (G) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1112-
16	CLIP; HARNESS (G) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1112-
16	CLIP; HARNESS (I) L=250	5-09707-030-1	03	1	1112-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1112-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1112-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1112-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	1112-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	1112-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1112-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1112-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (H) OD=9 H=6	1-09709-178-0	01	1	1112-1405
48	CLIP; FRAME HARNESS (F) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	01	1	1112-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1112-
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	1112-
48	CLIP; FRAME HARNESS (A) ID=35 L=50	1-09701-214-0	01	1	1112-
48	CLIP; FRAME HARNESS (F) ID=33 L=83	1-09701-291-0	03	1	1112-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1112-
48	CLIP; FRAME HARNESS (G) L=140	5-09707-031-1	02	1	1112-
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	07	1	1112-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1112-1201
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	12	1	1112-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1112-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1112-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=20 L=70	1-09700-485-0	04	1	1112-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1112-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1112-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	03	1	1112-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (J) ID=16 L=40	0-95235-576-0	03	1	1112-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (K) L=180	1-09707-162-1	01	1	1112-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (L) OD=9 H=6	1-09709-178-0	01	1	1112-
81	CLIP; HARNESS OD=9 H=6	1-09709-178-0	01	1	1112-
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	03	1	1112-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	1112-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	1112-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	1112-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1112-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1112-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1112-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	1112-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	1112-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=10 & 12	1-09709-278-1	01	1	1112-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (D) ID=11 L=61	1-09700-484-0	01	1	1112-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1112-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1112-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1112-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	1112-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1112-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1112-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1112-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1112-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1112-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1112-1310
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	02	1	1311-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1112-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1112-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1112-

305 305 306 48 305 305 16 48 223 213 48 48 48 48 16 305 223 305 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	1112-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1112-
16	CLIP; HARNESS (G) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1112-
16	CLIP; HARNESS (G) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1112-
16	CLIP; HARNESS (I) L=250	5-09707-030-1	03	1	1112-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1112-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1112-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1112-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	1112-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	1112-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1112-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1112-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (H) OD=9 H=6	1-09709-178-0	01	1	1112-1405
48	CLIP; FRAME HARNESS (F) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	01	1	1112-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1112-
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	1112-
48	CLIP; FRAME HARNESS (A) ID=35 L=50	1-09701-214-0	01	1	1112-
48	CLIP; FRAME HARNESS (F) ID=33 L=83	1-09701-291-0	03	1	1112-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1112-
48	CLIP; FRAME HARNESS (G) L=140	5-09707-031-1	02	1	1112-
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	07	1	1112-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1112-1201
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	12	1	1112-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1112-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1112-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=20 L=70	1-09700-485-0	04	1	1112-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1112-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1112-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	03	1	1112-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (J) ID=16 L=40	0-95235-576-0	03	1	1112-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (K) L=180	1-09707-162-1	01	1	1112-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (L) OD=9 H=6	1-09709-178-0	01	1	1112-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1112-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1112-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	1112-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	1112-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=10 & 12	1-09709-278-1	01	1	1112-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (D) ID=11 L=61	1-09700-484-0	01	1	1112-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1112-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1112-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1112-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	1112-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1112-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1112-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1112-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1112-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1112-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1112-1310
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	02	1	1311-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1112-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1112-

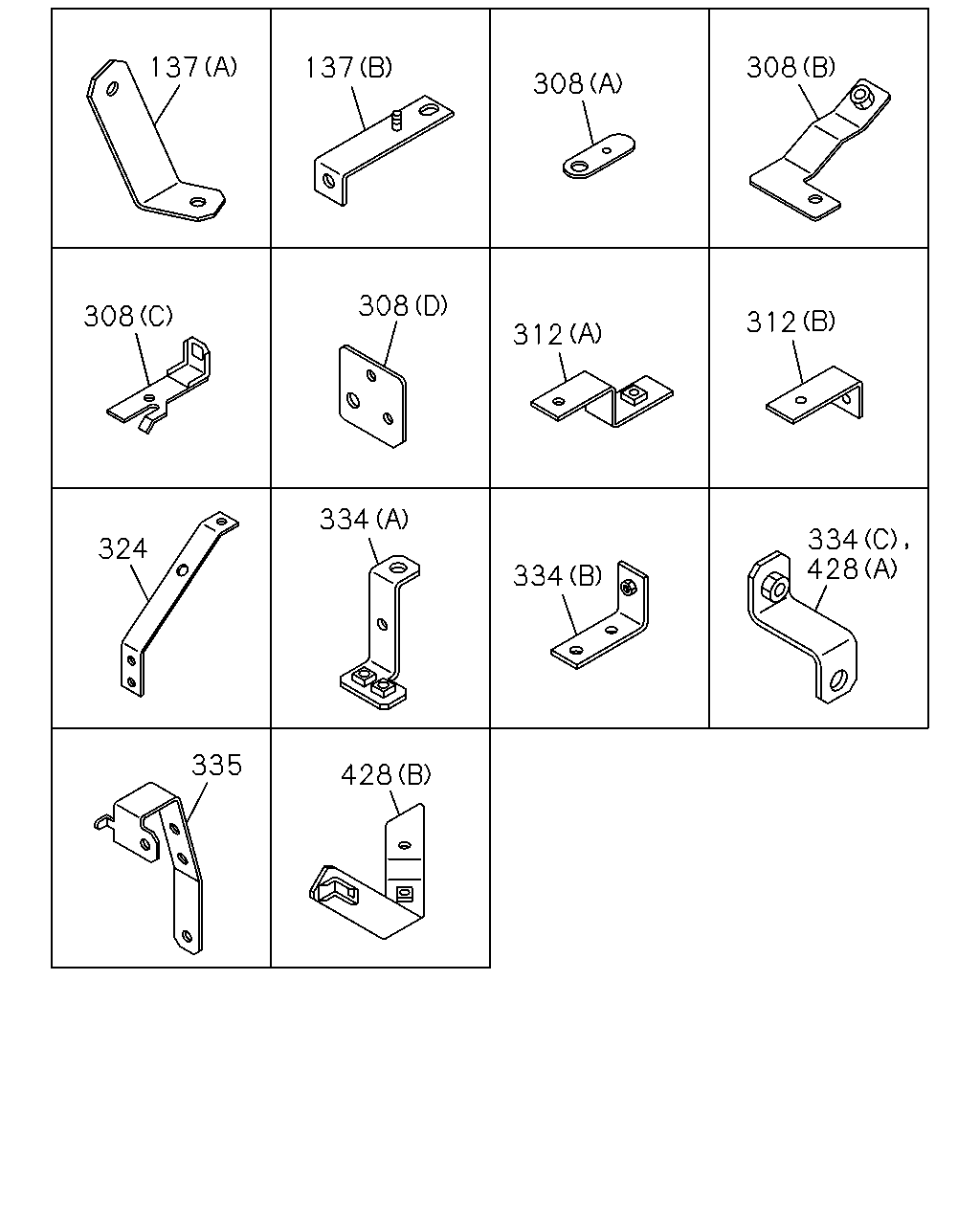

137 137 308 308 312 312 308 308 324 335 428 334 334 334 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	1112-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1112-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1112-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1112-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98032-178-0	01	1	1112-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98075-824-0	01	1	1112-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1112-
312	BRACKET; CLIP HARNESS (A)	8-97609-110-1	01	1	1112-
324	BRACKET; CLIP	1-47479-430-0	02	1	1212-1212
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (C)	1-47475-868-0	02	1	1112-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (B)	1-47477-698-0	02	1	1112-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (A)	1-82699-639-1	01	1	1112-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1112-
428	BRACKET (A)	1-47476-658-0	01	1	1112-
428	BRACKET (B)	8-97620-514-0	01	1	1112-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
