◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11463 - FVR(MALAYSIA) 240PS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#41241) — 225 parça

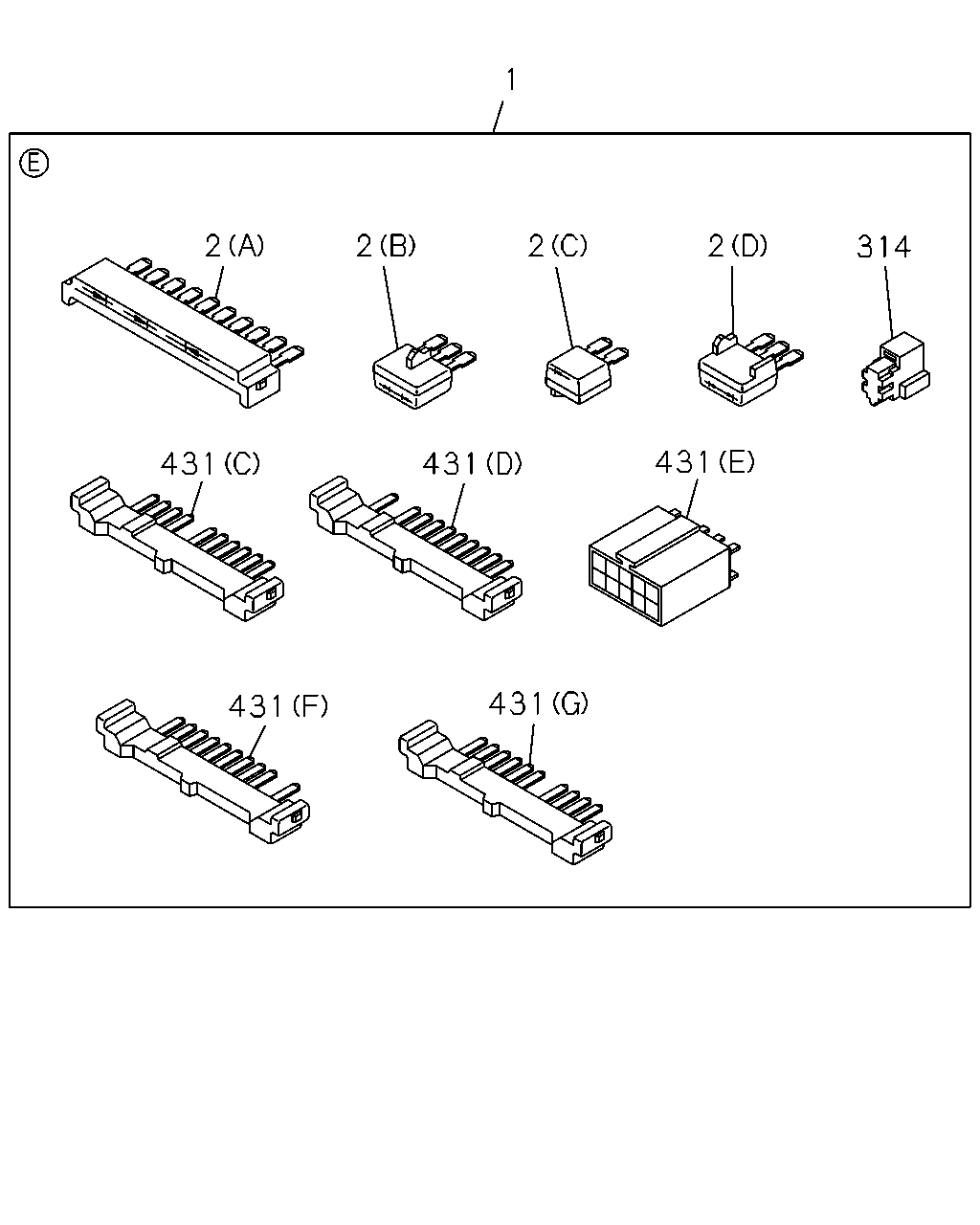

çizim 110565
1 2 2 2 2 314 431 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-063-0 01 1 1112-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-063-0 01 1 1210-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H .S.A SYSTEM<6EP> 		8-98158-067-0 01 1 1112-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87> 		8-98084-929-2 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98084-929-2 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98084-929-2 01 1 1112-1209
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>,CORNERING LAMP<T87> 		8-98084-929-2 01 1 1112-1209
1 HARNESS; CAB
CORNERING LAMP<T87> EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-929-2 01 1 1112-1209
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1112-
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94416-438-1 01 1 1112-
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 03 1 1112-
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 01 1 1112-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1112-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1112-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1112-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1112-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1112-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1112-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1112-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1112-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1112-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1112-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1112-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1112-
431 CONNECTOR; JOINT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 05 1 1112-
431 CONNECTOR; JOINT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) 10P BLUE 		1-82699-598-0 04 1 1112-
431 CONNECTOR; JOINT
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 04 1 1112-

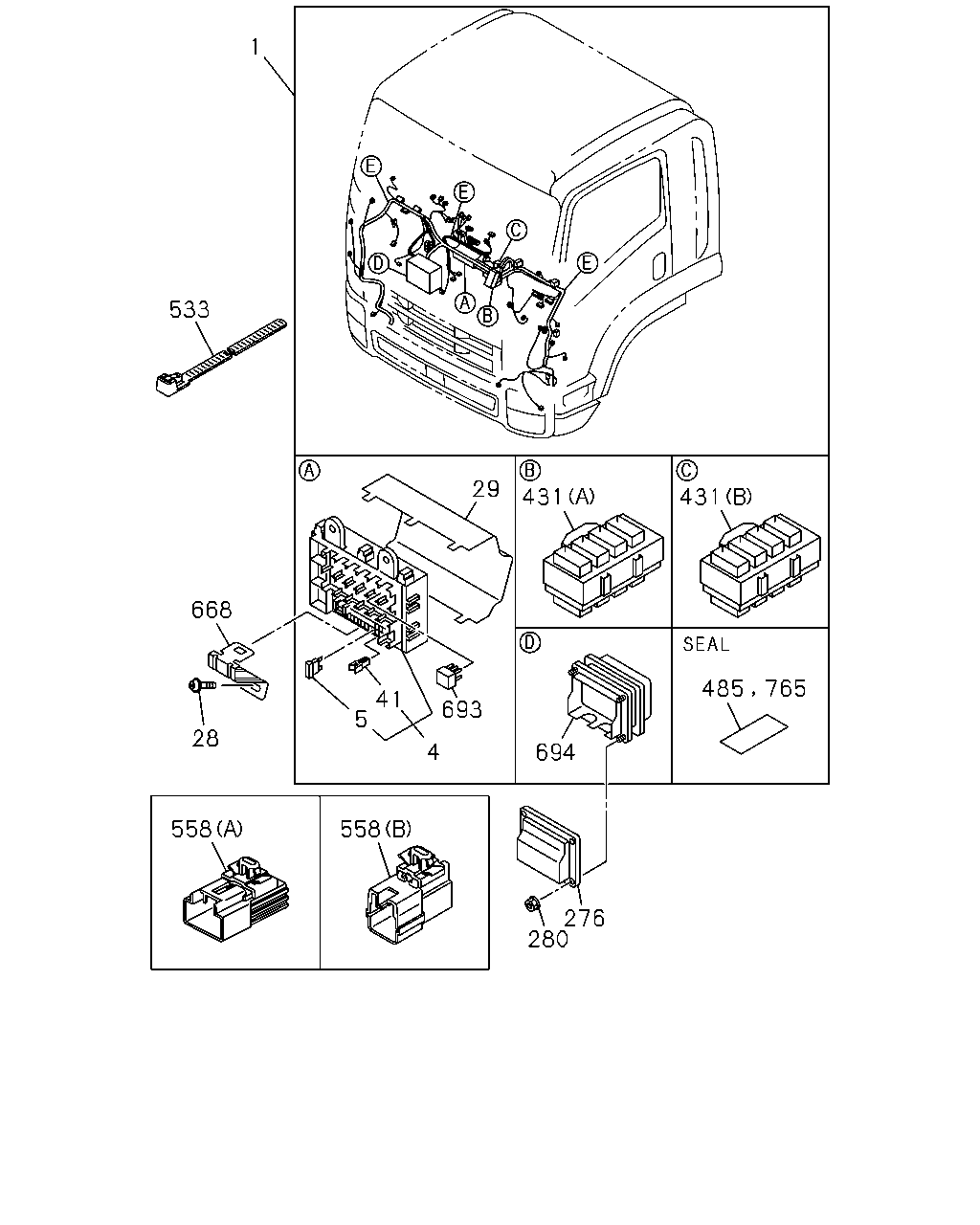

çizim 110568
1 533 668 28 558 558 4 693 41 5 694 765 485 431 431 29 276 280
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-063-0 01 1 1112-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-063-0 01 1 1210-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H .S.A SYSTEM<6EP> 		8-98158-067-0 01 1 1112-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87> 		8-98084-929-2 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98084-929-2 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98084-929-2 01 1 1112-1209
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>,CORNERING LAMP<T87> 		8-98084-929-2 01 1 1112-1209
1 HARNESS; CAB
CORNERING LAMP<T87> EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-929-2 01 1 1112-1209
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1112-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1112-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1112-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1112-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 02 1 1112-
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1112-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1112-
41 PULLER; FUSE 8-98054-260-0 01 1 1112-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1112-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1112-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1112-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1112-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1112-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1112-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1112-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1112-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1112-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1112-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1112-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1112-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1112-
431 CONNECTOR; JOINT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 05 1 1112-
431 CONNECTOR; JOINT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) 10P BLUE 		1-82699-598-0 04 1 1112-
431 CONNECTOR; JOINT
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 04 1 1112-
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 1112-
533 CLIP
EXC. INTERMITTENT WIPER<C13> L=100 		5-09707-036-1 01 1 1112-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1112-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1112-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1112-
693 RELAY; FUSE BOX
24V 10A MATSUSHITA 		8-97173-035-1 AR 1 1112-
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 1112-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-

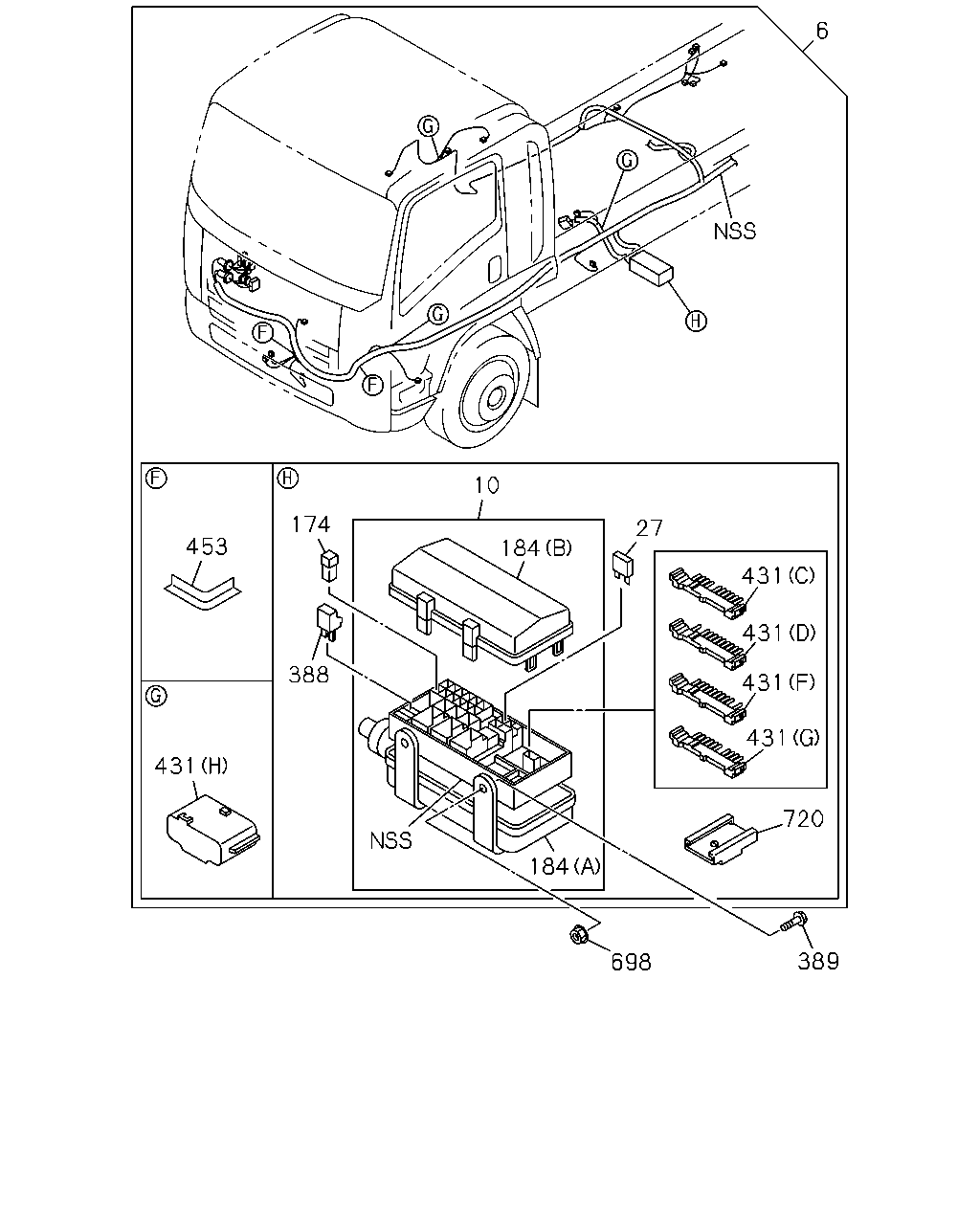

çizim 110569
6 10 174 27 453 184 431 431 388 431 431 431 720 184 389 698
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98173-977-0 01 1 1112-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-613-3 01 1 1112-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98173-972-0 01 1 1112-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98113-633-4 01 1 1112-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1112-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1112-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1112-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1112-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1112-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1112-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1112-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1112-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1112-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-0 01 1 1112-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1112-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1112-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1112-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1112-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1112-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1112-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1112-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1112-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1112-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1112-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1112-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1112-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1112-
431 CONNECTOR; JOINT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 05 1 1112-
431 CONNECTOR; JOINT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) 10P BLUE 		1-82699-598-0 04 1 1112-
431 CONNECTOR; JOINT
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 04 1 1112-
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 1112-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1112-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1112-

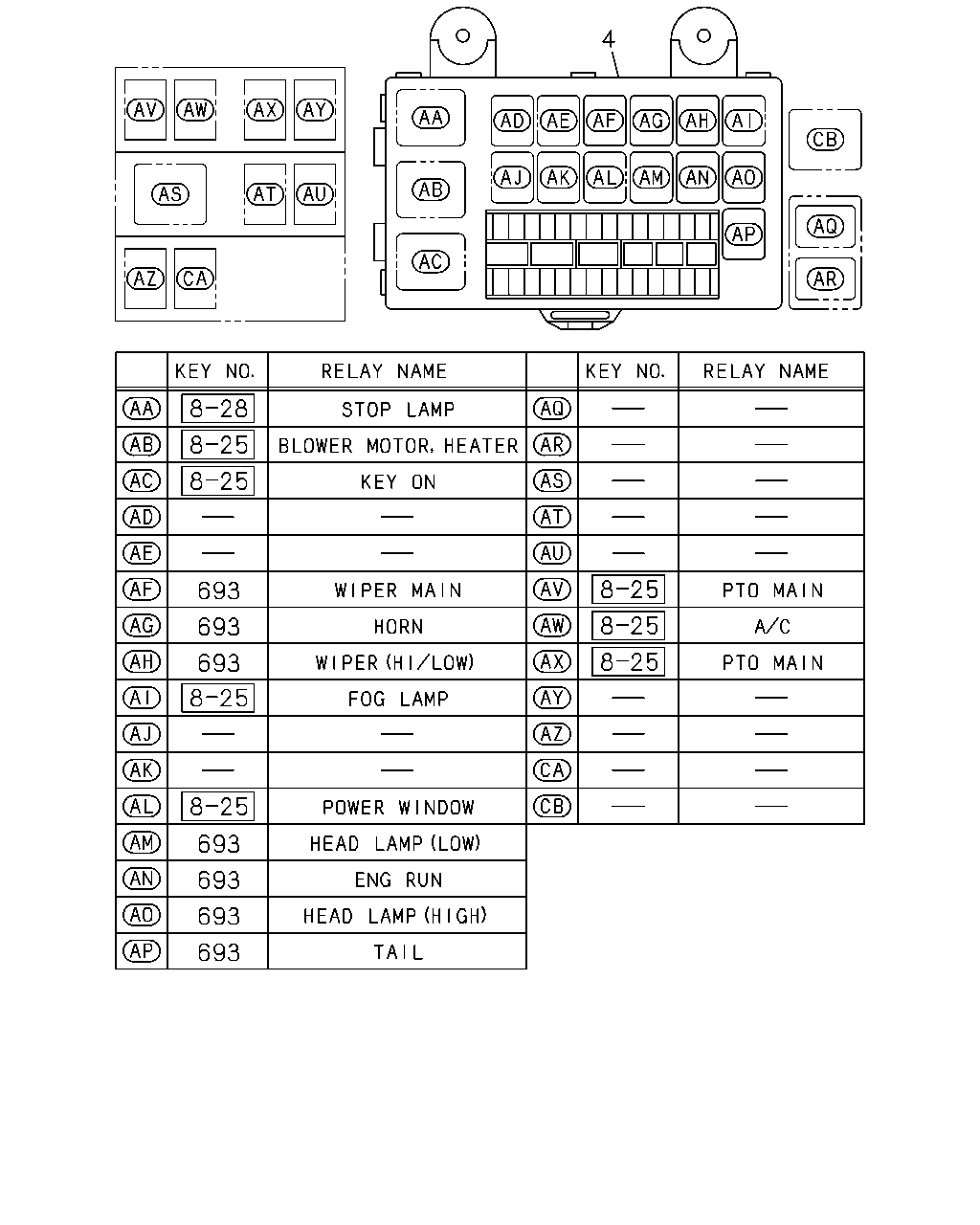

çizim 110570
4 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1112-
693 RELAY; FUSE BOX
24V 10A MATSUSHITA 		8-97173-035-1 AR 1 1112-

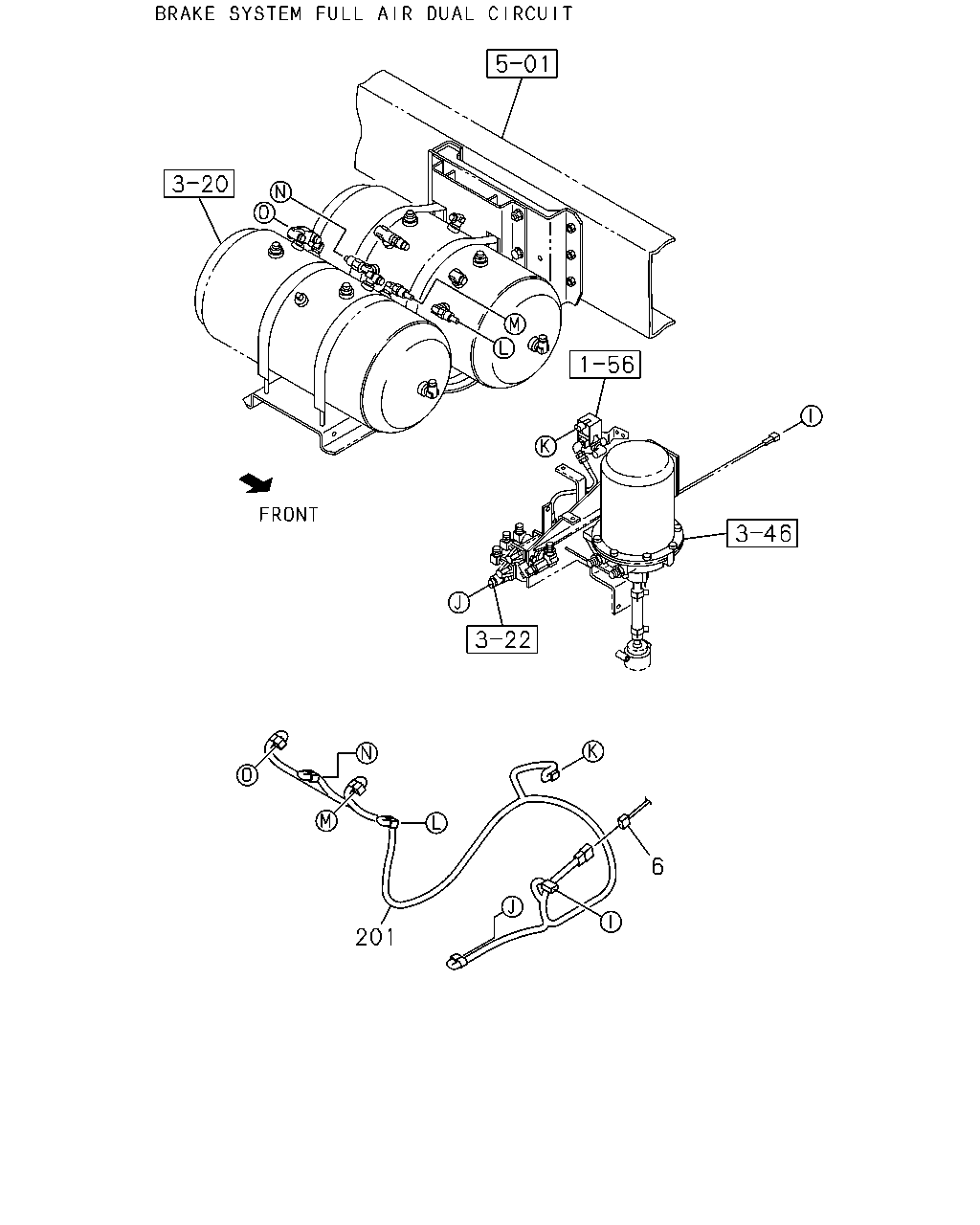

çizim 110575
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98173-977-0 01 1 1112-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-613-3 01 1 1112-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98173-972-0 01 1 1112-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98113-633-4 01 1 1112-
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> 		8-98240-716-0 01 1 1406-
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98113-697-2 01 1 1112-
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98184-703-0 01 1 1112-1405
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> 		8-98184-703-0 01 1 1406-
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> 		8-98069-170-1 01 1 1112-

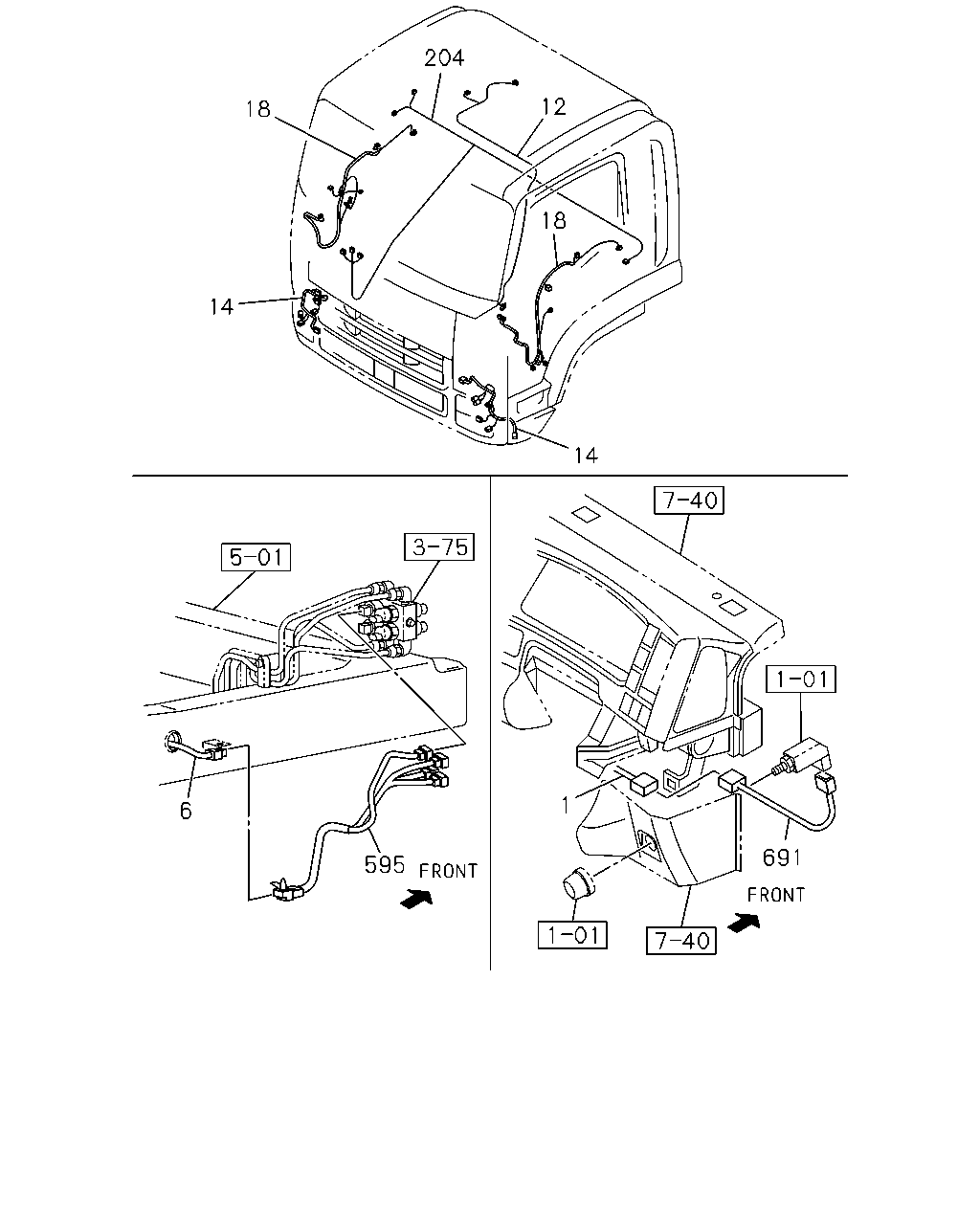

çizim 110578
204 12 18 18 14 14 1 6 691 595
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-063-0 01 1 1112-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-063-0 01 1 1210-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H .S.A SYSTEM<6EP> 		8-98158-067-0 01 1 1112-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87> 		8-98084-929-2 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98084-929-2 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98084-929-2 01 1 1112-1209
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>,CORNERING LAMP<T87> 		8-98084-929-2 01 1 1112-1209
1 HARNESS; CAB
CORNERING LAMP<T87> EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-929-2 01 1 1112-1209
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98173-977-0 01 1 1112-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-613-3 01 1 1112-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98173-972-0 01 1 1112-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98113-633-4 01 1 1112-
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98048-931-2 01 1 1112-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98041-949-2 01 1 1112-
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-94270-986-0 02 1 1307-
14 HARNESS; HEADLAMP
CORNERING LAMP<T87> 		8-98077-292-1 02 1 1112-
14 HARNESS; HEADLAMP
EXC. CORNERING LAMP<T87> 		8-98069-166-0 02 1 1112-1306
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. CORNERING LAMP<T87> 		8-98069-166-1 02 1 1307-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98084-283-3 01 1 1112-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98108-439-1 01 1 1203-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98084-288-3 01 1 1112-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98108-440-1 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-282-3 01 1 1112-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> 		8-98076-304-3 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-287-3 01 1 1112-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> 		8-98076-305-3 01 1 1203-
204 HARNESS; CABLE,FLOOR 8-98085-274-0 01 1 1112-
595 HARNESS; WARNING,BRK 8-97620-487-1 01 1 1112-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1112-

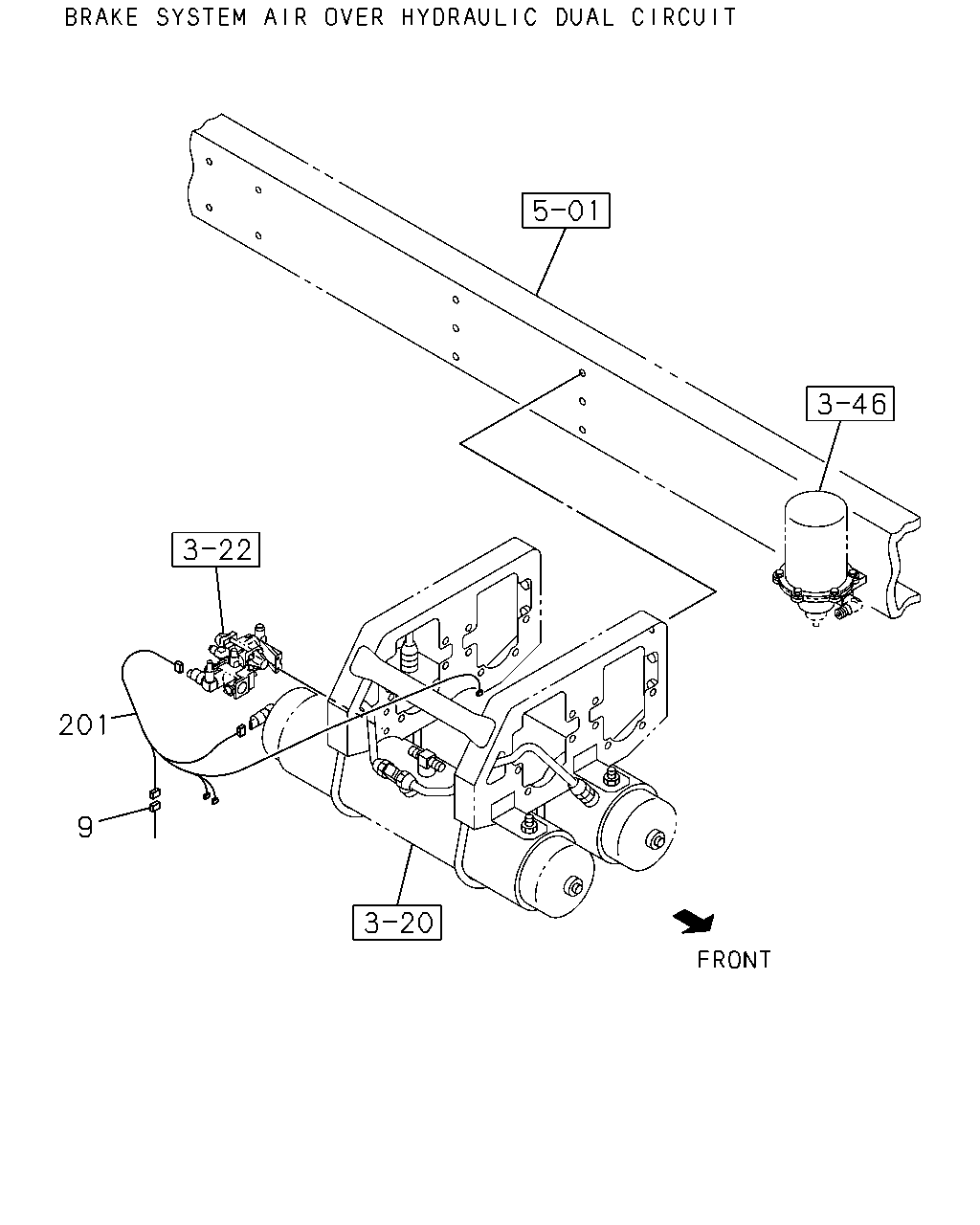

çizim 110580
201 9
BalonParca AdiParca NoAdetTipApplied Date
9 HARNESS; FRAME,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-634-0 01 1 1112-
9 HARNESS; FRAME,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98168-646-0 01 1 1112-
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> 		8-98240-716-0 01 1 1406-
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98113-697-2 01 1 1112-
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98184-703-0 01 1 1112-1405
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> 		8-98184-703-0 01 1 1406-
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> 		8-98069-170-1 01 1 1112-

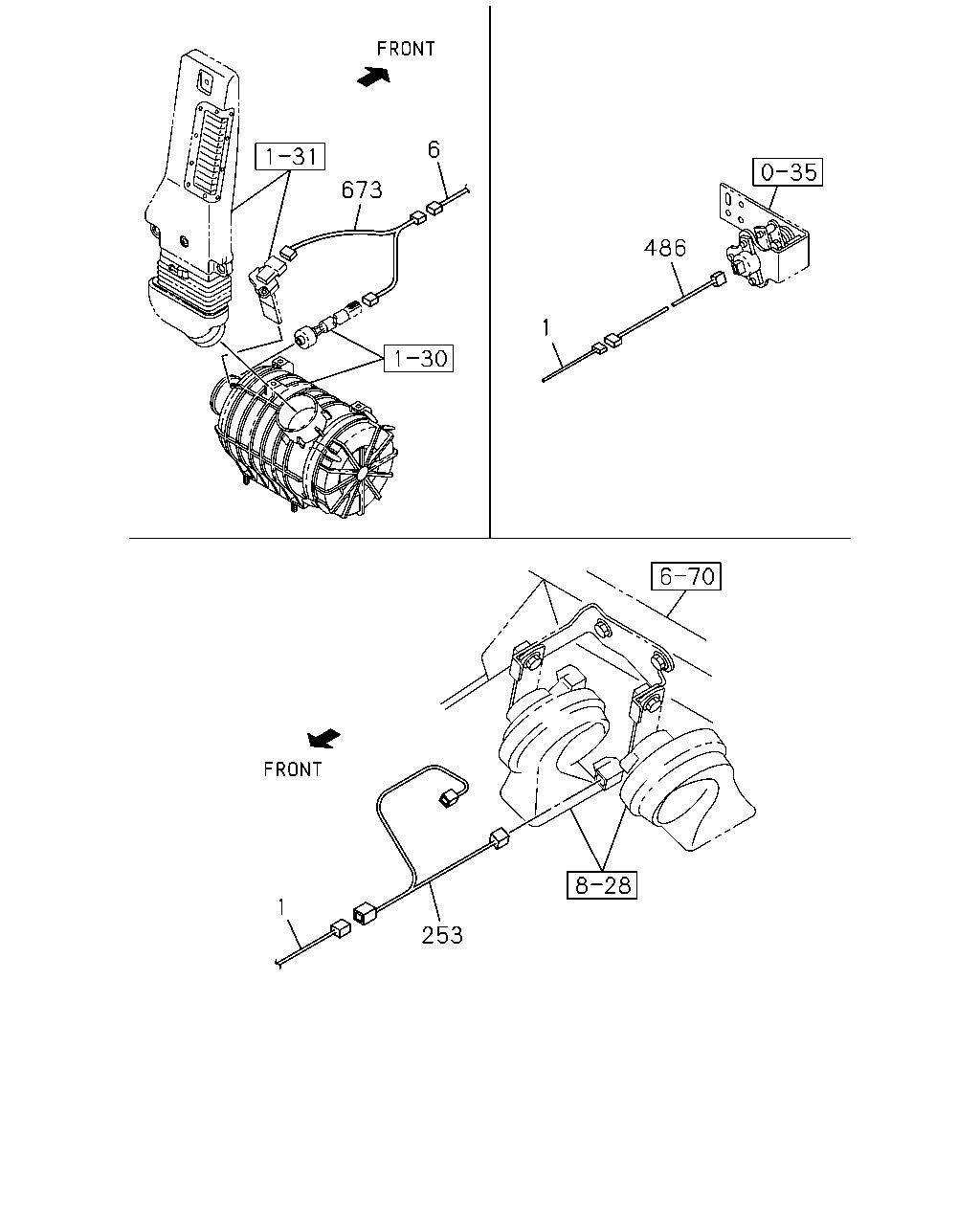

çizim 110585
6 673 486 1 1 253
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87> 		8-98187-945-0 01 1 1112-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98187-945-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-063-0 01 1 1112-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-063-0 01 1 1210-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H .S.A SYSTEM<6EP> 		8-98158-067-0 01 1 1112-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87> 		8-98084-929-2 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98084-929-2 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98084-929-2 01 1 1112-1209
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>,CORNERING LAMP<T87> 		8-98084-929-2 01 1 1112-1209
1 HARNESS; CAB
CORNERING LAMP<T87> EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-929-2 01 1 1112-1209
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98173-977-0 01 1 1112-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-613-3 01 1 1112-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98173-972-0 01 1 1112-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98113-633-4 01 1 1112-
253 HARNESS; EXT,HORN 8-98074-080-3 01 1 1112-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1112-
673 HARNESS; EXT,SENSOR 8-98069-172-0 01 1 1112-

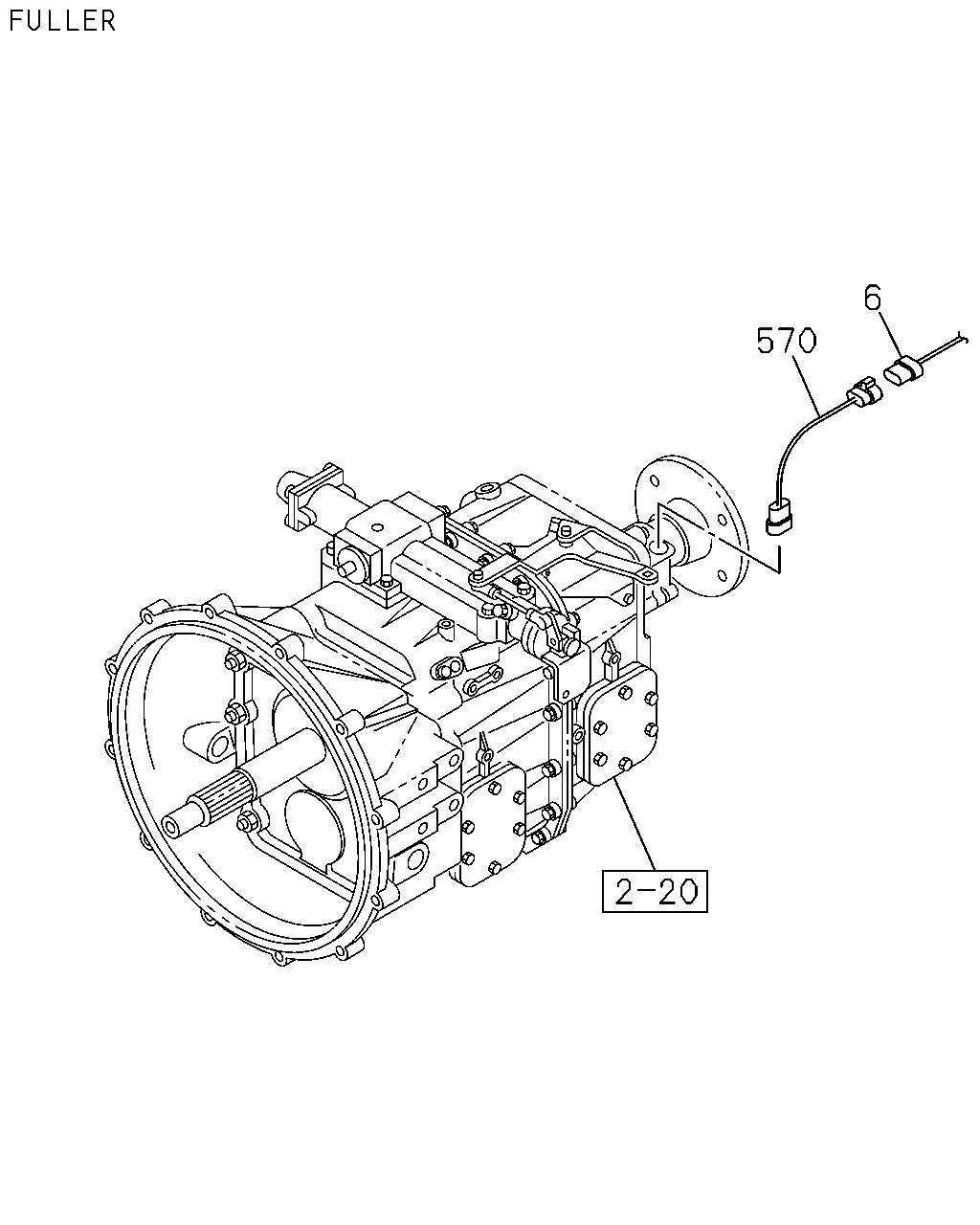

çizim 110586
6 570
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98173-977-0 01 1 1112-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-613-3 01 1 1112-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98173-972-0 01 1 1112-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98113-633-4 01 1 1112-
570 HARNESS; SPEED SENSOR
FULLER FSO5206B OD M/T(Y4V) 		1-82670-012-0 01 1 1112-

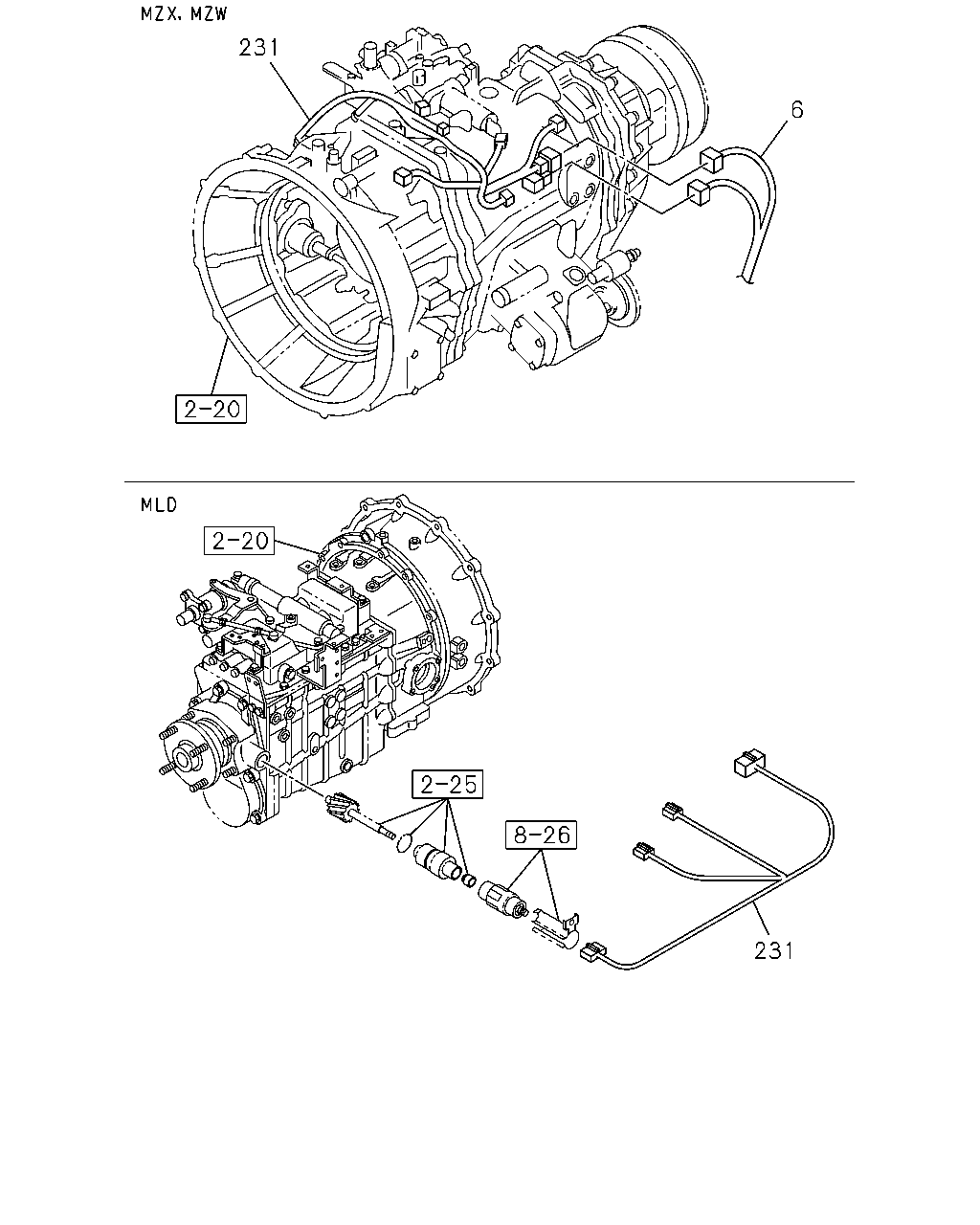

çizim 110587
231 6 231
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98173-977-0 01 1 1112-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-613-3 01 1 1112-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98173-972-0 01 1 1112-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98113-633-4 01 1 1112-
231 HARNESS; TRANS
MLD6W M/T(Y2C) 		8-97626-769-1 01 1 1112-
231 HARNESS; TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-97618-932-2 01 1 1112-
çizim 110595
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98173-977-0 01 1 1112-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-613-3 01 1 1112-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98173-972-0 01 1 1112-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98113-633-4 01 1 1112-
9 HARNESS; FRAME,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-634-0 01 1 1112-
9 HARNESS; FRAME,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98168-646-0 01 1 1112-

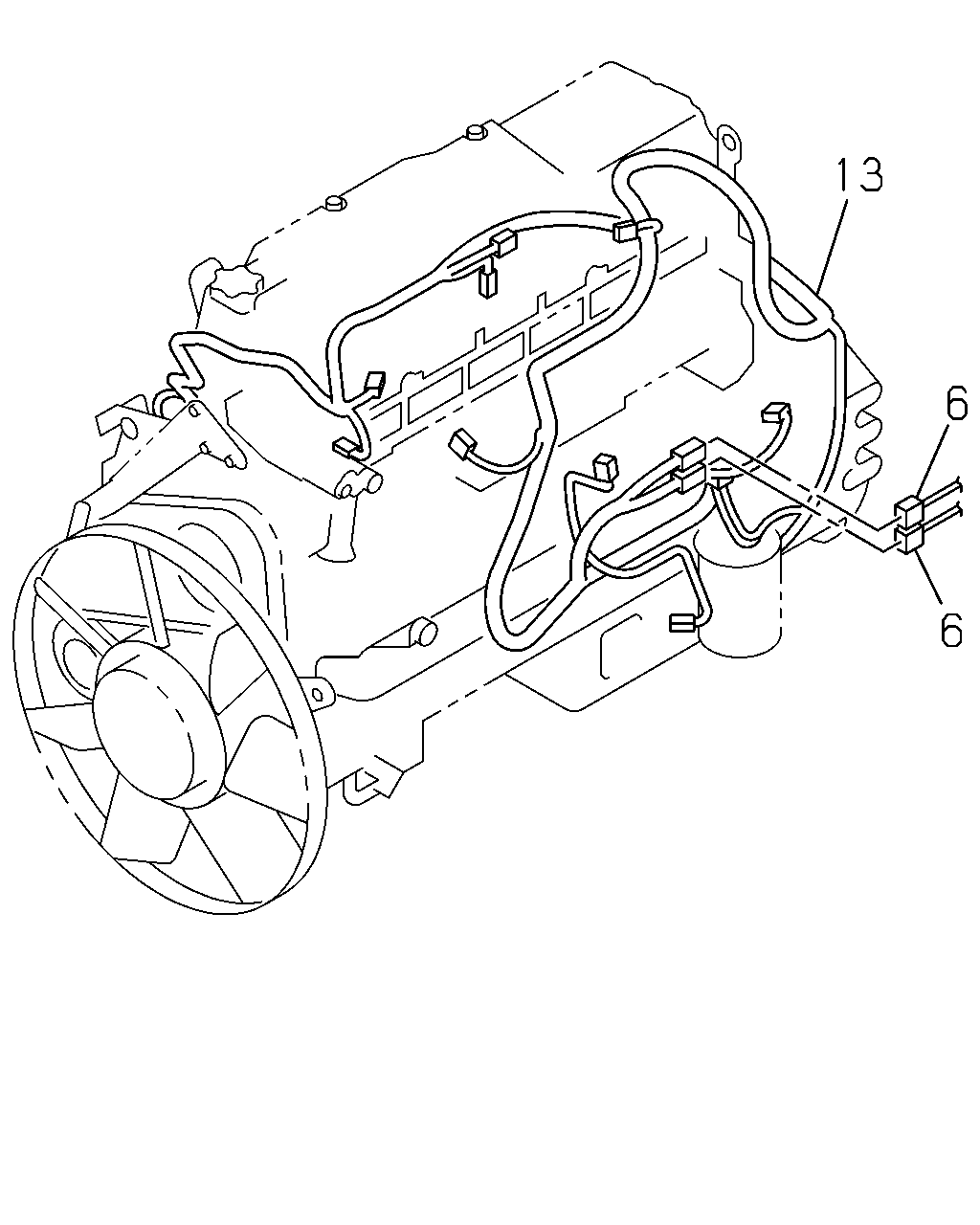

çizim 110599
13 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98173-977-0 01 1 1112-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-613-3 01 1 1112-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98173-972-0 01 1 1112-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98113-633-4 01 1 1112-
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98075-774-5 01 1 1112-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) 		8-98075-775-5 01 1 1112-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
