◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11463 - FVR(MALAYSIA) 240PS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#41229) — 84 parça

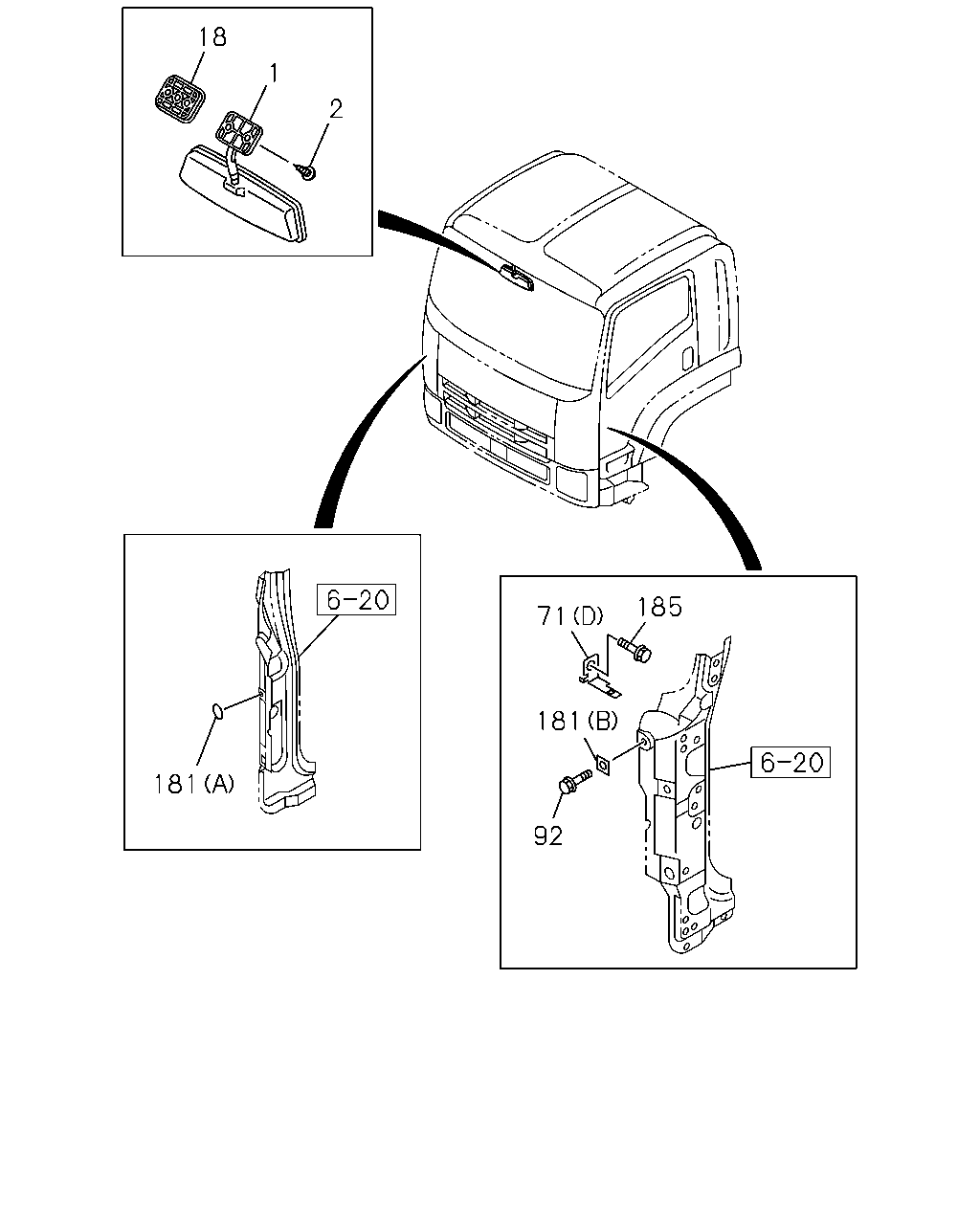

çizim 110525
18 1 2 185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1112-
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1112-
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1112-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 1112-1202
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1112-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1112-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (C) 		8-98060-240-0 01 1 1112-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) 		8-98092-492-3 01 1 1112-
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1112-
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1112-
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1112-
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1112-1202

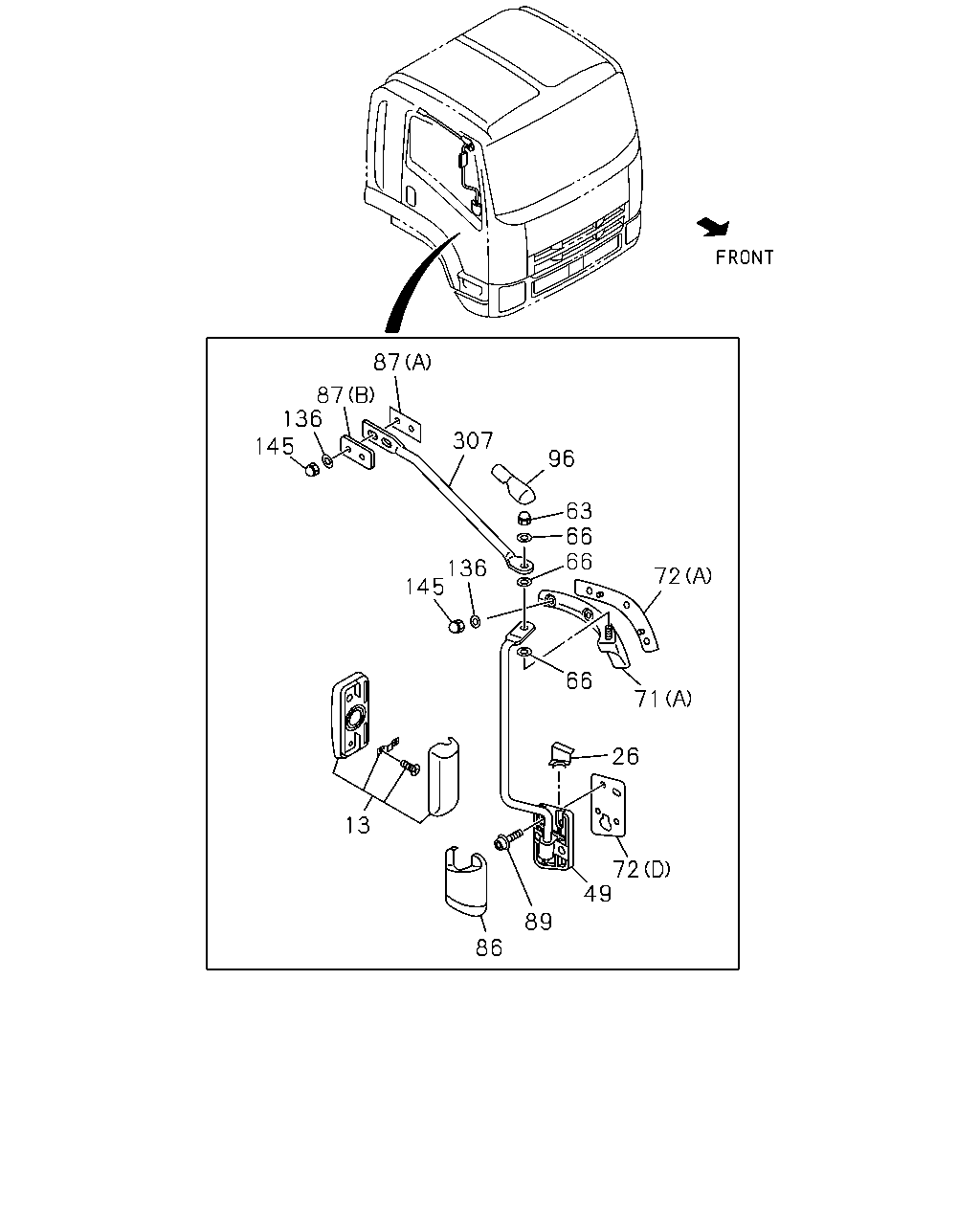

çizim 110529
87 87 136 145 307 96 63 66 66 136 145 72 66 71 26 13 72 49 89 86
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-992-1 01 1 1112-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-991-1 01 1 1112-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1112-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1112-
49 STAY; MIRROR SIDE 8-98060-216-1 01 1 1112-1202
49 STAY; MIRROR SIDE 8-98166-195-0 01 1 1203-
49 STAY; MIRROR SIDE 8-98060-215-1 01 1 1112-1202
49 STAY; MIRROR SIDE 8-98166-194-0 01 1 1203-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1112-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1112-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 1112-1202
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1112-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1112-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (C) 		8-98060-240-0 01 1 1112-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) 		8-98092-492-3 01 1 1112-
72 SHEET
(A) 		8-98031-797-0 01 1 1112-
72 SHEET
(D) 		8-98101-865-0 01 1 1112-1202
72 SHEET
(D) 		8-98116-605-0 01 1 1203-
72 SHEET
(A) 		8-98031-796-0 01 1 1112-
72 SHEET
(D) 		8-98101-864-0 01 1 1112-1202
72 SHEET
(D) 		8-98116-604-0 01 1 1203-
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (B) 		8-98060-245-1 01 1 1112-
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (C) 		8-98064-776-0 01 1 1112-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1112-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1112-
87 SPACER
(A) 		8-98063-786-0 02 1 1112-
87 SPACER
(B) 		8-98063-789-0 02 1 1112-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1112-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1112-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1112-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1112-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1112-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1112-

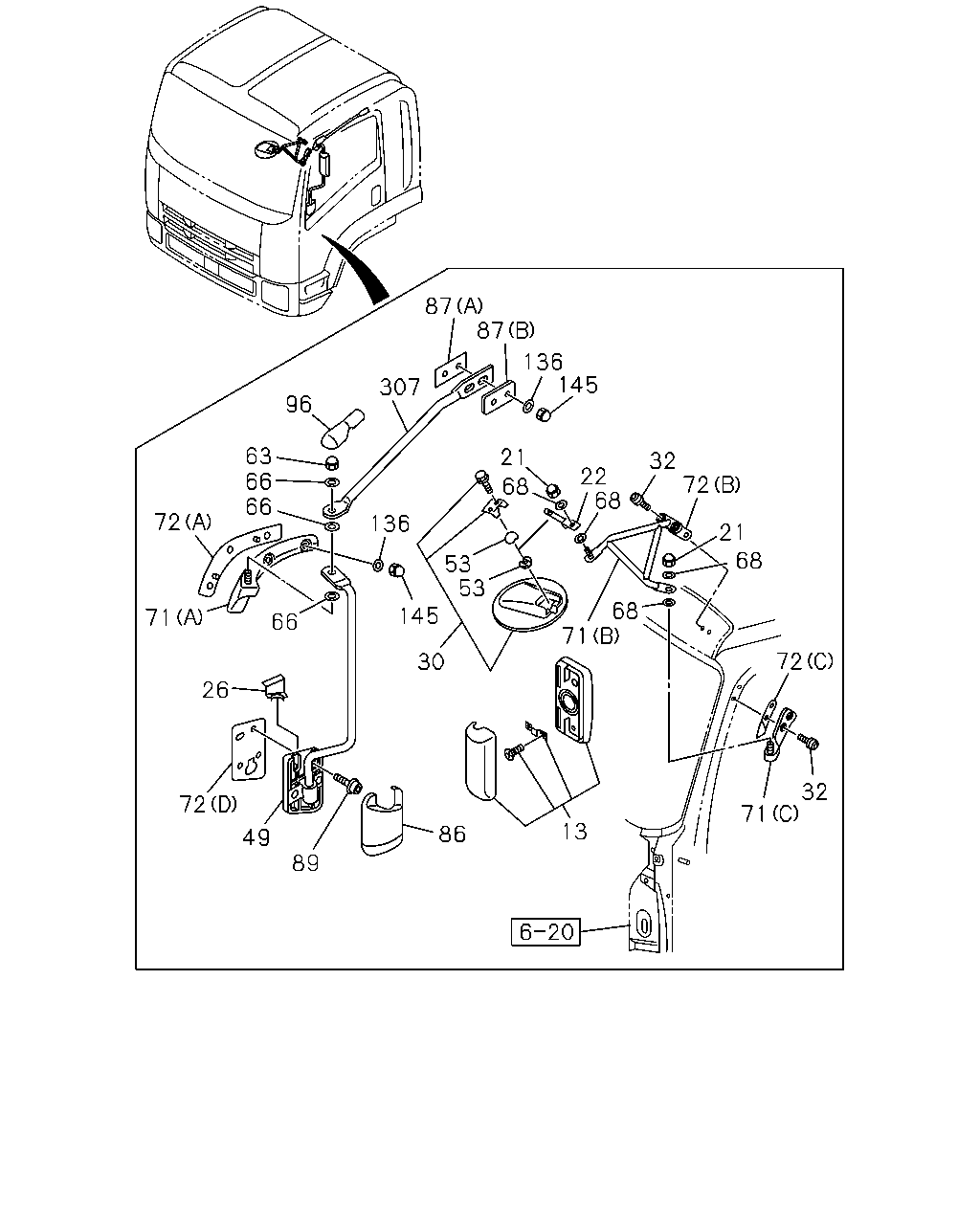

çizim 110533
87 87 136 145 307 96 63 66 66 21 32 72 22 68 68 72 136 21 68 53 53 68 71 145 71 66 72 30 26 32 71 72 13 86 49 89
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-992-1 01 1 1112-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-991-1 01 1 1112-
21 NUT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> M10 CAP NUT 		1-09984-134-0 02 1 1112-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-493-0 01 1 1112-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1112-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1112-
30 MIRROR; UNDER
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98055-994-0 01 1 1112-
32 SCREW; UNDER MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> M8X26 W/PL WASHER 		8-98067-249-2 04 1 1112-
49 STAY; MIRROR SIDE 8-98060-216-1 01 1 1112-1202
49 STAY; MIRROR SIDE 8-98166-195-0 01 1 1203-
49 STAY; MIRROR SIDE 8-98060-215-1 01 1 1112-1202
49 STAY; MIRROR SIDE 8-98166-194-0 01 1 1203-
53 PIVOT; SIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> ID=19.1 		1-71737-633-2 02 1 1112-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1112-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1112-
68 WASHER; STAY
O/SIDE MIRROR UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1112-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 1112-1202
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1112-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1112-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (C) 		8-98060-240-0 01 1 1112-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) 		8-98092-492-3 01 1 1112-
72 SHEET
(A) 		8-98031-797-0 01 1 1112-
72 SHEET
(D) 		8-98101-865-0 01 1 1112-1202
72 SHEET
(D) 		8-98116-605-0 01 1 1203-
72 SHEET
(A) 		8-98031-796-0 01 1 1112-
72 SHEET
(D) 		8-98101-864-0 01 1 1112-1202
72 SHEET
(D) 		8-98116-604-0 01 1 1203-
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (B) 		8-98060-245-1 01 1 1112-
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (C) 		8-98064-776-0 01 1 1112-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1112-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1112-
87 SPACER
(A) 		8-98063-786-0 02 1 1112-
87 SPACER
(B) 		8-98063-789-0 02 1 1112-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1112-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1112-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1112-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1112-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1112-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1112-
