◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11463 - FVR(MALAYSIA) 240PS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#41219) — 63 parça

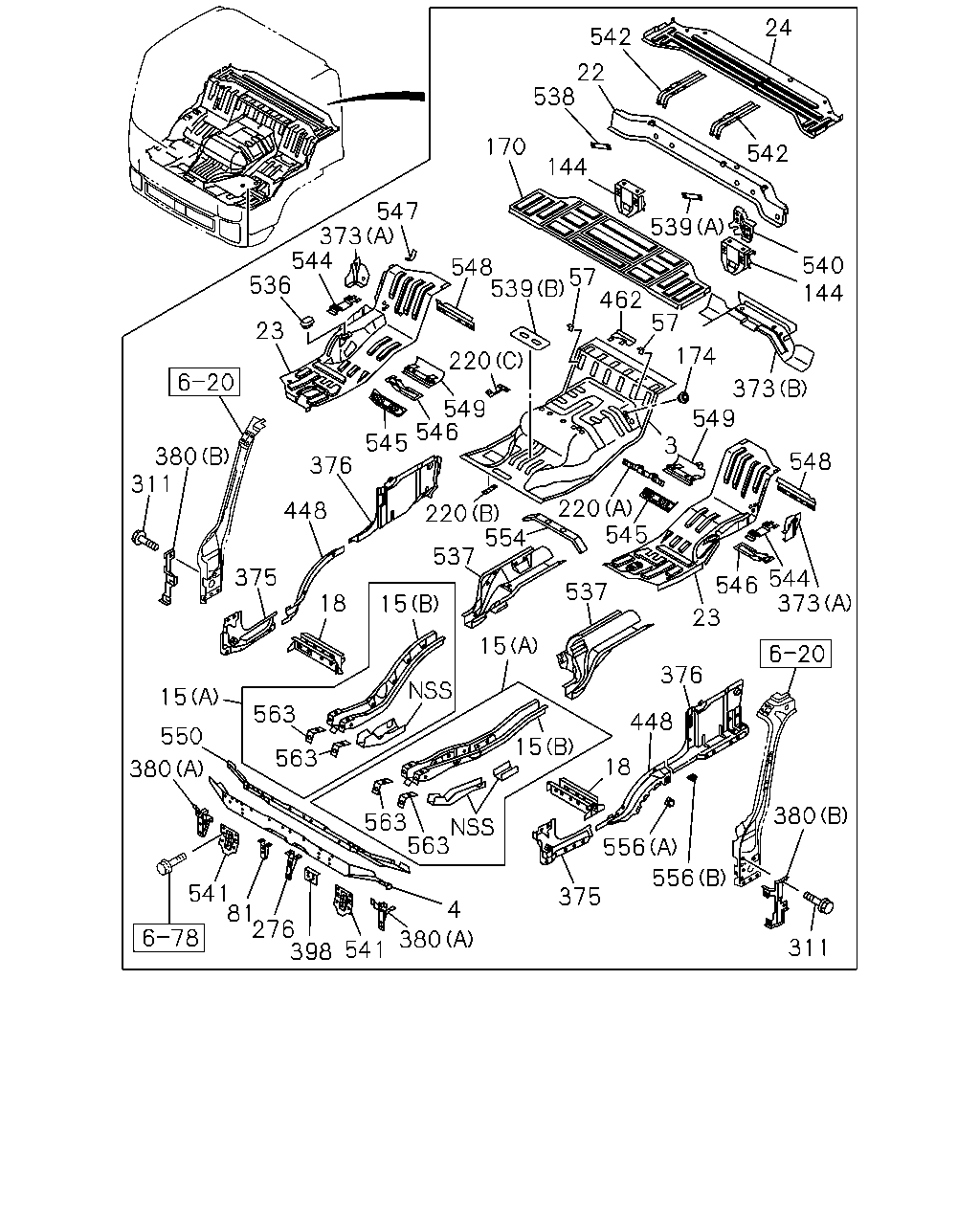

çizim 110540
24 542 22 538 170 542 144 547 373 544 536 539 540 144 548 57 539 462 57 23 220 174 373 549 549 546 545 3 380 311 548 376 220 545 448 220 554 537 375 544 373 546 537 18 15 23 15 376 15 563 448 550 563 15 18 380 563 563 380 556 556 541 81 276 398 375 4 380 311 541
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-98167-036-0 01 1 1112-
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1112-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1112-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1112-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1112-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1112-
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1112-
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1112-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1112-
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1112-
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1112-
24 PANEL; BED PAN 8-97584-378-6 01 1 1112-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1112-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1112-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1112-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1112-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1112-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1112-
220 PATCH
(A) 		8-97588-840-4 01 1 1112-
220 PATCH
(B) 		8-97589-603-3 01 1 1112-
220 PATCH
(C) 		8-97589-627-2 01 1 1112-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1112-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1112-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 1112-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1112-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1112-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1112-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1112-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1112-1403
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1112-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1112-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1112-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1112-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1112-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1112-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1112-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1112-
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 1112-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1112-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1112-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1112-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1112-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1112-
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 1112-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1112-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1112-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1112-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1112-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1112-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1112-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1112-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1112-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1112-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1112-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1112-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1112-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1112-
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1112-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1112-
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1112-
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1112-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1112-
