Isuzu WW
▶
TRUCKS
▶
FVR
▶
11463 - FVR(MALAYSIA) 240PS
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

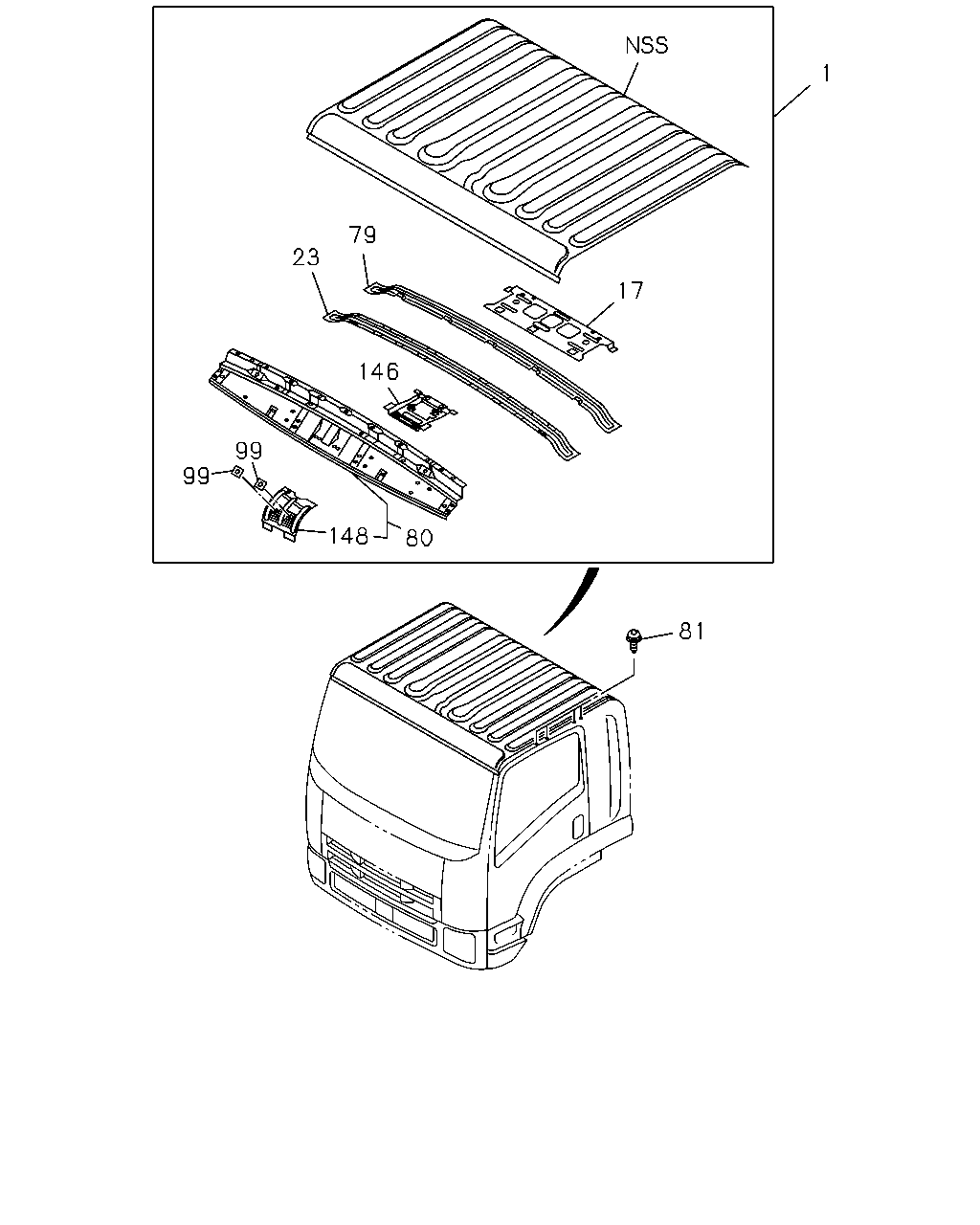

6-60 — ROOF PANEL
(#41217) — 17 parça
1
79
23
17
146
99
99
148
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR UNDER VIEW<RR9>
8-97584-498-5
01
1
1112-1308
1
PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR UNDER VIEW<RR9>
8-98246-475-0
01
1
1309-
1
PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> FLUORESCENT LAMP<6UC>
8-97584-177-6
01
1
1112-1308
1
PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> FLUORESCENT LAMP<6UC>
8-98196-922-0
01
1
1309-
1
PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> EXC. FLUORESCENT LAMP<6UC>
8-98152-805-0
01
1
1112-1308
1
PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> EXC. FLUORESCENT LAMP<6UC>
8-98246-477-0
01
1
1309-
1
PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9>,FLUORESCENT LAMP<6UC>
8-98152-806-0
01
1
1112-1308
1
PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9>,FLUORESCENT LAMP<6UC>
8-98246-478-0
01
1
1309-
17
REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC>
8-97584-203-5
01
1
1112-
23
REINFORCEMENT; ROOF PANEL,FRT
8-98019-316-0
01
1
1112-
79
REINFORCEMENT; ROOF PANEL,RR
8-97584-200-1
01
1
1112-
80
PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9>
8-97584-192-3
01
1
1112-1308
80
PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9>
8-98196-921-0
01
1
1309-
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1112-
99
SEAL; BODY,METAL
O/SIDE MIRROR UNDER VIEW<RR9> 30X30 ID=20 T=0.7
1-61281-380-2
02
1
1112-
146
REINFORCEMENT; ROOM LAMP
8-98075-827-0
01
1
1112-
148
REINFORCEMENT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9>
8-97411-015-1
01
1
1112-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
