6-03 — RADIATOR GRILLE (#41207) — 80 parça

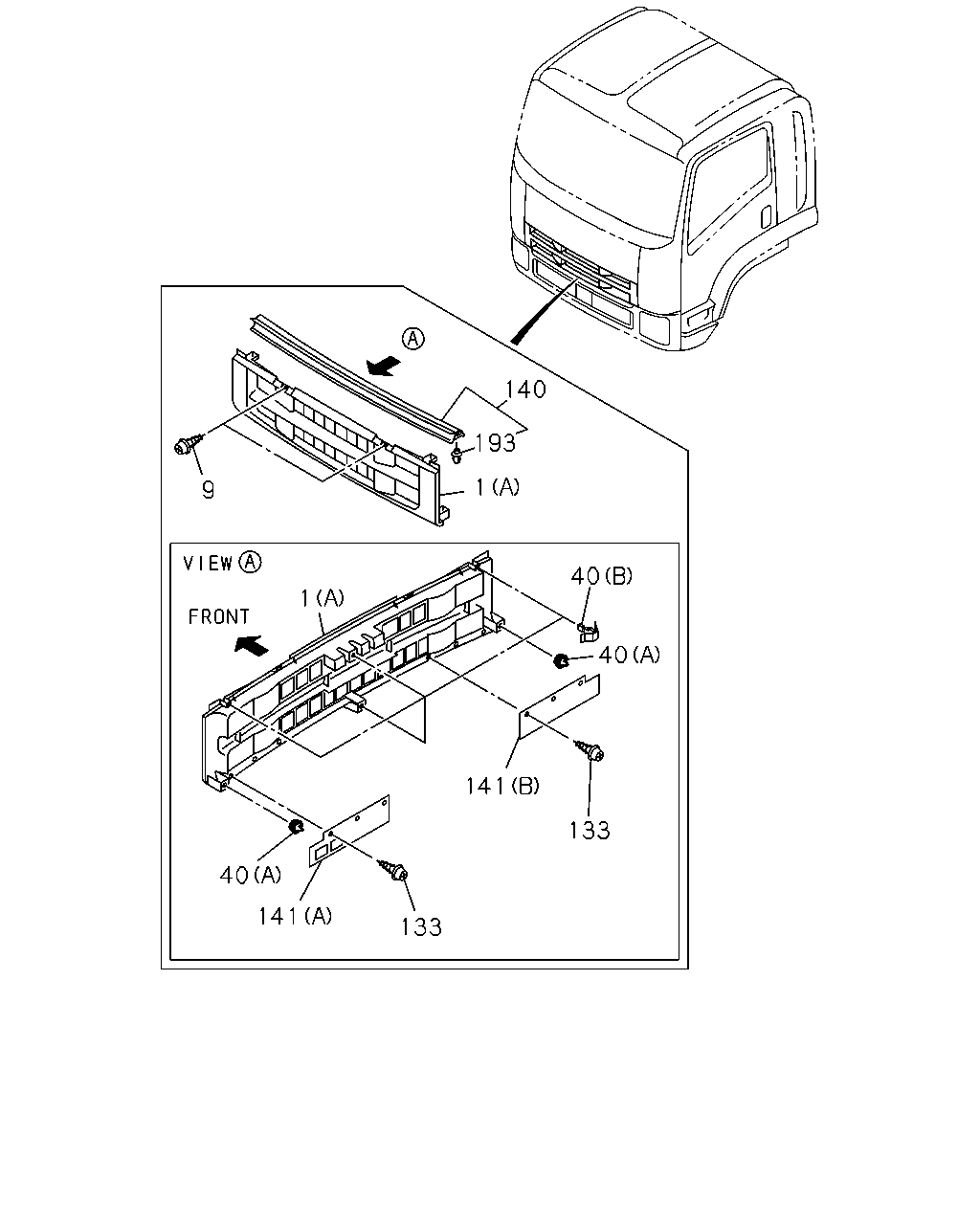

1 140 9 193 40 40 141 133 40 141 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GRILLE; RAD BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY	8-97413-908-6	01	1	1112-
1	GRILLE; RAD BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97407-868-6	01	1	1112-
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-746-6	01	1	1112-
1	GRILLE; RAD BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-911-6	01	1	1112-
1	GRILLE; RAD BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-749-6	01	1	1112-
1	GRILLE; RAD BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97413-910-6	01	1	1112-
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97411-748-6	01	1	1112-
1	GRILLE; RAD BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN	8-97413-917-6	01	1	1112-
1	GRILLE; RAD BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE	8-97413-915-6	01	1	1112-
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-914-6	01	1	1112-
1	GRILLE; RAD BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97417-988-6	01	1	1112-
1	GRILLE; RAD BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-909-6	01	1	1112-
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE	8-97411-747-6	01	1	1112-
1	GRILLE; RAD BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97411-750-6	01	1	1112-
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97413-913-6	01	1	1112-
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN	8-97413-912-6	01	1	1112-
1	GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE	8-98046-507-7	01	1	1112-
1	GRILLE; RAD EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY	8-98040-997-6	01	1	1112-
9	SCREW; RAD GRILLE M5X16 TAPPING W/PL WASHER	0-74160-516-0	02	1	1112-
40	CLIP; RAD GRILLE BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	1112-
40	CLIP; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	1112-
40	CLIP; RAD GRILLE CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	1112-
40	CLIP; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	1112-
40	CLIP; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	1112-
40	CLIP; RAD GRILLE CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	1112-
133	SCREW; COVER BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING W/TORQUES	8-98081-722-0	06	1	1112-
133	SCREW; COVER EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING W/TORQUES	8-98081-722-0	06	1	1112-
133	SCREW; COVER CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING W/TORQUES	8-98081-722-0	06	1	1112-
140	SEAL; RAD GRILLE BRIGHT RAD GRILLE<V22>	8-98060-340-0	01	1	1112-
140	SEAL; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22>	8-98060-340-0	01	1	1112-
140	SEAL; RAD GRILLE CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>	8-98060-340-0	01	1	1112-
141	COVER; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98041-013-1	01	1	1112-
141	COVER; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B)	8-98041-013-1	01	1	1112-
141	COVER; RAD GRILLE CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B)	8-98041-013-1	01	1	1112-
141	COVER; RAD GRILLE BRIGHT RAD GRILLE<V22> (A)	8-98060-784-0	01	1	1112-
141	COVER; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A)	8-98060-784-0	01	1	1112-
141	COVER; RAD GRILLE CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A)	8-98060-784-0	01	1	1112-
193	CLIP; SEAL BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	1112-
193	CLIP; SEAL EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	1112-
193	CLIP; SEAL CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	1112-

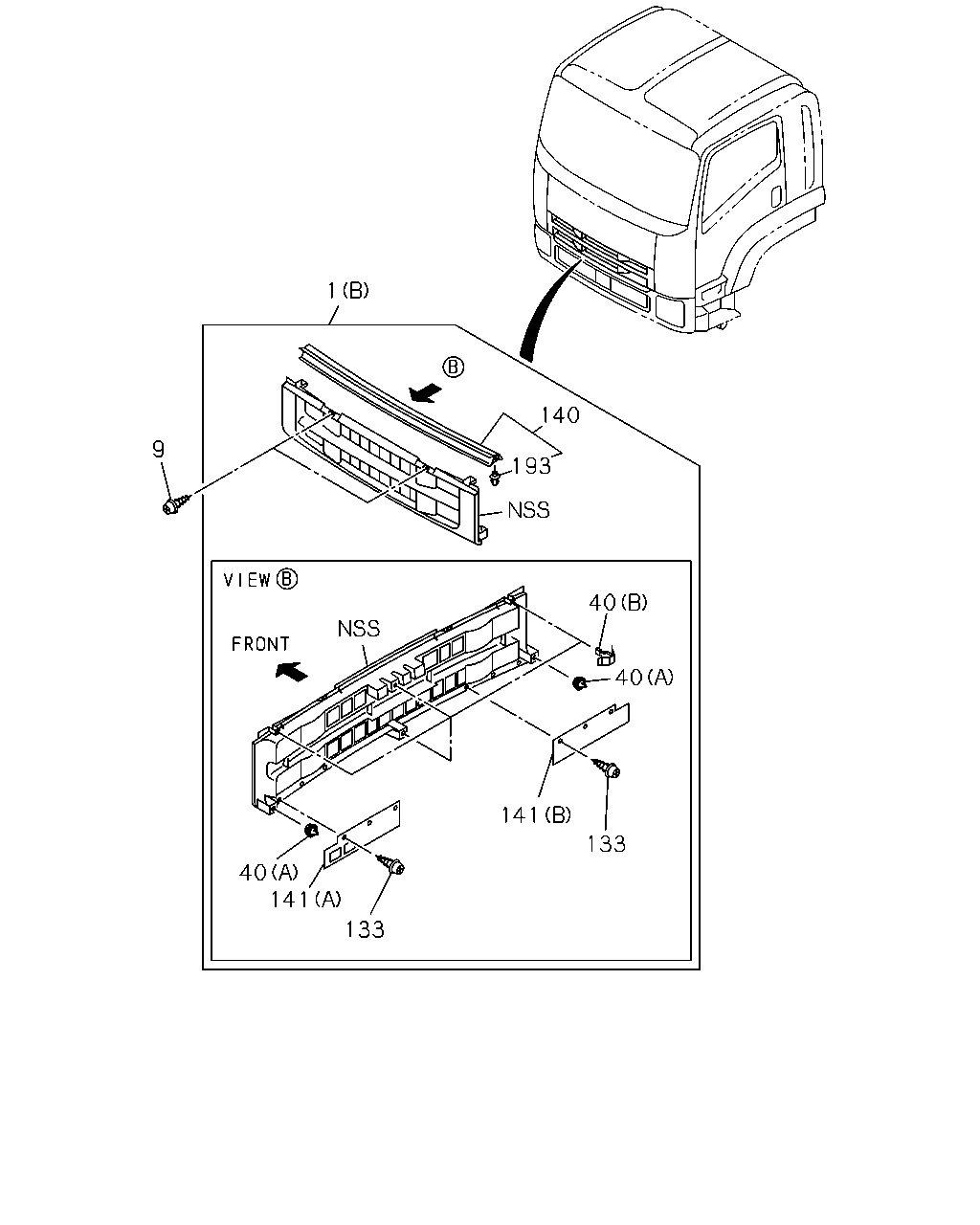

140 193 1 9 40 1 40 141 133 40 141 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GRILLE; RAD BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY	8-97413-908-6	01	1	1112-
1	GRILLE; RAD BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97407-868-6	01	1	1112-
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-746-6	01	1	1112-
1	GRILLE; RAD BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-911-6	01	1	1112-
1	GRILLE; RAD BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-749-6	01	1	1112-
1	GRILLE; RAD BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97413-910-6	01	1	1112-
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97411-748-6	01	1	1112-
1	GRILLE; RAD BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN	8-97413-917-6	01	1	1112-
1	GRILLE; RAD BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE	8-97413-915-6	01	1	1112-
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-914-6	01	1	1112-
1	GRILLE; RAD BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97417-988-6	01	1	1112-
1	GRILLE; RAD BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-909-6	01	1	1112-
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE	8-97411-747-6	01	1	1112-
1	GRILLE; RAD BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97411-750-6	01	1	1112-
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97413-913-6	01	1	1112-
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN	8-97413-912-6	01	1	1112-
1	GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE	8-98046-507-7	01	1	1112-
1	GRILLE; RAD EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY	8-98040-997-6	01	1	1112-
9	SCREW; RAD GRILLE M5X16 TAPPING W/PL WASHER	0-74160-516-0	02	1	1112-
40	CLIP; RAD GRILLE BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	1112-
40	CLIP; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	1112-
40	CLIP; RAD GRILLE CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	1112-
40	CLIP; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	1112-
40	CLIP; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	1112-
40	CLIP; RAD GRILLE CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	1112-
133	SCREW; COVER BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING W/TORQUES	8-98081-722-0	06	1	1112-
133	SCREW; COVER EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING W/TORQUES	8-98081-722-0	06	1	1112-
133	SCREW; COVER CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING W/TORQUES	8-98081-722-0	06	1	1112-
140	SEAL; RAD GRILLE BRIGHT RAD GRILLE<V22>	8-98060-340-0	01	1	1112-
140	SEAL; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22>	8-98060-340-0	01	1	1112-
140	SEAL; RAD GRILLE CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>	8-98060-340-0	01	1	1112-
141	COVER; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98041-013-1	01	1	1112-
141	COVER; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B)	8-98041-013-1	01	1	1112-
141	COVER; RAD GRILLE CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B)	8-98041-013-1	01	1	1112-
141	COVER; RAD GRILLE BRIGHT RAD GRILLE<V22> (A)	8-98060-784-0	01	1	1112-
141	COVER; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A)	8-98060-784-0	01	1	1112-
141	COVER; RAD GRILLE CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A)	8-98060-784-0	01	1	1112-
193	CLIP; SEAL BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	1112-
193	CLIP; SEAL EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	1112-
193	CLIP; SEAL CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	1112-
