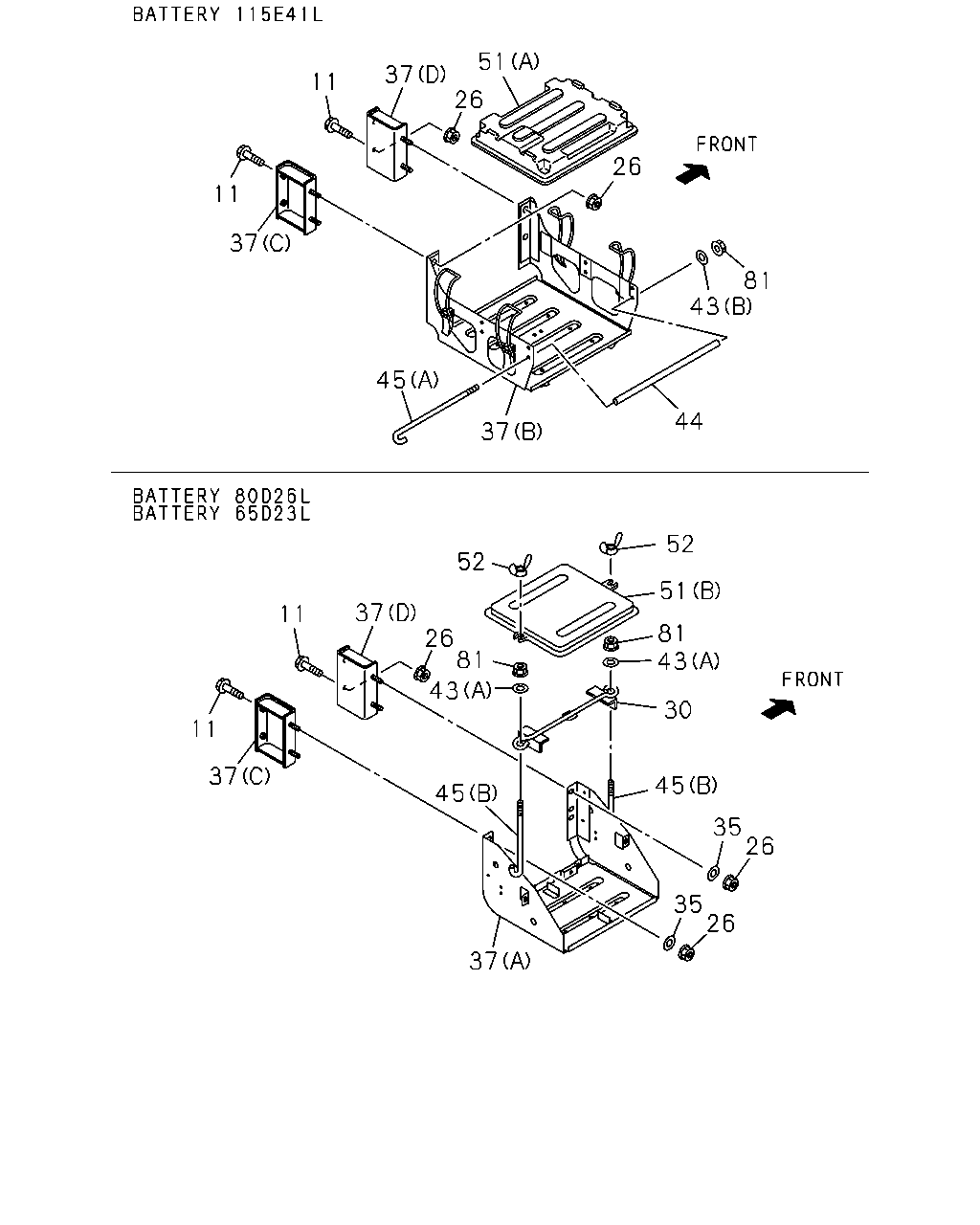

5-20 — BATTERY CARRIER (#41204) — 20 parça

11 11 37 37 51 26 45 37 44 43 81 52 26 37 11 11 37 45 37 35 26 26 35 45 30 43 43 81 26 81 51 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	04	1	1112-
26	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1112-
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1112-
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1112-
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1112-
37	BRACKET; BATTERY (D)	8-98088-828-0	01	1	1112-
37	BRACKET; BATTERY (C)	8-98144-194-0	01	1	1112-
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1112-1405
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98261-636-0	01	1	1406-
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1112-
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1112-
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	1112-
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	1112-
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	02	1	1112-
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	1112-
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1112-
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1112-
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1112-
81	NUT; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	02	1	1112-
