Isuzu WW
▶
TRUCKS
▶
FVR
▶
11463 - FVR(MALAYSIA) 240PS
▶
5 - Frame, Cab Mounting
▶

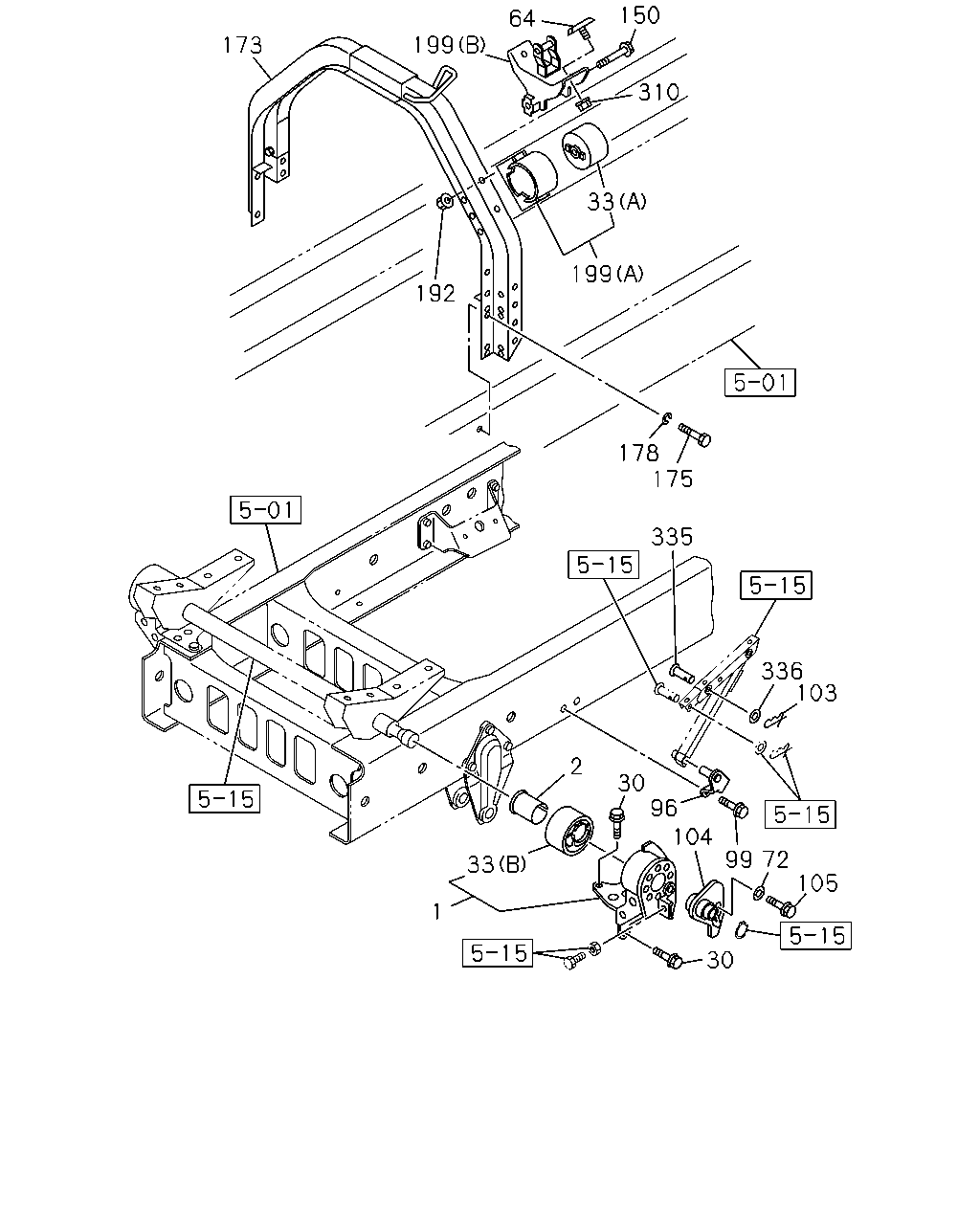

5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#41202) — 29 parça
150
64
199
173
310
33
199
192
178
175
335
336
103
2
30
96
104
99
72
33
105
1
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71>
8-98013-038-2
01
1
1112-
1
BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71>
8-98017-660-2
01
1
1112-
1
BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK>
8-98017-659-1
01
1
1112-
1
BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK>
8-98017-658-1
01
1
1112-
2
BUSHING; TORSION BAR
CAB SUSPENSION RIGID<W71>
8-98010-767-0
02
1
1112-
30
BOLT; CAB FRT FOOT
M14X45 FLANGE
0-28861-445-0
10
1
1112-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (B)
8-98013-933-1
01
1
1112-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (B)
8-98013-933-1
01
1
1112-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (A)
8-98013-934-1
02
1
1112-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> (A)
8-98010-759-2
02
1
1112-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> (B)
8-98065-943-0
02
1
1112-
64
RUBBER; CUSHION
8-97113-340-0
04
1
1112-
72
WASHER; PL,BRKT TO FRAME
ID=15 OD=36
0-91614-714-0
01
1
1112-
96
BRACKET; CAB STAY
1-62500-628-0
01
1
1112-
99
BOLT; BRKT
M10X30 FLANGE
0-28661-030-0
02
1
1112-
103
PIN; SPLIT,CAB STAY
L=32.6
8-98062-280-0
01
1
1112-
104
BRACKET; CAB FRAME,CAB FRT MTG
8-98010-753-3
01
1
1112-
105
BOLT; BRKT TO CAB FRAME
M14X35 FLANGE
0-28661-435-0
01
1
1112-
150
BOLT; CAB MTG RR
M14X100
0-10956-400-0
02
1
1112-
173
MEMBER; CAB MTG RR
8-98151-943-0
01
1
1112-
175
BOLT; MEMBER TO FRAME
M12X35
0-20951-235-0
08
1
1112-
178
WASHER; LK,MEMBER
ID=12.2
0-91510-612-0
08
1
1112-
192
NUT; BRKT FIX
M12 FLANGE
0-91180-212-0
04
1
1112-
199
BRACKET; CAB RR MTG
(B)
8-98023-692-0
02
1
1112-
199
BRACKET; CAB RR MTG
CAB SUSPENSION RIGID<W71> (A)
8-98010-770-0
02
1
1112-
199
BRACKET; CAB RR MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A)
8-98060-901-1
02
1
1112-
310
NUT; CUSHION
M8 FLANGE
0-91180-108-0
04
1
1112-
335
PIN; ADJ,STAY LOCK
OD=10 L=48
1-09744-107-0
01
1
1112-
336
WASHER; PL,STAY LOCK
ID=10.5 T=2.0
1-09985-183-0
01
1
1112-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
