4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#41192) — 64 parça

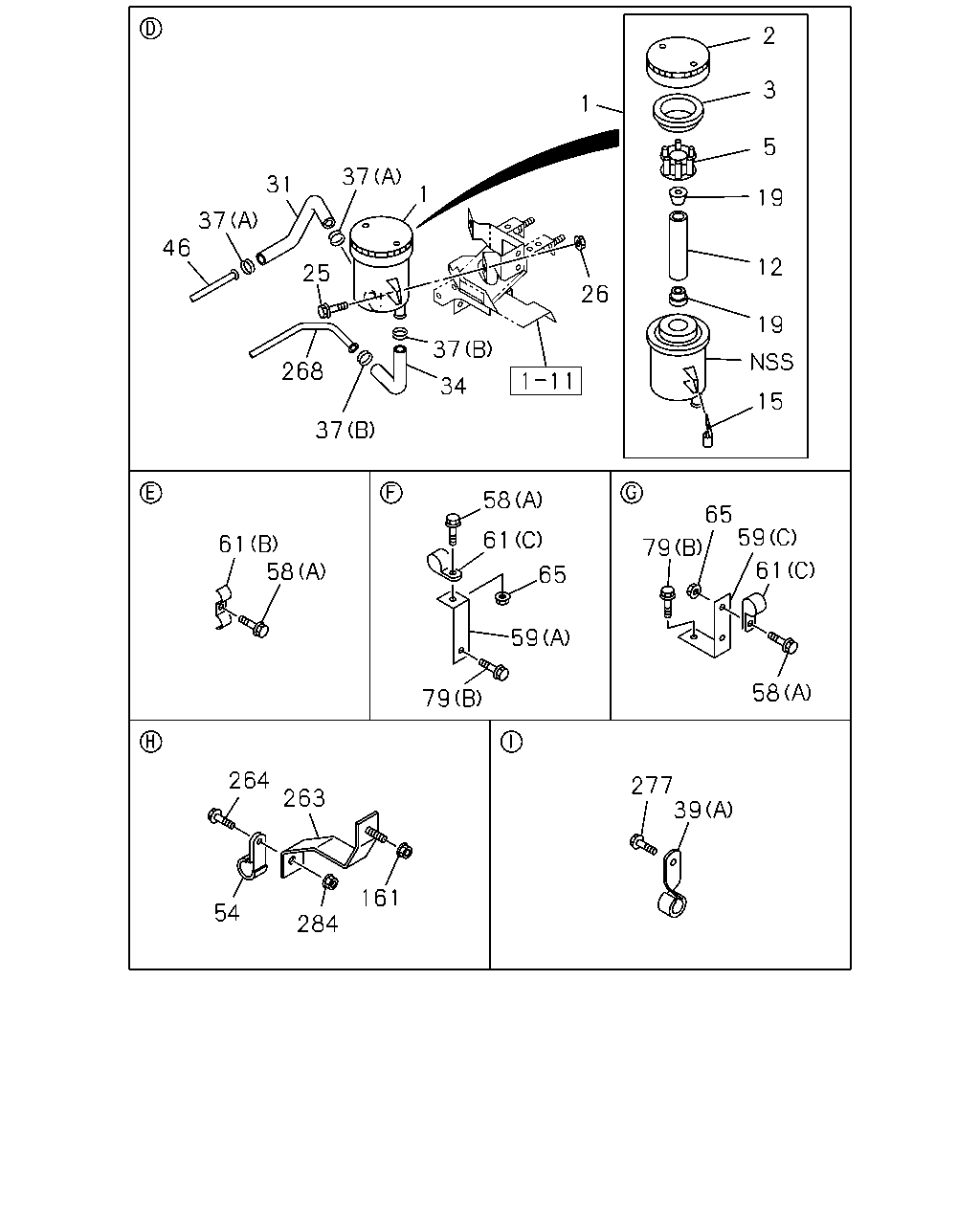

2 3 1 5 37 31 1 19 37 46 12 25 26 19 37 268 34 15 37 58 65 59 61 61 58 79 61 65 59 58 79 264 277 39 263 161 54 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1112-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1112-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1112-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1112-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1112-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1112-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1112-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1112-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1112-
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1112-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1112-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1112-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1112-
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1112-
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1112-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2775	8-98092-721-0	01	1	1112-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1112-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1112-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1112-
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1112-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1112-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1112-
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1112-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1112-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1112-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1112-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1112-
65	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1112-
79	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1112-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1112-
79	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	01	1	1112-
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1112-
263	BRACKET; P/S PIPE	8-98096-820-1	01	1	1112-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1112-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-047-0	01	1	1112-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1112-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1112-

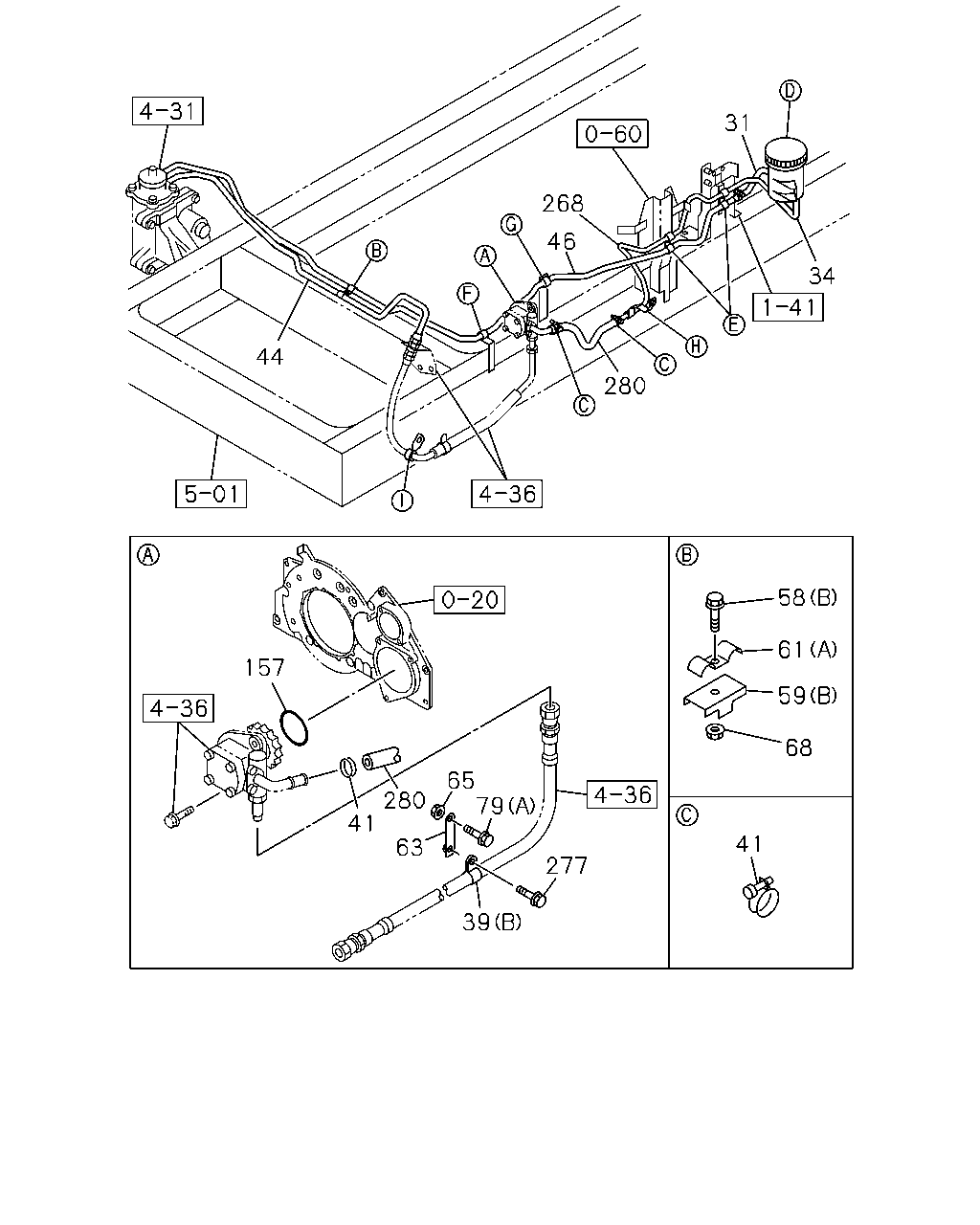

31 268 46 34 44 280 58 61 157 59 68 65 79 280 41 41 63 277 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1112-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1112-
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1112-
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1112-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1112-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98075-632-1	01	1	1112-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2775	8-98092-721-0	01	1	1112-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1112-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1112-
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1112-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1112-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1112-
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1112-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1112-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1112-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1112-
63	BRACKET; CLIP,P/S BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47476-396-1	01	1	1112-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1112-
65	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1112-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1112-
79	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1112-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1112-
79	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	01	1	1112-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1112-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-047-0	01	1	1112-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1112-
280	HOSE; P/S OIL PUMP,INL	8-98090-818-0	01	1	1112-
