6-76 — FLOOR EQUIPMENT AND SEALING (#4119) — 48 parça
çizim 7252
144 146 146 342 50 144 211 211 141 326
BalonParca AdiParca NoAdetTipApplied Date A B
50 COVER ASM; SUPPORT,SIDE 1-72537-124-0 01 1 9603-9910 ● ●
50 COVER ASM; SUPPORT,SIDE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-72537-124-0 01 1 9911- ● ●
141 HOLDER 1-79996-101-1 01 1 9603-9904 ● ●
141 HOLDER 1-79907-076-0 01 1 9905-9910 ● ●
141 HOLDER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-79907-076-1 01 1 9911- ● ●
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 01 1 9603-9812 ● ●
144 COVER; HAND BRK VLV
(B) 		1-72538-166-0 01 1 9901-9910 ● ●
144 COVER; HAND BRK VLV
SPRING BRAKE(SU9) (B) 		1-72538-166-0 01 1 9911- ● ●
144 COVER; HAND BRK VLV
ELEC OUTLET 12V<TAW> PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-354-0 01 1 9905- ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (A) 		1-72417-333-0 01 1 9603-9904 ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6>,ELEC OUTLET 12V<TAW> (A) 		1-72417-333-0 01 1 9905- ● ●
144 COVER; HAND BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-334-0 01 1 9603-9608 ● ●
144 COVER; HAND BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-336-0 01 1 9609-9910 ● ●
144 COVER; HAND BRK VLV
SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-336-0 01 1 9911- ● ●
144 COVER; HAND BRK VLV
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-332-0 01 1 9603- ●
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 9603-9904 ● ●
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 9905-9910 ● ●
146 BOLT; COVER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 9911- ● ●
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9603-9904 ● ●
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9905-9910 ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9911- ● ●
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9603-9705 ● ●
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9706-9904 ● ●
211 BOLT; COVER
BRAKE REGULATION ECE<TDV> (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9706-9904 ●
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9905-9910 ● ●
211 BOLT; COVER
PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9905-9910 ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9911- ● ●
211 BOLT; COVER
PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9911- ● ●
326 SEAL; COVER 1-79997-978-0 01 1 9603-9904 ● ●
326 SEAL; COVER 1-79997-978-1 01 1 9905-9910 ● ●
326 SEAL; COVER
SPRING BRAKE(SU9) 		1-79997-978-1 01 1 9911- ● ●
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 9603-9705 ● ●
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 9706-9904 ● ●
342 FASTENER
BRAKE REGULATION ECE<TDV> D8X13.5 		1-09987-248-1 01 1 9706-9904 ●
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 9905-9910 ● ●
342 FASTENER
PARKING BRAKE VALVE LEVER TYPE<W48> D8X13.5 		1-09987-248-1 01 1 9905-9910 ● ●
342 FASTENER
SPRING BRAKE(SU9) D8X13.5 		1-09987-248-1 01 1 9911- ● ●
342 FASTENER
PARKING BRAKE VALVE LEVER TYPE<W48> D8X13.5 		1-09987-248-1 01 1 9911- ● ●

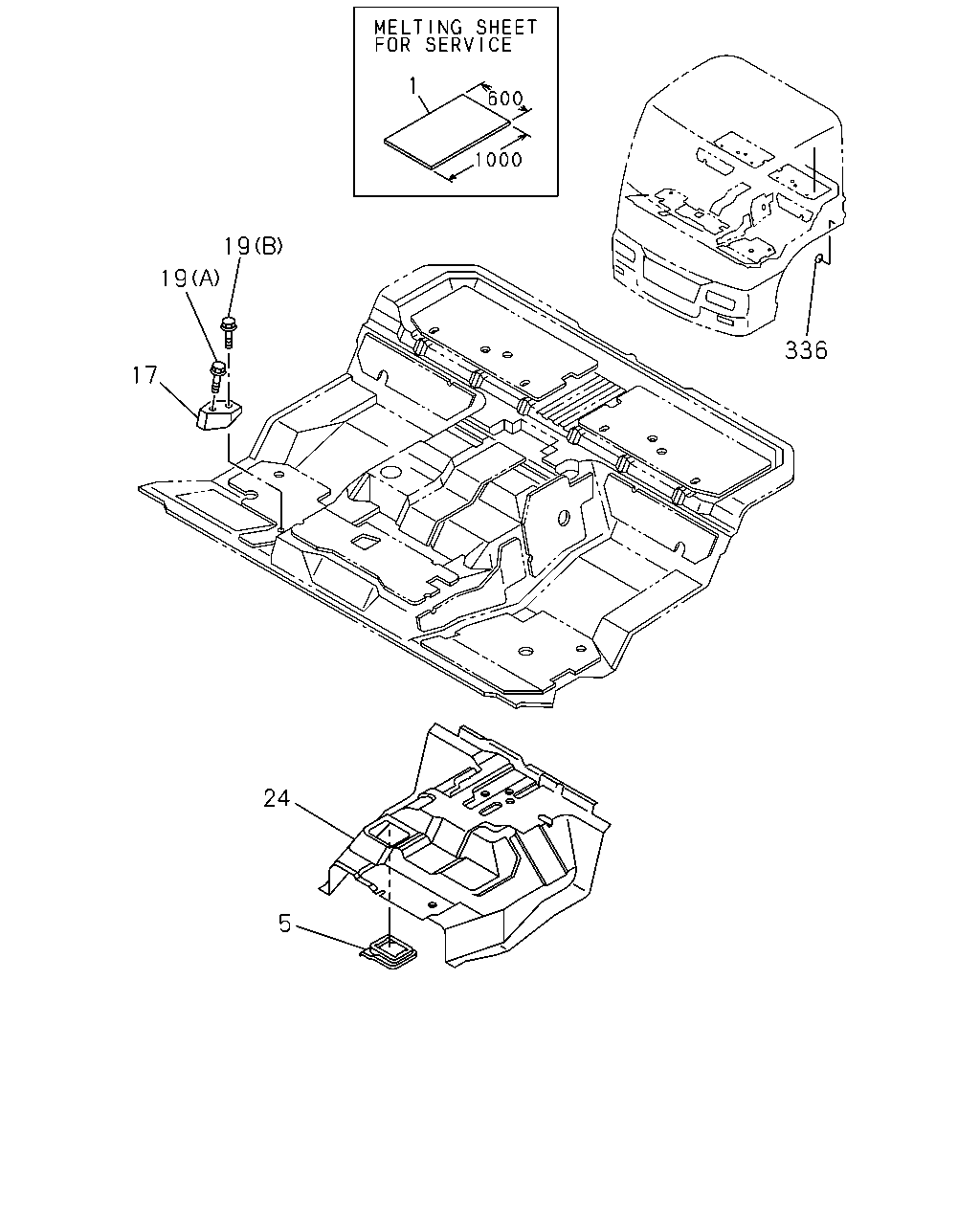

çizim 40070
1 19 19 336 17 24 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 9603- ● ●
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 9603- ● ●
17 REST; FOOT,DRIVER 1-73907-176-0 01 1 9603- ● ●
19 BOLT; FOOT REST
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9603- ● ●
19 BOLT; FOOT REST
(A) M6X47 		8-94407-876-1 01 1 9603- ● ●
24 INSULATOR; HEAT,FRT 1-71907-299-4 01 1 9603-9910 ● ●
24 INSULATOR; HEAT,FRT
EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-71907-299-5 01 1 9911- ● ●
24 INSULATOR; HEAT,FRT
PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-71907-538-4 01 1 9911- ● ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 9603- ● ●
336 SEAL; FLOOR SIDE
EXC. SPRING BRAKE(SU9) OD=25 BLACK 		1-76798-019-0 01 1 9911- ● ●
