6-75 — MAT AND CARPET (#4118) — 58 parça

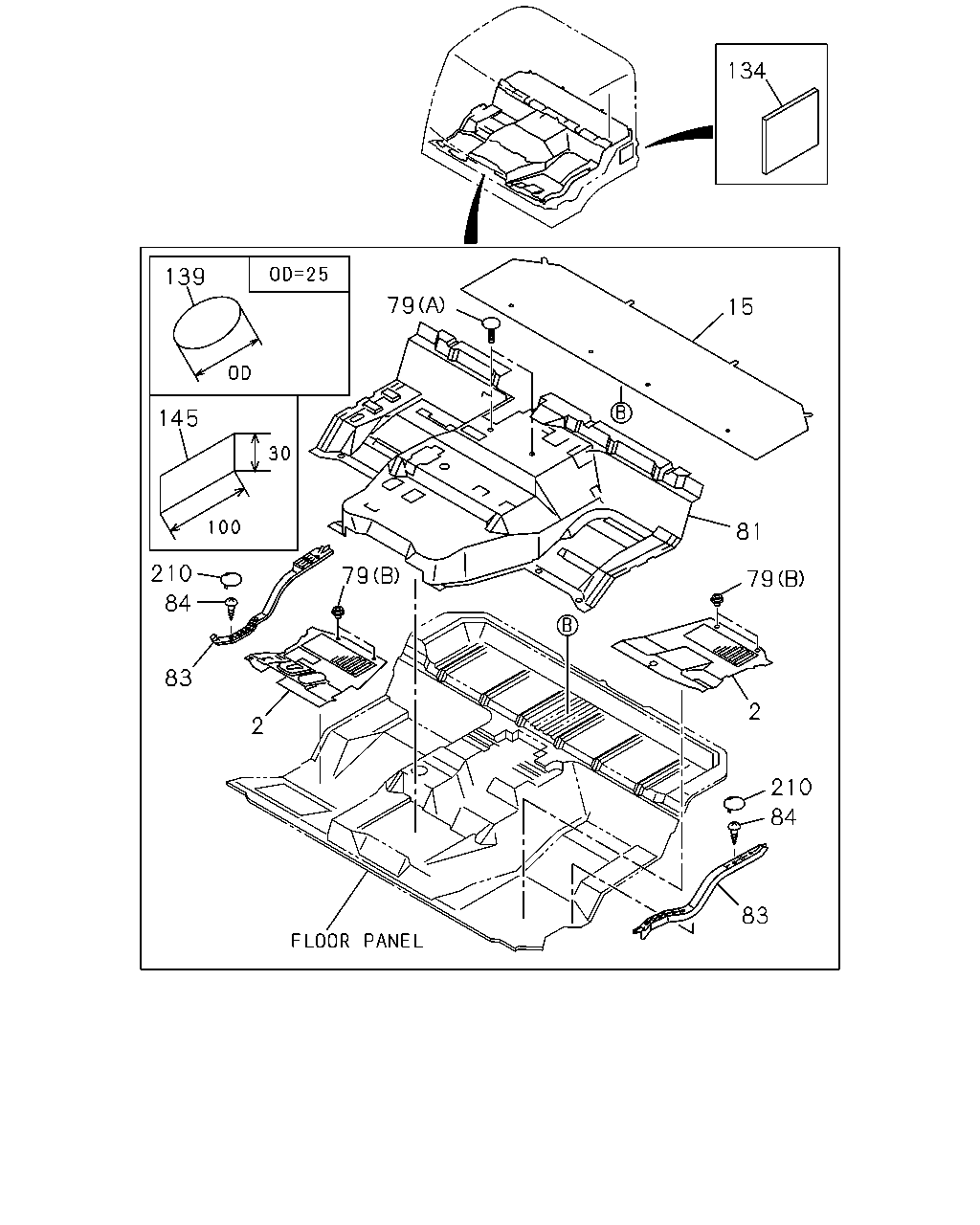

134 139 79 15 145 81 79 210 79 84 83 2 2 210 84 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR EXC. DELUXE CARPET<BF2>	1-73237-536-3	01	1	9603-	●	●
2	MAT; FLOOR EXC. DELUXE CARPET<BF2>	1-73237-535-2	01	1	9603-0006	●	●
2	MAT; FLOOR EXC. DELUXE CARPET<BF2>	1-73237-675-0	01	1	0007-	●	●
15	MAT; FLOOR REAR EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40>	1-73237-517-2	01	1	9603-	●	●
79	HOOK; MALE (A) D6X23 BLACK	1-09987-114-0	02	1	9603-	●	●
79	HOOK; MALE (B) BLACK	8-94279-089-0	08	1	9603-	●	●
81	MAT; FLOOR,CENTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9)	1-73237-650-0	01	1	9911-0011	●	●
81	MAT; FLOOR,CENTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9)	1-73237-650-0	01	1	0012-	●
81	MAT; FLOOR,CENTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DELUXE CARPET<BF2>,DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-73237-650-0	01	1	0012-		●
81	MAT; FLOOR,CENTER CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>	1-73237-563-7	01	1	9607-0011	●	●
81	MAT; FLOOR,CENTER CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>	1-73237-563-7	01	1	0012-	●
81	MAT; FLOOR,CENTER CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,DRIVER ISRINGHAUSEN SEAT(SJA)	1-73237-563-7	01	1	0012-		●
81	MAT; FLOOR,CENTER EXC. DELUXE CARPET<BF2>	1-73237-508-1	01	1	9603-9606	●	●
81	MAT; FLOOR,CENTER EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9)	1-73237-508-6	01	1	9607-9910	●	●
81	MAT; FLOOR,CENTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9)	1-73237-508-7	01	1	9911-0011	●	●
81	MAT; FLOOR,CENTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9)	1-73237-508-7	01	1	0012-	●
81	MAT; FLOOR,CENTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DELUXE CARPET<BF2>,DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-73237-508-7	01	1	0012-		●
81	MAT; FLOOR,CENTER DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>	1-73237-607-5	01	1	0012-		●
81	MAT; FLOOR,CENTER DRIVER ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9)	1-73237-608-4	01	1	0012-		●
83	PLATE; KICKING,FLOOR MAT	1-76798-027-2	01	1	9603-	●	●
83	PLATE; KICKING,FLOOR MAT	1-76798-026-3	01	1	9603-	●	●
84	SCREW; PLATE TO FLOOR M5X16	8-94279-312-0	08	1	9603-	●	●
134	SILENCER; RR FLOOR,SIDE	1-73367-016-0	01	1	9603-9904	●	●
134	SILENCER; RR FLOOR,SIDE V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM>	1-73367-016-0	01	1	9905-	●	●
134	SILENCER; RR FLOOR,SIDE EXC. BAGGAGE BOX CAB RR SIDE<TBM>	1-73367-016-0	01	1	9905-	●	●
139	SEAL; FLOOR OD=25 BLACK	1-76798-019-0	04	1	9603-	●	●
145	SEAL; FLOOR PANEL 100X30	1-72498-014-1	01	1	9603-9903	●	●
145	SEAL; FLOOR PANEL 100X40	1-72498-022-0	01	1	9904-	●	●
210	COVER; KICKING PLATE	1-72538-166-0	09	1	9603-	●	●

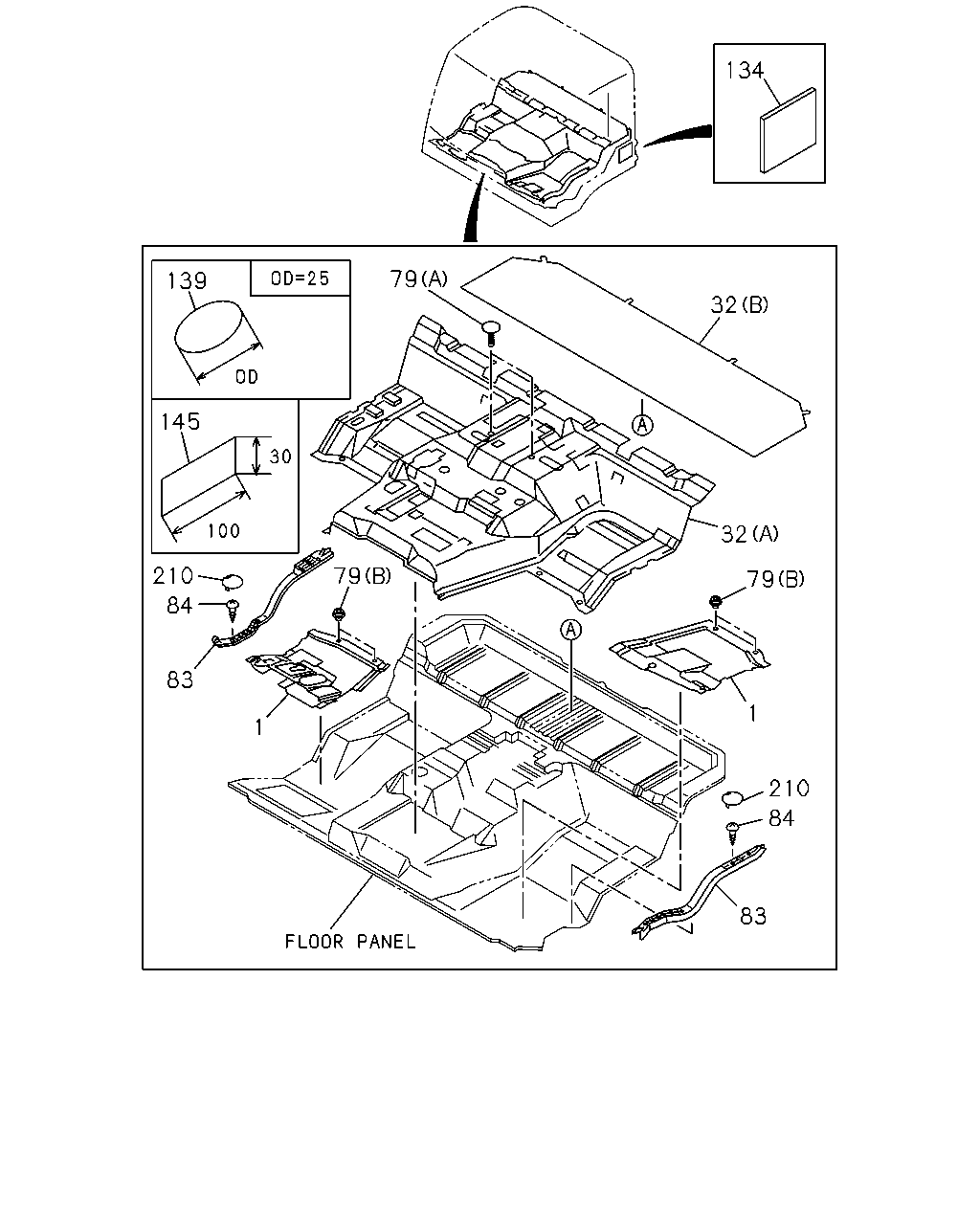

134 79 139 32 145 32 79 210 79 84 83 1 1 210 84 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2>	1-73237-538-2	01	1	9603-	●	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2>	1-73237-537-1	01	1	9603-0006	●	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2>	1-73237-666-0	01	1	0007-	●	●
32	CARPET; FLOOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A)	1-73237-635-4	01	1	9911-0011	●	●
32	CARPET; FLOOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A)	1-73237-635-4	01	1	0012-	●
32	CARPET; FLOOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DELUXE CARPET<BF2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (A)	1-73237-635-4	01	1	0012-		●
32	CARPET; FLOOR DELUXE CARPET<BF2> (A)	1-73237-507-0	01	1	9603-9606	●	●
32	CARPET; FLOOR DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A)	1-73237-507-6	01	1	9607-9910	●	●
32	CARPET; FLOOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A)	1-73237-507-9	01	1	9911-0011	●	●
32	CARPET; FLOOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A)	1-73237-507-9	01	1	0012-	●
32	CARPET; FLOOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DELUXE CARPET<BF2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (A)	1-73237-507-9	01	1	0012-		●
32	CARPET; FLOOR DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) (A)	1-73237-562-9	01	1	9607-0011	●	●
32	CARPET; FLOOR DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) (A)	1-73237-562-9	01	1	0012-	●
32	CARPET; FLOOR DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-73237-562-9	01	1	0012-		●
32	CARPET; FLOOR DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B)	1-73237-539-0	01	1	9603-	●	●
32	CARPET; FLOOR DELUXE CARPET<BF2> DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) (A)	1-73237-600-7	01	1	0012-		●
32	CARPET; FLOOR DELUXE CARPET<BF2> DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (A)	1-73237-609-7	01	1	0012-		●
79	HOOK; MALE (A) D6X23 BLACK	1-09987-114-0	02	1	9603-	●	●
79	HOOK; MALE (B) BLACK	8-94279-089-0	08	1	9603-	●	●
83	PLATE; KICKING,FLOOR MAT	1-76798-027-2	01	1	9603-	●	●
83	PLATE; KICKING,FLOOR MAT	1-76798-026-3	01	1	9603-	●	●
84	SCREW; PLATE TO FLOOR M5X16	8-94279-312-0	08	1	9603-	●	●
134	SILENCER; RR FLOOR,SIDE	1-73367-016-0	01	1	9603-9904	●	●
134	SILENCER; RR FLOOR,SIDE V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM>	1-73367-016-0	01	1	9905-	●	●
134	SILENCER; RR FLOOR,SIDE EXC. BAGGAGE BOX CAB RR SIDE<TBM>	1-73367-016-0	01	1	9905-	●	●
139	SEAL; FLOOR OD=25 BLACK	1-76798-019-0	04	1	9603-	●	●
145	SEAL; FLOOR PANEL 100X30	1-72498-014-1	01	1	9603-9903	●	●
145	SEAL; FLOOR PANEL 100X40	1-72498-022-0	01	1	9904-	●	●
210	COVER; KICKING PLATE	1-72538-166-0	09	1	9603-	●	●
