8-28 — CHASSIS ELECTRICAL (#41176) — 104 parça

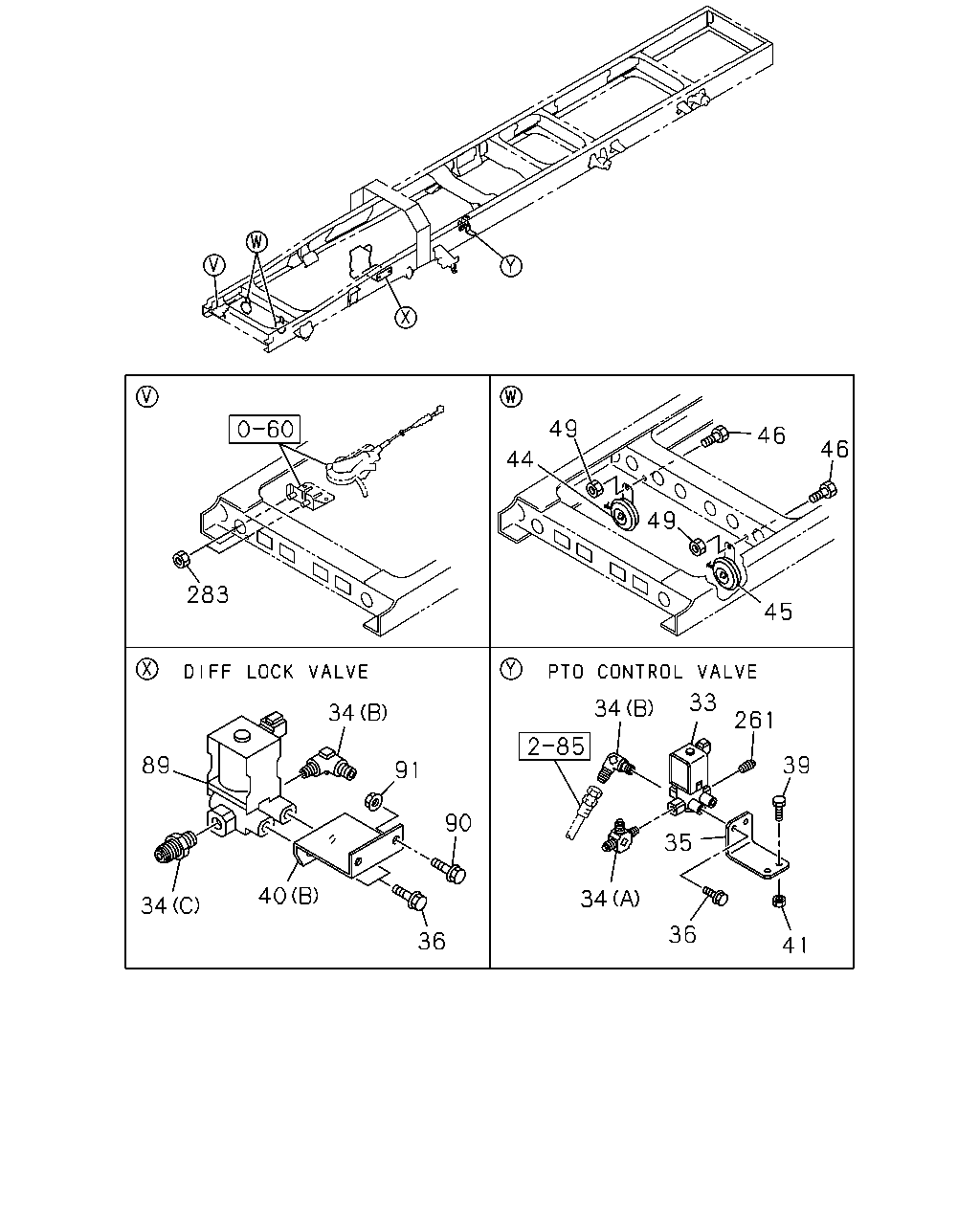

49 46 46 44 49 283 45 33 34 34 261 89 39 91 90 35 40 34 34 36 36 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6)	1-82563-600-5	01	1	0008-
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0008-
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0008-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0008-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0008-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0008-0204
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0205-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0205-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0008-0204
35	BRACKET; MAG VLV,PTO CONT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6)	1-47477-267-0	01	1	0008-
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	04	1	0008-0512
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	0601-
36	BOLT; MAG VLV,PTO CONT DIFF LOCK<C3N> M8X20 FLANGE	0-28680-820-0	02	1	0008-0512
36	BOLT; MAG VLV,PTO CONT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) M8X20 FLANGE	0-28680-820-0	02	1	0008-0512
36	BOLT; MAG VLV,PTO CONT DIFF LOCK<C3N> M8X20 FLANGE	0-28650-820-0	02	1	0601-
36	BOLT; MAG VLV,PTO CONT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) M8X30 FLANGE	0-28680-830-0	02	1	0008-0512
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) M8X30 FLANGE	0-28650-830-0	02	1	0601-
40	BRACKET; MAG VLV (A)	1-47477-327-2	01	1	0008-
40	BRACKET; MAG VLV DIFF LOCK<C3N> (B)	1-82569-259-0	01	1	0008-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) M8 FLANGE	0-91150-108-0	02	1	0008-0602
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) M8 FLANGE	0-91180-108-0	02	1	0603-
44	HORN; HIGH NOTE	1-83410-057-1	01	1	0008-0210
44	HORN; HIGH NOTE	1-83410-065-1	01	1	0211-
45	HORN; LOW NOTE	1-83410-058-1	01	1	0008-0210
45	HORN; LOW NOTE	1-83410-064-1	01	1	0211-
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0008-0512
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	0008-0602
49	NUT; HORN TO BODY M8 FLANGE	0-91180-108-0	02	1	0603-
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	1-82563-602-6	01	1	0008-
90	BOLT; MAG VLV DIFF LOCK<C3N> M8X20 FLANGE	0-28680-820-0	02	1	0008-0512
90	BOLT; MAG VLV DIFF LOCK<C3N> M8X20 FLANGE	0-28650-820-0	02	1	0601-
91	NUT; MAG VLV DIFF LOCK<C3N> M8 FLANGE	0-91150-108-0	02	1	0008-0212
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) PT1/4	9-99204-513-0	01	1	0008-
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0008-0602
283	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-

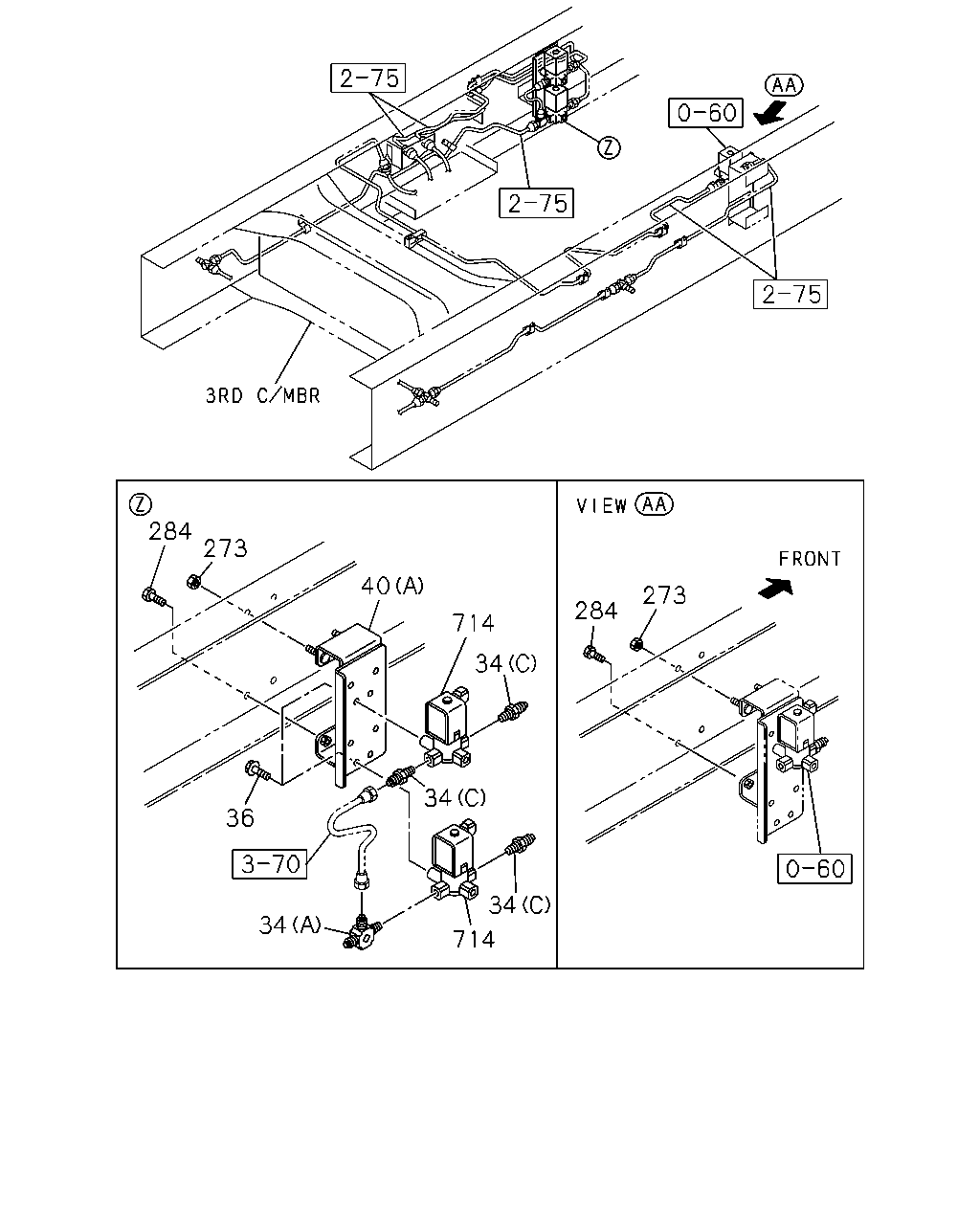

284 273 40 273 284 714 34 34 36 34 34 714

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0008-
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0008-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0008-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0008-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0008-0204
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0205-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0205-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0008-0204
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	04	1	0008-0512
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	0601-
36	BOLT; MAG VLV,PTO CONT DIFF LOCK<C3N> M8X20 FLANGE	0-28680-820-0	02	1	0008-0512
36	BOLT; MAG VLV,PTO CONT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) M8X20 FLANGE	0-28680-820-0	02	1	0008-0512
36	BOLT; MAG VLV,PTO CONT DIFF LOCK<C3N> M8X20 FLANGE	0-28650-820-0	02	1	0601-
36	BOLT; MAG VLV,PTO CONT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) M8X20 FLANGE	0-28650-820-0	02	1	0601-
40	BRACKET; MAG VLV (A)	1-47477-327-2	01	1	0008-
40	BRACKET; MAG VLV DIFF LOCK<C3N> (B)	1-82569-259-0	01	1	0008-
273	NUT; MAG VLV M8 FLANGE	0-91150-108-0	06	1	0008-0010
273	NUT; MAG VLV M8 FLANGE	0-91150-108-0	04	1	0011-0602
273	NUT; MAG VLV M8 FLANGE	0-91180-108-0	04	1	0603-
284	BOLT; MAG VLV M8X25 FLANGE	0-28680-825-0	02	1	0008-0512
284	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0601-
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-598-5	02	1	0008-

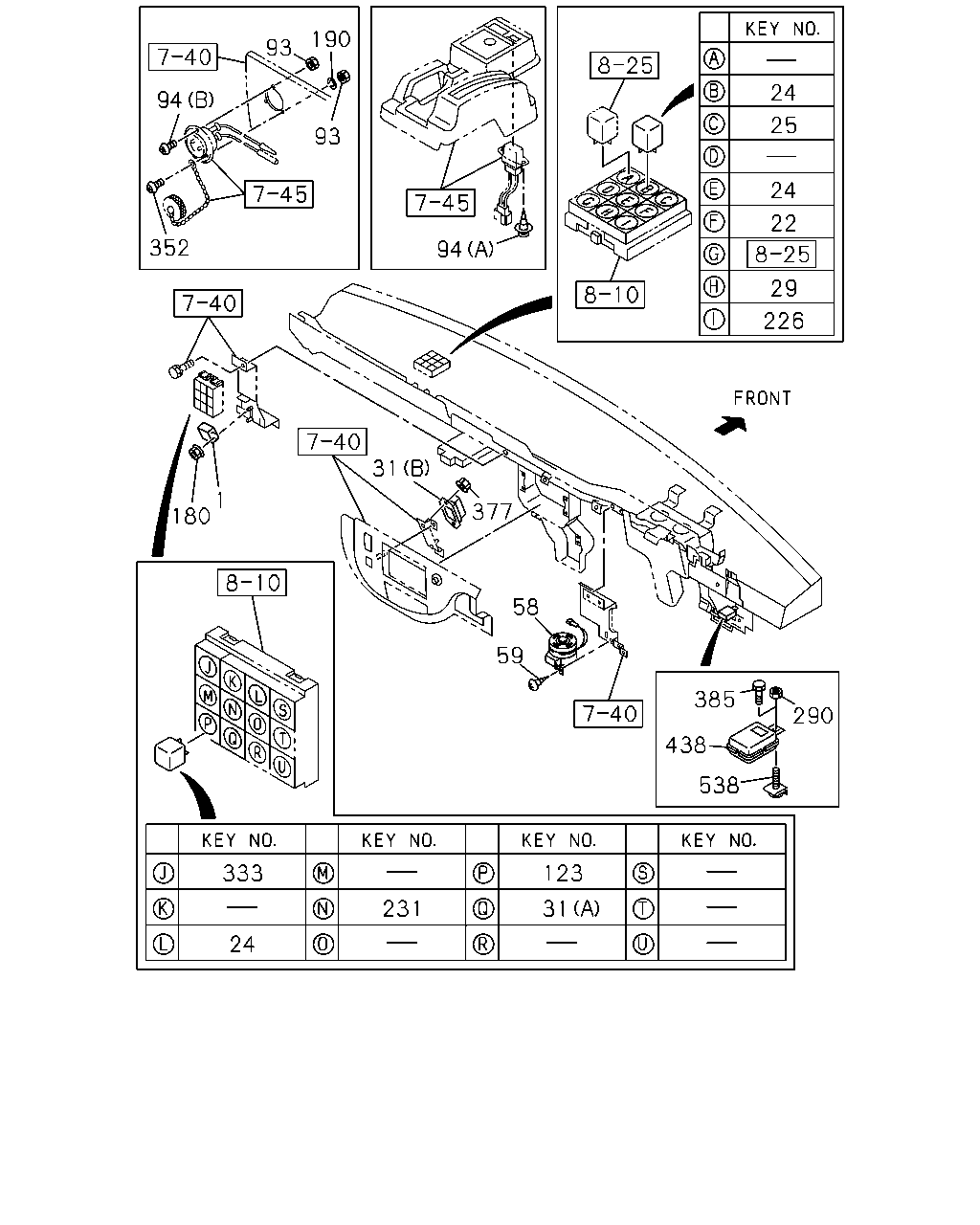

190 93 24 94 25 93 24 22 352 94 29 226 31 1 180 377 58 59 385 290 438 538 123 333 231 31 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER BAN	1-83470-060-1	01	1	0008-
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0008-0111
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	0008-0111
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
24	RELAY; LIGHTING LAMPS EXP PACKAGE<WL5> 24V 12.5A MITUBA	8-97062-815-1	01	1	0008-0111
24	RELAY; LIGHTING LAMPS EXP PACKAGE<WL5> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0008-0111
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	0008-0111
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
31	RELAY; PTO CONT PTO CONTROL(SV6) (B) 24V	1-82550-187-1	01	1	0008-
31	RELAY; PTO CONT PTO CONTROL(SV6) (A) 24V 12.5A MITUBA	8-97062-815-1	01	1	0008-0111
31	RELAY; PTO CONT PTO CONTROL(SV6) (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	0008-1308
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	0008-0612
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	8-98069-865-0	01	1	0701-1308
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-865-0	01	1	1309-
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	8-98069-865-0	01	1	1309-
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0008-
93	NUT; CONSENT TO BLIND PNL USER EXP GOVERNMENT<D6M> M3	9-99110-403-0	03	1	0008-
94	SCREW; CONSENT TO BLIND PNL (A) M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0008-0604
94	SCREW; CONSENT TO BLIND PNL (A) M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-
94	SCREW; CONSENT TO BLIND PNL USER EXP GOVERNMENT<D6M> (B) M3X10 CK-HEAD	9-93090-310-0	02	1	0008-
123	RELAY; HTR 24V 12.5A MITUBA	8-97062-815-1	01	1	0008-0008
123	RELAY; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA	8-97062-815-1	01	1	0009-0111
123	RELAY; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0008-0602
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
190	WASHER USER EXP GOVERNMENT<D6M> ID=3.1	9-09150-503-0	01	1	0008-0604
190	WASHER USER EXP GOVERNMENT<D6M> ID=3.1	0-91510-503-0	01	1	0605-
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0008-0111
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
231	RELAY; HAZARD LAMPS EXP PACKAGE<WL5> 24V 12.5A MITUBA	8-97062-815-1	01	1	0008-0111
231	RELAY; HAZARD LAMPS EXP PACKAGE<WL5> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
290	NUT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91150-106-0	01	1	0008-0602
290	NUT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	01	1	0603-
333	RELAY; MARKER LAMP LAMPS EXP PACKAGE<WL5> 24V 12.5A MITUBA	8-97062-815-1	01	1	0008-0111
333	RELAY; MARKER LAMP LAMPS EXP PACKAGE<WL5> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
352	SCREW; BRKT USER EXP GOVERNMENT<D6M> M3X10	9-93490-310-0	01	1	0008-
377	NUT; RELAY PTO CONTROL(SV6) M6 FLANGE	0-91150-106-0	02	1	0008-0602
377	NUT; RELAY PTO CONTROL(SV6) M6 FLANGE	0-91180-106-0	02	1	0603-
385	BOLT; CONT UNIT EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0008-
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	0008-
538	CLIP; CONT UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97806-845-2	01	1	0008-
