8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#41174) — 31 parça

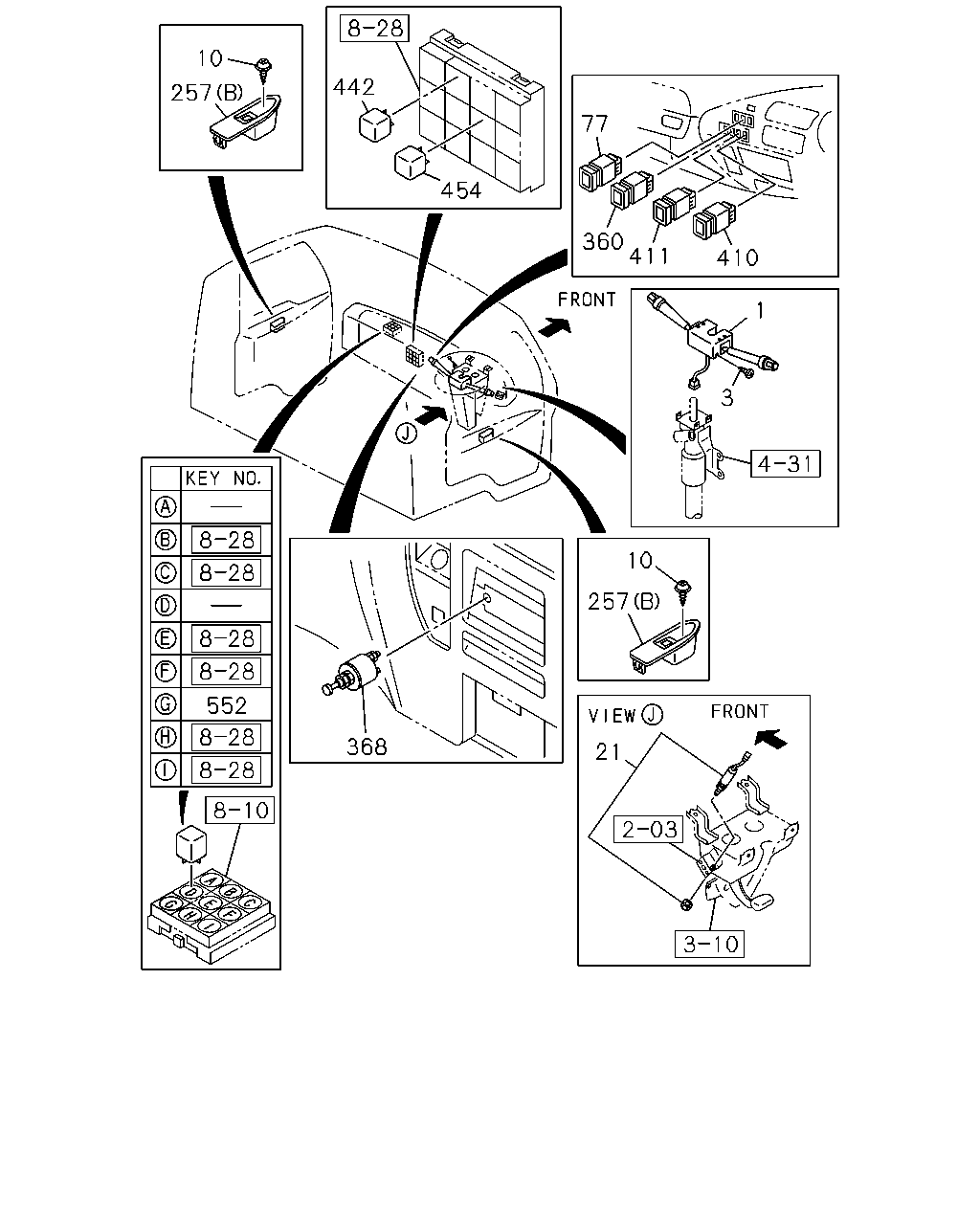

çizim 97776
10 442 257 77 454 360 411 410 1 3 10 257 552 368 21
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
USER EXP GOVERNMENT<D6M> 		1-82360-475-1 01 1 0008-0103
1 SWITCH; COMB
USER EXP GOVERNMENT<D6M> 		1-82360-630-0 01 1 0104-0312
1 SWITCH; COMB
USER EXP GOVERNMENT<D6M> 		1-82360-719-0 01 1 0401-
1 SWITCH; COMB
EXC. USER EXP GOVERNMENT<D6M> 		1-82360-403-4 01 1 0008-0103
1 SWITCH; COMB
EXC. USER EXP GOVERNMENT<D6M> 		1-82360-618-0 01 1 0104-0312
1 SWITCH; COMB
EXC. USER EXP GOVERNMENT<D6M> 		1-82360-714-0 01 1 0401-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0008-0604
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0008-0604
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-
21 SWITCH; CLU 1-82380-114-3 01 1 0008-
77 SWITCH; PTO
PTO CONTROL(SV6) 		1-82340-403-0 01 1 0008-
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0008-
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0008-
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0008-
360 SWITCH ASM; DIFF LK
DIFF LOCK<C3N> 		1-82340-404-0 01 1 0008-
368 SWITCH; LAMP
USER EXP GOVERNMENT<D6M> 		9-82750-469-0 01 1 0008-
410 SWITCH; FRT DRIVE 1-82350-264-0 01 1 0008-
411 SWITCH; TRANSFER 1-82350-265-0 01 1 0008-
442 RELAY
LAMPS EXP PACKAGE<WL5> 24V 12.5A MITUBA 		8-97062-815-1 02 1 0008-0008
442 RELAY
LAMPS EXP PACKAGE<WL5> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0009-0111
442 RELAY
LAMPS EXP PACKAGE<WL5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
454 RELAY; PASSING
LAMPS EXP PACKAGE<WL5> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0008-0111
454 RELAY; PASSING
LAMPS EXP PACKAGE<WL5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
552 RELAY; CIGAR LIGHTER
24V 12.5A MITUBA 		8-97062-815-1 01 1 0008-0111
552 RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
çizim 97779
29 30 257
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR 8-97855-032-3 01 1 0008-
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0008-
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0008-
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0008-
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0008-
