◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11433 - FSS(BANGLADESH) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#41172) — 165 parça
çizim 97017
116 421 217 121 16 171 223 470 148 168 148
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(J) ID=11 L=41 		1-09700-403-0 03 1 0008-0110
16 CLIP; HARNESS
(J) ID=11 L=41 		1-09700-403-0 05 1 0111-
16 CLIP; HARNESS
(I) ID=28 L=78 		1-09700-858-0 01 1 0008-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0008-
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0008-
16 CLIP; HARNESS
(C) L=300 		1-09707-001-1 01 1 0008-
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0008-
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0008-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0008-
16 CLIP; HARNESS
(E) L=175 		8-97110-167-0 02 1 0008-
16 CLIP; HARNESS
(F) ID=19 L=32 		9-09525-866-0 01 1 0008-0606
16 CLIP; HARNESS
(F) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(K) ID=14 L=44 		9-09917-427-0 03 1 0008-
16 CLIP; HARNESS
(L) ID=20 L=50 		9-09917-430-0 01 1 0008-0301
16 CLIP; HARNESS
USER EXP GOVERNMENT<D6M> (J) ID=11 L=41 		1-09700-403-0 04 1 0008-0310
16 CLIP; HARNESS
USER EXP GOVERNMENT<D6M> (J) ID=11 L=41 		1-09700-403-0 02 1 0311-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0008-0009
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0010-0112
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0008-
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0008-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0008-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0008-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0008-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0008-
171 CLIP; STARTER HARNESS
(C) OD=9 H=6 		1-09709-178-0 02 1 0008-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 0008-0606
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 0607-
217 CLIP; RR BODY HARNESS
(B) ID=15 L=70 		1-09700-980-0 02 1 0008-0208
217 CLIP; RR BODY HARNESS
(A) L=250 		5-09707-030-1 02 1 0008-
223 CLIP; AIR TANK HARNESS
(C) OD=9 H=6 		1-09709-178-0 03 1 0008-
223 CLIP; AIR TANK HARNESS
(A) L=140 		5-09707-031-1 01 1 0008-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 06 1 0008-0302
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 05 1 0303-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 0008-0101
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0008-
470 CLIP; HARNESS,LICENSE LAMP
PINTLE HOOK<PP7> (A) ID=11 L=41 		1-09700-403-0 01 1 0008-
çizim 97050
185 185 513 530 59 154 514 503 178 178 178
BalonParca AdiParca NoAdetTipApplied Date
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0008-
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 0301-
178 GROMMET; HARNESS
(A) ID=32 OD=48 T=5 		9-09575-232-0 01 1 0008-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 03 1 0008-
178 GROMMET; HARNESS
PINTLE HOOK<PP7> (C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0008-
185 SLEEVE; RUBBER
DIFF LOCK<C3N> (B) ID=32 OD=36 L=50 		1-09337-023-0 03 1 0008-0310
185 SLEEVE; RUBBER
DIFF LOCK<C3N> (A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0311-
503 CONNECTOR 1-82690-668-0 02 1 0101-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 01 1 0008-0906
514 FINISHER; HARNESS
EXC. RADIO AM/FM STEREO & TAPE PLAYER<UN3> L=50 		8-94270-377-1 01 1 0907-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0102-

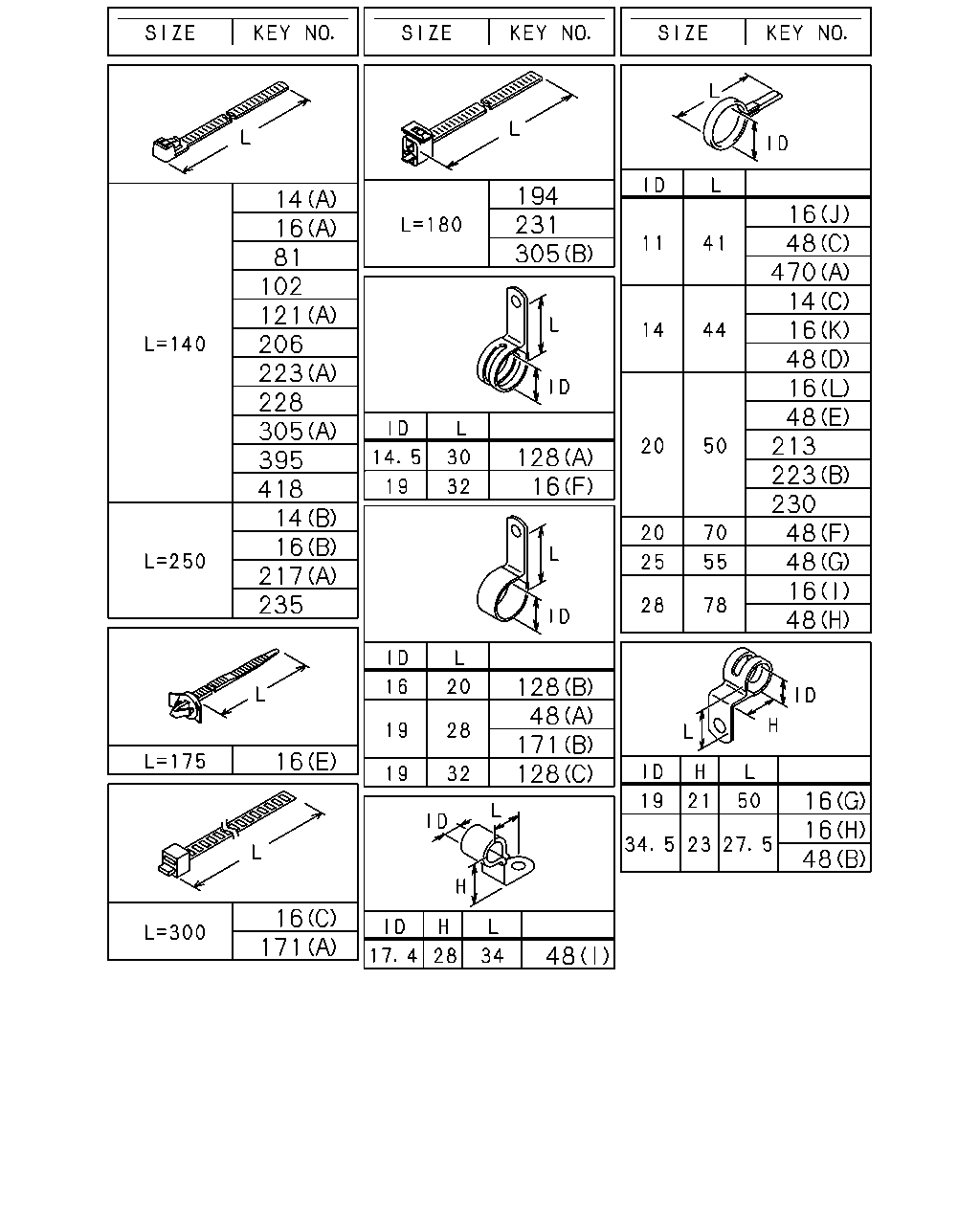

çizim 97505
194 231 305 14 16 81 102 121 206 223 228 305 395 418 14 16 217 235 16 48 470 14 16 48 16 48 213 223 230 48 48 16 48 128 16 128 48 171 128 16 16 16 48 16 171 48
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 01 1 0008-1205
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 01 1 1206-
14 CLIP; BAND,HARNESS
(A) L=140 		5-09707-031-1 02 1 0008-0110
14 CLIP; BAND,HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0008-0111
14 CLIP; BAND,HARNESS
DIFF LOCK<C3N> (B) L=250 		5-09707-030-1 05 1 0008-
16 CLIP; HARNESS
(J) ID=11 L=41 		1-09700-403-0 03 1 0008-0110
16 CLIP; HARNESS
(J) ID=11 L=41 		1-09700-403-0 05 1 0111-
16 CLIP; HARNESS
(I) ID=28 L=78 		1-09700-858-0 01 1 0008-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0008-
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0008-
16 CLIP; HARNESS
(C) L=300 		1-09707-001-1 01 1 0008-
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0008-
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0008-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0008-
16 CLIP; HARNESS
(E) L=175 		8-97110-167-0 02 1 0008-
16 CLIP; HARNESS
(F) ID=19 L=32 		9-09525-866-0 01 1 0008-0606
16 CLIP; HARNESS
(F) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(K) ID=14 L=44 		9-09917-427-0 03 1 0008-
16 CLIP; HARNESS
(L) ID=20 L=50 		9-09917-430-0 01 1 0008-0301
16 CLIP; HARNESS
USER EXP GOVERNMENT<D6M> (J) ID=11 L=41 		1-09700-403-0 04 1 0008-0310
16 CLIP; HARNESS
USER EXP GOVERNMENT<D6M> (J) ID=11 L=41 		1-09700-403-0 02 1 0311-
48 CLIP; FRAME HARNESS
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0008-
48 CLIP; FRAME HARNESS
(A) ID=19 L=28 		9-09525-856-0 01 1 0008-0606
48 CLIP; FRAME HARNESS
(A) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 0008-0310
48 CLIP; FRAME HARNESS
USER EXP GOVERNMENT<D6M> (D) ID=14 L=44 		9-09917-427-0 02 1 0008-0310
48 CLIP; FRAME HARNESS
USER EXP GOVERNMENT<D6M> (D) ID=14 L=44 		9-09917-427-0 03 1 0311-
48 CLIP; FRAME HARNESS
(E) ID=20 L=50 		9-09917-430-0 04 1 0008-
48 CLIP; FRAME HARNESS
(G) ID=25 L=55 		9-09917-573-0 02 1 0008-0301
48 CLIP; FRAME HARNESS
EXC. USER EXP GOVERNMENT<D6M> (G) ID=25 L=55 		9-09917-573-0 02 1 0302-
48 CLIP; FRAME HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 0311-
48 CLIP; FRAME HARNESS
USER EXP GOVERNMENT<D6M> (C) ID=11 L=41 		1-09700-403-0 05 1 0008-
48 CLIP; FRAME HARNESS
USER EXP GOVERNMENT<D6M> (F) ID=20 L=70 		1-09700-485-0 04 1 0008-0310
48 CLIP; FRAME HARNESS
USER EXP GOVERNMENT<D6M> (F) ID=20 L=70 		1-09700-485-0 05 1 0311-
48 CLIP; FRAME HARNESS
USER EXP GOVERNMENT<D6M> (H) ID=28 L=78 		1-09700-858-0 05 1 0008-
48 CLIP; FRAME HARNESS
USER EXP GOVERNMENT<D6M> (E) ID=20 L=50 		9-09917-430-0 20 1 0008-0310
48 CLIP; FRAME HARNESS
USER EXP GOVERNMENT<D6M> (E) ID=20 L=50 		9-09917-430-0 22 1 0311-
48 CLIP; FRAME HARNESS
EXC. USER EXP GOVERNMENT<D6M> (H) ID=28 L=78 		1-09700-858-0 09 1 0008-
48 CLIP; FRAME HARNESS
EXC. USER EXP GOVERNMENT<D6M> (I) ID=17.4 L=34 W/NUT 		9-09917-403-0 04 1 0008-
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0008-
102 CLIP; BAND
L=140 		5-09707-031-1 01 1 0112-
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0008-
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0008-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 0008-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=19 L=32 		9-09525-862-0 01 1 0008-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0008-
171 CLIP; STARTER HARNESS
(C) OD=9 H=6 		1-09709-178-0 02 1 0008-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 0008-0606
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 0607-
194 CLIP; BAND
L=180 		1-09707-162-1 04 1 0008-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0008-
213 CLIP; END CROSS HARNESS
PINTLE HOOK<PP7> ID=20 L=50 		9-09917-430-0 04 1 0008-
213 CLIP; END CROSS HARNESS
EXC. PINTLE HOOK<PP7> ID=20 L=50 		9-09917-430-0 03 1 0008-
217 CLIP; RR BODY HARNESS
(B) ID=15 L=70 		1-09700-980-0 02 1 0008-0208
217 CLIP; RR BODY HARNESS
(A) L=250 		5-09707-030-1 02 1 0008-
223 CLIP; AIR TANK HARNESS
(C) OD=9 H=6 		1-09709-178-0 03 1 0008-
223 CLIP; AIR TANK HARNESS
(A) L=140 		5-09707-031-1 01 1 0008-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 06 1 0008-0302
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 05 1 0303-
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-1 01 1 0008-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0008-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0008-
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=250 		5-09707-030-1 01 1 0008-
305 CLIP; ENG HARNESS
(B) L=180 		1-09707-162-1 01 1 0008-
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (A) L=140 		5-09707-031-1 01 1 0008-
395 CLIP; WIPER HARNESS
L=140 		5-09707-031-1 01 1 0008-
418 CLIP; LAMP HARNESS
RADIO CLARION<SK2> L=140 		5-09707-031-1 01 1 0703-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0008-
470 CLIP; HARNESS,LICENSE LAMP
PINTLE HOOK<PP7> (A) ID=11 L=41 		1-09700-403-0 01 1 0008-

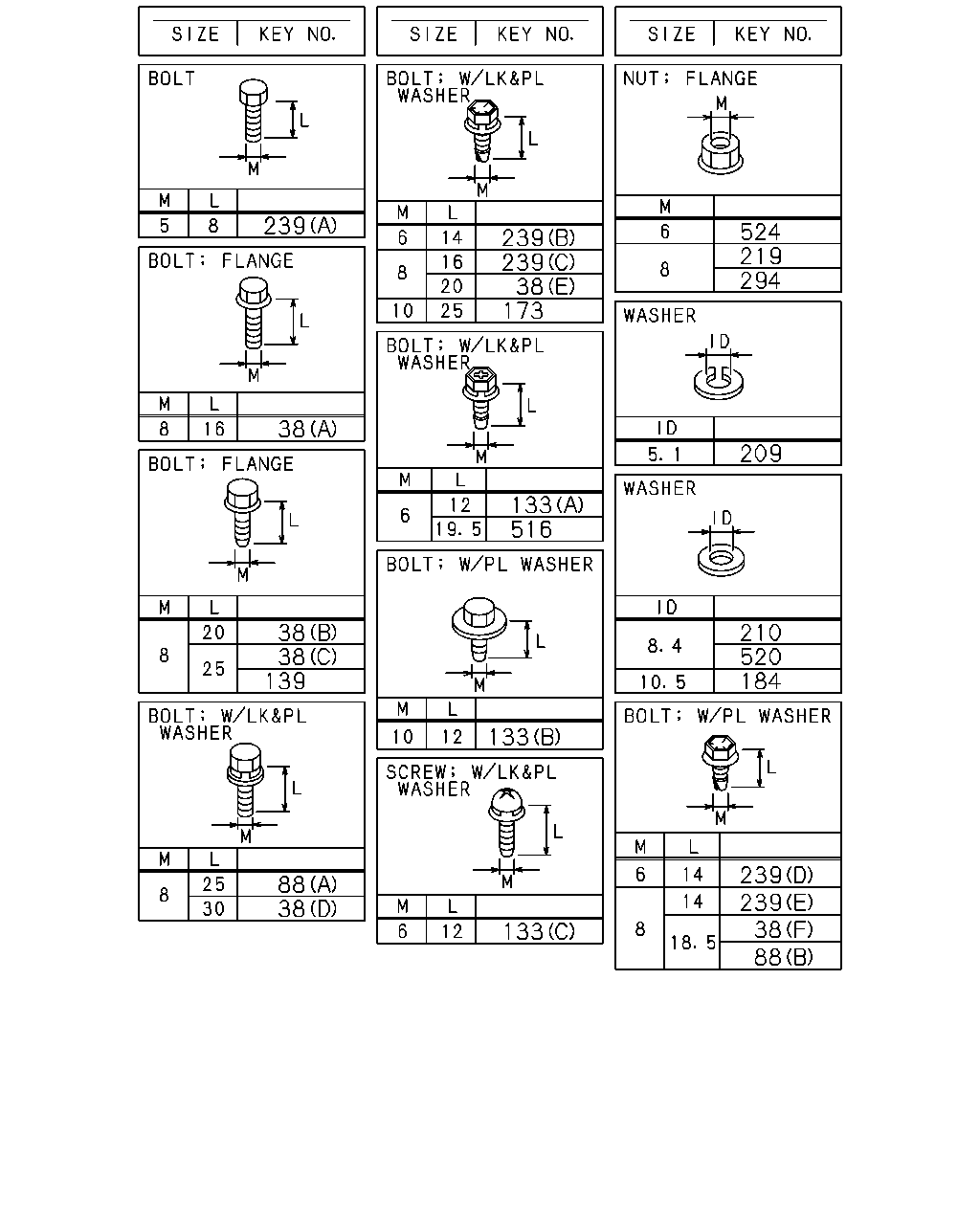

çizim 97634
239 524 219 294 239 239 38 173 38 209 133 516 38 38 139 210 520 184 133 239 239 38 88 88 38 133
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0008-0512
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0008-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 03 1 0008-0310
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0311-0512
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0008-0512
38 BOLT; CLIP,HARNESS
(D) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0008-1201
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0311-0512
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0008-0306
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0307-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0008-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
139 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0008-0302
139 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0303-0512
139 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0008-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0008-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0008-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0008-
219 NUT
M8 FLANGE 		0-91150-108-0 05 1 0008-0310
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0311-0602
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 0311-0602
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0603-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0008-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0008-1007
239 BOLT; GRAND
(D) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0008-1201
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0008-0302
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0303-0602
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0008-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0008-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0008-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
