Isuzu WW
▶
TRUCKS
▶
FSS
▶
11433 - FSS(BANGLADESH)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-05 - INTERIOR LAMP
▶

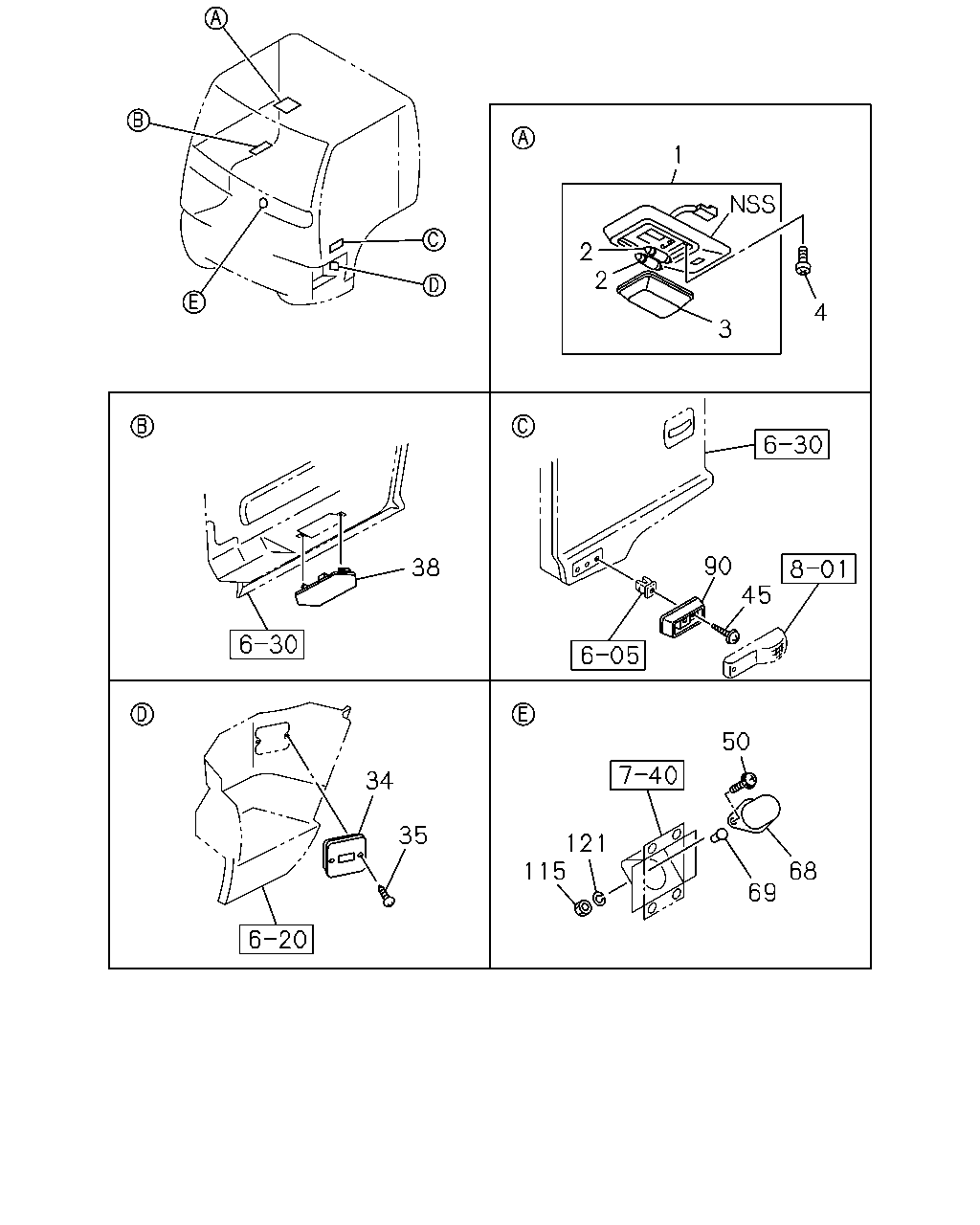

8-05 — INTERIOR LAMP
(#41170) — 22 parça
1
2
2
4
3
90
45
38
50
34
35
121
115
68
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; ROOM
1-82140-050-1
01
1
0008-
2
BULB; ROOM LAMP
24V 10W
1-82195-001-0
02
1
0008-
3
LENS; ROOM LAMP
1-82145-020-0
01
1
0008-
4
SCREW; ROOM LAMP
M5X20 TAPPING
9-07066-520-0
03
1
0008-0603
4
SCREW; ROOM LAMP
M5X20 TAPPING
0-71040-520-0
03
1
0604-
34
COVER; STEP LAMP
1-79998-925-0
02
1
0008-
35
SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER
0-74310-420-0
04
1
0008-0604
35
SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER
0-74360-420-0
04
1
0605-
38
COVER; STEP LAMP,DOOR
1-74997-029-2
01
1
0008-
45
SCREW; BASE FIX
M5X16 TAPPING W/PL WASHER
0-74100-516-0
04
1
0008-0604
45
SCREW; BASE FIX
M5X16 TAPPING W/PL WASHER
0-74160-516-0
04
1
0605-
50
SCREW; INST LAMP
USER EXP GOVERNMENT<D6M> M5X16 W/LK&PL WASHER
8-94279-400-0
02
1
0008-
68
BRACKET; MAP LAMP
USER EXP GOVERNMENT<D6M>
1-82147-002-0
01
1
0008-
69
BULB; MAP LAMP
USER EXP GOVERNMENT<D6M> 24V 6W
9-82691-306-0
01
1
0008-
90
BASE; LAMP
USER EXP GOVERNMENT<D6M>
1-79996-539-0
01
1
0008-
90
BASE; LAMP
USER EXP GOVERNMENT<D6M>
1-79996-538-0
01
1
0008-
90
BASE; LAMP
EXC. USER EXP GOVERNMENT<D6M>
1-79998-977-1
01
1
0008-
90
BASE; LAMP
EXC. USER EXP GOVERNMENT<D6M>
1-79998-976-1
01
1
0008-
115
NUT; LAMP
USER EXP GOVERNMENT<D6M> M5
9-99110-405-0
01
1
0008-0512
115
NUT; LAMP
USER EXP GOVERNMENT<D6M> M5
0-91110-505-0
01
1
0601-
121
WASHER; LK,LAMP
USER EXP GOVERNMENT<D6M> ID=5.1
9-09150-505-0
01
1
0008-0603
121
WASHER; LK,LAMP
USER EXP GOVERNMENT<D6M> ID=5.1
0-91510-505-0
01
1
0604-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
