◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#4117) — 45 parça

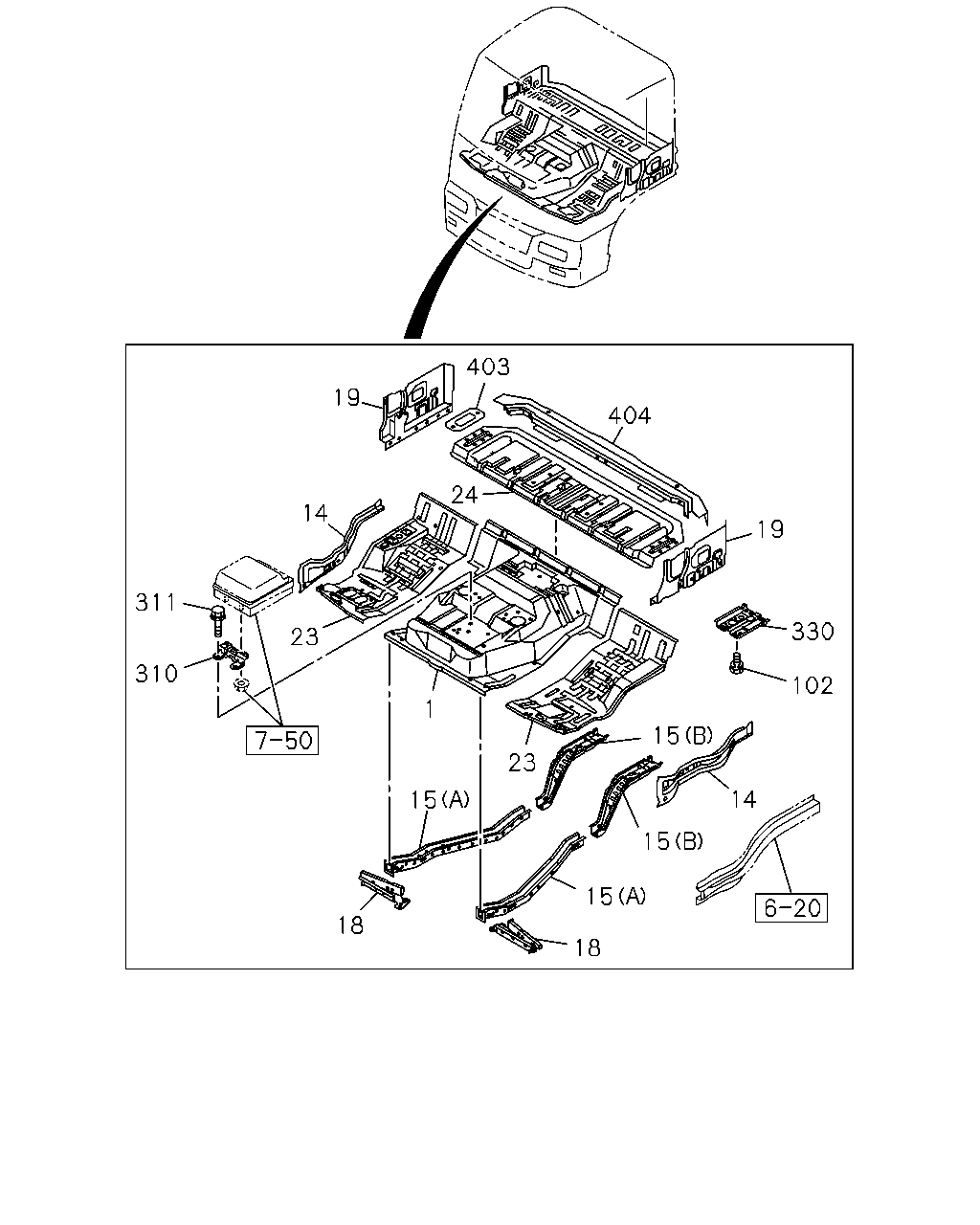

çizim 40068
403 19 404 24 14 19 311 330 23 310 102 1 15 23 14 15 15 15 18 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
FULLER M/T<X9B>,ZF M/T<X9E> 		1-62172-603-1 01 1 9603-9904 ● ●
1 PANEL; FLOOR
FULLER M/T<X9B> 		1-62172-603-3 01 1 9905- ● ●
1 PANEL; FLOOR
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-603-3 01 1 9905- ● ●
1 PANEL; FLOOR
ISUZU M/T<X9A> 		1-62172-610-1 01 1 9603-9904 ● ●
1 PANEL; FLOOR
ISUZU M/T<X9A> 		1-62172-610-1 01 1 9905-9910 ● ●
1 PANEL; FLOOR
TRANSMISSION-ZF 8S151 OD(Y3N) 		1-62172-610-1 01 1 9905-9910 ● ●
1 PANEL; FLOOR
ISUZU M/T<X9A> TRANSMISSION-ZF 8S151 OD(Y3N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-62172-610-3 01 1 9911- ● ●
1 PANEL; FLOOR
ISUZU M/T<X9A> TRANSMISSION-ZF 8S151 OD(Y3N) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-62172-661-2 01 1 9911- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9603- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9603- ● ●
15 FRAME; UNDER
(A) 		1-62472-603-9 01 1 9603- ● ●
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 9603- ● ●
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 9603- ● ●
15 FRAME; UNDER
(A) 		1-62472-602-9 01 1 9603-0103 ● ●
15 FRAME; UNDER
(A) 		1-62472-766-1 01 1 0104- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-5 01 1 9603- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-2 01 1 9603-9609 ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-168-2 01 1 9610- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-660-2 01 1 9603-9904 ● ●
19 PANEL; FLOOR SIDE,REAR
V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 9905- ● ●
19 PANEL; FLOOR SIDE,REAR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 9905- ● ●
19 PANEL; FLOOR SIDE,REAR
L TYPE ENG<90L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 9905- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 9603-9904 ● ●
19 PANEL; FLOOR SIDE,REAR
L TYPE ENG<90L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-659-2 01 1 9905- ● ●
19 PANEL; FLOOR SIDE,REAR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-659-2 01 1 9905- ● ●
19 PANEL; FLOOR SIDE,REAR
V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-614-4 01 1 9905- ● ●
23 PANEL; FLOOR,SIDE 1-62183-273-4 01 1 9603-9609 ● ●
23 PANEL; FLOOR,SIDE
EXC. ELECTRONIC GOV RED3(KG5) 		1-62183-273-4 01 1 9610-9903 ● ●
23 PANEL; FLOOR,SIDE
EXC. ELECTRONIC GOV RED3(KG5) 		1-62172-799-0 01 1 9904-9904 ● ●
23 PANEL; FLOOR,SIDE
EXC. ELECTRONIC GOV RED3(KG5),ENG CONTROL TICS<Q3P> 		1-62172-799-0 01 1 9905- ● ●
23 PANEL; FLOOR,SIDE 1-62183-307-1 01 1 9603-9903 ● ●
23 PANEL; FLOOR,SIDE 1-62172-798-0 01 1 9904- ● ●
23 PANEL; FLOOR,SIDE
ELECTRONIC GOV RED3(KG5) 		1-62172-729-0 01 1 9610-9903 ● ●
23 PANEL; FLOOR,SIDE
ELECTRONIC GOV RED3(KG5) 		1-62172-802-0 01 1 9904-9904 ● ●
23 PANEL; FLOOR,SIDE
ELECTRONIC GOV RED3(KG5) 		1-62172-802-0 01 1 9905- ● ●
23 PANEL; FLOOR,SIDE
ENG CONTROL TICS<Q3P> EXC. ELECTRONIC GOV RED3(KG5) 		1-62172-802-0 01 1 9905- ● ●
24 PANEL; BED PAN 1-62172-540-9 01 1 9603- ● ●
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9603- ● ●
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 9603-9606 ● ●
310 BRACKET; SEAT STAND
EXC. CENTER SEAT DELETE(SP9) 		1-76397-015-0 01 1 9607- ● ●
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9603-9606 ● ●
311 BOLT; BRKT
EXC. CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9607- ● ●
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 9603- ● ●
403 PATCH; FIRE EXTINGUSHER 1-62172-569-0 01 1 9603- ● ●
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 9603- ● ●
