Isuzu WW
▶
TRUCKS
▶
FSS
▶
11433 - FSS(BANGLADESH)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶
7-60 — SEAT BELT

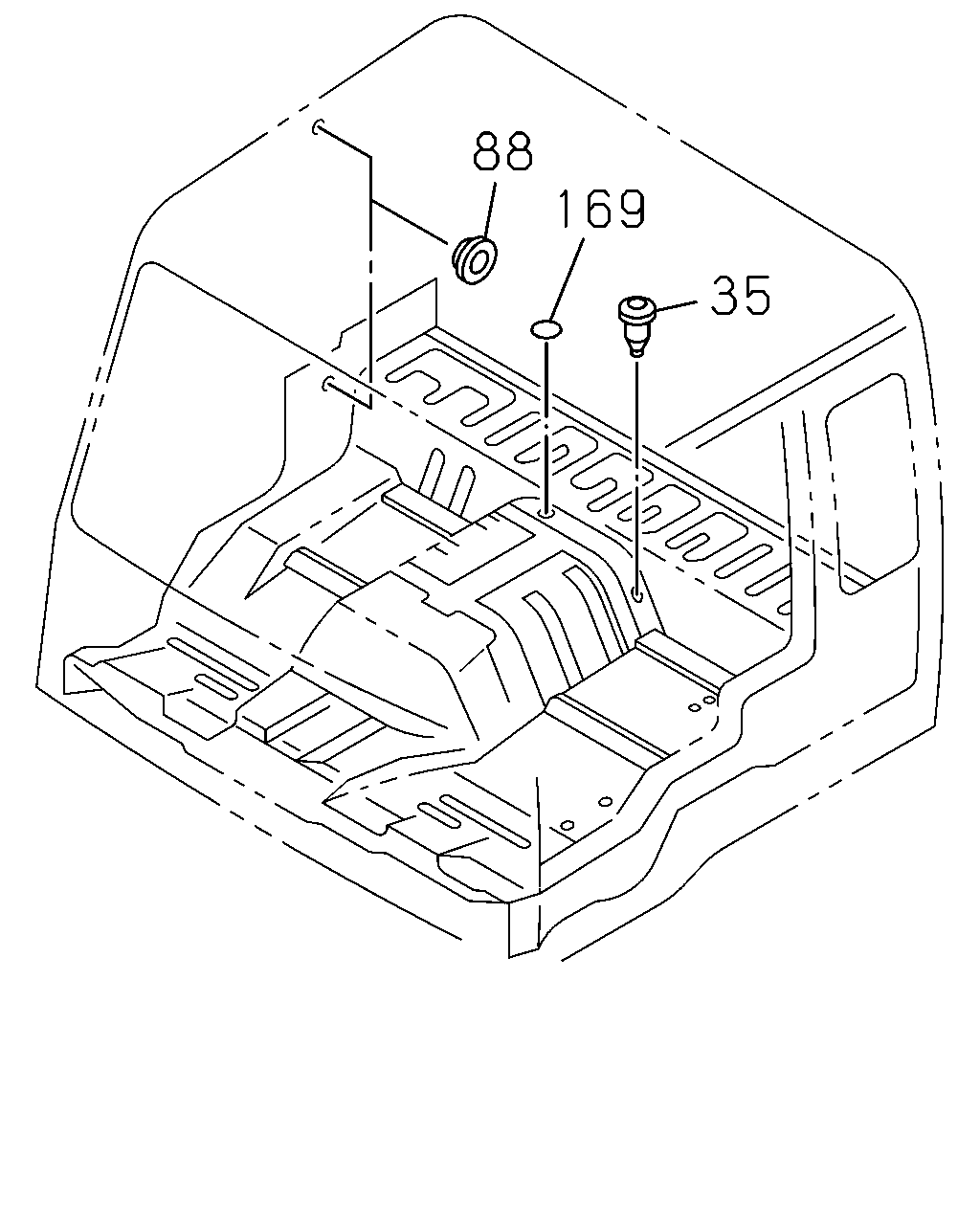

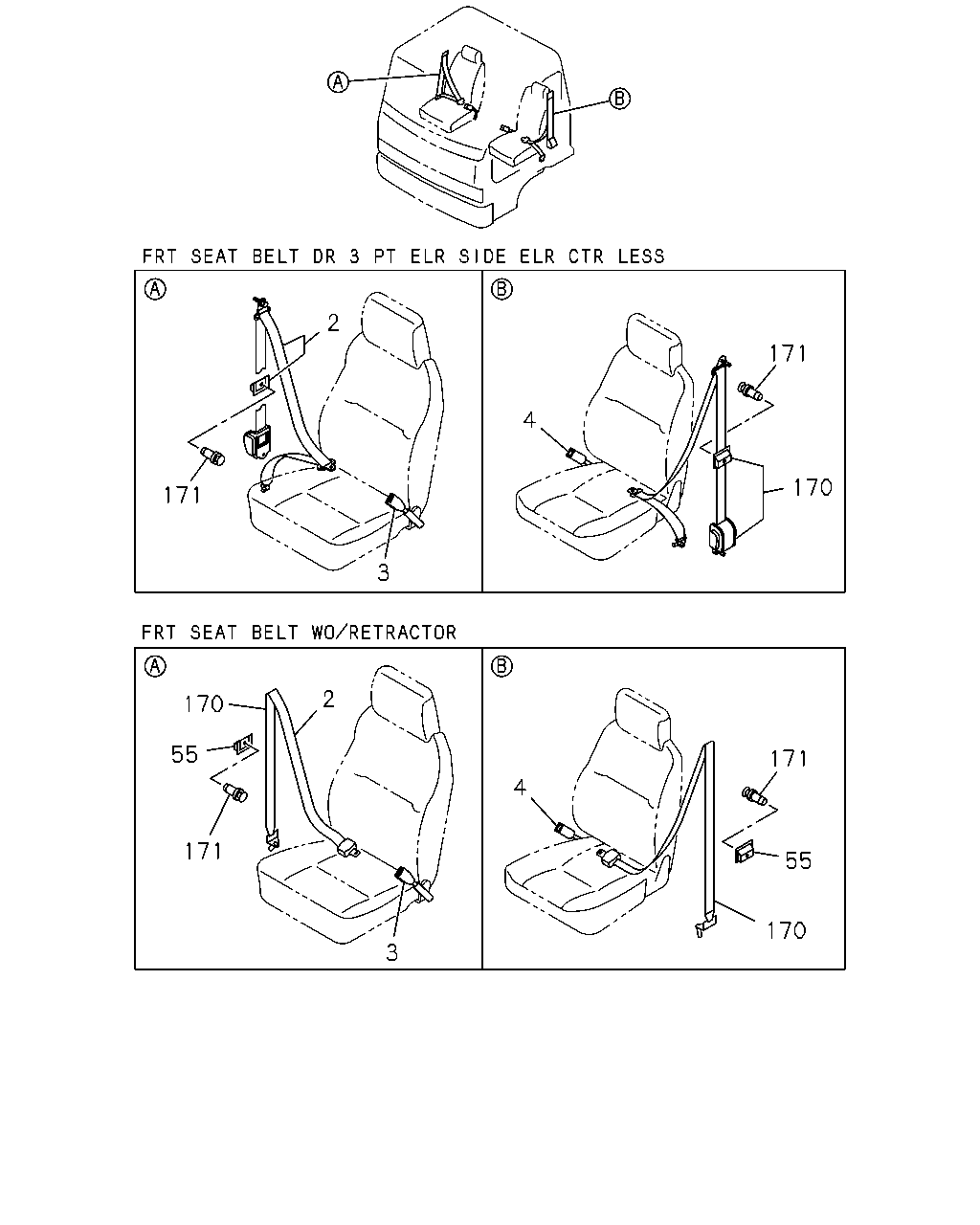

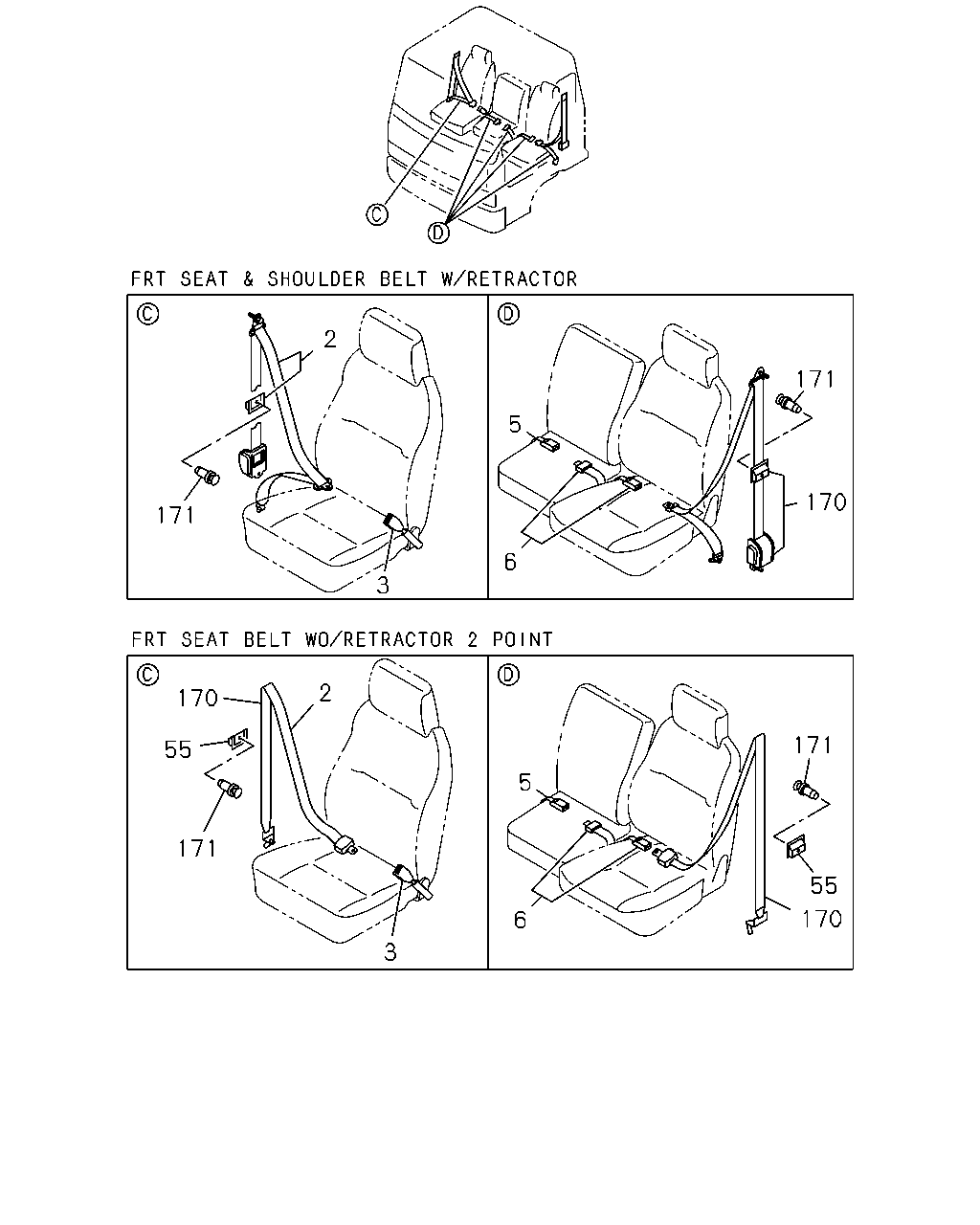

(#41166) — 31 parça
◀
[760A] NO.1 (11 parça)
[760A] GROMMET AND SEAL (7 parça)
[760A] NO.2 (13 parça)
▶
2
171
4
170
171
3
2
170
55
171
4
171
55
170
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25>
1-75618-780-5
01
1
0008-
2
BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY>
1-75617-509-6
01
1
0008-0806
2
BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY>
8-98120-803-0
01
1
0807-
3
BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25>
1-75618-779-0
01
1
0008-
4
BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3POINT<SHY>
1-75618-752-1
01
1
0008-0312
4
BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> CENTER SEAT DELETE 2 CREWS<SP9>
1-75618-752-1
01
1
0401-
55
GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT 3 POINT<SHY>
1-75617-513-0
02
1
0008-
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25>
1-75618-780-5
01
1
0008-
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY>
1-75617-514-6
01
1
0008-0806
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY>
8-98120-801-0
01
1
0807-
171
CLIP; SEAT BELT GUIDE
1-09987-239-0
02
1
0008-
88
169
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
35
GROMMET; SEAT BELT ANCHOR
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=22
9-61168-535-0
01
1
0008-0312
35
GROMMET; SEAT BELT ANCHOR
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> CENTER SEAT DELETE 2 CREWS<SP9> OD=22
9-61168-535-0
01
1
0401-1005
35
GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=22
9-61168-535-0
03
1
0008-1005
35
GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=22
9-61168-535-0
02
1
1006-
88
PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT 3 POINT<SHY> OD=31.6
8-94198-177-0
02
1
0008-
169
SEAL
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK
1-76798-019-0
01
1
1006-
169
SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=25 BLACK
1-76798-019-0
03
1
1006-
2
171
5
170
171
6
3
2
170
171
55
5
171
55
170
6
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25>
1-75618-780-5
01
1
0008-
2
BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY>
1-75617-509-6
01
1
0008-0806
2
BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY>
8-98120-803-0
01
1
0807-
3
BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25>
1-75618-779-0
01
1
0008-
5
BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25>
1-75618-739-0
01
1
0008-0312
5
BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. CENTER SEAT DELETE 2 CREWS<SP9>
1-75618-739-0
01
1
0401-
6
BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25>
1-75618-737-4
01
1
0008-0312
6
BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. CENTER SEAT DELETE 2 CREWS<SP9>
1-75618-737-5
01
1
0401-
55
GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT 3 POINT<SHY>
1-75617-513-0
02
1
0008-
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25>
1-75618-780-5
01
1
0008-
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY>
1-75617-514-6
01
1
0008-0806
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY>
8-98120-801-0
01
1
0807-
171
CLIP; SEAT BELT GUIDE
1-09987-239-0
02
1
0008-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
