7-45 — CONSOLE BOX (#41164) — 23 parça

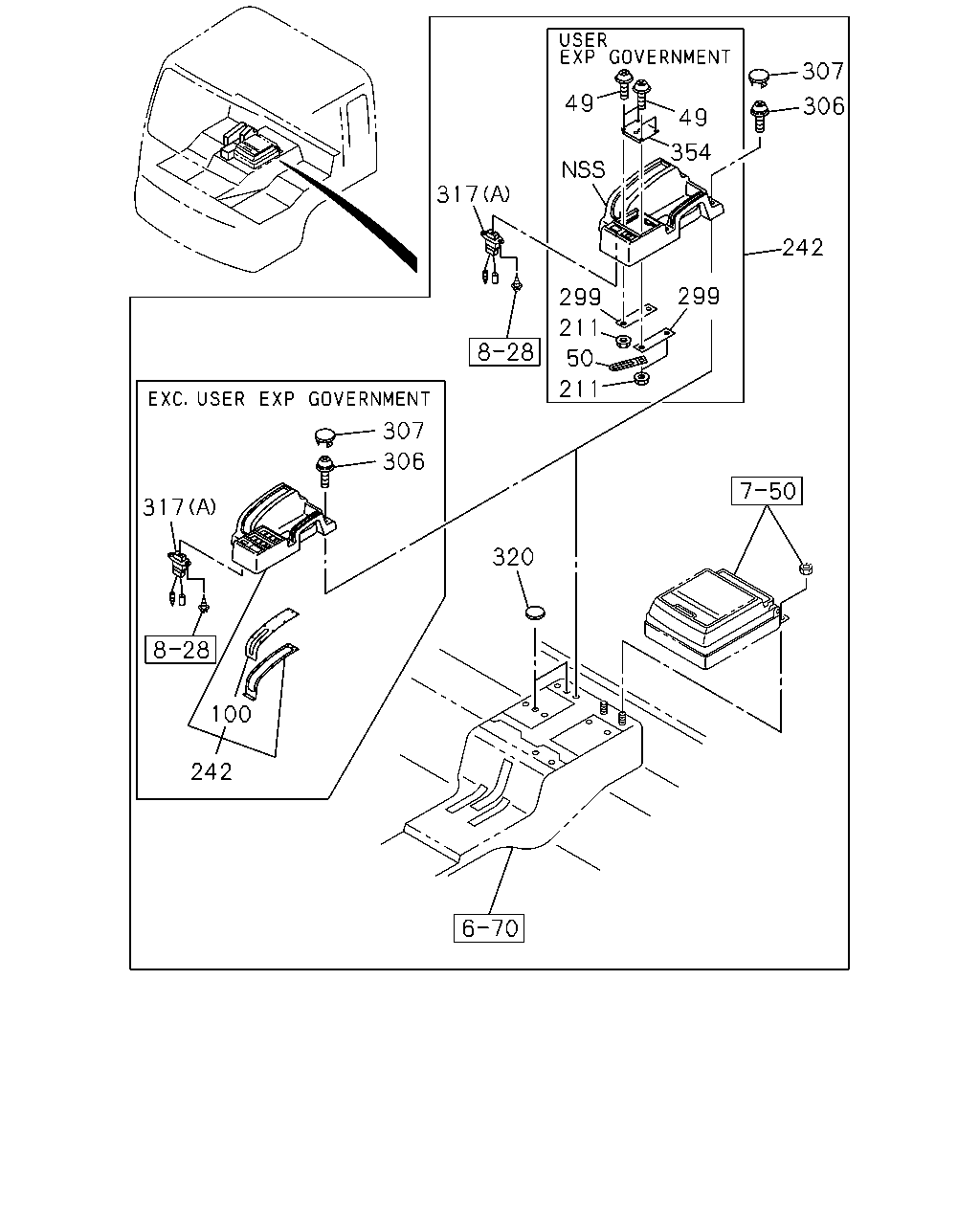

çizim 97051
307 49 306 49 354 317 242 299 299 211 50 211 307 306 317 320 100 242
BalonParca AdiParca NoAdetTipApplied Date
49 SCREW; CONSOLE
USER EXP GOVERNMENT<D6M> M6X30 		9-03920-630-0 04 1 0008-
50 CLIP; CONSOLE
USER EXP GOVERNMENT<D6M> L=80 		5-09700-307-1 01 1 0008-
100 RUBBER; CONSOLE,FRT
EXC. USER EXP GOVERNMENT<D6M> 		1-72538-161-3 01 1 0008-
211 NUT; CENTER CONSOLE
USER EXP GOVERNMENT<D6M> M6 FLANGE 		0-91150-106-0 04 1 0008-0602
211 NUT; CENTER CONSOLE
USER EXP GOVERNMENT<D6M> M6 FLANGE 		0-91180-106-0 04 1 0603-
242 TRAY ASM; CTR CONSOLE
USER EXP GOVERNMENT<D6M> 		1-72538-229-1 01 1 0008-
242 TRAY ASM; CTR CONSOLE
EXC. USER EXP GOVERNMENT<D6M> 		1-72538-164-4 01 1 0008-
299 PLATE; CONSOLE
USER EXP GOVERNMENT<D6M> 		1-72418-032-0 02 1 0008-
306 SCREW; TRAY
M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0008-0202
306 SCREW; TRAY
M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0203-
307 COVER; HOLE,CTR CONSOLE 1-72538-166-0 04 1 0008-
317 CONSENT
(A) 		1-82523-020-2 01 1 0008-
317 CONSENT
USER EXP GOVERNMENT<D6M> (B) 		1-82523-008-1 01 1 0008-0601
317 CONSENT
USER EXP GOVERNMENT<D6M> (B) 		8-97612-084-0 01 1 0602-
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 02 1 0008-
354 BRACKET; ROTARY SW,CTR CONSOLE
USER EXP GOVERNMENT<D6M> 		1-72418-031-0 01 1 0008-

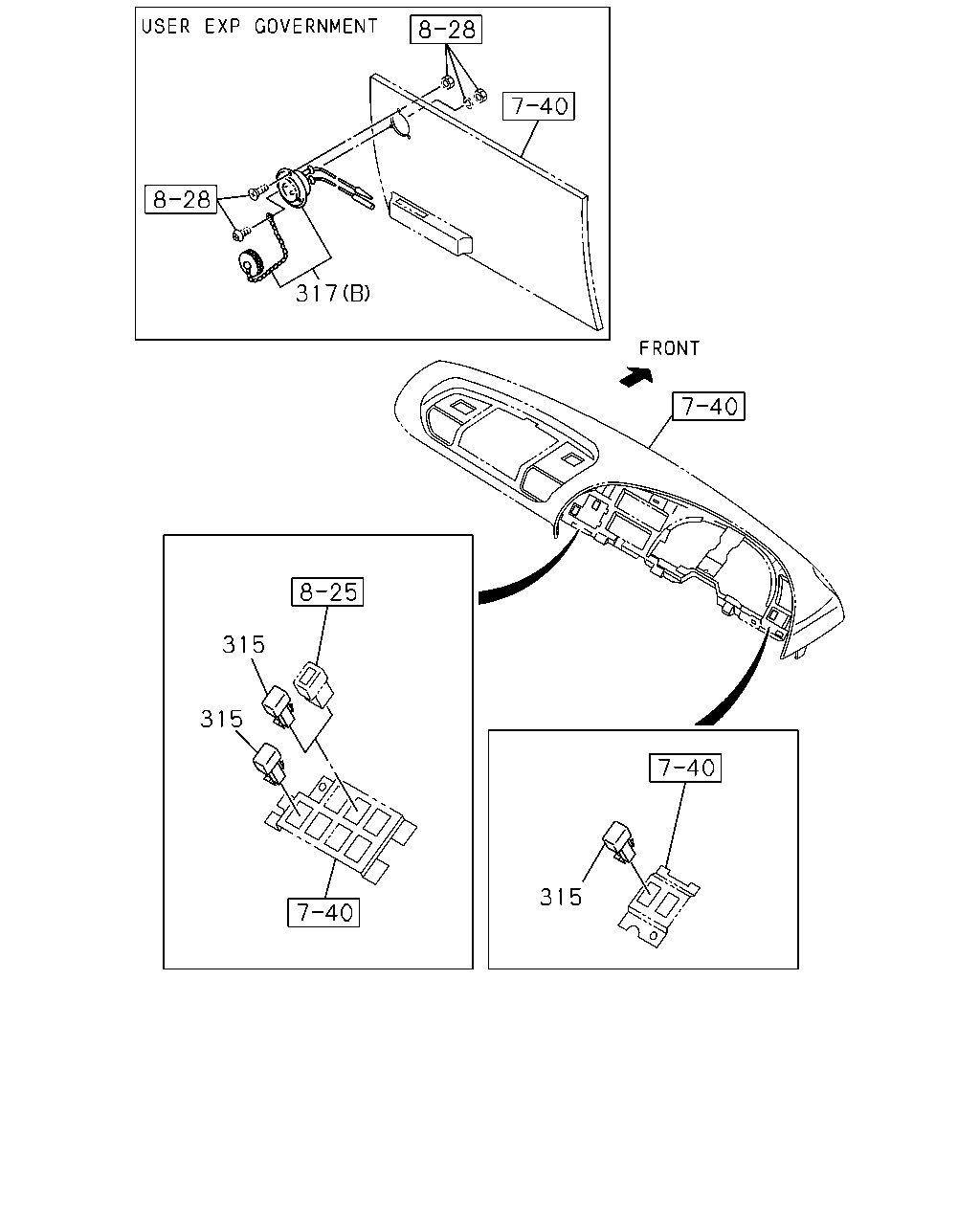

çizim 97507
317 315 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
DIFF LOCK<C3N> PTO CONTROL(SV6) 		1-82359-069-2 05 1 0008-
315 COVER; HOLE,SW
DIFF LOCK<C3N> EXC. PTO CONTROL(SV6) 		1-82359-069-2 06 1 0008-
315 COVER; HOLE,SW
PTO CONTROL(SV6) EXC. DIFF LOCK<C3N> 		1-82359-069-2 06 1 0008-
315 COVER; HOLE,SW
EXC. DIFF LOCK<C3N>,PTO CONTROL(SV6) 		1-82359-069-2 07 1 0008-
317 CONSENT
(A) 		1-82523-020-2 01 1 0008-
317 CONSENT
USER EXP GOVERNMENT<D6M> (B) 		1-82523-008-1 01 1 0008-0601
317 CONSENT
USER EXP GOVERNMENT<D6M> (B) 		8-97612-084-0 01 1 0602-
