7-40 — INSTRUMENT PANEL AND BOX (#41162) — 144 parça
çizim 97047
555 259 260 6 597
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
(A) 		1-65681-165-2 01 1 0008-
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (C) 		1-65681-064-2 01 1 0008-
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B) 		1-65681-063-3 01 1 0008-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73318-551-0 01 1 0008-
260 SCREW; STUFF PLATE
EXC. SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 0008-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 07 1 0008-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 07 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0008-
597 SEAL; HOLE,DASH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) OD=16 BLACK 		1-76798-037-0 02 1 0008-

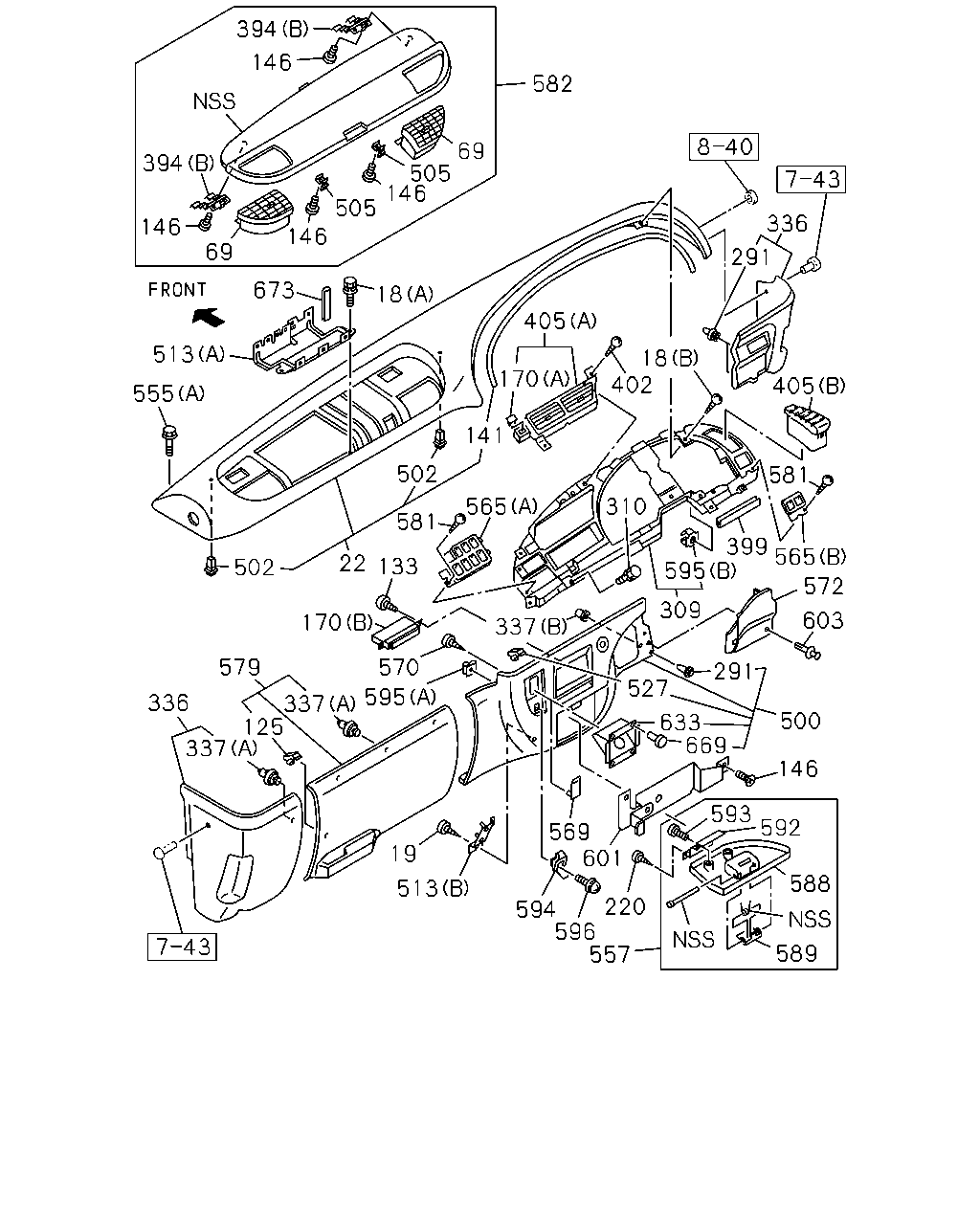

çizim 97636
394 146 582 69 505 146 394 505 336 146 146 69 291 673 18 405 513 18 402 170 405 555 141 502 581 310 565 581 399 565 595 22 133 502 572 309 603 170 337 570 579 291 527 595 336 337 125 337 500 633 669 146 593 592 569 601 19 588 513 594 220 596 557 589
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(B) M8X40 FLANGE 		0-28680-840-0 03 1 0008-0512
18 BOLT; BRKT
(B) M8X40 FLANGE 		0-28650-840-0 03 1 0601-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0008-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0008-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0008-
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0008-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0008-
19 SCREW; BRKT
PTO CONTROL(SV6) M5X14 		8-94279-325-0 02 1 0008-
22 PAD; INST 1-72318-421-6 01 1 0008-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 0008-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 0008-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0008-
125 CLIP; INST PANEL 8-97217-066-0 08 1 0008-
133 SCREW; COVER,INST PNL
M5X14 		8-94279-325-0 02 1 0008-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0008-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0008-
146 SCREW; TAP
USER EXP GOVERNMENT<D6M> M5X14 		8-94279-325-0 02 1 0008-
170 COVER; HOLE
(B) 		1-72438-139-1 01 1 0008-
170 COVER; HOLE
(A) 		1-76367-068-0 01 1 0008-
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 0008-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 0008-
309 PANEL; SW,INST 1-72418-009-6 01 1 0008-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0008-
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 0008-
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 0008-
337 FASTENER; COVER
(A) 		1-72438-124-2 06 1 0008-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0008-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0008-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0008-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0008-
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 0008-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0008-0604
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0008-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0008-
500 CLUSTER; INST CENTER
USER EXP GOVERNMENT<D6M> 		1-72438-177-4 01 1 0008-
500 CLUSTER; INST CENTER
EXC. USER EXP GOVERNMENT<D6M> 		1-72438-117-9 01 1 0008-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0008-
505 LOCK; LID 1-72558-024-2 02 1 0008-
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 0008-0205
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0206-
513 BRACKET; RELAY
PTO CONTROL(SV6) (B) 		1-73908-043-1 01 1 0008-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0008-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 07 1 0008-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 07 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0008-
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 0008-
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0008-
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0008-
569 HOLDER; CARD
EXC. USER EXP GOVERNMENT<D6M> 		1-72498-015-2 01 1 0008-
570 SCREW; HOLDER
EXC. USER EXP GOVERNMENT<D6M> M5X14 		8-94279-325-0 01 1 0008-
572 COVER; INSPECTION 1-72438-054-3 01 1 0008-
579 COVER; INST PNL
USER EXP GOVERNMENT<D6M> 		1-72438-179-2 01 1 0008-
579 COVER; INST PNL
EXC. USER EXP GOVERNMENT<D6M> 		1-72438-113-4 01 1 0008-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0008-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72548-127-8 01 1 0008-
588 LID; BOX 1-72548-135-3 01 1 0008-
589 KNOB; LID 1-72548-143-0 01 1 0008-
592 HINGE; LID 1-72548-133-3 01 1 0008-
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 0008-
594 HOOK; COAT 1-72498-013-0 01 1 0008-
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 0008-
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 0008-
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0008-
601 BRACKET; SW
USER EXP GOVERNMENT<D6M> 		1-73908-387-3 01 1 0008-
603 CLIP; COVER 1-09987-245-1 01 1 0008-
633 PANEL; MAP LAMP
USER EXP GOVERNMENT<D6M> 		1-73908-388-1 01 1 0008-
669 FIXING; RIVET
USER EXP GOVERNMENT<D6M> 		1-09987-240-0 04 1 0008-0011
669 FIXING; RIVET
USER EXP GOVERNMENT<D6M> 		1-09987-280-0 04 1 0012-
673 FINISHER; BRKT,RELAY
L=30 SERVICED BY L=50 		8-94270-377-1 01 1 0008-0009
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010-

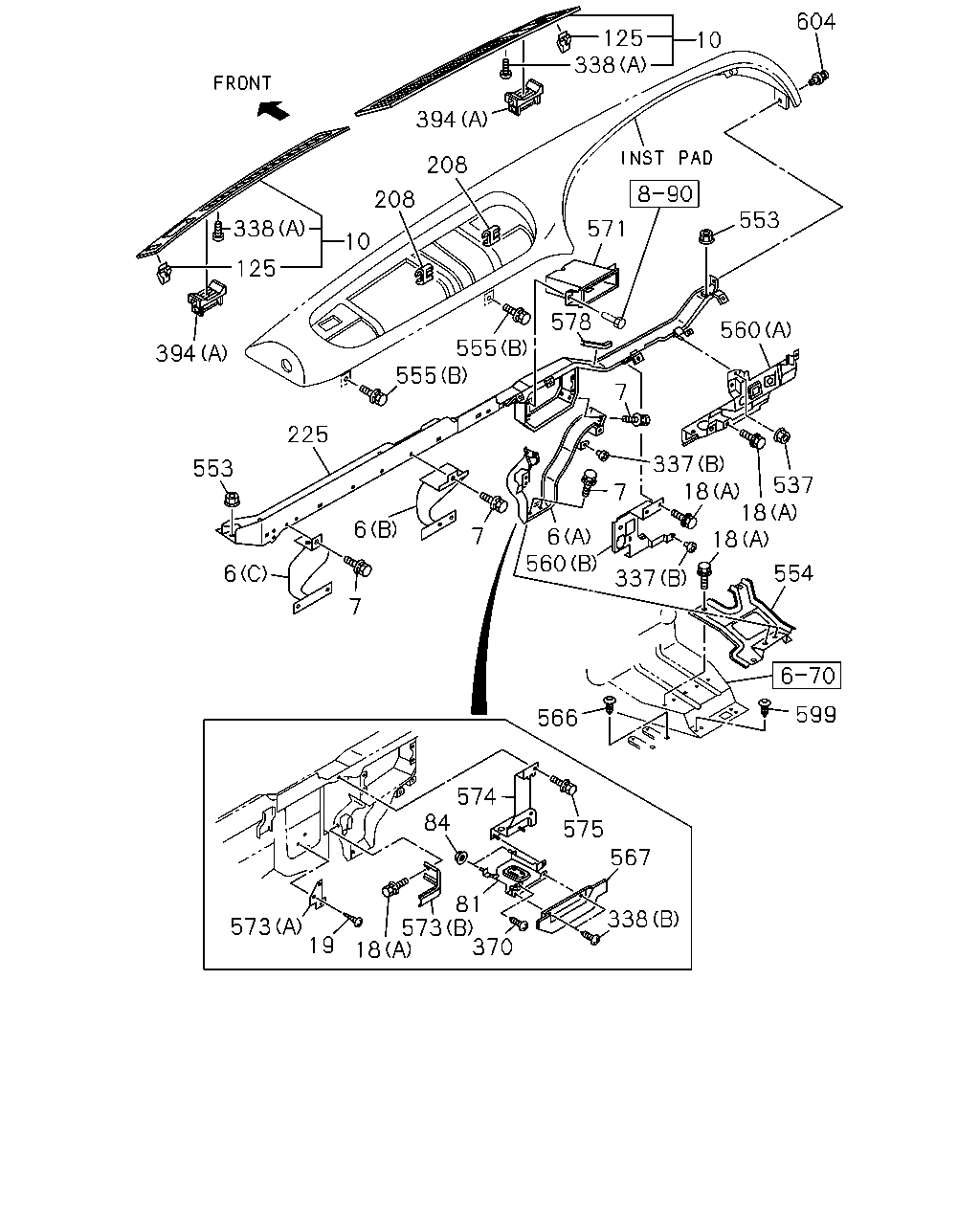

çizim 97782
604 125 338 10 394 208 208 553 571 338 10 125 578 560 555 555 394 7 225 337 537 18 18 18 553 7 6 7 6 560 554 6 337 7 599 566 574 84 575 567 81 573 370 338 573 19 18
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
(A) 		1-65681-165-2 01 1 0008-
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (C) 		1-65681-064-2 01 1 0008-
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B) 		1-65681-063-3 01 1 0008-
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0008-
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0008-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-6 01 1 0008-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-7 01 1 0008-
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-72438-157-1 01 1 0008-
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-72438-158-1 01 1 0008-
18 BOLT; BRKT
(B) M8X40 FLANGE 		0-28680-840-0 03 1 0008-0512
18 BOLT; BRKT
(B) M8X40 FLANGE 		0-28650-840-0 03 1 0601-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0008-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0008-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0008-
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0008-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0008-
19 SCREW; BRKT
PTO CONTROL(SV6) M5X14 		8-94279-325-0 02 1 0008-
81 BRACKET; ELEC CONT UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-008-7 01 1 0008-
84 NUT; CONT UNIT BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0008-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0008-
125 CLIP; INST PANEL 8-97217-066-0 08 1 0008-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0008-
225 FRAME; FACIA 1-65681-096-2 01 1 0008-1002
225 FRAME; FACIA 8-98142-102-0 01 1 1003-
337 FASTENER; COVER
(A) 		1-72438-124-2 06 1 0008-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0008-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0008-
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 10 1 0008-0208
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94148-576-1 10 1 0209-0309
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 20 1 0310-0405
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 10 1 0406-0801
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 15 1 0802-
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X16 		8-94479-534-0 02 1 0008-0302
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X12 		8-97094-854-0 02 1 0303-
370 SCREW; BRKT,ELEC CONT UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 01 1 0008-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0008-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0008-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0008-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0008-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 0008-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 07 1 0008-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 07 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0008-
560 BRACKET
(B) 		1-65680-976-3 01 1 0008-
560 BRACKET
(A) 		1-65681-078-7 01 1 0008-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0008-
567 COVER; CONT UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-65681-022-2 01 1 0008-
571 BEZEL; POCKET 1-72438-151-1 01 1 0008-0111
571 BEZEL; POCKET
EXC. RADIO CLARION<SK2>,RADIO AM/FM STEREO & TAPE PLAYER<UN3> 		1-72438-151-1 01 1 0008-0111
571 BEZEL; POCKET
EXC. RADIO CLARION<SK2>,RADIO AM/FM STEREO & TAPE PLAYER<UN3> 		1-72438-151-3 01 1 0112-
571 BEZEL; POCKET
EXC. USER EXP GOVERNMENT<D6M> 		1-72438-151-3 01 1 0112-
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-73908-023-2 01 1 0008-
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B) 		1-73908-024-2 01 1 0008-
574 PANEL; RELAY BOX 1-73908-252-3 01 1 0008-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0008-
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 0008-
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 0008-
604 CLIP; INST PAD 1-09983-123-0 01 1 0008-
