Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#41160) — 510 parça

2 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	MIRROR; ROOM	1-73118-026-1	01	1	0008-
	2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0008-

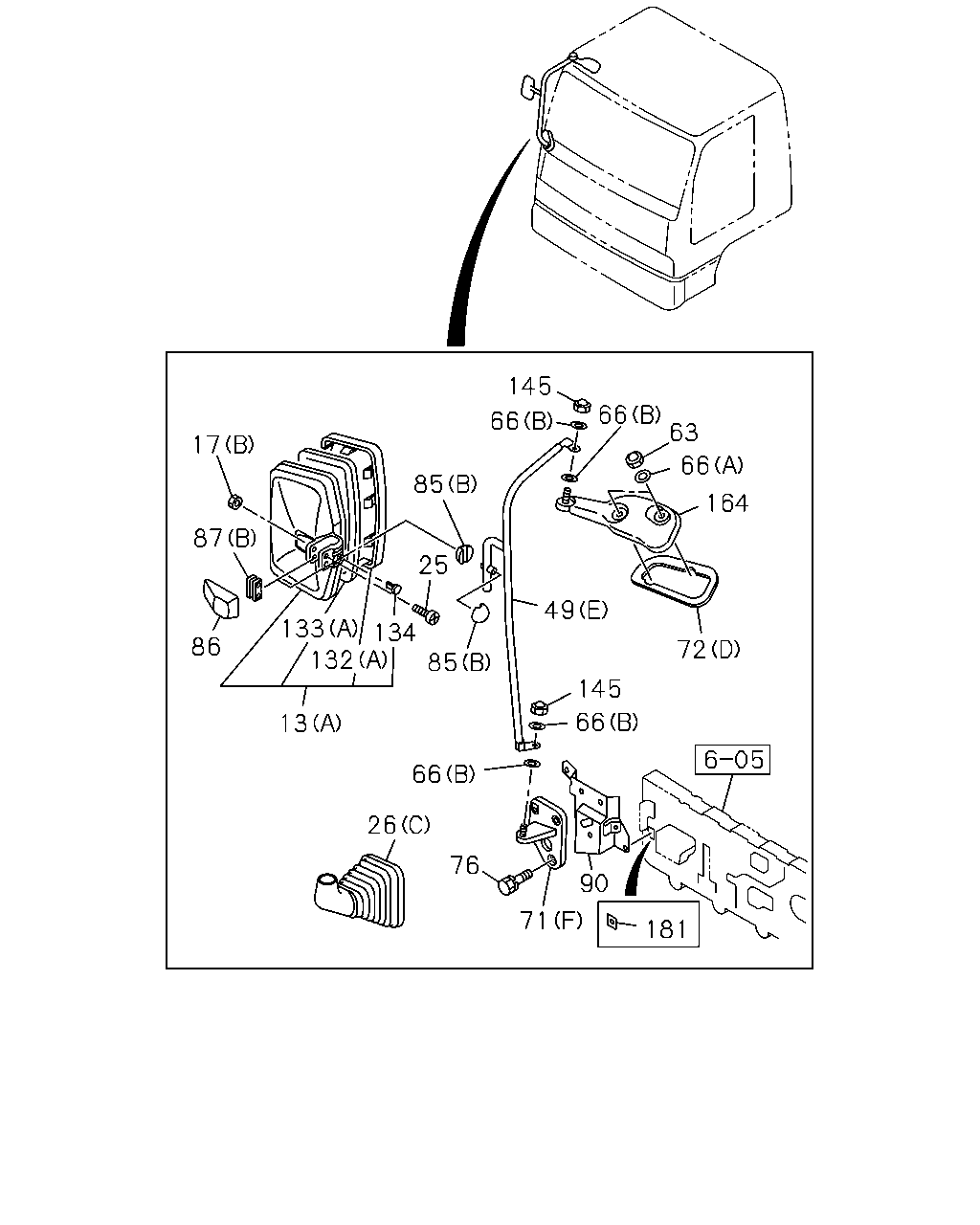

13 133 132 134 25 72 87 86 66 166 66 17 164 66 63 17 17 85 30 17 85 32 66 87 26 49 66 71 181 90 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW FLAT<YS1> (C)	1-71737-487-3	02	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-918-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-918-3	01	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW FLAT<YS1> (A) M8 FLANGE	1-09984-122-0	04	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2> (C) M10	1-09984-183-0	02	1	0008-0208
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2> (C) M10 CAP NUT	1-09984-134-0	02	1	0209-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW LONG ARM<DH2> (C) M10	1-09984-183-0	04	1	0008-0208
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW LONG ARM<DH2> (C) M10 CAP NUT	1-09984-134-0	04	1	0209-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	02	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (B) M5	1-09984-124-0	02	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0008-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0008-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0008-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0008-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> M5X50	1-09981-444-0	02	1	0008-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-09981-541-0	02	1	0405-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (C)	1-71798-695-0	01	1	0008-0204
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-652-1	01	1	0008-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-649-1	01	1	0008-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0008-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0008-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0008-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW FLAT<YS1> (C)	1-71798-483-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW FLAT<YS1> (C)	1-71798-482-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (E)	1-71798-667-0	01	1	0008-0101
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (E)	1-71798-599-1	01	1	0102-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71798-516-4	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW WIDE<WU4> (A)	1-71798-490-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-517-4	01	1	0008-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-2	01	1	0008-
63	NUT; STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> M8	1-09984-187-0	02	1	0008-
63	NUT; STAY MIR O/S RR VIEW LONG ARM<DH2> M8	1-09984-187-0	02	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) CHROMATE ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) BLACK ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0008-
66	WASHER; PL EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) CHROMATE ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (E)	1-71736-224-3	04	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (A)	1-71736-404-1	04	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (B) UPPER	1-71798-484-1	02	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (C) LOWER	1-71798-486-2	02	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (F)	1-71798-309-4	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (D)	1-71798-581-3	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (B) UPPER	1-71798-484-1	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (C) LOWER	1-71798-486-2	01	1	0008-
72	SHEET MIR O/S RR VIEW FLAT<YS1> (A) UPPER	1-71798-487-3	02	1	0008-
72	SHEET MIR O/S RR VIEW FLAT<YS1> (B) LOWER	1-71798-488-1	02	1	0008-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2> (D)	1-71798-392-3	01	1	0008-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (C)	1-71798-393-3	01	1	0008-
72	SHEET MIR O/S RR VIEW WIDE<WU4> (A) UPPER	1-71798-487-3	01	1	0008-
72	SHEET MIR O/S RR VIEW WIDE<WU4> (B) LOWER	1-71798-488-1	01	1	0008-
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2> M8X40 FLANGE	0-28680-840-0	03	1	0008-0009
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2> M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0010-0512
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2> M8X40 W/LK&PL WASHER	0-50640-840-0	03	1	0601-
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> M8X30 W/LK WASHER	8-94279-183-1	03	1	0008-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW LONG ARM<DH2> (B) ID=22.2	1-71736-489-2	02	1	0008-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0008-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0008-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW WIDE<WU4> (A) ID=19.1	1-71737-633-2	02	1	0008-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0008-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0008-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> BLACK	1-71737-760-1	01	1	0008-
87	SPACER MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-704-0	01	1	0008-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-704-0	01	1	0008-
87	SPACER MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (B)	1-71737-704-0	01	1	0008-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-646-2	02	1	0008-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-646-2	01	1	0008-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0008-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0008-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0008-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-935-0	01	1	0008-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0008-
132	RING; MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-934-0	01	1	0008-
132	RING; MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-934-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-926-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-927-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-927-0	01	1	0008-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0008-
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0008-
134	CLIP; MIRROR LENS MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	01	1	0008-
134	CLIP; MIRROR LENS MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-71737-936-0	01	1	0008-
164	STAY; ROOF MIR O/S RR VIEW LONG ARM<DH2>	1-71798-210-4	01	1	0008-
164	STAY; ROOF MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-71798-211-4	01	1	0008-
166	BUSHING; STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-09983-175-1	01	1	0008-
181	SEAL; BRKT 25X25	8-94272-533-0	04	1	0008-

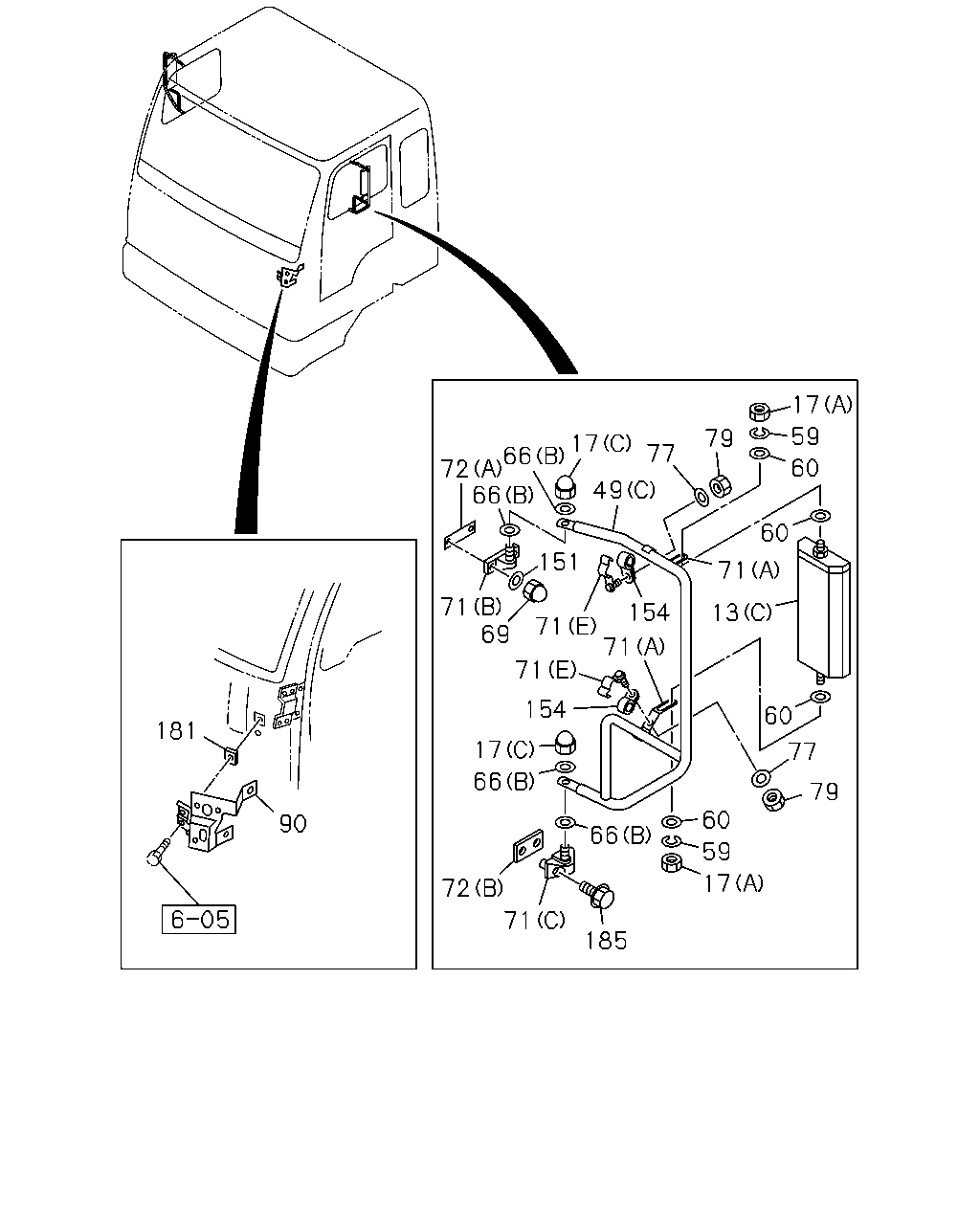

17 59 79 17 66 72 66 77 60 49 60 151 71 71 69 154 13 71 71 71 154 60 181 17 77 66 79 60 90 66 59 17 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW FLAT<YS1> (C)	1-71737-487-3	02	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-918-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-918-3	01	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW FLAT<YS1> (A) M8 FLANGE	1-09984-122-0	04	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2> (C) M10	1-09984-183-0	02	1	0008-0208
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2> (C) M10 CAP NUT	1-09984-134-0	02	1	0209-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW LONG ARM<DH2> (C) M10	1-09984-183-0	04	1	0008-0208
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW LONG ARM<DH2> (C) M10 CAP NUT	1-09984-134-0	04	1	0209-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	02	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (B) M5	1-09984-124-0	02	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0008-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW FLAT<YS1> (C)	1-71798-483-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW FLAT<YS1> (C)	1-71798-482-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (E)	1-71798-667-0	01	1	0008-0101
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (E)	1-71798-599-1	01	1	0102-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71798-516-4	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW WIDE<WU4> (A)	1-71798-490-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-517-4	01	1	0008-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-2	01	1	0008-
59	WASHER; LK MIR O/S RR VIEW FLAT<YS1> ID=8.2	1-09985-177-0	04	1	0008-
60	WASHER; PL,OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) CHROMATE ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) BLACK ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0008-
66	WASHER; PL EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) CHROMATE ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0008-
69	NUT; CAP MIR O/S RR VIEW FLAT<YS1> M8	1-09984-187-0	04	1	0008-0809
69	NUT; CAP MIR O/S RR VIEW FLAT<YS1> M8 CAP NUT	8-98059-914-0	04	1	0810-
69	NUT; CAP MIR O/S RR VIEW WIDE<WU4> M8	1-09984-187-0	02	1	0008-0809
69	NUT; CAP MIR O/S RR VIEW WIDE<WU4> M8 CAP NUT	8-98059-914-0	02	1	0810-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (E)	1-71736-224-3	04	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (A)	1-71736-404-1	04	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (B) UPPER	1-71798-484-1	02	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (C) LOWER	1-71798-486-2	02	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (F)	1-71798-309-4	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (D)	1-71798-581-3	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (B) UPPER	1-71798-484-1	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (C) LOWER	1-71798-486-2	01	1	0008-
72	SHEET MIR O/S RR VIEW FLAT<YS1> (A) UPPER	1-71798-487-3	02	1	0008-
72	SHEET MIR O/S RR VIEW FLAT<YS1> (B) LOWER	1-71798-488-1	02	1	0008-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2> (D)	1-71798-392-3	01	1	0008-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (C)	1-71798-393-3	01	1	0008-
72	SHEET MIR O/S RR VIEW WIDE<WU4> (A) UPPER	1-71798-487-3	01	1	0008-
72	SHEET MIR O/S RR VIEW WIDE<WU4> (B) LOWER	1-71798-488-1	01	1	0008-
77	WASHER; PL,BRKT,STAY MIR O/S RR VIEW FLAT<YS1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0008-
79	NUT; BRKT,STAY MIR O/S RR VIEW FLAT<YS1> M8 FLANGE	1-09984-122-0	04	1	0008-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0008-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0008-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
151	WASHER; PL,MIRROR MIR O/S RR VIEW FLAT<YS1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0008-
151	WASHER; PL,MIRROR MIR O/S RR VIEW WIDE<WU4> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0008-
154	SEAT; BRKT MIR O/S RR VIEW FLAT<YS1>	1-71736-479-0	04	1	0008-
181	SEAL; BRKT 25X25	8-94272-533-0	04	1	0008-
185	BOLT; BRKT MIR O/S RR VIEW FLAT<YS1> M8X35 FLANGE	0-28690-835-0	04	1	0008-0512
185	BOLT; BRKT MIR O/S RR VIEW FLAT<YS1> M8X35 FLANGE	0-28660-835-0	04	1	0601-0605
185	BOLT; BRKT MIR O/S RR VIEW FLAT<YS1> M8X35 FLANGE	8-98046-876-0	04	1	0606-
185	BOLT; BRKT MIR O/S RR VIEW WIDE<WU4> M8X35 FLANGE	0-28690-835-0	02	1	0008-0512
185	BOLT; BRKT MIR O/S RR VIEW WIDE<WU4> M8X35 FLANGE	0-28660-835-0	02	1	0601-0605
185	BOLT; BRKT MIR O/S RR VIEW WIDE<WU4> M8X35 FLANGE	8-98046-876-0	02	1	0606-

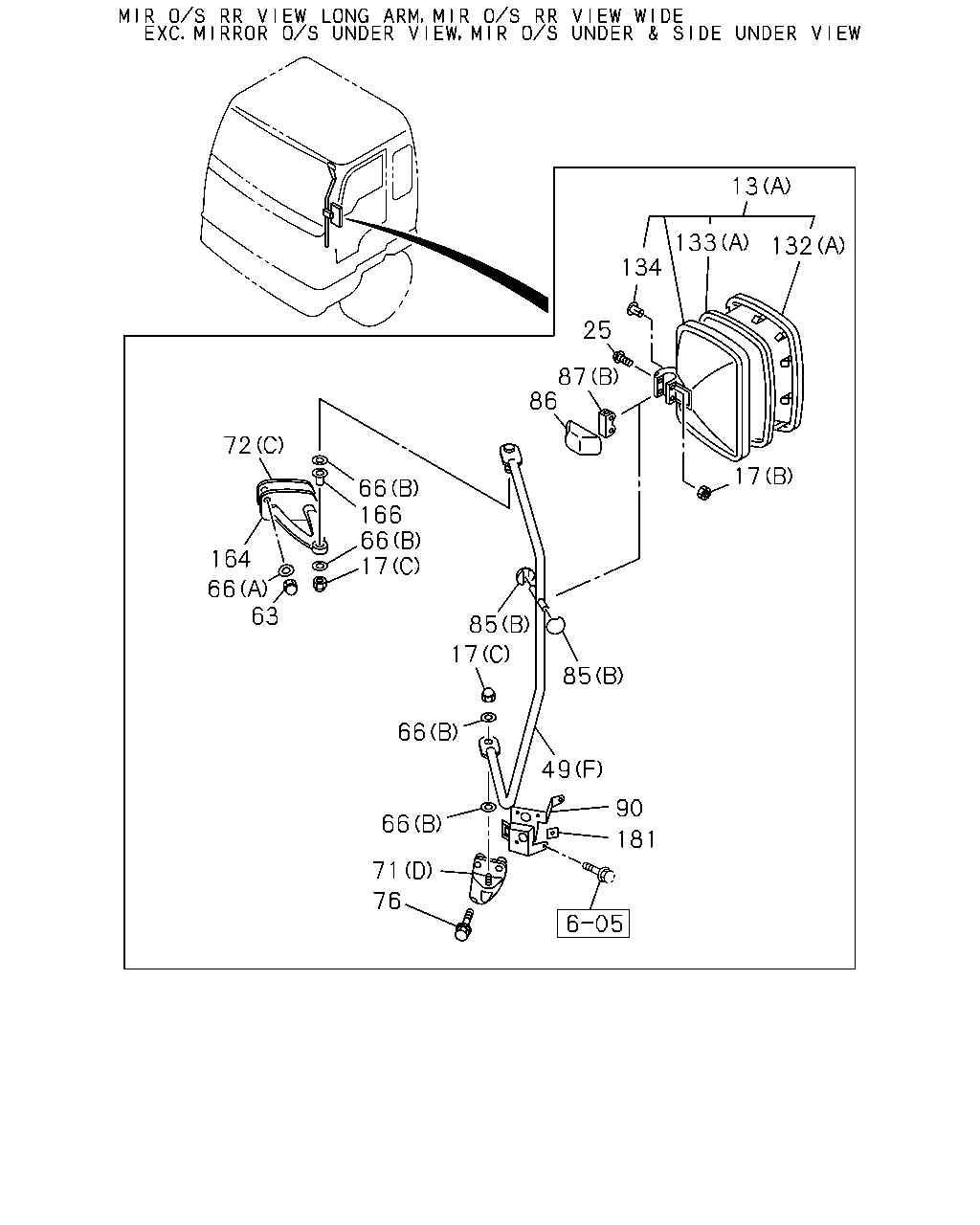

13 133 132 134 25 72 49 87 66 166 66 17 86 164 17 66 63 17 85 85 134 30 32 132 30 17 66 87 26 135 32 66 87 71 181 90 26 17 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW FLAT<YS1> (C)	1-71737-487-3	02	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-918-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-918-3	01	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW FLAT<YS1> (A) M8 FLANGE	1-09984-122-0	04	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2> (C) M10	1-09984-183-0	02	1	0008-0208
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2> (C) M10 CAP NUT	1-09984-134-0	02	1	0209-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW LONG ARM<DH2> (C) M10	1-09984-183-0	04	1	0008-0208
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW LONG ARM<DH2> (C) M10 CAP NUT	1-09984-134-0	04	1	0209-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	02	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (B) M5	1-09984-124-0	02	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0008-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0008-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0008-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0008-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> M5X50	1-09981-444-0	02	1	0008-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-09981-541-0	02	1	0405-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (C)	1-71798-695-0	01	1	0008-0204
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-652-1	01	1	0008-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-649-1	01	1	0008-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0008-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0008-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0008-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW FLAT<YS1> (C)	1-71798-483-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW FLAT<YS1> (C)	1-71798-482-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (E)	1-71798-667-0	01	1	0008-0101
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (E)	1-71798-599-1	01	1	0102-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71798-516-4	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW WIDE<WU4> (A)	1-71798-490-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-517-4	01	1	0008-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-2	01	1	0008-
63	NUT; STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> M8	1-09984-187-0	02	1	0008-
63	NUT; STAY MIR O/S RR VIEW LONG ARM<DH2> M8	1-09984-187-0	02	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) CHROMATE ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) BLACK ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0008-
66	WASHER; PL EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) CHROMATE ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (E)	1-71736-224-3	04	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (A)	1-71736-404-1	04	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (B) UPPER	1-71798-484-1	02	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (C) LOWER	1-71798-486-2	02	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (F)	1-71798-309-4	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (D)	1-71798-581-3	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (B) UPPER	1-71798-484-1	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (C) LOWER	1-71798-486-2	01	1	0008-
72	SHEET MIR O/S RR VIEW FLAT<YS1> (A) UPPER	1-71798-487-3	02	1	0008-
72	SHEET MIR O/S RR VIEW FLAT<YS1> (B) LOWER	1-71798-488-1	02	1	0008-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2> (D)	1-71798-392-3	01	1	0008-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (C)	1-71798-393-3	01	1	0008-
72	SHEET MIR O/S RR VIEW WIDE<WU4> (A) UPPER	1-71798-487-3	01	1	0008-
72	SHEET MIR O/S RR VIEW WIDE<WU4> (B) LOWER	1-71798-488-1	01	1	0008-
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2> M8X40 FLANGE	0-28680-840-0	03	1	0008-0009
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2> M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0010-0512
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2> M8X40 W/LK&PL WASHER	0-50640-840-0	03	1	0601-
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> M8X30 W/LK WASHER	8-94279-183-1	03	1	0008-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW LONG ARM<DH2> (B) ID=22.2	1-71736-489-2	02	1	0008-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0008-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0008-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW WIDE<WU4> (A) ID=19.1	1-71737-633-2	02	1	0008-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0008-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0008-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> BLACK	1-71737-760-1	01	1	0008-
87	SPACER MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-704-0	01	1	0008-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-704-0	01	1	0008-
87	SPACER MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (B)	1-71737-704-0	01	1	0008-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-646-2	02	1	0008-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-646-2	01	1	0008-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0008-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0008-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0008-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-935-0	01	1	0008-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0008-
132	RING; MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-934-0	01	1	0008-
132	RING; MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-934-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-926-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-927-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-927-0	01	1	0008-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0008-
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0008-
134	CLIP; MIRROR LENS MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	01	1	0008-
134	CLIP; MIRROR LENS MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-71737-936-0	01	1	0008-
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-929-0	01	1	0008-
164	STAY; ROOF MIR O/S RR VIEW LONG ARM<DH2>	1-71798-210-4	01	1	0008-
164	STAY; ROOF MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-71798-211-4	01	1	0008-
166	BUSHING; STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-09983-175-1	01	1	0008-
181	SEAL; BRKT 25X25	8-94272-533-0	04	1	0008-

13 133 132 134 25 87 86 72 17 66 166 66 17 164 66 63 85 17 85 66 49 90 66 181 71 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW FLAT<YS1> (C)	1-71737-487-3	02	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-918-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-918-3	01	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW FLAT<YS1> (A) M8 FLANGE	1-09984-122-0	04	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2> (C) M10	1-09984-183-0	02	1	0008-0208
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2> (C) M10 CAP NUT	1-09984-134-0	02	1	0209-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW LONG ARM<DH2> (C) M10	1-09984-183-0	04	1	0008-0208
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW LONG ARM<DH2> (C) M10 CAP NUT	1-09984-134-0	04	1	0209-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	02	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (B) M5	1-09984-124-0	02	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0008-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0008-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0008-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0008-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> M5X50	1-09981-444-0	02	1	0008-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-09981-541-0	02	1	0405-
49	STAY; MIRROR SIDE MIR O/S RR VIEW FLAT<YS1> (C)	1-71798-483-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW FLAT<YS1> (C)	1-71798-482-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (E)	1-71798-667-0	01	1	0008-0101
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (E)	1-71798-599-1	01	1	0102-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71798-516-4	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW WIDE<WU4> (A)	1-71798-490-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-517-4	01	1	0008-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-2	01	1	0008-
63	NUT; STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> M8	1-09984-187-0	02	1	0008-
63	NUT; STAY MIR O/S RR VIEW LONG ARM<DH2> M8	1-09984-187-0	02	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) CHROMATE ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) BLACK ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0008-
66	WASHER; PL EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) CHROMATE ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (E)	1-71736-224-3	04	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (A)	1-71736-404-1	04	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (B) UPPER	1-71798-484-1	02	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (C) LOWER	1-71798-486-2	02	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (F)	1-71798-309-4	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (D)	1-71798-581-3	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (B) UPPER	1-71798-484-1	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (C) LOWER	1-71798-486-2	01	1	0008-
72	SHEET MIR O/S RR VIEW FLAT<YS1> (A) UPPER	1-71798-487-3	02	1	0008-
72	SHEET MIR O/S RR VIEW FLAT<YS1> (B) LOWER	1-71798-488-1	02	1	0008-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2> (D)	1-71798-392-3	01	1	0008-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (C)	1-71798-393-3	01	1	0008-
72	SHEET MIR O/S RR VIEW WIDE<WU4> (A) UPPER	1-71798-487-3	01	1	0008-
72	SHEET MIR O/S RR VIEW WIDE<WU4> (B) LOWER	1-71798-488-1	01	1	0008-
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2> M8X40 FLANGE	0-28680-840-0	03	1	0008-0009
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2> M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0010-0512
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2> M8X40 W/LK&PL WASHER	0-50640-840-0	03	1	0601-
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> M8X30 W/LK WASHER	8-94279-183-1	03	1	0008-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW LONG ARM<DH2> (B) ID=22.2	1-71736-489-2	02	1	0008-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0008-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0008-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW WIDE<WU4> (A) ID=19.1	1-71737-633-2	02	1	0008-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0008-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0008-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> BLACK	1-71737-760-1	01	1	0008-
87	SPACER MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-704-0	01	1	0008-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-704-0	01	1	0008-
87	SPACER MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (B)	1-71737-704-0	01	1	0008-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-646-2	02	1	0008-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-646-2	01	1	0008-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0008-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0008-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0008-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-935-0	01	1	0008-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0008-
132	RING; MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-934-0	01	1	0008-
132	RING; MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-934-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-926-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-927-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-927-0	01	1	0008-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0008-
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0008-
134	CLIP; MIRROR LENS MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	01	1	0008-
134	CLIP; MIRROR LENS MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-71737-936-0	01	1	0008-
164	STAY; ROOF MIR O/S RR VIEW LONG ARM<DH2>	1-71798-210-4	01	1	0008-
164	STAY; ROOF MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-71798-211-4	01	1	0008-
166	BUSHING; STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-09983-175-1	01	1	0008-
181	SEAL; BRKT 25X25	8-94272-533-0	04	1	0008-

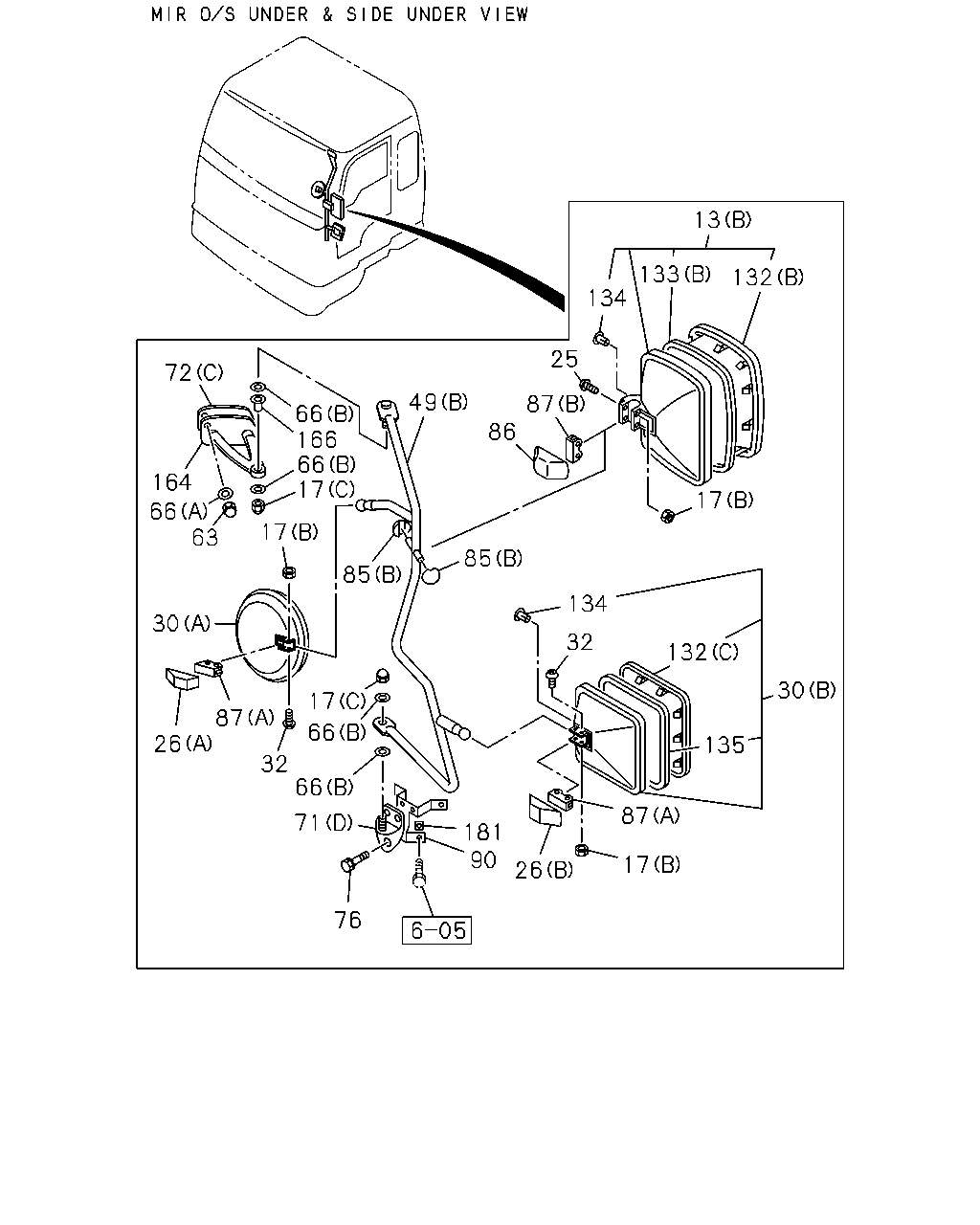

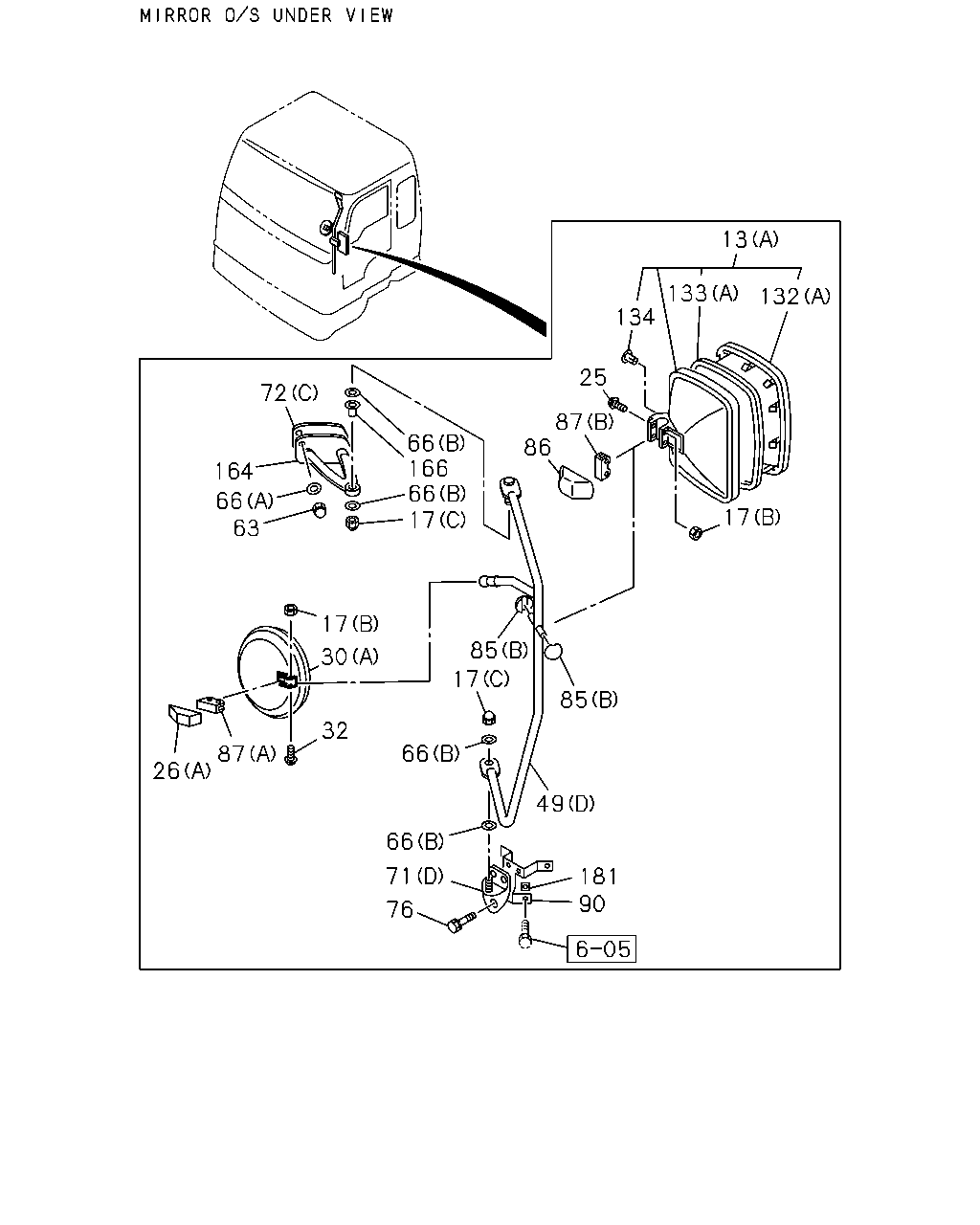

145 66 63 66 17 66 85 164 87 25 49 133 134 132 86 72 85 145 66 13 66 26 76 90 71 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW FLAT<YS1> (C)	1-71737-487-3	02	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-918-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-918-3	01	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW FLAT<YS1> (A) M8 FLANGE	1-09984-122-0	04	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2> (C) M10	1-09984-183-0	02	1	0008-0208
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2> (C) M10 CAP NUT	1-09984-134-0	02	1	0209-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW LONG ARM<DH2> (C) M10	1-09984-183-0	04	1	0008-0208
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW LONG ARM<DH2> (C) M10 CAP NUT	1-09984-134-0	04	1	0209-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	02	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (B) M5	1-09984-124-0	02	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0008-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0008-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0008-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0008-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> M5X50	1-09981-444-0	02	1	0008-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-09981-541-0	02	1	0405-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (C)	1-71798-695-0	01	1	0008-0204
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-652-1	01	1	0008-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-649-1	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW FLAT<YS1> (C)	1-71798-483-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW FLAT<YS1> (C)	1-71798-482-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (E)	1-71798-667-0	01	1	0008-0101
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (E)	1-71798-599-1	01	1	0102-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71798-516-4	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW WIDE<WU4> (A)	1-71798-490-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-517-4	01	1	0008-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-2	01	1	0008-
63	NUT; STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> M8	1-09984-187-0	02	1	0008-
63	NUT; STAY MIR O/S RR VIEW LONG ARM<DH2> M8	1-09984-187-0	02	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) CHROMATE ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) BLACK ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0008-
66	WASHER; PL EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) CHROMATE ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (E)	1-71736-224-3	04	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (A)	1-71736-404-1	04	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (B) UPPER	1-71798-484-1	02	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (C) LOWER	1-71798-486-2	02	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (F)	1-71798-309-4	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (D)	1-71798-581-3	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (B) UPPER	1-71798-484-1	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (C) LOWER	1-71798-486-2	01	1	0008-
72	SHEET MIR O/S RR VIEW FLAT<YS1> (A) UPPER	1-71798-487-3	02	1	0008-
72	SHEET MIR O/S RR VIEW FLAT<YS1> (B) LOWER	1-71798-488-1	02	1	0008-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2> (D)	1-71798-392-3	01	1	0008-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (C)	1-71798-393-3	01	1	0008-
72	SHEET MIR O/S RR VIEW WIDE<WU4> (A) UPPER	1-71798-487-3	01	1	0008-
72	SHEET MIR O/S RR VIEW WIDE<WU4> (B) LOWER	1-71798-488-1	01	1	0008-
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2> M8X40 FLANGE	0-28680-840-0	03	1	0008-0009
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2> M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0010-0512
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2> M8X40 W/LK&PL WASHER	0-50640-840-0	03	1	0601-
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> M8X30 W/LK WASHER	8-94279-183-1	03	1	0008-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW LONG ARM<DH2> (B) ID=22.2	1-71736-489-2	02	1	0008-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0008-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0008-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW WIDE<WU4> (A) ID=19.1	1-71737-633-2	02	1	0008-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0008-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0008-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> BLACK	1-71737-760-1	01	1	0008-
87	SPACER MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-704-0	01	1	0008-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-704-0	01	1	0008-
87	SPACER MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (B)	1-71737-704-0	01	1	0008-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-646-2	02	1	0008-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-646-2	01	1	0008-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0008-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0008-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0008-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-935-0	01	1	0008-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0008-
132	RING; MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-934-0	01	1	0008-
132	RING; MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-934-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-926-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-927-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-927-0	01	1	0008-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0008-
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0008-
134	CLIP; MIRROR LENS MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	01	1	0008-
134	CLIP; MIRROR LENS MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-71737-936-0	01	1	0008-
145	NUT; CAP,SUB STAY MIR O/S RR VIEW LONG ARM<DH2> M10	1-09984-183-0	02	1	0008-
164	STAY; ROOF MIR O/S RR VIEW LONG ARM<DH2>	1-71798-210-4	01	1	0008-
164	STAY; ROOF MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-71798-211-4	01	1	0008-
181	SEAL; BRKT 25X25	8-94272-533-0	04	1	0008-

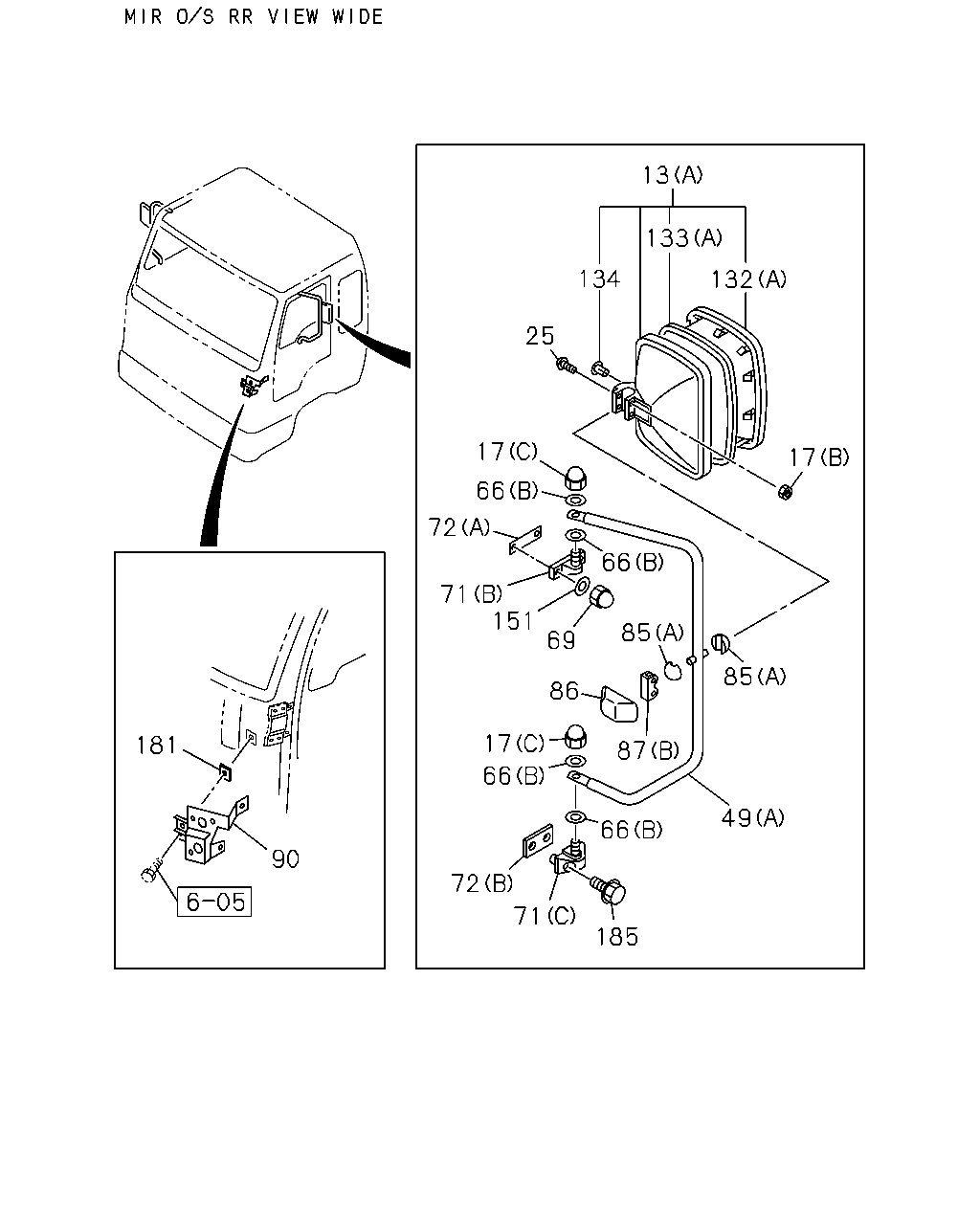

13 133 134 132 25 17 17 66 72 66 71 151 85 69 85 86 17 181 87 66 49 66 90 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW FLAT<YS1> (C)	1-71737-487-3	02	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-918-3	01	1	0008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-918-3	01	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW FLAT<YS1> (A) M8 FLANGE	1-09984-122-0	04	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2> (C) M10	1-09984-183-0	02	1	0008-0208
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2> (C) M10 CAP NUT	1-09984-134-0	02	1	0209-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW LONG ARM<DH2> (C) M10	1-09984-183-0	04	1	0008-0208
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW LONG ARM<DH2> (C) M10 CAP NUT	1-09984-134-0	04	1	0209-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	02	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (B) M5	1-09984-124-0	02	1	0008-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0008-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0008-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0008-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0008-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> M5X50	1-09981-444-0	02	1	0008-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-09981-541-0	02	1	0405-
49	STAY; MIRROR SIDE MIR O/S RR VIEW FLAT<YS1> (C)	1-71798-483-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW FLAT<YS1> (C)	1-71798-482-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (E)	1-71798-667-0	01	1	0008-0101
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (E)	1-71798-599-1	01	1	0102-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71798-516-4	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S RR VIEW WIDE<WU4> (A)	1-71798-490-3	01	1	0008-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-517-4	01	1	0008-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-2	01	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) CHROMATE ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) BLACK ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0008-
66	WASHER; PL EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) CHROMATE ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0008-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0008-
69	NUT; CAP MIR O/S RR VIEW FLAT<YS1> M8	1-09984-187-0	04	1	0008-0809
69	NUT; CAP MIR O/S RR VIEW FLAT<YS1> M8 CAP NUT	8-98059-914-0	04	1	0810-
69	NUT; CAP MIR O/S RR VIEW WIDE<WU4> M8	1-09984-187-0	02	1	0008-0809
69	NUT; CAP MIR O/S RR VIEW WIDE<WU4> M8 CAP NUT	8-98059-914-0	02	1	0810-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (E)	1-71736-224-3	04	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (A)	1-71736-404-1	04	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (B) UPPER	1-71798-484-1	02	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW FLAT<YS1> (C) LOWER	1-71798-486-2	02	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (F)	1-71798-309-4	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (D)	1-71798-581-3	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (B) UPPER	1-71798-484-1	01	1	0008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (C) LOWER	1-71798-486-2	01	1	0008-
72	SHEET MIR O/S RR VIEW FLAT<YS1> (A) UPPER	1-71798-487-3	02	1	0008-
72	SHEET MIR O/S RR VIEW FLAT<YS1> (B) LOWER	1-71798-488-1	02	1	0008-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2> (D)	1-71798-392-3	01	1	0008-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (C)	1-71798-393-3	01	1	0008-
72	SHEET MIR O/S RR VIEW WIDE<WU4> (A) UPPER	1-71798-487-3	01	1	0008-
72	SHEET MIR O/S RR VIEW WIDE<WU4> (B) LOWER	1-71798-488-1	01	1	0008-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW LONG ARM<DH2> (B) ID=22.2	1-71736-489-2	02	1	0008-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0008-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0008-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW WIDE<WU4> (A) ID=19.1	1-71737-633-2	02	1	0008-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0008-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0008-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> BLACK	1-71737-760-1	01	1	0008-
87	SPACER MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-704-0	01	1	0008-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-704-0	01	1	0008-
87	SPACER MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (B)	1-71737-704-0	01	1	0008-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-646-2	02	1	0008-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-646-2	01	1	0008-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0008-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0008-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0008-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-935-0	01	1	0008-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0008-
132	RING; MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-934-0	01	1	0008-
132	RING; MIRROR MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-934-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-926-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-927-0	01	1	0008-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (A)	1-71737-927-0	01	1	0008-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0008-
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0008-
134	CLIP; MIRROR LENS MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	01	1	0008-
134	CLIP; MIRROR LENS MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-71737-936-0	01	1	0008-
151	WASHER; PL,MIRROR MIR O/S RR VIEW FLAT<YS1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0008-
151	WASHER; PL,MIRROR MIR O/S RR VIEW WIDE<WU4> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0008-
181	SEAL; BRKT 25X25	8-94272-533-0	04	1	0008-
185	BOLT; BRKT MIR O/S RR VIEW FLAT<YS1> M8X35 FLANGE	0-28690-835-0	04	1	0008-0512
185	BOLT; BRKT MIR O/S RR VIEW FLAT<YS1> M8X35 FLANGE	0-28660-835-0	04	1	0601-0605
185	BOLT; BRKT MIR O/S RR VIEW FLAT<YS1> M8X35 FLANGE	8-98046-876-0	04	1	0606-
185	BOLT; BRKT MIR O/S RR VIEW WIDE<WU4> M8X35 FLANGE	0-28690-835-0	02	1	0008-0512
185	BOLT; BRKT MIR O/S RR VIEW WIDE<WU4> M8X35 FLANGE	0-28660-835-0	02	1	0601-0605
185	BOLT; BRKT MIR O/S RR VIEW WIDE<WU4> M8X35 FLANGE	8-98046-876-0	02	1	0606-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
