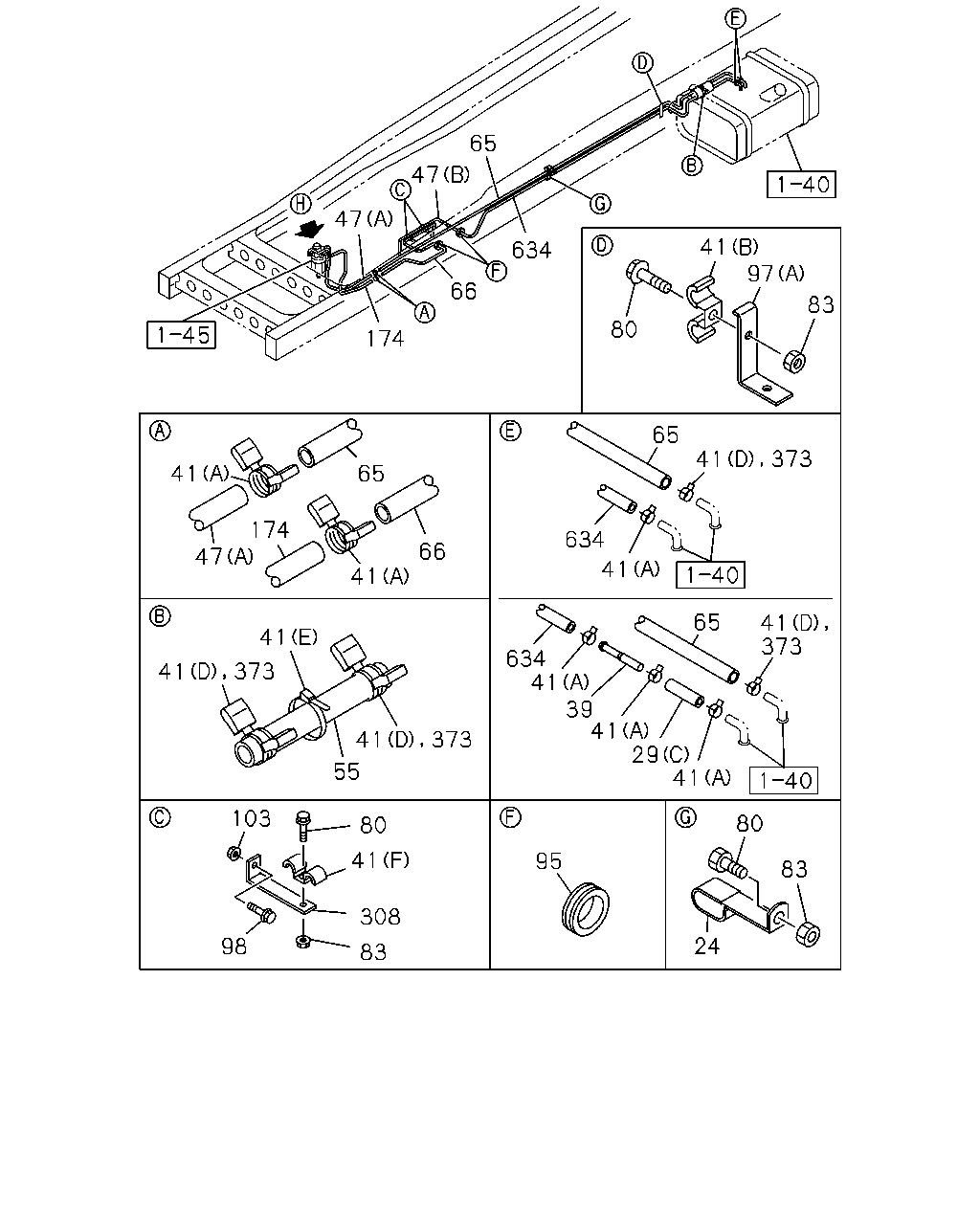

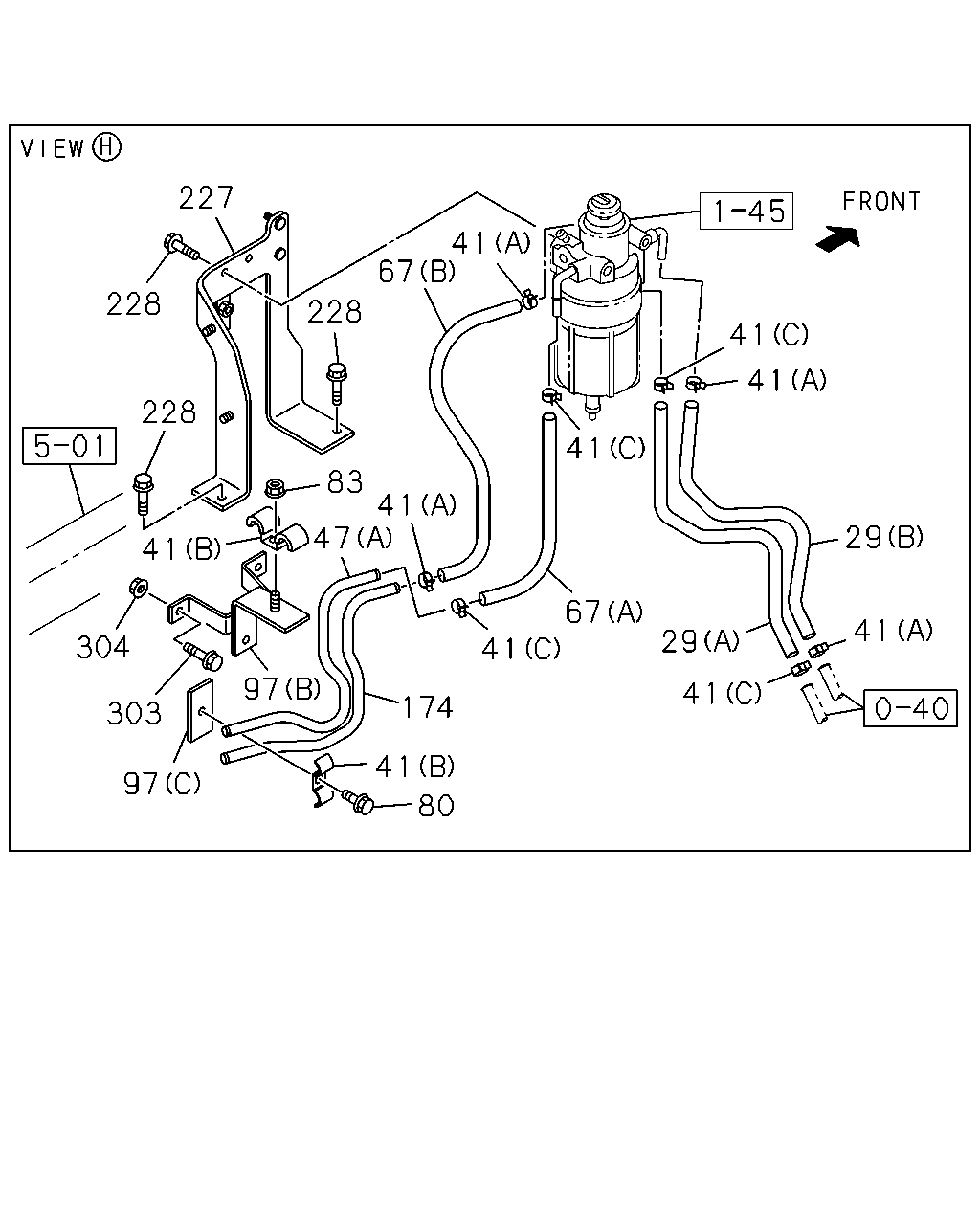

1-41 — FUEL PIPING; CHASSIS (#41157) — 81 parça

228 227 228 67 41 41 41 41 29 41 41 29 67 41 174 41 80 97 303 304 41 97 47 41 83 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0804-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (A) ID=13	8-94238-571-0	01	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0711-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0804-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0804-	●	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0710-	●	●
47	PIPE; FUEL,RETURN (B)	8-98097-500-0	01	1	0710-0807	●	●
47	PIPE; FUEL,RETURN (B)	8-98127-647-0	01	1	0808-	●	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0710-	●	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0710-	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0710-	●	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0710-	●	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0710-	●	●
228	BOLT; BRKT,SEDIMENTER M8X25 FLANGE	0-28050-825-0	02	1	0710-	●	●
228	BOLT; BRKT,SEDIMENTER M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0710-0710	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0711-1008	●	●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-	●	●

65 47 47 41 97 634 66 83 80 174 65 65 41 174 634 66 47 41 41 65 41 373 41 634 41 39 41 29 41 55 103 80 80 41 95 83 308 24 98 83 41 373 41 373 41 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	0801-0808	●	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0710-	●	●
39	PIPE; FUEL FUEL TANK 400L<SDH>	8-98009-438-1	01	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0804-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (A) ID=13	8-94238-571-0	01	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0711-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0804-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0804-	●	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0710-	●	●
47	PIPE; FUEL,RETURN (B)	8-98097-500-0	01	1	0710-0807	●	●
47	PIPE; FUEL,RETURN (B)	8-98127-647-0	01	1	0808-	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0710-0710	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0710-0710	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0711-0803	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0804-	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0804-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
66	HOSE; FUEL,RETURN PIPE L=150 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	0710-	●	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0710-	●	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0710-	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0710-	●	●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0710-	●	●
308	BRACKET; FUEL PIPE L=75	1-47478-323-0	02	1	0710-	●	●
373	CLAMP; HOSE,FUEL FUEL TANK 400L<SDH> ID=16	8-94238-568-0	02	1	0804-	●	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●
