Sayfa 6-47 - Isuzu EPC

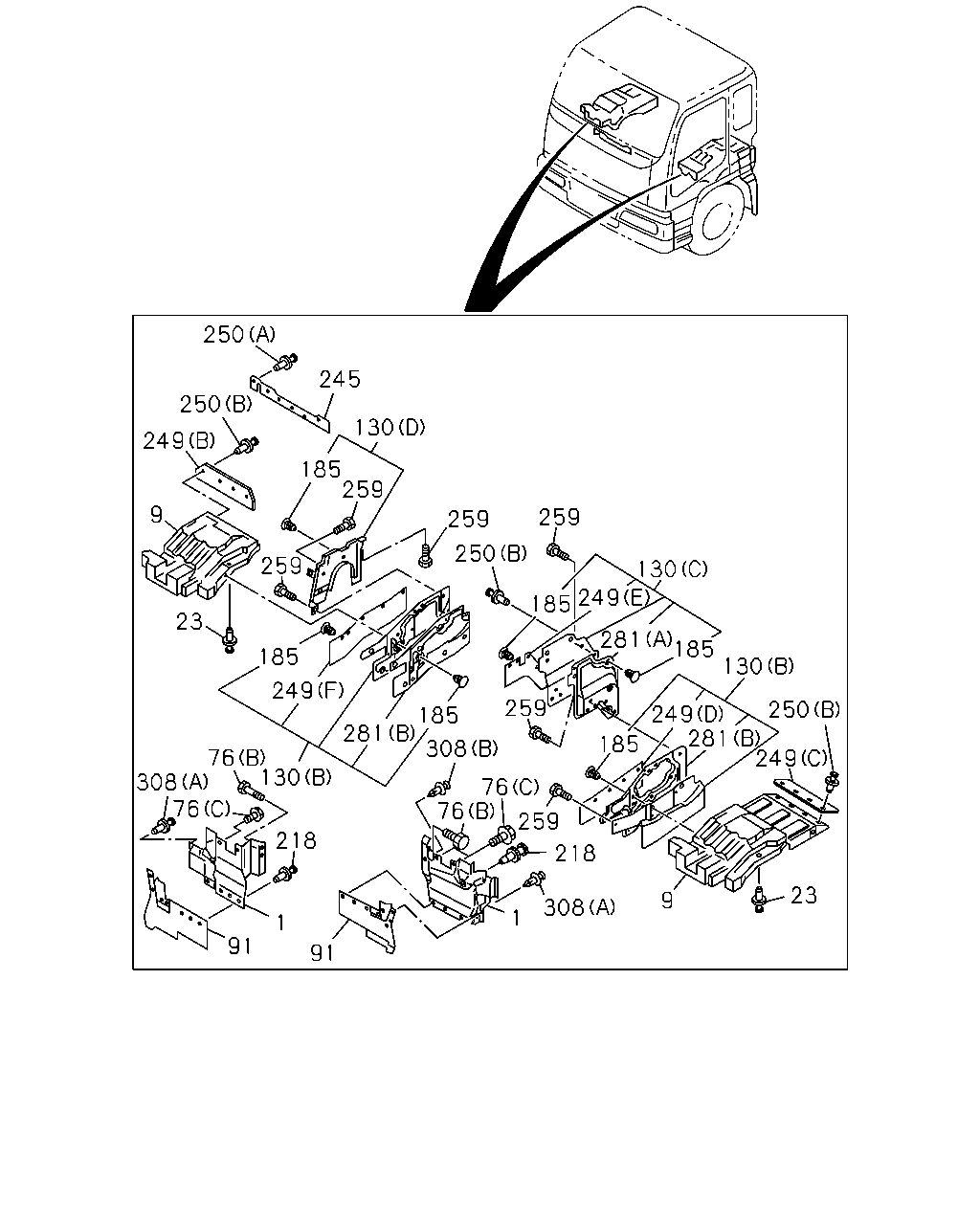

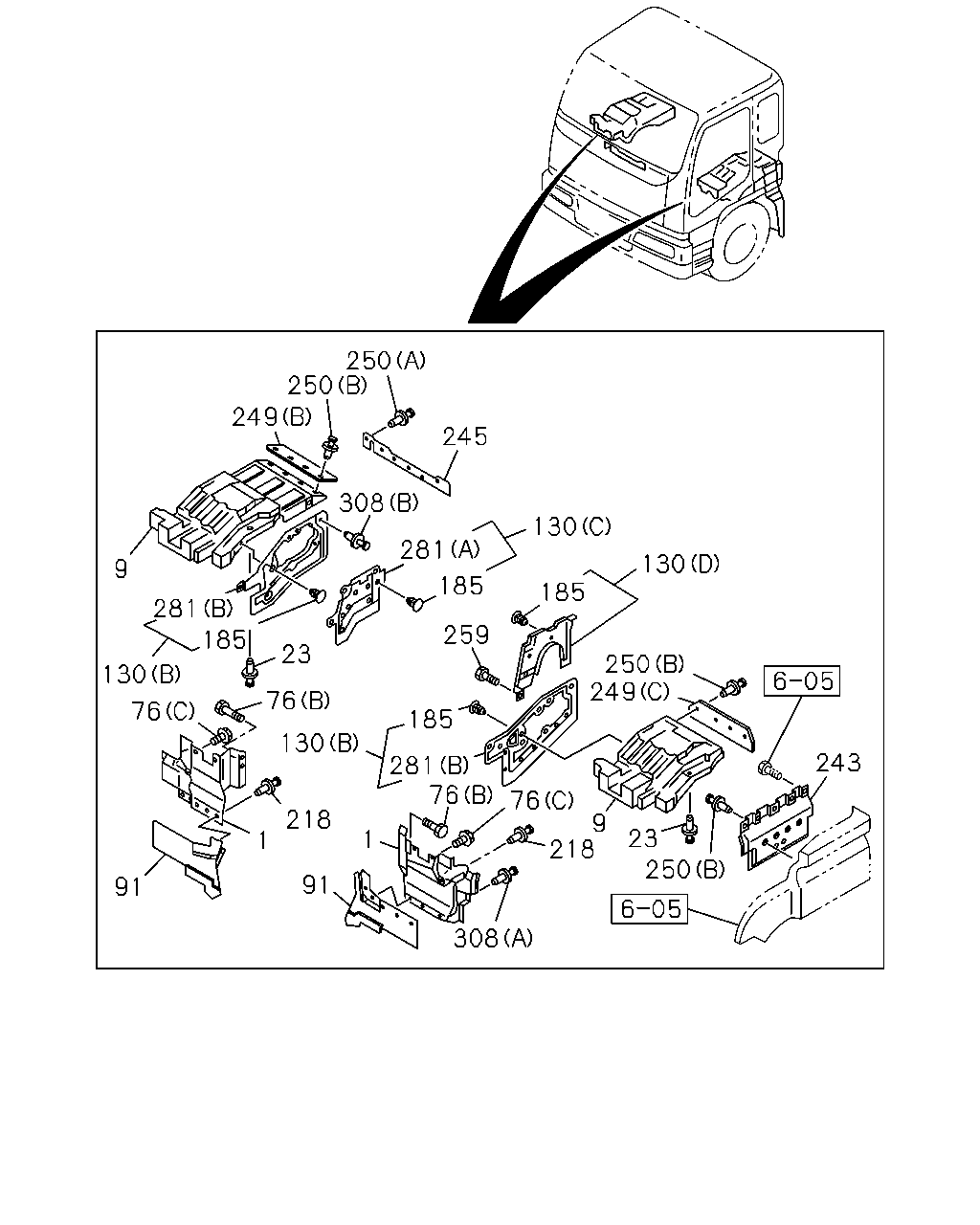

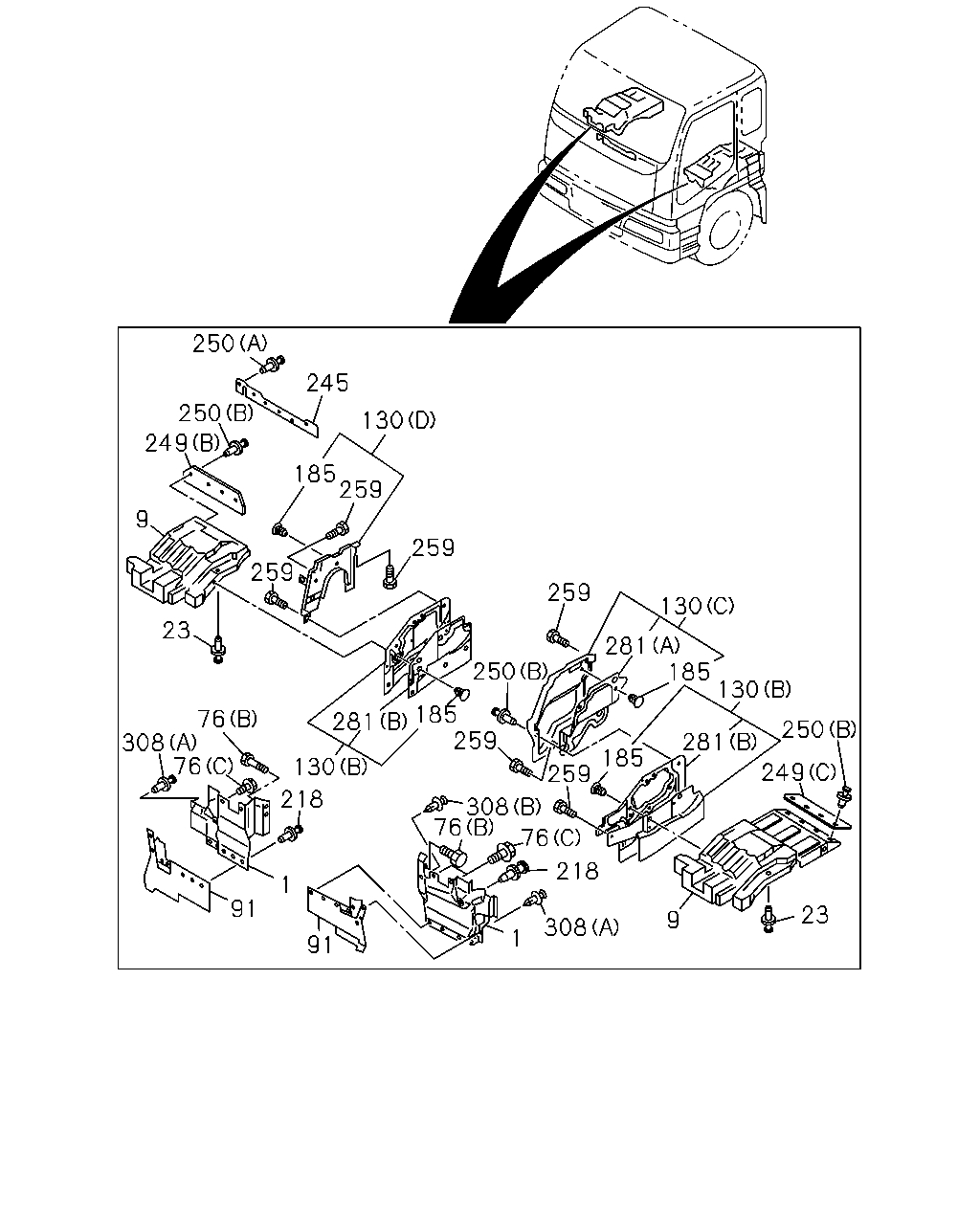

6-47 — MUD GUARD AND INSULATOR (#4114) — 784 parça

250 245 250 130 249 185 259 9 259 259 259 130 23 281 185 130 250 185 281 259 76 308 76 250 281 185 259 130 249 218 308 76 76 218 1 91 23 9 308 1 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79937-895-4	01	1	9603-	●	●
1	GUARD; MUD,FRT	1-79937-894-5	01	1	9603-	●	●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L)	1-79937-907-3	01	1	9603-9606		●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L)	1-79937-907-3	01	1	9607-9708	●	●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-79937-907-3	01	1	9709-9904	●	●
9	GUARD; SPLASH,WHEEL HOUSE L TYPE ENG<90L>	1-79937-907-3	01	1	9905-	●	●
9	GUARD; SPLASH,WHEEL HOUSE 8PE1S(59L),10PE1S(60L)	1-79937-892-3	01	1	9603-9904	●	●
9	GUARD; SPLASH,WHEEL HOUSE V TYPE ENG<91L>	1-79937-892-3	01	1	9905-	●	●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L)	1-79937-908-3	01	1	9603-9606		●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L)	1-79937-908-3	01	1	9607-9708	●	●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-79937-908-3	01	1	9709-9904	●	●
9	GUARD; SPLASH,WHEEL HOUSE L TYPE ENG<90L>	1-79937-908-3	01	1	9905-	●	●
9	GUARD; SPLASH,WHEEL HOUSE 8PE1S(59L),10PE1S(60L)	1-79937-893-3	01	1	9603-9904	●	●
9	GUARD; SPLASH,WHEEL HOUSE V TYPE ENG<91L>	1-79937-893-3	01	1	9905-	●	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	23	1	9603-9710	●	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	9711-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9603-	●	●
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9603-	●	●
76	BOLT; MUD GUARD (C) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	9603-	●	●
91	COVER; MUD,FRT	1-79931-199-0	01	1	9603-9707	●	●
91	COVER; MUD,FRT	1-79931-199-1	01	1	9708-9904	●
91	COVER; MUD,FRT EXC. CAB UP +50MM<W60>	1-79931-199-1	01	1	9708-9904		●
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1>	1-79931-199-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>	1-79931-199-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT CAB UP +50MM<W60>	1-79931-240-1	01	1	9708-9904		●
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-240-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-199-1	01	1	9909-	●	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-203-1	01	1	9905-	●	●
91	COVER; MUD,FRT	1-79931-200-0	01	1	9603-9707	●	●
91	COVER; MUD,FRT	1-79931-200-1	01	1	9708-9904	●
91	COVER; MUD,FRT EXC. CAB UP +50MM<W60>	1-79931-200-1	01	1	9708-9904		●
91	COVER; MUD,FRT CAB UP +50MM<W60>	1-79931-241-1	01	1	9708-9904		●
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-241-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1>	1-79931-200-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>	1-79931-200-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-200-1	01	1	9909-	●	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-204-1	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE (B)	1-79937-915-3	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-959-1	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9607-9904	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-774-3	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-5	01	1	9603-9606		●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-5	01	1	9607-9904	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53192-782-6	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-767-3	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE 8PE1S(59L) (A)	1-53193-215-0	01	1	9603-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-215-0	01	1	9603-	●	●
130	PANEL; SHUTTER NOISE 8PE1S(59L),10PE1S(60L) (C)	1-79937-917-2	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> (C)	1-79937-917-2	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L) (D)	1-79937-919-2	01	1	9603-9606		●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L) (D)	1-79937-919-2	01	1	9607-9708	●	●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L),6WG1 TC-N(71L) (D)	1-79937-919-2	01	1	9709-9904	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> (D)	1-79937-919-2	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-768-3	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE 8PE1S(59L) (A)	1-53193-196-2	01	1	9603-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-196-2	01	1	9603-	●	●
130	PANEL; SHUTTER NOISE 8PE1S(59L),10PE1S(60L) (D)	1-79937-972-0	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> (D)	1-79937-972-0	01	1	9905-9910	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-79937-972-0	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-79937-920-2	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A)	1-53192-790-5	01	1	9603-9606		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A)	1-53192-790-5	01	1	9607-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-229-0	01	1	9607-9608	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	9609-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-2	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE (B)	1-79937-916-3	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L) (C)	1-79937-928-1	01	1	9603-9606		●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L) (C)	1-79937-928-1	01	1	9607-9708	●	●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L),6WG1 TC-N(71L) (C)	1-79937-928-2	01	1	9709-9904	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C)	1-79937-928-2	01	1	9905-9910	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +110MM<TGG> (C)	1-79937-928-2	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +110MM<TGG> (C)	1-79937-918-2	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> (C)	1-79937-993-1	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> CAB UP +110MM<TGG> (C)	1-79937-969-1	01	1	9905-9910	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> (C)	1-79937-969-1	01	1	9911-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9603-9606	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9603-9606	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9603-9606	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9603-9606		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> ID=6.2 L=11.4	8-97808-623-0	05	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> ID=6.2 L=11.4	8-97808-623-0	05	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9911-	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.2 L=11.4	8-97808-623-0	05	1	9911-	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> ID=6.2 L=11.4	8-97808-623-0	05	1	9911-	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9911-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9603-9606	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9603-9606	●	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L) ID=6.2 L=11.4	8-97808-623-0	06	1	9603-9606		●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L) ID=6.2 L=11.4	8-97808-623-0	06	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=6.2 L=11.4	8-97808-623-0	06	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> ID=6.2 L=11.4	8-97808-623-0	06	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.2 L=11.4	8-97808-623-0	06	1	9911-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	9911-	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> ID=6.2 L=11.4	8-97808-623-0	06	1	9911-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9911-	●	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=6.2 L=11.4	8-97808-623-0	11	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	09	1	9905-	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	09	1	9905-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	9907-	●	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-0	08	1	9603-9606	●	●
218	FASTENER; RUBBER ID=6X6 OD=8	1-09987-194-0	08	1	9607-	●	●
245	RUBBER; SHUTTER,RAD	1-79937-900-0	01	1	9603-9711	●	●
245	RUBBER; SHUTTER,RAD	1-79937-982-0	01	1	9712-	●	●
249	RUBBER; SHUTTER (B)	1-79937-902-2	01	1	9603-9904	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-902-2	01	1	9905-	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-1	01	1	9603-	●	●
249	RUBBER; SHUTTER (C)	1-79937-975-0	01	1	9603-9904	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-975-0	01	1	9905-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-0	01	1	9905-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-981-0	01	1	9905-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-979-0	01	1	9905-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-965-0	01	1	9907-	●	●
249	RUBBER; SHUTTER L TYPE ENG<90L> CAB UP +110MM<TGG> (E)	1-79937-967-0	01	1	9905-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	9603-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	07	1	9603-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	9603-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	01	1	9603-	●	●
250	FASTENER; SHUTTER (B) D6X20	8-94361-318-0	04	1	9603-9904	●	●
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (B) D6X20	8-94361-318-0	04	1	9905-	●	●
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	9905-	●	●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	9603-	●	●
281	INSULATOR; NOISE (D)	1-73237-541-1	01	1	9603-9606	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (D)	1-73237-541-3	01	1	9607-	●	●
281	INSULATOR; NOISE (B)	1-71907-171-1	01	1	9603-9904	●	●
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	9905-	●	●
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	9603-9904	●	●
281	INSULATOR; NOISE EXC. CAB UP +110MM<TGG> (B)	1-71907-170-1	01	1	9905-9906	●	●
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	9907-	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-71907-167-0	01	1	9911-	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> CAB UP +110MM<TGG> (A)	1-71907-455-0	01	1	9905-9910	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> (A)	1-71907-455-0	01	1	9911-	●	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-3	01	1	9603-	●	●
281	INSULATOR; NOISE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-71907-307-0	01	1	9805-9904	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A)	1-71907-307-0	01	1	9905-9910	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +110MM<TGG> (A)	1-71907-307-0	01	1	9911-	●	●
281	INSULATOR; NOISE 8PE1S(59L),10PE1S(60L) (A)	1-71907-166-0	01	1	9603-9904	●	●
281	INSULATOR; NOISE V TYPE ENG<91L> (A)	1-71907-166-0	01	1	9905-	●	●
281	INSULATOR; NOISE 6WA1 TC-S(56L) (A)	1-71907-307-0	01	1	9603-9606		●
281	INSULATOR; NOISE 6WA1 TC-S(56L) (A)	1-71907-307-0	01	1	9607-9708	●	●
281	INSULATOR; NOISE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-71907-307-0	01	1	9709-9804	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	9603-	●	●
308	FASTENER; MUD GUARD (B) D8X13.5	1-09987-248-1	02	1	9603-9801	●	●
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	9802-	●	●

243 250 281 225 103 80 105 99 134 175 267 175 76 99 134 104 249 74 105 94 265 183 175 225 253 73 250 103 185 80 281 137 227 267 175 104 253 140 76 73 74 94 265 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	9603-	●	●
73	BOLT; MUD COVER BRKT L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	9609-9904	●	●
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8X16 FLANGE	0-28280-816-0	08	1	9603-9604		●
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8X16 FLANGE	0-28280-816-0	05	1	9605-9606		●
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8X16 FLANGE	0-28280-816-0	05	1	9607-9904	●	●
73	BOLT; MUD COVER BRKT L TYPE ENG<90L> M8X16 FLANGE	0-28280-816-0	05	1	9905-	●	●
73	BOLT; MUD COVER BRKT L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	9605-9606		●
73	BOLT; MUD COVER BRKT L TYPE ENG<90L> M8X16 FLANGE	0-28280-816-0	03	1	9607-9608	●	●
73	BOLT; MUD COVER BRKT L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	9609-9904	●	●
73	BOLT; MUD COVER BRKT L TYPE ENG<90L> EXC. SILENCER SINGLE VERTICAL<N28> M8X16 FLANGE	0-28280-816-0	03	1	9905-	●	●
74	NUT M8 FLANGE	0-91150-108-0	06	1	9603-	●	●
74	NUT L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	03	1	9609-9904	●	●
74	NUT L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
74	NUT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9603-9604		●
74	NUT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9605-9606		●
74	NUT L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9605-9606		●
74	NUT L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9607-9608	●	●
74	NUT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9607-9608	●	●
74	NUT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9609-9904	●	●
74	NUT L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9609-9904	●	●
74	NUT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
74	NUT L TYPE ENG<90L> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9603-	●	●
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9603-	●	●
76	BOLT; MUD GUARD (C) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	9603-	●	●
80	BRACKET; MUD GUARD STAY	1-79931-159-1	02	1	9603-	●	●
94	RETAINER; FLAP RUBBER	1-79931-091-2	02	1	9603-	●	●
99	BOLT; STAY TO MUD GUARD M10X20 FLANGE	0-28081-020-0	01	1	9603-9606	●	●
99	BOLT; STAY TO MUD GUARD M10X20 FLANGE	0-28681-020-0	01	1	9607-9609	●	●
99	BOLT; STAY TO MUD GUARD M10X25 FLANGE	0-28681-025-0	01	1	9610-9804	●	●
99	BOLT; STAY TO MUD GUARD M10X25 FLANGE	0-28681-025-0	02	1	9805-	●	●
103	BRACKET ASM; RR MUD FLAP	1-79931-088-4	02	1	9603-	●	●
104	BOLT; BRKT V TYPE ENG<91L> M10X25 FLANGE	0-28081-025-0	07	1	9603-9606	●	●
104	BOLT; BRKT V TYPE ENG<91L> M10X25 FLANGE	0-28681-025-0	07	1	9607-	●	●
104	BOLT; BRKT L TYPE ENG<90L> M10X25 FLANGE	0-28081-025-0	08	1	9603-9606		●
104	BOLT; BRKT L TYPE ENG<90L> M10X25 FLANGE	0-28681-025-0	08	1	9607-	●	●
105	NUT; BRKT V TYPE ENG<91L> M10 FLANGE	0-91150-110-0	07	1	9603-9606	●	●
105	NUT; BRKT V TYPE ENG<91L> M10 FLANGE	0-91150-210-0	07	1	9607-	●	●
105	NUT; BRKT L TYPE ENG<90L> M10 FLANGE	0-91150-110-0	08	1	9603-9606		●
105	NUT; BRKT L TYPE ENG<90L> M10 FLANGE	0-91150-210-0	08	1	9607-	●	●
134	WASHER; PL ID=10.5 OD=26	9-09160-710-0	02	1	9805-	●	●
137	BOLT M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9603-	●	●
140	BOLT; SIDE PANEL L TYPE ENG<90L> (A) M8X20 FLANGE	0-28680-820-0	01	1	9903-9904	●	●
140	BOLT; SIDE PANEL L TYPE ENG<90L> EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●
140	BOLT; SIDE PANEL L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	02	1	9903-9904	●	●
140	BOLT; SIDE PANEL L TYPE ENG<90L> EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●
175	NUT; STAY FIX (A) M8 FLANGE	0-91150-108-0	02	1	9603-	●	●
175	NUT; STAY FIX (B) M10 FLANGE	0-91150-110-0	01	1	9603-9606	●	●
175	NUT; STAY FIX (B) M10 FLANGE	0-91150-210-0	01	1	9607-9804	●	●
175	NUT; STAY FIX (B) M10 FLANGE	0-91150-210-0	02	1	9805-	●	●
183	INSULATOR; HEAT,BED PAN	1-71907-169-2	01	1	9603-9705	●	●
183	INSULATOR; HEAT,BED PAN	1-71907-506-0	01	1	9706-9711	●	●
183	INSULATOR; HEAT,BED PAN	1-71907-526-2	01	1	9712-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9603-9606	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9603-9606	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9603-9606	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9603-9606		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> ID=6.2 L=11.4	8-97808-623-0	05	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> ID=6.2 L=11.4	8-97808-623-0	05	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9911-	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.2 L=11.4	8-97808-623-0	05	1	9911-	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> ID=6.2 L=11.4	8-97808-623-0	05	1	9911-	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9911-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9603-9606	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9603-9606	●	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L) ID=6.2 L=11.4	8-97808-623-0	06	1	9603-9606		●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L) ID=6.2 L=11.4	8-97808-623-0	06	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=6.2 L=11.4	8-97808-623-0	06	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> ID=6.2 L=11.4	8-97808-623-0	06	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.2 L=11.4	8-97808-623-0	06	1	9911-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	9911-	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> ID=6.2 L=11.4	8-97808-623-0	06	1	9911-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9911-	●	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=6.2 L=11.4	8-97808-623-0	11	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	09	1	9905-	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	09	1	9905-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	9907-	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	08	1	9603-	●	●
227	SEAL; MUD GUARD T=2.0	8-94279-641-0	01	1	9603-	●	●
243	PROTECTOR; NOISE SHUT PANEL	1-79937-906-1	01	1	9603-	●	●
249	RUBBER; SHUTTER (B)	1-79937-902-2	01	1	9603-9904	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-902-2	01	1	9905-	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-1	01	1	9603-	●	●
249	RUBBER; SHUTTER (C)	1-79937-975-0	01	1	9603-9904	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-975-0	01	1	9905-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-0	01	1	9905-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-981-0	01	1	9905-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-979-0	01	1	9905-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-965-0	01	1	9907-	●	●
249	RUBBER; SHUTTER L TYPE ENG<90L> CAB UP +110MM<TGG> (E)	1-79937-967-0	01	1	9905-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	9603-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	07	1	9603-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	9603-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	01	1	9603-	●	●
250	FASTENER; SHUTTER (B) D6X20	8-94361-318-0	04	1	9603-9904	●	●
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (B) D6X20	8-94361-318-0	04	1	9905-	●	●
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	9905-	●	●
253	GUARD; MUD V TYPE ENG<91L>	1-79931-066-7	01	1	9603-	●	●
253	GUARD; MUD V TYPE ENG<91L>	1-79931-064-7	01	1	9603-	●	●
253	GUARD; MUD L TYPE ENG<90L>	1-79931-067-7	01	1	9603-9606		●
253	GUARD; MUD L TYPE ENG<90L>	1-79931-067-7	01	1	9607-	●	●
253	GUARD; MUD L TYPE ENG<90L>	1-79931-065-7	01	1	9603-9606		●
253	GUARD; MUD L TYPE ENG<90L>	1-79931-065-7	01	1	9607-	●	●
265	RUBBER; FLAP,REAR	1-79930-978-0	02	1	9603-	●	●
267	WASHER; PL,STAY ID=8.4 OD=26	9-09164-808-0	02	1	9603-	●	●
281	INSULATOR; NOISE (D)	1-73237-541-1	01	1	9603-9606	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (D)	1-73237-541-3	01	1	9607-	●	●
281	INSULATOR; NOISE (B)	1-71907-171-1	01	1	9603-9904	●	●
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	9905-	●	●
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	9603-9904	●	●
281	INSULATOR; NOISE EXC. CAB UP +110MM<TGG> (B)	1-71907-170-1	01	1	9905-9906	●	●
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	9907-	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-71907-167-0	01	1	9911-	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> CAB UP +110MM<TGG> (A)	1-71907-455-0	01	1	9905-9910	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> (A)	1-71907-455-0	01	1	9911-	●	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-3	01	1	9603-	●	●
281	INSULATOR; NOISE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-71907-307-0	01	1	9805-9904	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A)	1-71907-307-0	01	1	9905-9910	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +110MM<TGG> (A)	1-71907-307-0	01	1	9911-	●	●
281	INSULATOR; NOISE 8PE1S(59L),10PE1S(60L) (A)	1-71907-166-0	01	1	9603-9904	●	●
281	INSULATOR; NOISE V TYPE ENG<91L> (A)	1-71907-166-0	01	1	9905-	●	●
281	INSULATOR; NOISE 6WA1 TC-S(56L) (A)	1-71907-307-0	01	1	9603-9606		●
281	INSULATOR; NOISE 6WA1 TC-S(56L) (A)	1-71907-307-0	01	1	9607-9708	●	●
281	INSULATOR; NOISE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-71907-307-0	01	1	9709-9804	●	●

250 245 250 130 249 185 259 9 259 259 250 259 130 249 185 23 281 185 185 130 249 259 250 249 281 249 185 281 185 308 76 130 308 76 76 76 259 218 218 23 9 308 1 1 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79937-895-4	01	1	9603-	●	●
1	GUARD; MUD,FRT	1-79937-894-5	01	1	9603-	●	●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L)	1-79937-907-3	01	1	9603-9606		●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L)	1-79937-907-3	01	1	9607-9708	●	●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-79937-907-3	01	1	9709-9904	●	●
9	GUARD; SPLASH,WHEEL HOUSE L TYPE ENG<90L>	1-79937-907-3	01	1	9905-	●	●
9	GUARD; SPLASH,WHEEL HOUSE 8PE1S(59L),10PE1S(60L)	1-79937-892-3	01	1	9603-9904	●	●
9	GUARD; SPLASH,WHEEL HOUSE V TYPE ENG<91L>	1-79937-892-3	01	1	9905-	●	●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L)	1-79937-908-3	01	1	9603-9606		●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L)	1-79937-908-3	01	1	9607-9708	●	●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-79937-908-3	01	1	9709-9904	●	●
9	GUARD; SPLASH,WHEEL HOUSE L TYPE ENG<90L>	1-79937-908-3	01	1	9905-	●	●
9	GUARD; SPLASH,WHEEL HOUSE 8PE1S(59L),10PE1S(60L)	1-79937-893-3	01	1	9603-9904	●	●
9	GUARD; SPLASH,WHEEL HOUSE V TYPE ENG<91L>	1-79937-893-3	01	1	9905-	●	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	23	1	9603-9710	●	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	9711-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9603-	●	●
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9603-	●	●
76	BOLT; MUD GUARD (C) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	9603-	●	●
91	COVER; MUD,FRT	1-79931-199-0	01	1	9603-9707	●	●
91	COVER; MUD,FRT	1-79931-199-1	01	1	9708-9904	●
91	COVER; MUD,FRT EXC. CAB UP +50MM<W60>	1-79931-199-1	01	1	9708-9904		●
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1>	1-79931-199-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>	1-79931-199-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT CAB UP +50MM<W60>	1-79931-240-1	01	1	9708-9904		●
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-240-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-199-1	01	1	9909-	●	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-203-1	01	1	9905-	●	●
91	COVER; MUD,FRT	1-79931-200-0	01	1	9603-9707	●	●
91	COVER; MUD,FRT	1-79931-200-1	01	1	9708-9904	●
91	COVER; MUD,FRT EXC. CAB UP +50MM<W60>	1-79931-200-1	01	1	9708-9904		●
91	COVER; MUD,FRT CAB UP +50MM<W60>	1-79931-241-1	01	1	9708-9904		●
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-241-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1>	1-79931-200-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>	1-79931-200-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-200-1	01	1	9909-	●	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-204-1	01	1	9905-	●	●

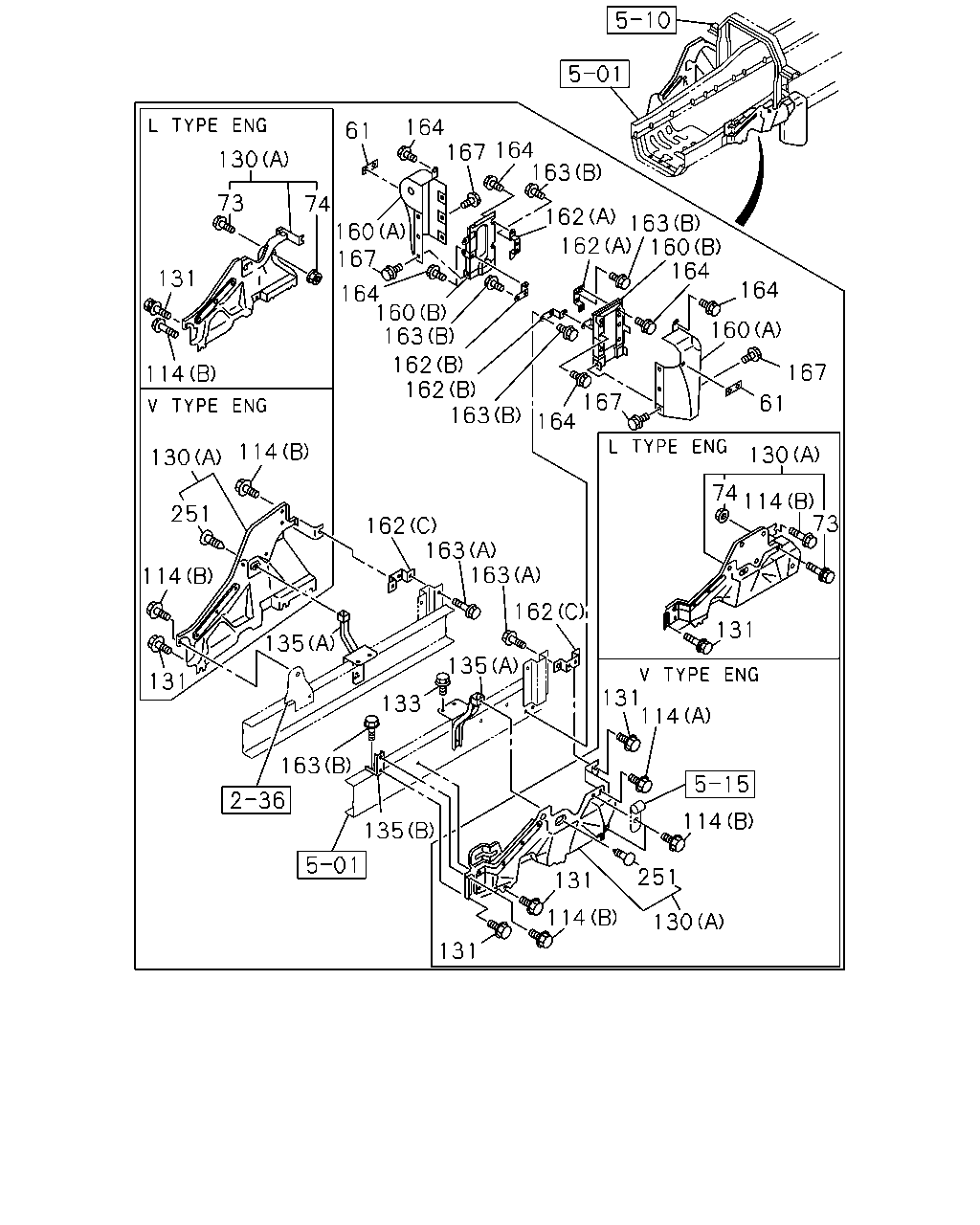

130	PANEL; SHUTTER NOISE (B)	1-79937-915-3	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-959-1	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9607-9904	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-774-3	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-5	01	1	9603-9606		●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-5	01	1	9607-9904	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53192-782-6	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-767-3	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE 8PE1S(59L) (A)	1-53193-215-0	01	1	9603-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-215-0	01	1	9603-	●	●
130	PANEL; SHUTTER NOISE 8PE1S(59L),10PE1S(60L) (C)	1-79937-917-2	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> (C)	1-79937-917-2	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L) (D)	1-79937-919-2	01	1	9603-9606		●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L) (D)	1-79937-919-2	01	1	9607-9708	●	●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L),6WG1 TC-N(71L) (D)	1-79937-919-2	01	1	9709-9904	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> (D)	1-79937-919-2	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-768-3	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE 8PE1S(59L) (A)	1-53193-196-2	01	1	9603-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-196-2	01	1	9603-	●	●
130	PANEL; SHUTTER NOISE 8PE1S(59L),10PE1S(60L) (D)	1-79937-972-0	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> (D)	1-79937-972-0	01	1	9905-9910	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-79937-972-0	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-79937-920-2	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A)	1-53192-790-5	01	1	9603-9606		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A)	1-53192-790-5	01	1	9607-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-229-0	01	1	9607-9608	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	9609-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-2	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE (B)	1-79937-916-3	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L) (C)	1-79937-928-1	01	1	9603-9606		●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L) (C)	1-79937-928-1	01	1	9607-9708	●	●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L),6WG1 TC-N(71L) (C)	1-79937-928-2	01	1	9709-9904	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C)	1-79937-928-2	01	1	9905-9910	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +110MM<TGG> (C)	1-79937-928-2	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +110MM<TGG> (C)	1-79937-918-2	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> (C)	1-79937-993-1	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> CAB UP +110MM<TGG> (C)	1-79937-969-1	01	1	9905-9910	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> (C)	1-79937-969-1	01	1	9911-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9603-9606	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9603-9606	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9603-9606	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9603-9606		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> ID=6.2 L=11.4	8-97808-623-0	05	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> ID=6.2 L=11.4	8-97808-623-0	05	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9911-	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.2 L=11.4	8-97808-623-0	05	1	9911-	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> ID=6.2 L=11.4	8-97808-623-0	05	1	9911-	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9911-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9603-9606	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9603-9606	●	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L) ID=6.2 L=11.4	8-97808-623-0	06	1	9603-9606		●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L) ID=6.2 L=11.4	8-97808-623-0	06	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=6.2 L=11.4	8-97808-623-0	06	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> ID=6.2 L=11.4	8-97808-623-0	06	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.2 L=11.4	8-97808-623-0	06	1	9911-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	9911-	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> ID=6.2 L=11.4	8-97808-623-0	06	1	9911-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9911-	●	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=6.2 L=11.4	8-97808-623-0	11	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	09	1	9905-	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	09	1	9905-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	9907-	●	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-0	08	1	9603-9606	●	●
218	FASTENER; RUBBER ID=6X6 OD=8	1-09987-194-0	08	1	9607-	●	●
245	RUBBER; SHUTTER,RAD	1-79937-900-0	01	1	9603-9711	●	●
245	RUBBER; SHUTTER,RAD	1-79937-982-0	01	1	9712-	●	●
249	RUBBER; SHUTTER (B)	1-79937-902-2	01	1	9603-9904	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-902-2	01	1	9905-	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-1	01	1	9603-	●	●
249	RUBBER; SHUTTER (C)	1-79937-975-0	01	1	9603-9904	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-975-0	01	1	9905-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-0	01	1	9905-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-981-0	01	1	9905-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-979-0	01	1	9905-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-965-0	01	1	9907-	●	●
249	RUBBER; SHUTTER L TYPE ENG<90L> CAB UP +110MM<TGG> (E)	1-79937-967-0	01	1	9905-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	9603-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	07	1	9603-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	9603-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	01	1	9603-	●	●
250	FASTENER; SHUTTER (B) D6X20	8-94361-318-0	04	1	9603-9904	●	●
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (B) D6X20	8-94361-318-0	04	1	9905-	●	●
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	9905-	●	●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	9603-	●	●
281	INSULATOR; NOISE (D)	1-73237-541-1	01	1	9603-9606	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (D)	1-73237-541-3	01	1	9607-	●	●
281	INSULATOR; NOISE (B)	1-71907-171-1	01	1	9603-9904	●	●
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	9905-	●	●
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	9603-9904	●	●
281	INSULATOR; NOISE EXC. CAB UP +110MM<TGG> (B)	1-71907-170-1	01	1	9905-9906	●	●
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	9907-	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-71907-167-0	01	1	9911-	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> CAB UP +110MM<TGG> (A)	1-71907-455-0	01	1	9905-9910	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> (A)	1-71907-455-0	01	1	9911-	●	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-3	01	1	9603-	●	●
281	INSULATOR; NOISE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-71907-307-0	01	1	9805-9904	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A)	1-71907-307-0	01	1	9905-9910	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +110MM<TGG> (A)	1-71907-307-0	01	1	9911-	●	●
281	INSULATOR; NOISE 8PE1S(59L),10PE1S(60L) (A)	1-71907-166-0	01	1	9603-9904	●	●
281	INSULATOR; NOISE V TYPE ENG<91L> (A)	1-71907-166-0	01	1	9905-	●	●
281	INSULATOR; NOISE 6WA1 TC-S(56L) (A)	1-71907-307-0	01	1	9603-9606		●
281	INSULATOR; NOISE 6WA1 TC-S(56L) (A)	1-71907-307-0	01	1	9607-9708	●	●
281	INSULATOR; NOISE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-71907-307-0	01	1	9709-9804	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	9603-	●	●
308	FASTENER; MUD GUARD (B) D8X13.5	1-09987-248-1	02	1	9603-9801	●	●
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	9802-	●	●

250 250 249 245 308 130 281 130 9 185 185 281 259 185 23 250 249 130 76 76 185 130 243 281 76 76 218 9 218 23 250 1 1 91 91 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79937-895-4	01	1	9603-	●	●
1	GUARD; MUD,FRT	1-79937-894-5	01	1	9603-	●	●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L)	1-79937-907-3	01	1	9603-9606		●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L)	1-79937-907-3	01	1	9607-9708	●	●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-79937-907-3	01	1	9709-9904	●	●
9	GUARD; SPLASH,WHEEL HOUSE L TYPE ENG<90L>	1-79937-907-3	01	1	9905-	●	●
9	GUARD; SPLASH,WHEEL HOUSE 8PE1S(59L),10PE1S(60L)	1-79937-892-3	01	1	9603-9904	●	●
9	GUARD; SPLASH,WHEEL HOUSE V TYPE ENG<91L>	1-79937-892-3	01	1	9905-	●	●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L)	1-79937-908-3	01	1	9603-9606		●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L)	1-79937-908-3	01	1	9607-9708	●	●
9	GUARD; SPLASH,WHEEL HOUSE 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-79937-908-3	01	1	9709-9904	●	●
9	GUARD; SPLASH,WHEEL HOUSE L TYPE ENG<90L>	1-79937-908-3	01	1	9905-	●	●
9	GUARD; SPLASH,WHEEL HOUSE 8PE1S(59L),10PE1S(60L)	1-79937-893-3	01	1	9603-9904	●	●
9	GUARD; SPLASH,WHEEL HOUSE V TYPE ENG<91L>	1-79937-893-3	01	1	9905-	●	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	23	1	9603-9710	●	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	9711-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9603-	●	●
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9603-	●	●
76	BOLT; MUD GUARD (C) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	9603-	●	●
91	COVER; MUD,FRT	1-79931-199-0	01	1	9603-9707	●	●
91	COVER; MUD,FRT	1-79931-199-1	01	1	9708-9904	●
91	COVER; MUD,FRT EXC. CAB UP +50MM<W60>	1-79931-199-1	01	1	9708-9904		●
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1>	1-79931-199-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>	1-79931-199-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT CAB UP +50MM<W60>	1-79931-240-1	01	1	9708-9904		●
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-240-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-199-1	01	1	9909-	●	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-203-1	01	1	9905-	●	●
91	COVER; MUD,FRT	1-79931-200-0	01	1	9603-9707	●	●
91	COVER; MUD,FRT	1-79931-200-1	01	1	9708-9904	●
91	COVER; MUD,FRT EXC. CAB UP +50MM<W60>	1-79931-200-1	01	1	9708-9904		●
91	COVER; MUD,FRT CAB UP +50MM<W60>	1-79931-241-1	01	1	9708-9904		●
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-241-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1>	1-79931-200-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>	1-79931-200-1	01	1	9905-9908	●	●
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-200-1	01	1	9909-	●	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-204-1	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE (B)	1-79937-915-3	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-959-1	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9607-9904	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-774-3	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-5	01	1	9603-9606		●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-5	01	1	9607-9904	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53192-782-6	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-767-3	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE 8PE1S(59L) (A)	1-53193-215-0	01	1	9603-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-215-0	01	1	9603-	●	●
130	PANEL; SHUTTER NOISE 8PE1S(59L),10PE1S(60L) (C)	1-79937-917-2	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> (C)	1-79937-917-2	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L) (D)	1-79937-919-2	01	1	9603-9606		●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L) (D)	1-79937-919-2	01	1	9607-9708	●	●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L),6WG1 TC-N(71L) (D)	1-79937-919-2	01	1	9709-9904	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> (D)	1-79937-919-2	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-768-3	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE 8PE1S(59L) (A)	1-53193-196-2	01	1	9603-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-196-2	01	1	9603-	●	●
130	PANEL; SHUTTER NOISE 8PE1S(59L),10PE1S(60L) (D)	1-79937-972-0	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> (D)	1-79937-972-0	01	1	9905-9910	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-79937-972-0	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-79937-920-2	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A)	1-53192-790-5	01	1	9603-9606		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A)	1-53192-790-5	01	1	9607-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-229-0	01	1	9607-9608	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	9609-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-2	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE (B)	1-79937-916-3	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L) (C)	1-79937-928-1	01	1	9603-9606		●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L) (C)	1-79937-928-1	01	1	9607-9708	●	●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L),6WG1 TC-N(71L) (C)	1-79937-928-2	01	1	9709-9904	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C)	1-79937-928-2	01	1	9905-9910	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +110MM<TGG> (C)	1-79937-928-2	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +110MM<TGG> (C)	1-79937-918-2	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> (C)	1-79937-993-1	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> CAB UP +110MM<TGG> (C)	1-79937-969-1	01	1	9905-9910	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> (C)	1-79937-969-1	01	1	9911-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9603-9606	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9603-9606	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9603-9606	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9603-9606		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR 8PE1S(59L),10PE1S(60L) ID=6.2 L=11.4	8-97808-623-0	05	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> ID=6.2 L=11.4	8-97808-623-0	05	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> ID=6.2 L=11.4	8-97808-623-0	05	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9911-	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.2 L=11.4	8-97808-623-0	05	1	9911-	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> ID=6.2 L=11.4	8-97808-623-0	05	1	9911-	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9911-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9603-9606	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9603-9606	●	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L) ID=6.2 L=11.4	8-97808-623-0	06	1	9603-9606		●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L) ID=6.2 L=11.4	8-97808-623-0	06	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9607-9708	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=6.2 L=11.4	8-97808-623-0	06	1	9710-9904	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> ID=6.2 L=11.4	8-97808-623-0	06	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9905-9910	●	●
185	CLIP; HEAT INSULATOR V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.2 L=11.4	8-97808-623-0	06	1	9911-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	9911-	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> ID=6.2 L=11.4	8-97808-623-0	06	1	9911-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9911-	●	●
185	CLIP; HEAT INSULATOR 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=6.2 L=11.4	8-97808-623-0	11	1	9709-9709	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	09	1	9905-	●	●
185	CLIP; HEAT INSULATOR L TYPE ENG<90L> CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	09	1	9905-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	9907-	●	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-0	08	1	9603-9606	●	●
218	FASTENER; RUBBER ID=6X6 OD=8	1-09987-194-0	08	1	9607-	●	●
243	PROTECTOR; NOISE SHUT PANEL	1-79937-906-1	01	1	9603-	●	●
245	RUBBER; SHUTTER,RAD	1-79937-900-0	01	1	9603-9711	●	●
245	RUBBER; SHUTTER,RAD	1-79937-982-0	01	1	9712-	●	●
249	RUBBER; SHUTTER (B)	1-79937-902-2	01	1	9603-9904	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-902-2	01	1	9905-	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-1	01	1	9603-	●	●
249	RUBBER; SHUTTER (C)	1-79937-975-0	01	1	9603-9904	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-975-0	01	1	9905-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-0	01	1	9905-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-981-0	01	1	9905-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-979-0	01	1	9905-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-965-0	01	1	9907-	●	●
249	RUBBER; SHUTTER L TYPE ENG<90L> CAB UP +110MM<TGG> (E)	1-79937-967-0	01	1	9905-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	9603-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	07	1	9603-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	9603-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	01	1	9603-	●	●
250	FASTENER; SHUTTER (B) D6X20	8-94361-318-0	04	1	9603-9904	●	●
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (B) D6X20	8-94361-318-0	04	1	9905-	●	●
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	9905-	●	●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	9603-	●	●
281	INSULATOR; NOISE (D)	1-73237-541-1	01	1	9603-9606	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (D)	1-73237-541-3	01	1	9607-	●	●
281	INSULATOR; NOISE (B)	1-71907-171-1	01	1	9603-9904	●	●
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	9905-	●	●
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	9603-9904	●	●
281	INSULATOR; NOISE EXC. CAB UP +110MM<TGG> (B)	1-71907-170-1	01	1	9905-9906	●	●
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	9907-	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-71907-167-0	01	1	9911-	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> CAB UP +110MM<TGG> (A)	1-71907-455-0	01	1	9905-9910	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> (A)	1-71907-455-0	01	1	9911-	●	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-3	01	1	9603-	●	●
281	INSULATOR; NOISE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-71907-307-0	01	1	9805-9904	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A)	1-71907-307-0	01	1	9905-9910	●	●
281	INSULATOR; NOISE L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +110MM<TGG> (A)	1-71907-307-0	01	1	9911-	●	●
281	INSULATOR; NOISE 8PE1S(59L),10PE1S(60L) (A)	1-71907-166-0	01	1	9603-9904	●	●
281	INSULATOR; NOISE V TYPE ENG<91L> (A)	1-71907-166-0	01	1	9905-	●	●
281	INSULATOR; NOISE 6WA1 TC-S(56L) (A)	1-71907-307-0	01	1	9603-9606		●
281	INSULATOR; NOISE 6WA1 TC-S(56L) (A)	1-71907-307-0	01	1	9607-9708	●	●
281	INSULATOR; NOISE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-71907-307-0	01	1	9709-9804	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	9603-	●	●
308	FASTENER; MUD GUARD (B) D8X13.5	1-09987-248-1	02	1	9603-9801	●	●
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	9802-	●	●

164 167 61 164 163 130 73 74 162 163 160 164 160 167 162 131 164 164 160 163 160 162 162 163 167 114 167 164 61 114 130 130 74 114 73 251 162 163 163 114 162 131 131 135 135 131 114 133 163 114 1 135 251 131 114 130 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79937-895-4	01	1	9603-	●	●
1	GUARD; MUD,FRT	1-79937-894-5	01	1	9603-	●	●
61	BRACKET; COVER V TYPE ENG<91L>	1-53441-536-1	02	1	9603-9904	●	●
61	BRACKET; COVER V TYPE ENG<91L> EXC. MUFFLER TWIN VERTICAL<NBS>	1-53441-536-1	02	1	9905-	●	●
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	9603-	●	●
73	BOLT; MUD COVER BRKT L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	9609-9904	●	●
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8X16 FLANGE	0-28280-816-0	08	1	9603-9604		●
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8X16 FLANGE	0-28280-816-0	05	1	9605-9606		●
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8X16 FLANGE	0-28280-816-0	05	1	9607-9904	●	●
73	BOLT; MUD COVER BRKT L TYPE ENG<90L> M8X16 FLANGE	0-28280-816-0	05	1	9905-	●	●
73	BOLT; MUD COVER BRKT L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	9605-9606		●
73	BOLT; MUD COVER BRKT L TYPE ENG<90L> M8X16 FLANGE	0-28280-816-0	03	1	9607-9608	●	●
73	BOLT; MUD COVER BRKT L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	9609-9904	●	●
73	BOLT; MUD COVER BRKT L TYPE ENG<90L> EXC. SILENCER SINGLE VERTICAL<N28> M8X16 FLANGE	0-28280-816-0	03	1	9905-	●	●
74	NUT M8 FLANGE	0-91150-108-0	06	1	9603-	●	●
74	NUT L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	03	1	9609-9904	●	●
74	NUT L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
74	NUT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9603-9604		●
74	NUT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9605-9606		●
74	NUT L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9605-9606		●
74	NUT L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9607-9608	●	●
74	NUT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9607-9608	●	●
74	NUT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9609-9904	●	●
74	NUT L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9609-9904	●	●
74	NUT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
74	NUT L TYPE ENG<90L> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
114	BOLT V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
114	BOLT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606		●
114	BOLT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9607	●	●
114	BOLT V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9607	●	●
114	BOLT (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-	●	●
114	BOLT V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	9603-9606	●	●
114	BOLT L TYPE ENG<90L> (B) M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	9607-	●	●
114	BOLT V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	9607-	●	●
114	BOLT ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER	1-09030-042-0	08	1	9603-9606	●	●
114	BOLT V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER	1-09030-042-0	08	1	9607-9904	●	●
114	BOLT V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER	1-09030-042-0	08	1	9905-	●	●
130	PANEL; SHUTTER NOISE (B)	1-79937-915-3	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-959-1	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9607-9904	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-774-3	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-5	01	1	9603-9606		●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-5	01	1	9607-9904	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53192-782-6	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-767-3	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE 8PE1S(59L) (A)	1-53193-215-0	01	1	9603-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-215-0	01	1	9603-	●	●
130	PANEL; SHUTTER NOISE 8PE1S(59L),10PE1S(60L) (C)	1-79937-917-2	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> (C)	1-79937-917-2	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L) (D)	1-79937-919-2	01	1	9603-9606		●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L) (D)	1-79937-919-2	01	1	9607-9708	●	●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L),6WG1 TC-N(71L) (D)	1-79937-919-2	01	1	9709-9904	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> (D)	1-79937-919-2	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-768-3	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE 8PE1S(59L) (A)	1-53193-196-2	01	1	9603-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-196-2	01	1	9603-	●	●
130	PANEL; SHUTTER NOISE 8PE1S(59L),10PE1S(60L) (D)	1-79937-972-0	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> (D)	1-79937-972-0	01	1	9905-9910	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-79937-972-0	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-79937-920-2	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A)	1-53192-790-5	01	1	9603-9606		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A)	1-53192-790-5	01	1	9607-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-229-0	01	1	9607-9608	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	9609-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-2	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE (B)	1-79937-916-3	01	1	9603-9904	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	9905-	●	●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L) (C)	1-79937-928-1	01	1	9603-9606		●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L) (C)	1-79937-928-1	01	1	9607-9708	●	●
130	PANEL; SHUTTER NOISE 6WA1 TC-S(56L),6WG1 TC-N(71L) (C)	1-79937-928-2	01	1	9709-9904	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C)	1-79937-928-2	01	1	9905-9910	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +110MM<TGG> (C)	1-79937-928-2	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +110MM<TGG> (C)	1-79937-918-2	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> (C)	1-79937-993-1	01	1	9911-	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> CAB UP +110MM<TGG> (C)	1-79937-969-1	01	1	9905-9910	●	●
130	PANEL; SHUTTER NOISE L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> (C)	1-79937-969-1	01	1	9911-	●	●
131	BOLT; PANEL V TYPE ENG<91L> M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9603-9606	●	●
131	BOLT; PANEL ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9603-9606		●
131	BOLT; PANEL ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9607-9607	●	●
131	BOLT; PANEL V TYPE ENG<91L> M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9607-9607	●	●
131	BOLT; PANEL M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9607-	●	●
133	BOLT; FRAME 8PE1S(59L),10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
133	BOLT; FRAME 8PE1S(59L),10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
133	BOLT; FRAME 8PE1S(59L) M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●
133	BOLT; FRAME 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●
133	BOLT; FRAME ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28080-825-0	04	1	9603-9606	●	●
133	BOLT; FRAME 10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28680-825-0	04	1	9607-9904	●	●
133	BOLT; FRAME L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	04	1	9607-9904	●	●
133	BOLT; FRAME L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	04	1	9905-	●	●
135	BRACKET; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> (B)	1-53441-507-0	01	1	9603-9606	●	●
135	BRACKET; SIDE PANEL 10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> (B)	1-53441-507-0	01	1	9607-9904	●	●
135	BRACKET; SIDE PANEL L TYPE ENG<90L> (B)	1-53441-507-0	01	1	9607-9904	●	●
135	BRACKET; SIDE PANEL L TYPE ENG<90L> (B)	1-53441-507-0	01	1	9905-	●	●
135	BRACKET; SIDE PANEL V TYPE ENG<91L> (A)	1-53441-508-0	01	1	9603-9611	●	●
135	BRACKET; SIDE PANEL L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A)	1-53441-508-0	01	1	9612-	●	●
135	BRACKET; SIDE PANEL V TYPE ENG<91L> (A)	1-53441-508-0	01	1	9612-	●	●
135	BRACKET; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A)	1-53441-509-0	01	1	9603-9606		●
135	BRACKET; SIDE PANEL L TYPE ENG<90L> (A)	1-53441-509-0	01	1	9607-9611	●	●
135	BRACKET; SIDE PANEL L TYPE ENG<90L> ELECTRONIC GOV RED3(KG5) (A)	1-53441-509-0	01	1	9612-0012	●	●
135	BRACKET; SIDE PANEL L TYPE ENG<90L> ELECTRONIC GOV RED3(KG5) (A)	1-53441-598-0	01	1	0101-	●	●
160	COVER ASM; EXH V TYPE ENG<91L> (A)	1-79931-063-1	01	1	9603-9904	●	●
160	COVER ASM; EXH V TYPE ENG<91L> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-79931-063-1	01	1	9905-	●	●
160	COVER ASM; EXH V TYPE ENG<91L> (B)	1-79931-111-0	01	1	9603-9904	●	●
160	COVER ASM; EXH V TYPE ENG<91L> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	1-79931-111-0	01	1	9905-	●	●
160	COVER ASM; EXH V TYPE ENG<91L> (A)	1-79931-061-1	01	1	9603-9904	●	●
160	COVER ASM; EXH V TYPE ENG<91L> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-79931-061-1	01	1	9905-	●	●
160	COVER ASM; EXH V TYPE ENG<91L> (B)	1-79931-256-1	01	1	9603-9904	●	●
160	COVER ASM; EXH V TYPE ENG<91L> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	1-79931-256-1	01	1	9905-	●	●
162	BRACKET V TYPE ENG<91L> (C)	1-53441-520-0	02	1	9603-9606	●	●
162	BRACKET ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (C)	1-53441-520-0	02	1	9603-9606		●
162	BRACKET ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (C)	1-53441-520-0	02	1	9607-9607	●	●
162	BRACKET V TYPE ENG<91L> (C)	1-53441-520-0	02	1	9607-9607	●	●
162	BRACKET (C)	1-53441-520-0	02	1	9607-	●	●
162	BRACKET V TYPE ENG<91L> (B)	1-53441-521-1	02	1	9603-9904	●	●
162	BRACKET V TYPE ENG<91L> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	1-53441-521-2	02	1	9905-	●	●
162	BRACKET V TYPE ENG<91L> (A)	1-53441-522-0	02	1	9603-9904	●	●
162	BRACKET V TYPE ENG<91L> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-53441-522-0	02	1	9905-	●	●
163	BOLT; BRKT V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	04	1	9603-9606	●	●
163	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) M8X20 FLANGE	0-28080-820-0	04	1	9603-9606		●
163	BOLT; BRKT V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	04	1	9607-9607	●	●
163	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) M8X20 FLANGE	0-28680-820-0	04	1	9607-9607		●
163	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	04	1	9607-	●	●
163	BOLT; BRKT V TYPE ENG<91L> (B) M8X25 FLANGE	0-28080-825-0	06	1	9603-9606	●	●
163	BOLT; BRKT V TYPE ENG<91L> (B) M8X25 FLANGE	0-28680-825-0	06	1	9607-9904	●	●
163	BOLT; BRKT V TYPE ENG<91L> EXC. MUFFLER TWIN VERTICAL<NBS> (B) M8X25 FLANGE	0-28680-825-0	06	1	9905-	●	●
164	BOLT; FLEX COVER V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	10	1	9603-9606	●	●
164	BOLT; FLEX COVER V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	10	1	9607-9904	●	●
164	BOLT; FLEX COVER V TYPE ENG<91L> EXC. MUFFLER TWIN VERTICAL<NBS> M8X20 FLANGE	0-28680-820-0	10	1	9905-	●	●
167	BOLT; EXH COVER V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	12	1	9603-9606	●	●
167	BOLT; EXH COVER V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	12	1	9607-9904	●	●
167	BOLT; EXH COVER V TYPE ENG<91L> EXC. MUFFLER TWIN VERTICAL<NBS> M8X20 FLANGE	0-28680-820-0	12	1	9905-	●	●
251	CLIP; NOISE INSULATOR V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9>	8-94279-048-0	07	1	9603-9904	●	●
251	CLIP; NOISE INSULATOR V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9>	8-94279-048-0	08	1	9603-9904	●	●
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L>	8-94279-048-0	14	1	9603-9604		●
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L>	8-94279-048-0	10	1	9605-9606		●
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L>	8-94279-048-0	10	1	9607-	●	●
251	CLIP; NOISE INSULATOR L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9>	8-94279-048-0	04	1	9605-9606		●
251	CLIP; NOISE INSULATOR L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9>	8-94279-048-0	04	1	9607-9904	●	●
251	CLIP; NOISE INSULATOR L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. SILENCER SINGLE VERTICAL<N28>	8-94279-048-0	04	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
