Isuzu WW
▶
TRUCKS
▶
FVR
▶
11425 - FVR/GVR(AUST)EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#41108) — 19 parça
Tümü
A - FGD5MV
B - FGR5MV
C - GGD5MV
◀

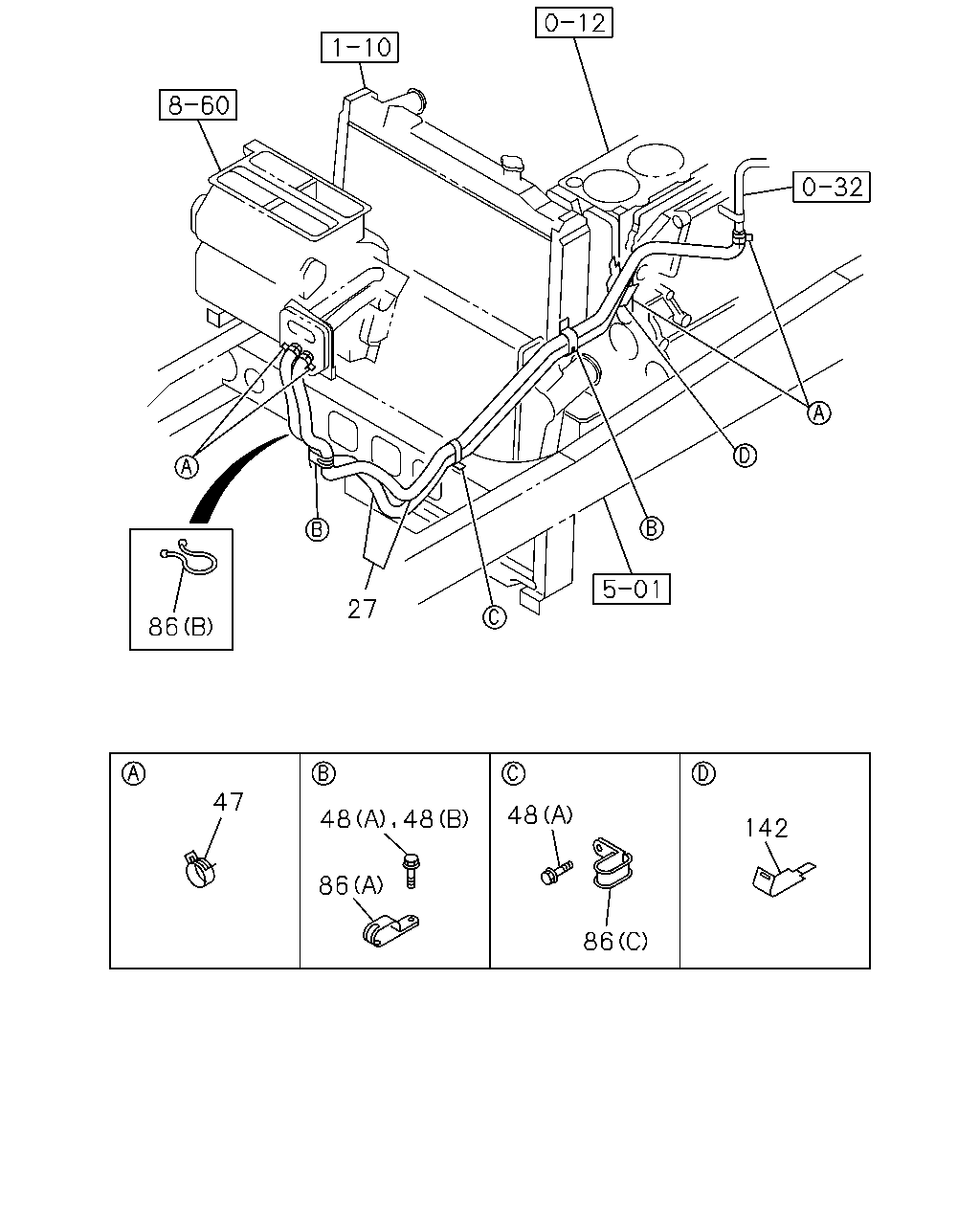

[845A] NO.1 (12 parça)
[845A] NO.2 (7 parça)
▶
27
86
47
48
48
48
142
86
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-98010-679-3
01
1
0710-1003
●
●
●
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-98163-393-0
01
1
1004-
●
●
●
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=22
8-97359-141-0
04
1
0710-
●
●
●
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M8X25 FLANGE
0-28650-825-0
02
1
0710-
●
●
●
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
0710-
●
●
●
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25
1-09700-710-0
01
1
0710-
●
●
●
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25
1-09700-710-0
01
1
0710-
●
●
●
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)
8-94463-508-0
01
1
0710-1008
●
●
●
86
CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)
8-94463-508-0
01
1
1009-
●
●
●
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)
8-98029-677-0
01
1
0710-
●
●
●
142
CLIP; BAND
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=170
1-83574-139-0
01
1
0710-1205
●
●
●
142
CLIP; BAND
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=170
8-98166-021-0
01
1
1206-
●
●
●
27
56
103
56
56
63
103
56
63
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-98010-679-3
01
1
0710-1003
●
●
●
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-98163-393-0
01
1
1004-
●
●
●
56
CLAMP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=22
8-97359-141-0
04
1
0710-
●
●
●
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)
8-98117-223-0
01
1
0710-
●
●
●
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)
8-98117-224-0
01
1
0710-
●
●
●
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)
8-98117-225-0
01
1
0710-
●
●
●
103
CONNECTOR; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
9-09703-048-0
02
1
0710-
●
●
●
