◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11425 - FVR/GVR(AUST)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#41106) — 367 parça

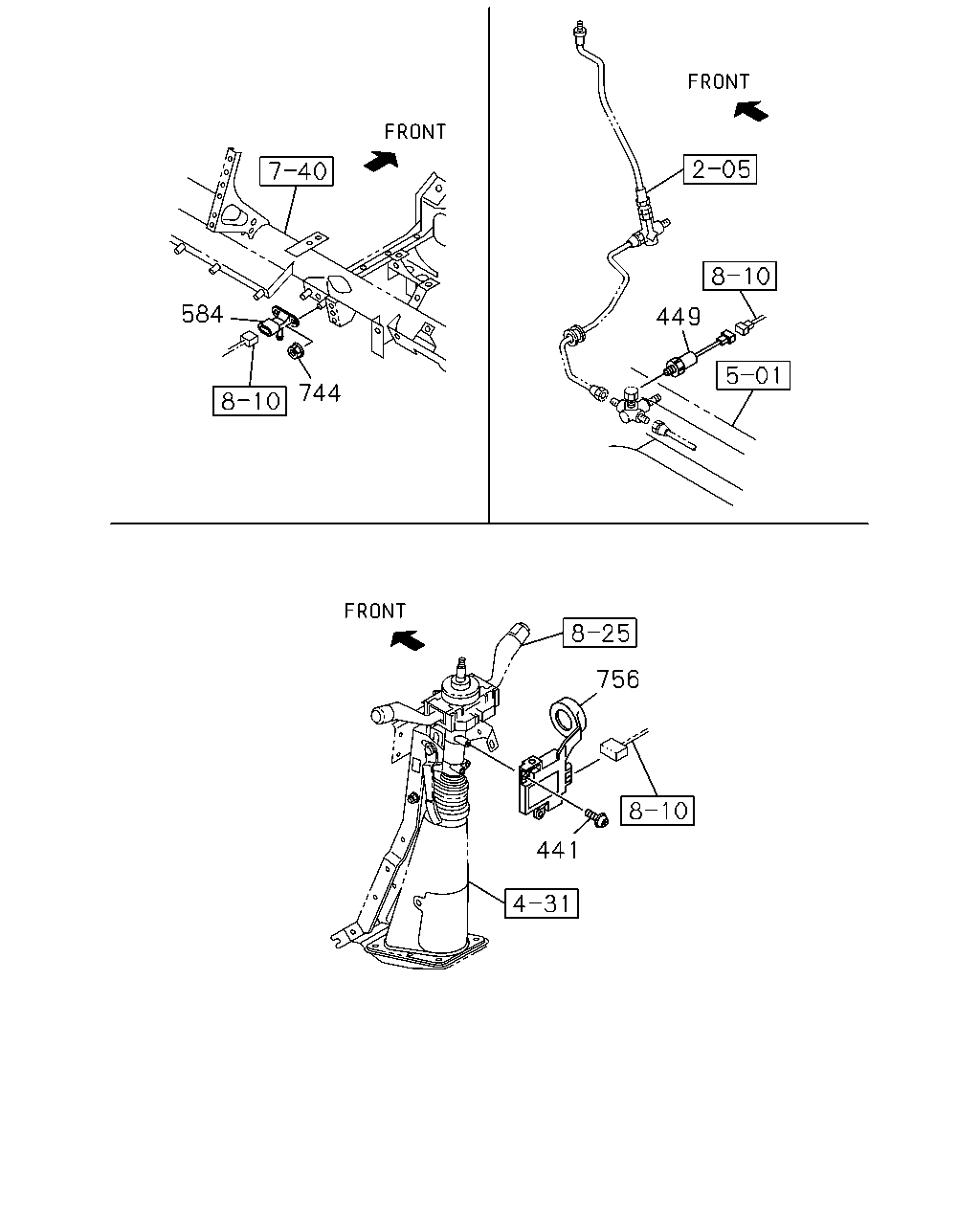

çizim 111931
584 449 744 756 441
BalonParca AdiParca NoAdetTipApplied Date A B C
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0710- ● ● ●
449 SWITCH; OIL PRESS,CLUTCH
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> 		1-82410-143-1 01 1 0710- ●
449 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> 		1-82410-143-1 01 1 0710- ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 0710- ● ● ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 0710- ● ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98073-883-0 01 1 0710-0711 ● ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98097-554-0 01 1 0712-1005 ● ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1006- ● ● ●
çizim 111939
531 115
BalonParca AdiParca NoAdetTipApplied Date A B C
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710- ● ● ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 0710- ● ● ●
531 RELAY; MAIN
24V 30A JIDECO 		8-97238-540-0 01 1 0710-1402 ● ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ● ●
çizim 111945
450 79 40 88 88 88
BalonParca AdiParca NoAdetTipApplied Date A B C
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) 		8-98057-863-0 01 1 0710- ●
40 BRACKET; MAG VLV 8-98057-863-0 01 1 0710- ●
79 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
79 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0710-0801 ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0710-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803-1111 ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803-1111 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 6500MM(65W) EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0803-0907 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 6500MM(65W) (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0803-0907 ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0803-0907 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0908-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0908-1111 ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0908-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 6500MM(65W) EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-1111 ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0803-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0803-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0710-0711 ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0710-0711 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 6500MM(65W) WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-1111 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-1111 ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 6500MM(65W) EXC. H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0907 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0907 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 6500MM(65W) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0907 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0908-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0908-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0908-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1112- ●
88 CONNECTOR; MAG VLV
(E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) EXC. PTO CONTROL<SV6> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
(E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) EXC. H.S.A SYSTEM<6EP> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
EXC. H.S.A SYSTEM<6EP> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-1111 ●
88 CONNECTOR; MAG VLV
(E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 0710-0801 ●
450 VALVE; MAG
(B) 		1-82563-871-2 01 1 0710-0801 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 0802-0802 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 0802-0802 ●
450 VALVE; MAG
(B) 		1-82563-871-2 01 1 0802-0802 ●
450 VALVE; MAG
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 0802-0802 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 0803-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0803-1111 ●
450 VALVE; MAG
(B) 		1-82563-871-2 01 1 0803-1111 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0803-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		1-82563-871-2 01 1 1112- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1112- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (B) 		1-82563-871-2 01 1 1112- ●
450 VALVE; MAG
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0710-0711 ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0710-0711 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0712-0801 ●
450 VALVE; MAG
ALLISON MD3060P A/T(Y4G) EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0712-0801 ●
450 VALVE; MAG
EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0712-0801 ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0712-0801 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
ALLISON MD3060P A/T(Y4G) EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
WHEEL BASE 6500MM(65W) EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0803-0910 ● ● ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 0911-1111 ● ● ●
450 VALVE; MAG
WHEEL BASE 4200MM(42W) (A) 		8-97633-075-0 01 1 1112- ●

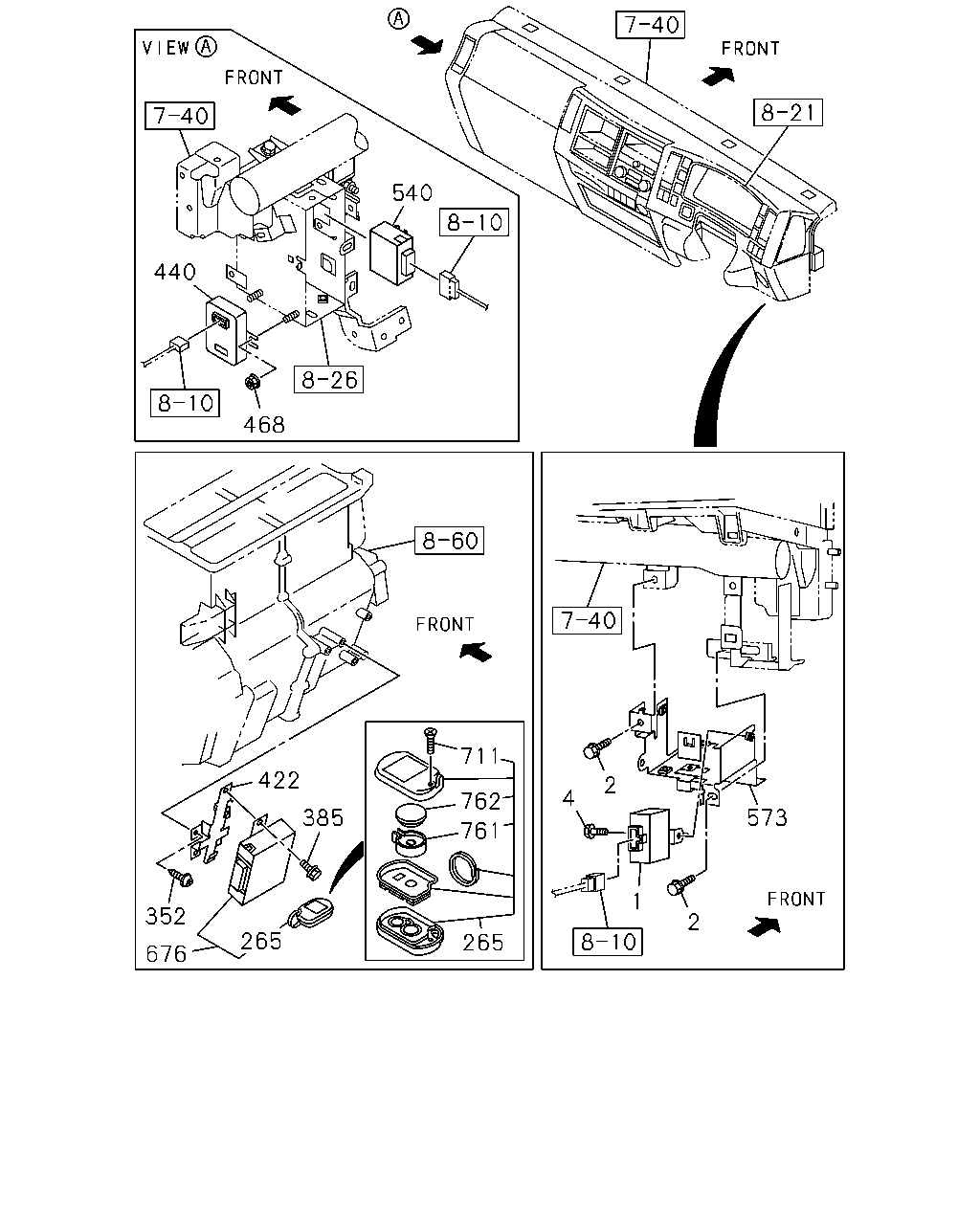

çizim 111949
540 440 468 711 422 2 4 762 385 573 761 1 352 2 265 265 676
BalonParca AdiParca NoAdetTipApplied Date A B C
1 UNIT; FLASHER 8-98025-533-1 01 1 0710- ● ●
1 UNIT; FLASHER 8-97613-970-1 01 1 0710- ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 0710- ● ● ●
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 0710- ● ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0710-1012 ● ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1101-1205 ● ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1206- ● ● ●
352 SCREW; BRKT
M5X16 TAPPING 		0-72180-516-0 02 1 0710- ● ● ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0710- ● ● ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 0710- ● ● ●
440 MODULE; INFORMATION,ABS 1-81510-701-0 01 1 0710- ●
468 NUT; MODULE
M6 FLANGE 		0-91180-106-0 02 1 0710- ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 0710-1308 ● ● ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309- ● ● ●
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 0710- ● ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98017-258-1 01 1 0710-1012 ● ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98181-809-0 01 1 1101-1205 ● ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98218-231-0 01 1 1206- ● ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0710-1205 ● ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1206- ● ● ●
761 HOLDER; BATTERY 8-98078-063-0 02 1 0710-1012 ● ● ●
762 BATTERY 8-98078-061-0 02 1 0710- ● ● ●

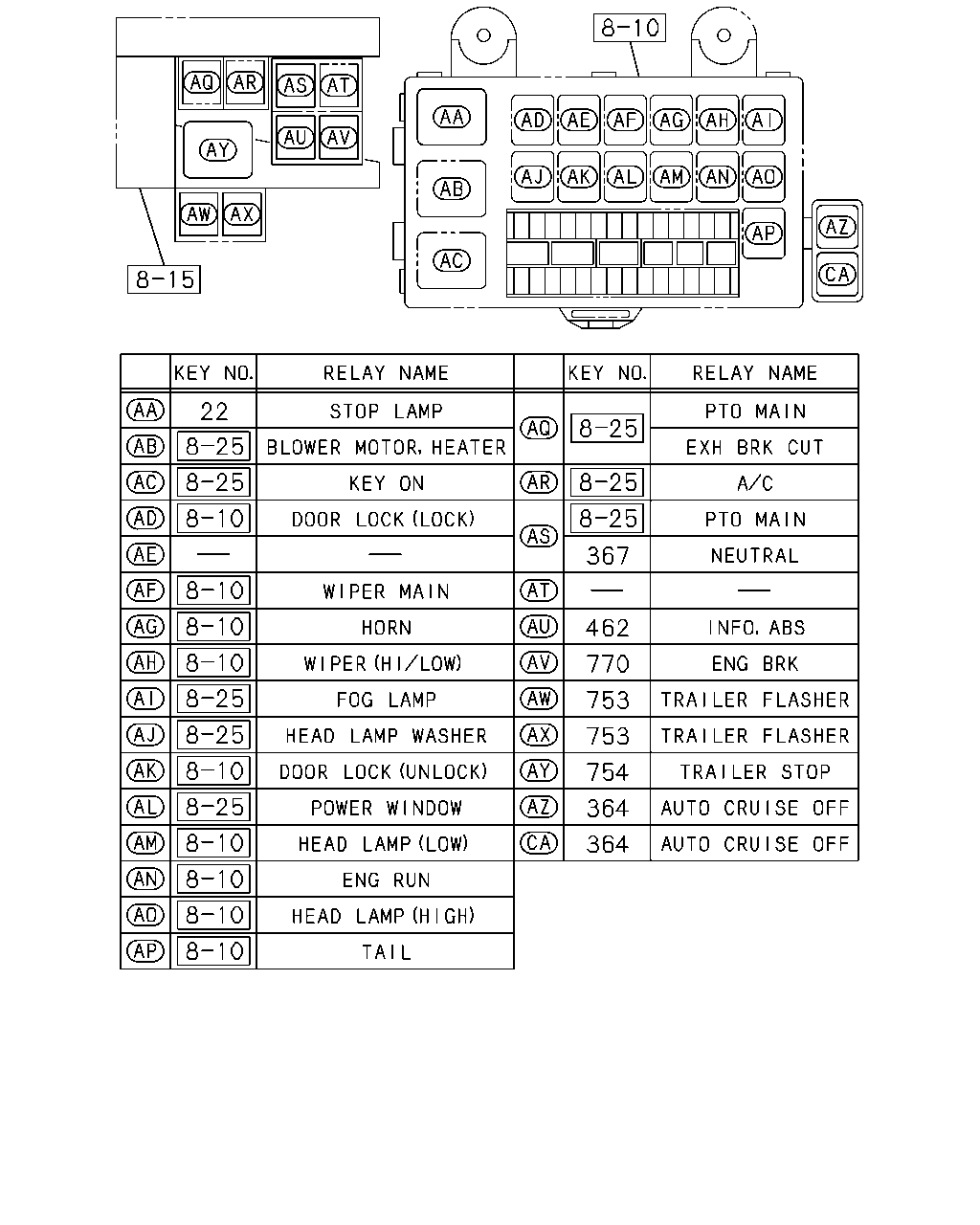

çizim 111950
22 367 462 770 753 753 754 364 364
BalonParca AdiParca NoAdetTipApplied Date A B C
22 RELAY; STOP LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0710- ● ● ●
364 RELAY; AUTO CRUISE OFF
AUTO CRUISE<K30> A/T<X9D> 24V 10A MATSUSHITA 		8-97173-035-1 03 1 1001-1001 ●
364 RELAY; AUTO CRUISE OFF
A/T<X9D> 24V 10A MATSUSHITA 		8-97173-035-1 03 1 1002- ●
367 RELAY; NEUTRAL
A/T<X9D> 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710- ●
462 RELAY; INFORMATION,ABS
24V 10A MATSUSHITA 		8-97173-035-1 02 1 0710-0710 ●
462 RELAY; INFORMATION,ABS
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710- ●
753 RELAY; TRAILER FLASHER
24V 10A MATSUSHITA 		8-97173-035-1 02 1 0710- ●
754 RELAY; TRAILER STOP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0710- ●
770 RELAY; ENG BRK
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710- ● ● ●

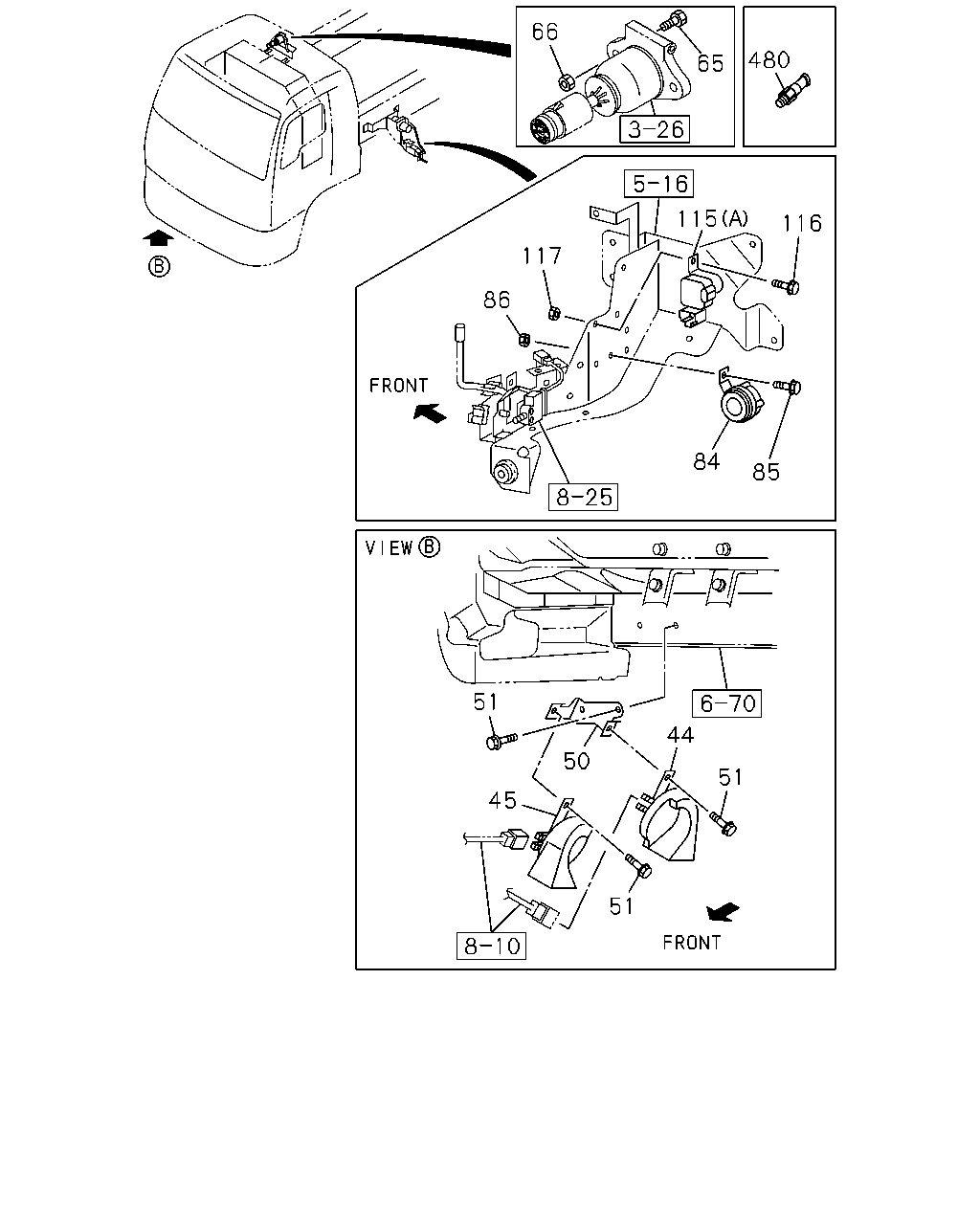

çizim 111952
66 480 65 115 116 117 86 84 85 51 44 50 51 45 51
BalonParca AdiParca NoAdetTipApplied Date A B C
44 HORN; HIGH NOTE 8-97611-677-2 01 1 0710- ● ● ●
45 HORN; LOW NOTE 8-97611-676-2 01 1 0710- ● ● ●
50 BRACKET; HORN 8-97613-300-2 01 1 0710- ● ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 0710-1001 ● ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1002- ● ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1002- ● ● ●
65 BOLT; SOCKET FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
65 BOLT; SOCKET FIX
M8X25 FLANGE 		0-28650-825-0 04 1 0712-0901 ●
65 BOLT; SOCKET FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0902- ●
65 BOLT; SOCKET FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0902- ●
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 04 1 0712-0901 ●
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 02 1 0902- ●
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 02 1 0902- ●
84 BUZZER; POWER CAB TILT
METRO 		8-98069-860-0 01 1 0710- ● ● ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ● ●
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ● ●
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710- ● ● ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 0710- ● ● ●
116 BOLT; RELAY FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ● ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ●
480 SWITCH; TRAILER COCK
STAMP 2.2 		8-98010-858-0 01 1 0710-0909 ●

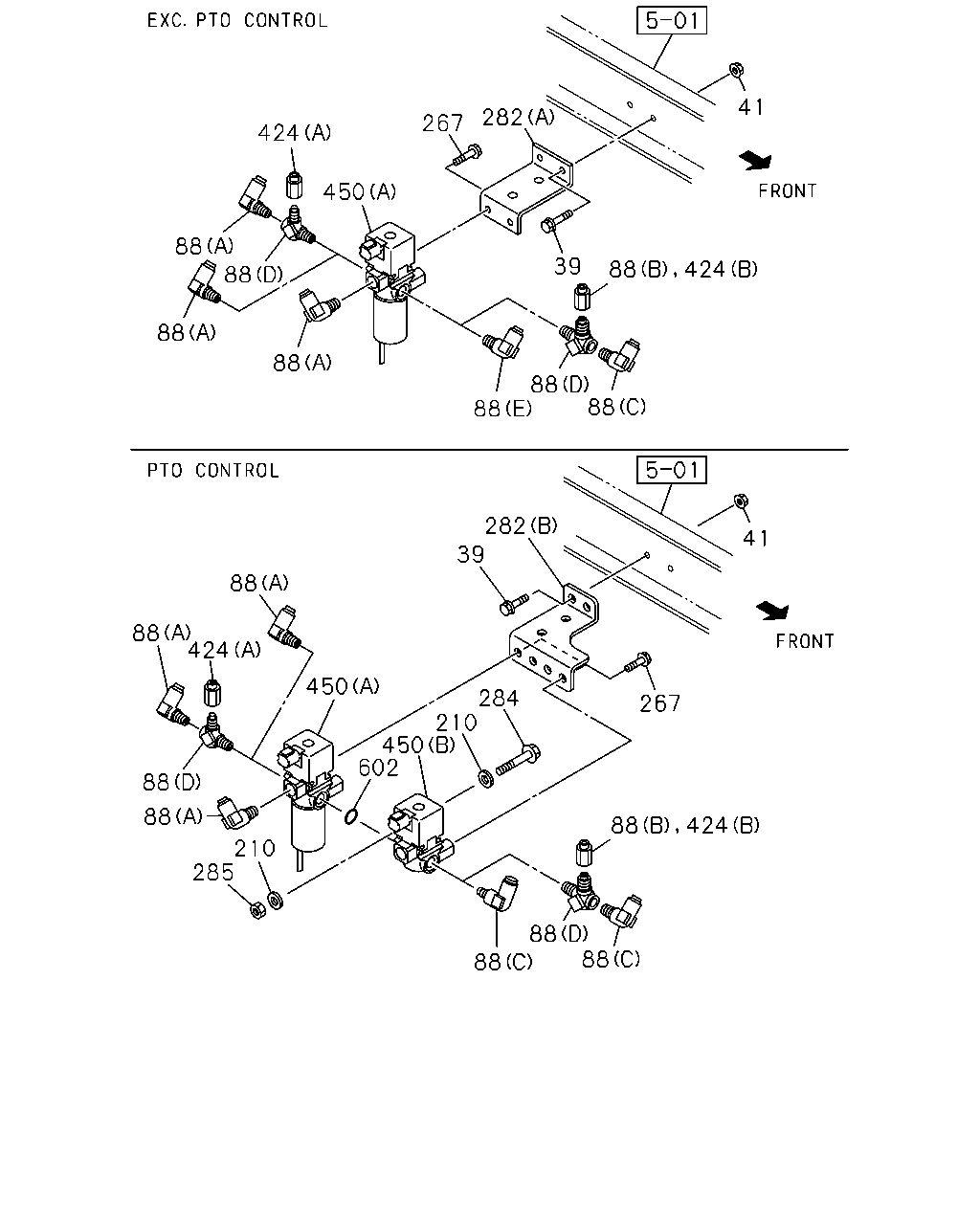

çizim 112138
41 282 267 424 450 88 39 88 88 88 88 88 88 282 41 39 88 88 424 450 284 210 450 602 267 88 88 210 285 88 88 88 88 424 88 424
BalonParca AdiParca NoAdetTipApplied Date A B C
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M10X30 FLANGE 		0-28651-030-0 02 1 0710-0710 ● ●
39 BOLT; BRKT,MAG VLV
EXC. PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 0710-0710 ● ●
39 BOLT; BRKT,MAG VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0710-0710 ●
39 BOLT; BRKT,MAG VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0710- ● ● ●
41 NUT; BRKT,MAG VLV
EXC. PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ● ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0710-0801 ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0710-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803-1111 ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803-1111 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 6500MM(65W) EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0803-0907 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 6500MM(65W) (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0803-0907 ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0803-0907 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0908-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0908-1111 ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0908-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 6500MM(65W) EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-1111 ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0803-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0803-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0710-0711 ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0710-0711 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 6500MM(65W) WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-1111 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-1111 ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 6500MM(65W) EXC. H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0907 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0907 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 6500MM(65W) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0907 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0908-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0908-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0908-1111 ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1112- ●
88 CONNECTOR; MAG VLV
(E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) EXC. PTO CONTROL<SV6> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
(E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) EXC. H.S.A SYSTEM<6EP> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
EXC. H.S.A SYSTEM<6EP> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-1111 ●
88 CONNECTOR; MAG VLV
(E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-1111 ●
210 WASHER; PL,BRKT
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> 		1-82569-266-0 02 1 0802-0802 ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> 		1-82569-266-0 02 1 0802-0802 ●
210 WASHER; PL,BRKT
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> 		1-82569-266-0 02 1 0803-1111 ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0803-1111 ●
210 WASHER; PL,BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112- ●
267 BOLT; VLV TO BRKT
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
267 BOLT; VLV TO BRKT
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0712-0801 ●
267 BOLT; VLV TO BRKT
ALLISON MD3060P A/T(Y4G) EXC. PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0712-0801 ●
267 BOLT; VLV TO BRKT
EXC. PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0712-0801 ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0712-0801 ●
267 BOLT; VLV TO BRKT
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ●
267 BOLT; VLV TO BRKT
ALLISON MD3060P A/T(Y4G) EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ●
267 BOLT; VLV TO BRKT
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ●
267 BOLT; VLV TO BRKT
WHEEL BASE 6500MM(65W) EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ●
267 BOLT; VLV TO BRKT
WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ●
267 BOLT; VLV TO BRKT
EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0803-1111 ● ● ●
267 BOLT; VLV TO BRKT
WHEEL BASE 4200MM(42W) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B) 		8-98101-296-0 01 1 0802-0802 ●
282 BRACKET; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B) 		8-98101-296-0 01 1 0802-0802 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		8-98101-296-0 01 1 0803-1111 ●
282 BRACKET; MAG VLV
PTO CONTROL<SV6> (B) 		8-98101-296-0 01 1 0803-1111 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> (B) 		8-98101-296-0 01 1 1112- ●
282 BRACKET; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (A) 		1-47471-374-0 01 1 0710-0711 ●
282 BRACKET; MAG VLV
(A) 		1-47471-374-0 01 1 0710-0711 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (A) 		1-47471-374-0 01 1 0712-0801 ●
282 BRACKET; MAG VLV
ALLISON MD3060P A/T(Y4G) EXC. PTO CONTROL<SV6> (A) 		1-47471-374-0 01 1 0712-0801 ●
282 BRACKET; MAG VLV
EXC. PTO CONTROL<SV6> (A) 		1-47471-374-0 01 1 0712-0801 ●
282 BRACKET; MAG VLV
(A) 		1-47471-374-0 01 1 0712-0801 ●
282 BRACKET; MAG VLV
ALLISON MD3060P A/T(Y4G) EXC. H.S.A SYSTEM<6EP> (A) 		1-47471-374-0 01 1 0802-0802 ●
282 BRACKET; MAG VLV
WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) 		1-47471-374-0 01 1 0802-0802 ●
282 BRACKET; MAG VLV
WHEEL BASE 6500MM(65W) WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (A) 		1-47471-374-0 01 1 0802-0802 ●
282 BRACKET; MAG VLV
EXC. H.S.A SYSTEM<6EP> (A) 		1-47471-374-0 01 1 0802-0802 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		1-47471-374-1 01 1 0803-1004 ●
282 BRACKET; MAG VLV
ALLISON MD3060P A/T(Y4G) (A) 		1-47471-374-1 01 1 0803-1004 ●
282 BRACKET; MAG VLV
EXC. PTO CONTROL<SV6> (A) 		1-47471-374-1 01 1 0803-1004 ●
282 BRACKET; MAG VLV
(A) 		1-47471-374-1 01 1 0803-1004 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1005-1111 ●
282 BRACKET; MAG VLV
ALLISON MD3060P A/T(Y4G) (A) 		8-98154-633-0 01 1 1005-1111 ●
282 BRACKET; MAG VLV
EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1005-1111 ●
282 BRACKET; MAG VLV
(A) 		8-98154-633-0 01 1 1005-1111 ●
282 BRACKET; MAG VLV
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1112- ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M6X50 FLANGE 		0-28050-650-0 01 1 0802-0802 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M6X50 FLANGE 		0-28050-650-0 01 1 0802-0802 ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6X50 FLANGE 		0-28050-650-0 01 1 0803-1111 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> M6X50 FLANGE 		0-28050-650-0 01 1 0803-1111 ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> M6X50 FLANGE 		0-28050-650-0 01 1 1112- ●
285 NUT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M6 FLANGE 		0-91180-106-0 01 1 0802-0802 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M6 FLANGE 		0-91180-106-0 01 1 0802-0802 ●
285 NUT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 0803-1111 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 0803-1111 ●
285 NUT; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 1112- ●
424 ADAPTER
WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
424 ADAPTER
WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-1111 ●
424 ADAPTER
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-1111 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1112- ●
424 ADAPTER
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710-0711 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0712-0801 ●
424 ADAPTER
ALLISON MD3060P A/T(Y4G) EXC. PTO CONTROL<SV6> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0712-0801 ●
424 ADAPTER
WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0712-0801 ●
424 ADAPTER
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0712-0801 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-0802 ●
424 ADAPTER
ALLISON MD3060P A/T(Y4G) EXC. H.S.A SYSTEM<6EP> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-0802 ●
424 ADAPTER
WHEEL BASE 6500MM(65W) EXC. H.S.A SYSTEM<6EP> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-0802 ●
424 ADAPTER
EXC. H.S.A SYSTEM<6EP> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-0802 ●
424 ADAPTER
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0803-0907 ● ●
424 ADAPTER
WHEEL BASE 6500MM(65W) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0803-0907 ●
424 ADAPTER
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0908-1111 ● ●
424 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0908-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 0710-0801 ●
450 VALVE; MAG
(B) 		1-82563-871-2 01 1 0710-0801 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 0802-0802 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 0802-0802 ●
450 VALVE; MAG
(B) 		1-82563-871-2 01 1 0802-0802 ●
450 VALVE; MAG
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 0802-0802 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 0803-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0803-1111 ●
450 VALVE; MAG
(B) 		1-82563-871-2 01 1 0803-1111 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0803-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		1-82563-871-2 01 1 1112- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1112- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (B) 		1-82563-871-2 01 1 1112- ●
450 VALVE; MAG
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0710-0711 ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0710-0711 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0712-0801 ●
450 VALVE; MAG
ALLISON MD3060P A/T(Y4G) EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0712-0801 ●
450 VALVE; MAG
EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0712-0801 ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0712-0801 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
ALLISON MD3060P A/T(Y4G) EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
WHEEL BASE 6500MM(65W) EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0803-0910 ● ● ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 0911-1111 ● ● ●
450 VALVE; MAG
WHEEL BASE 4200MM(42W) (A) 		8-97633-075-0 01 1 1112- ●
602 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> ID=16.8 		9-09565-117-0 01 1 0802-0802 ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> ID=16.8 		9-09565-117-0 01 1 0802-0802 ●
602 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0803-1111 ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0803-1111 ●
602 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
