◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11425 - FVR/GVR(AUST)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#41104) — 132 parça

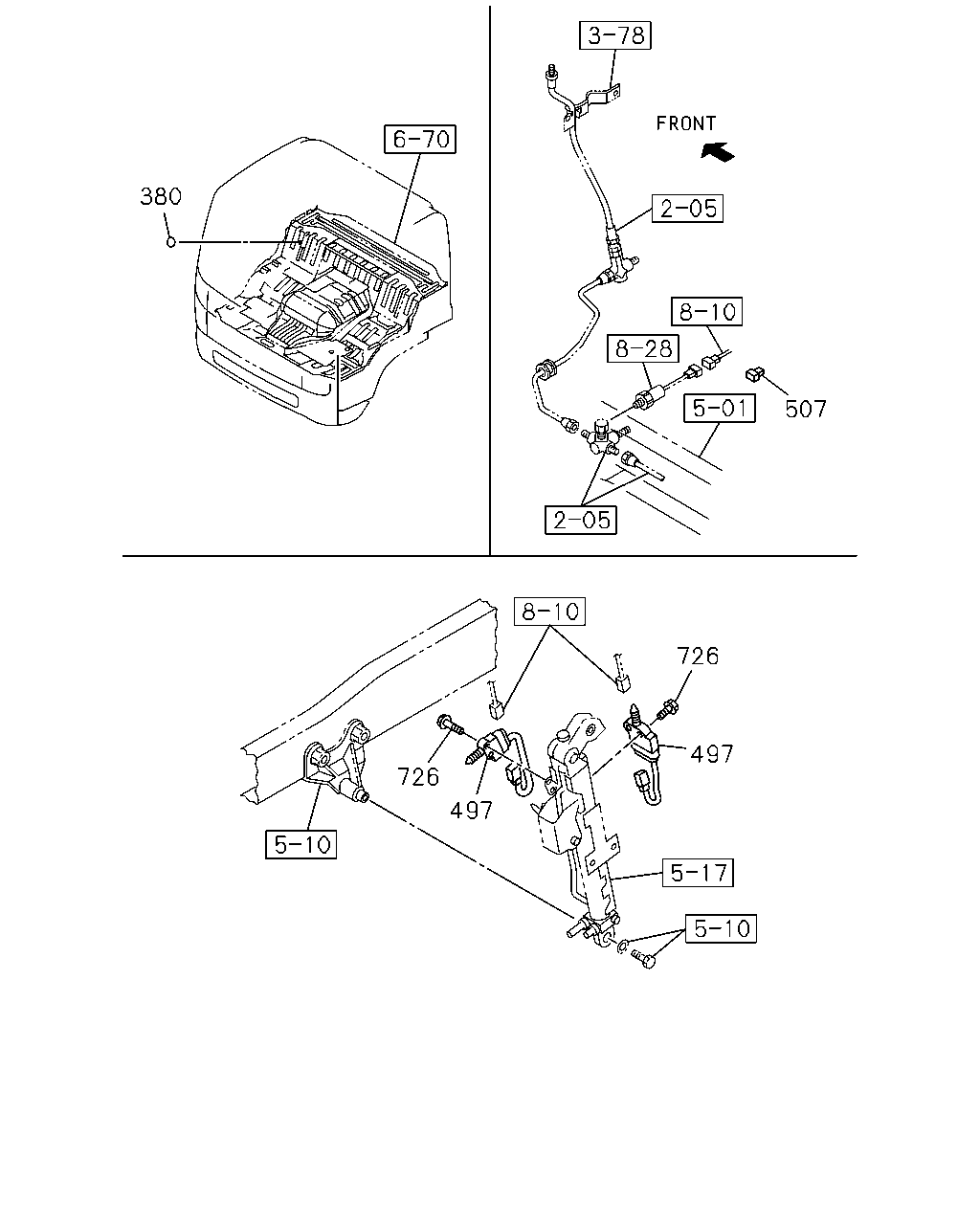

çizim 111925
380 507 726 497 726 497
BalonParca AdiParca NoAdetTipApplied Date A B C
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
497 SWITCH; CAB TILT 1-82380-172-1 02 1 0711- ● ● ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1011- ●
507 CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1011- ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0711- ● ● ●
çizim 111927
744 448 491 373 373 766
BalonParca AdiParca NoAdetTipApplied Date A B C
373 HARNESS; CLU SWITCH
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98105-661-0 01 1 0712-0809 ●
373 HARNESS; CLU SWITCH
(B) 		8-98105-661-0 01 1 0712-0809 ● ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98053-829-3 01 1 0710- ●
373 HARNESS; CLU SWITCH
(B) 		8-98053-829-3 01 1 0710- ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98059-419-2 01 1 0710- ●
373 HARNESS; CLU SWITCH
(A) 		8-98059-419-2 01 1 0710- ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0710- ● ● ●
491 PLUG; HOLE,CONT UNIT 8-98054-651-0 01 1 0710- ● ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 0710- ● ● ●
766 BAND; CLIP
MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0711- ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0711- ●

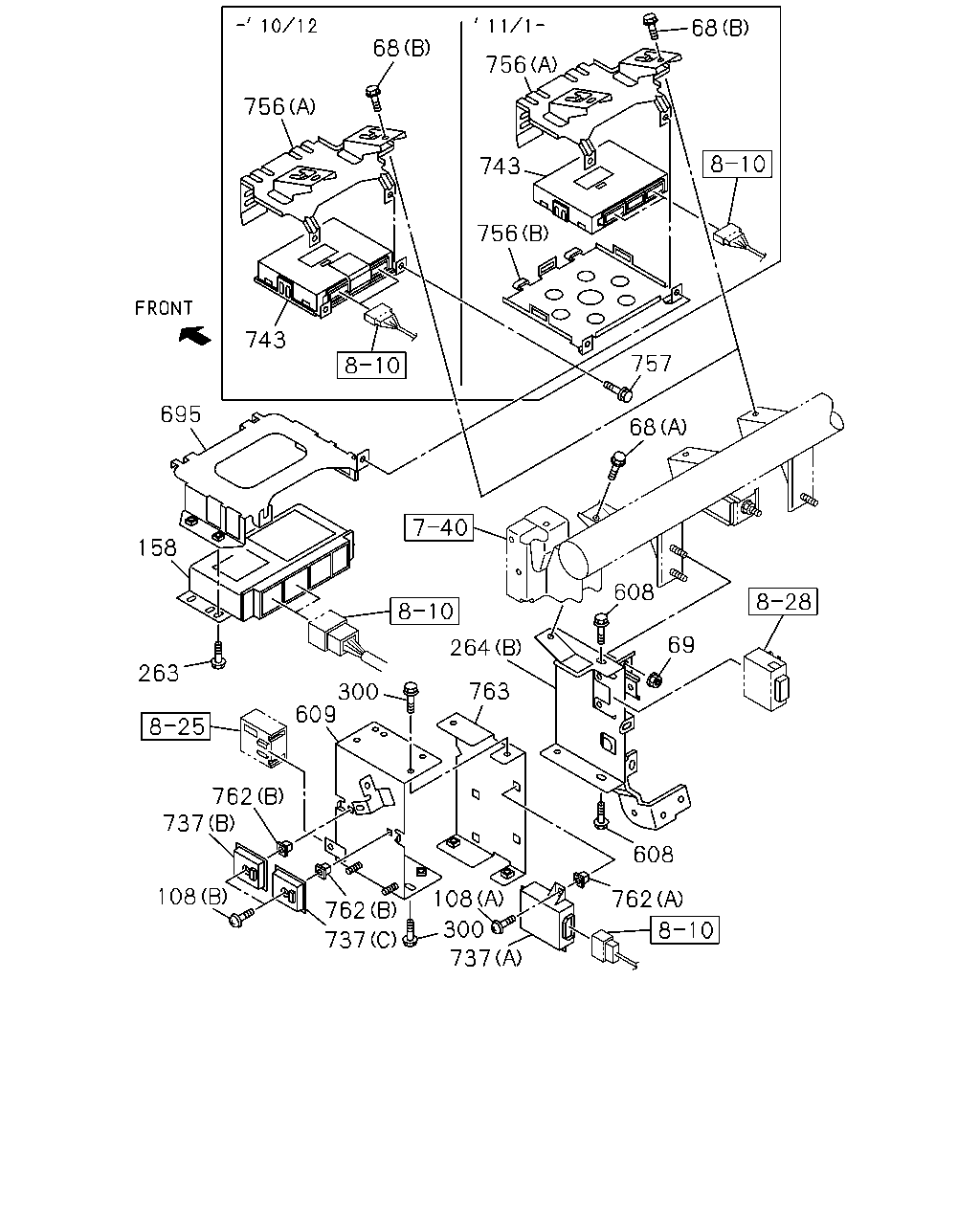

çizim 111933
68 68 756 756 743 756 743 757 695 68 158 608 69 264 263 763 300 609 762 737 608 108 108 762 762 300 737 737
BalonParca AdiParca NoAdetTipApplied Date A B C
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0710- ● ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0710- ● ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0710- ● ● ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3060P A/T(Y4G) (C) M6X16 FLANGE 		0-28650-616-0 03 1 0710- ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SCREW M5X16 TAPPING 		0-72180-516-0 03 1 0710- ●
108 BOLT; TRANS CONT MODULE
(A) SCREW M5X16 TAPPING 		0-72180-516-0 03 1 0710- ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SCREW M4X25 TAPPING 		0-74160-425-0 02 1 0710- ●
108 BOLT; TRANS CONT MODULE
(B) SCREW M4X25 TAPPING 		0-74160-425-0 02 1 0710- ●
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL(45P) 		1-80119-229-2 01 1 0804-1005 ● ●
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL(45P) 		8-98170-647-0 01 1 1006- ● ●
158 CONTROLLER; ABS 1-80119-261-0 01 1 0710-0803 ● ● ●
158 CONTROLLER; ABS
TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-261-0 01 1 0804-0805 ● ●
158 CONTROLLER; ABS 1-80119-261-0 01 1 0804-0805 ●
158 CONTROLLER; ABS
TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-261-0 01 1 0806-0912 ● ●
158 CONTROLLER; ABS 1-80119-261-0 01 1 0806-0912 ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-261-0 01 1 1001-1005 ● ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-261-0 01 1 1001-1005 ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		8-98170-648-0 01 1 1006- ● ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		8-98170-648-0 01 1 1006- ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 0710- ● ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. A/T<X9D> (A) 		8-98064-901-0 01 1 0710- ●
264 BRACKET; CONT UNIT
A/T<X9D> (A) 		8-98064-901-0 01 1 0710- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 0710- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0710- ● ● ●
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 04 1 0710- ●
300 BOLT; CONT UNIT BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0710- ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 05 1 0710- ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 0710- ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-97611-240-3 01 1 0710-0710 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-97611-240-3 01 1 0710-0710 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98095-337-0 01 1 0710-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 0710-1308 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98169-737-1 01 1 1309- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-1 01 1 1309- ● ●
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 0710- ● ● ●
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3060P A/T(Y4G) (D) 		8-98081-208-0 01 1 0710-0904 ●
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3060P A/T(Y4G) (D) 		8-98143-055-0 01 1 0905- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-80111-271-0 01 1 0710- ●
737 CONTROL UNIT; TRANSMISSION
(A) 		1-80111-271-0 01 1 0710- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98095-040-0 01 1 0710- ●
737 CONTROL UNIT; TRANSMISSION
(B) 		8-98095-040-0 01 1 0710- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98095-041-0 01 1 0710- ●
737 CONTROL UNIT; TRANSMISSION
(C) 		8-98095-041-0 01 1 0710- ●
743 CONTROL UNIT; BCM 8-98089-297-0 01 1 0710-0802 ● ● ●
743 CONTROL UNIT; BCM 8-98102-484-0 01 1 0803-0901 ● ● ●
743 CONTROL UNIT; BCM 8-98125-904-0 01 1 0902-1005 ● ● ●
743 CONTROL UNIT; BCM 8-98155-169-1 01 1 1006-1007 ● ● ●
743 CONTROL UNIT; BCM 8-98176-213-0 01 1 1008-1012 ● ● ●
743 CONTROL UNIT; BCM 8-98182-026-2 01 1 1101- ● ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 0710- ● ● ●
756 BRACKET; ECU,BCM
(B) 		8-98111-836-1 01 1 1101- ● ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 0710- ● ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 0710- ●
762 GROMMET; TRANS CONT MODULE
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 0710- ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 0710- ●
762 GROMMET; TRANS CONT MODULE
(B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 0710- ●
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-587-0 01 1 0710- ●
763 BRACKET; TRANS CONT MODULE 8-98085-587-0 01 1 0710- ●

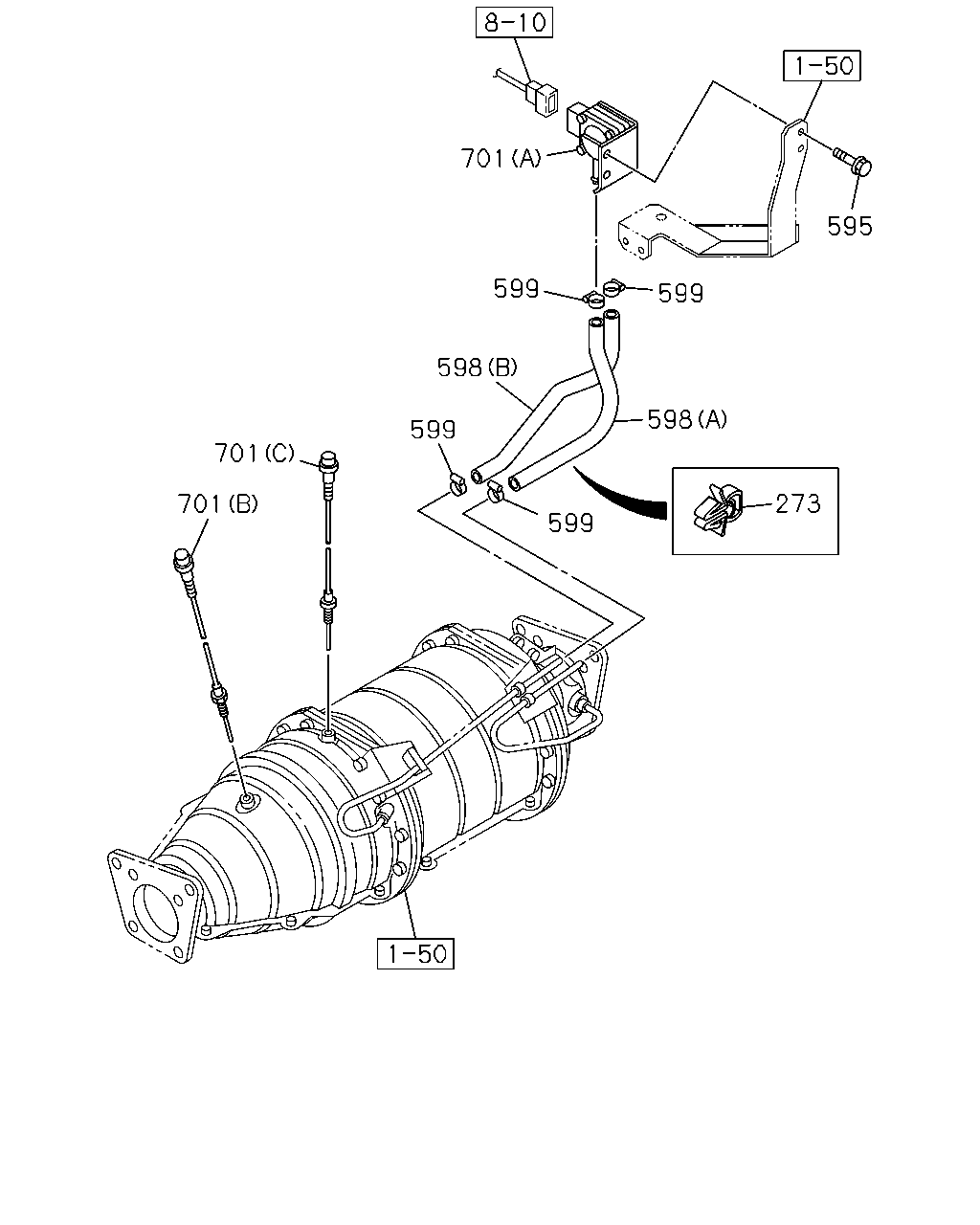

çizim 111941
701 595 599 599 598 598 599 701 273 701 599
BalonParca AdiParca NoAdetTipApplied Date A B C
273 CLIP; HARNESS 8-94225-098-0 01 1 0710-0802 ● ● ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ● ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98088-940-0 01 1 0710- ● ● ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98088-941-0 01 1 0710- ● ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0710- ● ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0710- ● ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0710- ● ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 0710- ● ● ●

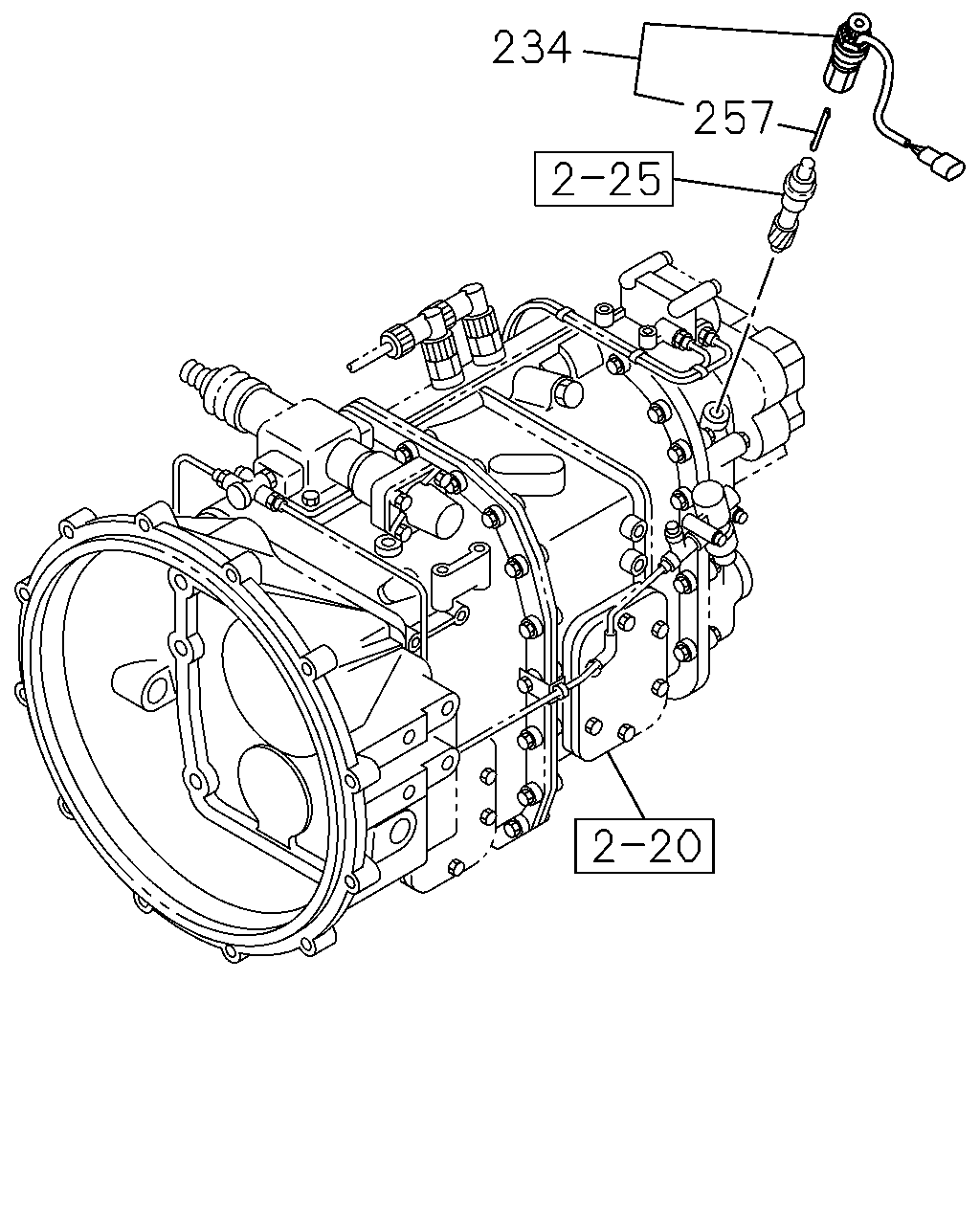

çizim 111943
234 257
BalonParca AdiParca NoAdetTipApplied Date A B C
234 SENSOR; VEHICLE SPD
25 PULSE 		1-83127-414-1 01 1 0710- ●
257 KEY; SPEED SENSOR 1-83129-073-0 01 1 0710- ●

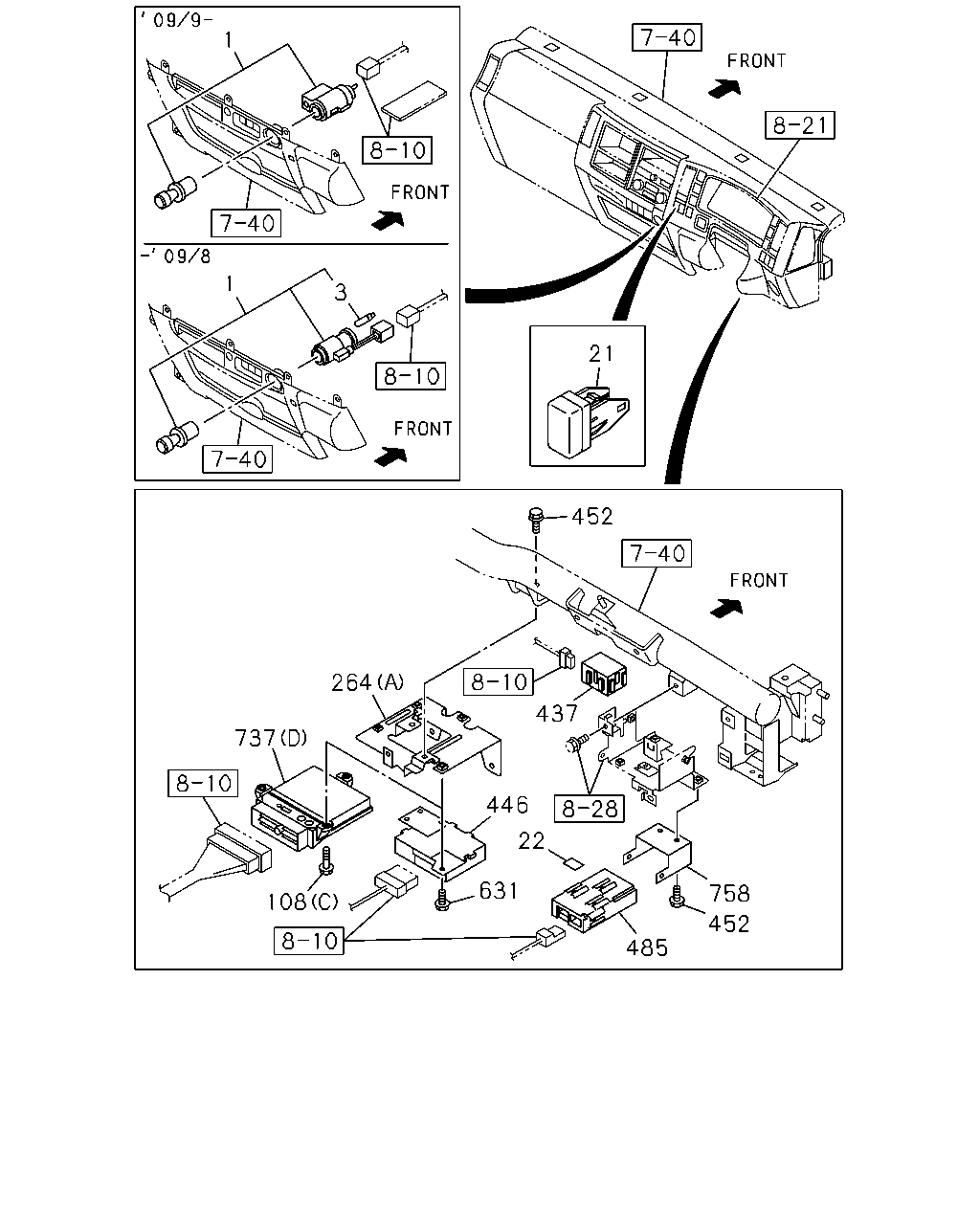

çizim 112134
1 1 3 21 452 264 437 737 446 22 631 758 108 452 485
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0710-0908 ● ● ●
1 LIGHTER; CIGAR 8-98142-962-0 01 1 0909- ● ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0710-0908 ● ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0710- ● ● ●
22 SEAL; TAPE 1-80199-006-0 01 1 0710-0710 ● ●
22 SEAL; TAPE 1-80199-006-0 01 1 0710-1212 ● ● ●
22 SEAL; TAPE 8-98166-639-0 01 1 1301- ● ● ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3060P A/T(Y4G) (C) M6X16 FLANGE 		0-28650-616-0 03 1 0710- ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SCREW M5X16 TAPPING 		0-72180-516-0 03 1 0710- ●
108 BOLT; TRANS CONT MODULE
(A) SCREW M5X16 TAPPING 		0-72180-516-0 03 1 0710- ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SCREW M4X25 TAPPING 		0-74160-425-0 02 1 0710- ●
108 BOLT; TRANS CONT MODULE
(B) SCREW M4X25 TAPPING 		0-74160-425-0 02 1 0710- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. A/T<X9D> (A) 		8-98064-901-0 01 1 0710- ●
264 BRACKET; CONT UNIT
A/T<X9D> (A) 		8-98064-901-0 01 1 0710- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 0710- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0710- ● ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 0710- ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		1-80111-116-1 01 1 0710-0812 ● ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-98136-318-1 01 1 0901- ● ● ●
452 BOLT; BRKT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0710 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 0710-0710 ●
452 BOLT; BRKT
A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 0710-0710 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0710-0710 ● ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0710 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 0710- ●
452 BOLT; BRKT
A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 0710- ●
452 BOLT; BRKT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0710- ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0710- ● ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0710- ●
452 BOLT; BRKT
FULLER FS8209HD DD M/T(Y3A) M6X16 FLANGE 		0-28650-616-0 02 1 0710- ●
485 CONTROL UNIT; SPEED SENSOR
ALLISON MD3060P A/T(Y4G) 		1-80190-061-0 01 1 0710- ●
485 CONTROL UNIT; SPEED SENSOR
ZF9S1110 M/T(Y5E) 		1-80190-063-0 01 1 0710- ● ●
485 CONTROL UNIT; SPEED SENSOR
FULLER FS8209HD DD M/T(Y3A) 		1-80190-059-1 01 1 0710-1008 ●
485 CONTROL UNIT; SPEED SENSOR
FULLER FS8209HD DD M/T(Y3A) 		8-98140-862-0 01 1 1009-1109 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110- ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0710-0812 ● ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0901-0906 ● ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0907- ● ● ●
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3060P A/T(Y4G) (D) 		8-98081-208-0 01 1 0710-0904 ●
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3060P A/T(Y4G) (D) 		8-98143-055-0 01 1 0905- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-80111-271-0 01 1 0710- ●
737 CONTROL UNIT; TRANSMISSION
(A) 		1-80111-271-0 01 1 0710- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98095-040-0 01 1 0710- ●
737 CONTROL UNIT; TRANSMISSION
(B) 		8-98095-040-0 01 1 0710- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98095-041-0 01 1 0710- ●
737 CONTROL UNIT; TRANSMISSION
(C) 		8-98095-041-0 01 1 0710- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 0710-0710 ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 0710- ● ● ●
