◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11425 - FVR/GVR(AUST)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#41101) — 14 parça

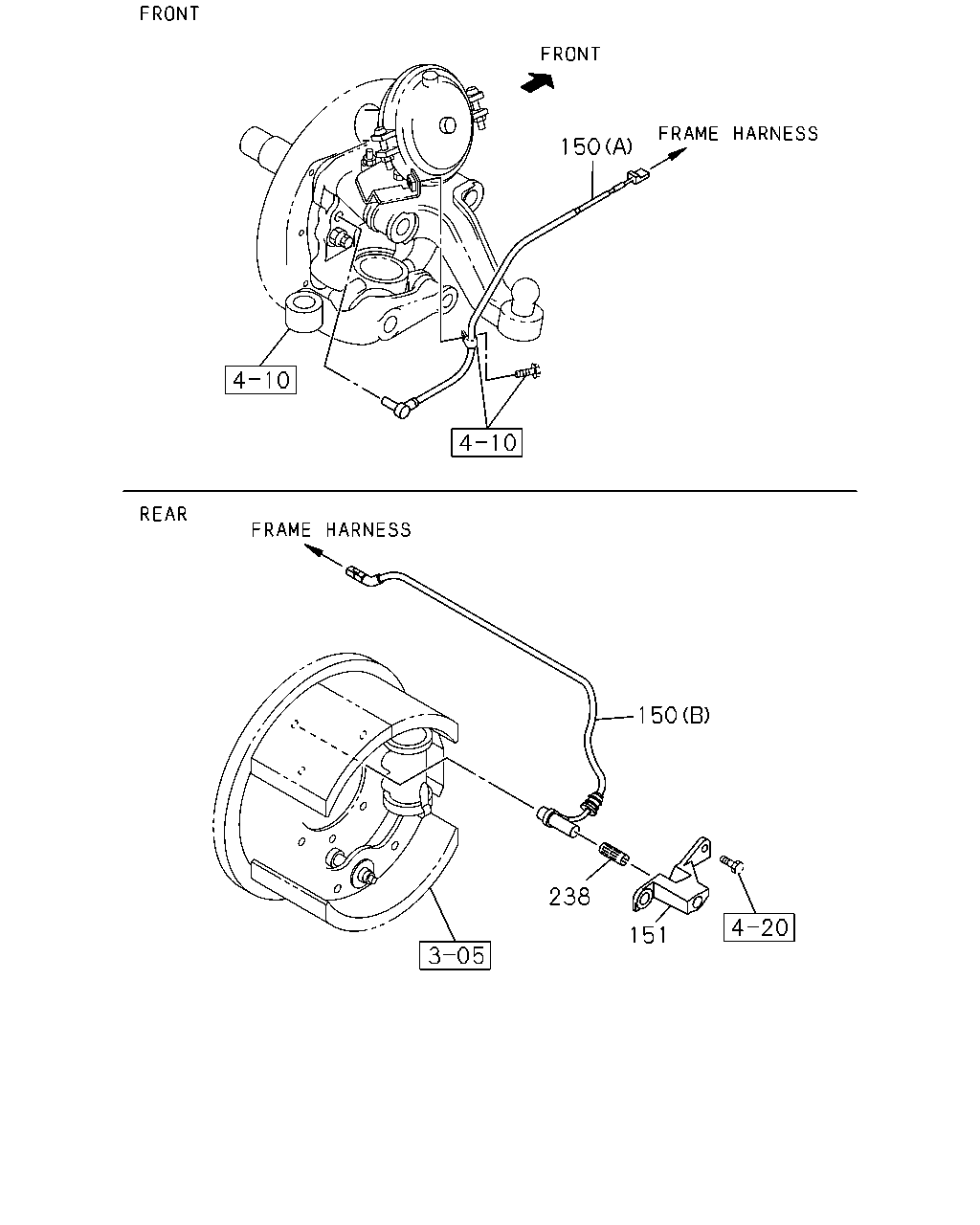

çizim 111910
150 150 238 151
BalonParca AdiParca NoAdetTipApplied Date A B C
150 SENSOR; SPEED,ABS
(A) 		8-98037-375-0 02 1 0710- ● ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98076-288-1 01 1 0710- ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98076-289-1 01 1 0710- ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98049-812-0 01 1 0710- ●
150 SENSOR; SPEED,ABS
(B) 		8-98049-813-0 01 1 0710- ●
151 BRACKET; SPD SENSOR 1-42319-210-0 01 1 0710-1205 ● ● ●
151 BRACKET; SPD SENSOR 1-42319-210-0 01 1 1206-1306 ● ● ●
151 BRACKET; SPD SENSOR
ZF9S1110 M/T(Y5E) FINAL GEAR 45/7 18" ROCKWELL(W6M) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-42319-210-0 01 1 1307-1307 ●
151 BRACKET; SPD SENSOR 1-42319-211-0 01 1 0710-1205 ● ● ●
151 BRACKET; SPD SENSOR 1-42319-211-0 01 1 1206-1306 ● ● ●
151 BRACKET; SPD SENSOR
ZF9S1110 M/T(Y5E) FINAL GEAR 45/7 18" ROCKWELL(W6M) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-42319-211-0 01 1 1307-1307 ●
238 BUSHING; BRKT 1-42319-213-0 02 1 0710- ● ● ●

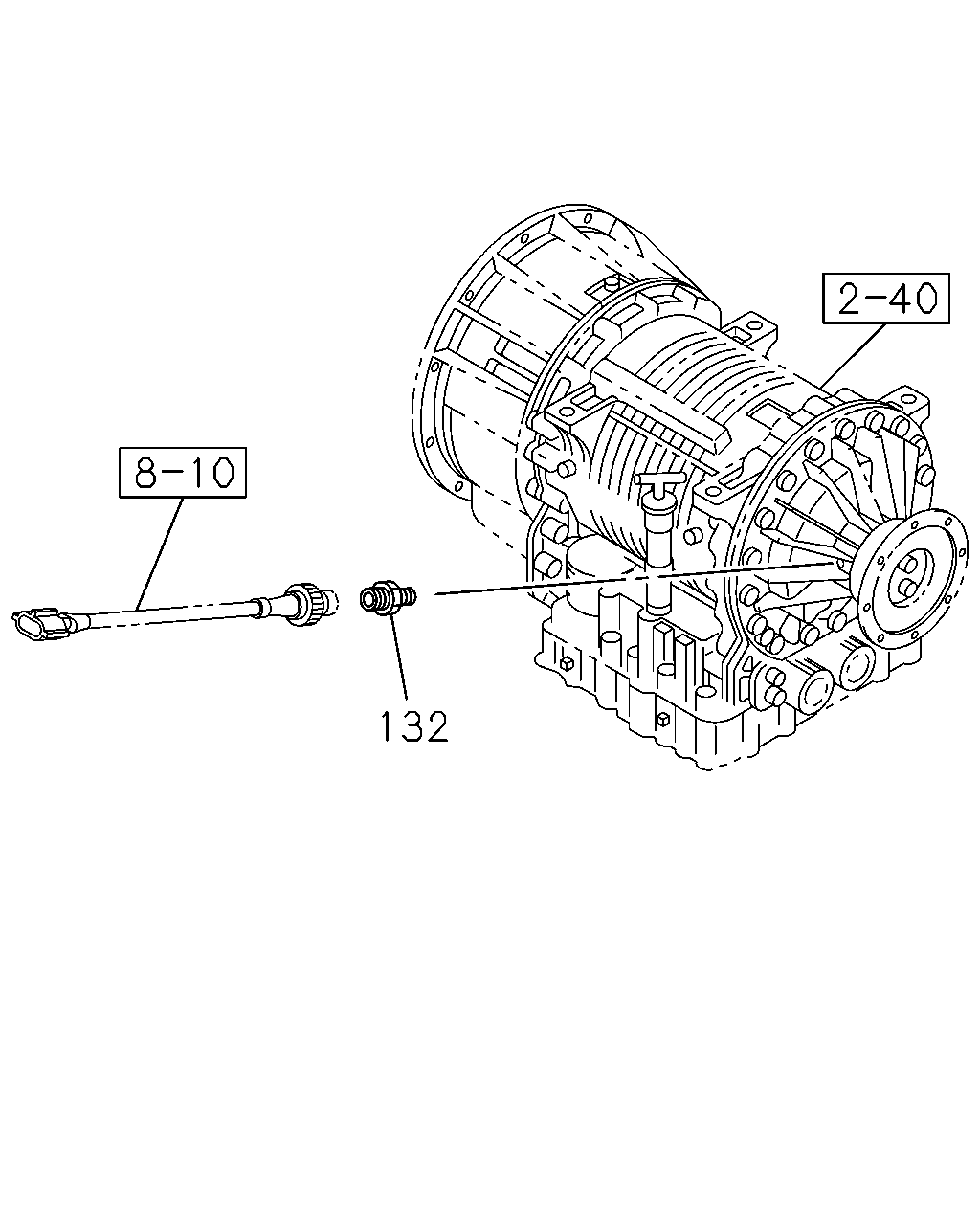

çizim 111930
132
BalonParca AdiParca NoAdetTipApplied Date A B C
132 SENSOR; SPD,SPEEDOMETER
ALLISON MD3060P A/T(Y4G) 		1-80240-013-0 01 1 0710-0912 ●
132 SENSOR; SPD,SPEEDOMETER
ALLISON MD3060P A/T(Y4G) 		8-98151-663-0 01 1 1001- ●
