◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11425 - FVR/GVR(AUST)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#41100) — 1004 parça

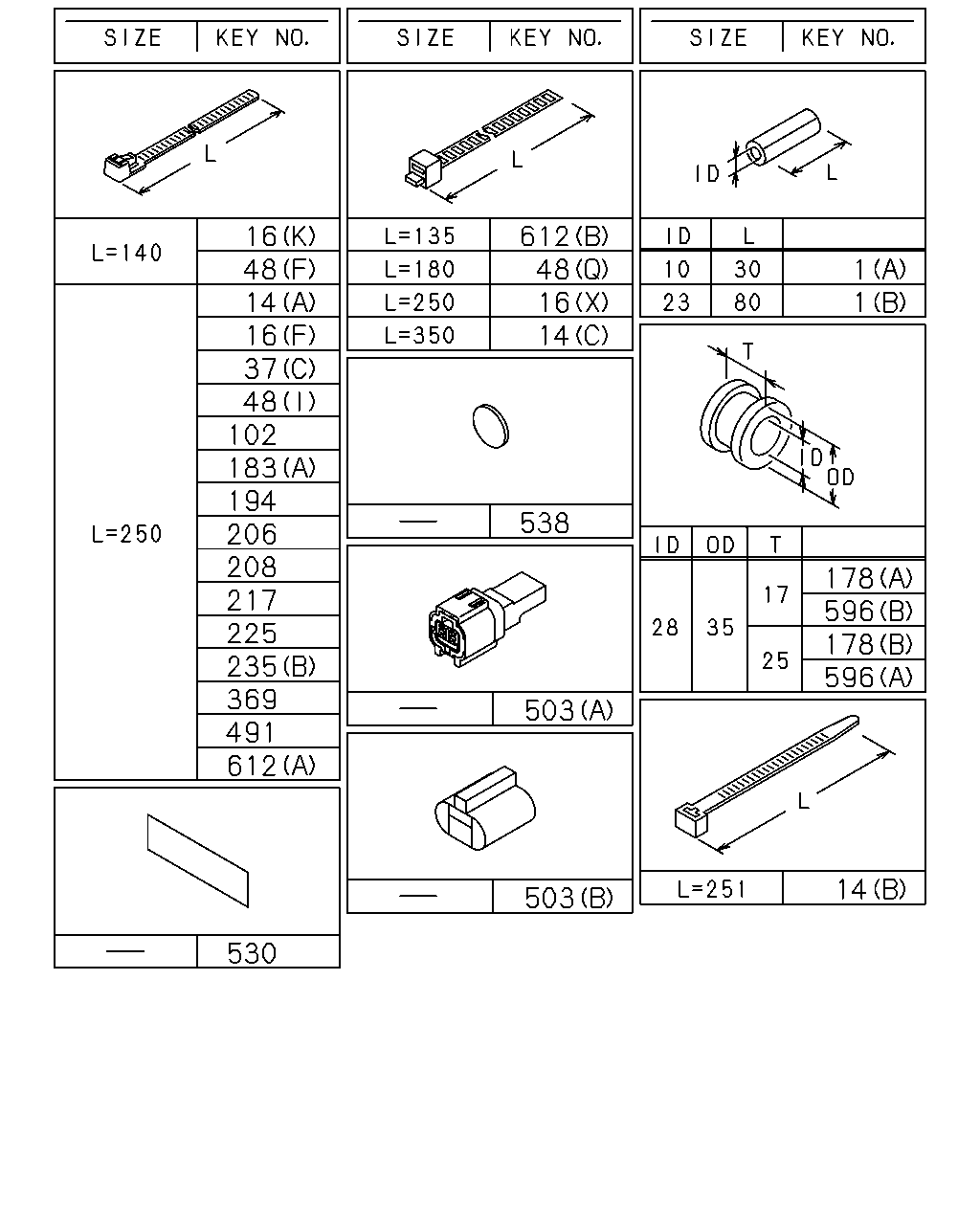

çizim 111907
16 48 14 16 37 48 102 183 194 206 208 217 225 235 369 491 612 612 48 16 14 1 1 538 178 596 178 596 503 14 503 530
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0710- ● ● ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0710- ● ● ●
14 CLIP; BAND,HARNESS
ALLISON MD3060P A/T(Y4G) (A) L=250 		5-09707-030-1 14 1 0710-0712 ●
14 CLIP; BAND,HARNESS
ALLISON MD3060P A/T(Y4G) (A) L=250 		5-09707-030-1 15 1 0801-0909 ●
14 CLIP; BAND,HARNESS
ALLISON MD3060P A/T(Y4G) (A) L=250 		5-09707-030-1 14 1 0910-1205 ●
14 CLIP; BAND,HARNESS
ALLISON MD3060P A/T(Y4G) (A) L=250 		8-98216-430-0 14 1 1206- ●
14 CLIP; BAND,HARNESS
WHEEL BASE 5500MM(55W) (A) L=250 		5-09707-030-1 03 1 0710-0802 ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) (A) L=250 		5-09707-030-1 13 1 0710-0712 ●
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 13 1 0710-0712 ● ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) (A) L=250 		5-09707-030-1 14 1 0801-0909 ●
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 14 1 0801-0909 ● ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) (A) L=250 		5-09707-030-1 13 1 0910-1205 ●
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 13 1 0910-1205 ● ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) (A) L=250 		8-98216-430-0 13 1 1206- ●
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 13 1 1206- ● ●
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 01 1 0710- ● ● ●
14 CLIP; BAND,HARNESS
(B) L=251 		8-97619-917-0 01 1 0910- ● ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0710-0907 ●
16 CLIP; HARNESS
WHEEL BASE 6500MM(65W) (I) ID=11 L=41 		1-09700-403-0 03 1 0710-0907 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0908- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) ID=11 L=41 		1-09700-403-0 03 1 0908- ●
16 CLIP; HARNESS
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (F) L=250 		5-09707-030-1 04 1 0710-0802 ●
16 CLIP; HARNESS
(W) ID=12 & 15 		1-09709-281-1 02 1 0803-0806 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=11 L=61 		1-09700-484-0 01 1 0710-0810 ●
16 CLIP; HARNESS
(Q) ID=11 L=61 		1-09700-484-0 01 1 0710-0810 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (I) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0710-0802 ● ●
16 CLIP; HARNESS
(X) L=250 		1-09707-126-0 01 1 0803-0806 ●
16 CLIP; HARNESS
(Y) 		8-94377-313-1 01 1 0807- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0710-0807 ● ● ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 02 1 0710-0802 ● ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803- ● ● ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ● ● ●
16 CLIP; HARNESS
(Z) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711- ● ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ● ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710- ● ● ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0710-0807 ● ● ●
16 CLIP; HARNESS
(S) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ● ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710- ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 05 1 0710-0810 ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 0811- ● ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0710-0802 ● ● ●
16 CLIP; HARNESS
(AA) L=40.6 		8-97229-357-0 02 1 0803- ● ● ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0710-0802 ● ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710- ● ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710- ● ● ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 02 1 0803- ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (F) L=250 		5-09707-030-1 02 1 0710-0802 ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 03 1 0803-0806 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0807-0901 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0807-0901 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0902- ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (T) ID=16 L=20 		0-95235-536-0 01 1 0712-0806 ●
16 CLIP; HARNESS
(L) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710- ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0710-0802 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 02 1 0803-0806 ●
16 CLIP; HARNESS
(AB) ID=10 & 15 		1-09709-279-1 01 1 0807- ●
16 CLIP; HARNESS
(V) L=213.5 		8-98000-506-0 01 1 0803-0806 ●
16 CLIP; HARNESS
(U) ID=21 L=24 		8-98019-191-0 01 1 1101- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0710-0802 ● ● ●
37 CLIP; HARNESS,POWER TILT
(E) ID=11 H=45 L=25 		1-09700-866-0 01 1 0803- ● ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710- ● ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0710- ● ● ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 0710- ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0710-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (B) ID=11 L=41 		1-09700-403-0 05 1 0710-0907 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0908- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) ID=11 L=41 		1-09700-403-0 05 1 0908- ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 04 1 0710-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 04 1 0710-0907 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 04 1 0908- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 04 1 0908- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 06 1 0710-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 06 1 0710-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=11 L=61 		1-09700-484-0 06 1 0903-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=11 L=61 		1-09700-484-0 06 1 0908- ● ●
48 CLIP; FRAME HARNESS
(W) ID=25 L=75 		1-09701-275-0 02 1 0710-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (W) ID=25 L=75 		1-09701-275-0 02 1 0710-0907 ●
48 CLIP; FRAME HARNESS
(W) ID=25 L=75 		1-09701-275-0 02 1 0908- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (W) ID=25 L=75 		1-09701-275-0 02 1 0908- ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(I) L=250 		5-09707-030-1 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (I) L=250 		5-09707-030-1 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (I) L=250 		5-09707-030-1 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (T) ID=9 L=20 		0-95234-835-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (A) ID=22 L=32 		1-09700-126-1 02 1 0710-0710 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AC) ID=19 L=32 		0-95235-866-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (A) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AD) ID=19 L=60 		0-95235-896-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (U) ID=9 H=32 L=24 		1-09701-221-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AA) ID=9 H=20 L=25 		1-09701-073-0 01 1 0803- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (E) OD=9 H=6 		1-09709-178-0 01 1 0710-0905 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 19 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 20 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 21 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 13 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (O) ID=15 L=65 		1-09700-466-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (C) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0908- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (C) OD=9 H=9.5 		1-09709-179-0 01 1 0908- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 11 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (H) OD=9 H=13.5 		1-09709-180-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (S) ID=14.5 L=28 		1-09701-013-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (S) ID=14.5 L=28 		1-09701-013-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (AE) ID=16 L=60 		0-95235-596-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (AE) ID=16 L=60 		0-95235-596-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 25 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 25 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 27 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 17 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 05 1 0903- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (V) ID=16X2 L=50 		0-95325-586-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (Y) ID=14.5 L=40 		1-09701-014-0 01 1 0802- ● ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0710-0710 ● ● ●
48 CLIP; FRAME HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0711 ● ● ●
48 CLIP; FRAME HARNESS
(Z) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0710-0802 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ● ● ●

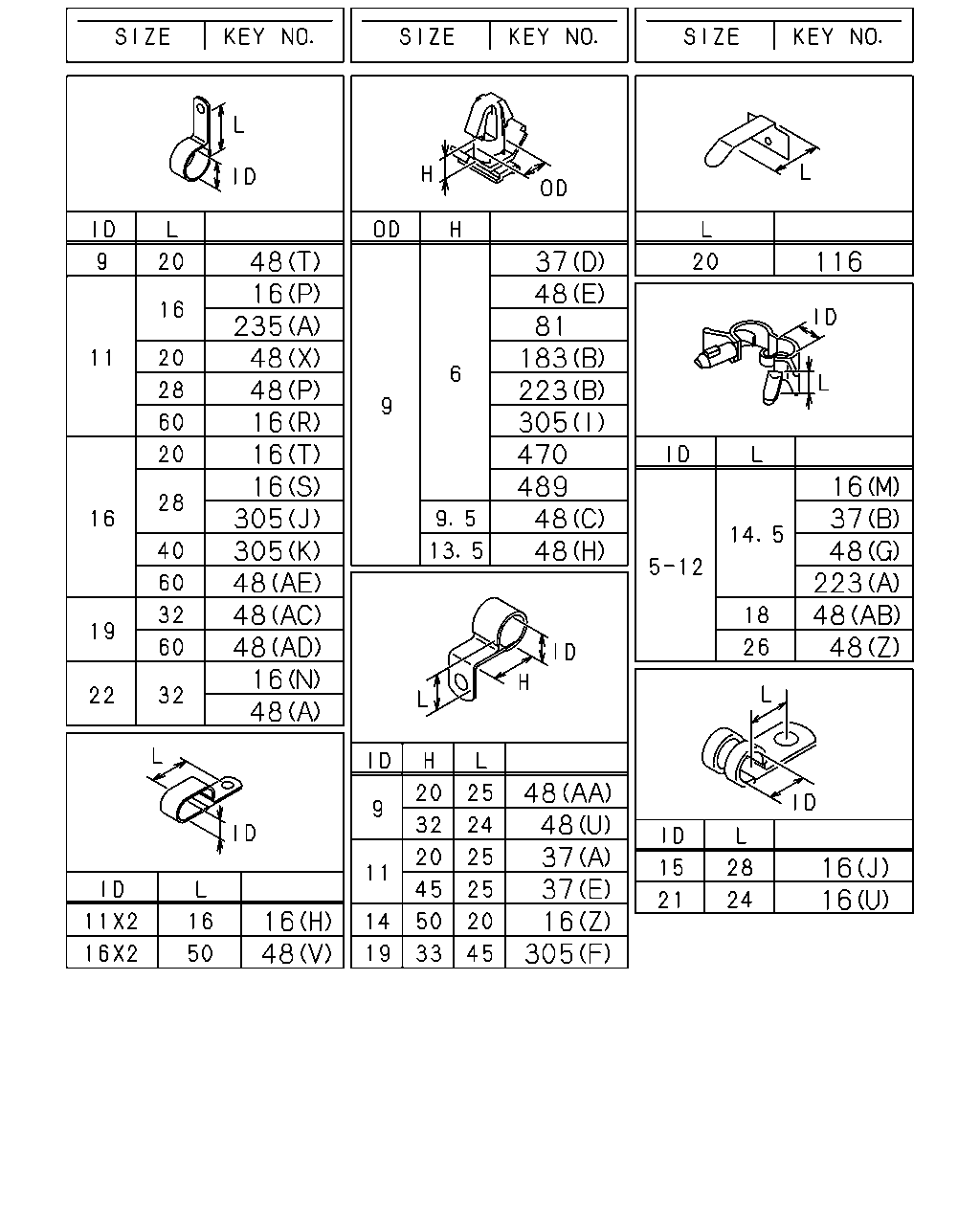

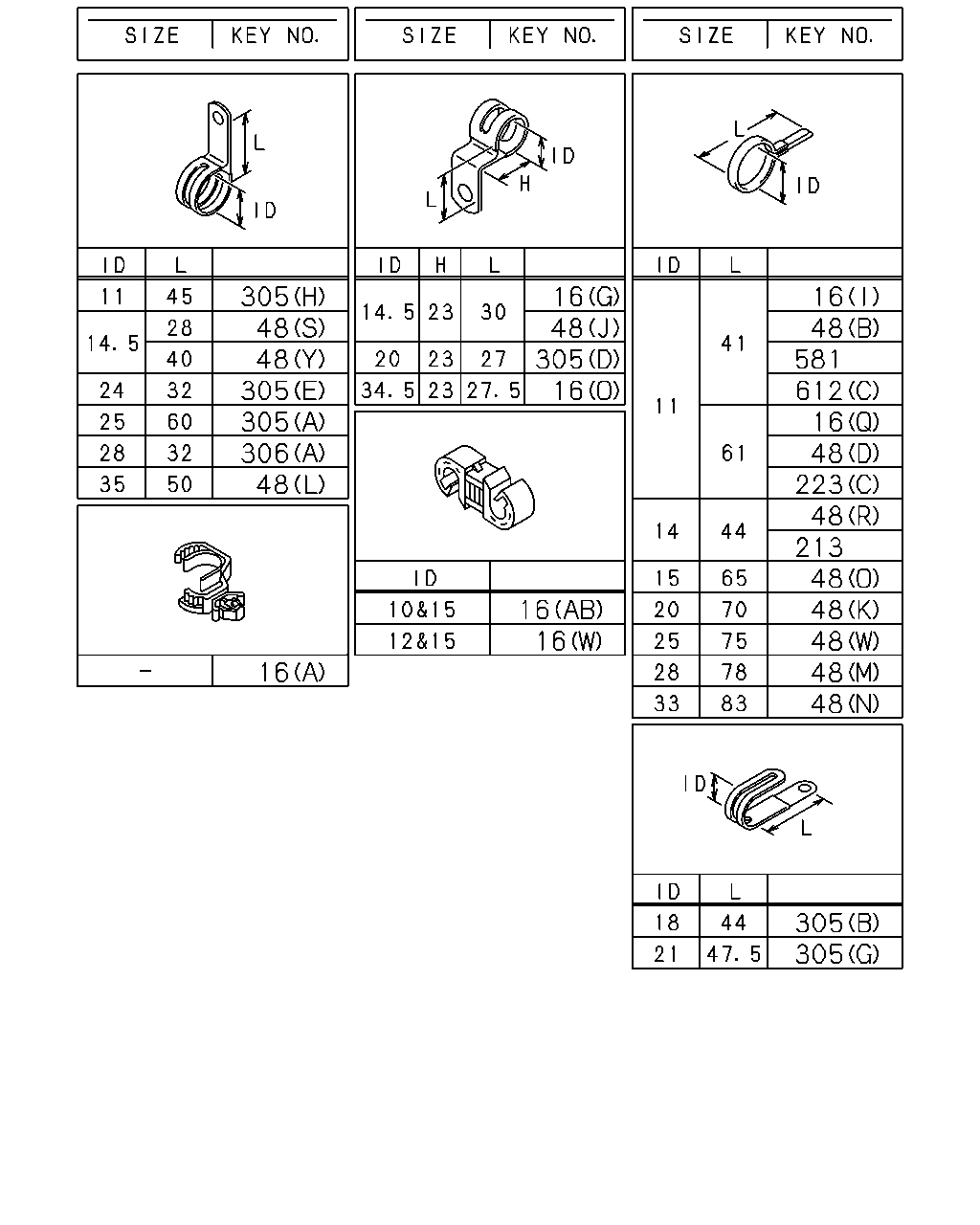

48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0807-0901 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0807-0901 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0911- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0710-0901 ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0902-0902 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 03 1 0903-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 03 1 0903-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 03 1 0903-0907 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 03 1 0908-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 03 1 0908-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 03 1 0908-1007 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0710-0901 ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0902- ● ●
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 0710- ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0710-0901 ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0902- ● ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0710- ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0903-0910 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0911- ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (O) ID=15 L=65 		1-09700-466-0 01 1 0710-0901 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 01 1 0710-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (O) ID=15 L=65 		1-09700-466-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 13 1 0710-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 04 1 0903- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (O) ID=15 L=65 		1-09700-466-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 20 1 0908-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 14 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (O) ID=15 L=65 		1-09700-466-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 24 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 23 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 18 1 1008- ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 05 1 0710-0901 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
FULLER FS8209HD DD M/T(Y3A) (P) ID=11 L=28 		0-95235-055-0 01 1 0710-0806 ●
48 CLIP; FRAME HARNESS
(X) ID=11 L=20 		0-95235-035-0 02 1 0807- ●
48 CLIP; FRAME HARNESS
(Q) L=180 		1-09707-162-1 02 1 0710- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (K) ID=20 L=70 		1-09700-485-0 11 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (K) ID=20 L=70 		1-09700-485-0 12 1 0712- ●
102 CLIP; BAND
H.S.A SYSTEM<6EP> L=250 		5-09707-030-1 01 1 0710-0901 ● ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0710-0711 ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0712- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710-0711 ● ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710-0711 ● ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ● ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ● ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0710-0711 ● ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0712- ● ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0712- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 03 1 0710-0711 ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0712- ● ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (A) L=250 		5-09707-030-1 01 1 0710- ● ● ●
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6 		1-09709-178-0 01 1 0710-0810 ● ● ●
194 CLIP; BAND
L=250 		5-09707-030-1 02 1 0710- ● ● ●
194 CLIP; BAND
L=250 		5-09707-030-1 01 1 0710-0710 ●
194 CLIP; BAND
ALLISON MD3060P A/T(Y4G) L=250 		5-09707-030-1 01 1 0710-0802 ●
194 CLIP; BAND
L=250 		5-09707-030-1 01 1 0710-0802 ●
194 CLIP; BAND
L=250 		5-09707-030-1 01 1 0803-0901 ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0710- ● ● ●
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 04 1 0710-0802 ●
208 CLIP; HARNESS,MAG VLV
WHEEL BASE 6500MM(65W) L=250 		5-09707-030-1 04 1 0710-0802 ●
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 01 1 0710-0907 ●
208 CLIP; HARNESS,MAG VLV
WHEEL BASE 6500MM(65W) L=250 		5-09707-030-1 01 1 0710-0907 ●
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 01 1 0908- ●
208 CLIP; HARNESS,MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=250 		5-09707-030-1 01 1 0908- ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0710-0811 ● ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0812-0812 ● ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0812-0812 ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0901- ● ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 01 1 0812-0812 ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 01 1 0710-0907 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 6500MM(65W) L=250 		5-09707-030-1 01 1 0710-0907 ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 01 1 0908- ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=250 		5-09707-030-1 01 1 0908- ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) L=250 		5-09707-030-1 04 1 0710- ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 04 1 0710- ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) L=250 		5-09707-030-1 03 1 0710- ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 03 1 0710- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0710-0909 ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 02 1 0710- ●
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 02 1 0710-0802 ● ● ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 05 1 0710-0710 ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 06 1 0710-0804 ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 07 1 0805- ●
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 0710-0810 ● ● ●
503 CONNECTOR
HEATER & DEFROSTER(C41) (B) 		1-82690-668-0 01 1 0710- ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0710-1305 ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306- ● ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0710-1305 ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306- ● ● ●
530 SEAL; HARNESS
A/T<X9D> 180X40 		1-72498-019-1 01 1 1306- ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ● ●
596 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0710- ● ●
596 GROMMET
FULLER FS8209HD DD M/T(Y3A) (B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710- ●
612 CLIP; HARNESS DPD
(A) L=250 		5-09707-030-1 02 1 0710-0802 ● ●
612 CLIP; HARNESS DPD
(B) L=135 		1-09987-143-1 02 1 0710- ● ● ●
612 CLIP; HARNESS DPD
(C) ID=11 L=41 		1-09700-403-0 01 1 0805-0910 ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W) (C) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
612 CLIP; HARNESS DPD
(C) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
612 CLIP; HARNESS DPD
(A) L=250 		5-09707-030-1 01 1 0805-0910 ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W) (A) L=250 		5-09707-030-1 01 1 0911- ●
612 CLIP; HARNESS DPD
(A) L=250 		5-09707-030-1 01 1 0911- ●

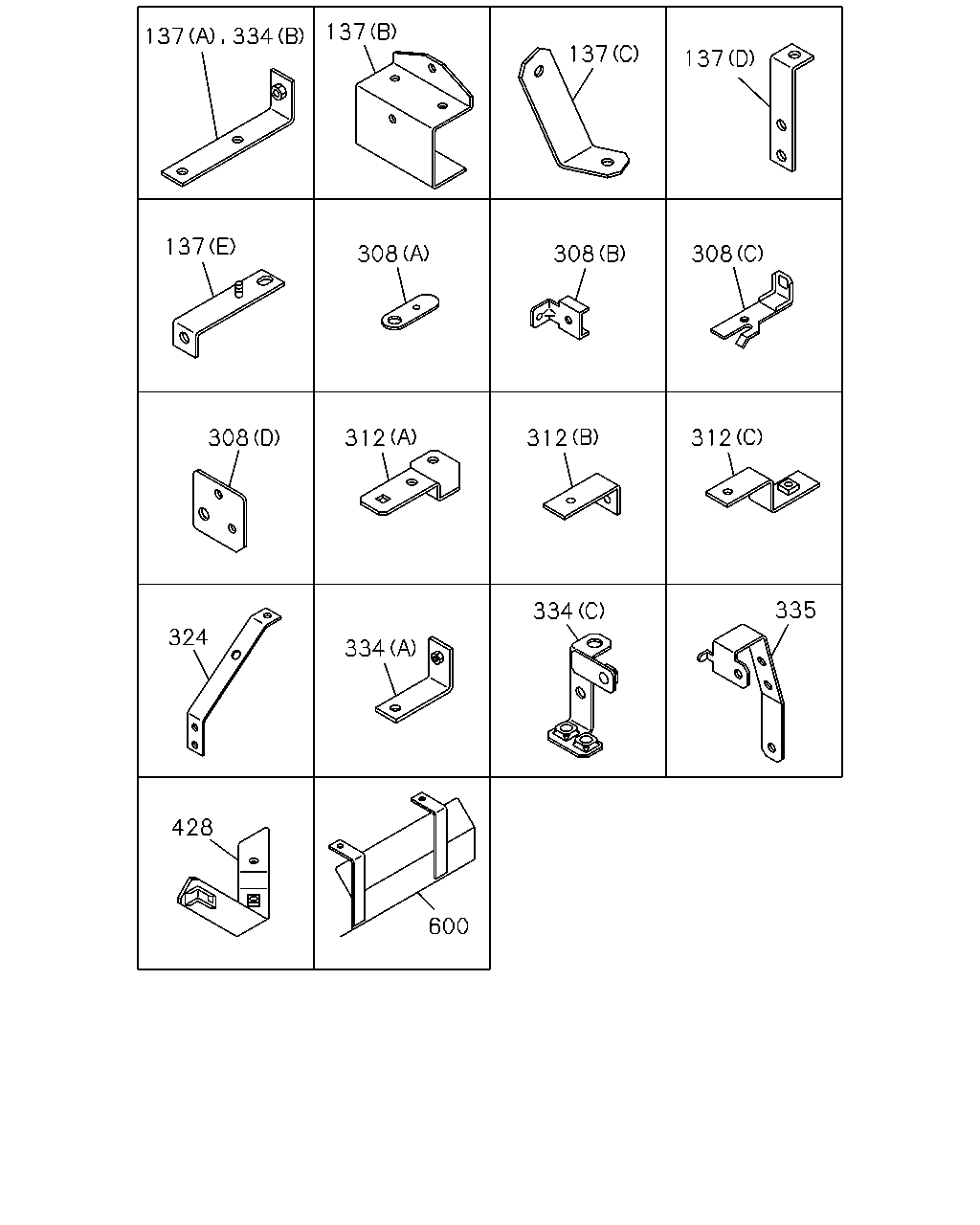

çizim 111913
137 137 137 137 137 308 308 308 308 335 334 324 334 428 600 334 312 312 312
BalonParca AdiParca NoAdetTipApplied Date A B C
137 BRACKET; HARNESS CLAMP
(A) 		1-82698-140-0 01 1 0710-0802 ● ●
137 BRACKET; HARNESS CLAMP
(A) 		1-82698-140-0 01 1 0803- ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97609-797-1 02 1 0710- ● ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97614-728-1 01 1 0710- ● ● ●
137 BRACKET; HARNESS CLAMP
(D) 		8-97622-657-0 01 1 0710-0710 ● ● ●
137 BRACKET; HARNESS CLAMP
(E) 		8-97624-013-0 01 1 0711- ● ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0710-1010 ● ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011- ● ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0710- ● ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0710- ● ● ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 0710- ● ● ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0710- ● ● ●
312 BRACKET; CLIP HARNESS
(C) 		8-97609-110-1 01 1 0710- ● ● ●
312 BRACKET; CLIP HARNESS
(A) 		8-97620-519-0 01 1 0710- ● ● ●
324 BRACKET; CLIP 1-47479-430-0 02 1 0710- ● ● ●
334 BRACKET
FULLER FS8209HD DD M/T(Y3A) (B) 		1-47477-698-0 01 1 0710-0806 ●
334 BRACKET
(A) 		1-82698-630-0 01 1 0807- ●
334 BRACKET
(C) 		8-98098-890-0 01 1 0710- ●
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0710- ● ●
428 BRACKET 8-97620-514-0 01 1 0710- ● ● ●
600 PROTECTOR; HEAT 8-98073-436-0 01 1 0710-0801 ● ● ●
çizim 111917
305 48 48 305 305 306 48 16 48 305 16 16 48 581 612 16 48 223 48 213 48 48 48 48 48 16 16 16 305 305
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0710-0907 ●
16 CLIP; HARNESS
WHEEL BASE 6500MM(65W) (I) ID=11 L=41 		1-09700-403-0 03 1 0710-0907 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0908- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) ID=11 L=41 		1-09700-403-0 03 1 0908- ●
16 CLIP; HARNESS
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (F) L=250 		5-09707-030-1 04 1 0710-0802 ●
16 CLIP; HARNESS
(W) ID=12 & 15 		1-09709-281-1 02 1 0803-0806 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=11 L=61 		1-09700-484-0 01 1 0710-0810 ●
16 CLIP; HARNESS
(Q) ID=11 L=61 		1-09700-484-0 01 1 0710-0810 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (I) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0710-0802 ● ●
16 CLIP; HARNESS
(X) L=250 		1-09707-126-0 01 1 0803-0806 ●
16 CLIP; HARNESS
(Y) 		8-94377-313-1 01 1 0807- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0710-0807 ● ● ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 02 1 0710-0802 ● ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803- ● ● ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ● ● ●
16 CLIP; HARNESS
(Z) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711- ● ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ● ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710- ● ● ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0710-0807 ● ● ●
16 CLIP; HARNESS
(S) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ● ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710- ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 05 1 0710-0810 ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 0811- ● ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0710-0802 ● ● ●
16 CLIP; HARNESS
(AA) L=40.6 		8-97229-357-0 02 1 0803- ● ● ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0710-0802 ● ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710- ● ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710- ● ● ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 02 1 0803- ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (F) L=250 		5-09707-030-1 02 1 0710-0802 ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 03 1 0803-0806 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0807-0901 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0807-0901 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0902- ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (T) ID=16 L=20 		0-95235-536-0 01 1 0712-0806 ●
16 CLIP; HARNESS
(L) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710- ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0710-0802 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 02 1 0803-0806 ●
16 CLIP; HARNESS
(AB) ID=10 & 15 		1-09709-279-1 01 1 0807- ●
16 CLIP; HARNESS
(V) L=213.5 		8-98000-506-0 01 1 0803-0806 ●
16 CLIP; HARNESS
(U) ID=21 L=24 		8-98019-191-0 01 1 1101- ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0710-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (B) ID=11 L=41 		1-09700-403-0 05 1 0710-0907 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0908- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) ID=11 L=41 		1-09700-403-0 05 1 0908- ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 04 1 0710-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 04 1 0710-0907 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 04 1 0908- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 04 1 0908- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 06 1 0710-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 06 1 0710-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=11 L=61 		1-09700-484-0 06 1 0903-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=11 L=61 		1-09700-484-0 06 1 0908- ● ●
48 CLIP; FRAME HARNESS
(W) ID=25 L=75 		1-09701-275-0 02 1 0710-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (W) ID=25 L=75 		1-09701-275-0 02 1 0710-0907 ●
48 CLIP; FRAME HARNESS
(W) ID=25 L=75 		1-09701-275-0 02 1 0908- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (W) ID=25 L=75 		1-09701-275-0 02 1 0908- ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(I) L=250 		5-09707-030-1 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (I) L=250 		5-09707-030-1 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (I) L=250 		5-09707-030-1 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (T) ID=9 L=20 		0-95234-835-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (A) ID=22 L=32 		1-09700-126-1 02 1 0710-0710 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AC) ID=19 L=32 		0-95235-866-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (A) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AD) ID=19 L=60 		0-95235-896-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (U) ID=9 H=32 L=24 		1-09701-221-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AA) ID=9 H=20 L=25 		1-09701-073-0 01 1 0803- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (E) OD=9 H=6 		1-09709-178-0 01 1 0710-0905 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 19 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 20 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 21 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 13 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (O) ID=15 L=65 		1-09700-466-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (C) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0908- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (C) OD=9 H=9.5 		1-09709-179-0 01 1 0908- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 11 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (H) OD=9 H=13.5 		1-09709-180-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (S) ID=14.5 L=28 		1-09701-013-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (S) ID=14.5 L=28 		1-09701-013-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (AE) ID=16 L=60 		0-95235-596-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (AE) ID=16 L=60 		0-95235-596-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 25 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 25 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 27 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 17 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 05 1 0903- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (V) ID=16X2 L=50 		0-95325-586-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (Y) ID=14.5 L=40 		1-09701-014-0 01 1 0802- ● ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0710-0710 ● ● ●
48 CLIP; FRAME HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0711 ● ● ●
48 CLIP; FRAME HARNESS
(Z) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0710-0802 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0807-0901 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0807-0901 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0911- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0710-0901 ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0902-0902 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 03 1 0903-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 03 1 0903-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 03 1 0903-0907 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 03 1 0908-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 03 1 0908-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 03 1 0908-1007 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0710-0901 ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0902- ● ●
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 0710- ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0710-0901 ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0902- ● ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0710- ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0903-0910 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0911- ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (O) ID=15 L=65 		1-09700-466-0 01 1 0710-0901 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 01 1 0710-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (O) ID=15 L=65 		1-09700-466-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 13 1 0710-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 04 1 0903- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (O) ID=15 L=65 		1-09700-466-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 20 1 0908-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 14 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (O) ID=15 L=65 		1-09700-466-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 24 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 23 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 18 1 1008- ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 05 1 0710-0901 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
FULLER FS8209HD DD M/T(Y3A) (P) ID=11 L=28 		0-95235-055-0 01 1 0710-0806 ●
48 CLIP; FRAME HARNESS
(X) ID=11 L=20 		0-95235-035-0 02 1 0807- ●
48 CLIP; FRAME HARNESS
(Q) L=180 		1-09707-162-1 02 1 0710- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (K) ID=20 L=70 		1-09700-485-0 11 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (K) ID=20 L=70 		1-09700-485-0 12 1 0712- ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 0710- ● ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0811 ● ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0811 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 6500MM(65W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0811 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0812- ● ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) (C) ID=11 L=61 		1-09700-484-0 01 1 0710- ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0710- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0801 ● ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0710- ● ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0710- ● ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0710- ● ● ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 03 1 0710-0711 ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 6500MM(65W) ID=11 L=41 		1-09700-403-0 03 1 0710-0711 ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 03 1 0712-0801 ● ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 6500MM(65W) ID=11 L=41 		1-09700-403-0 03 1 0712-0801 ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 04 1 0802-0907 ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 6500MM(65W) ID=11 L=41 		1-09700-403-0 04 1 0802-0907 ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 04 1 0908- ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=11 L=41 		1-09700-403-0 04 1 0908- ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 4200MM(42W) ID=11 L=41 		1-09700-403-0 02 1 0710-0711 ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 02 1 0710-0711 ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 4200MM(42W) ID=11 L=41 		1-09700-403-0 01 1 0712- ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 03 1 0802- ●
612 CLIP; HARNESS DPD
(A) L=250 		5-09707-030-1 02 1 0710-0802 ● ●
612 CLIP; HARNESS DPD
(B) L=135 		1-09987-143-1 02 1 0710- ● ● ●
612 CLIP; HARNESS DPD
(C) ID=11 L=41 		1-09700-403-0 01 1 0805-0910 ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W) (C) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
612 CLIP; HARNESS DPD
(C) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
612 CLIP; HARNESS DPD
(A) L=250 		5-09707-030-1 01 1 0805-0910 ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W) (A) L=250 		5-09707-030-1 01 1 0911- ●
612 CLIP; HARNESS DPD
(A) L=250 		5-09707-030-1 01 1 0911- ●
çizim 111920
16 16 305 16 16 16 16 16 16 306
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0710-0907 ●
16 CLIP; HARNESS
WHEEL BASE 6500MM(65W) (I) ID=11 L=41 		1-09700-403-0 03 1 0710-0907 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0908- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) ID=11 L=41 		1-09700-403-0 03 1 0908- ●
16 CLIP; HARNESS
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (F) L=250 		5-09707-030-1 04 1 0710-0802 ●
16 CLIP; HARNESS
(W) ID=12 & 15 		1-09709-281-1 02 1 0803-0806 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=11 L=61 		1-09700-484-0 01 1 0710-0810 ●
16 CLIP; HARNESS
(Q) ID=11 L=61 		1-09700-484-0 01 1 0710-0810 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (I) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0710-0802 ● ●
16 CLIP; HARNESS
(X) L=250 		1-09707-126-0 01 1 0803-0806 ●
16 CLIP; HARNESS
(Y) 		8-94377-313-1 01 1 0807- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0710-0807 ● ● ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 02 1 0710-0802 ● ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803- ● ● ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ● ● ●
16 CLIP; HARNESS
(Z) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711- ● ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ● ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710- ● ● ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0710-0807 ● ● ●
16 CLIP; HARNESS
(S) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ● ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710- ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 05 1 0710-0810 ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 0811- ● ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0710-0802 ● ● ●
16 CLIP; HARNESS
(AA) L=40.6 		8-97229-357-0 02 1 0803- ● ● ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0710-0802 ● ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710- ● ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710- ● ● ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 02 1 0803- ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (F) L=250 		5-09707-030-1 02 1 0710-0802 ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 03 1 0803-0806 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0807-0901 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0807-0901 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0902- ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (T) ID=16 L=20 		0-95235-536-0 01 1 0712-0806 ●
16 CLIP; HARNESS
(L) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710- ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0710-0802 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 02 1 0803-0806 ●
16 CLIP; HARNESS
(AB) ID=10 & 15 		1-09709-279-1 01 1 0807- ●
16 CLIP; HARNESS
(V) L=213.5 		8-98000-506-0 01 1 0803-0806 ●
16 CLIP; HARNESS
(U) ID=21 L=24 		8-98019-191-0 01 1 1101- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0801 ● ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0710- ● ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0710- ● ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0710- ● ● ●
çizim 111922
48 16 235 48 48 16 16 16 305 305 48 48 48 16 48 37 48 81 183 223 305 470 489 48 48 116 16 37 48 223 48 48 48 48 37 37 16 305 16 16 16 48
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0710-0907 ●
16 CLIP; HARNESS
WHEEL BASE 6500MM(65W) (I) ID=11 L=41 		1-09700-403-0 03 1 0710-0907 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0908- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) ID=11 L=41 		1-09700-403-0 03 1 0908- ●
16 CLIP; HARNESS
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (F) L=250 		5-09707-030-1 04 1 0710-0802 ●
16 CLIP; HARNESS
(W) ID=12 & 15 		1-09709-281-1 02 1 0803-0806 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=11 L=61 		1-09700-484-0 01 1 0710-0810 ●
16 CLIP; HARNESS
(Q) ID=11 L=61 		1-09700-484-0 01 1 0710-0810 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (I) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0710-0802 ● ●
16 CLIP; HARNESS
(X) L=250 		1-09707-126-0 01 1 0803-0806 ●
16 CLIP; HARNESS
(Y) 		8-94377-313-1 01 1 0807- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0710-0807 ● ● ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 02 1 0710-0802 ● ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803- ● ● ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ● ● ●
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ● ● ●
16 CLIP; HARNESS
(Z) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711- ● ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ● ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710- ● ● ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0710-0807 ● ● ●
16 CLIP; HARNESS
(S) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ● ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710- ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 05 1 0710-0810 ● ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 0811- ● ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0710-0802 ● ● ●
16 CLIP; HARNESS
(AA) L=40.6 		8-97229-357-0 02 1 0803- ● ● ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0710-0802 ● ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710- ● ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710- ● ● ●
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 02 1 0803- ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (F) L=250 		5-09707-030-1 02 1 0710-0802 ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 03 1 0803-0806 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0807-0901 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0807-0901 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0902- ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (T) ID=16 L=20 		0-95235-536-0 01 1 0712-0806 ●
16 CLIP; HARNESS
(L) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710- ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 0710-0802 ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 02 1 0803-0806 ●
16 CLIP; HARNESS
(AB) ID=10 & 15 		1-09709-279-1 01 1 0807- ●
16 CLIP; HARNESS
(V) L=213.5 		8-98000-506-0 01 1 0803-0806 ●
16 CLIP; HARNESS
(U) ID=21 L=24 		8-98019-191-0 01 1 1101- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0710-0802 ● ● ●
37 CLIP; HARNESS,POWER TILT
(E) ID=11 H=45 L=25 		1-09700-866-0 01 1 0803- ● ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710- ● ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0710- ● ● ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 0710- ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0710-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (B) ID=11 L=41 		1-09700-403-0 05 1 0710-0907 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0908- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) ID=11 L=41 		1-09700-403-0 05 1 0908- ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 04 1 0710-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 04 1 0710-0907 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 04 1 0908- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 04 1 0908- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 06 1 0710-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 06 1 0710-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=11 L=61 		1-09700-484-0 06 1 0903-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=11 L=61 		1-09700-484-0 06 1 0908- ● ●
48 CLIP; FRAME HARNESS
(W) ID=25 L=75 		1-09701-275-0 02 1 0710-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (W) ID=25 L=75 		1-09701-275-0 02 1 0710-0907 ●
48 CLIP; FRAME HARNESS
(W) ID=25 L=75 		1-09701-275-0 02 1 0908- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (W) ID=25 L=75 		1-09701-275-0 02 1 0908- ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(I) L=250 		5-09707-030-1 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (I) L=250 		5-09707-030-1 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (I) L=250 		5-09707-030-1 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (T) ID=9 L=20 		0-95234-835-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (A) ID=22 L=32 		1-09700-126-1 02 1 0710-0710 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AC) ID=19 L=32 		0-95235-866-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (A) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AD) ID=19 L=60 		0-95235-896-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (U) ID=9 H=32 L=24 		1-09701-221-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (AA) ID=9 H=20 L=25 		1-09701-073-0 01 1 0803- ●
48 CLIP; FRAME HARNESS
ALLISON MD3060P A/T(Y4G) (E) OD=9 H=6 		1-09709-178-0 01 1 0710-0905 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 19 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 20 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 21 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 13 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (O) ID=15 L=65 		1-09700-466-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (C) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 0908- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (C) OD=9 H=9.5 		1-09709-179-0 01 1 0908- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 11 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (H) OD=9 H=13.5 		1-09709-180-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (S) ID=14.5 L=28 		1-09701-013-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (S) ID=14.5 L=28 		1-09701-013-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (AE) ID=16 L=60 		0-95235-596-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (AE) ID=16 L=60 		0-95235-596-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 25 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 25 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 27 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 17 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 05 1 0903- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (V) ID=16X2 L=50 		0-95325-586-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (Y) ID=14.5 L=40 		1-09701-014-0 01 1 0802- ● ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0710-0710 ● ● ●
48 CLIP; FRAME HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0711 ● ● ●
48 CLIP; FRAME HARNESS
(Z) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0710-0802 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0803-0805 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0807-0901 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0807-0901 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0911- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0710-0901 ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0902-0902 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 03 1 0903-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 03 1 0903-0907 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 03 1 0903-0907 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 03 1 0908-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 03 1 0908-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 03 1 0908-1007 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0710-0901 ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0902- ● ●
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 0710- ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0710-0901 ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0902- ● ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0710- ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0806 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0807-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0903-0910 ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0903-0910 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0911- ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=11 L=41 		1-09700-403-0 01 1 0911- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (O) ID=15 L=65 		1-09700-466-0 01 1 0710-0901 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 01 1 0710-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (O) ID=15 L=65 		1-09700-466-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 13 1 0710-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 04 1 0903- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (O) ID=15 L=65 		1-09700-466-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 20 1 0908-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 14 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (O) ID=15 L=65 		1-09700-466-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 24 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 23 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 18 1 1008- ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 05 1 0710-0901 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
FULLER FS8209HD DD M/T(Y3A) (P) ID=11 L=28 		0-95235-055-0 01 1 0710-0806 ●
48 CLIP; FRAME HARNESS
(X) ID=11 L=20 		0-95235-035-0 02 1 0807- ●
48 CLIP; FRAME HARNESS
(Q) L=180 		1-09707-162-1 02 1 0710- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (K) ID=20 L=70 		1-09700-485-0 11 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (K) ID=20 L=70 		1-09700-485-0 12 1 0712- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6 		1-09709-178-0 01 1 0712-1010 ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> OD=9 H=6 		1-09709-178-0 01 1 0712-1010 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6 		1-09709-178-0 01 1 1011- ●
81 CLIP; HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1011- ● ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 04 1 0710- ● ● ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (A) L=250 		5-09707-030-1 01 1 0710- ● ● ●
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6 		1-09709-178-0 01 1 0710-0810 ● ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0811 ● ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0811 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 6500MM(65W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0811 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0812- ● ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) (C) ID=11 L=61 		1-09700-484-0 01 1 0710- ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0710- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0710-0909 ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 02 1 0710- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0801 ● ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0710- ● ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0710- ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0710-1205 ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1206- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1206- ●
489 CLIP; HARNESS,OIL PRESS SW
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
489 CLIP; HARNESS,OIL PRESS SW
H.S.A SYSTEM<6EP> OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ● ●
çizim 111923
304 304 139 304 38 139 304 304 313 38 38 38 139 150 242 313 19 38 139 150 313 38 139 313 139 242 313 139 139 139 139 38 38 516 358 38 377 386 139 524 219 294 525 294 38 386 184
BalonParca AdiParca NoAdetTipApplied Date A B C
19 BOLT; PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0801 ● ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G) (H) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0710- ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0806 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0807- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0710-0711 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0710 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 6500MM(65W) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0802 ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 6500MM(65W) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0802 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-0803 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-0803 ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 6500MM(65W) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-0803 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ● ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0802 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0802 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0802 ● ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0802 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0803- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0803- ● ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0803- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0803- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ● ●
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0710-1201 ● ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G) (F) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0710-1201 ●
38 BOLT; CLIP,HARNESS
(J) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G) (J) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ●
38 BOLT; CLIP,HARNESS
(I) M8X16 FLANGE 		8-98076-109-0 01 1 0710-0710 ● ● ●
38 BOLT; CLIP,HARNESS
(G) M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 0710- ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1101- ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 4200MM(42W) (C) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0806 ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0806 ●
38 BOLT; CLIP,HARNESS
FULLER FS8209HD DD M/T(Y3A) (E) M10X16 FLANGE 		0-28151-016-0 01 1 0710-0806 ●
139 BOLT; BRKT
(J) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
139 BOLT; BRKT
WHEEL BASE 6500MM(65W) (J) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
139 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0802 ● ●
139 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 02 1 0803- ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0710- ● ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0809 ● ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0810- ● ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0710-0809 ● ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ● ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ● ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0811- ● ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0710- ● ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0811- ● ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (K) M5X16 TAPPING 		0-72180-516-0 01 1 0801- ● ● ●
139 BOLT; BRKT
WHEEL BASE 4200MM(42W) (I) M8X35 FLANGE 		0-28650-835-0 01 1 0710-0711 ●
139 BOLT; BRKT
(I) M8X35 FLANGE 		0-28650-835-0 01 1 0710-0711 ●
139 BOLT; BRKT
(I) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0802 ● ● ●
139 BOLT; BRKT
WHEEL BASE 4200MM(42W) (I) M8X35 FLANGE 		0-28650-835-0 01 1 0803- ●
139 BOLT; BRKT
(I) M8X35 FLANGE 		0-28650-835-0 01 1 0803- ●
139 BOLT; BRKT
(G) M10X16 FLANGE 		0-28151-016-0 01 1 0710- ●
139 BOLT; BRKT
(H) M10X20 FLANGE 		0-28651-020-0 01 1 0710- ●
150 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ● ●
150 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0806- ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710-0802 ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0803- ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 05 1 0710-0802 ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0803- ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0803- ●
242 BOLT; BRKT,HARNESS
ALLISON MD3060P A/T(Y4G) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0809 ●
242 BOLT; BRKT,HARNESS
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0809 ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0809 ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ● ●
242 BOLT; BRKT,HARNESS
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0710- ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-0809 ●
294 NUT
WHEEL BASE 6500MM(65W) (A) M8 FLANGE 		0-91180-108-0 04 1 0710-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0810-0907 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0810-0907 ●
294 NUT
WHEEL BASE 6500MM(65W) (A) M8 FLANGE 		0-91180-108-0 04 1 0810-0907 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0908- ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0908- ●
294 NUT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8 FLANGE 		0-91180-108-0 04 1 0908- ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0710-0711 ●
294 NUT
WHEEL BASE 6500MM(65W) (B) M10 FLANGE 		0-91180-210-0 01 1 0710-0711 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0712-0901 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0902-0905 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0906- ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 07 1 0710-0710 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 09 1 0710-0711 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0712-0809 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ● ●
294 NUT
WHEEL BASE 4200MM(42W) (A) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
294 NUT
WHEEL BASE 6500MM(65W) (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0803-0809 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906- ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906- ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ● ● ●
294 NUT
WHEEL BASE 4200MM(42W) (A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ● ●
294 NUT
ALLISON MD3060P A/T(Y4G) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
WHEEL BASE 4200MM(42W) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
FULLER FS8209HD DD M/T(Y3A) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0810- ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0810- ● ● ●
294 NUT
WHEEL BASE 4200MM(42W) (A) M8 FLANGE 		0-91180-108-0 01 1 0810- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0810- ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0710- ● ● ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0710- ● ● ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0710-1010 ● ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 0710- ● ● ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0710- ● ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0710- ● ● ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 04 1 0710-0907 ●
313 BOLT; BRKT
WHEEL BASE 6500MM(65W) (A) M8X30 FLANGE 		0-28650-830-0 04 1 0710-0907 ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 04 1 0908- ●
313 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X30 FLANGE 		0-28650-830-0 04 1 0908- ●
313 BOLT; BRKT
(C) M8X45 FLANGE 		0-28050-845-0 01 1 0710- ● ● ●
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ● ●
313 BOLT; BRKT
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ● ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ● ●
313 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 0710- ● ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0710- ● ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0710- ● ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-1202 ● ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ● ●
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0710- ● ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0710- ● ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0710- ● ● ●
çizim 111924
7 53 53 53 53 59 53 53 59 59 59 59 59 59 59 53 59 69
BalonParca AdiParca NoAdetTipApplied Date A B C
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0710- ● ● ●
53 BRACKET; HARNESS
(C) L=95 		1-82699-085-0 04 1 0710-0907 ●
53 BRACKET; HARNESS
WHEEL BASE 6500MM(65W) (C) L=95 		1-82699-085-0 04 1 0710-0907 ●
53 BRACKET; HARNESS
(C) L=95 		1-82699-085-0 04 1 0908- ●
53 BRACKET; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) L=95 		1-82699-085-0 04 1 0908- ●
53 BRACKET; HARNESS
ALLISON MD3060P A/T(Y4G) (D) 		8-98129-543-0 01 1 0809-0809 ●
53 BRACKET; HARNESS
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98129-543-0 01 1 0809-0809 ●
53 BRACKET; HARNESS
(D) 		8-98129-543-0 01 1 0809-0809 ●
53 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=55 		1-47475-304-0 01 1 0710-0711 ●
53 BRACKET; HARNESS
(C) L=55 		1-47475-304-0 01 1 0710-0711 ● ●
53 BRACKET; HARNESS
(B) 		1-47479-674-0 01 1 0710- ● ● ●
53 BRACKET; HARNESS
(A) 		8-97616-959-0 01 1 0710- ● ● ●
53 BRACKET; HARNESS
(F) 		8-97620-485-0 01 1 0710- ● ● ●
53 BRACKET; HARNESS
(E) 		8-98052-458-0 01 1 0710- ● ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) 		8-98084-590-0 01 1 0801- ● ● ●
59 BRACKET; FRAME HARNESS
(F) 		1-46147-082-0 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
WHEEL BASE 6500MM(65W) (F) 		1-46147-082-0 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
(H) L=95 		1-82699-085-0 01 1 0712-0802 ●
59 BRACKET; FRAME HARNESS
WHEEL BASE 6500MM(65W) (H) L=95 		1-82699-085-0 01 1 0712-0802 ●
59 BRACKET; FRAME HARNESS
(G) L=85 		8-98044-743-0 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
WHEEL BASE 6500MM(65W) (G) L=85 		8-98044-743-0 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 0710-0803 ● ● ●
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 0804- ● ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0710- ● ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97620-482-1 01 1 0710-0905 ● ● ●
59 BRACKET; FRAME HARNESS
(I) 		8-98107-611-0 01 1 0906- ● ● ●
59 BRACKET; FRAME HARNESS
(E) 		8-98047-730-0 02 1 0710- ● ● ●
59 BRACKET; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) 		1-21464-170-2 01 1 0710- ●
59 BRACKET; FRAME HARNESS
(B) 		1-21464-170-2 01 1 0710- ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=55 		1-47475-304-0 01 1 0712- ●
69 BRACKET; CLIP
L=55 		1-47475-304-0 01 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
