0-15B — CRANKSHAFT,PISTON AND FLYWHEEL (#411) — 69 parça

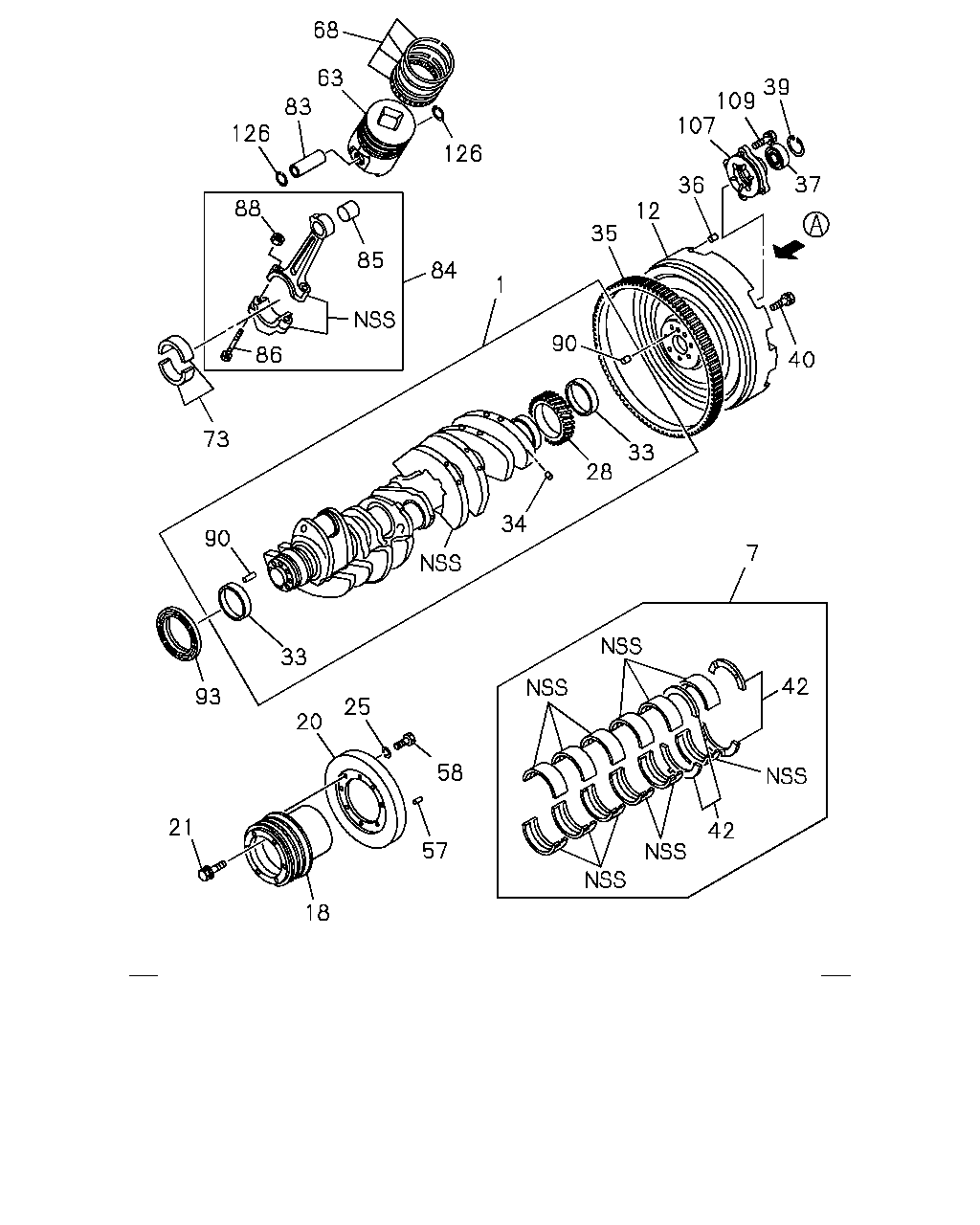

çizim 29359
68 126 63 83 126 39 37 109 36 107 12 40 35 84 85 88 86 73 1 33 90 28 90 34 33 93 21 20 25 7 42 42 58 57 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 CRANKSHAFT 1-12310-456-8 01 1 8712-9001 ●
1 CRANKSHAFT 1-12310-541-4 01 1 9002-9302 ●
1 CRANKSHAFT 1-12310-609-1 01 1 9303- ●
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-052-0 01 1 8712-9001 ●
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-068-0 01 1 9002-9405 ●
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-088-0 01 1 9406-9601 ●
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-096-0 01 1 9602-9605 ●
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-099-1 01 1 9606- ●
12 FLYWHEEL 1-12331-138-0 01 1 8712-8901 ●
12 FLYWHEEL
17 INCH CLUTCH(RF3) 		1-12331-258-2 01 1 8902-9001 ●
12 FLYWHEEL
EXC. 17 INCH CLUTCH(RF3) 		1-12331-138-0 01 1 8902-9001 ●
12 FLYWHEEL 1-12331-258-4 01 1 9002- ●
18 PULLEY; CR/SHF
3-GROOVE 		1-12371-222-0 01 1 8712- ● ●
20 DAMPER; CR/SHF 1-12375-129-0 01 1 8712-8807 ●
20 DAMPER; CR/SHF 1-12375-148-0 01 1 8808-9001 ●
20 DAMPER; CR/SHF 1-12375-141-1 01 1 9002- ●
21 BOLT; PULLEY FIX
M18X42 W/WASHER 		1-12334-016-1 06 1 8712- ● ●
25 WASHER; DAMPER
ID=12.5 		9-09851-682-0 08 1 8712- ● ●
28 GEAR; CR/SHF
Z=48 		1-12521-012-1 01 1 8712- ● ●
33 RING; WEAR,CR/SHF 1-12315-018-0 02 1 8712-9302 ● ●
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 8712- ● ●
35 GEAR; RING
Z=164 		1-12333-019-0 01 1 8712- ● ●
36 PIN; FLYWHEEL
OD=10 L=20 		9-08151-020-0 02 1 8902-9010 ● ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 9011- ●
37 BEARING; PILOT,TOP GEAR SHAFT 1-09800-200-0 01 1 8712- ● ●
39 RING; SNAP,BRG
OD=76.5 		9-09180-172-0 01 1 8712- ● ●
40 BOLT; FLYWHEEL
M18X60 W/PL WASHER 		1-12334-012-2 08 1 8712- ● ●
42 WASHER; THRUST,CR/SHF 1-11515-004-0 02 1 8712-9001 ●
42 WASHER; THRUST,CR/SHF 1-11515-041-0 02 1 9002- ●
57 PIN; PULLEY
OD=8 L=16 		9-08150-816-0 01 1 9002- ●
58 BOLT; CR/SHF PULLEY 9-02361-220-0 08 1 8712- ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		1-12111-800-0 10 1 8712-9001 ●
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		1-12111-801-0 10 1 8712-9001 ●
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		1-12111-804-0 10 1 9002-9412 ●
63 PISTON
ALSO INCLUDED IN LINER SET. EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=AX 		1-12111-804-0 10 1 9501- ●
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		1-12111-805-0 10 1 9002-9412 ●
63 PISTON
ALSO INCLUDED IN LINER SET. EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=CX 		1-12111-805-0 10 1 9501- ●
63 PISTON
ALSO INCLUDED IN LINER SET. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=AX 		1-12111-806-0 10 1 9501- ●
63 PISTON
ALSO INCLUDED IN LINER SET. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=CX 		1-12111-807-0 10 1 9501- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-063-2 10 1 8712- ● ●
73 METAL SET; CONN ROD,STANDARD 1-12271-008-0 10 1 8712-9001 ●
73 METAL SET; CONN ROD,STANDARD 1-12271-043-0 10 1 9002-9405 ●
73 METAL SET; CONN ROD,STANDARD 1-12271-067-0 10 1 9406- ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		1-12211-008-0 10 1 8712-9001 ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		1-12211-016-2 10 1 9002- ●
84 ROD ASM; CONN 1-12230-044-0 10 1 8712-9001 ●
84 ROD ASM; CONN 1-12230-138-4 10 1 9002- ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-011-0 10 1 8712-9001 ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-033-0 10 1 9002- ●
86 BOLT; CONNROD 1-12235-013-0 20 1 8712-9001 ●
86 BOLT; CONNROD 1-12235-034-2 20 1 9002- ●
88 NUT; CONNROD 1-09840-003-1 20 1 8712-9001 ●
90 PIN; FLYWHEEL & PULLEY
OD=8 L=16 		9-08150-816-0 02 1 8712- ● ●
93 THROWER; OIL,CR/SHF 1-12319-017-0 01 1 9303- ●
107 RETAINER; BRG 1-12338-006-0 01 1 8712- ● ●
109 BOLT; RET
M10X22 W/LK WASHER 		9-01931-022-0 04 1 8712-9001 ●
109 BOLT; RET
M10X20 		0-28121-020-0 04 1 9002-9002 ●
109 BOLT; RET
M10X20 FLANGE 		0-28181-020-0 04 1 9003- ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-050-0 20 1 8712-9001 ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-065-0 20 1 9002- ●
çizim 96522
117 117 116 12 19 127
BalonParca AdiParca NoAdetTipApplied Date A B
12 FLYWHEEL 1-12331-138-0 01 1 8712-8901 ●
12 FLYWHEEL
17 INCH CLUTCH(RF3) 		1-12331-258-2 01 1 8902-9001 ●
12 FLYWHEEL
EXC. 17 INCH CLUTCH(RF3) 		1-12331-138-0 01 1 8902-9001 ●
12 FLYWHEEL 1-12331-258-4 01 1 9002- ●
19 POINTER; TIMING 1-11779-029-0 01 1 8712-9001 ●
19 POINTER; TIMING 1-11779-035-2 01 1 9002- ●
116 PIN; DRIVE 1-09749-026-0 06 1 8712-9001 ●
117 SCREW; DRIVE PIN 1-09187-005-0 12 1 8712-9001 ●
127 BOLT; POINTER
M10X45 		9-01051-045-0 01 1 8712-9001 ●
