◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11425 - FVR/GVR(AUST)EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#41085) — 19 parça

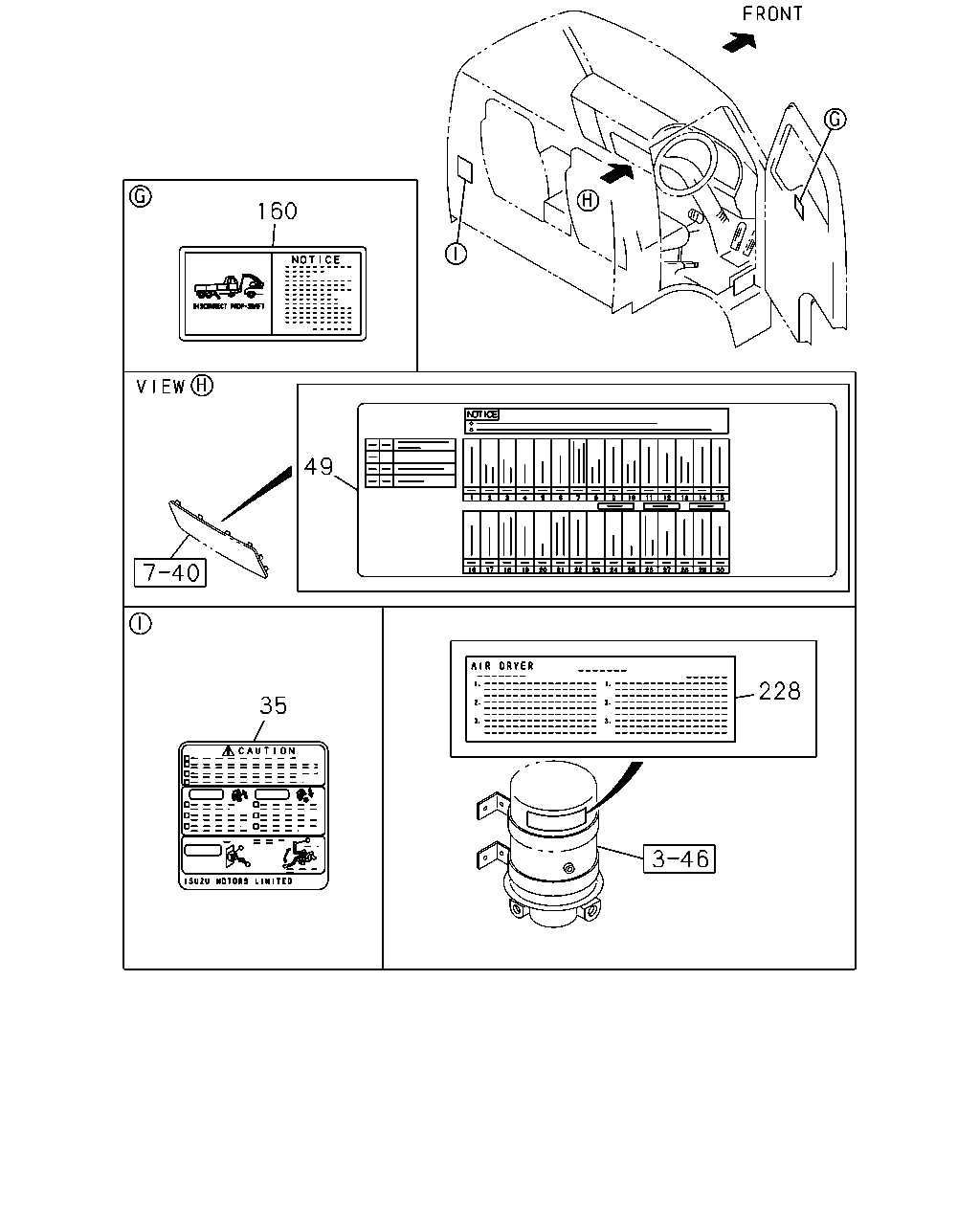

çizim 111872
160 49 228 35
BalonParca AdiParca NoAdetTipApplied Date A B C
35 PLATE; CAUTION,CAB 8-98017-667-1 01 1 0710- ● ● ●
49 PLATE; CAUTION,FUSE BOX 8-98060-853-0 01 1 0710-0805 ● ● ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 0806- ● ● ●
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) 		1-85888-737-1 01 1 0710- ● ●
228 PLATE; CAUTION,AIR DRYER 1-85887-935-0 01 1 0710-1001 ● ● ●

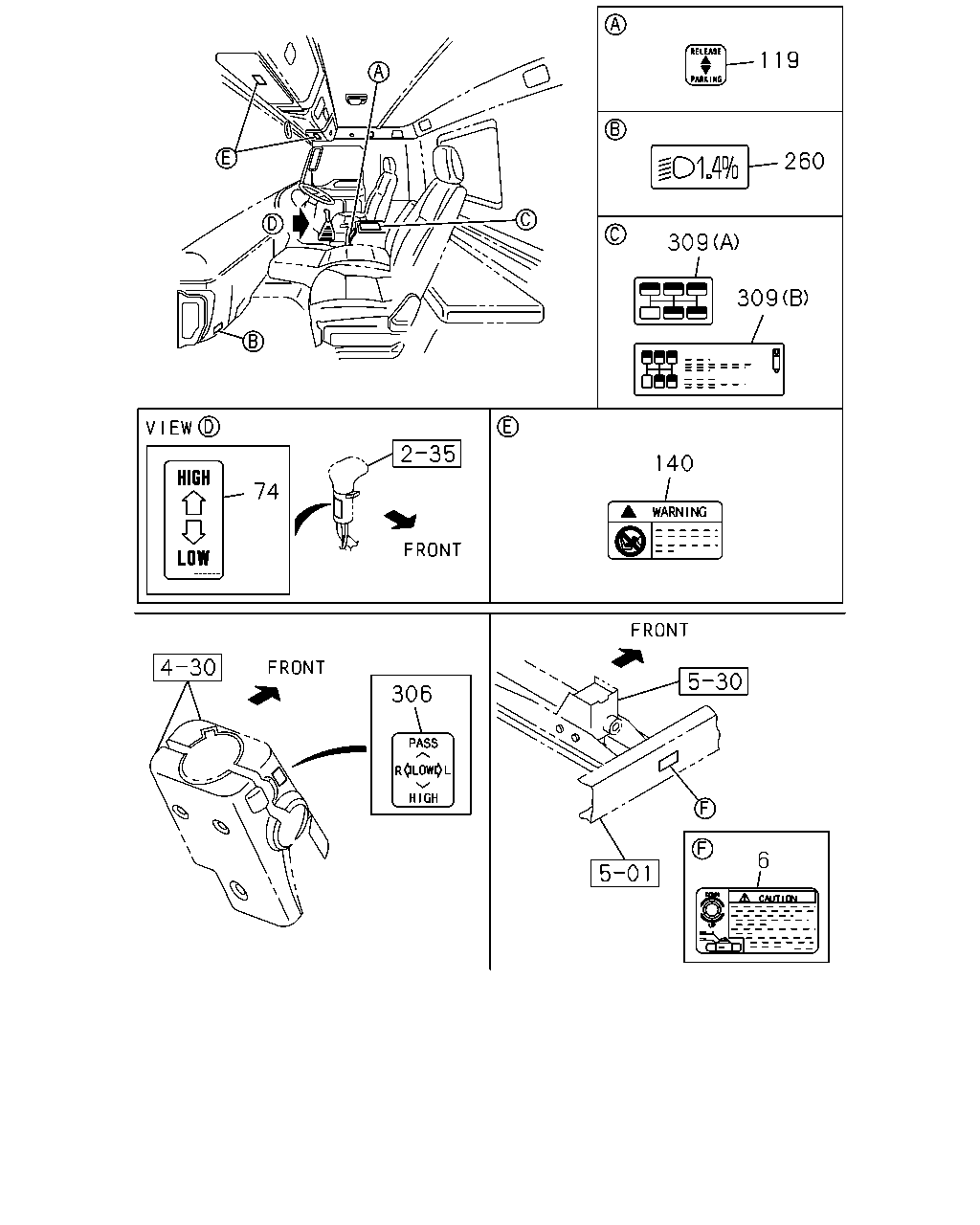

çizim 111875
119 260 309 309 140 74 306 6
BalonParca AdiParca NoAdetTipApplied Date A B C
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 0710- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> 		8-98082-437-0 01 1 0710- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 0710- ●
74 PLATE; CAUTION,CHANGE LEV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-85881-736-1 01 1 0710-0805 ●
74 PLATE; CAUTION,CHANGE LEV 1-85881-736-1 01 1 0710-0805 ●
74 PLATE; CAUTION,CHANGE LEV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98118-493-0 01 1 0806- ●
74 PLATE; CAUTION,CHANGE LEV 8-98118-493-0 01 1 0806- ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0710- ● ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 0710- ● ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 0710- ● ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0710- ● ● ●
309 LABEL; M/T SHIFT
(A) 		1-85881-598-0 01 1 0710- ●
309 LABEL; M/T SHIFT
(B) 		1-85881-599-0 01 1 0710-0710 ●
309 LABEL; M/T SHIFT
(B) 		8-98098-606-0 01 1 0710- ●
