8-16 — WIRING HARNESS CONNECTOR (#41078) — 42 parça

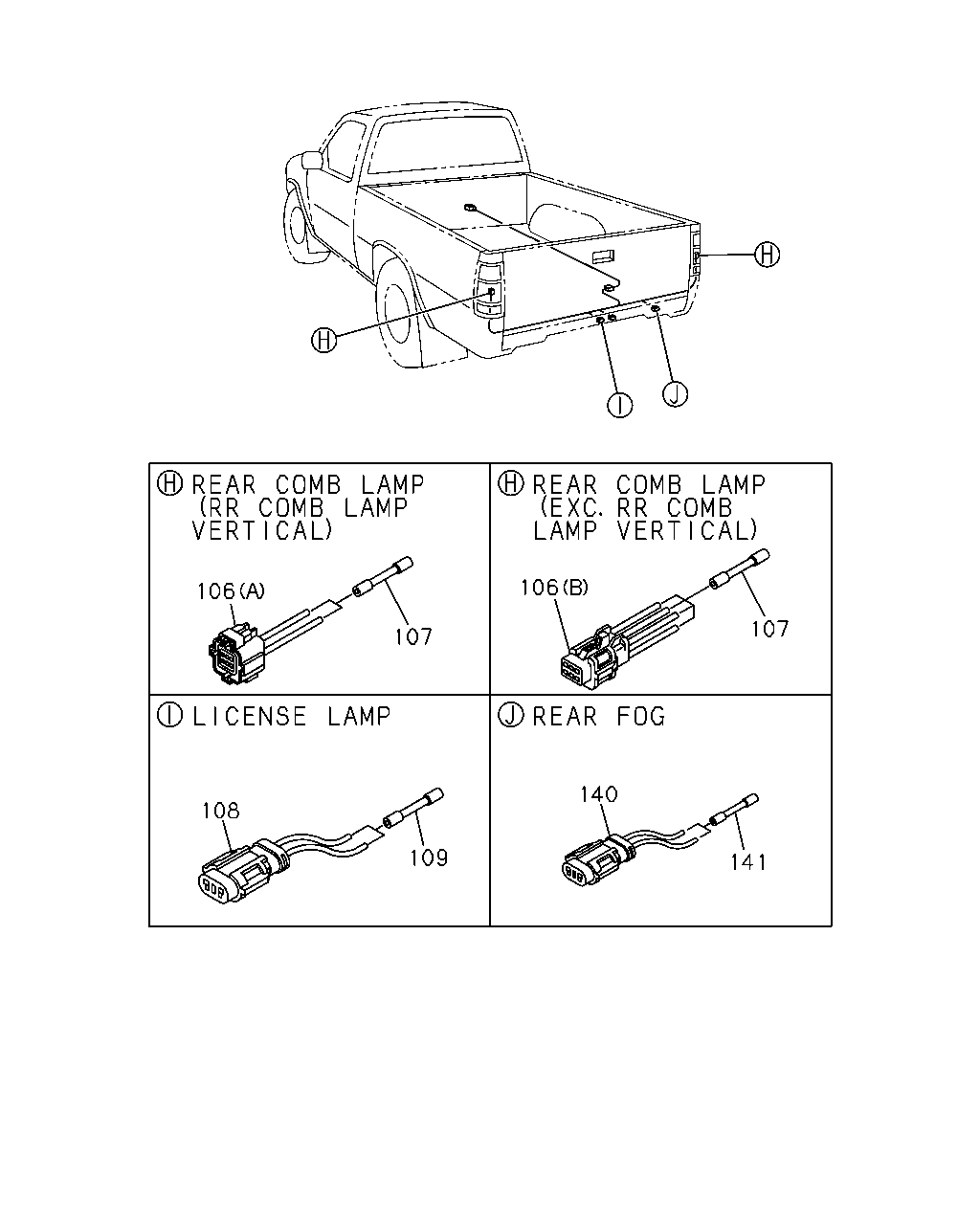

çizim 67193
106 107 106 107 140 141 109 108
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
106 02.483 CONNECTOR; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (A) 		8-97200-209-0 01 1 9712- ● ● ● ● ● ● ● ●
106 02.483 CONNECTOR; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (A) 		8-97200-210-0 01 1 9712- ● ● ● ● ● ● ● ●
106 02.483 CONNECTOR; RR COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), RR COMB LAMP VERTICAL<T98> (B) 		8-97200-213-0 01 1 9712- ● ● ● ● ● ● ● ●
106 02.483 CONNECTOR; RR COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), RR COMB LAMP VERTICAL<T98> (B) 		8-97200-215-0 01 1 9712- ● ● ● ● ● ● ● ●
106 02.483 CONNECTOR; RR COMB LAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. RR COMB LAMP VERTICAL<T98> (B) 		8-97200-211-0 01 1 9712- ● ● ● ●
106 02.483 CONNECTOR; RR COMB LAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. RR COMB LAMP VERTICAL<T98> (B) 		8-97200-212-0 01 1 9712- ● ● ● ●
107 02.483 TERMINAL; JOINT,RR COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 03 1 9712- ● ● ● ● ● ● ● ●
107 02.483 TERMINAL; JOINT,RR COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 07 1 9712- ● ● ● ● ● ● ● ●
107 02.483 TERMINAL; JOINT,RR COMB LAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. RR COMB LAMP VERTICAL<T98> WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 05 1 9712- ● ● ● ●
107 02.483 TERMINAL; JOINT,RR COMB LAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. RR COMB LAMP VERTICAL<T98> WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 05 1 9712- ● ● ● ●
108 02.483 CONNECTOR; LICENSE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 2P FEMALE BLACK 		8-97169-948-0 02 1 9712- ● ● ● ● ● ●
108 02.483 CONNECTOR; LICENSE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 2P FEMALE BLACK 		8-97169-948-0 01 1 9712- ● ● ● ● ● ●
108 02.483 CONNECTOR; LICENSE LAMP
2P FEMALE BLACK 		8-97169-948-0 01 1 9712- ● ●
109 02.483 TERMINAL; JOINT,LICENSE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 04 1 9712- ● ● ● ● ● ●
109 02.483 TERMINAL; JOINT,LICENSE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712- ● ● ● ● ● ●
109 02.483 TERMINAL; JOINT,LICENSE LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712- ● ●
140 02.483 CONNECTOR; RR FOG LAMP
RR FOG LAMP<T79> 2P FEMALE BLACK 		8-97169-948-0 01 1 9712- ● ● ● ●
141 02.483 TERMINAL; JOINT,RR FOG LAMP
RR FOG LAMP<T79> WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712- ● ● ● ●

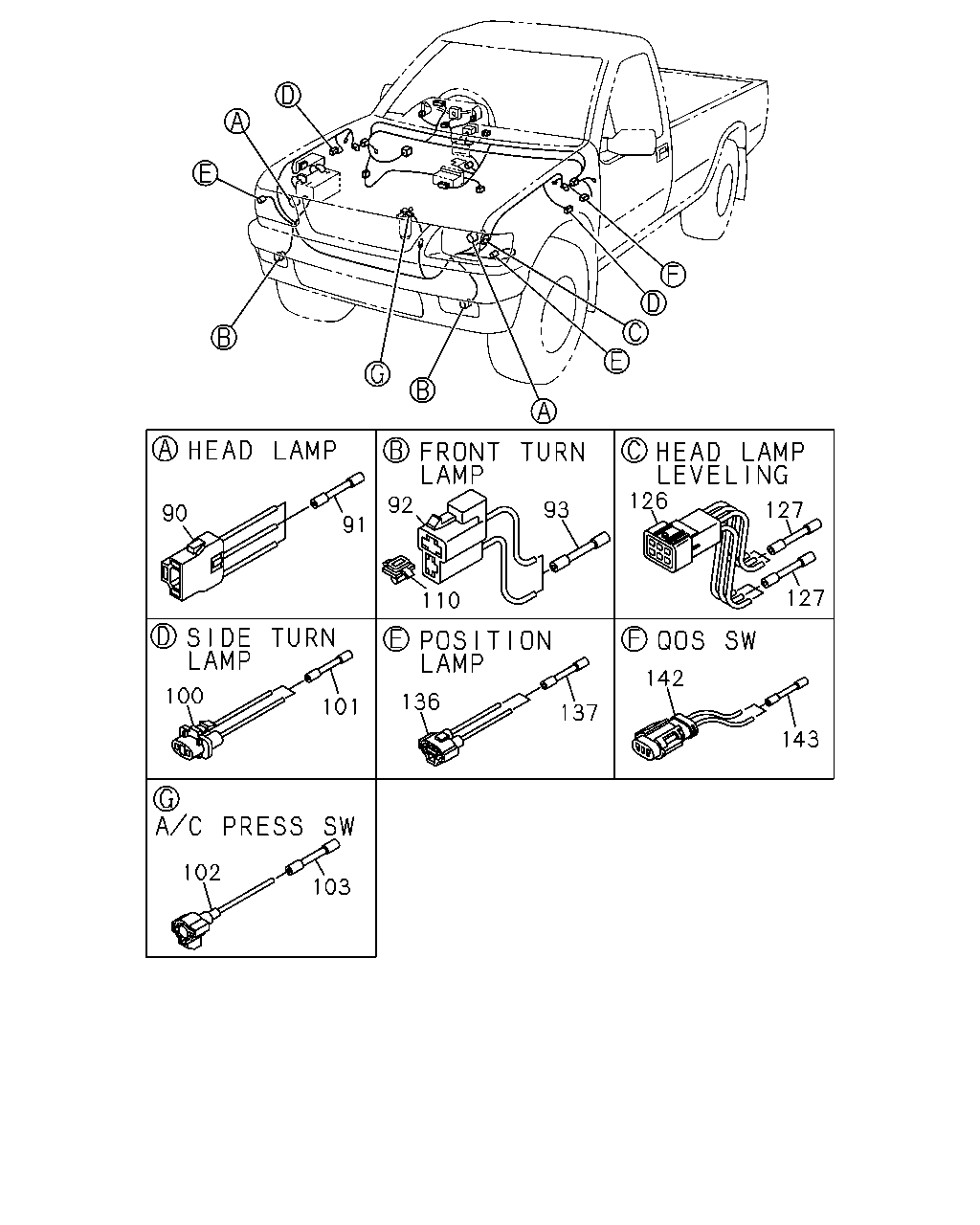

çizim 71011
91 90 92 110 93 126 127 127 142 137 136 101 100 103 102 143
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
90 02.483 CONNECTOR; HEAD LAMP 8-97200-201-0 01 1 9712- ● ● ● ● ● ● ● ●
90 02.483 CONNECTOR; HEAD LAMP 8-97200-202-0 01 1 9712- ● ● ● ● ● ● ● ●
91 02.483 TERMINAL; JOINT,HEAD LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712- ● ● ● ● ● ● ● ●
91 02.483 TERMINAL; JOINT,HEAD LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 07 1 9712- ● ● ● ● ● ● ● ●
92 02.483 CONNECTOR; FRT TURN LAMP 8-97192-985-0 02 1 9712- ● ● ● ● ● ● ● ●
93 02.483 TERMINAL; JOINT,FRT TURN LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712- ● ● ● ● ● ● ● ●
93 02.483 TERMINAL; JOINT,FRT TURN LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 02 1 9712- ● ● ● ● ● ● ● ●
100 02.483 CONNECTOR; SIDE TURN LAMP 8-97174-886-0 02 1 9712- ● ● ● ● ● ● ● ●
101 02.483 TERMINAL; JOINT,SIDE TURN LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712- ● ● ● ● ● ● ● ●
101 02.483 TERMINAL; JOINT,SIDE TURN LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 02 1 9712- ● ● ● ● ● ● ● ●
102 02.483 CONNECTOR; A/C PRESS SW
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97174-883-0 01 1 9712- ● ● ● ● ● ● ● ●
103 02.483 TERMINAL; JOINT,A/C PRESS SW
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712- ● ● ● ● ● ● ● ●
110 02.483 CLIP; CONNECTOR
02.559 L=15 		8-94315-436-1 02 1 9712- ● ● ● ● ● ● ● ●
126 02.483 CONNECTOR; HEAD LAMP LEVELING
UNITED KINGDOM EQUIPMENT(EK3) 		8-97200-614-0 02 1 9712- ● ● ● ●
127 02.483 TERMINAL; JOINT,HEAD LAMP LEVELI
UNITED KINGDOM EQUIPMENT(EK3) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 12 1 9712- ● ● ● ●
136 02.483 CONNECTOR; POSITION LAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97200-205-0 02 1 9712- ● ● ● ● ● ● ● ●
136 02.483 CONNECTOR; POSITION LAMP
6VD1 ENG(RLV) 		8-97200-203-0 01 1 9712- ● ● ● ●
136 02.483 CONNECTOR; POSITION LAMP
6VD1 ENG(RLV) 		8-97200-204-0 01 1 9712- ● ● ● ●
137 02.483 TERMINAL; JOINT,POSITION LAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712- ● ● ● ● ● ● ● ●
137 02.483 TERMINAL; JOINT,POSITION LAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 02 1 9712- ● ● ● ● ● ● ● ●
137 02.483 TERMINAL; JOINT,POSITION LAMP
6VD1 ENG(RLV) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 03 1 9712- ● ● ● ●
137 02.483 TERMINAL; JOINT,POSITION LAMP
6VD1 ENG(RLV) WIRE SIZE=2.0 USE TIN PLATE 		8-97169-475-0 01 1 9712- ● ● ● ●
142 02.483 CONNECTOR; QOS SW
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 2P FEMALE BLACK 		8-97169-948-0 01 1 9712- ● ● ● ●
143 02.483 TERMINAL; JOINT,QOS SW
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712- ● ● ● ●
