8-15 — FIXING PARTS; WIRING HARNESS (#41077) — 370 parça

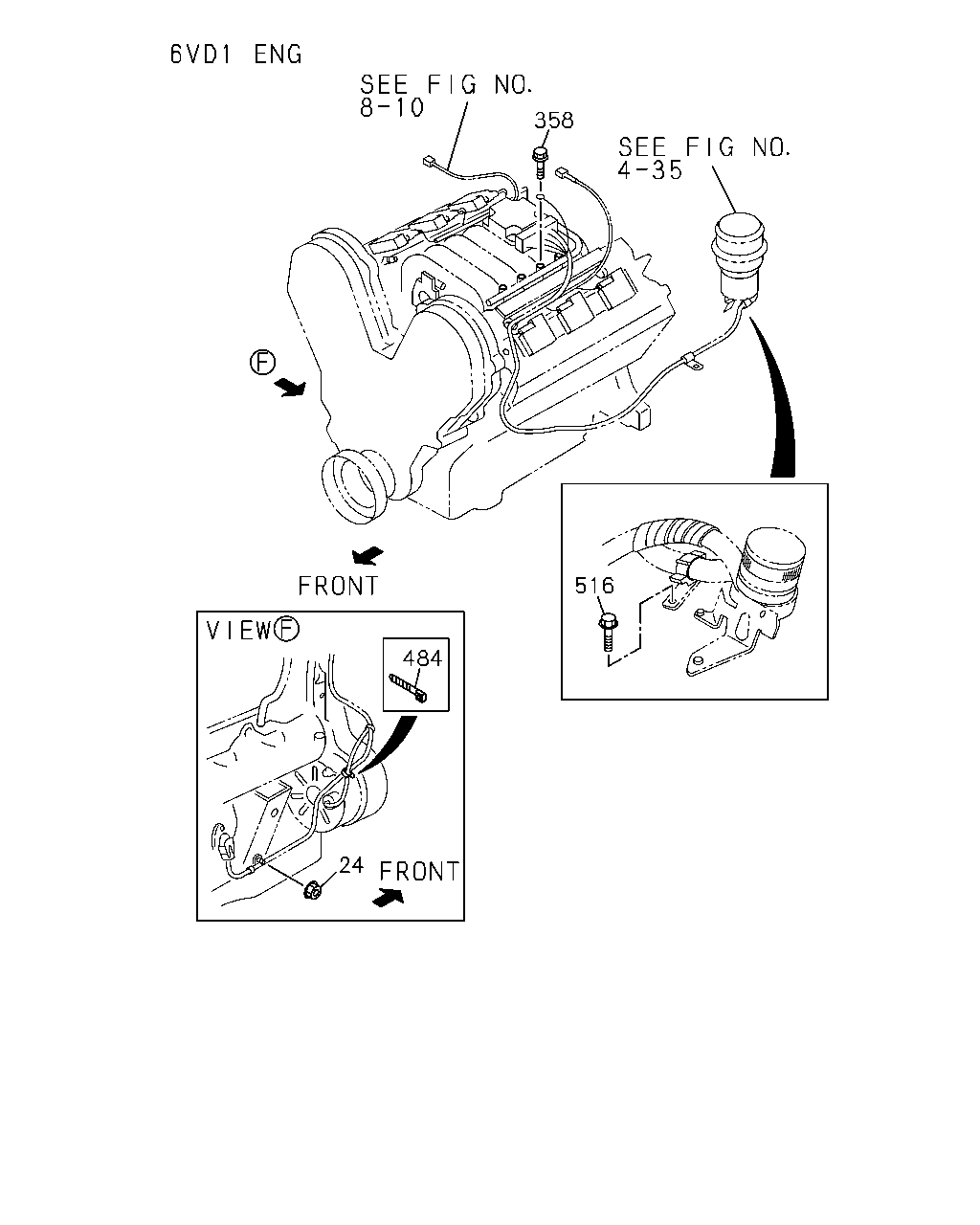

çizim 18699
358 516 484 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
24 02.559 NUT; HARNESS
6VD1 ENG(RLV) 07.833 M8 W/LK WASHER 		8-94327-073-0 01 1 9712- ● ● ● ●
358 02.480 BOLT; EARTH
6VD1 ENG(RLV) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9712- ● ● ● ●
484 02.559 CLIP; ECGI HARNESS TO C/MBR
6VD1 ENG(RLV) 04.594 L=100 		5-09707-036-0 03 1 9712- ● ● ● ●
516 02.559 BOLT; HARNESS
6VD1 ENG(RLV) 08.155 M8X16 FLANGE 		0-28480-816-0 01 1 9712- ● ● ● ●

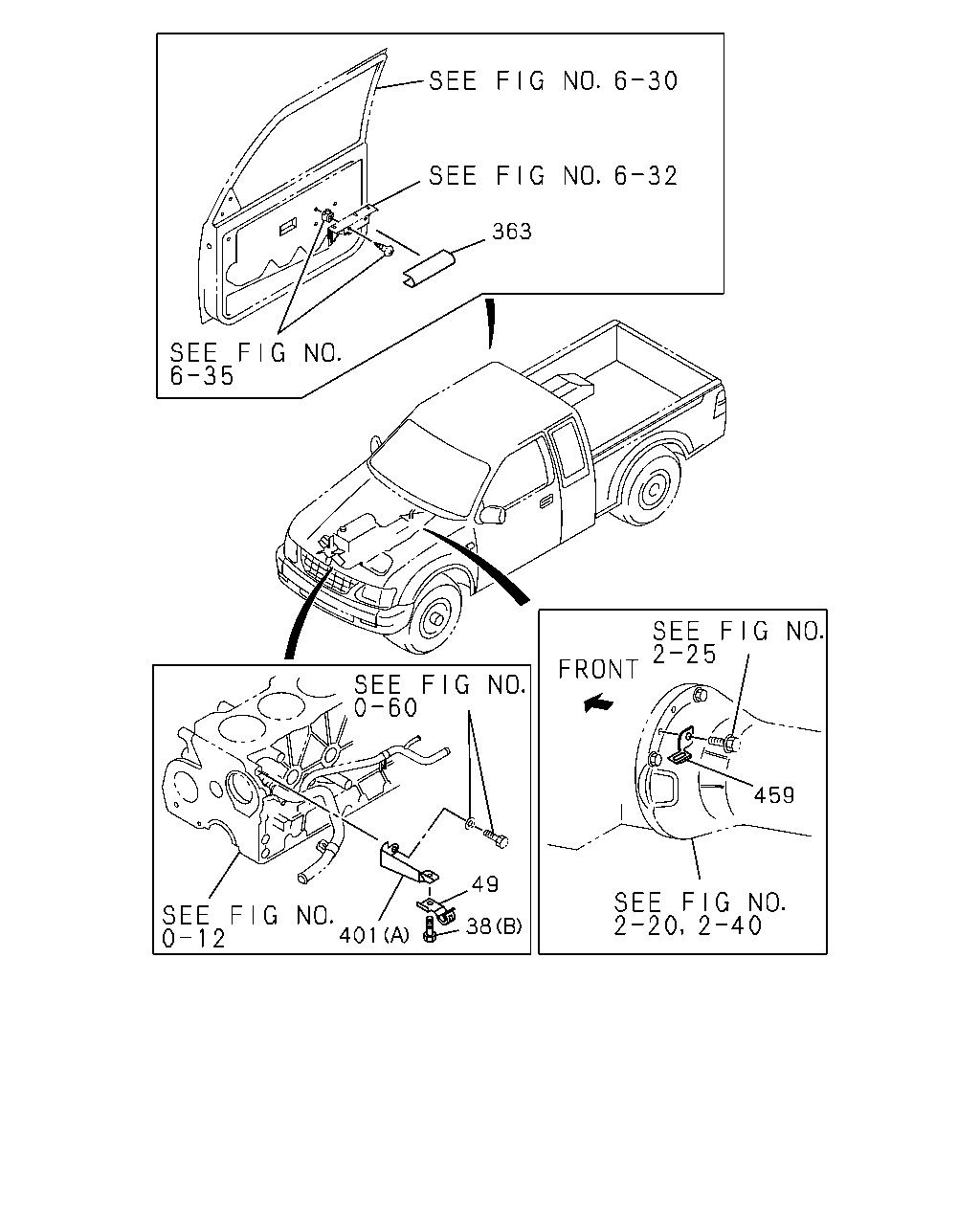

çizim 19765
363 459 49 38 401
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9611-9612 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9701- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9612- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 03.704 (B) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), COOLER WO/HEATER(YL1) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9611-9611 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9611-9611 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9612-9702 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9703- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) EXC. COOLER WO/HEATER(YL1) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9703- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9712- ● ●
49 02.559 CLIP; GEN HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94319-607-0 01 1 9611- ● ● ● ● ● ● ● ●
363 16.085 FINISHER; PROTECTOR
POWER WINDOW<A30> 16.570 SERVICED BY L=190 		1-71998-300-0 02 1 9611- ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94330-360-1 01 1 9611- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9611- ● ● ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1 ENG(RLE) TURBOCHARGER<K51> 		8-94315-284-0 01 1 9611- ● ● ● ● ● ●

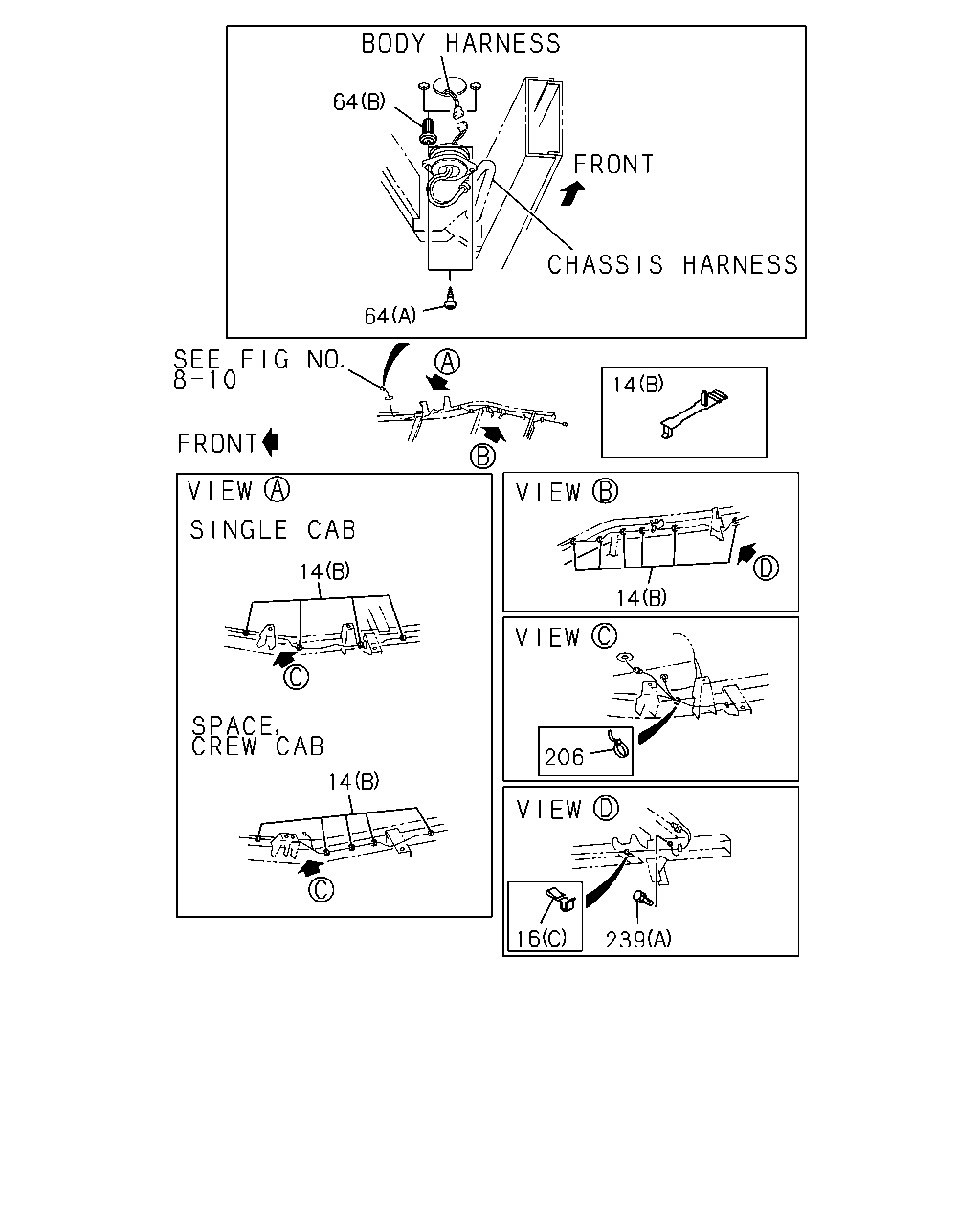

çizim 70165
14 64 64 14 14 16 239 206 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-1 02 1 9611- ● ● ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9611- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 08 1 9611- ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9611- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9611- ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9611-9702 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), COOLER WO/HEATER(YL1) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9703- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 		8-94457-053-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) L=60 		8-94457-053-0 02 1 9611- ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9611-9704 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9611- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (F) L=100 		5-09707-036-1 01 1 9611- ● ● ●
64 02.559 SCREW; CLIP
10.240 (A) M5X14 		8-94120-095-0 02 1 9611- ● ● ● ● ● ● ● ●
64 02.559 SCREW; CLIP
02.679 (B) D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 9611- ● ● ● ● ● ● ● ●
206 02.559 CLIP; FUEL TANK HARNESS
03.162 L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9611- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9611- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
6VD1 ENG(RLV) (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9712- ● ● ● ●

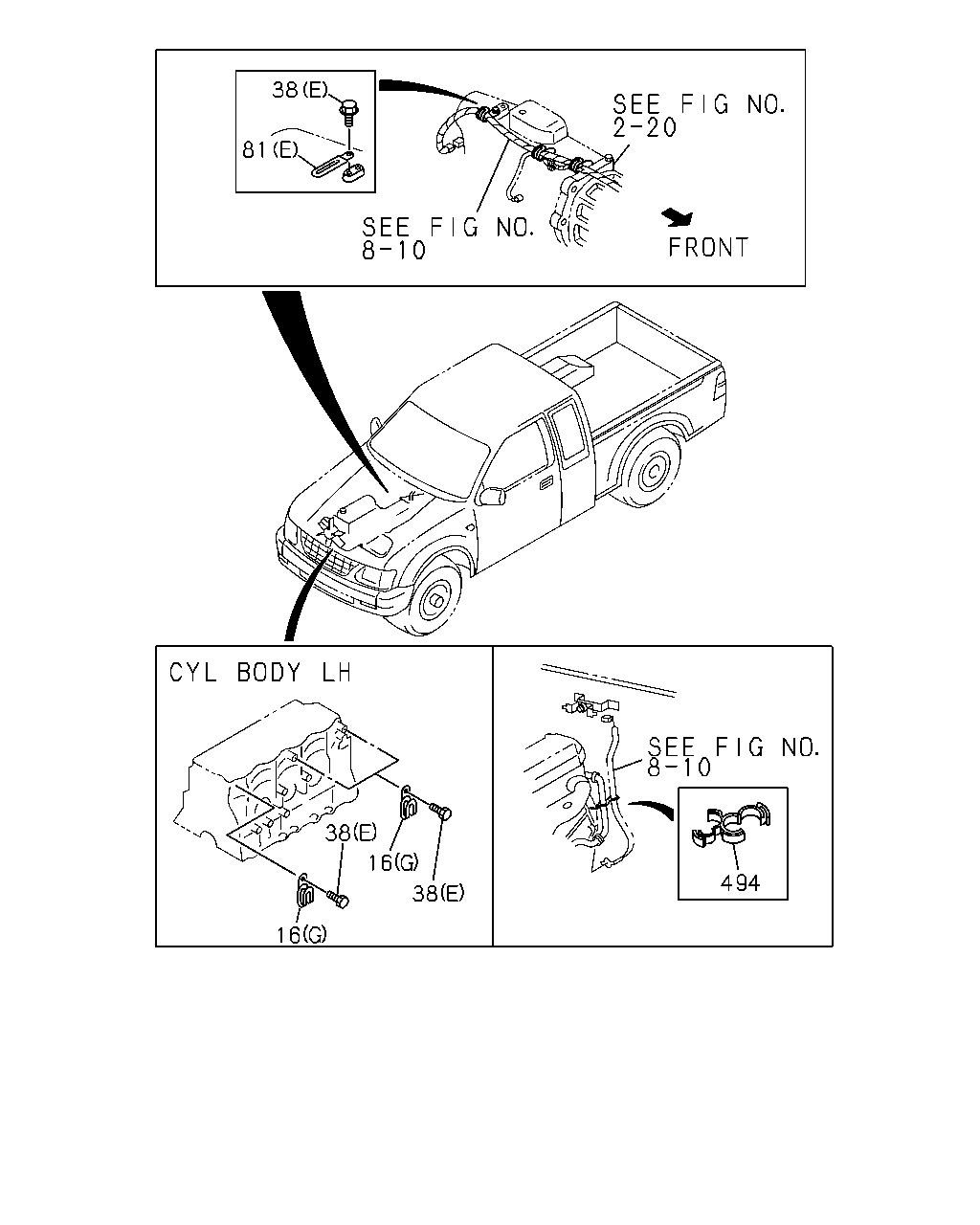

çizim 70166
38 81 38 16 38 16 494
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9611-9702 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), COOLER WO/HEATER(YL1) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9703- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 		8-94457-053-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) L=60 		8-94457-053-0 02 1 9611- ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9611-9704 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9611- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (F) L=100 		5-09707-036-1 01 1 9611- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9611-9612 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9701- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9612- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 03.704 (B) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), COOLER WO/HEATER(YL1) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9611-9611 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9611-9611 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9612-9702 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9703- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) EXC. COOLER WO/HEATER(YL1) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9703- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9712- ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9611- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
(B) ID=21 & 21 		8-97136-392-0 01 1 9611- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 04.661 (C) ID=14.5 & 6 		8-94312-791-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 04.661 (C) ID=14.5 & 6 		8-94312-791-0 01 1 9612- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
4ZE1 ENG(RLJ) A/T AISIN(RMD) 03.162 (D) L=140 		5-09707-031-1 03 1 9611- ● ● ●
81 02.483 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.446 (E) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9611- ● ● ● ●
494 02.559 CLIP; BONDING CABLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.242 ID=12.5 & 24 		5-09709-034-0 01 1 9611- ● ● ● ● ● ● ● ●

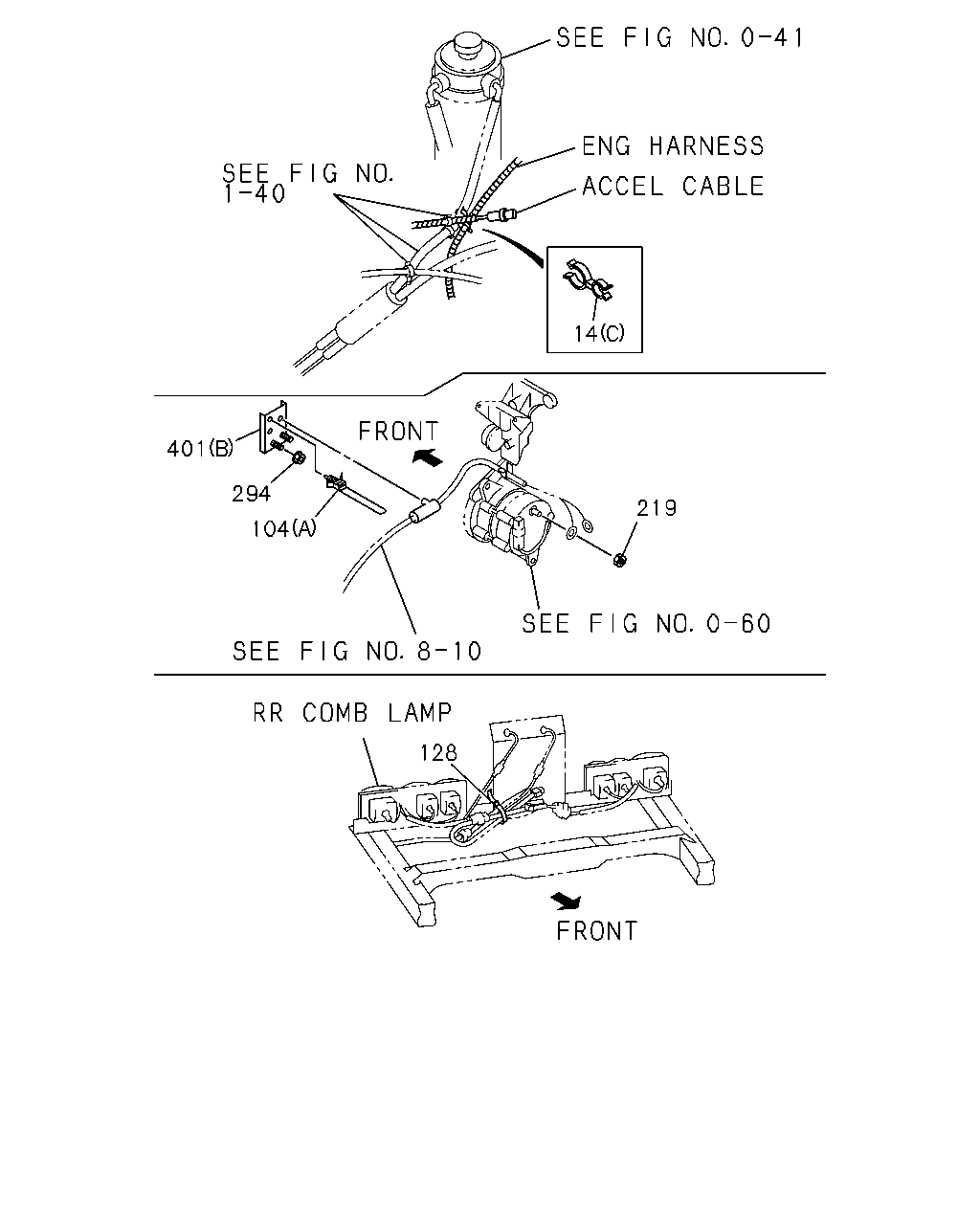

çizim 70201
14 401 294 104 219 128
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-1 02 1 9611- ● ● ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9611- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 08 1 9611- ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9611- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9611- ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (C) L=172 		8-94232-620-0 02 1 9611- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.587 (A) L=112 		8-94232-618-0 01 1 9611- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9611- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZE1 ENG(RLJ) A/T AISIN(RMD) (B) L=142 		8-94232-619-0 01 1 9611- ● ● ●
128 02.559 CLIP; COMB SW HARNESS,STRG COLUM
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDE LO CK INNER & OUTER HOOK(7TM) L=250 		5-09707-030-1 01 1 9611- ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9611- ● ● ● ● ● ● ● ●
294 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9611- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94330-360-1 01 1 9611- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9611- ● ● ● ● ● ● ● ●

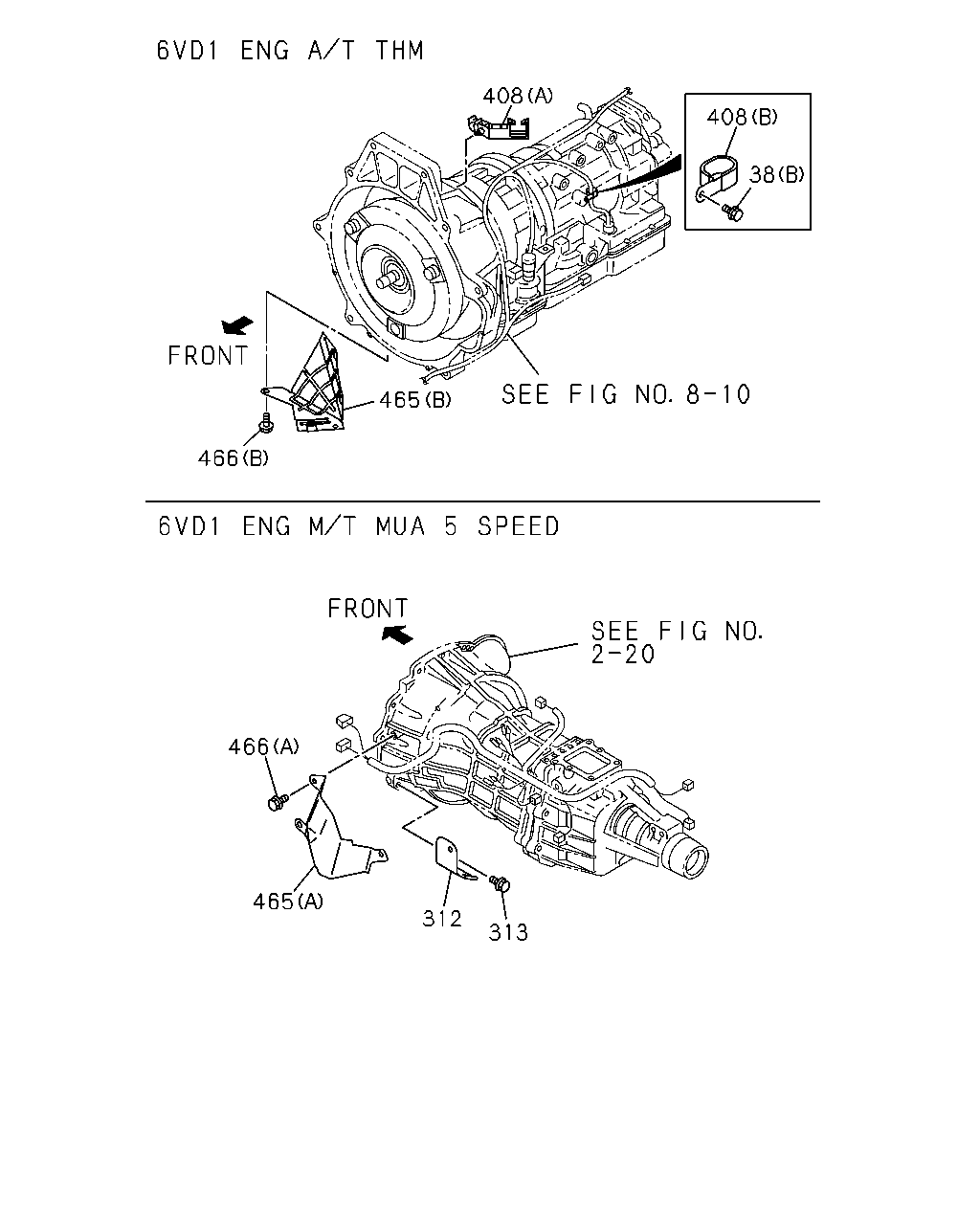

çizim 70202
465 466 408 408 38 466 465 312 313
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9611-9612 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9701- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9612- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 03.704 (B) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), COOLER WO/HEATER(YL1) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9611-9611 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9611-9611 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9612-9702 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9703- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) EXC. COOLER WO/HEATER(YL1) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9703- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9712- ● ●
312 02.559 BRACKET; CLIP HARNESS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-94359-008-1 01 1 9712- ● ● ● ●
313 02.559 BOLT; BRKT
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 01.271 M8X40 FLANGE 		0-28080-840-0 01 1 9712- ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (C) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9611- ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (A) 		8-97180-221-0 01 1 9712- ● ●
408 02.559 CLIP; TRANS HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 00.785 (B) ID=16 		9-09525-522-0 01 1 9712- ● ●
465 02.483 PROTECTOR; HEAT,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) 		8-97169-910-0 01 1 9712- ● ●
465 02.483 PROTECTOR; HEAT,HARNESS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (A) 		8-97108-280-0 01 1 9712- ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
6VD1 ENG(RLV) A/T THM(RMQ) 04.439 (B) M6X16 FLANGE 		0-28680-616-0 02 1 9712- ● ●
466 02.483 BOLT; HEAT PROTECTOR
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 01.428 (A) M6X12 FLANGE 		0-28080-612-0 03 1 9712- ● ● ● ●

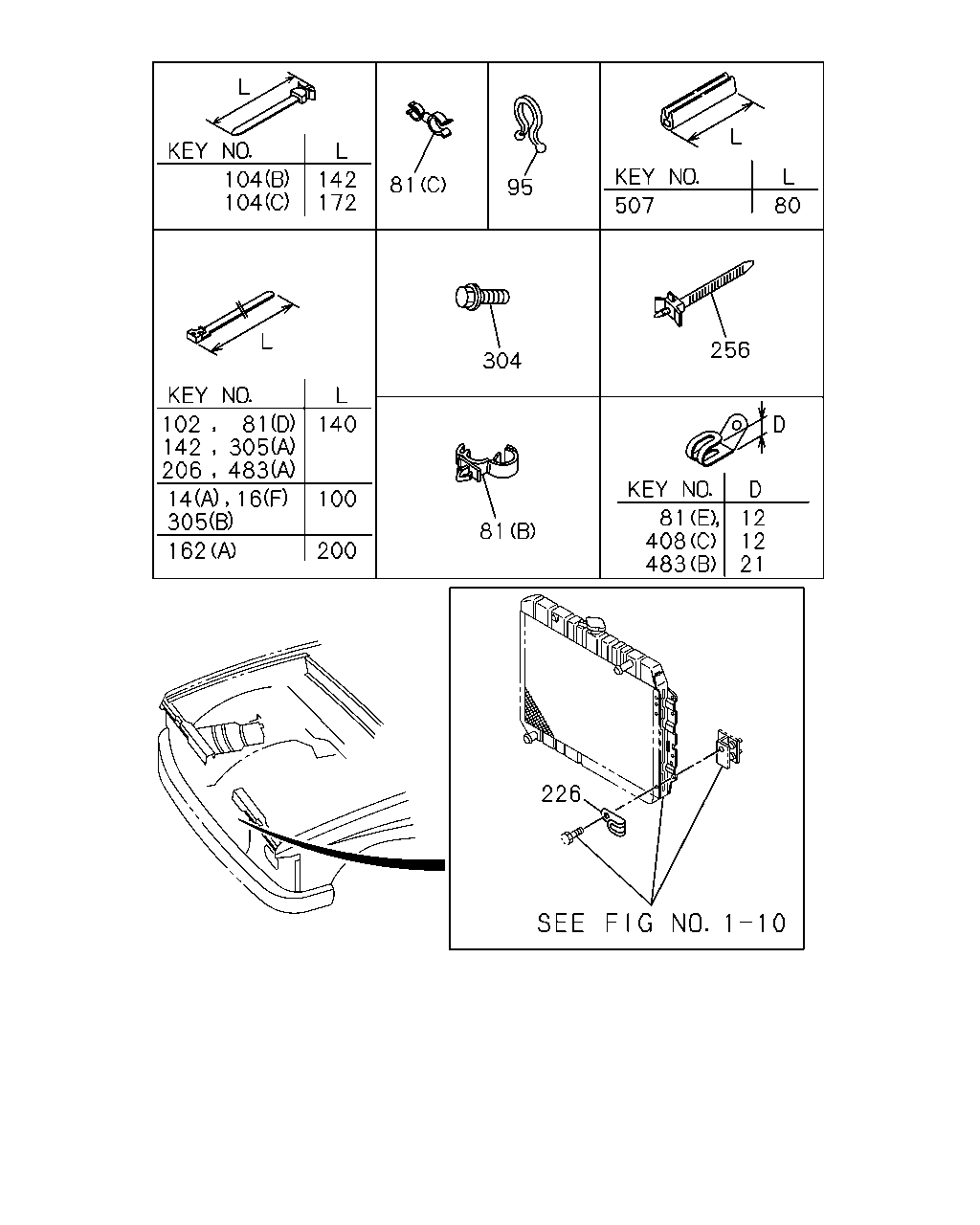

çizim 70238
81 304 256 95 81 104 104 507 81 408 483 226 162 305 14 206 142 102 81 305 483 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-1 02 1 9611- ● ● ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9611- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 08 1 9611- ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9611- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9611- ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9611-9702 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), COOLER WO/HEATER(YL1) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9703- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 		8-94457-053-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) L=60 		8-94457-053-0 02 1 9611- ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9611-9704 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9611- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (F) L=100 		5-09707-036-1 01 1 9611- ● ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9611- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
(B) ID=21 & 21 		8-97136-392-0 01 1 9611- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 04.661 (C) ID=14.5 & 6 		8-94312-791-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 04.661 (C) ID=14.5 & 6 		8-94312-791-0 01 1 9612- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
4ZE1 ENG(RLJ) A/T AISIN(RMD) 03.162 (D) L=140 		5-09707-031-1 03 1 9611- ● ● ●
81 02.483 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.446 (E) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9611- ● ● ● ●
95 02.559 CLIP; CABLE
4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 02.480 ID=25 		8-94120-831-0 01 1 9611- ● ● ● ●
102 02.559 CLIP; BAND
INST PANEL FOR DIN E SIZE AUDIO(7QL) 03.162 L=140 		5-09707-031-1 01 1 9704- ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (C) L=172 		8-94232-620-0 02 1 9611- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.587 (A) L=112 		8-94232-618-0 01 1 9611- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9611- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZE1 ENG(RLJ) A/T AISIN(RMD) (B) L=142 		8-94232-619-0 01 1 9611- ● ● ●
142 02.559 CLIP; HARNESS,ENG
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ● ● ●
162 02.559 CLIP; SW HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 01.152 (B) ID=8.5 		5-09700-275-0 02 1 9712- ● ●
162 02.559 CLIP; SW HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.430 (A) L=200 		8-94464-835-0 01 1 9712- ● ●
206 02.559 CLIP; FUEL TANK HARNESS
03.162 L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ● ● ●
226 02.559 CLIP; RAD HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 ID=18 L=44 		8-94225-185-0 01 1 9611- ● ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
EXC. UNITED KINGDOM EQUIPMENT(EK3) L=135 		8-94473-399-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
EXC. UNITED KINGDOM EQUIPMENT(EK3) L=135 		8-94473-399-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
L=135 		8-94473-399-0 01 1 9712- ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
M/T MSG 5 SPEED(M75),A/T AISIN(RMD) ,M/T MUA 5 SPEED(RMN) L=135 		8-94473-399-0 01 1 9712- ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) L=135 		8-94473-399-0 01 1 9712- ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9611-9711 ● ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9611-9711 ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 9611- ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 (A) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 04.594 (B) L=100 		5-09707-036-1 01 1 9611- ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (C) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9611- ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (A) 		8-97180-221-0 01 1 9712- ● ●
408 02.559 CLIP; TRANS HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 00.785 (B) ID=16 		9-09525-522-0 01 1 9712- ● ●
483 02.559 CLIP; ENG HARNESS
4JB1 ENG(RLF) (B) ID=21 L=47.5 		8-94178-108-0 01 1 9611- ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 03.162 (A) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
507 02.559 FINISHER
08.228 L=80 SERVICED BY L=240 		1-71998-400-0 01 1 9611- ● ● ● ● ● ● ● ●
çizim 70242
115 16 183 16 81 74 74 74 74 523 74 81 115 183 523 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9611-9702 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), COOLER WO/HEATER(YL1) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9703- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 		8-94457-053-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) L=60 		8-94457-053-0 02 1 9611- ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9611-9704 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9611- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (F) L=100 		5-09707-036-1 01 1 9611- ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-94138-987-0 13 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 11 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-94138-987-0 11 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 09 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 08 1 9611- ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 06 1 9611- ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 06 1 9611- ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 01 1 9611-9611 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 01 1 9611-9611 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 17 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 17 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 17 1 9611-9611 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 15 1 9611- ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9611- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
(B) ID=21 & 21 		8-97136-392-0 01 1 9611- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 04.661 (C) ID=14.5 & 6 		8-94312-791-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 04.661 (C) ID=14.5 & 6 		8-94312-791-0 01 1 9612- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
4ZE1 ENG(RLJ) A/T AISIN(RMD) 03.162 (D) L=140 		5-09707-031-1 03 1 9611- ● ● ●
81 02.483 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.446 (E) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9611- ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> ID=12 		8-94423-045-0 02 1 9611- ● ● ● ● ● ●
183 02.559 CLIP; CONNECTOR
POWER WINDOW<A30> L=15 		8-94315-436-1 02 1 9611- ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> 13.090 ID=9 		8-94177-914-0 02 1 9611- ● ● ● ● ● ●

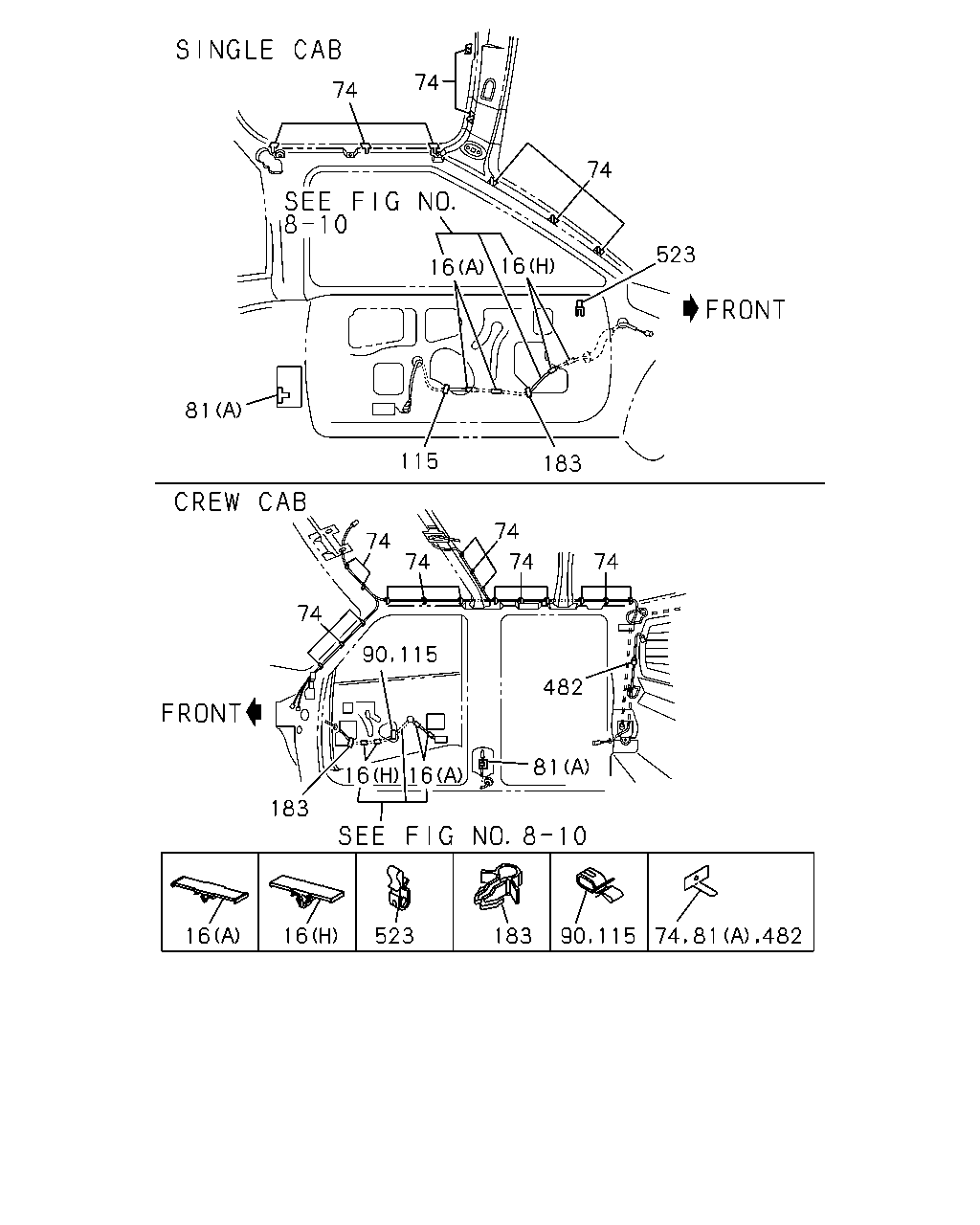

çizim 70376
183 115 81 74 74 74 523 16 16 90 115 482 81 183 16 16 523 183 90 115 74 81 482 74 74 74 74 74 74 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9611-9702 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), COOLER WO/HEATER(YL1) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9703- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 		8-94457-053-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) L=60 		8-94457-053-0 02 1 9611- ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9611-9704 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9611- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (F) L=100 		5-09707-036-1 01 1 9611- ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-94138-987-0 13 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 11 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-94138-987-0 11 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 09 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 08 1 9611- ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 06 1 9611- ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 06 1 9611- ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 01 1 9611-9611 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 01 1 9611-9611 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 17 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 17 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 17 1 9611-9611 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 15 1 9611- ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9611- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
(B) ID=21 & 21 		8-97136-392-0 01 1 9611- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 04.661 (C) ID=14.5 & 6 		8-94312-791-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 04.661 (C) ID=14.5 & 6 		8-94312-791-0 01 1 9612- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
4ZE1 ENG(RLJ) A/T AISIN(RMD) 03.162 (D) L=140 		5-09707-031-1 03 1 9611- ● ● ●
81 02.483 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.446 (E) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9611- ● ● ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> ID=12 		8-94423-045-0 02 1 9611- ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> ID=12 		8-94423-045-0 04 1 9611-9612 ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> 13.090 ID=9 		8-94177-914-0 04 1 9701- ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> ID=12 		8-94423-045-0 02 1 9611- ● ● ● ● ● ●
183 02.559 CLIP; CONNECTOR
POWER WINDOW<A30> L=15 		8-94315-436-1 02 1 9611- ● ● ● ● ● ●
482 02.559 CLIP; RR DEFOGGER HARNESS
REAR DEFOGGER<C49> 02.480 		8-94138-987-0 02 1 9611- ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> 13.090 ID=9 		8-94177-914-0 02 1 9611- ● ● ● ● ● ●

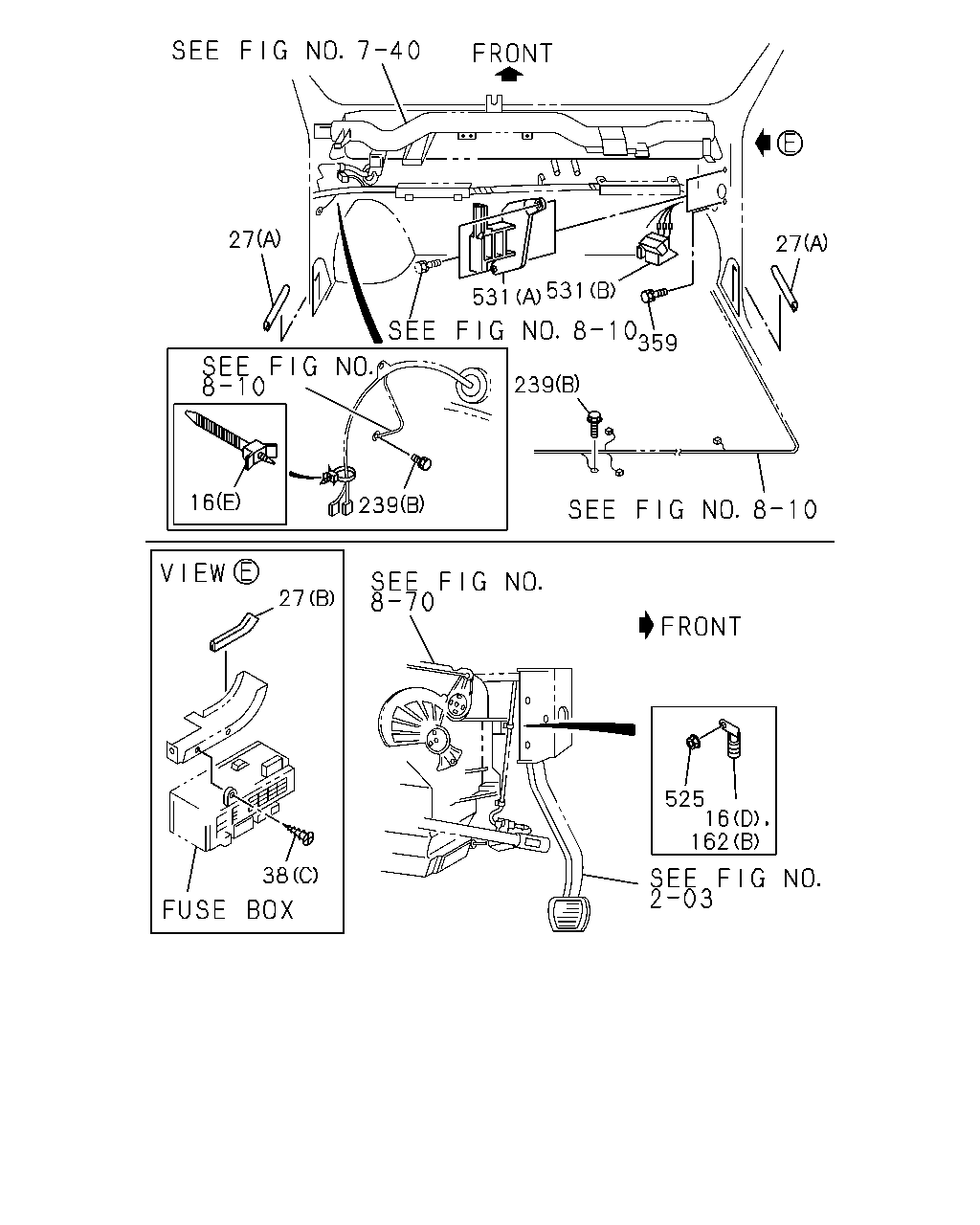

çizim 70377
27 531 531 27 16 239 239 359 525 16 162 38 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9611-9702 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), COOLER WO/HEATER(YL1) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9703- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 		8-94457-053-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) L=60 		8-94457-053-0 02 1 9611- ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9611-9704 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9611- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (F) L=100 		5-09707-036-1 01 1 9611- ● ● ●
27 02.559 PROTECTOR; EDGE
03.162 (B) 		8-97069-335-0 01 1 9611- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
POWER WINDOW<A30> 16.550 (A) 		1-71997-513-1 02 1 9611-9612 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
16.550 (A) 		1-71997-513-1 02 1 9701- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
EXC. POWER WINDOW<A30> 16.550 (A) 		1-71997-513-1 01 1 9611-9612 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
16.550 (A) 		1-71997-513-1 01 1 9611-9612 ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9611-9612 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9701- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9612- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 03.704 (B) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), COOLER WO/HEATER(YL1) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9611-9611 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9611-9611 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9612-9702 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9703- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) EXC. COOLER WO/HEATER(YL1) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9703- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9712- ● ●
162 02.559 CLIP; SW HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 01.152 (B) ID=8.5 		5-09700-275-0 02 1 9712- ● ●
162 02.559 CLIP; SW HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.430 (A) L=200 		8-94464-835-0 01 1 9712- ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9611- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9611- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
6VD1 ENG(RLV) (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9712- ● ● ● ●
359 02.559 BOLT; HOLDER
03.342 M6X16 		8-97012-496-0 01 1 9611- ● ● ● ● ● ● ● ●
525 02.559 NUT; CLIP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER W O/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 02 1 9611- ● ● ● ● ● ● ● ●
525 02.559 NUT; CLIP
6VD1 ENG(RLV) A/T THM(RMQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER W O/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 02 1 9611- ● ●
531 02.559 HOLDER
(A) 		8-97110-110-1 01 1 9611- ● ● ● ● ● ● ● ●
531 02.559 HOLDER
(B) 		8-97132-324-1 01 1 9611- ● ● ● ● ● ● ● ●
çizim 72140
16 178 104 38 38 529 508 21 104
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9611-9702 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), COOLER WO/HEATER(YL1) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9703- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 		8-94457-053-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) L=60 		8-94457-053-0 02 1 9611- ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9611-9704 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9705- ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9611- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (F) L=100 		5-09707-036-1 01 1 9611- ● ● ●
21 02.483 BRACKET; ENG HARNESS
6VD1 ENG(RLV) 		8-97108-281-0 01 1 9712- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9611-9612 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9701- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 01 1 9612- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 03.704 (B) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), COOLER WO/HEATER(YL1) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9611-9611 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9611-9611 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9612-9702 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9703- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) EXC. COOLER WO/HEATER(YL1) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9703- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9712- ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (C) L=172 		8-94232-620-0 02 1 9611- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.587 (A) L=112 		8-94232-618-0 01 1 9611- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9611- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZE1 ENG(RLJ) A/T AISIN(RMD) (B) L=142 		8-94232-619-0 01 1 9611- ● ● ●
178 02.559 GROMMET; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. AIR CONDITIONER MANUAL CONT(C60) 16.550 OD=12 		9-09956-122-0 01 1 9611- ● ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 16.550 OD=12 		9-09956-122-0 01 1 9611- ● ● ● ● ● ● ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
6VD1 ENG(RLV) 03.670 M6X20 FLANGE 		0-28080-620-0 01 1 9712- ● ● ● ●
529 02.559 BOLT; RELAY BOX
6VD1 ENG(RLV) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
