◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50725 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#41076) — 166 parça
çizim 19763
38 237 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 02.480 HARNESS; CHAS
EXC. UNITED KINGDOM EQUIPMENT(EK3), ELECTRIC FUEL INJECTION<6GG> 		8-97139-745-2 01 1 9611- ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
HONG KONG EQUIPMENT(PQ1) 		8-97139-745-2 01 1 9611- ● ● ●
38 02.480 HARNESS; CHAS
4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 		8-97149-572-2 01 1 9611- ● ● ● ● ● ●
38 02.480 HARNESS; CHAS 8-97139-744-2 01 1 9611- ● ●
38 02.480 HARNESS; CHAS
6VD1 ENG(RLV) 		8-97178-830-0 01 1 9712- ● ● ● ●
38 02.480 HARNESS; CHAS
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1) 		8-97139-746-2 01 1 9611- ● ● ●
38 02.480 HARNESS; CHAS
UNITED KINGDOM EQUIPMENT(EK3) 		8-97139-746-2 01 1 9611- ●
237 02.630 CABLE; BONDING,EXH PIPE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94318-797-0 01 1 9611- ● ● ● ●
239 02.559 BOLT; BONDING CABLE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 9611- ● ● ● ●

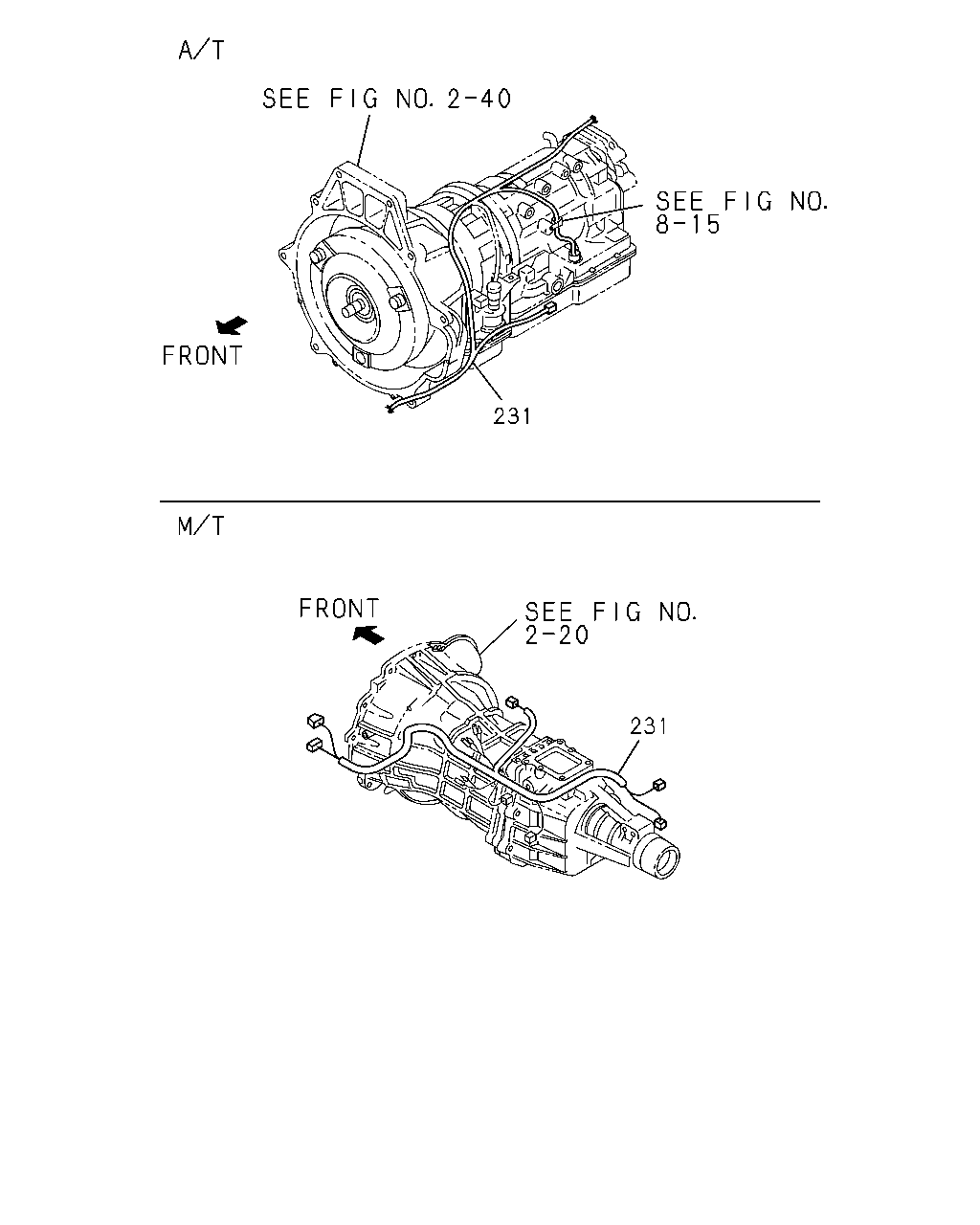

çizim 19764
231 231
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
231 02.480 HARNESS; TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 		8-97165-600-0 01 1 9611- ● ● ● ●
231 02.480 HARNESS; TRANS
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-97166-003-0 01 1 9611- ● ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) A/T THM(RMQ) 		8-97186-419-0 01 1 9712-9801 ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) A/T THM(RMQ) 		8-97203-082-0 01 1 9802- ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) 		8-97186-416-0 01 1 9712- ● ● ● ●
231 02.480 HARNESS; TRANS
4ZE1 ENG(RLJ) 		8-97166-002-0 01 1 9611- ● ● ●
231 02.480 HARNESS; TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) 		8-97165-601-0 01 1 9611- ● ● ●
231 02.480 HARNESS; TRANS
4ZD1 ENG(LW3) M/T MUA 5 SPEED(RMN) 		8-97166-004-0 01 1 9611- ● ● ●

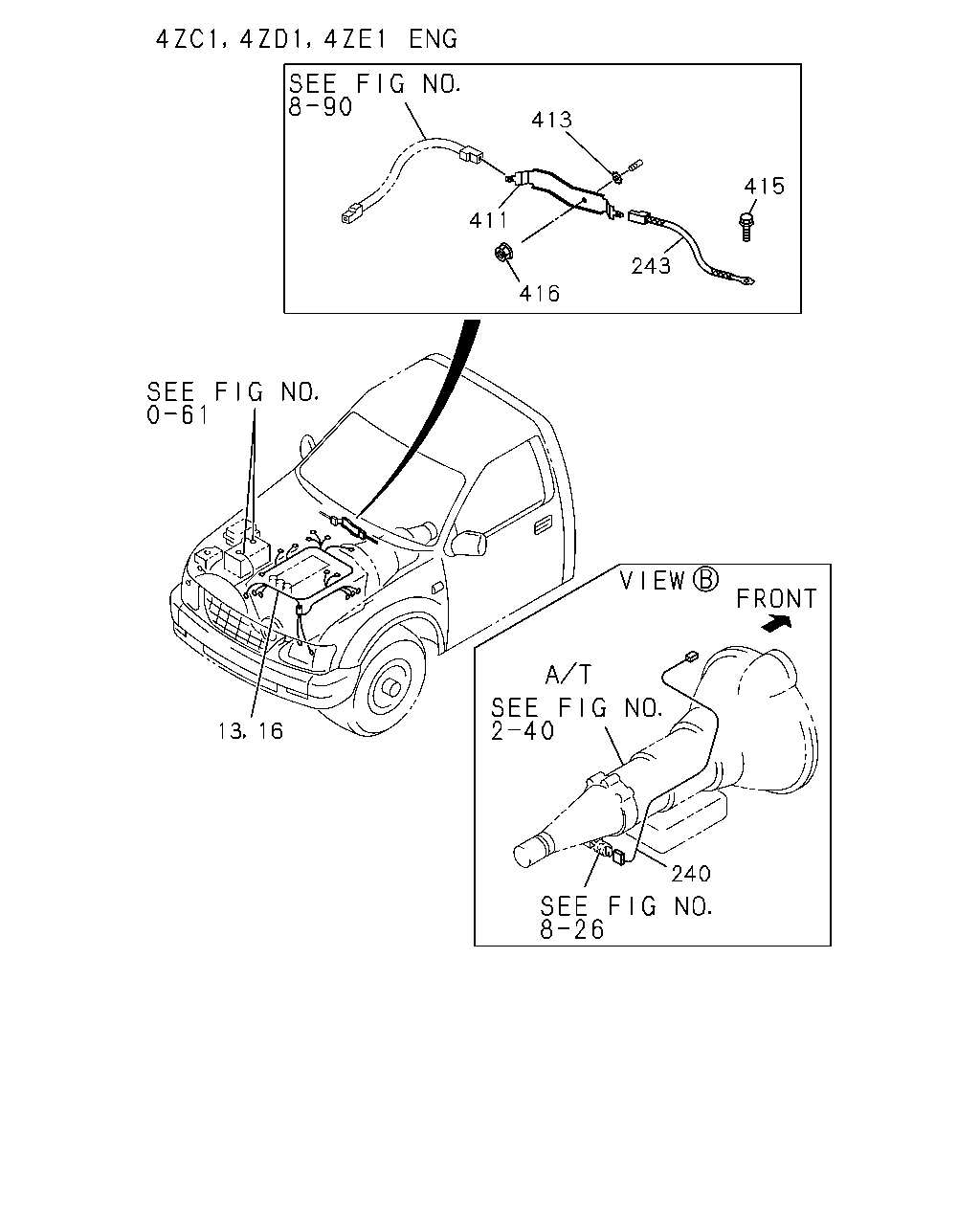

çizim 67354
240 13 16 411 416 243 413 415
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97165-597-2 01 1 9611- ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 		8-97165-646-2 01 1 9611-9802 ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D) 		8-97165-646-2 01 1 9803- ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97165-596-1 01 1 9611- ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97172-586-2 01 1 9803- ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 		8-97111-272-0 01 1 9611- ● ● ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) 		8-97180-303-4 01 1 9712- ● ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) 		8-97180-043-4 01 1 9712- ● ● ● ●
240 02.480 HARNESS; SPD INDICATOR
4ZE1 ENG(RLJ) A/T AISIN(RMD) 		8-97132-648-1 01 1 9611- ● ● ●
243 02.480 CABLE; BONDING,TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94389-187-0 01 1 9611- ● ● ● ● ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-97116-129-0 01 1 9611- ● ● ● ● ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
6VD1 ENG(RLV) 02.530 		8-94102-644-0 01 1 9712- ● ● ● ●
413 02.559 WASHER; LK,TERMINAL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.002 ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 9611- ● ● ● ● ● ● ● ●
415 02.559 BOLT; CABLE,BONDING
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9611- ● ● ● ● ● ● ● ●
416 02.559 NUT; TERMINAL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 07.829 M6 FLANGE 		5-09440-004-0 01 1 9611- ● ● ● ● ● ● ● ●

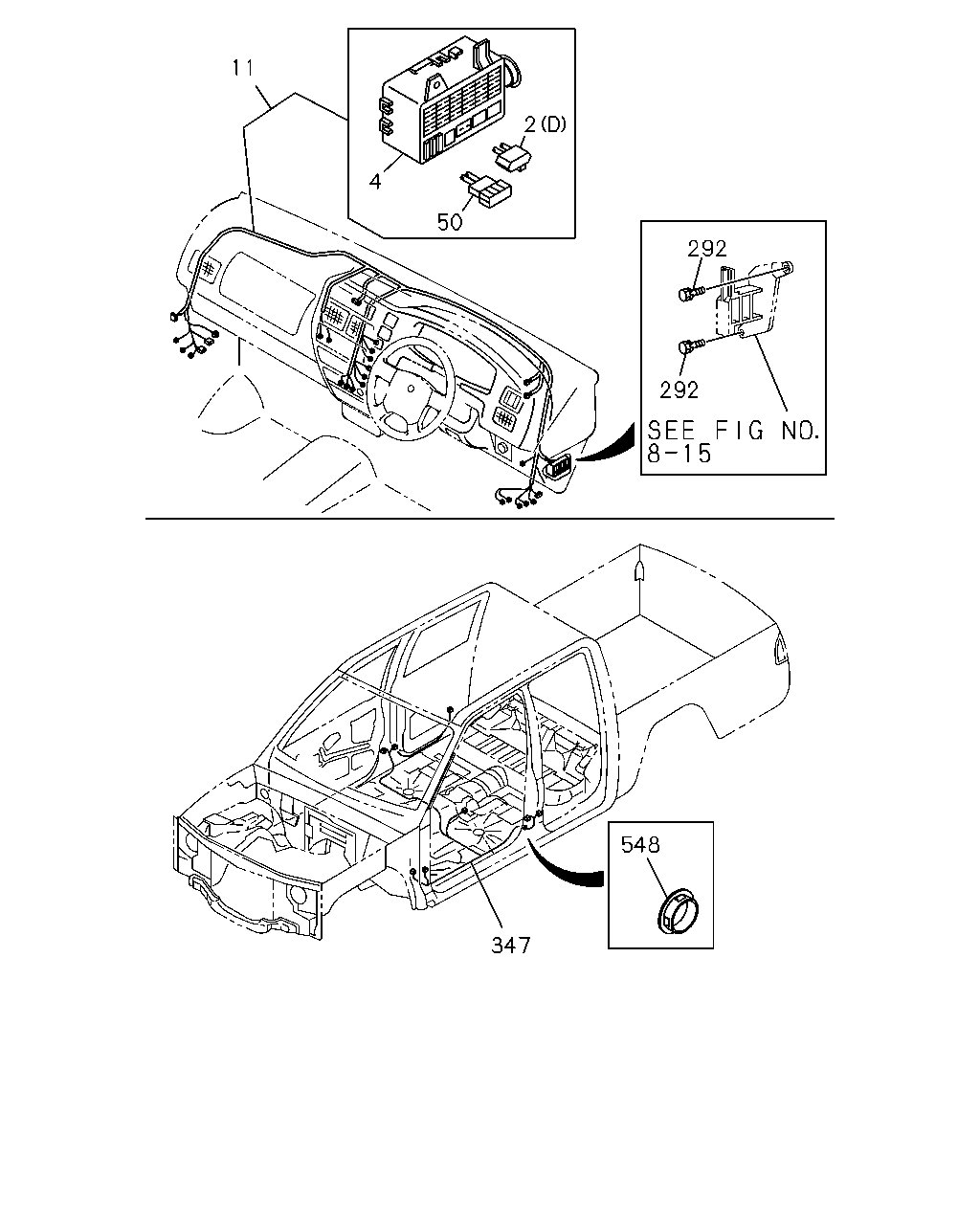

çizim 70007
292 292 50 2 4 11 347 548
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 02.483 DIODE; CABLE HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9611- ● ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9611- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (C) BLACK 4P-1.5A 		8-94381-730-0 01 1 9611- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
UNITED KINGDOM EQUIPMENT(EK3) (D) BLACK 2P-2.0A 		8-97138-524-0 02 1 9611- ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 9611- ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 9611- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97110-111-3 01 1 9611- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW<A30> 		8-97165-628-0 01 1 9611-9711 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW<A30> 		8-97178-675-3 01 1 9712- ● ● ● ●
11 02.480 HARNESS; BODY
GRADE LS(RBD) EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49>,UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) 		8-97165-631-0 01 1 9611- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
GRADE LS(RBD) 		8-97165-631-0 01 1 9611- ●
11 02.480 HARNESS; BODY
POWER WINDOW<A30> AUSTRALIA EQUIPMENT(RR3) 		8-97165-627-0 01 1 9611-9711 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) POWER WINDOW<A30> AUSTRALIA EQUIPMENT(RR3) 		8-97178-674-4 01 1 9712- ● ● ● ●
11 02.480 HARNESS; BODY
POWER WINDOW<A30> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97165-630-0 01 1 9611- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER WINDOW<A30> AUSTRALIA EQUIPMENT(RR3) 		8-97165-627-1 01 1 9712- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
REAR DEFOGGER<C49> NEW ZEALAND EQUIPMENT(PK5) 		8-97165-635-0 01 1 9611-9702 ● ● ●
11 02.480 HARNESS; BODY
REAR DEFOGGER<C49> NEW ZEALAND EQUIPMENT(PK5) EXC. POWER WINDOW<A30> 		8-97165-635-0 01 1 9703- ● ● ●
11 02.480 HARNESS; BODY
4JB1 ENG(RLF),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW<A30> 		8-97165-628-1 01 1 9712- ● ●
11 02.480 HARNESS; BODY
4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW<A30> 		8-97165-628-1 01 1 9712- ● ● ● ●
11 02.480 HARNESS; BODY
GRADE STD(RBA) 		8-97165-632-0 01 1 9611- ●
11 02.480 HARNESS; BODY
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97165-632-0 01 1 9611- ● ● ● ●
11 02.480 HARNESS; BODY 8-97165-632-0 01 1 9611- ●
11 02.480 HARNESS; BODY
GRADE STD(RBA) AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW<A30> 		8-97165-629-0 01 1 9611-9711 ● ● ● ●
11 02.480 HARNESS; BODY
4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE STD(RBA) AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW<A30> 		8-97165-629-0 01 1 9712- ● ● ● ●
11 02.480 HARNESS; BODY
UNITED KINGDOM EQUIPMENT(EK3) 		8-97165-626-2 01 1 9611- ● ● ● ●
50 08.965 FUSE; BODY HARNESS
10A MINI RED 		8-97062-022-0 AR 1 9611- ● ● ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
15A MINI BLUE 		8-97062-023-0 AR 1 9611- ● ● ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
20A MINI YELLOW 		8-97062-024-0 AR 1 9611- ● ● ● ● ● ● ● ●
292 02.483 BOLT; BOX
01.540 M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 9611-9707 ● ● ● ● ● ● ● ●
292 02.483 BOLT; BOX
09.190 M6X30 FLANGE 		0-28680-630-0 02 1 9708- ● ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97142-240-1 01 1 9611- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. POWER WINDOW<A30>,UNITED KINGDOM EQUIPMENT(EK3) 		8-97142-240-1 01 1 9611- ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(EK3) 		8-97141-738-1 01 1 9611- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
6VD1 ENG(RLV) EXC. POWER WINDOW<A30> 		8-97178-682-2 01 1 9712- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
6VD1 ENG(RLV) POWER WINDOW<A30> 		8-97178-684-1 01 1 9712- ● ●
347 02.480 HARNESS; CABLE,RR BODY
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER WINDOW<A30> 		8-97132-553-1 01 1 9611- ● ●
347 02.480 HARNESS; CABLE,RR BODY
6VD1 ENG(RLV) POWER WINDOW<A30> 		8-97178-683-1 01 1 9712- ● ●
548 02.483 GROMMET
EXC. POWER WINDOW<A30> 04.785 		8-94126-868-0 02 1 9611- ● ●

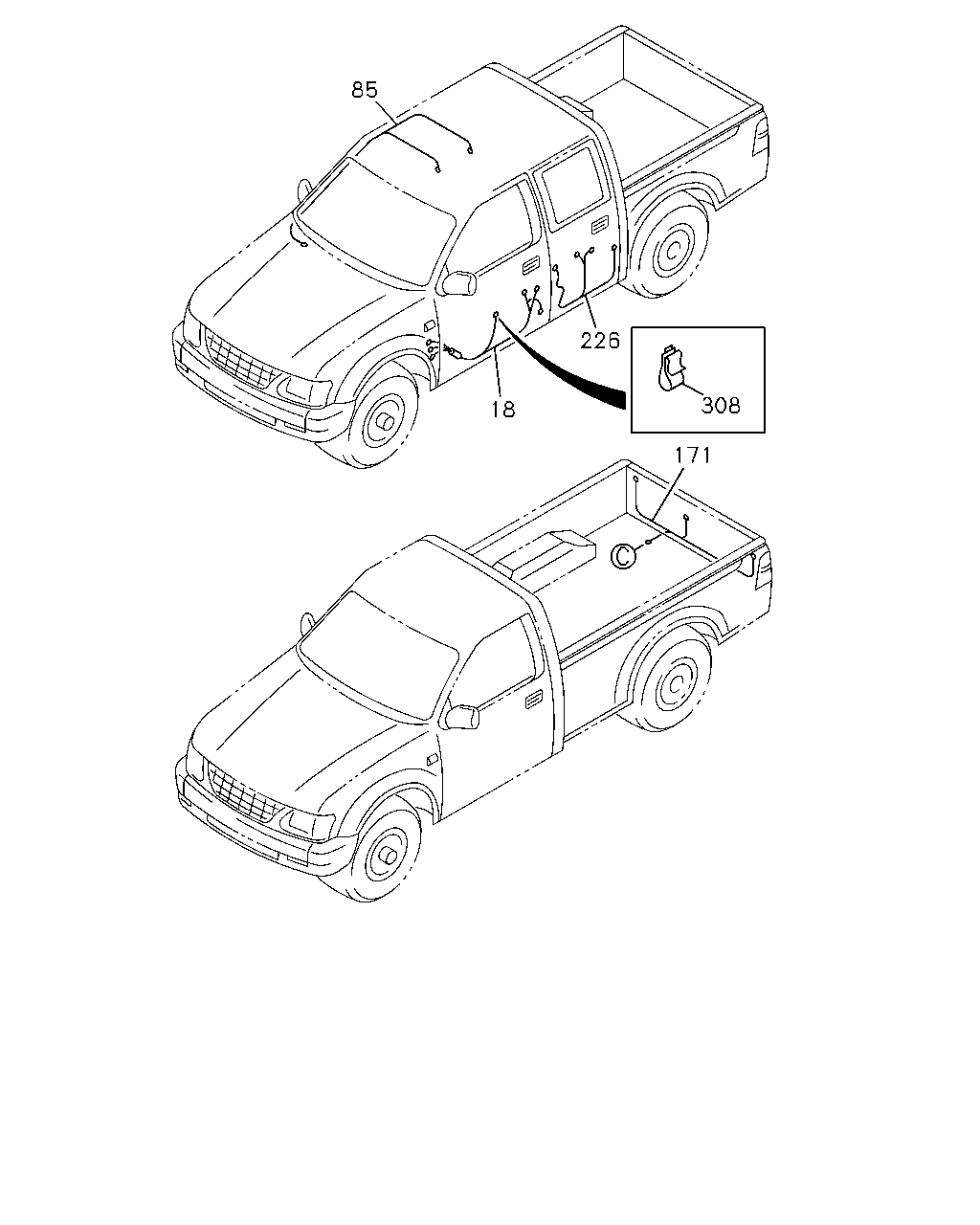

çizim 70008
85 226 18 308 171
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		8-97132-568-0 02 1 9611-9711 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR 8-97132-568-0 02 1 9611-9711 ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		8-97181-137-0 02 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR 8-97181-137-0 02 1 9712- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> 		8-97149-916-0 01 1 9611- ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> 		8-97149-916-0 01 1 9611- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> 		8-97149-915-0 01 1 9611- ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> 		8-97149-915-0 01 1 9611- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> 		8-97166-696-0 01 1 9611- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> 		8-97132-569-1 01 1 9611- ● ●
85 06.495 HARNESS; ROOM LAMP
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-97132-558-0 01 1 9611- ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-97132-666-0 01 1 9611- ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97132-666-0 01 1 9611- ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-97132-560-0 01 1 9611- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-97132-559-0 01 1 9611- ● ●
85 06.495 HARNESS; ROOM LAMP
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-97160-428-0 01 1 9611- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> 		8-97160-429-1 01 1 9611- ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-97139-705-0 01 1 9611- ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR COMB LAMP VERTICAL<T98> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97147-709-0 01 1 9611- ● ● ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR COMB LAMP VERTICAL<T98> 		8-97147-714-0 01 1 9611- ● ● ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR BODY FLAT BED<RS6> 		8-97147-714-0 01 1 9611- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
AUSTRALIA EQUIPMENT(RR3) EXC. HONG KONG EQUIPMENT(PQ1),RR BODY FLAT BED<RS6>,RR COMB LAMP VERTI CAL<T98> 		8-97147-712-0 01 1 9611- ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
HONG KONG EQUIPMENT(PQ1) EXC. RR BODY FLAT BED<RS6>,RR COMB LAMP VERTICAL<T98> 		8-97147-712-0 01 1 9611- ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
AUSTRALIA EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> 		8-97147-711-0 01 1 9611- ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
HONG KONG EQUIPMENT(PQ1) RR COMB LAMP VERTICAL<T98> 		8-97147-711-0 01 1 9611- ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
UNITED KINGDOM EQUIPMENT(EK3) RR COMB LAMP VERTICAL<T98> ROAD SIDE ASSIST PACK(7LU) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 		8-94328-851-3 01 1 9611-9705 ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR COMB LAMP VERTICAL<T98> UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1),ROAD SIDE ASSIST PACK(7LU) 		8-97149-570-0 01 1 9611-9705 ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR COMB LAMP VERTICAL<T98> UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) ROAD SIDE ASSIST PACK(7LU) 		8-97149-570-0 01 1 9611-9705 ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
UNITED KINGDOM EQUIPMENT(EK3) RR COMB LAMP VERTICAL<T98> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97149-570-0 01 1 9706- ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. RR COMB LAMP VERTICAL<T98> 		8-97147-715-0 01 1 9611- ● ● ● ●
226 02.480 HARNESS; RR DOOR
CONVENIENT PACKAGE<6QZ> 		8-97149-917-2 02 1 9611- ● ●
308 02.559 BRACKET; CONNECTOR
POWER WINDOW<A30> 		8-97102-552-0 02 1 9611- ● ● ● ● ● ●

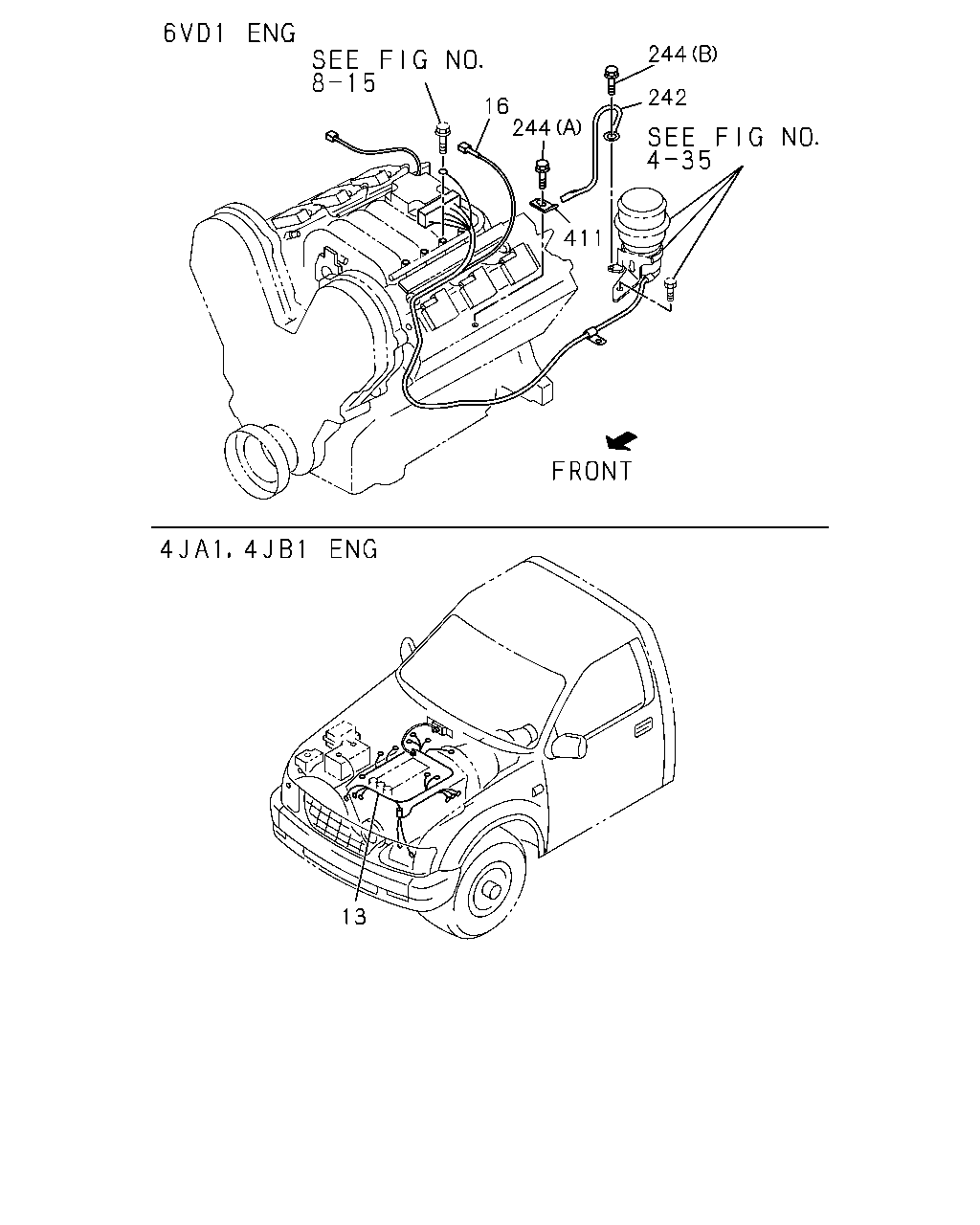

çizim 70620
16 244 242 244 411 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97165-597-2 01 1 9611- ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 		8-97165-646-2 01 1 9611-9802 ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D) 		8-97165-646-2 01 1 9803- ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97165-596-1 01 1 9611- ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97172-586-2 01 1 9803- ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 		8-97111-272-0 01 1 9611- ● ● ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) 		8-97180-303-4 01 1 9712- ● ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) 		8-97180-043-4 01 1 9712- ● ● ● ●
242 02.559 CABLE; BONDING,ENG TO BODY
6VD1 ENG(RLV) 		8-97091-683-0 01 1 9712- ● ● ● ●
244 02.559 BOLT; GRAND BONDING CABLE
6VD1 ENG(RLV) 01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9712- ● ● ● ●
244 02.559 BOLT; GRAND BONDING CABLE
6VD1 ENG(RLV) 02.343 (B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9712-9712 ● ● ● ●
244 02.559 BOLT; GRAND BONDING CABLE
6VD1 ENG(RLV) (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9712- ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-97116-129-0 01 1 9611- ● ● ● ● ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
6VD1 ENG(RLV) 02.530 		8-94102-644-0 01 1 9712- ● ● ● ●

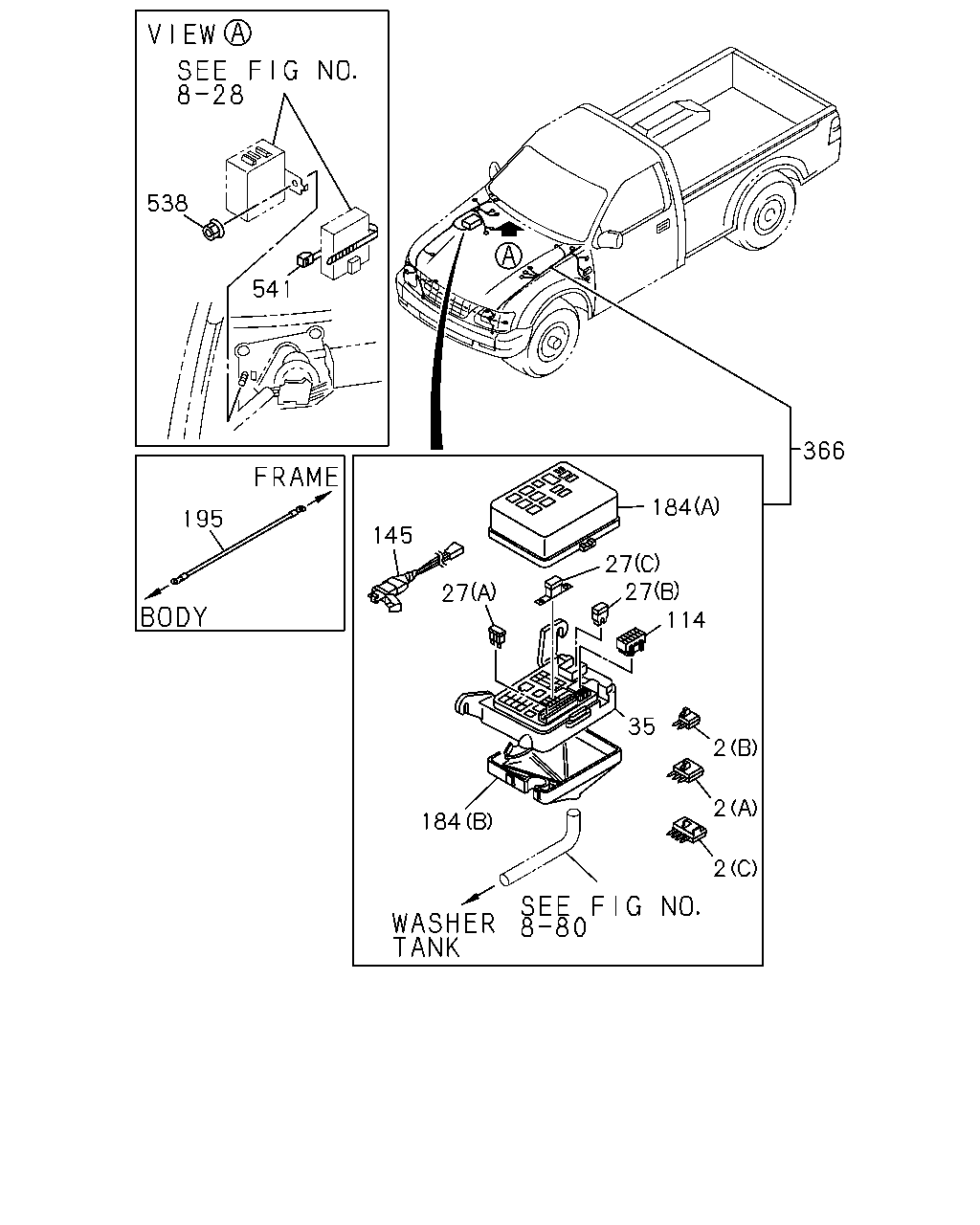

çizim 70992
538 541 366 184 195 145 27 27 114 27 35 2 2 184 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 02.483 DIODE; CABLE HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9611- ● ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9611- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (C) BLACK 4P-1.5A 		8-94381-730-0 01 1 9611- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
UNITED KINGDOM EQUIPMENT(EK3) (D) BLACK 2P-2.0A 		8-97138-524-0 02 1 9611- ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 9611- ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 9611- ● ●
27 08.965 FUSE UNIT
(C) 40A GREEN 		8-94388-301-0 01 1 9611- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
EXC. ELECTRIC FUEL INJECTION<6GG> (A) 15A MINI BLUE 		8-97062-023-0 02 1 9611- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
6VD1 ENG(RLV) (A) 15A MINI BLUE 		8-97062-023-0 02 1 9611- ● ● ● ●
27 08.965 FUSE UNIT
EXC. ELECTRIC FUEL INJECTION<6GG> (A) 20A MINI YELLOW 		8-97062-024-0 01 1 9611- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) 10A MINI RED 		8-97062-022-0 05 1 9611- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
ELECTRIC FUEL INJECTION<6GG> (A) 10A MINI RED 		8-97062-022-0 05 1 9611- ● ● ● ● ● ●
27 08.965 FUSE UNIT
4JA1 ENG(RLE),4JB1 ENG(RLF) 02.483 (B) 50A RED 		8-94468-663-0 01 1 9611- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) (C) 100A BLUE 		8-94388-306-0 01 1 9611- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
ELECTRIC FUEL INJECTION<6GG> (C) 100A BLUE 		8-94388-306-0 01 1 9611- ● ● ● ● ● ●
27 08.965 FUSE UNIT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (B) 40A GREEN 		8-94468-662-0 01 1 9712- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> (A) 10A MINI RED 		8-97062-022-0 06 1 9611- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> (C) 80A BLACK 		8-94388-305-0 01 1 9611- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (A) 15A MINI BLUE 		8-97062-023-0 03 1 9611- ● ● ● ● ● ●
27 08.965 FUSE UNIT
4ZE1 ENG(RLJ),6VD1 ENG(RLV) AUSTRALIA EQUIPMENT(RR3) (A) 20A MINI YELLOW 		8-97062-024-0 02 1 9611- ● ● ● ● ● ●
27 08.965 FUSE UNIT
6VD1 ENG(RLV) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) (A) 10A MINI RED 		8-97062-022-0 09 1 9712- ● ●
27 08.965 FUSE UNIT
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 10A MINI RED 		8-97062-022-0 07 1 9611- ● ● ● ●
27 08.965 FUSE UNIT
6VD1 ENG(RLV) (A) 40A GREEN 		8-97183-644-0 01 1 9712- ● ● ● ●
27 08.965 FUSE UNIT
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) (A) 10A MINI RED 		8-97062-022-0 08 1 9712- ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97104-108-2 01 1 9611- ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
6VD1 ENG(RLV) 		8-97940-316-0 01 1 9712- ● ● ● ●
114 02.483 BOX ASM; FUSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97104-121-0 01 1 9611- ● ● ● ● ● ● ● ●
145 02.480 HARNESS; IDLE CONT ADJ
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 		8-94363-520-0 01 1 9611- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-97104-115-1 01 1 9611- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97142-801-1 01 1 9611- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> (A) 		8-97142-800-1 01 1 9611- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97142-802-1 01 1 9611- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97142-799-1 01 1 9611- ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
6VD1 ENG(RLV) (A) 		8-97180-242-1 01 1 9712- ● ● ● ●
195 01.150 HARNESS; EXT
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97088-658-1 01 1 9611- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97165-608-2 01 1 9611- ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 		8-97165-607-2 01 1 9611- ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) A/T AISIN(RMD) 		8-97165-604-2 01 1 9611- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) 		8-97165-609-0 01 1 9611-9612 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D) 		8-97165-609-2 01 1 9701- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97165-610-2 01 1 9611- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) ELECTRIC FUEL INJECTION<6GG> 		8-97165-603-2 01 1 9611- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) 		8-97189-633-0 01 1 9712-9801 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) 		8-97203-080-0 01 1 9802- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97165-602-2 01 1 9611- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) 		8-97189-632-0 01 1 9712- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97172-585-2 01 1 9701- ● ● ● ●
538 02.483 NUT
10.147 M6 W/DISHED WASHER 		8-94423-325-0 01 1 9611- ● ●
538 02.483 NUT
INTERMITTENT WIPER<C13> 10.147 M6 W/DISHED WASHER 		8-94423-325-0 01 1 9611- ● ● ● ● ● ●
541 02.483 CLIP
EXC. INTERMITTENT WIPER<C13> 02.559 L=219.5 		1-09987-136-0 01 1 9611- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
